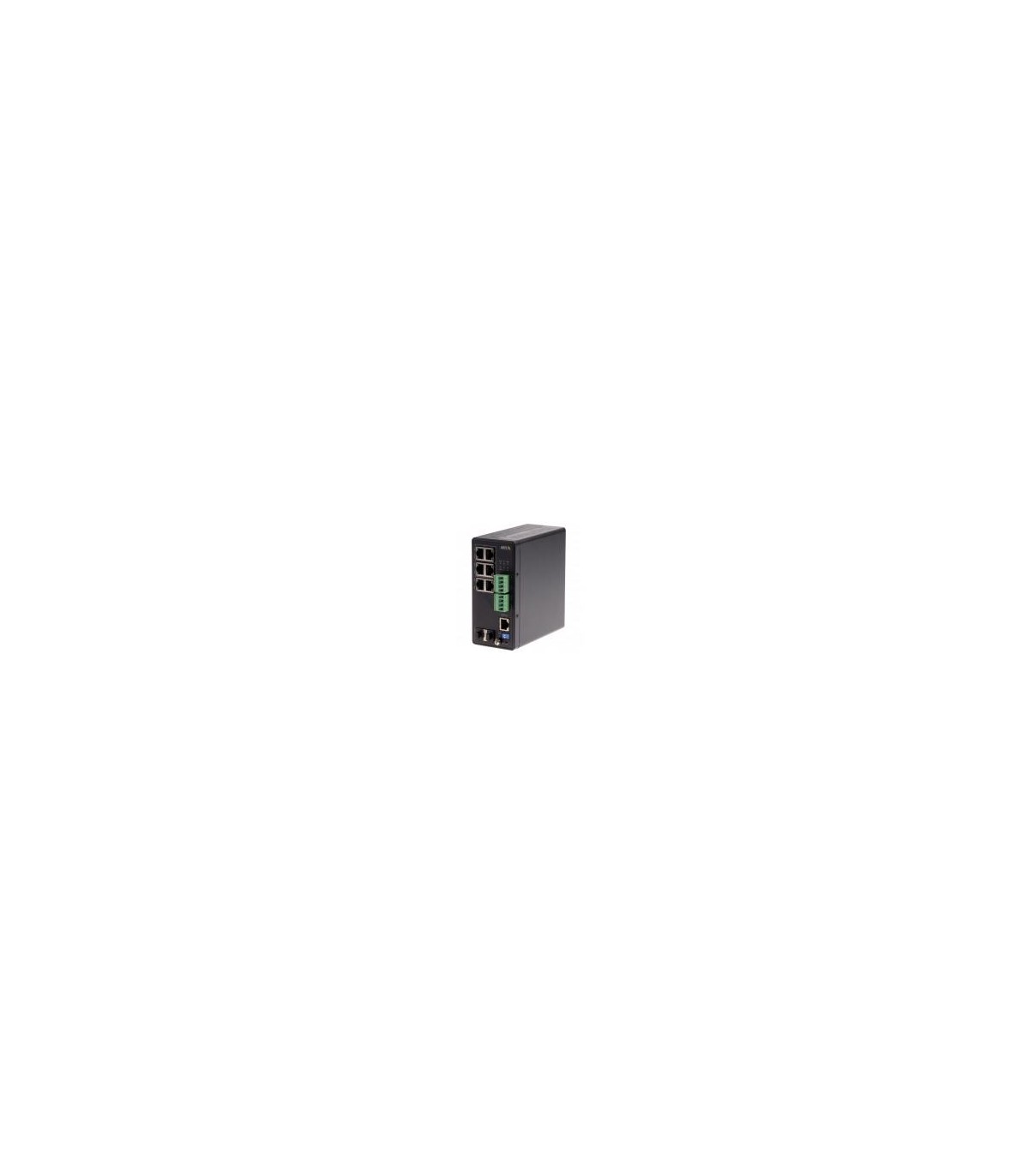

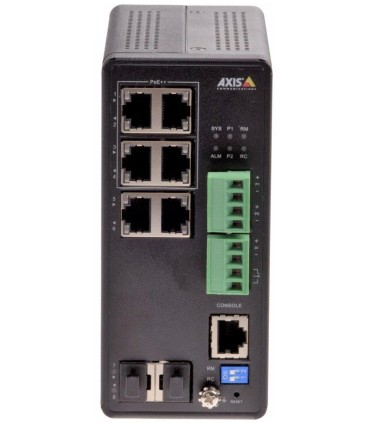

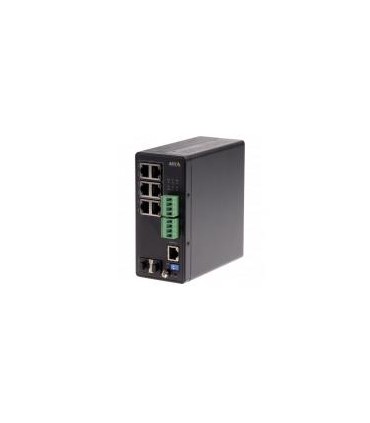

AXIS NET SWITCH 4PORT POE+ T8504-R/01633-001

Specification

Housing material

Aluminium

Other features

Depth

130 mm

Height

135 mm

Width

62 mm

Unit Box Width

0.085

Unit Box Length

0.26

Unit Box Height

0.21

Category Code

SWI

Switch type

Managed

Switching capacity

16 Gbit/s

Surge protection

Yes

Unit Calculated Volume

0.004641 cubm

Unit Calculated Weight

1.06 kg

Units per Shipping Box

1

Summary

Axis 01633-001. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Network

Product colour

Black

Certification

EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 IEC 62236-4, IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, 60068-2-31, NEMA TS-2-2003

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-40 - 75 °C

Quick start guide

Yes

Weight

600 g

Storage temperature (T-T)

-40 - 85 °C

Harmonized System (HS) code

85176990

Password protection

Yes

Security algorithms

HTTPS/SNMP/SNMPv3

Mounting brackets included

Yes

Jumbo frames support

Yes

Networking standards

IEEE 802.1Q/IEEE 802.1x

Power connector

DC-in jack

10G support

No

Basic switching RJ-45 Ethernet ports quantity

4

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

MAC address table

8000 entries

Jumbo frames

9216

Power over Ethernet (PoE) ports quantity

4

Power over Ethernet (PoE) power per port

60 W

Total Power over Ethernet (PoE) budget

240 W

DC input voltage

54 - 57 V

VLAN support

Yes

Throughput

11.9 Mpps

Authentication type

RADIUS

Console port

RJ-45

Fiber optic connector

SFP
