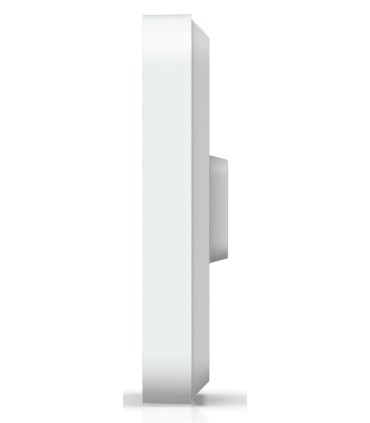

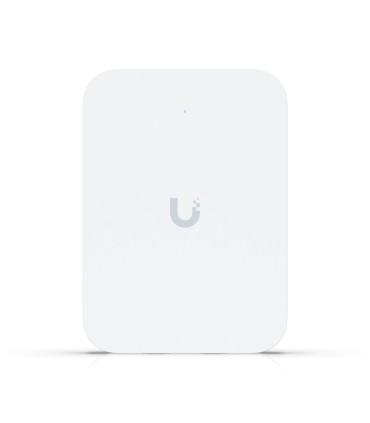

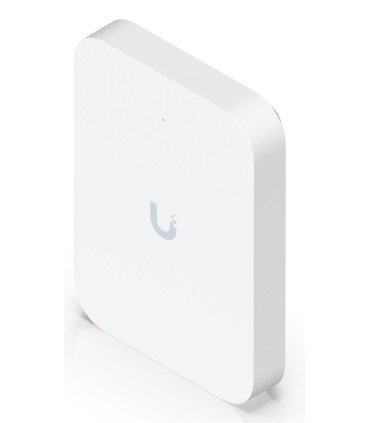

UBIQUITI WRL ACCESS POINT/U7-IW

Specification

Housing material

Aluminium,Polycarbonate (PC)

Other features

Depth

30.2 mm

Height

137 mm

Width

98.7 mm

Unit Box Width

0.15

Unit Box Length

0.2

Unit Box Height

0.07

Category Code

WAP

Model name

U7 In-Wall

Model

U7-IW

Antenna Type

Internal

Unit Calculated Volume

0.003699 cubm

Unit Calculated Weight

0.667 kg

Units per Shipping Box

12

Summary

Ubiquiti U7 In-Wall. 2.4 GHz, 5 GHz, Maximum data transfer rate: 4300 Mbit/s. Security algorithms: PPSK. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 13 W

Product colour

White

Power consumption (max)

13 W

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-30 - 40 °C

Compliance certificates

CE/Federal Communications Commission (FCC)/Industry Canada (IC)

Weight

400 g

LED indicators

Status

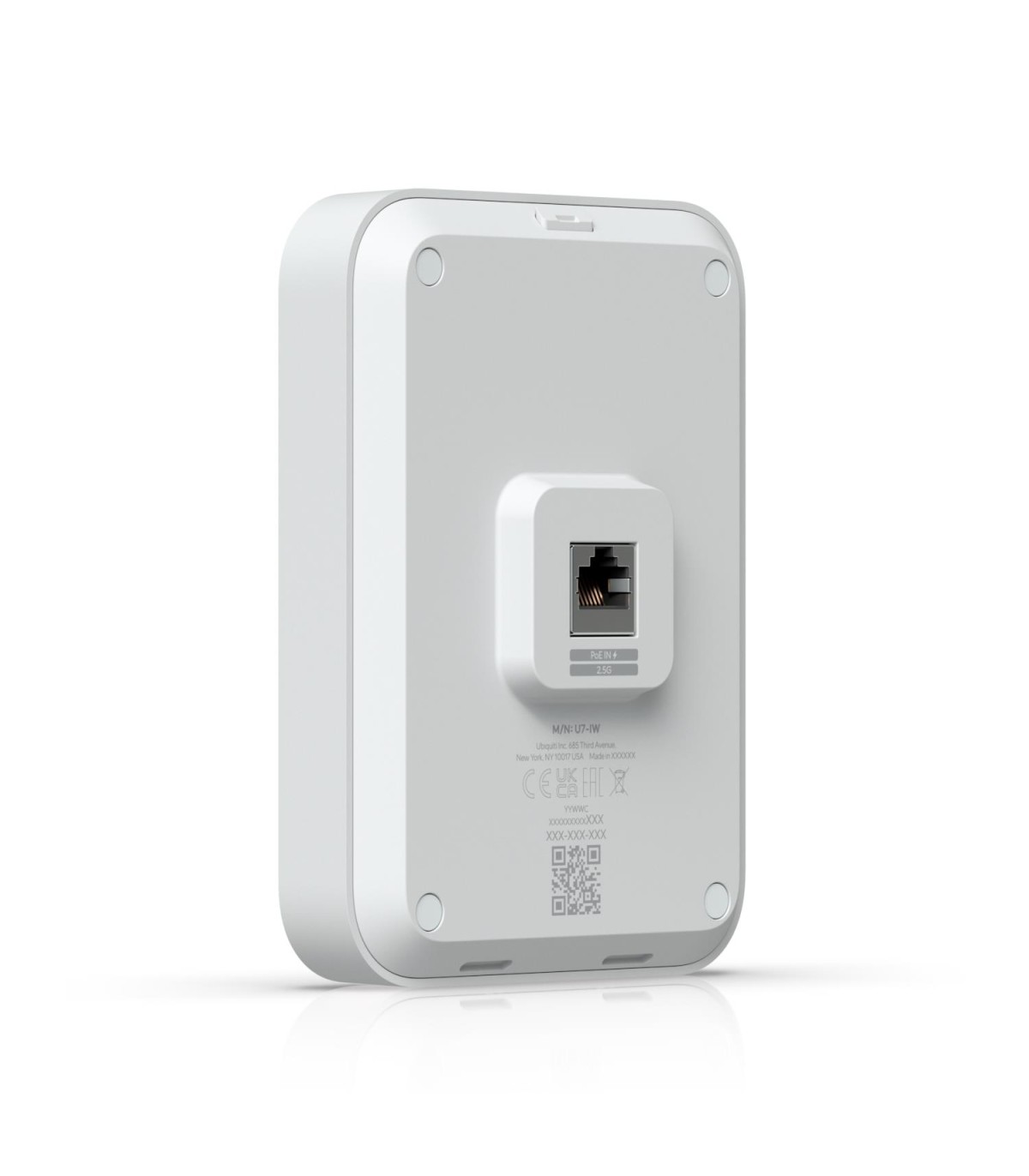

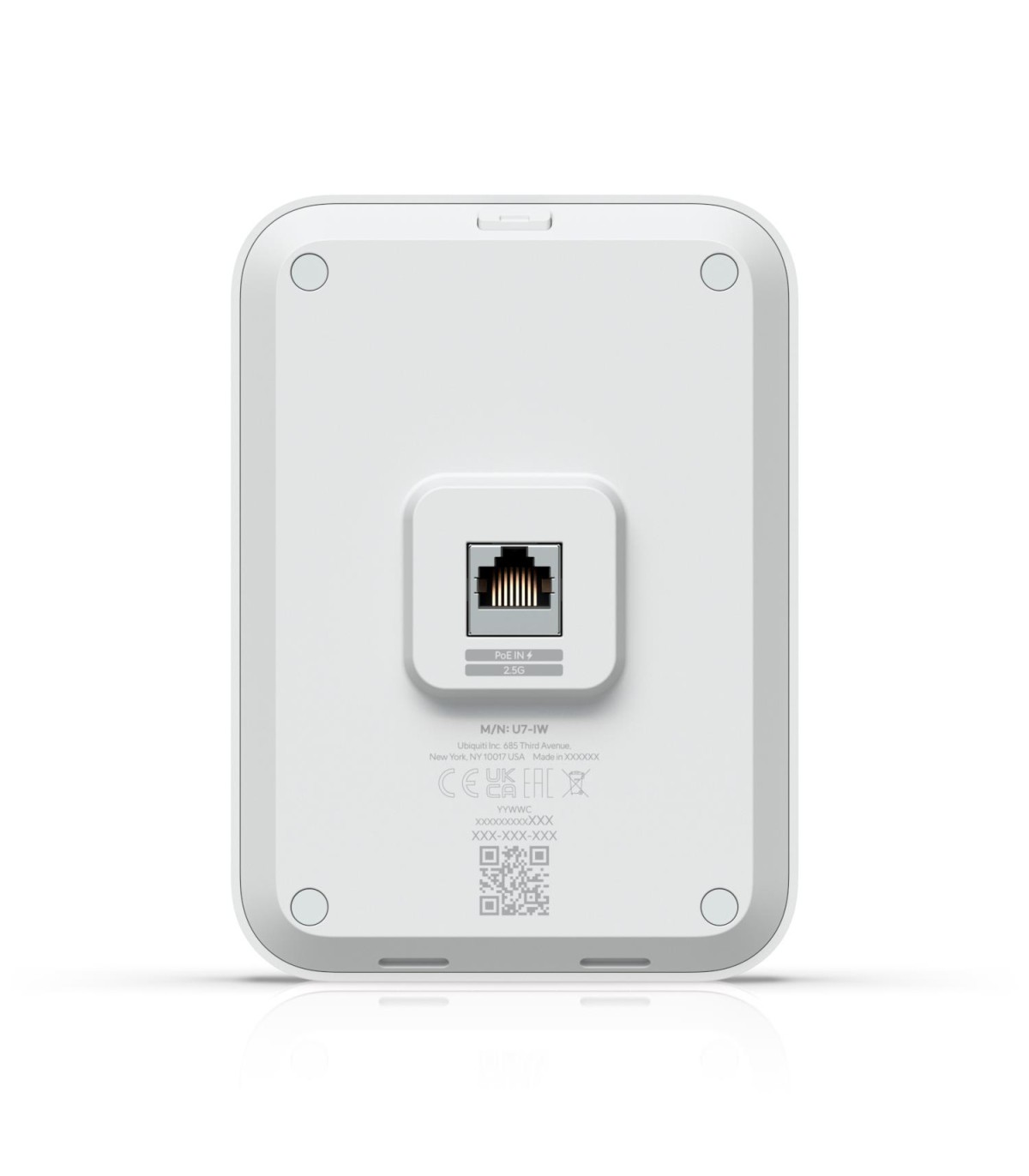

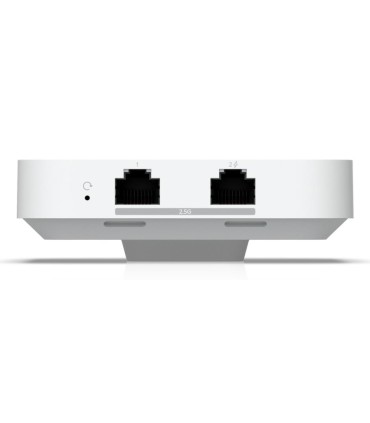

Ethernet LAN (RJ-45) ports

3

Ethernet LAN data rates

2500 Mbit/s

Quantity per pack

1 pc(s)

Frequency band

2.4 - 5 GHz

Reset button

Yes

MIMO

Yes

Security algorithms

PPSK

MIMO type

Multi User MIMO

Maximum data transfer rate

4300 Mbit/s

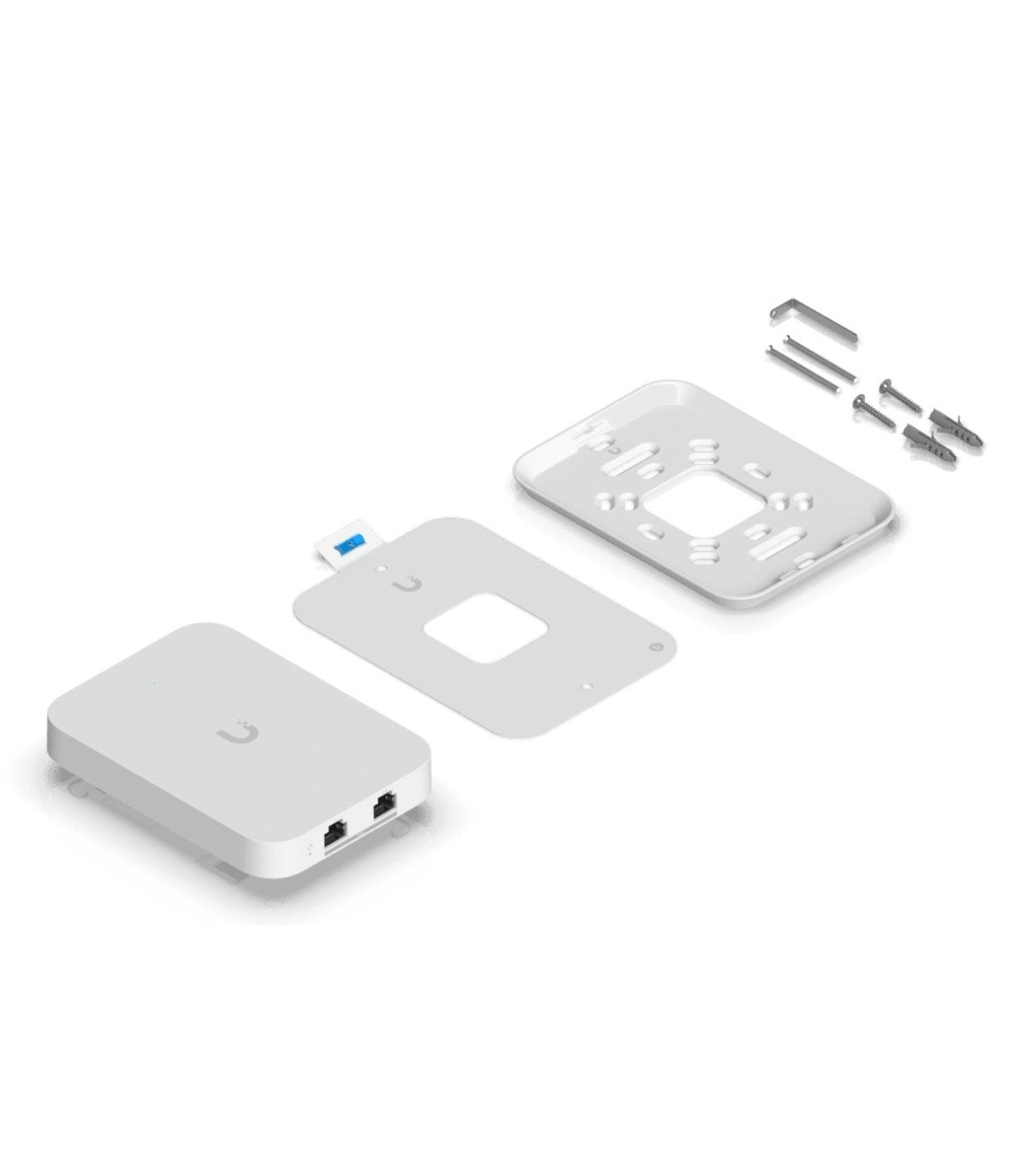

Mounting kit

Yes

Networking standards

IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11be/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v

Power over Ethernet (PoE)

Yes

VLAN support

Yes

Antennas quantity

4

Maximum Tx power (2.4 GHz)

23 dBmW

Maximum Tx power (5 GHz)

24 dBmW

Antenna gain level (max)

8 dBi

2.4 GHz

Yes

5 GHz

Yes

6 GHz

No

Band steering

Yes

Fit AP mode features

Hotspot 2.0

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

Maximum data transfer rate (5 GHz)

4300 Mbit/s

Number of users

200 user(s)

DC voltage range

42.5 - 57 V

Placement

Wall

Spatial streams

4

Coverage area

115 m²

Fast roaming

Yes

Wireless meshing

Yes

Access point management

Wi-Fi schedule
