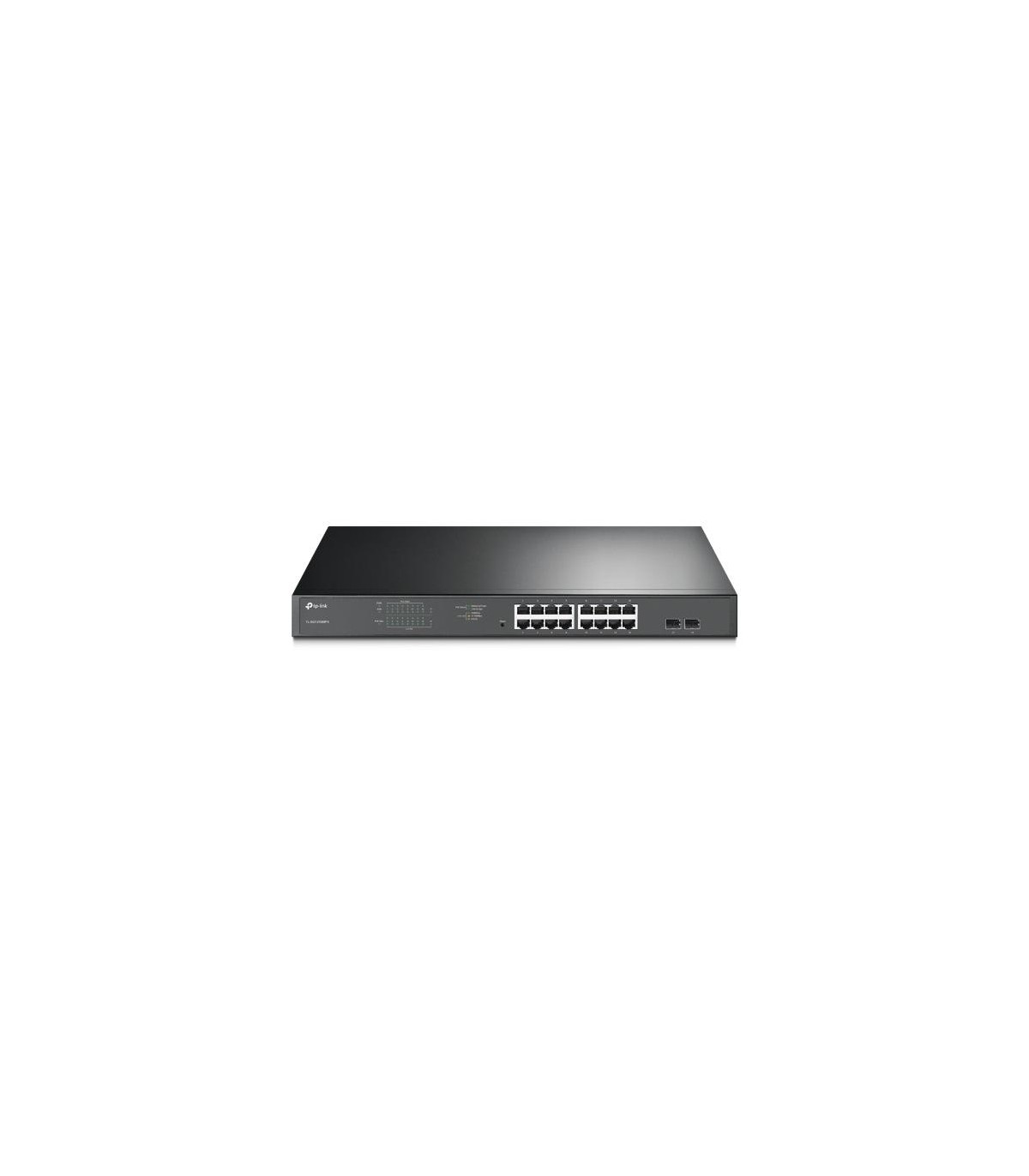

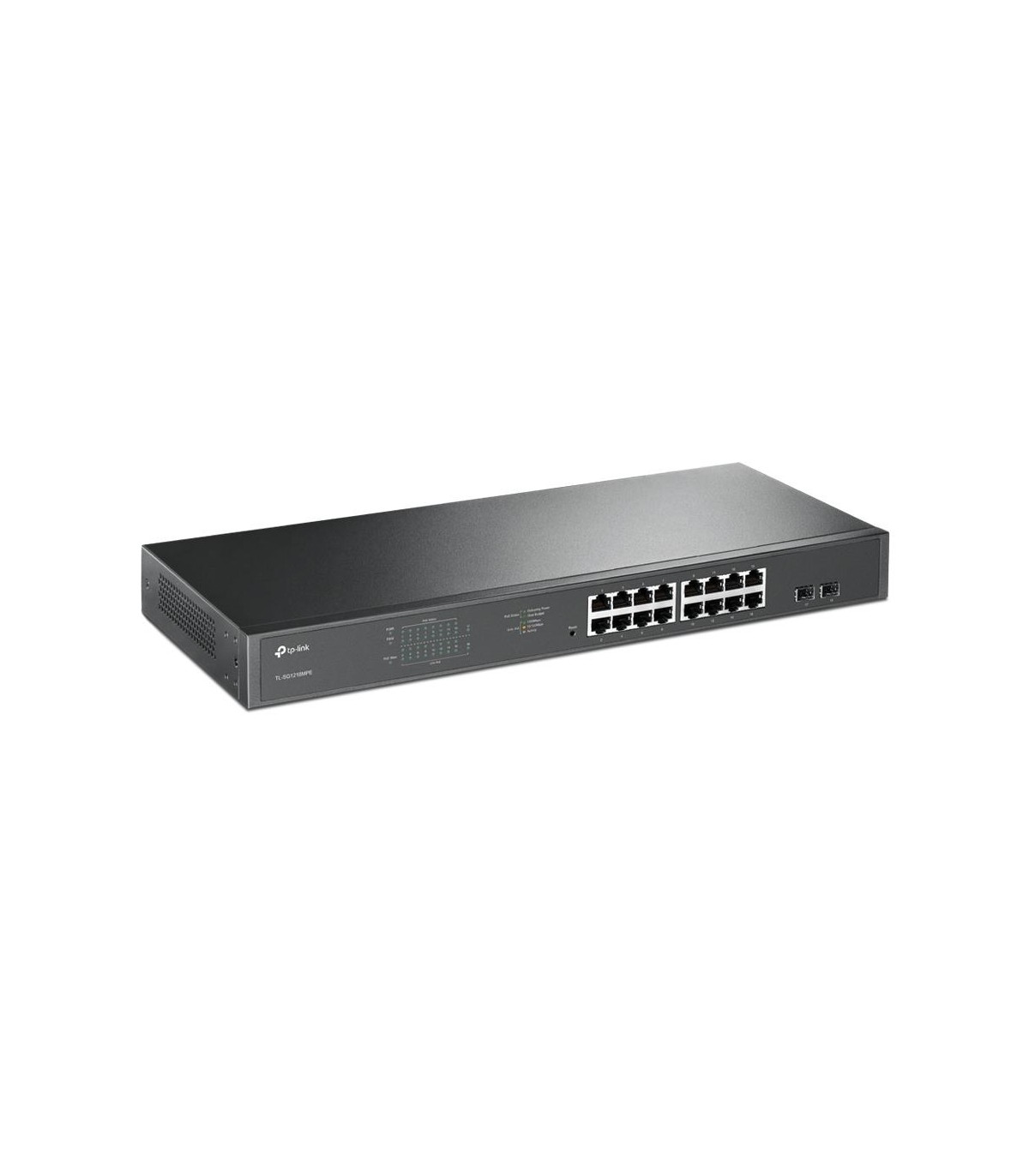

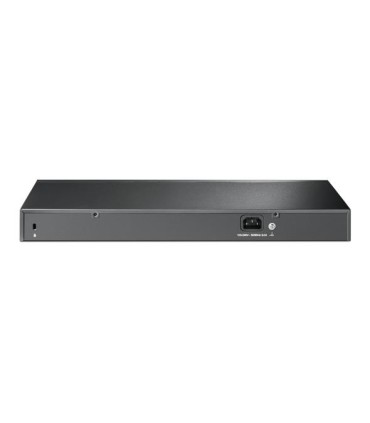

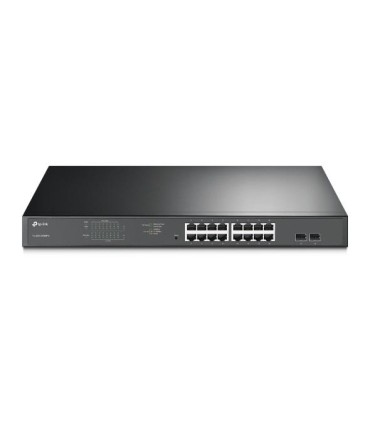

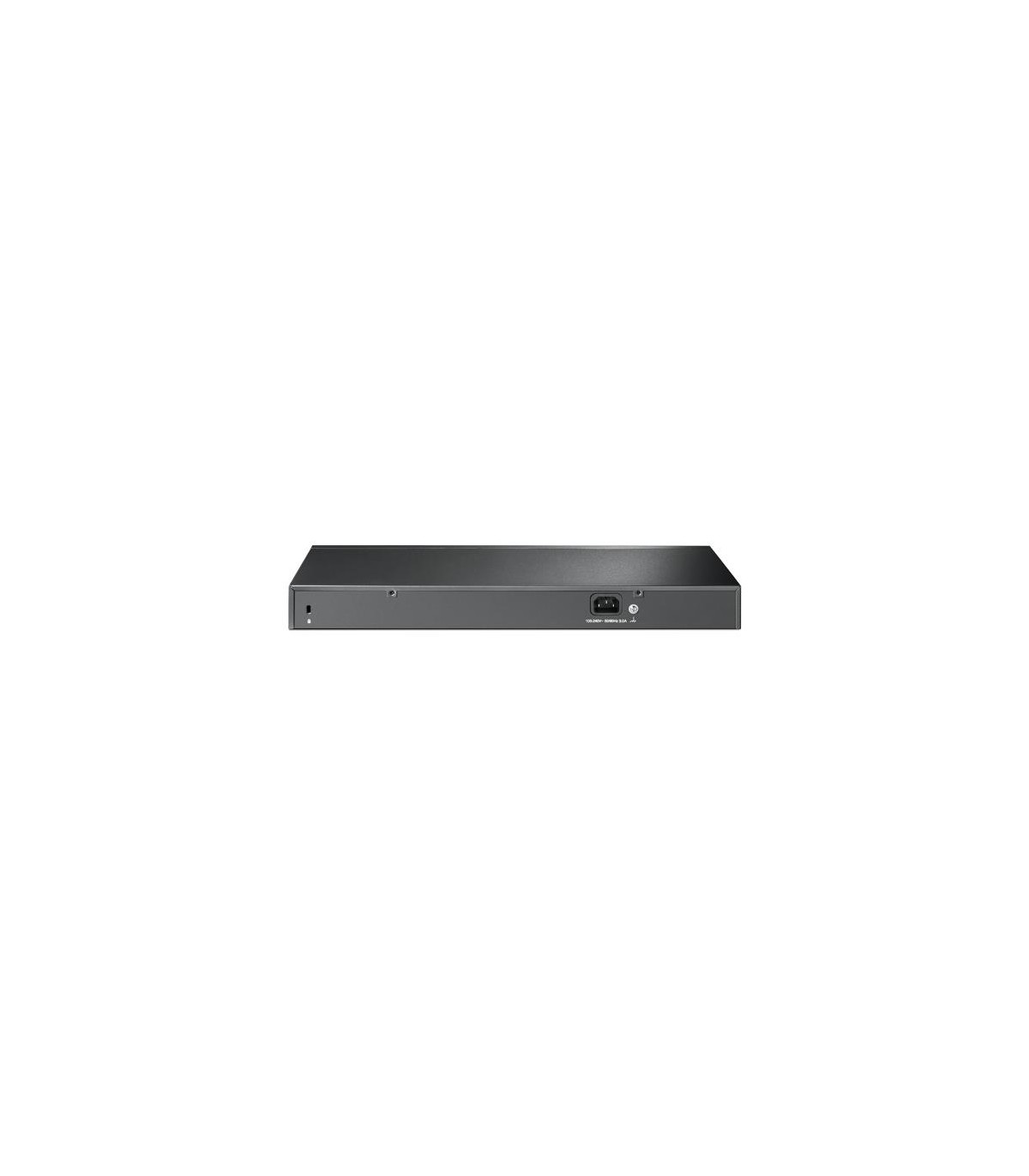

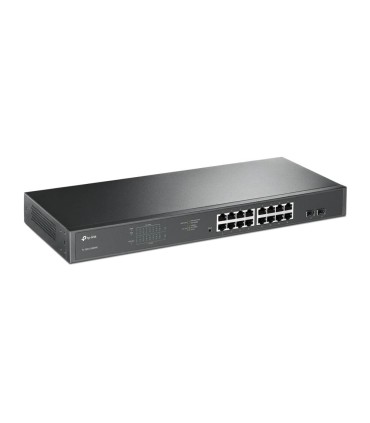

TP-LINK Switch TL-SG1218MPE Desktop/pedestal Rack 16x10Base-T / 100Base-TX / 1000Base-T PoE+ ports 16 192 Watts TL-SG1218MPE

Other features

Depth

180 mm

Height

44 mm

Width

440 mm

Unit Box Width

0.25

Unit Box Length

0.53

Unit Box Height

0.08

Category Code

SWI

Model name

TL-SG1218MPE

Form Factor

1U

Switch type

Managed

Switching capacity

36 Gbit/s

Forwarding rate

23.8 Mpps

Number of fans

2 fan(s)

Auto-negotiation

Yes

Power source

AC

Unit Calculated Volume

0.0106 cubm

Unit Calculated Weight

3.11 kg

Units per Shipping Box

1

Summary

TP-Link JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 ent

Product colour

Black

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Package depth

528 mm

Package height

80 mm

Package weight

2910 g

Package width

250 mm

Cables included

AC

Certification

CE, FCC, RoHS

Power consumption (max)

217.22 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 50 °C

Storage relative humidity (H-H)

5 - 90 %

Storage temperature (T-T)

-40 - 70 °C

Harmonized System (HS) code

85176990

Heat dissipation

741.15 BTU/h

User guide

Yes

Power supply included

Yes

Copper ethernet cabling technology

1000BASE-T/100BASE-TX/10BASE-T

Security algorithms

SNMP/SNMPv2/SNMPv3

Jumbo frames support

Yes

Networking standards

IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x

Auto MDI/MDI-X

Yes

Rack mounting

Yes

10G support

No

Basic switching RJ-45 Ethernet ports quantity

16

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

Gigabit Ethernet (copper) ports quantity

16

MAC address table

8000 entries

Store-and-forward

Yes

Jumbo frames

9000

Flow control support

Yes

Packet buffer memory

4.1 MB

Total Power over Ethernet (PoE) budget

192 W

Switch layer

L2

Cable types supported

Cat3/Cat4/Cat5/Cat5e/Cat6

Quality of Service (QoS) support

Yes

Port mirroring

Yes

IGMP snooping

Yes

Web-based management

Yes

Loop protection

Yes

Broadcast storm control

Yes

Link aggregation

Yes

VLAN support

Yes

Virtual LAN features

Port-based VLAN

Number of VLANs

32

Rack mount kit

Yes

SFP module slots quantity

2

Power over Ethernet plus (PoE+) ports quantity

16

Fiber ethernet cabling technology

1000BASE-X

Number of queues

4

Rate limiting

Yes
