1159602
Specification
- Housing material
- Plastic
Other features
- Depth
- 79 mm
- Height
- 60.3 mm
- Width
- 224.4 mm
- Unit Box Width
- 0.133
- Unit Box Length
- 0.272
- Unit Box Height
- 0.108
- Category Code
- WAP
- Model name

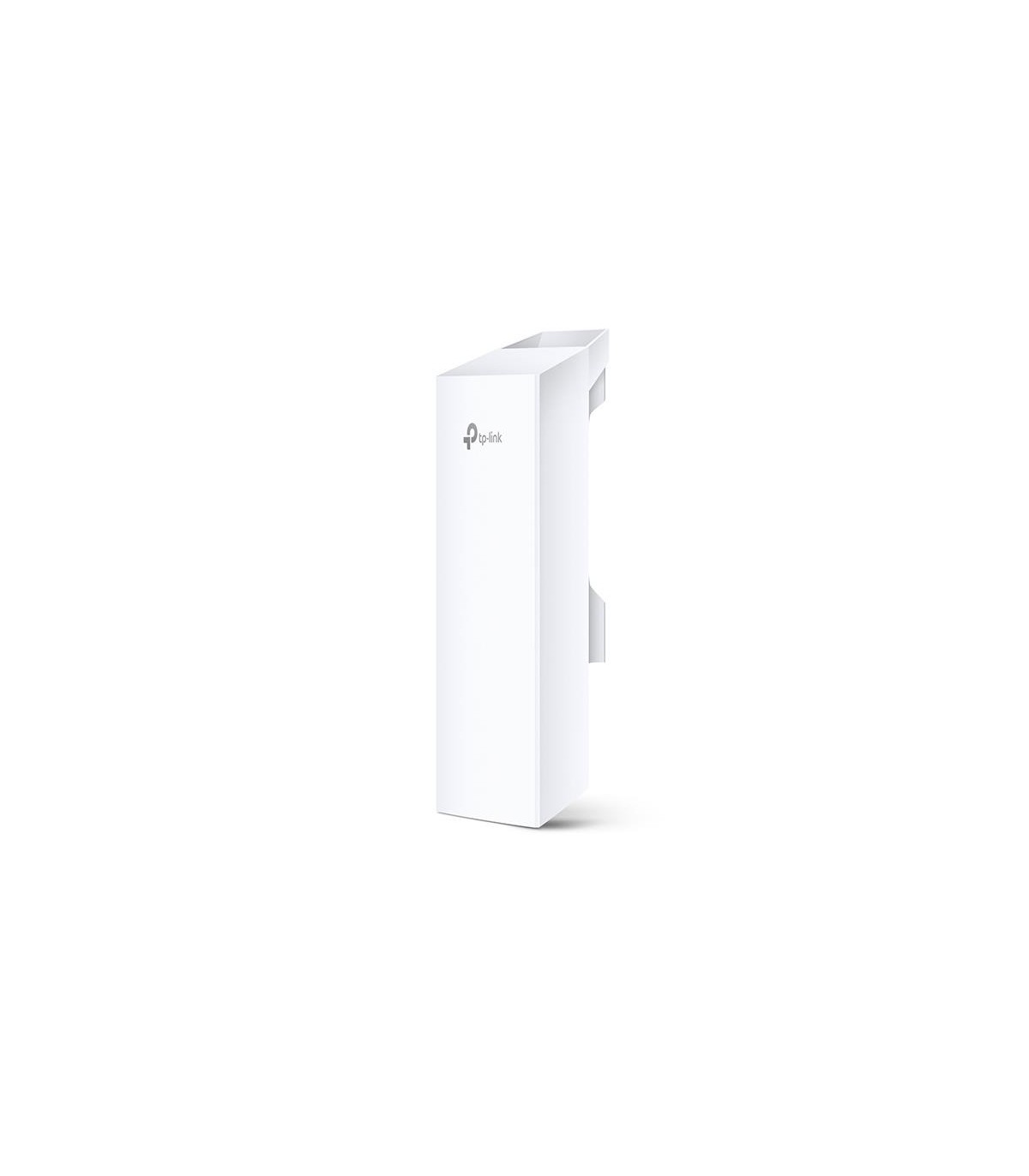

- 5GHz 300Mbps 13dBi Outdoor CPE
- Model
- CPE510
- Antenna Type
- Internal
- Unit Calculated Volume
- 0.004703 cubm
- Unit Calculated Weight
- 0.985 kg
- Units per Shipping Box
- 20
- Summary
- TP-Link 5GHz 300Mbps 13dBi Outdoor CPE. 5 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
- Product colour
- White
- Power consumption (typical)
- 13 W
- Package depth
- 270 mm
- Package height
- 106 mm
- Package weight
- 720 g
- Package width
- 132 mm
- Cables included
- AC
- DC-in jack
- Yes
- Certification
- - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark- RoHS
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -30 - 70 °C
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -40 - 70 °C
- LED indicators
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10/100 Mbit/s
- Compatible operating systems
- Microsoft Windows 98SE, NT, 2000, XP, VistaT or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
- Processor frequency
- 560 MHz
- Quantity per pack
- 1 pc(s)
- Frequency band
- 5.15 - 5.85 GHz
- Reset button
- Yes
- Processor model
- Qualcomm Atheros
- Internal memory
- 64 MB
- Cabling technology
- 10/100Base-T(X)
- International Protection (IP) code
- IP5X
- Processor architecture
- MIPS 74Kc
- Built-in processor
- Yes
- Security algorithms
- AES/TKIP/WPA/WPA2/WPA2-PSK/WPA-PSK
- Management protocols
- TDMA
- Maximum data transfer rate
- 300 Mbit/s
- Mounting kit
- Yes
- Bandwidth
- 5 GHz
- Networking standards
- IEEE 802.11a/IEEE 802.11n
- Flash memory
- 8 MB
- Power over Ethernet (PoE)
- Yes
- IGMP snooping
- Yes
- Web-based management
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Tagged VLAN
- MAC address filtering
- Yes
- Firmware upgradeable
- Yes
- Antennas quantity
- 1
- Universal Plug and Play (UPnP)
- Yes
- IP address filtering
- Yes
- Receiver sensitivity
- 802.11a:54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm802.11n:MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,MCS6: -74dBm, MCS5: -76
- Antenna gain level (max)
- 13 dBi
- Antenna direction type
- Omni-directional
- Automatic channel selection
- Yes
- 2.4 GHz
- No
- 5 GHz
- Yes
- 6 GHz
- No
- Automatic channel scanning
- Yes
- Maximum data transfer rate (5 GHz)
- 300 Mbit/s
- Syslog
- Yes
- DC voltage range
- 16 - 27 V
- Placement
- Pole,Wall
- Service Set Identifier (SSID) features
- SSID broadcast/SSID broadcast on/off
- Antenna features
- Integrated antenna
- PoE adapter included
- Yes
- Wireless isolation
- Yes

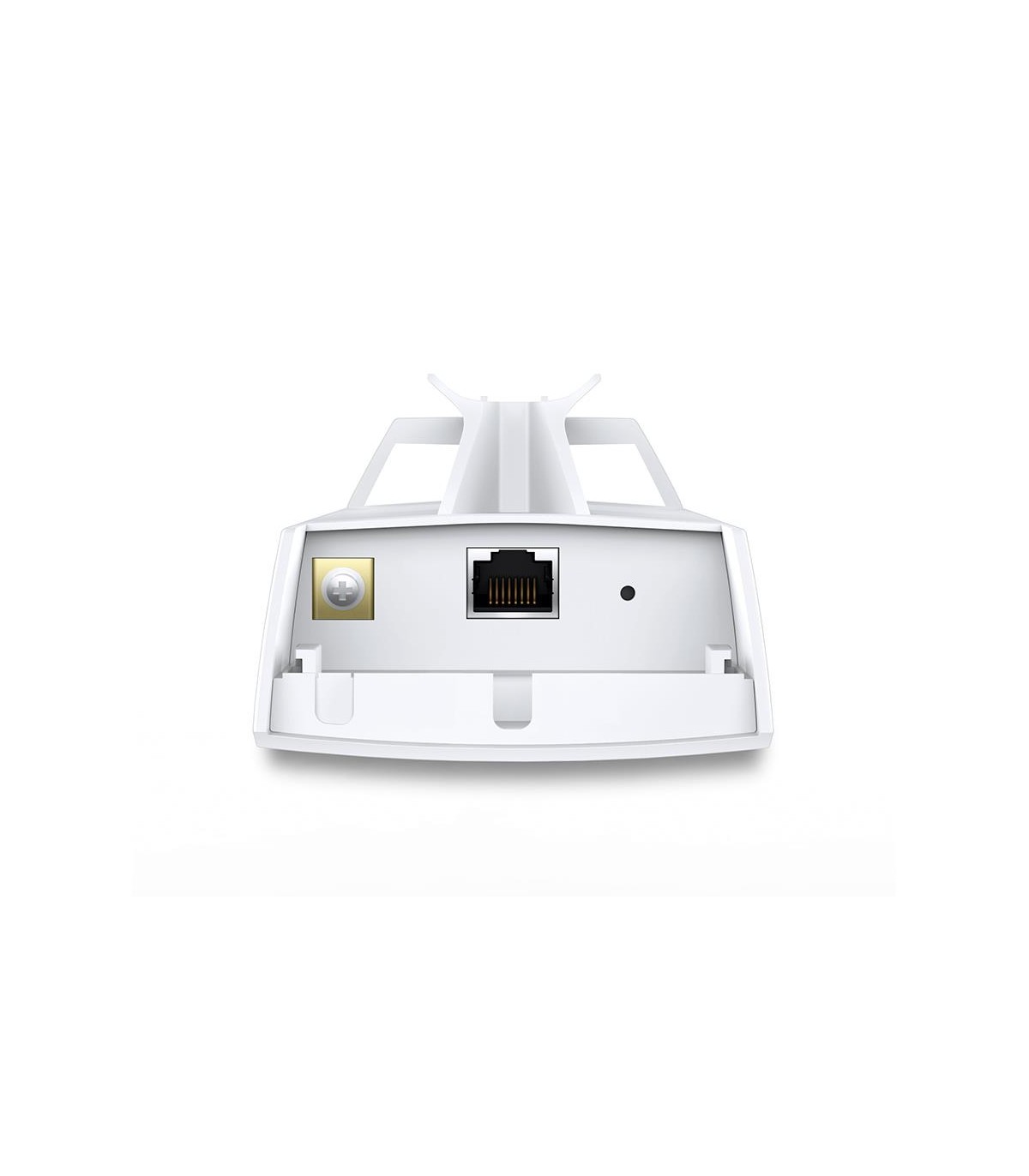

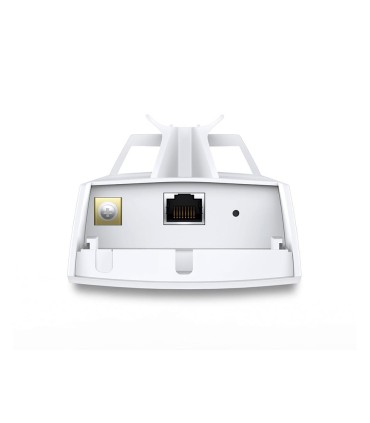

- WAN connection
- Ethernet (RJ-45)
- Throughput data rate
- 300 Mbit/s
- Management platform
- Pharos Control
- Auto Wireless Distribution System (WDS)
- Yes
- Maximum outdoor range
- 15000 m
Specific References
- EAN
- 6935364070922
