1240230
Power
- AC adapter included
- Yes
Other features
- Depth
- 46 mm
- Height
- 27 mm
- Width
- 215 mm
- Unit Box Width
- 0.14
- Unit Box Length
- 0.27
- Unit Box Height
- 0.1
- Category Code
- WAP
- Model name

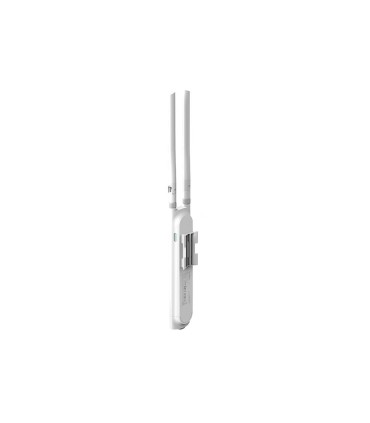

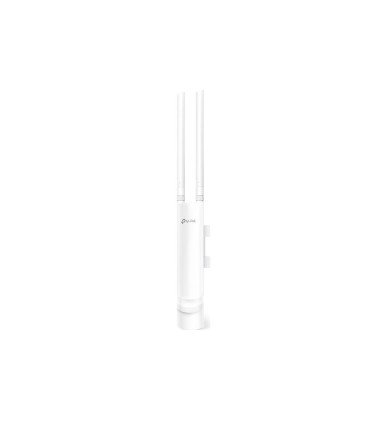

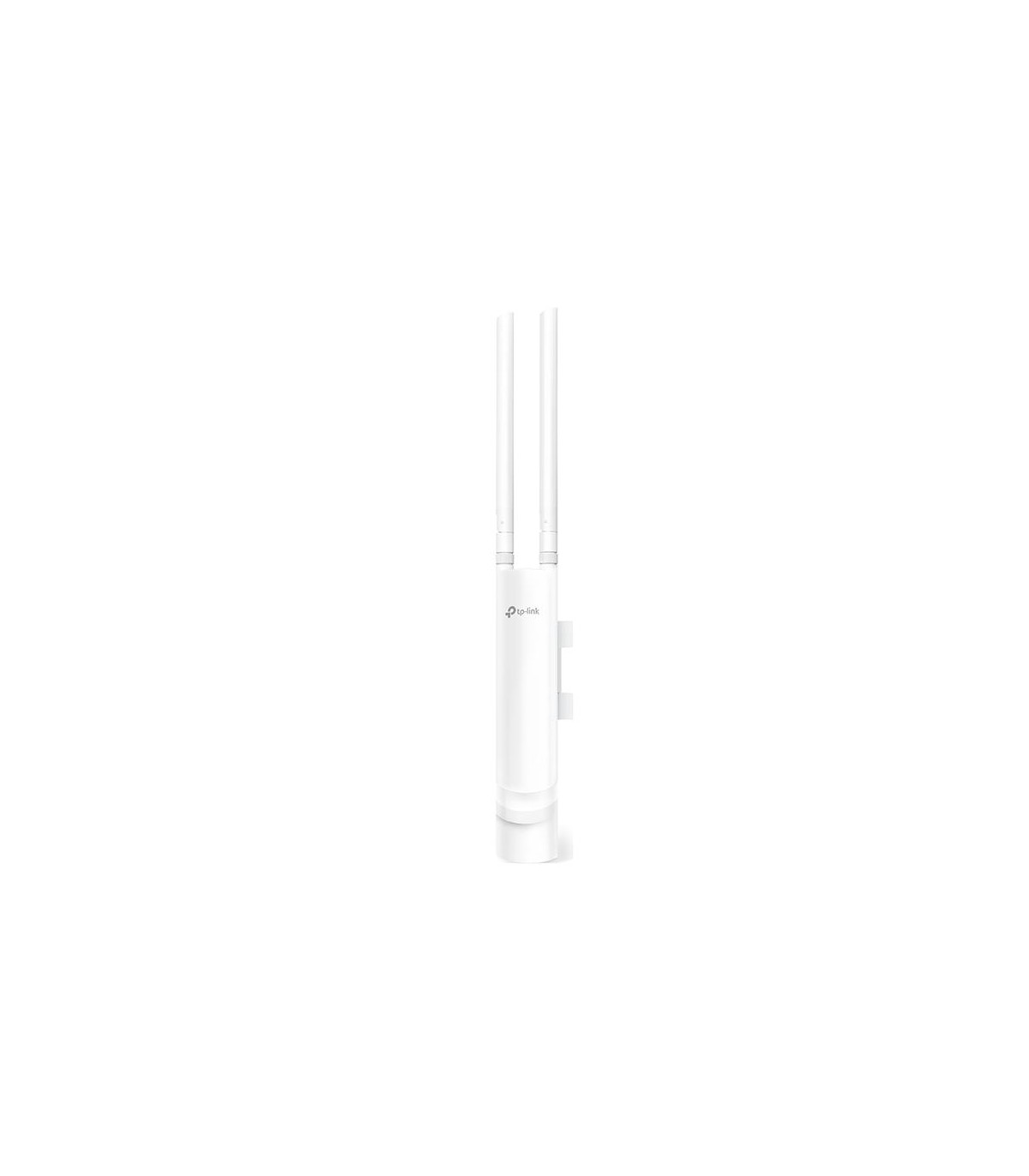

- EAP225-OUTDOOR
- Antenna Type
- External
- Unit Calculated Volume
- 0.00378 cubm
- Unit Calculated Weight
- 0.68 kg
- Units per Shipping Box
- 1
- Summary

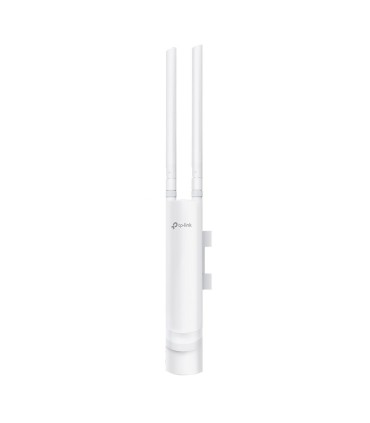

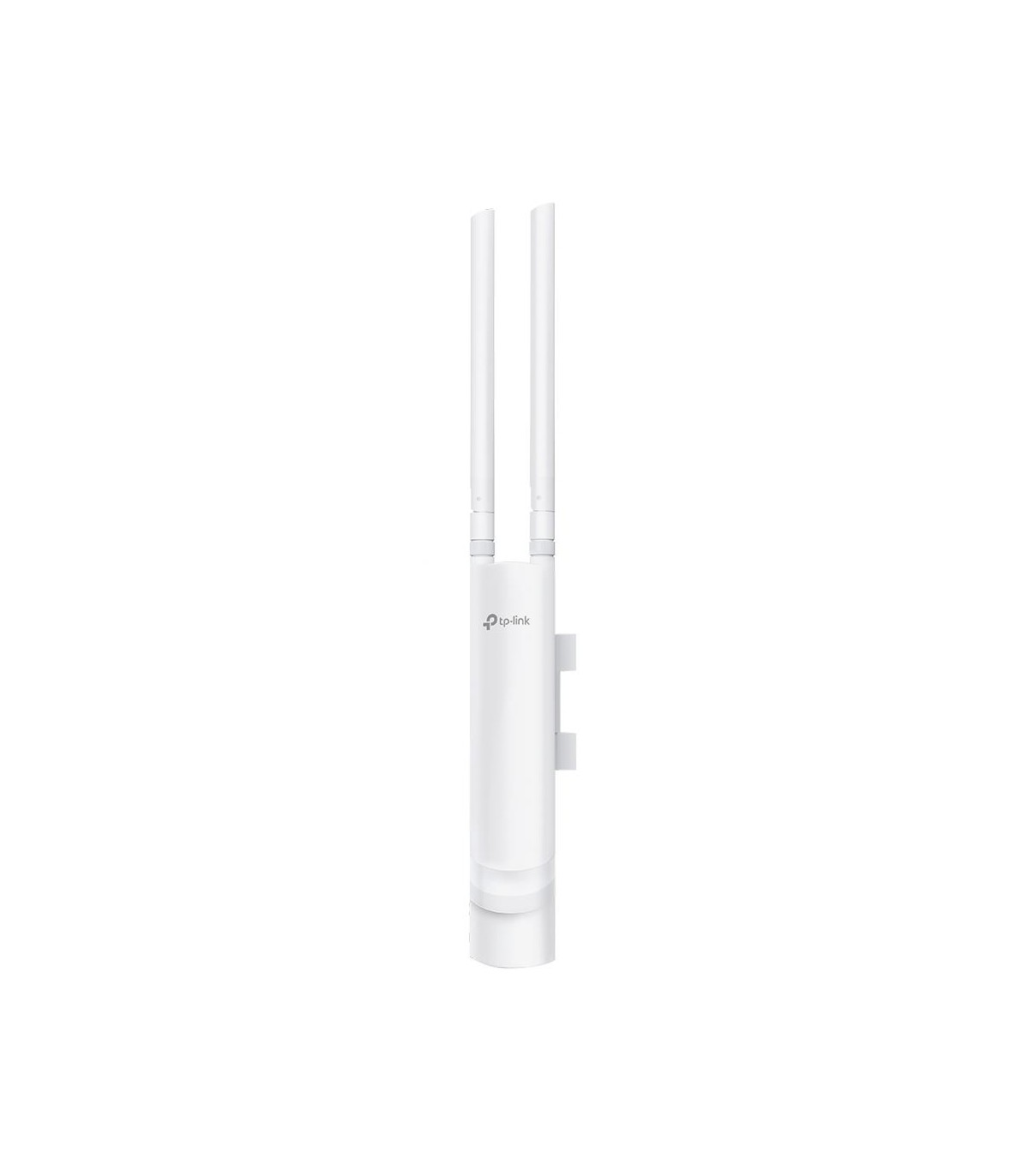

- TP-Link Omada EAP225-Outdoor. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1200 Mbit/s. Security algorithms: 802.1x RADIUS. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
- Product colour
- White
- Power consumption (typical)
- 10.5 W
- Package depth
- 270 mm
- Package height
- 100 mm
- Package weight
- 640 g
- Package width
- 140 mm
- Sustainability compliance
- Yes
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -30 - 70 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Quick start guide
- Yes
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
- Storage temperature (T-T)
- -40 - 70 °C
- Harmonized System (HS) code
- 85176990

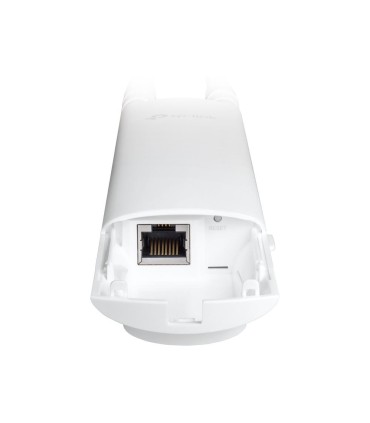

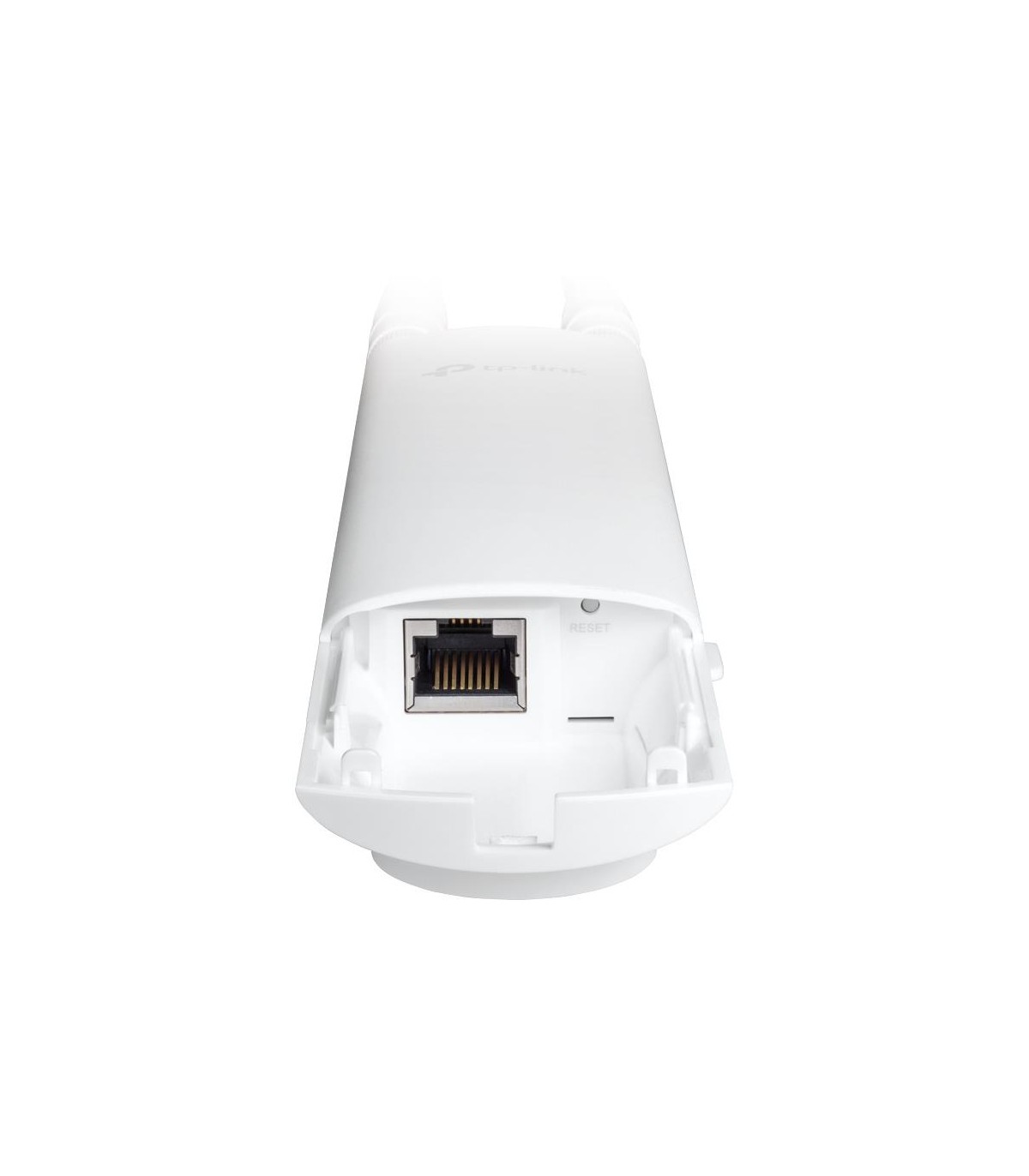

- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10/100/1000 Mbit/s
- Compatible operating systems
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Quantity per pack
- 1 pc(s)
- Frequency band
- 2.4 - 5 GHz
- Reset button
- Yes
- International Protection (IP) code
- IP65
- MIMO
- Yes
- Security algorithms
- 802.1x RADIUS
- MIMO type
- Multi User MIMO
- Maximum data transfer rate
- 1200 Mbit/s

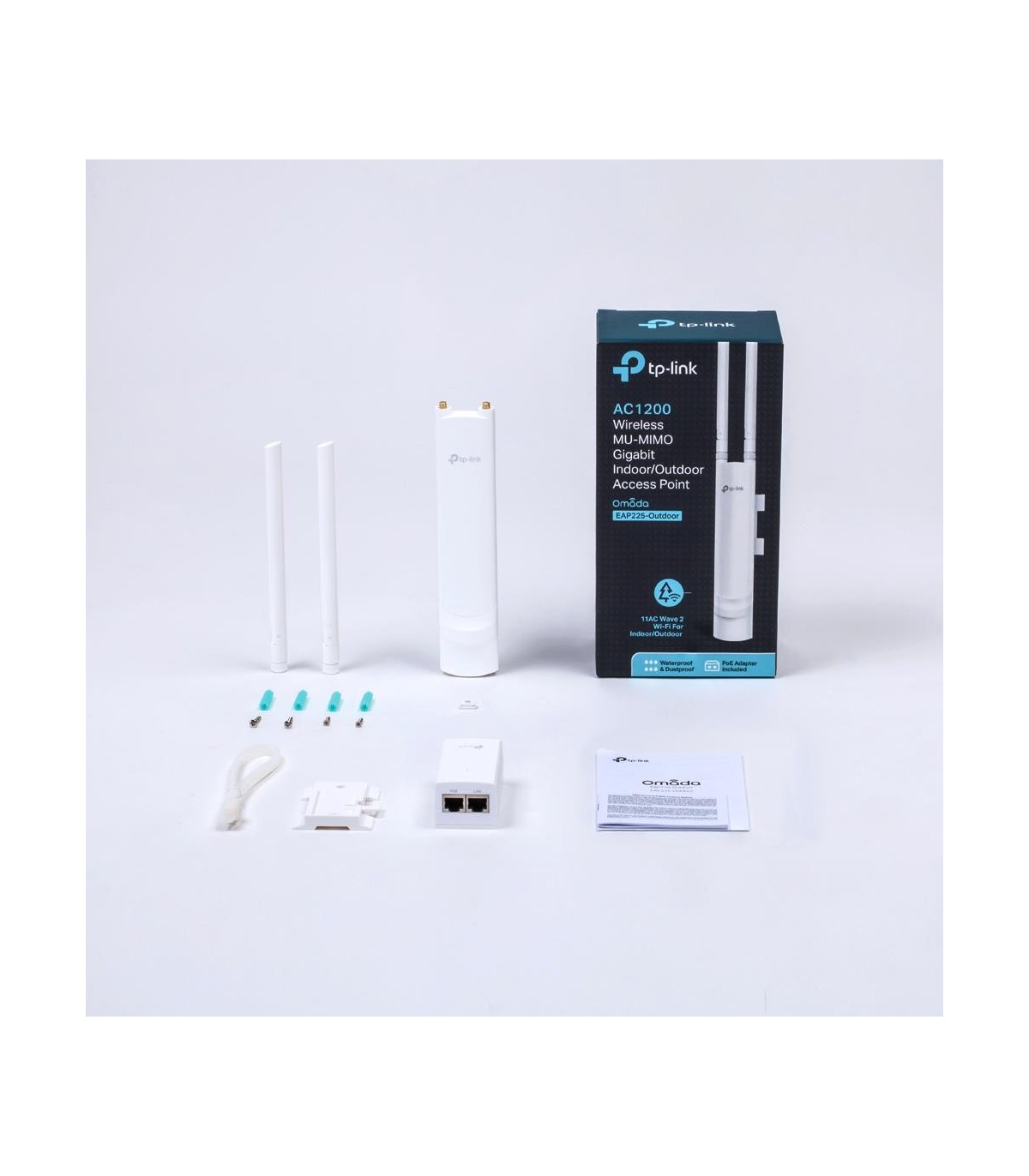

- Mounting kit
- Yes
- Networking standards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3u
- Output voltage
- 24 V
- Power over Ethernet (PoE)
- Yes
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- VLAN support
- Yes
- Virtual LAN features
- VLAN mapping
- Access Control List (ACL)
- Yes
- Rate limiting
- Yes
- MAC address filtering
- Yes
- Power over Ethernet (PoE) type supported
- Passive PoE
- Antennas quantity
- 2
- Wi-Fi Multimedia (WMM)/(WME)
- Yes
- Antenna gain level (max)
- 4 dBi
- Antenna direction type
- Omni-directional
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- 6 GHz
- No
- Airtime Fairness (ATF)
- Yes
- Band steering
- Yes
- BeamForming
- Yes
- Maximum data transfer rate (2.4 GHz)
- 300 Mbit/s
- Maximum data transfer rate (5 GHz)
- 867 Mbit/s
- Transmitting power (CE)
- 27 dBm
- Transmitting power (FCC)
- 22 dBm
- Syslog
- Yes
- Placement
- Pole,Wall
- Number of SSID supported
- 16
- Service Set Identifier (SSID) features
- Multiple SSIDs
- Antenna features
- Detachable antenna
Specific References
- EAN
- 6935364083571
