1337473
Other features
- Depth
- 180 mm
- Height
- 44 mm
- Width
- 440 mm
- Unit Box Width
- 0.08
- Unit Box Length
- 0.53
- Unit Box Height
- 0.25
- Category Code
- SWI
- Model name
- TL-SX3008F
- Series
- Omada
- Switch type
- Managed
- Switching capacity
- 160 Gbit/s
- Forwarding rate
- 119.04 Mpps
- Power source
- AC
- Unit Calculated Volume
- 0.0106 cubm
- Unit Calculated Weight
- 2.43 kg
- Units per Shipping Box
- 1
- Summary

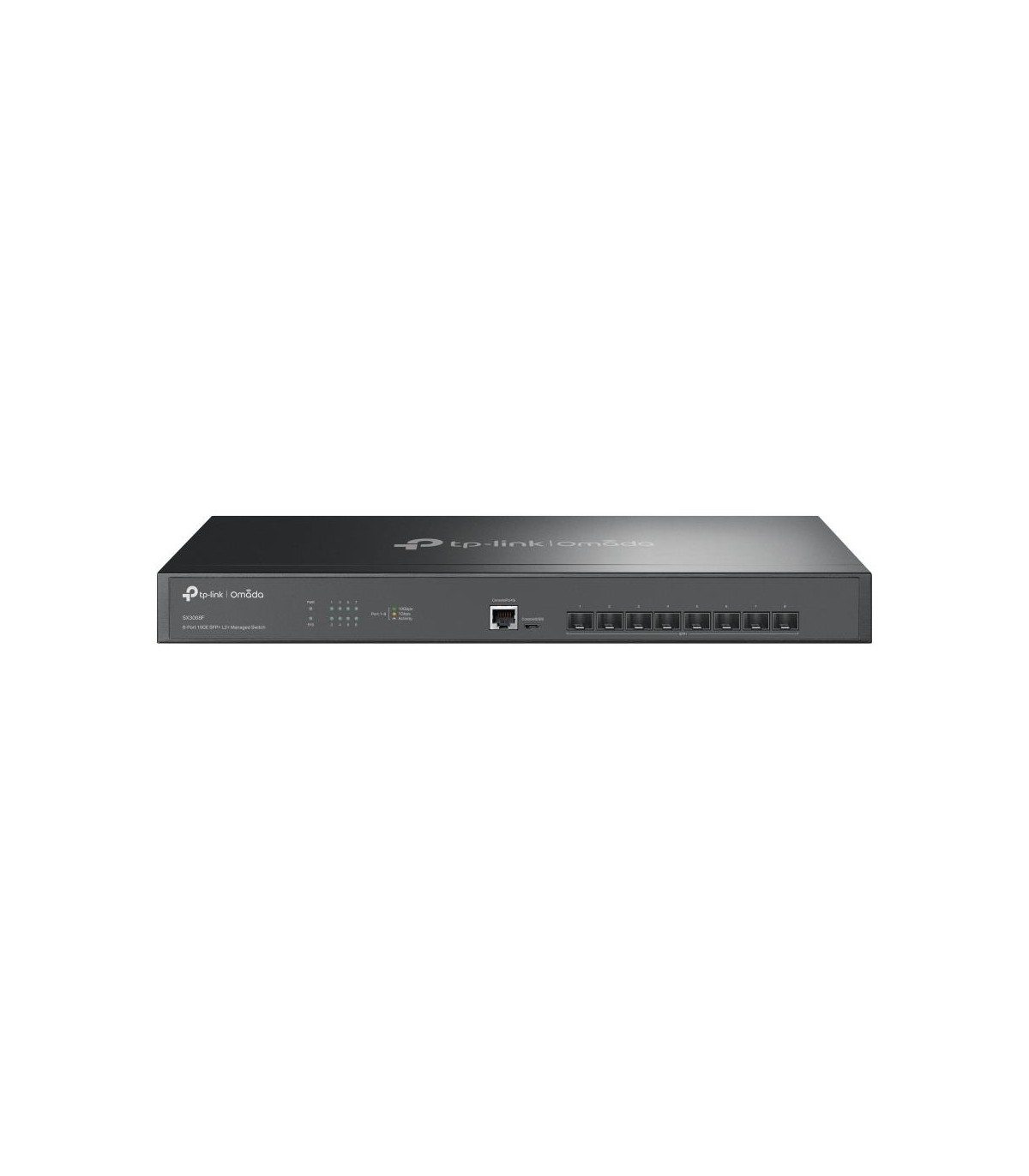

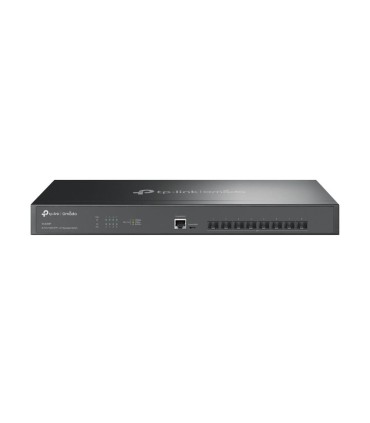

- TP-Link Omada 8-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45/micro-USB. MAC address table: 32000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEE
- Product colour
- Black
- AC input frequency
- 50/60 Hz
- AC input voltage
- 220 V
- Package type
- Box
- Cables included
- AC
- Certification
- CE, FCC, RoHS
- Power consumption (max)
- 15.46 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 45 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Quick start guide
- Yes
- Storage temperature (T-T)
- -40 - 70 °C
- Manual
- Yes
- LED indicators
- Yes
- Heat dissipation
- 52.75 BTU/h
- Power supply included
- Yes
- Security algorithms
- HTTPS/SSH/SSH-2/SSL/TLS
- Management protocols
- SNMPv1/v2c/v3, SNTP
- Jumbo frames support
- Yes
- Networking standards
- IEEE 802.1D/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ad/IEEE 802.3x
- Power connector
- DC-in jack
- Rack mounting
- Yes
- 10G support
- Yes
- Basic switching RJ-45 Ethernet ports type
- No
- Power over Ethernet (PoE)
- No
- MAC address table
- 32000 entries
- Jumbo frames
- 9000
- Flow control support
- Yes
- Packet buffer memory
- 16 MB
- Switch layer
- L2/L3
- Quality of Service (QoS) support
- Yes
- Port mirroring
- Yes
- IGMP snooping
- Yes
- Web-based management
- Yes
- Loop protection
- Yes
- Broadcast storm control
- Yes
- Link aggregation
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Private VLAN/Protocol-based VLAN/Voice VLAN
- Number of VLANs
- 4000
- Rack mount kit
- Yes
- Authentication type
- AAA,TACACS+
- Spanning tree protocol
- Yes
- Console port
- RJ-45/Micro-USB
- Number of queues
- 8
- DHCP features
- DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
- Cloud-managed
- Yes
- Multicast support
- Yes
- Access Control List (ACL)
- Yes
- BPDU filtering/protection
- Yes
- IP-MAC-Port binding
- Yes
- Queue scheduling algorithms
- SP/Weighted Round Robin (WRR)/WRR+SP
- SSH/SSL support
- Yes
- Rate limiting
- Yes
- ARP inspection
- Yes
- Configuring Location Settings (CLI)
- Yes
- System event log
- Yes
- MIB support
- RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
- IP routing
- Yes
- Authentication
- Guest VLAN,MAC-based authentication,Port-based authentication,Web-based authentication
- MAC address filtering
- Yes
- Static port security
- Yes
- SFP+ module slots quantity
- 8
- Traffic classification
- Yes
- Head-of-line (HOL) blocking
- Yes
- Multicast Listener Discovery (MLD) snooping
- Y
- Static route
- Yes
- IPv4 & IPv6 features
- IPv6 ping/IPv6 Telnet/IPv6 tracert
Specific References
- EAN
- 6935364006457
