1311789
Specification
- Housing material
- Metal
Other features

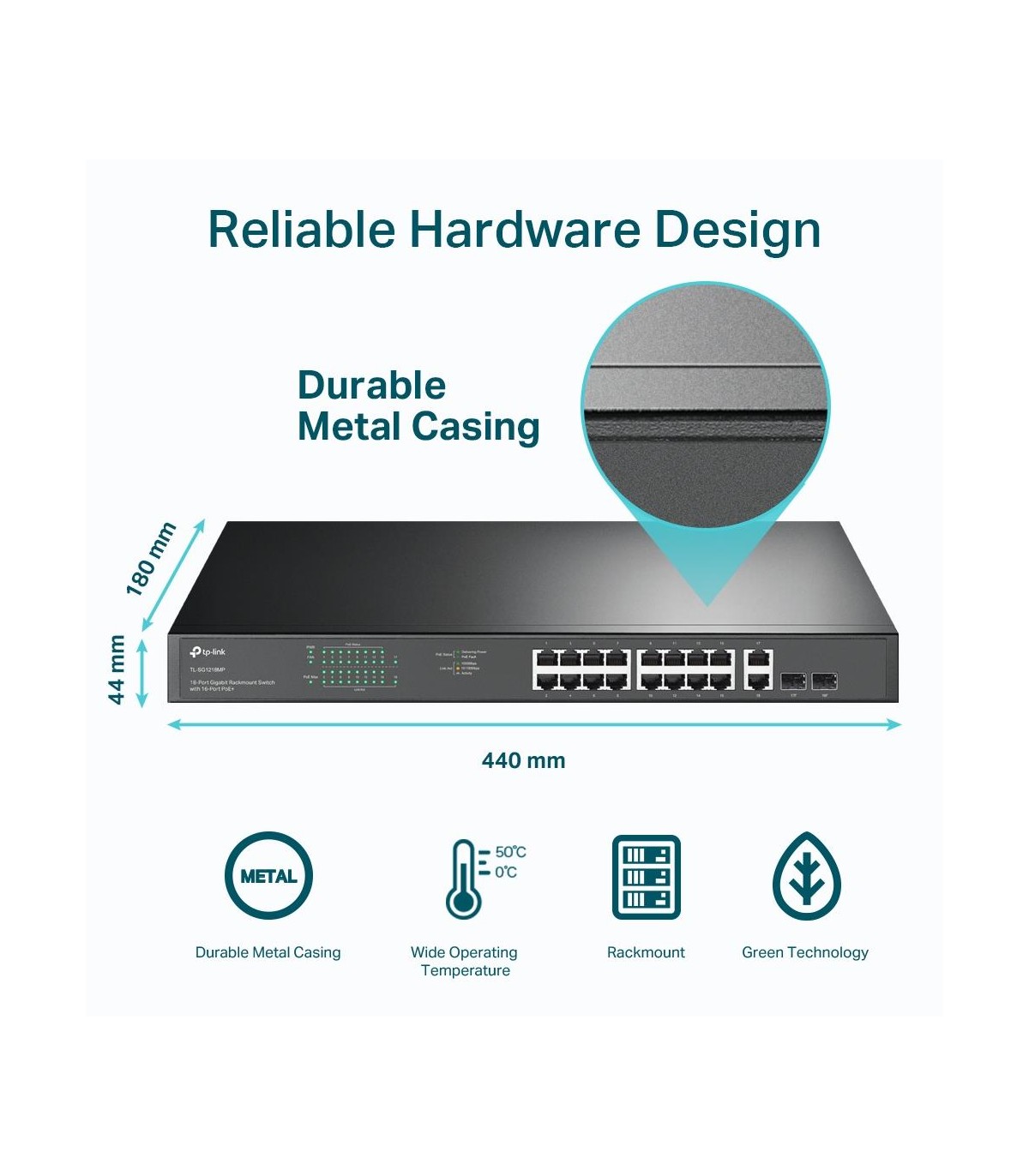

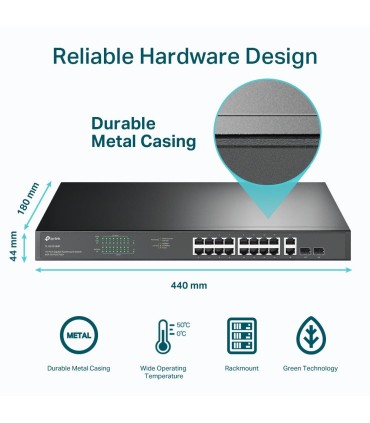

- Depth
- 180 mm
- Height
- 44 mm
- Width
- 440 mm
- Unit Box Width
- 0.08
- Unit Box Length
- 0.53
- Unit Box Height
- 0.25
- Category Code
- SWI
- Model name
- TL-SG1218MP
- Form Factor
- 1U
- Switch type
- Unmanaged
- Switching capacity
- 36 Gbit/s
- Forwarding rate
- 26.78 Mpps
- Number of fans
- 2 fan(s)
- Auto-negotiation
- Yes
- Power source
- AC
- Unit Calculated Volume
- 0.0106 cubm
- Unit Calculated Weight
- 3.03 kg
- Units per Shipping Box
- 1
- Summary

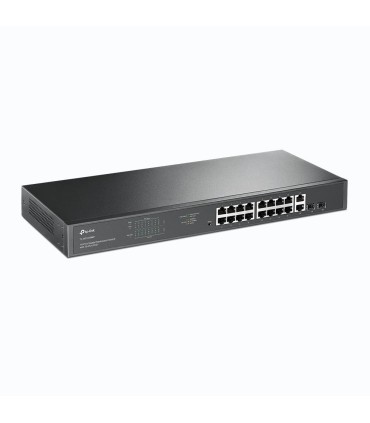

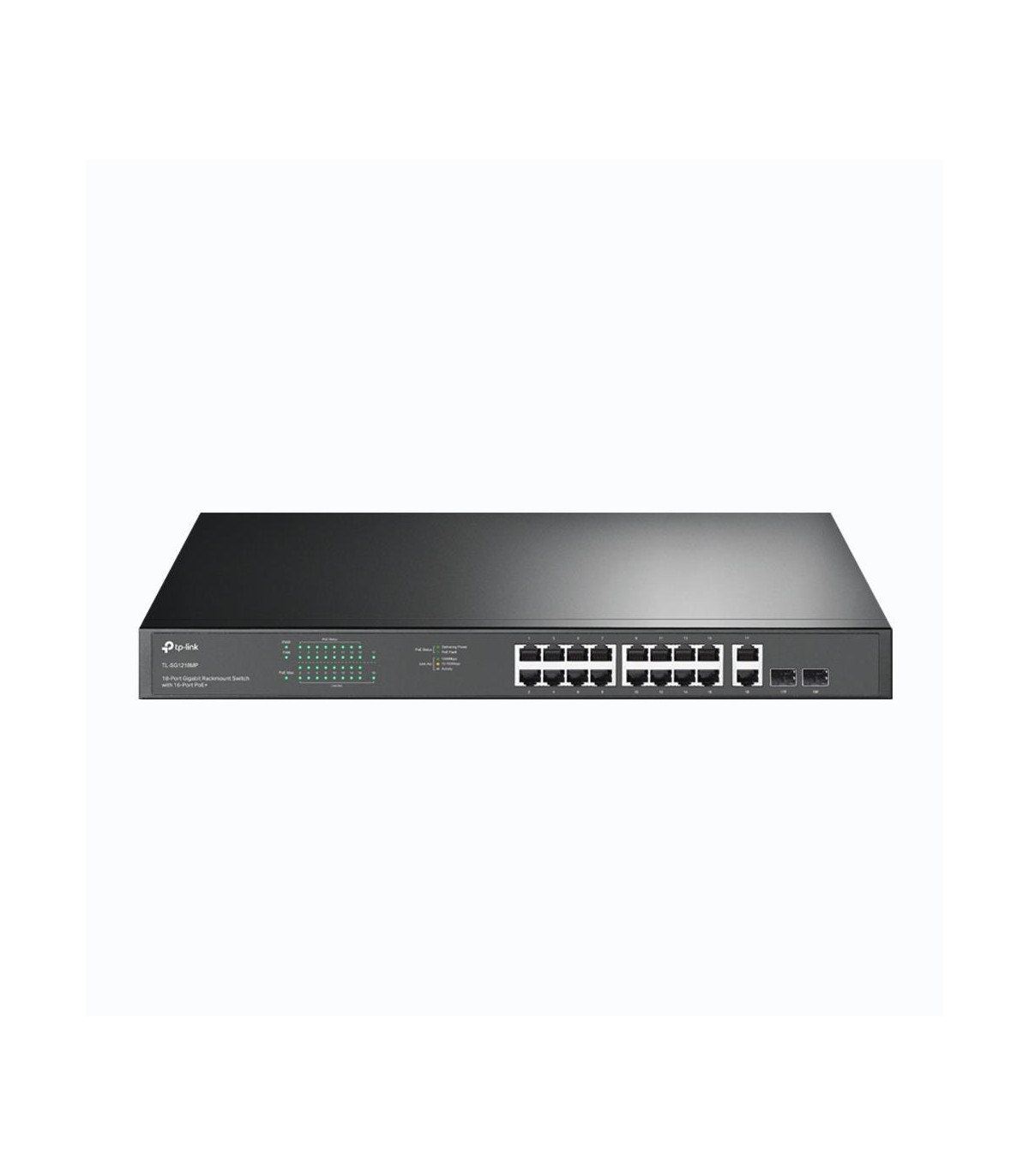

- TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. Full duplex. MAC address table: 8000 entries, Swit
- Product colour
- Black
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 100 - 240 V
- Package depth
- 528 mm
- Package height
- 80 mm
- Package weight
- 3050 g
- Package width
- 250 mm
- Cables included
- AC
- Certification
- CE, FCC, RoHS
- Power consumption (max)
- 286.64 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 50 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Quick start guide
- Yes
- Storage temperature (T-T)
- -40 - 70 °C
- Harmonized System (HS) code
- 85176990
- LED indicators
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Heat dissipation
- 977.44 BTU/h
- Power supply included
- Yes
- Full duplex
- Yes
- Jumbo frames support
- Yes
- Networking standards
- IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
- Auto MDI/MDI-X
- Yes
- Rack mounting
- Yes
- 10G support
- No

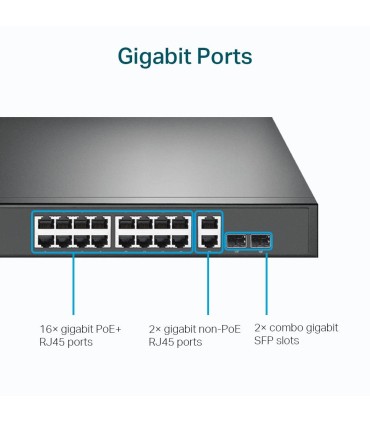

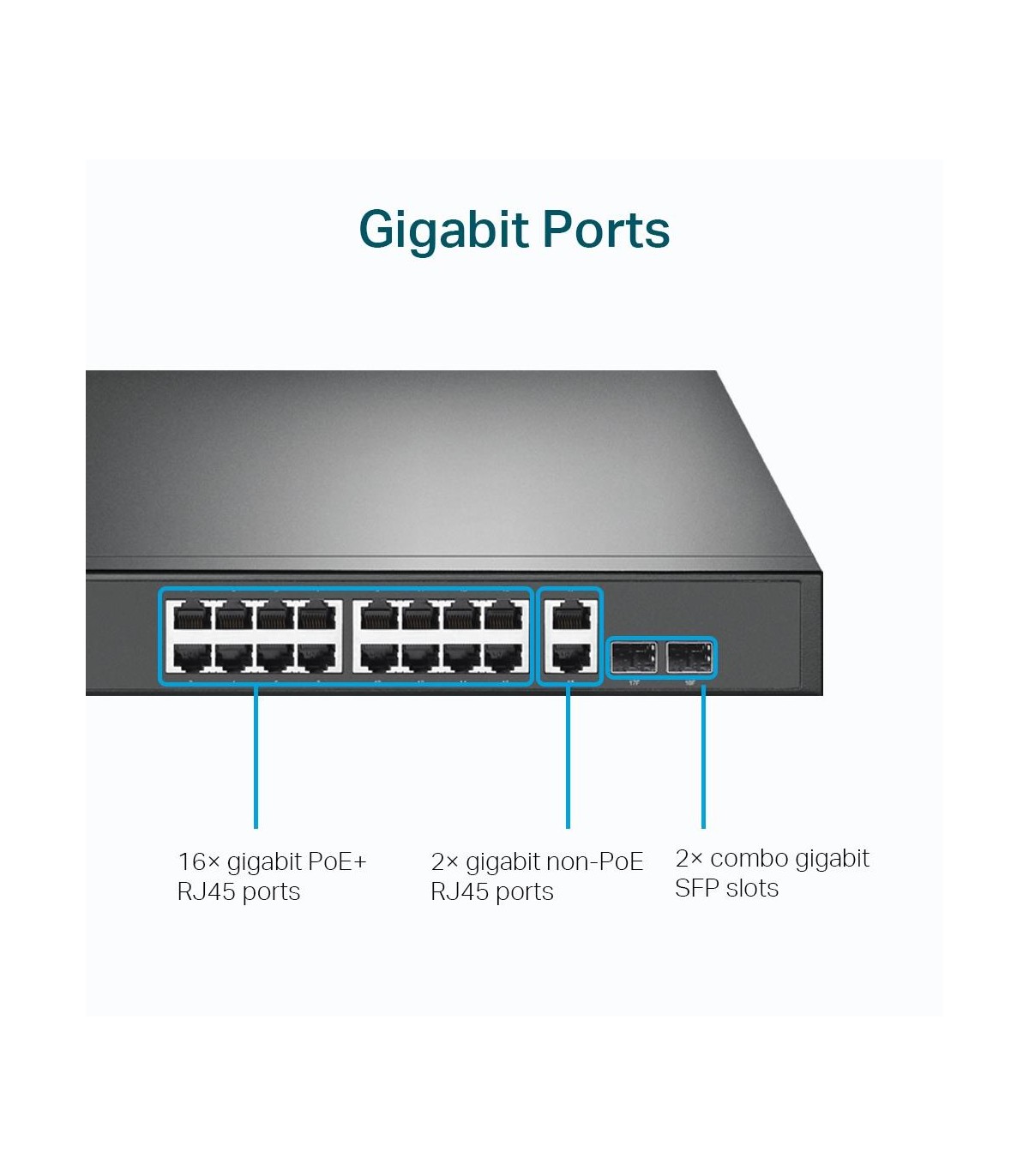

- Basic switching RJ-45 Ethernet ports quantity
- 18
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE)
- Yes
- Gigabit Ethernet (copper) ports quantity
- 18
- MAC address table
- 8000 entries
- Jumbo frames
- 10000
- Flow control support
- Yes
- Packet buffer memory
- 4.1 MB
- Power over Ethernet (PoE) power per port
- 30 W

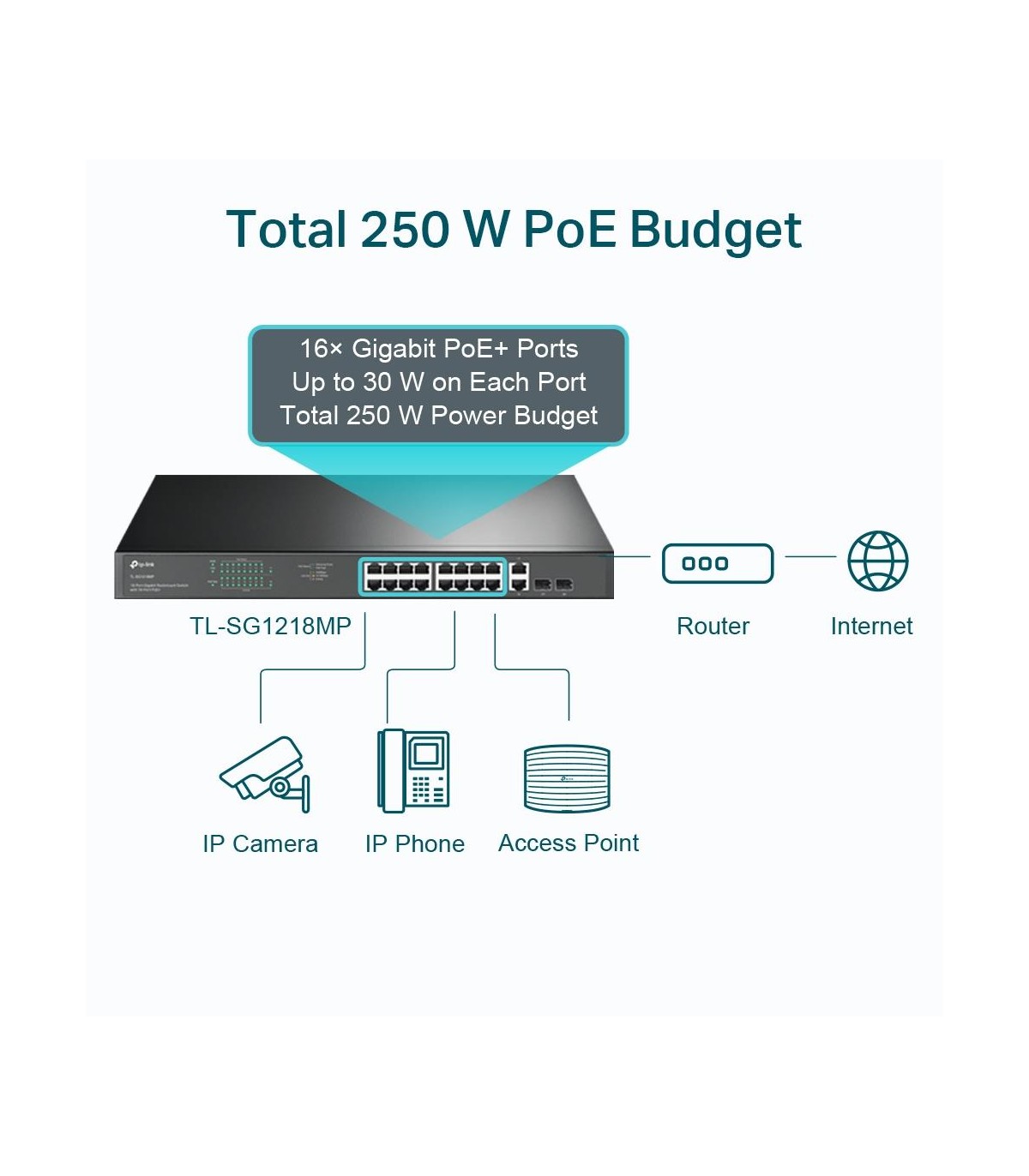

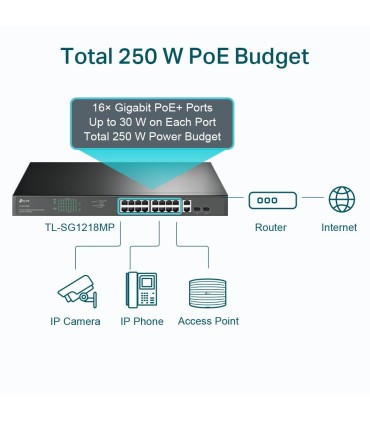

- Total Power over Ethernet (PoE) budget
- 250 W
- Cable types supported
- Cat3/Cat4/Cat5/Cat5e/Cat6
- Quality of Service (QoS) support
- Yes
- Half duplex
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 16
- MAC address auto-aging supported
- Yes
- MAC address auto-learning supported
- Yes
- Combo SFP ports quantity
- 2
- Traffic classification
- Yes
Specific References
- EAN
- 6935364072155
