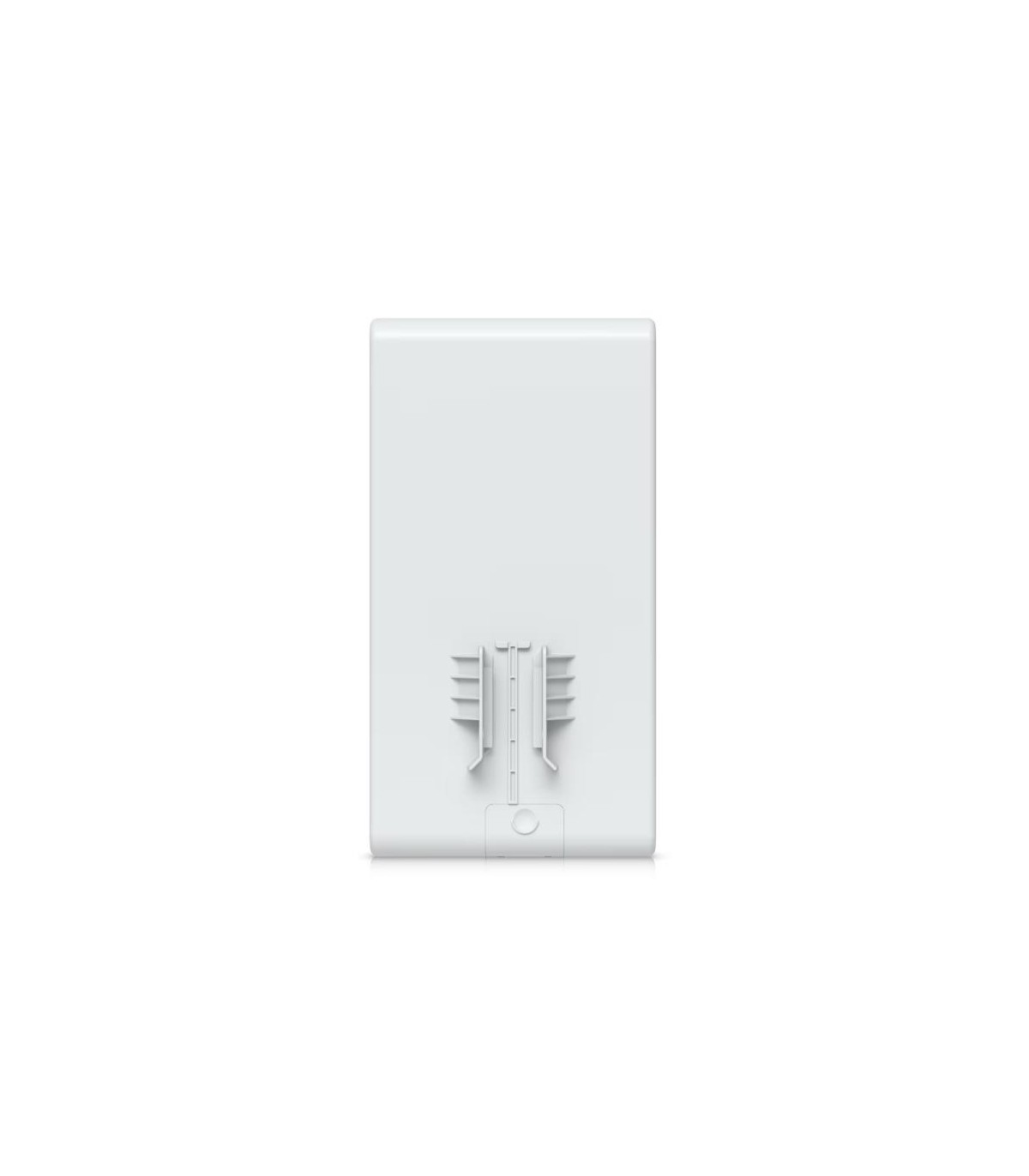

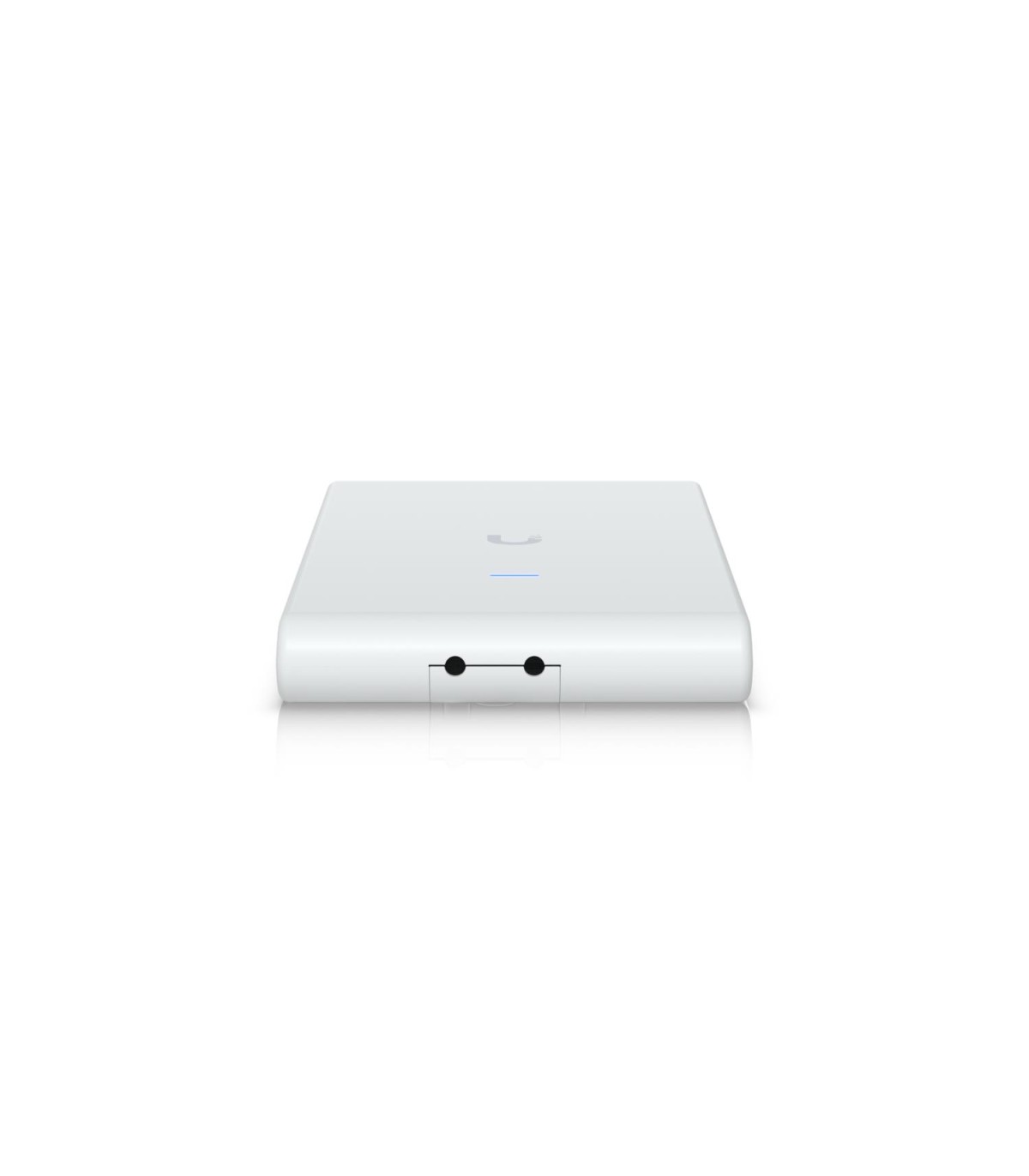

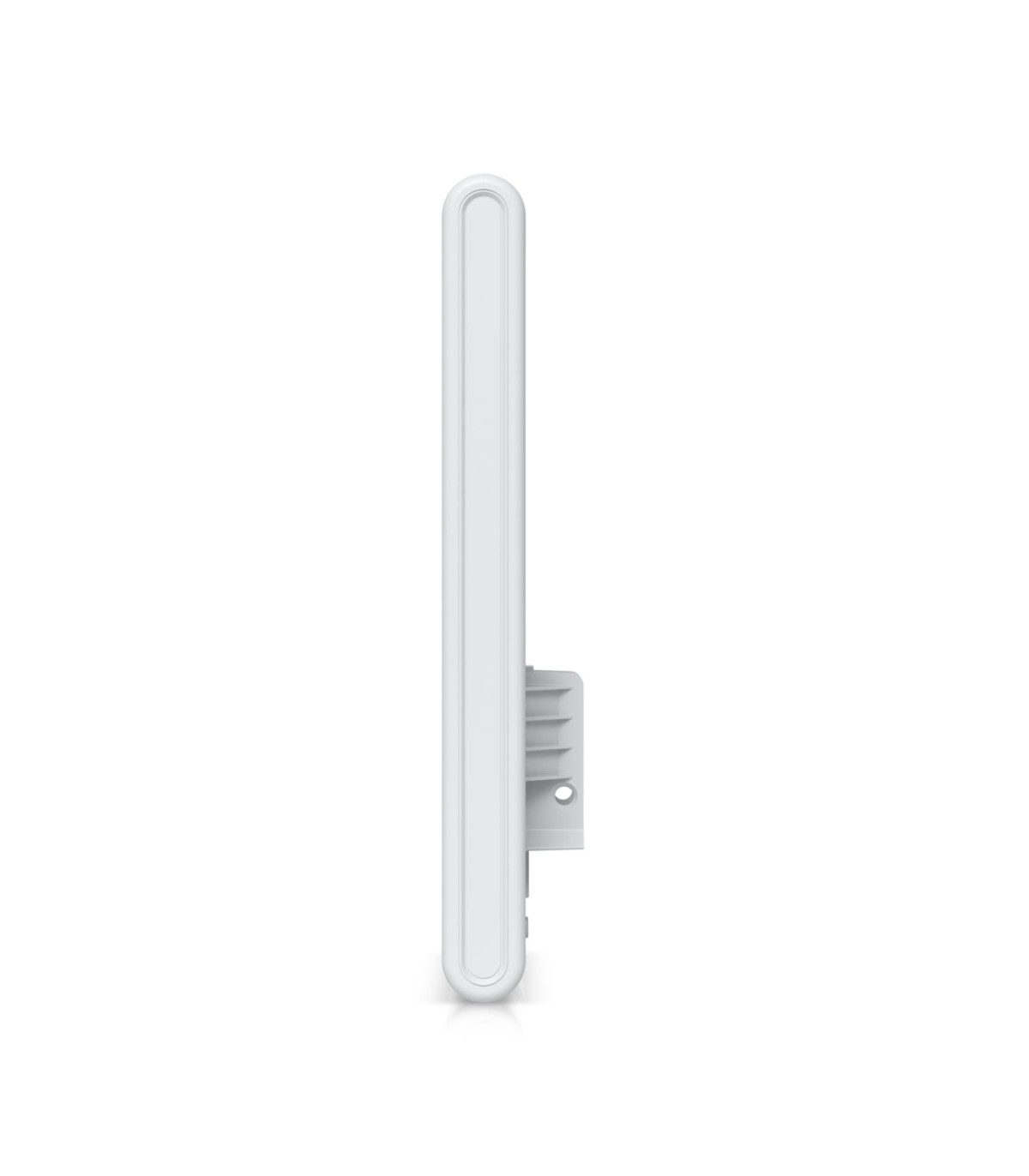

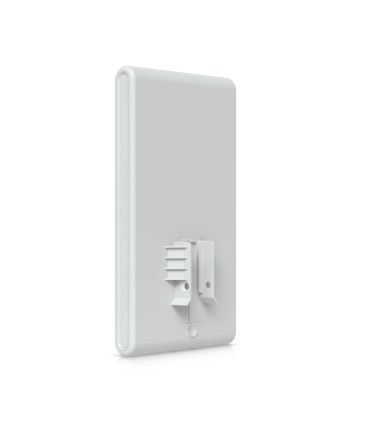

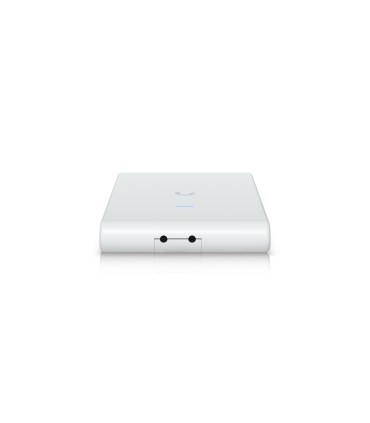

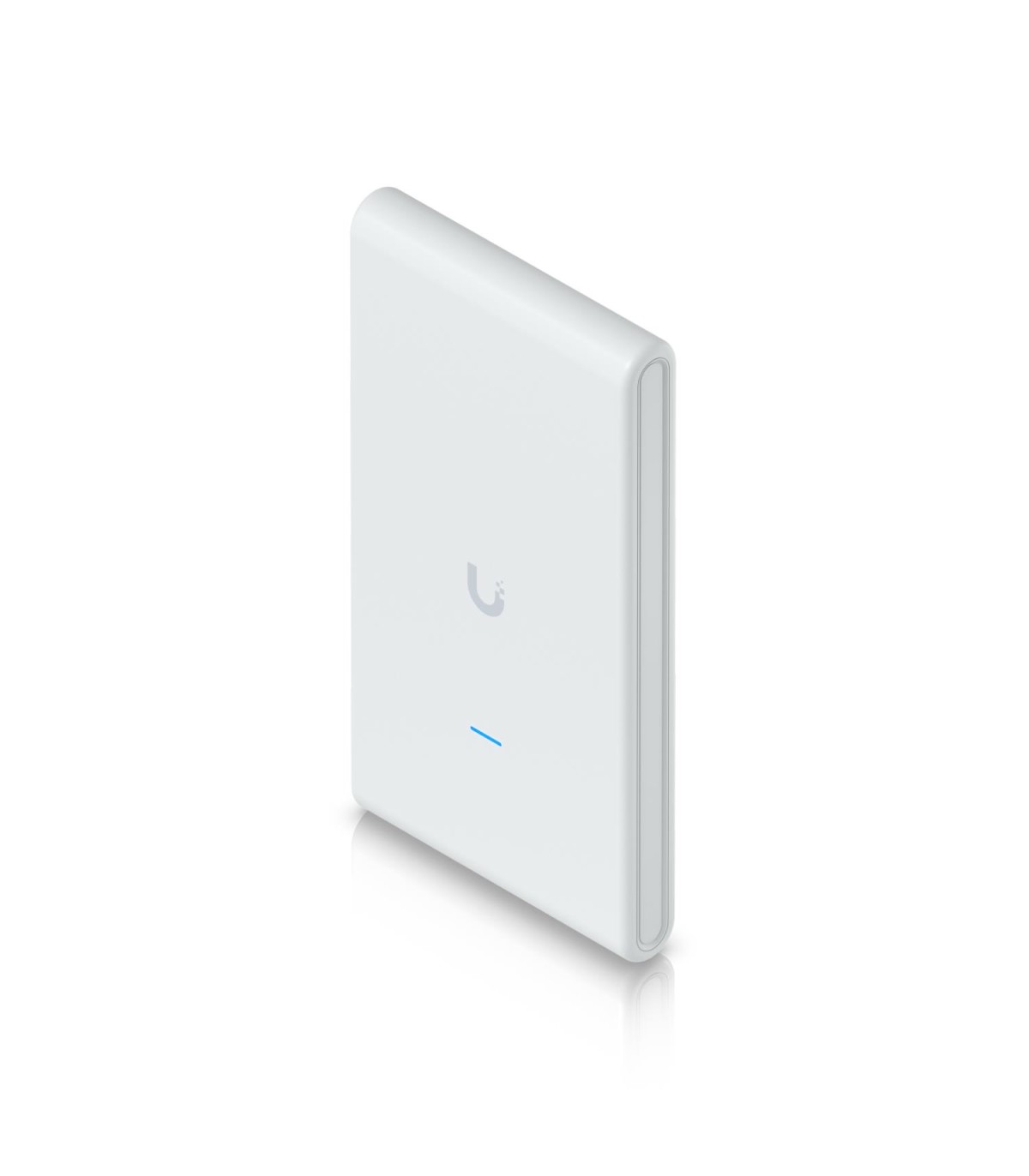

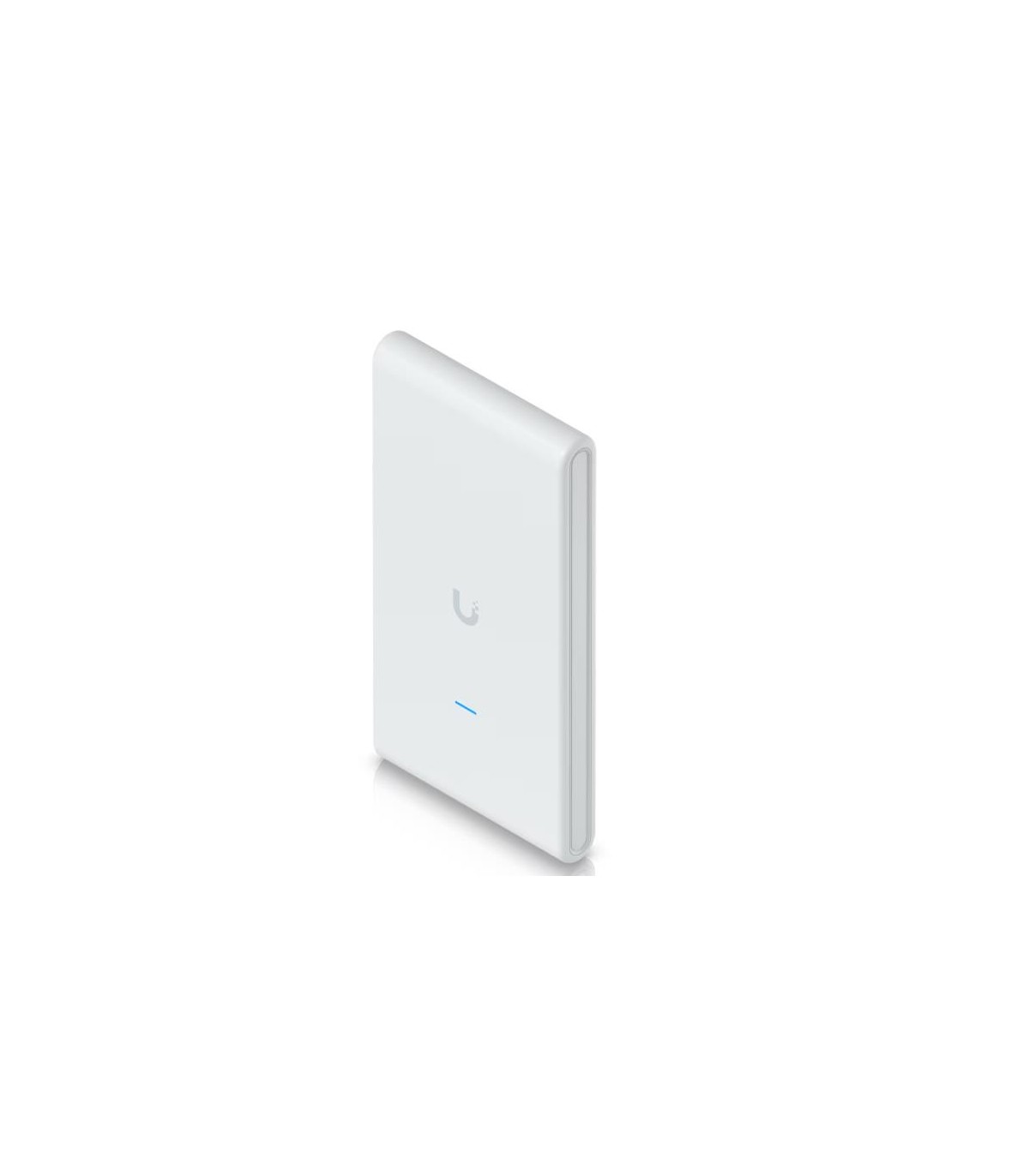

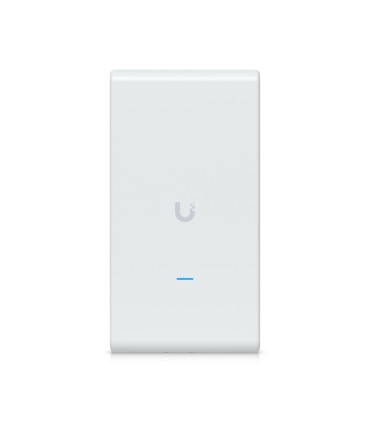

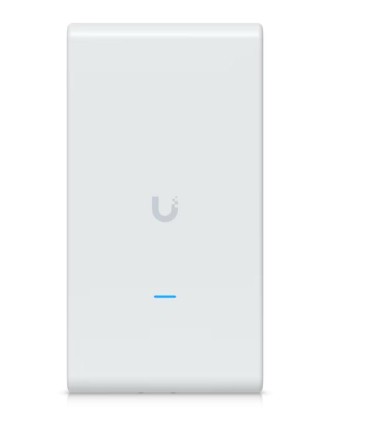

UBIQUITI WRL ACCESS POINT/U6-MESH-PRO

Specification

Housing material

Polycarbonate (PC)

Power

AC adapter included

Yes

Dimensions

Weight (kg)

819 g

Other features

Depth

60.2 mm

Height

343.2 mm

Width

181.2 mm

Unit Box Width

0.24

Unit Box Length

0.4

Unit Box Height

0.11

Category Code

WAP

Model name

U6 Mesh Pro

Model

U6-MESH-PRO

Antenna Type

Internal

Unit Calculated Volume

0.01817 cubm

Unit Calculated Weight

2.5 kg

Units per Shipping Box

3

Summary

Ubiquiti U6 Mesh Pro. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2400 Mbit/s. Security algorithms: WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption

Product colour

White

Sustainability compliance

Yes

Power consumption (max)

9 W

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-30 - 60 °C

Quick start guide

Yes

LED indicators

Yes

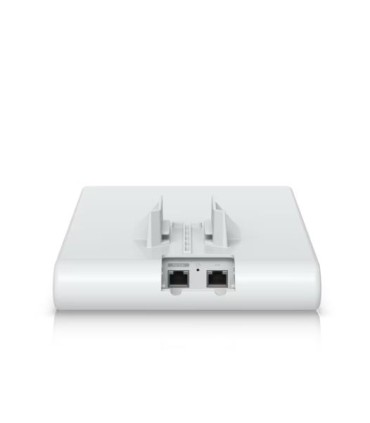

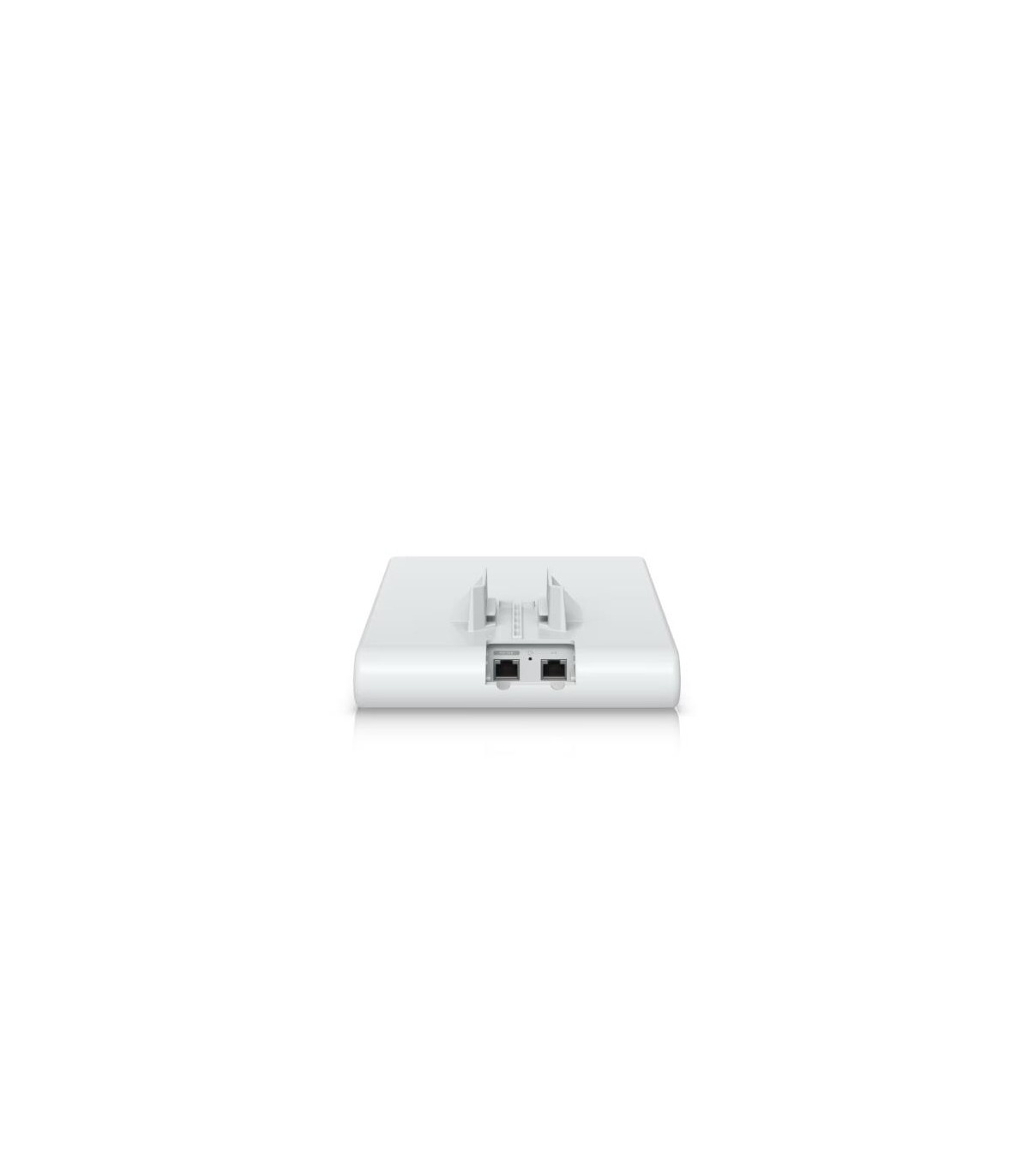

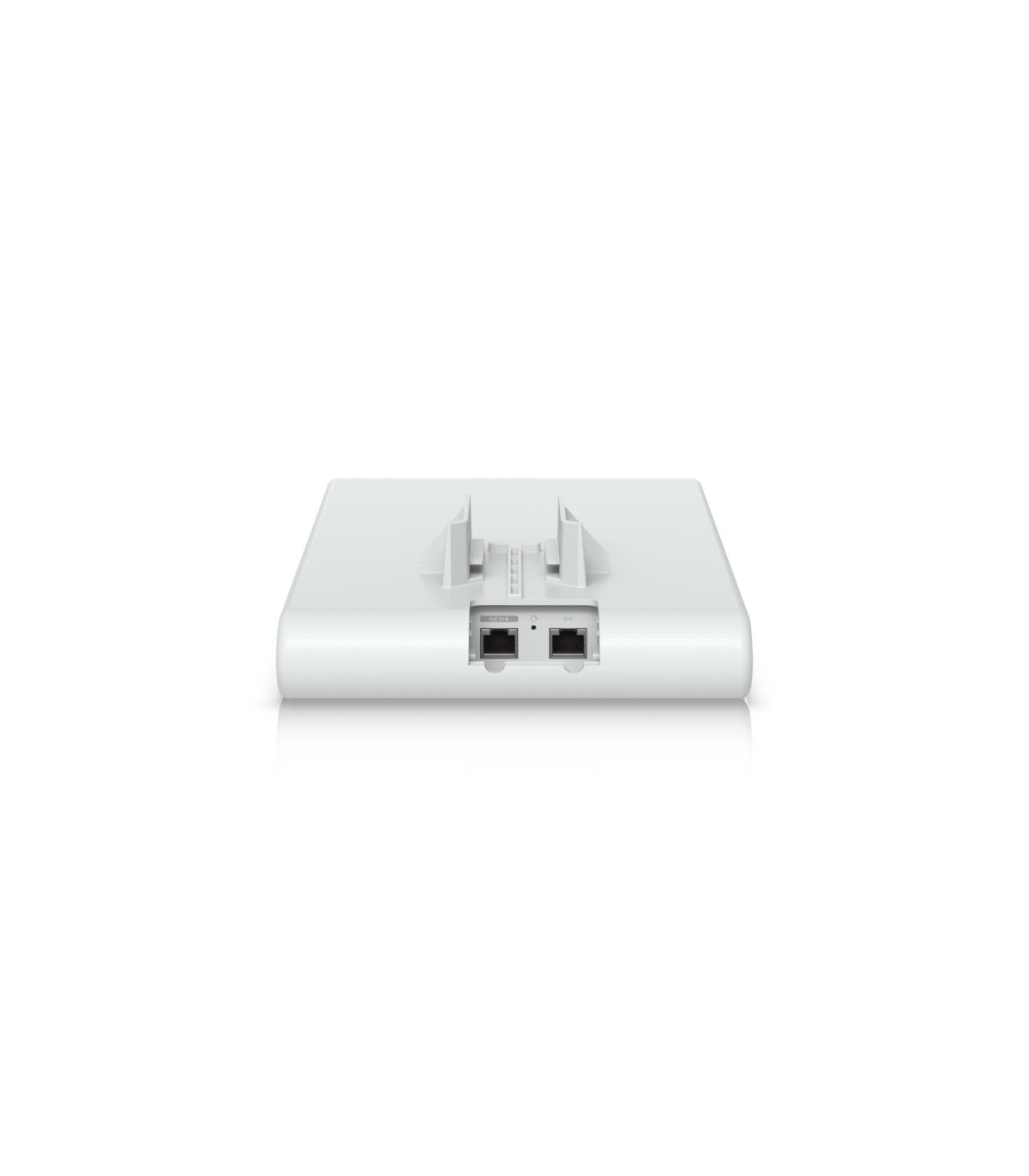

Ethernet LAN (RJ-45) ports

2

Ethernet LAN data rates

10/100/1000 Mbit/s

Recommended usage

Indoor/outdoor

Quantity per pack

1 pc(s)

Frequency band

2.4 - 5 GHz

Reset button

Yes

International Protection (IP) code

IPX6

MIMO

Yes

Security algorithms

WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK

MIMO type

Multi User MIMO

Maximum data transfer rate

2400 Mbit/s

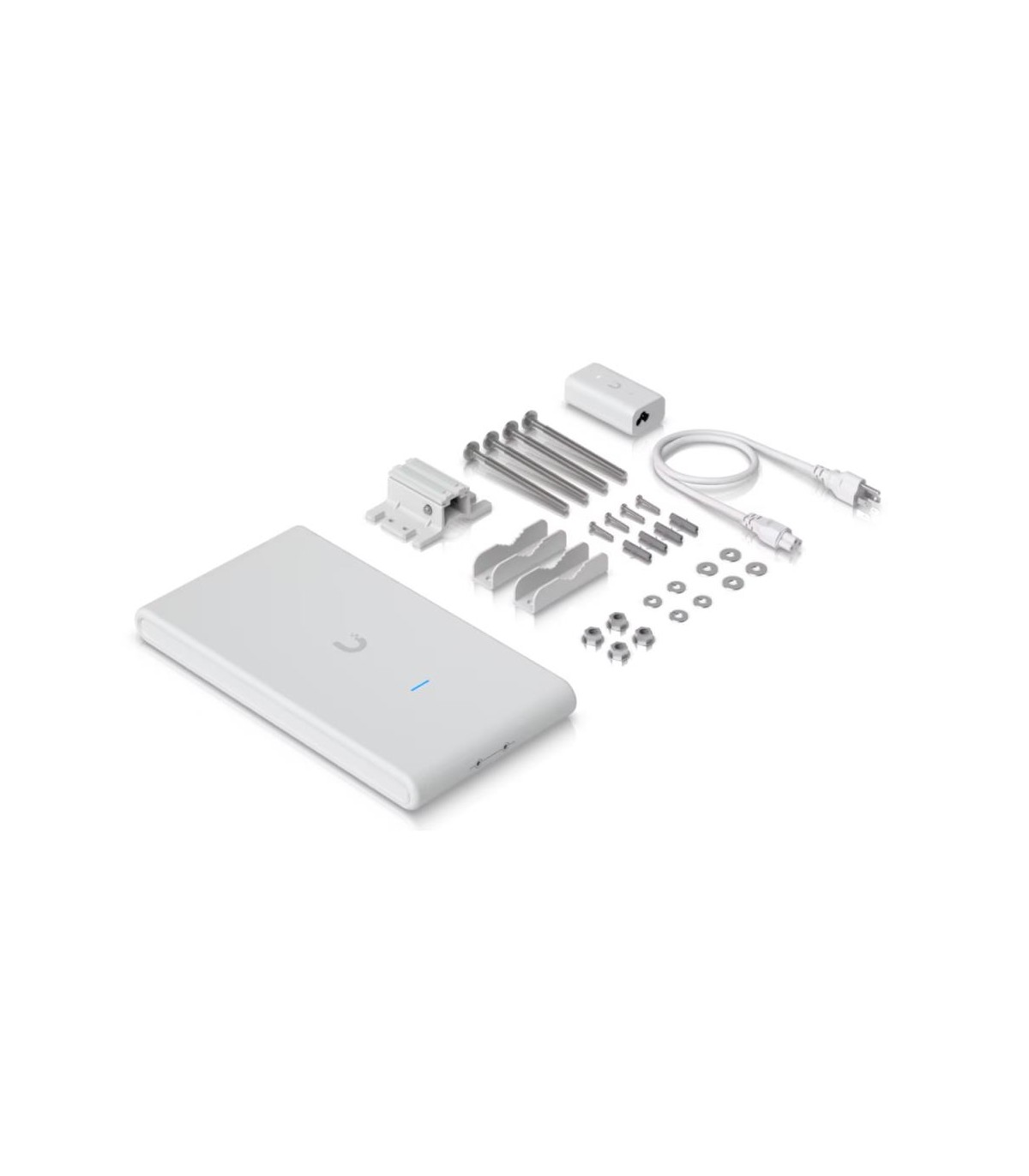

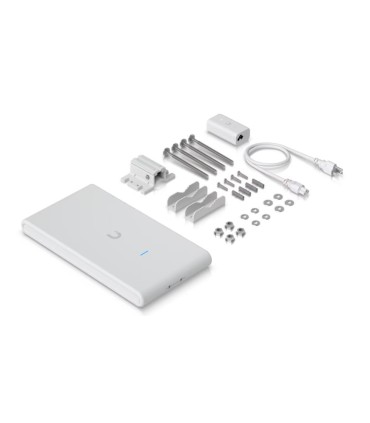

Mounting kit

Yes

Networking standards

IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.1Q

Power over Ethernet (PoE)

Yes

Quality of Service (QoS) support

Yes

VLAN support

Yes

Antenna gain level (max)

8 dBi

Antenna direction type

Omni-directional

2.4 GHz

Yes

5 GHz

Yes

6 GHz

No

Maximum data transfer rate (2.4 GHz)

573.5 Mbit/s

Maximum data transfer rate (5 GHz)

2400 Mbit/s

DC voltage range

42.5 - 57 V

Placement

Pole,Wall

PoE adapter included

Yes
