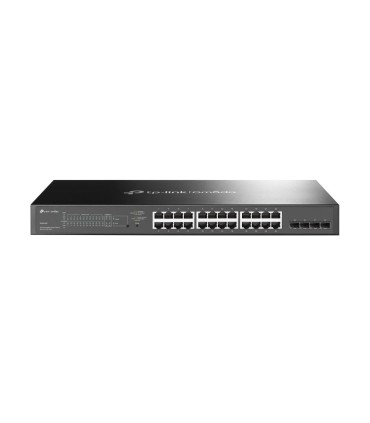

TP-LINK Switch Omada TL-SG2428P Type L2+ 24x10Base-T / 100Base-TX / 1000Base-T 4xSFP PoE+ ports 24 250 Watts TL-SG2428P

Other features

Depth

220 mm

Height

44 mm

Width

440 mm

Unit Box Width

0.335

Unit Box Length

0.53

Unit Box Height

0.105

Category Code

SWI

Model name

TL-SG2428P

Series

Omada

Form Factor

1U

Switch type

Managed

Switching capacity

56 Gbit/s

Forwarding rate

41.66 Mpps

Number of fans

2 fan(s)

Power source

AC

Unit Calculated Volume

0.02104 cubm

Unit Calculated Weight

4.22 kg

Units per Shipping Box

4

Summary

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000

Product colour

Black

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Cables included

AC

Certification

CE, FCC, RoHS

Power consumption (max)

301.1 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 50 °C

Storage relative humidity (H-H)

5 - 90 %

Storage temperature (T-T)

-40 - 70 °C

Heat dissipation

1052.94 BTU/h

User guide

Yes

Power supply included

Yes

Copper ethernet cabling technology

1000BASE-T/10BASE-T

Security algorithms

HTTPS/SNMP/SNMPv2/SNMPv3/SSH/SSH-2/SSL/TLS

Management protocols

SNMPv1/v2c/v3, SNTP

Jumbo frames support

Yes

Networking standards

IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Rack mounting

Yes

10G support

No

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

Gigabit Ethernet (copper) ports quantity

24

MAC address table

8000 entries

Jumbo frames

9000

Flow control support

Yes

Packet buffer memory

4.1 MB

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

250 W

Switch layer

L2/L2+

Cable types supported

Cat3/Cat4/Cat5/Cat5e

Quality of Service (QoS) support

Yes

Port mirroring

Yes

IGMP snooping

Yes

Web-based management

Yes

Broadcast storm control

Yes

Link aggregation

Yes

VLAN support

Yes

Virtual LAN features

MAC address-based VLAN/Protocol-based VLAN/Voice VLAN

Number of VLANs

4000

Rack mount kit

Yes

SFP module slots quantity

4

Power over Ethernet plus (PoE+) ports quantity

24

Authentication type

RADIUS

Spanning tree protocol

Yes

Fiber ethernet cabling technology

1000BASE-X

Number of queues

8

DHCP features

DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client

Multicast support

Yes

Access Control List (ACL)

Yes

BPDU filtering/protection

Yes

IP-MAC-Port binding

Yes

Queue scheduling algorithms

SP/Weighted Round Robin (WRR)/WRR+SP

SSH/SSL support

Yes

Rate limiting

Yes

ARP inspection

Yes

System event log

Yes

MIB support

Y

Firmware upgradeable

Yes
