1320635
Other features
- Depth
- 180 mm
- Height
- 44 mm
- Width
- 440 mm
- Unit Box Width
- 0.08
- Unit Box Length
- 0.53
- Unit Box Height
- 0.25
- Category Code
- SWI
- Model name
- TL-SG3428X
- Series
- Omada
- Form Factor
- 1U
- Switch type
- Managed
- Switching capacity
- 128 Gbit/s
- Forwarding rate
- 95.23 Mpps
- Number of fans
- 0 fan(s)
- Power source
- AC
- Unit Calculated Volume
- 0.01263 cubm
- Unit Calculated Weight
- 3.03 kg
- Units per Shipping Box
- 6
- Summary

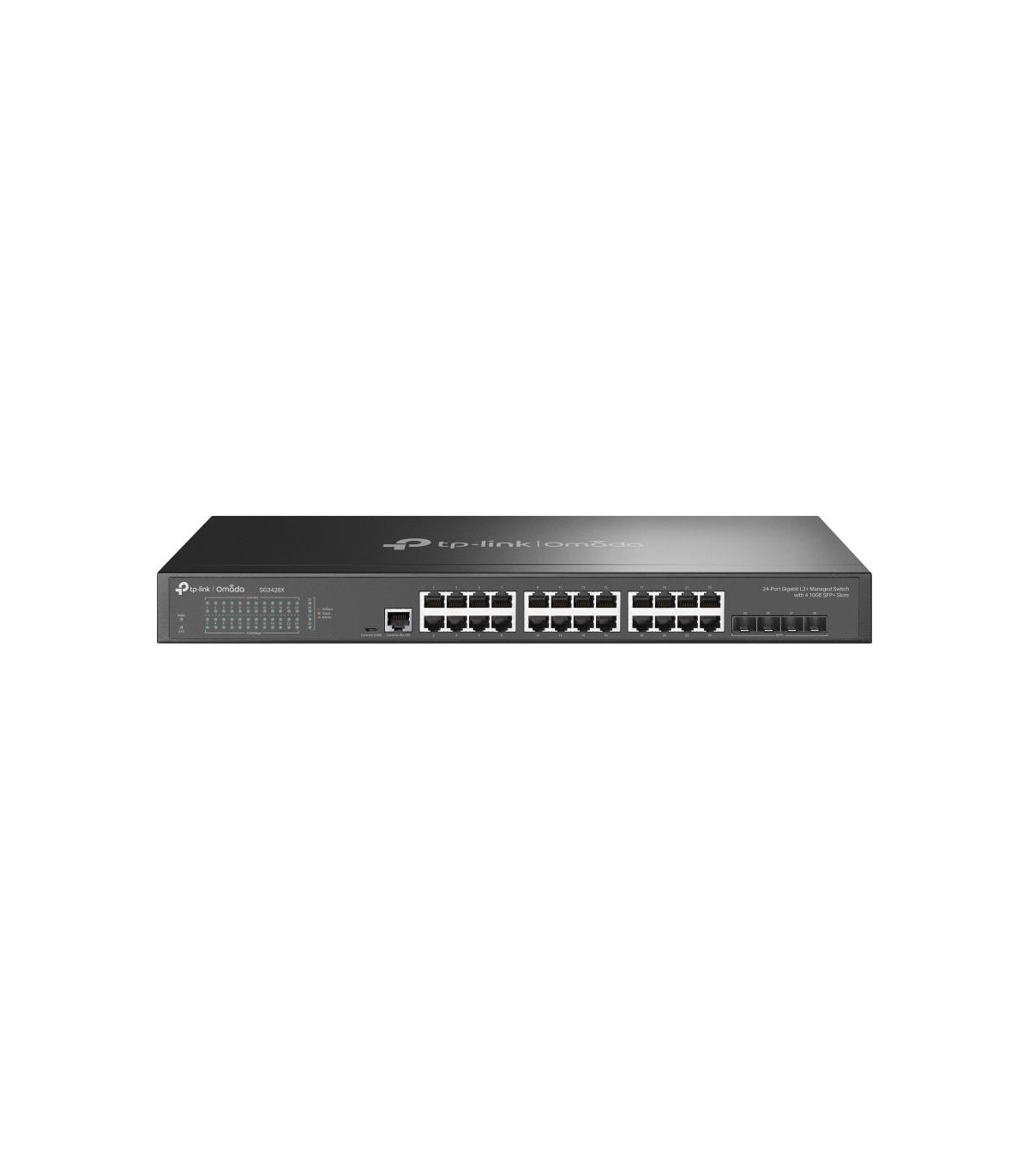

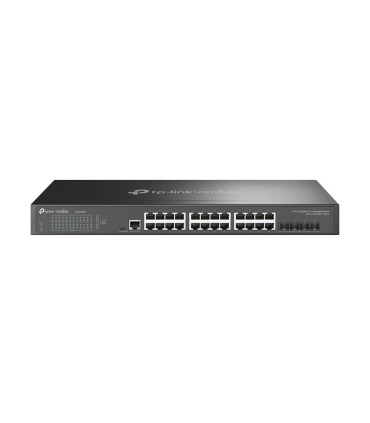

- TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port
- Product colour
- Black
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Cables included
- LAN (RJ-45)
- Power consumption (max)
- 23.6 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 45 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Quick start guide
- Yes
- Storage temperature (T-T)
- -40 - 70 °C
- LED indicators
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Heat dissipation
- 80.52 BTU/h
- Power supply included
- Yes
- Management protocols
- SNMPv1/v2c/v3, SNTP
- Jumbo frames support
- Yes
- Networking standards
- IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
- Power connector
- AC-in jack
- Rack mounting
- Yes
- 10G support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE)
- No
- Gigabit Ethernet (copper) ports quantity
- 24
- MAC address table
- 16000 entries
- Store-and-forward
- Yes
- Jumbo frames
- 9000
- Flow control support
- Yes
- Packet buffer memory
- 12 MB
- Switch layer
- L2+/L3
- Quality of Service (QoS) support
- Yes
- Port mirroring
- Yes
- IGMP snooping
- Yes
- Web-based management
- Yes
- Loop protection
- Yes
- Broadcast storm control
- Yes
- Link aggregation
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
- Number of VLANs
- 4000
- Fanless
- Yes
- Authentication type
- AAA,RADIUS,TACACS+
- Spanning tree protocol
- Yes
- Console port
- RJ-45/Micro-USB
- DHCP features
- DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
- Cloud-managed
- Yes
- Multicast support
- Yes
- Access Control List (ACL)
- Yes
- BPDU filtering/protection
- Yes
- IP-MAC-Port binding
- Yes
- SSH/SSL support
- Yes
- Rate limiting
- Yes
- ARP inspection
- Yes
- Configuring Location Settings (CLI)
- Yes
- System event log
- Yes
- MIB support
- Yes
- Policy-based routing
- Yes
- Authentication
- Guest VLAN,MAC-based authentication,Port-based authentication
- SFP+ module slots quantity
- 4
- Head-of-line (HOL) blocking
- Yes
- Multicast Listener Discovery (MLD) snooping
- Y
- Static route
- Yes
- GARP VLAN Registration Protocol (GVRP)
- Yes
- IPv4 routes
- 48
- IPv6 routes
- 48
- IPv4 & IPv6 features
- IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
- Active link detection
- Yes
- Number of static routes
- 48
Specific References
- EAN
- 6935364010522
