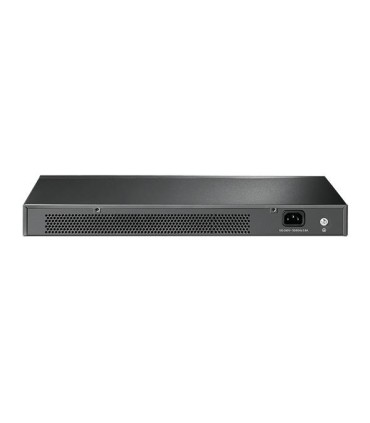

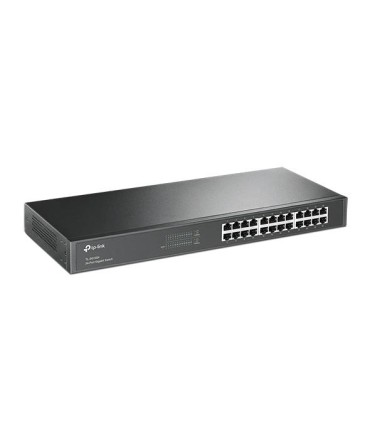

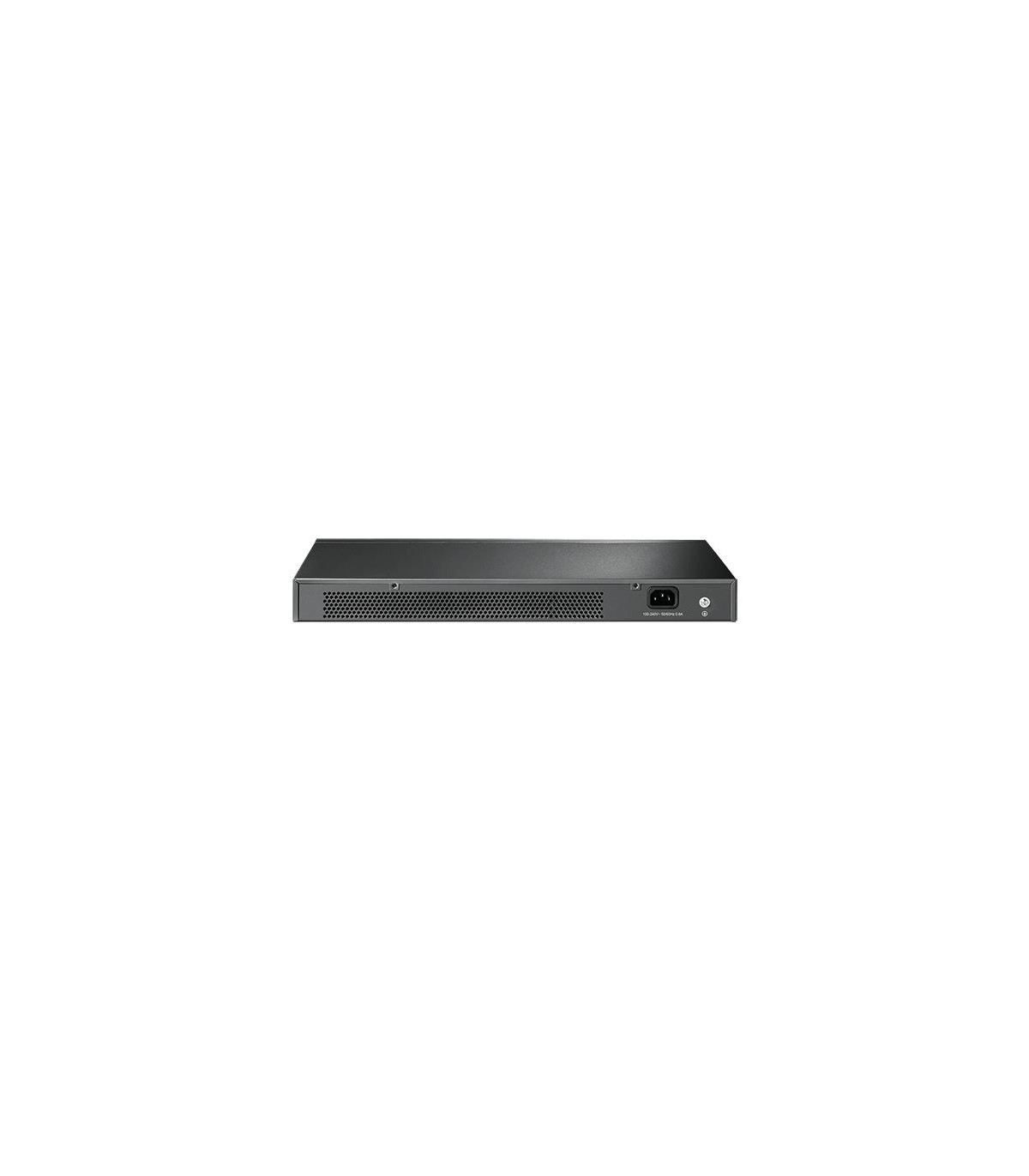

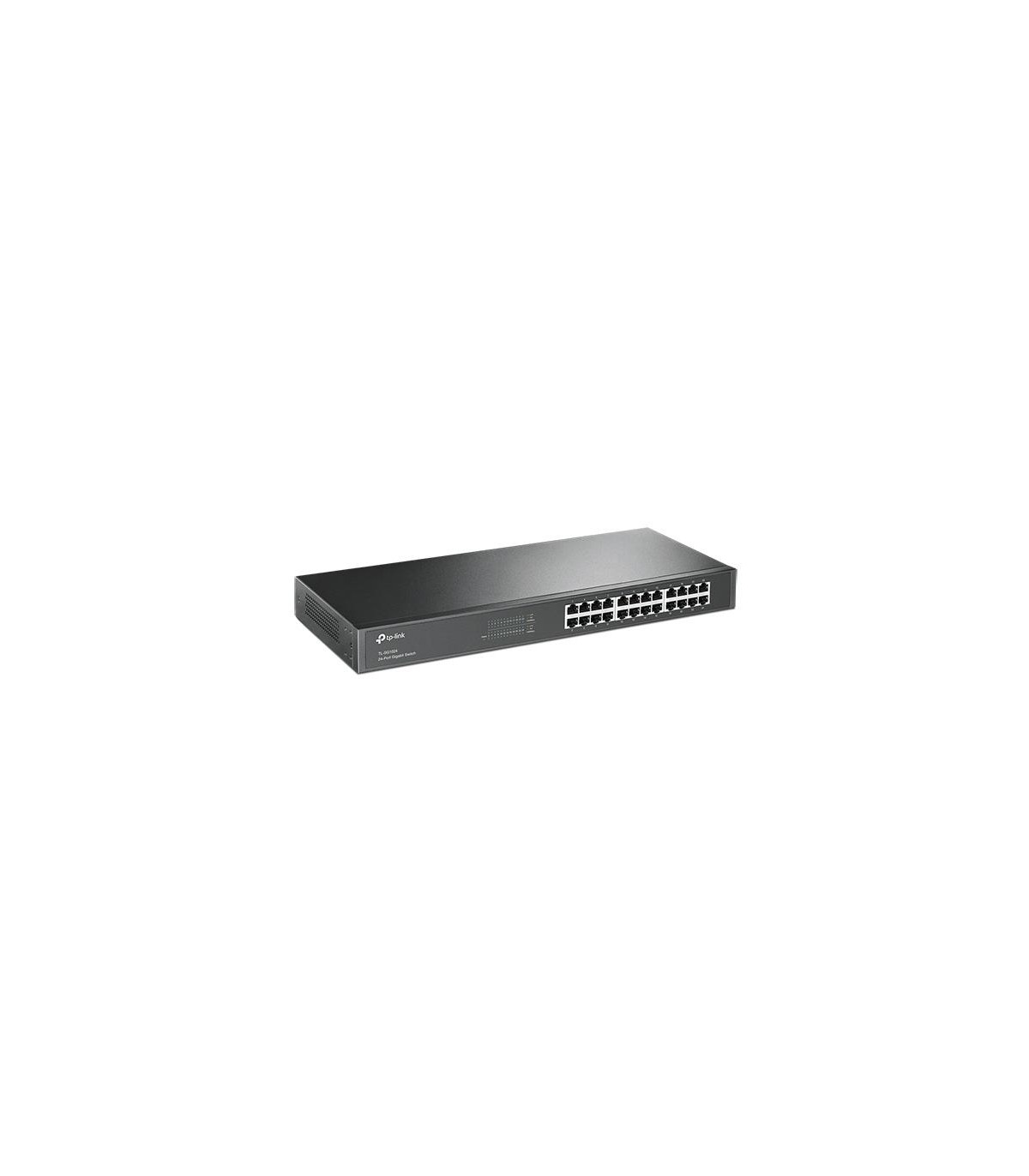

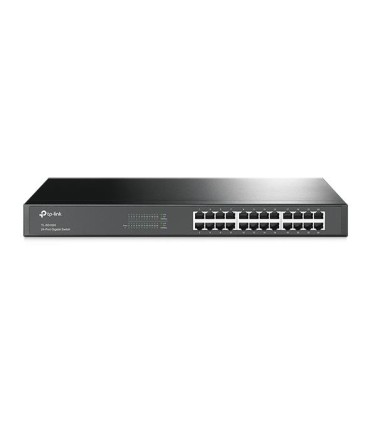

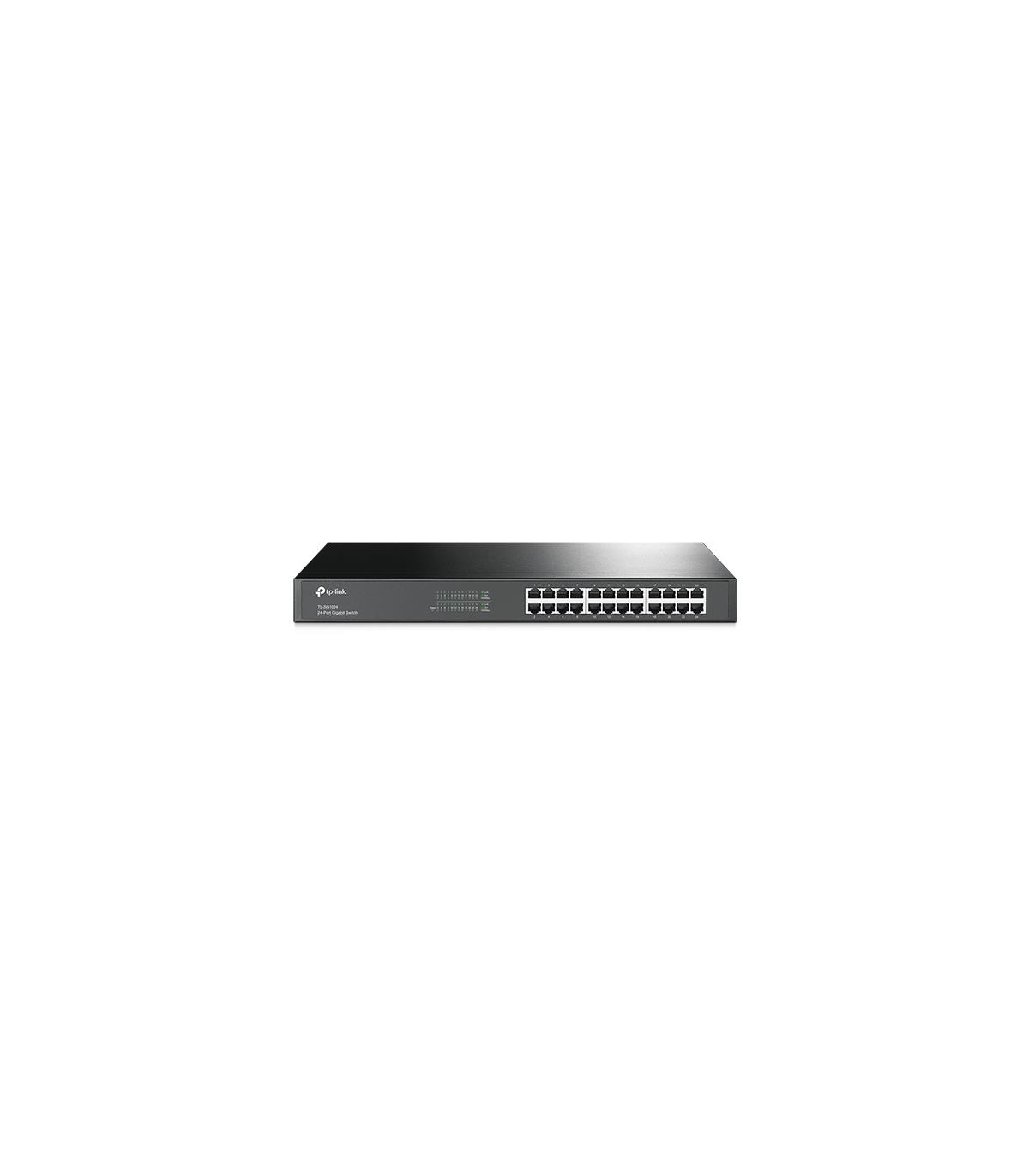

TP-LINK Switch 24xRJ45 TL-SG1024

Other features

Depth

180 mm

Height

44 mm

Width

440 mm

Unit Box Width

0.08

Unit Box Length

0.53

Unit Box Height

0.25

Category Code

SWI

Form Factor

1U

Switch type

Unmanaged

Switching capacity

48 Gbit/s

Forwarding rate

35.7 Mpps

Auto-negotiation

Yes

Power source

AC

Unit Calculated Volume

0.0106 cubm

Unit Calculated Weight

2.52 kg

Units per Shipping Box

1

Summary

TP-Link 24-Port Gigabit Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching

Product colour

Black

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Package depth

528 mm

Package height

80 mm

Package weight

2130 g

Package width

250 mm

Cables included

AC

Certification

FCC, CE, ROHS

Power consumption (max)

13.62 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

32 - 104 °F

Storage relative humidity (H-H)

5 - 90 %

Storage temperature (T-T)

-40 - 70 °C

LED indicators

Yes

Heat dissipation

46.44 BTU/h

User guide

Yes

Connectivity technology

Wired

Power supply included

Yes

Copper ethernet cabling technology

1000BASE-T/100BASE-TX/10BASE-T

Maximum data transfer rate

1 Gbit/s

Bandwidth

48 Gbit/s

Full duplex

Yes

Jumbo frames support

Yes

Networking standards

IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Auto MDI/MDI-X

Yes

Rack mounting

Yes

10G support

No

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

24

MAC address table

8000 entries

Store-and-forward

Yes

Jumbo frames

10000

Flow control support

Yes

Quality of Service (QoS) support

Yes

Supported data transfer rates

10/100/1000 Mbps

Rack mount kit

Yes

Connectivity LEDs

Y

Supported network protocols

CSMA/CD, TCP/IP

Half duplex

Yes

Dimensions (W x D x H) (imperial)

17.3 x 7.1 x 1.7 "
