1310595
Other features
- Depth
- 98 mm
- Height
- 25 mm
- Width
- 99.8 mm
- Unit Box Width
- 0.12
- Unit Box Length
- 0.2
- Unit Box Height
- 0.13
- Category Code
- SWI
- Model
- TL-SG105PE
- Switch type
- Managed
- Switching capacity
- 10 Gbit/s
- Forwarding rate
- 7.44 Mpps
- Auto-negotiation
- Yes
- Power source
- DC
- Unit Calculated Volume
- 0.003822 cubm
- Unit Calculated Weight
- 0.875 kg
- Units per Shipping Box
- 12
- Summary

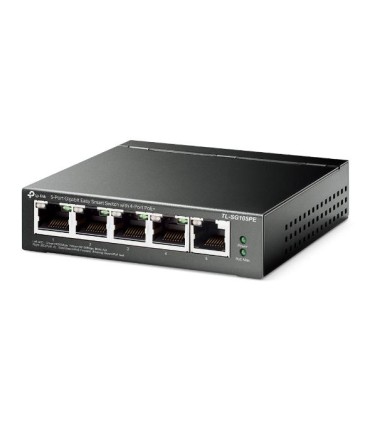

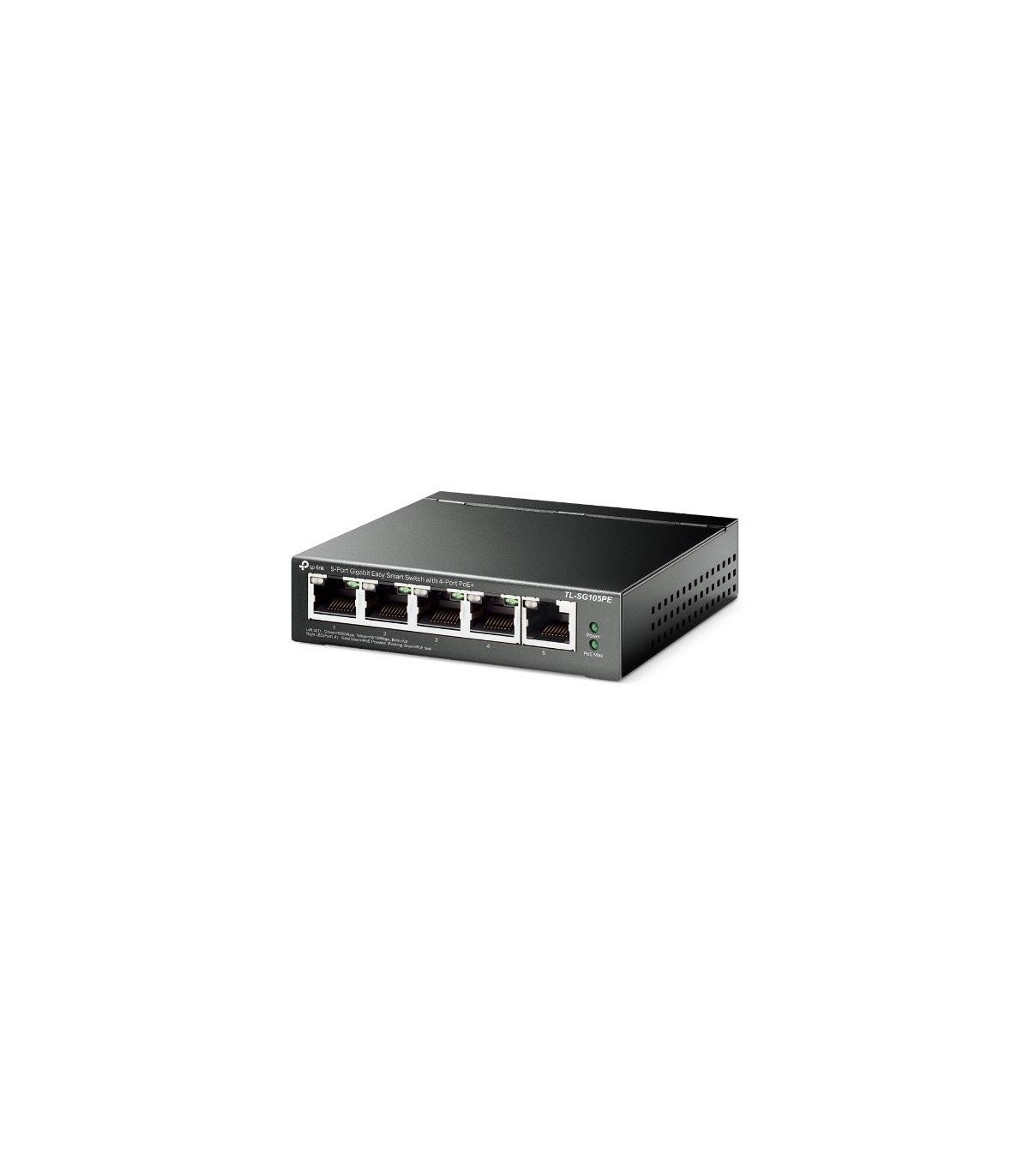

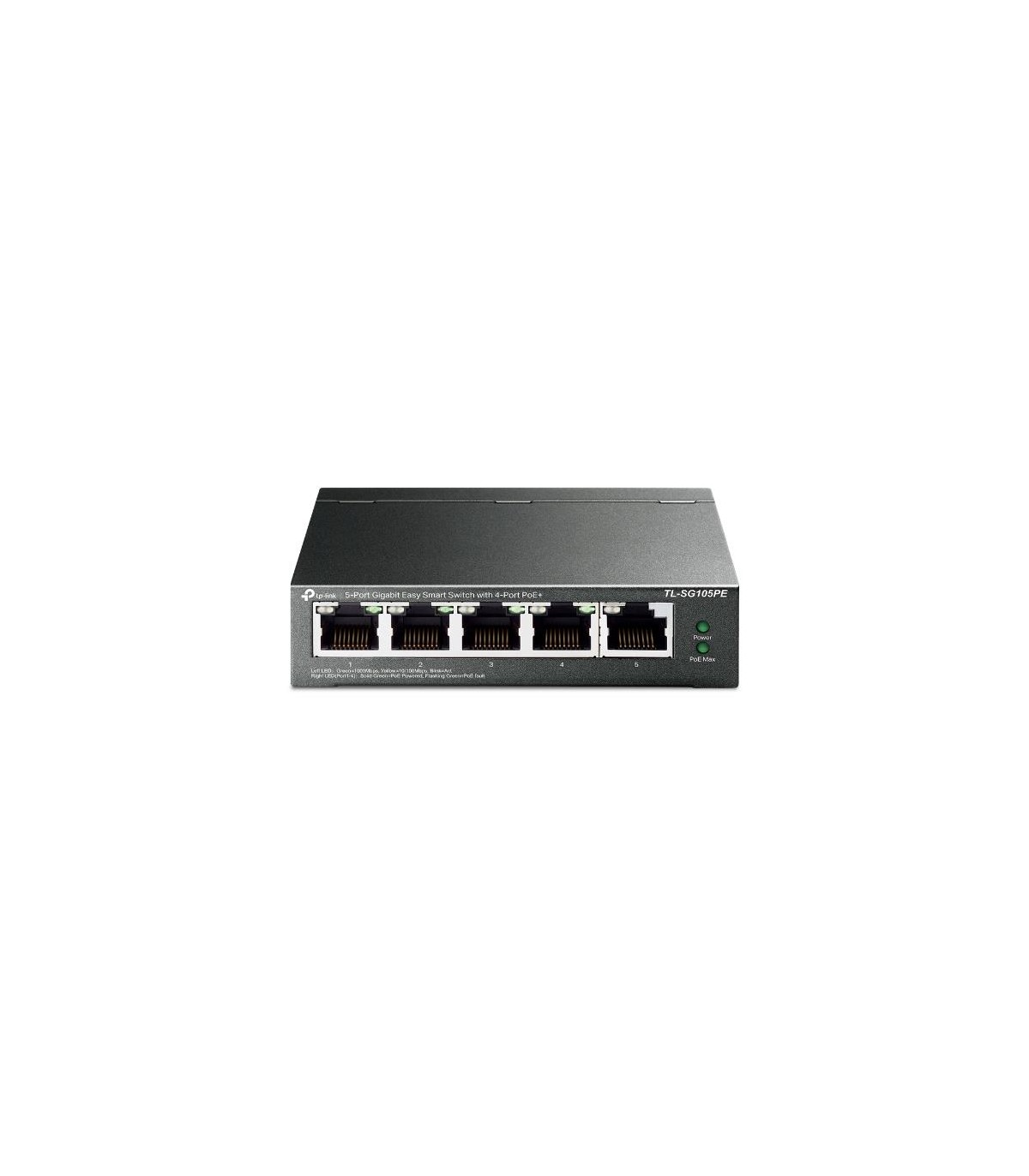

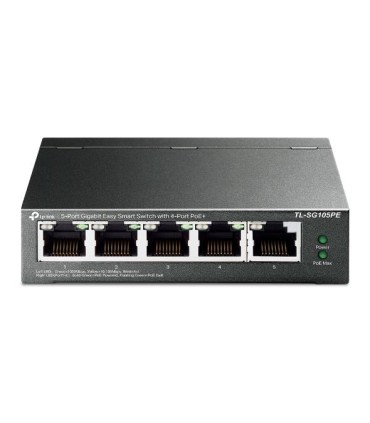

- TP-Link 5-Port Gigabit Easy Smart PoE Switch with 4-Port PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 ent
- Product colour
- Black
- Package depth
- 196 mm
- Package height
- 121 mm
- Package weight
- 770 g
- Package width
- 131 mm
- Input current
- 1.31 A
- Certification
- FCC, CE, ROHS
- Power consumption (max)
- 75.16 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage temperature (T-T)
- -40 - 70 °C
- Harmonized System (HS) code
- 85176990
- LED indicators
- Activity/Link/PoE/Power/Speed/Status
- Heat dissipation
- 256.3 BTU/h
- User guide
- Yes
- Power supply included
- Yes
- Copper ethernet cabling technology
- 1000BASE-T/100BASE-FX/100BASE-TX/10BASE-T
- Jumbo frames support
- Yes
- Networking standards
- IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
- Auto MDI/MDI-X
- Yes

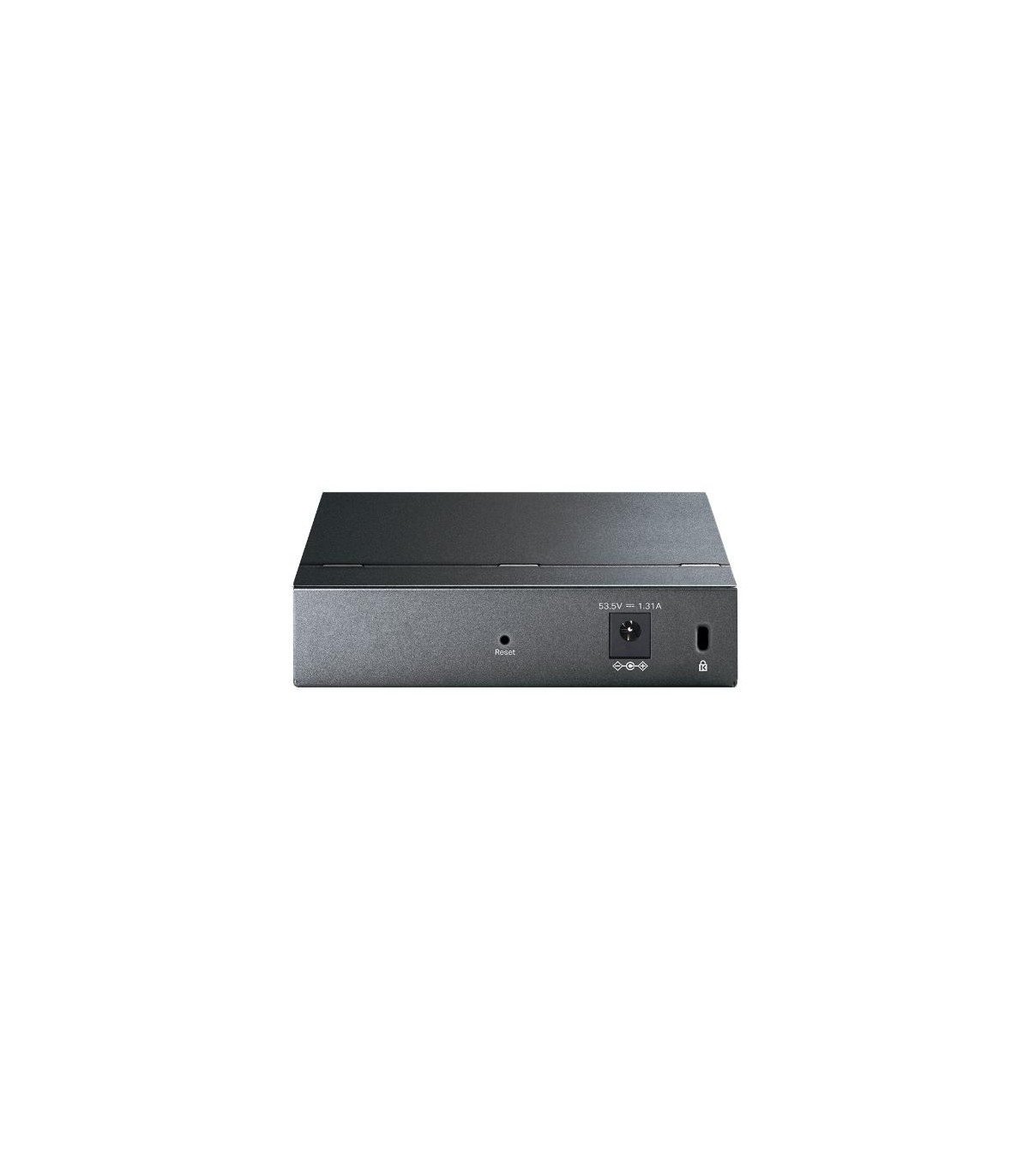

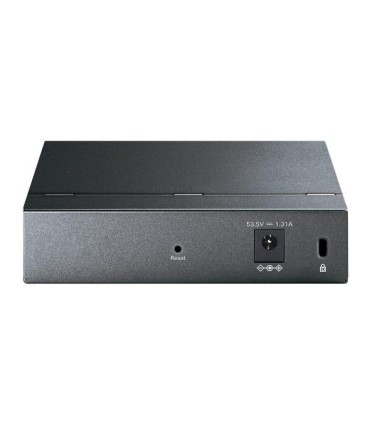

- Input voltage
- 53.5 V
- Rack mounting
- No
- 10G support
- No
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE)
- Yes
- Gigabit Ethernet (copper) ports quantity
- 5
- MAC address table
- 2000 entries
- Store-and-forward
- Yes
- Jumbo frames
- 16000
- Flow control support
- Yes
- Packet buffer memory
- 1 MB

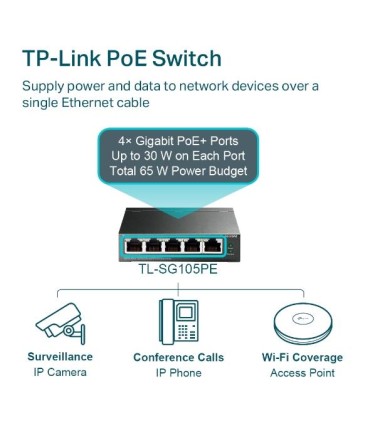

- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 65 W
- Switch layer
- L2
- Cable types supported
- Cat3/Cat4/Cat5/Cat5e/Cat6
- Quality of Service (QoS) support
- Yes
- Port mirroring
- Yes
- IGMP snooping
- Yes
- Web-based management
- Yes
- Loop protection
- Yes
- Broadcast storm control
- Yes
- Link aggregation
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Port-based VLAN/Tagged VLAN
- Number of VLANs
- 4000
- Fanless
- Yes

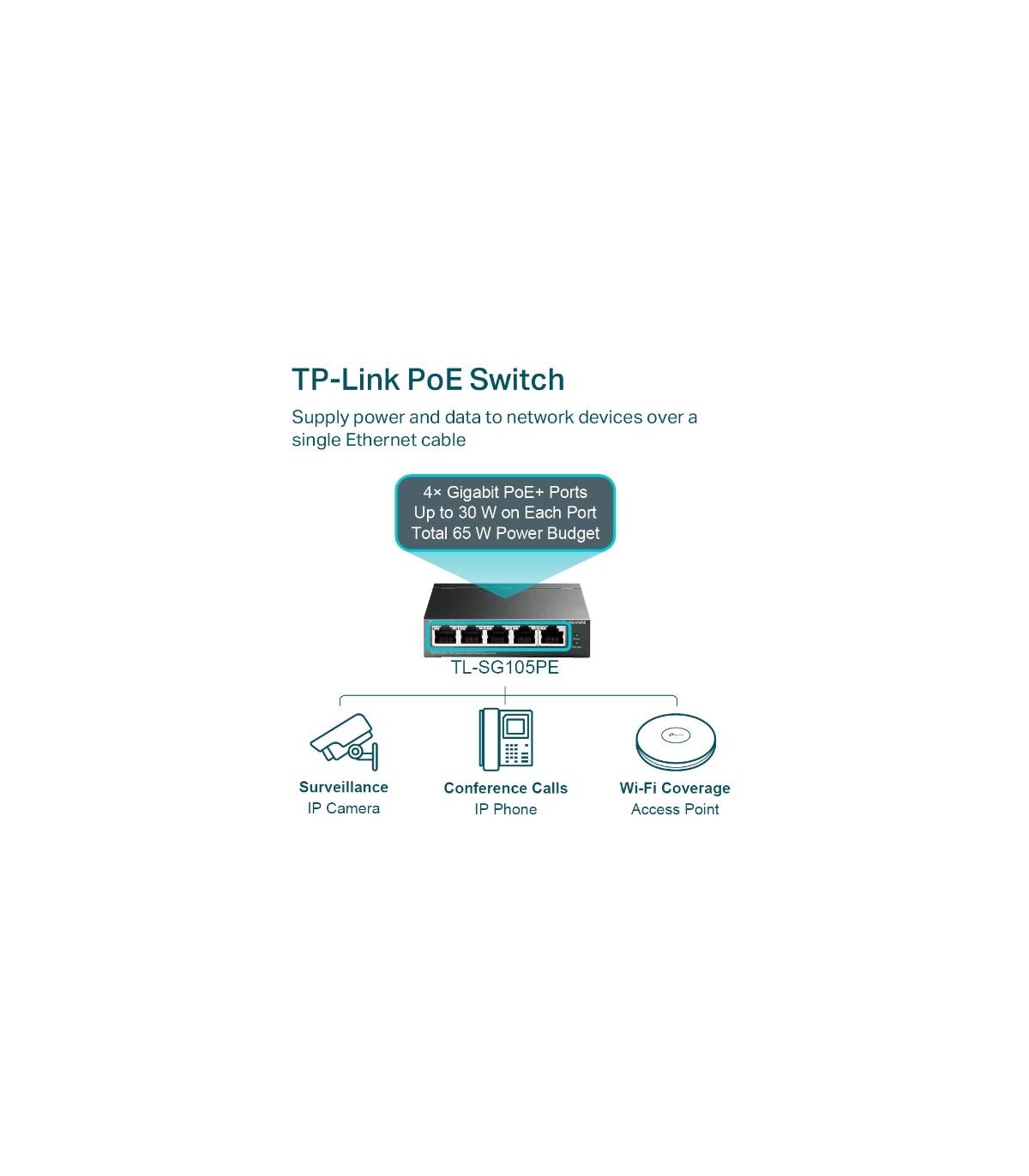

- Power over Ethernet plus (PoE+) ports quantity
- 4
- Number of queues
- 4
- Rate limiting
- Yes
Specific References
- EAN
- 6935364052744
