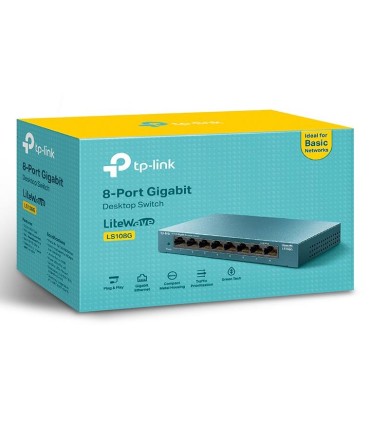

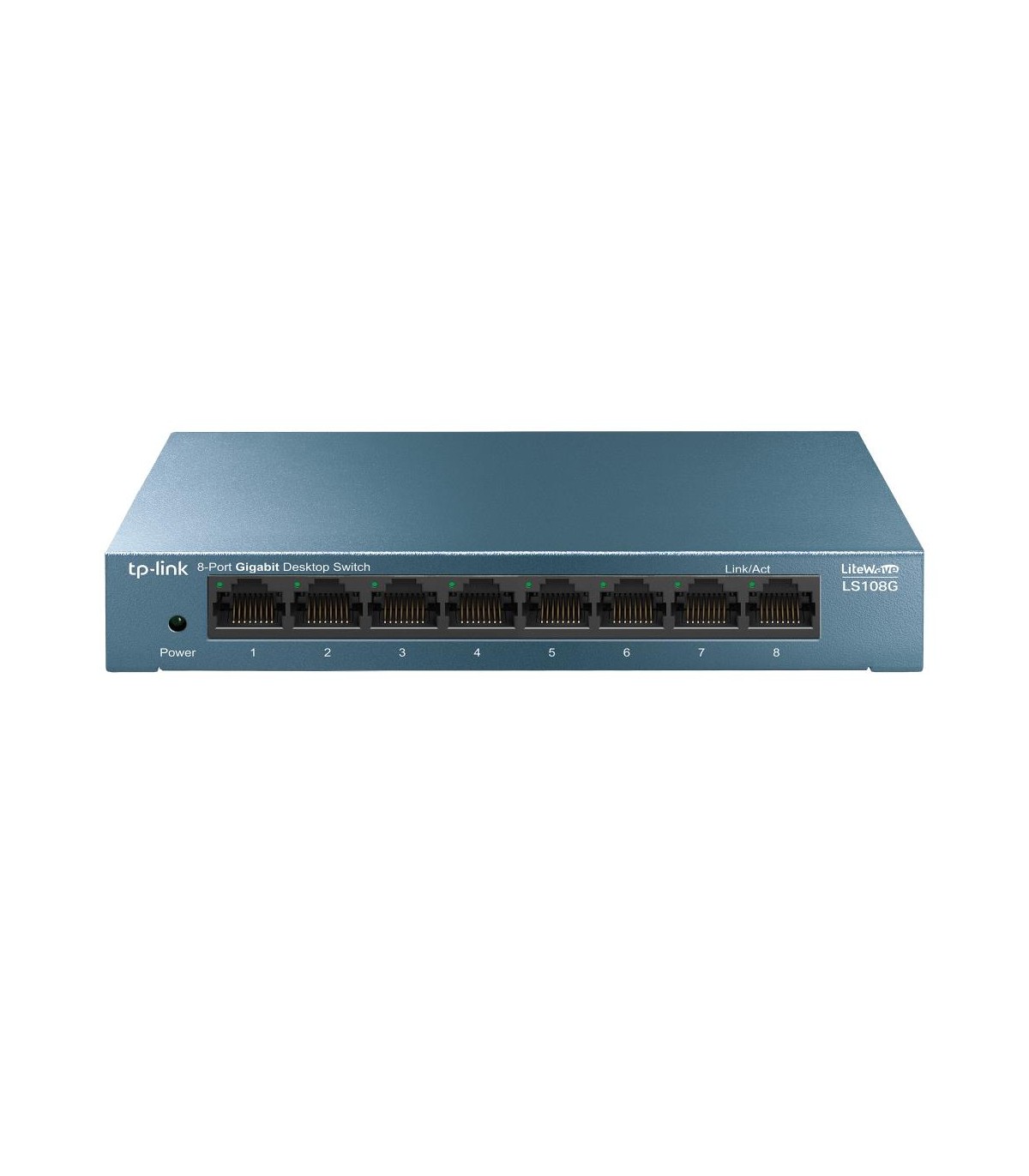

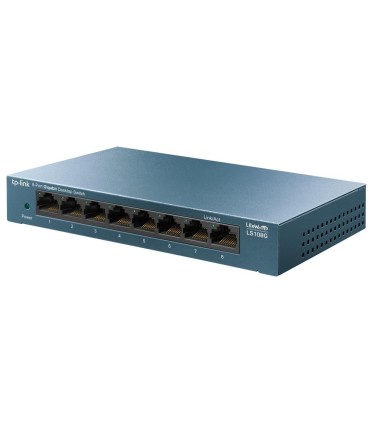

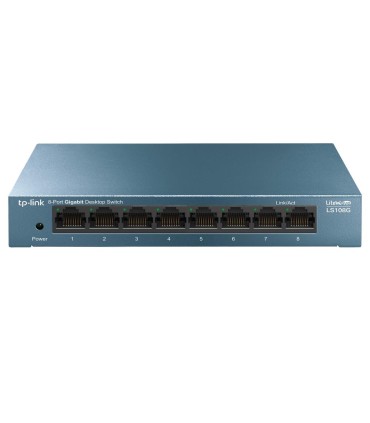

TP-LINK Switch LS108G LS108G 8x10Base-T / 100Base-TX / 1000Base-T LS108G

Other features

Depth

99 mm

Height

25 mm

Width

158 mm

Unit Box Width

0.09

Unit Box Length

0.19

Unit Box Height

0.13

Category Code

SWI

Model name

LS108G

Series

TP-LINK LS108G

Switch type

Unmanaged

Switching capacity

16 Gbit/s

Forwarding rate

11.9 Mpps

Auto-negotiation

Yes

Power source

DC

Unit Calculated Volume

0.002733 cubm

Unit Calculated Weight

0.539 kg

Units per Shipping Box

36

Summary

TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity

Product colour

Blue

Package depth

191 mm

Package height

92 mm

Package weight

470 g

Package width

130 mm

Input current

0.6 A

Certification

CE, FCC, RoHS

Power consumption (max)

3.7 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Quick start guide

Yes

Storage temperature (T-T)

-40 - 70 °C

Harmonized System (HS) code

85176990

LED indicators

Activity/LAN/Power

Heat dissipation

12.617 BTU/h

Power supply included

Yes

Jumbo frames support

Yes

Networking standards

IEEE 802.1p/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Power connector

DC-in jack

Auto MDI/MDI-X

Yes

Input voltage

5 V

Rack mounting

No

10G support

No

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

No

Gigabit Ethernet (copper) ports quantity

8

MAC address table

4000 entries

Jumbo frames

16000

Flow control support

Yes

Packet buffer memory

1.5 MB

Quality of Service (QoS) support

Yes
