1416540
Specification
- Housing material
- Steel
Other features
- Depth
- 160 mm
- Height
- 43.7 mm
- Width
- 325.1 mm
- Unit Box Width
- 0.25
- Unit Box Length
- 0.515
- Unit Box Height
- 0.11
- Category Code
- SWI
- Model
- USW-PRO-MAX-16-POE
- Switch type
- Managed
- Switching capacity
- 84 Gbit/s
- Forwarding rate
- 62.496 Mpps
- Power source
- AC/DC
- Unit Calculated Volume
- 0.01723 cubm
- Unit Calculated Weight
- 4.08 kg
- Units per Shipping Box
- 4

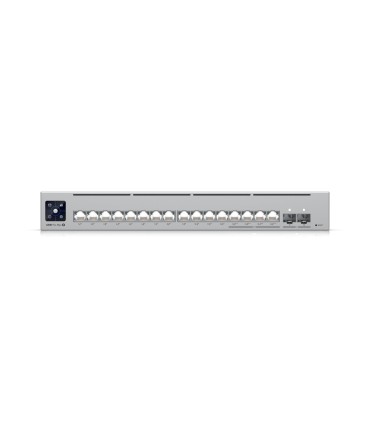

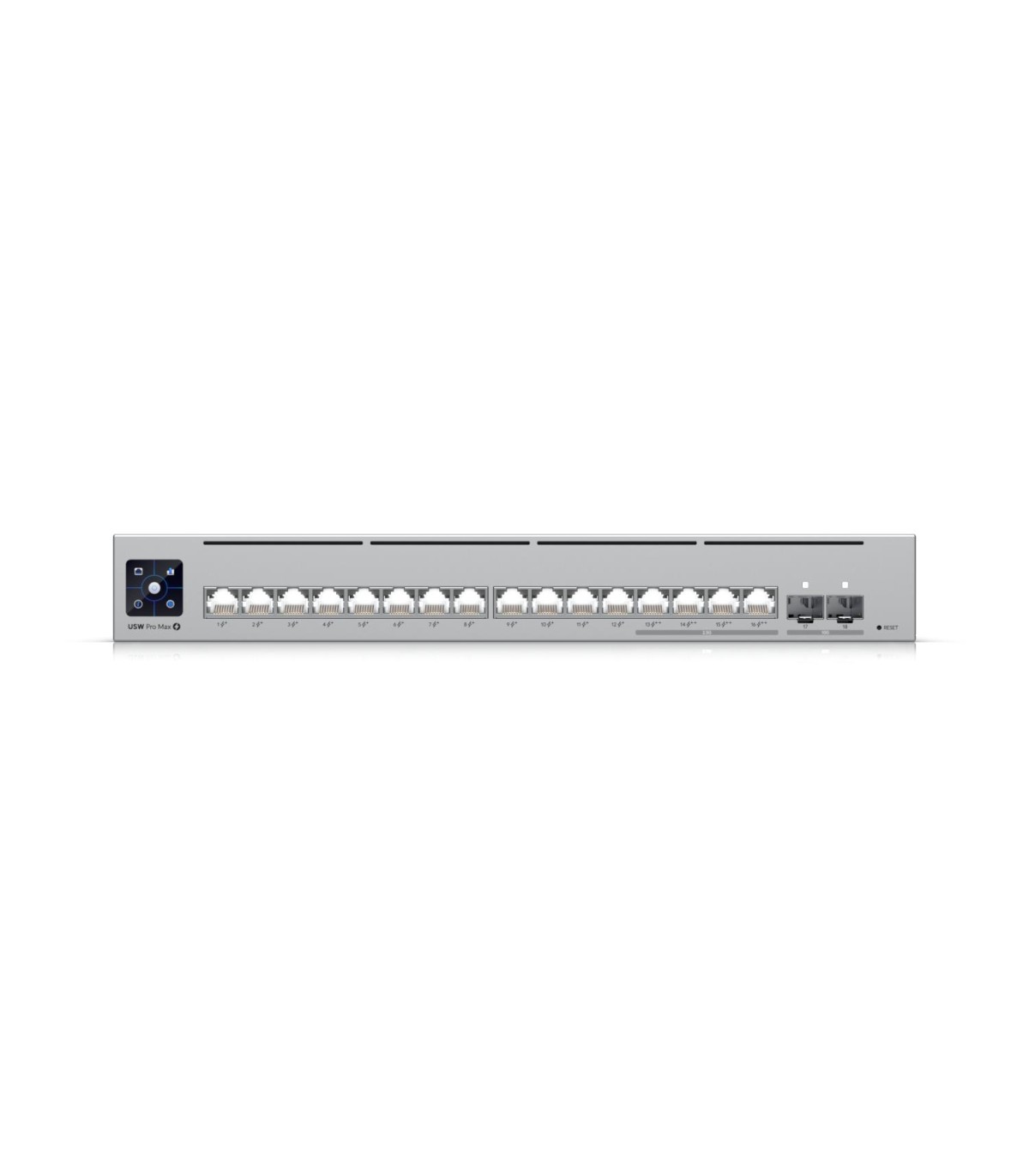

- Summary

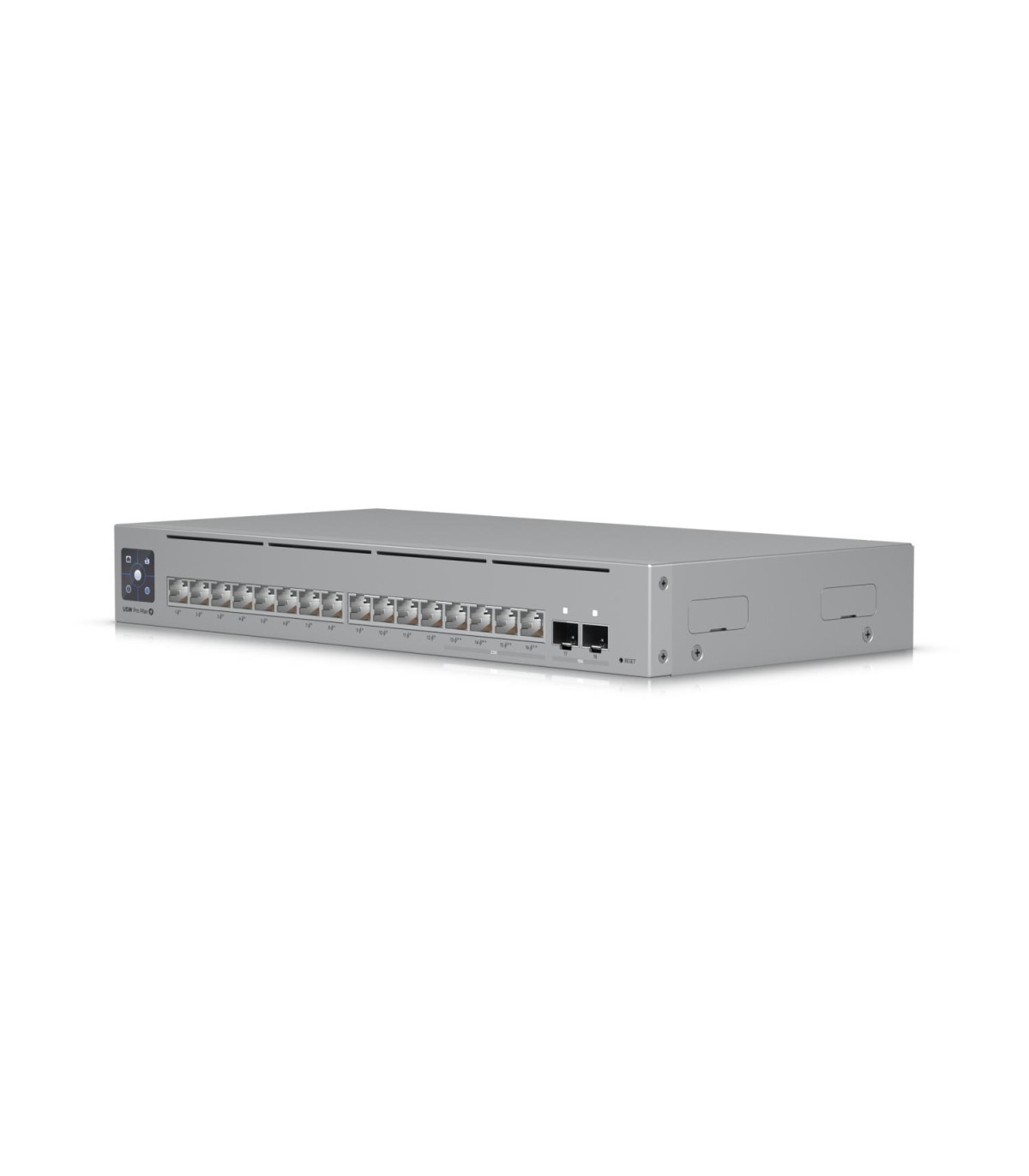

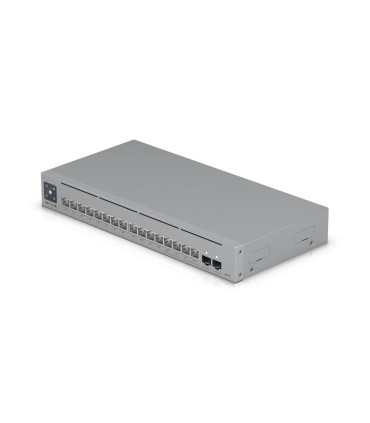

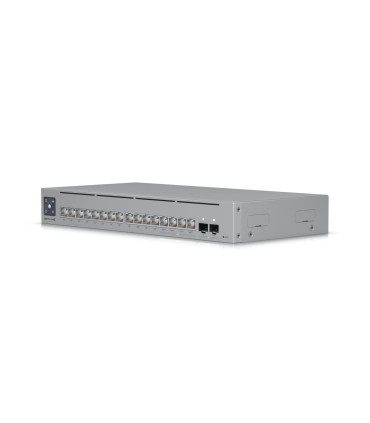

- Ubiquiti Pro Max 16 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Switching capacity: 84 Gbit/s. Networking standards: IEEE 802.1x
- Product colour
- Grey
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Cables included
- Power
- Power consumption (max)
- 30 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 40 °C
- Compliance certificates
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)
- Weight
- 2100 g
- Manual
- Yes
- LED indicators
- System
- Reset button
- Yes

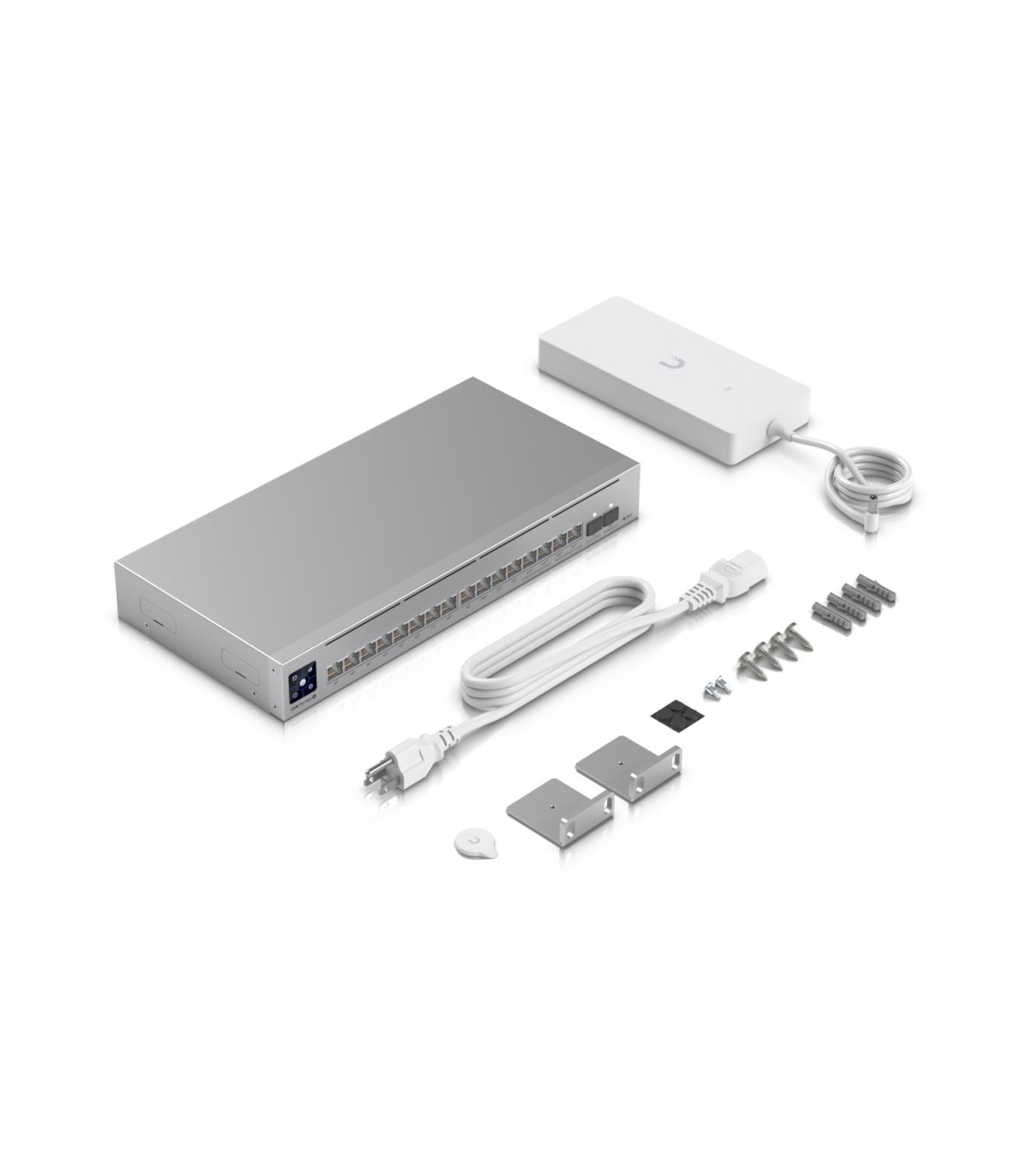

- Power supply included
- Yes
- Mounting brackets included
- Yes
- Display type
- LCM
- Jumbo frames support
- Yes
- Networking standards
- IEEE 802.1x
- Power connector
- DC-in jack
- Rack mounting
- Yes
- 10G support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE)
- Yes
- Gigabit Ethernet (copper) ports quantity
- 12
- Flow control support
- Yes
- Power over Ethernet (PoE) power per port
- 15 W
- Total Power over Ethernet (PoE) budget
- 180 W
- DC input voltage
- 44 - 57 V
- Switch layer
- L3
- Port mirroring
- Yes
- IGMP snooping
- Yes
- Loop protection
- Yes
- Broadcast storm control
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Voice VLAN
- Throughput
- 42 Gbit/s
- Power over Ethernet plus (PoE+) ports quantity
- 12
- DHCP features
- DHCP snooping/DHCPv6 relay
- Multicast support
- Yes
- Rate limiting
- Yes
- SFP+ module slots quantity
- 2
- Redundant power supply (RPS) support
- Yes
- 2.5G Ethernet (copper) ports quantity
- 4
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 4
Specific References
- EAN
- 810084694572
