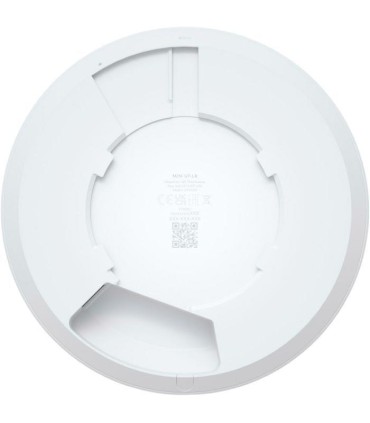

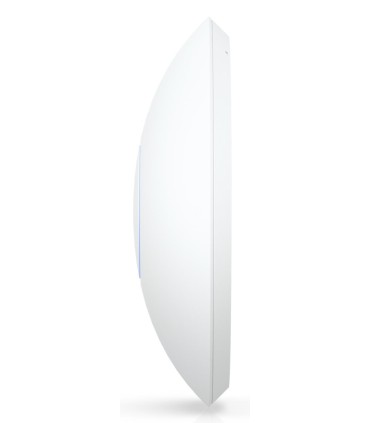

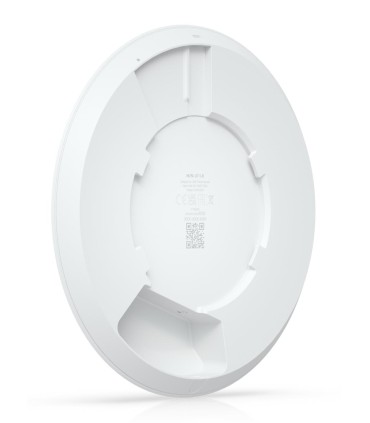

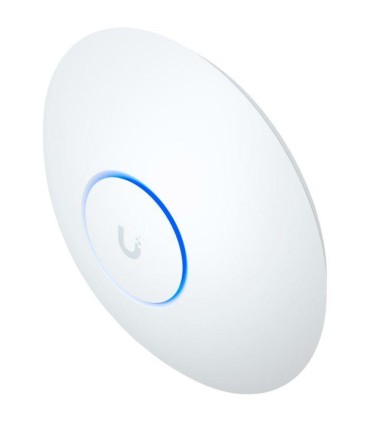

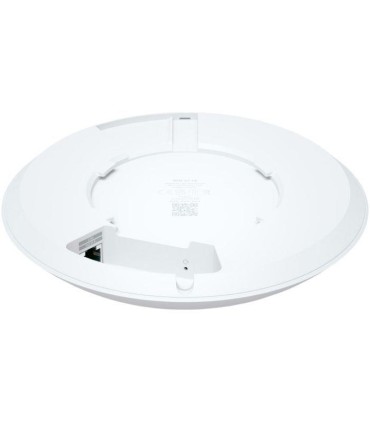

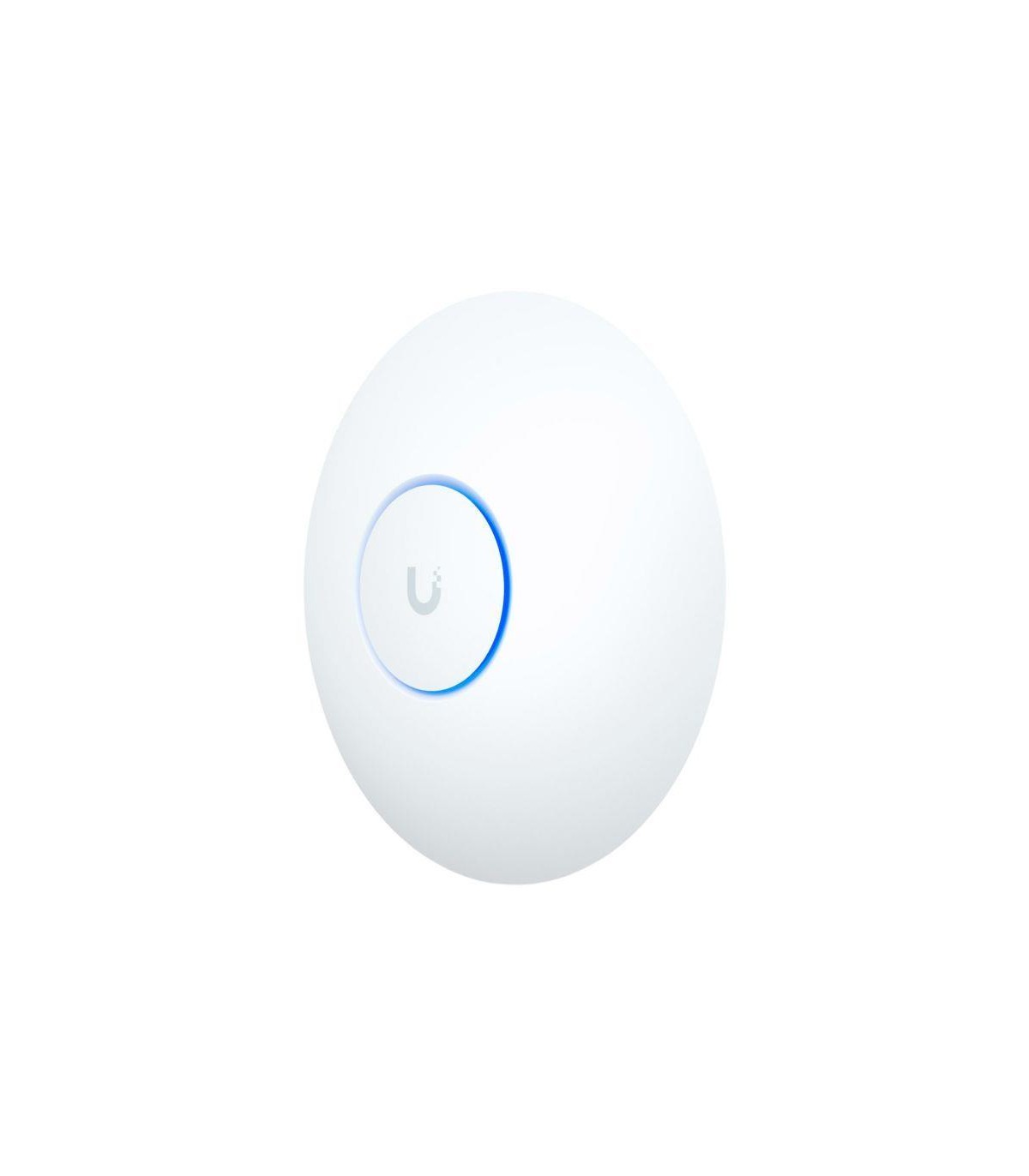

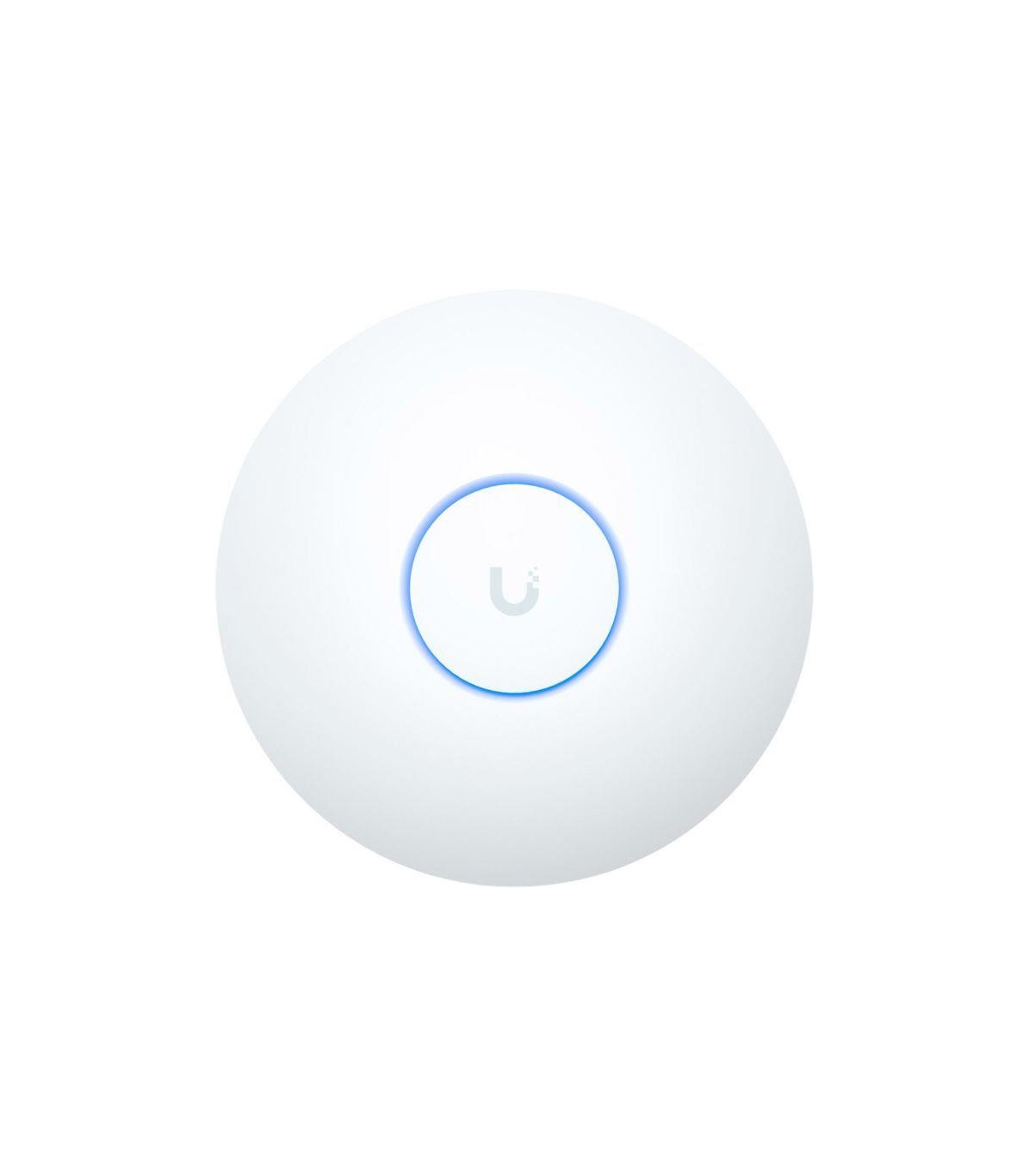

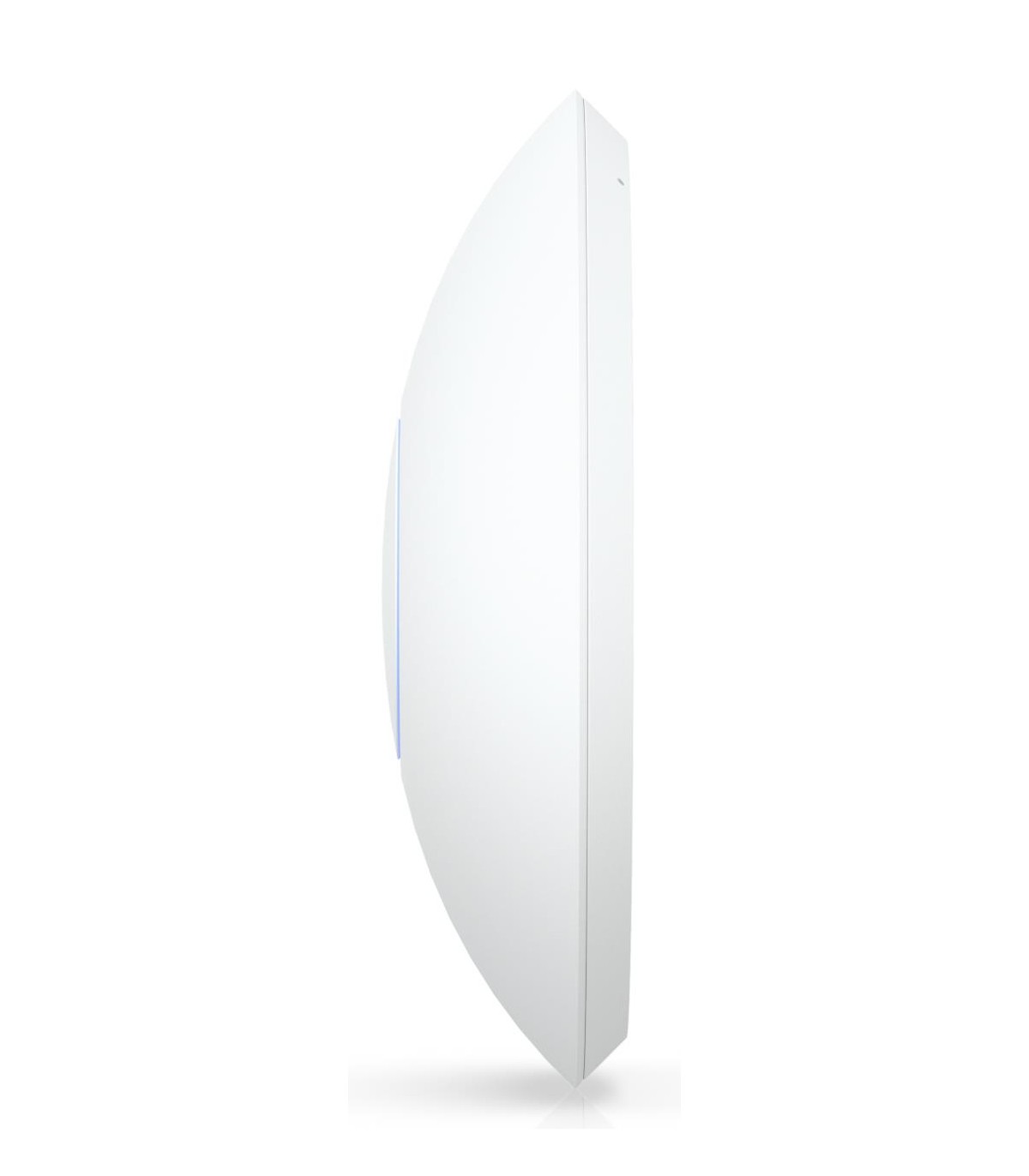

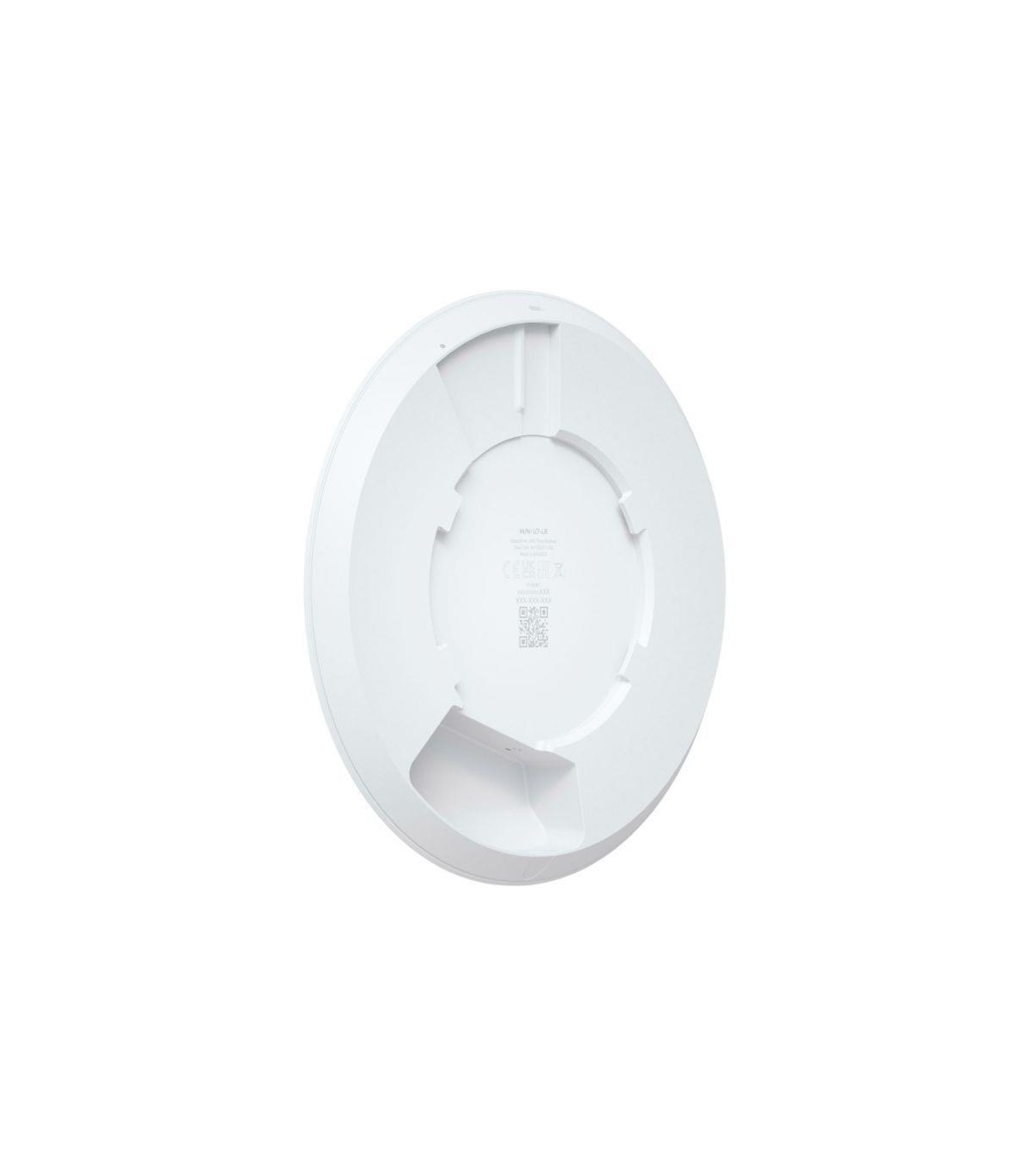

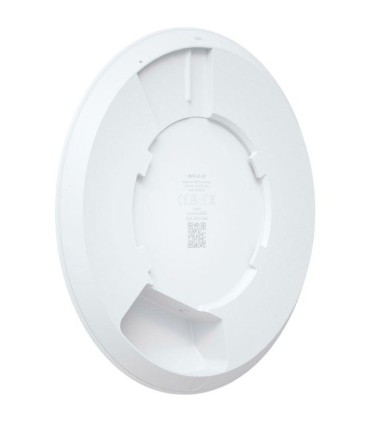

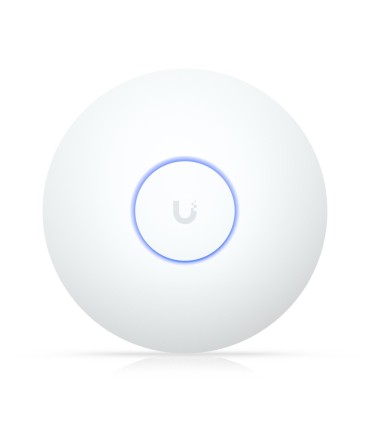

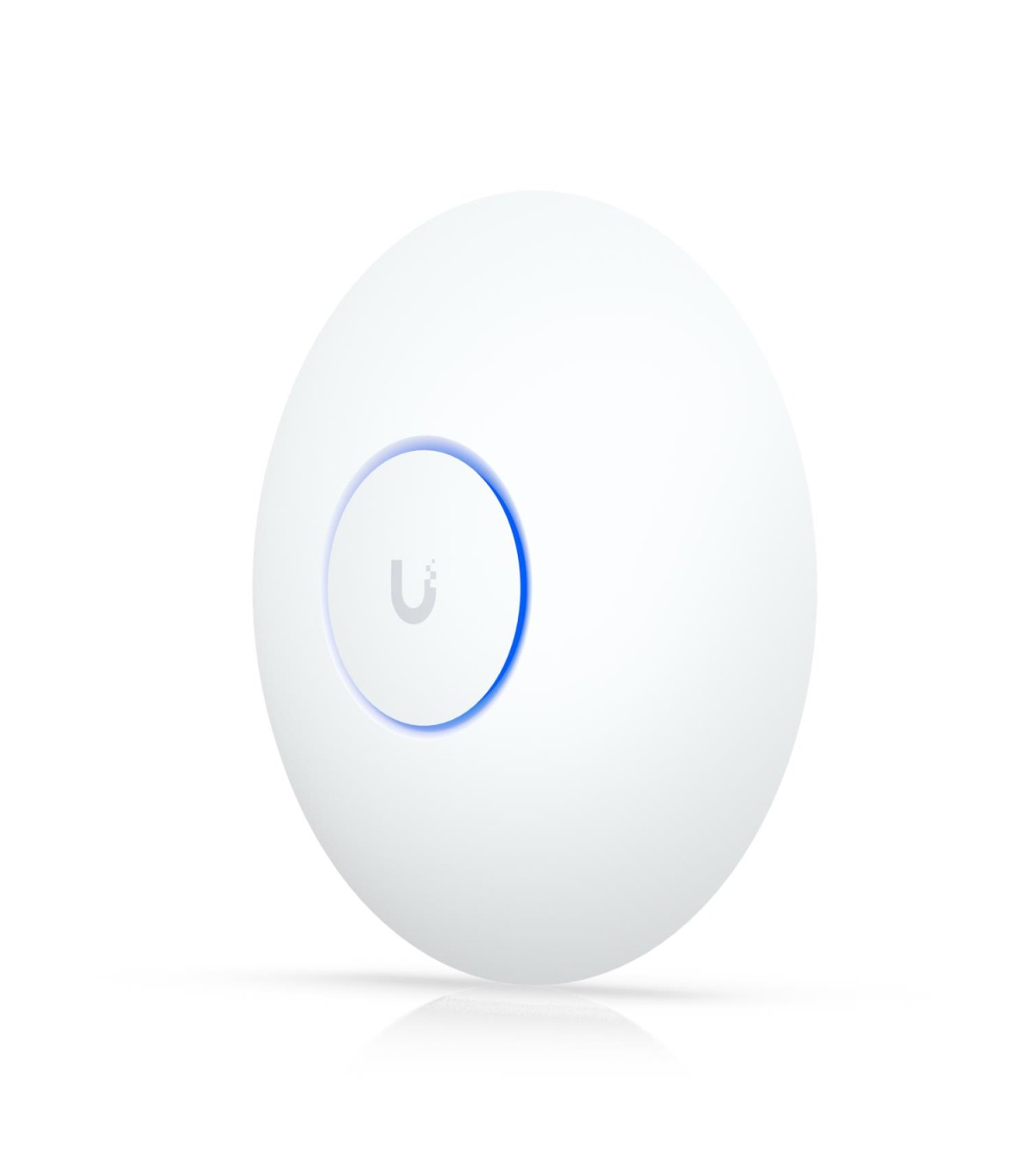

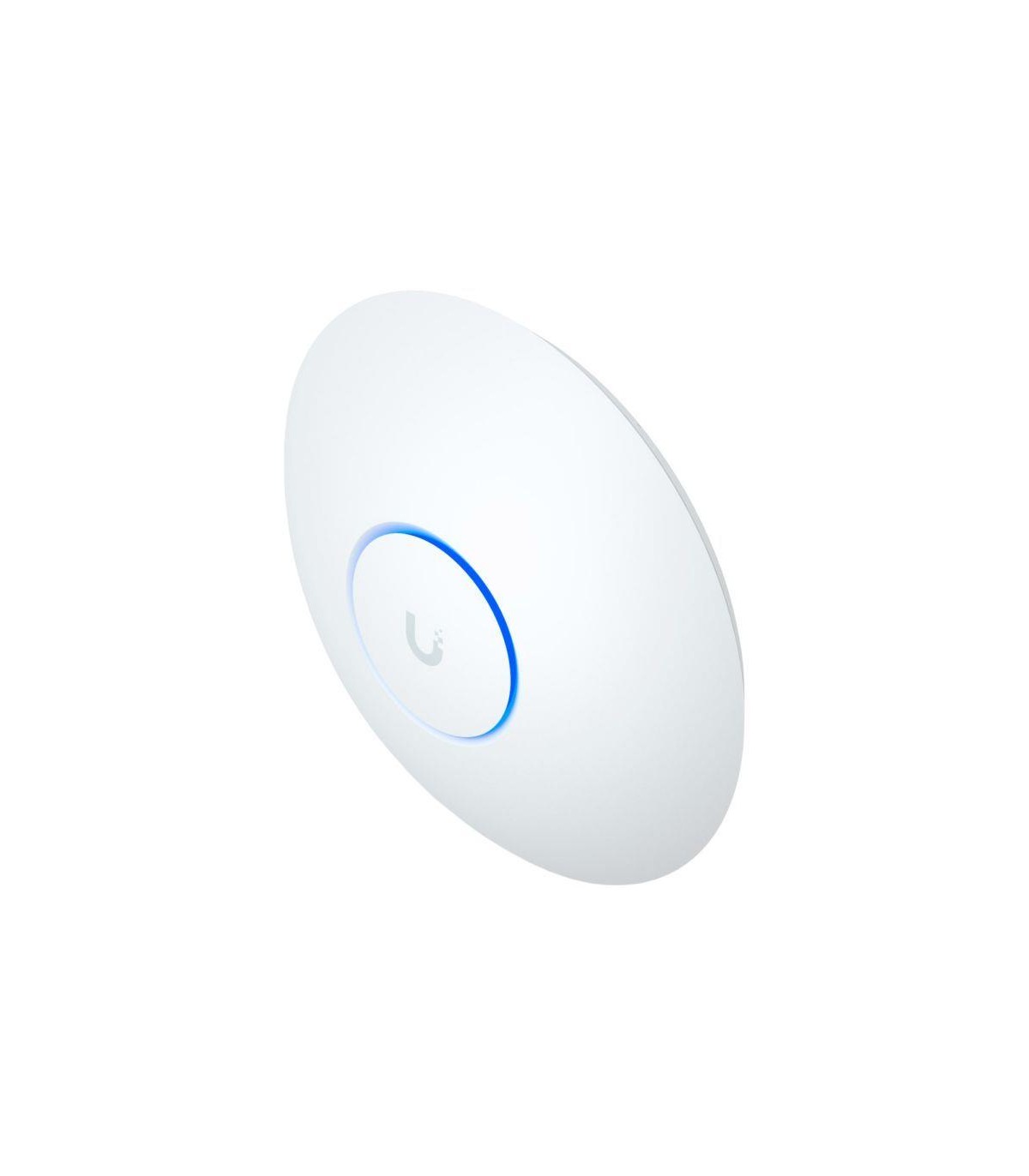

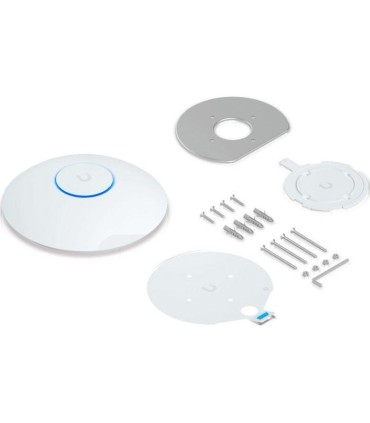

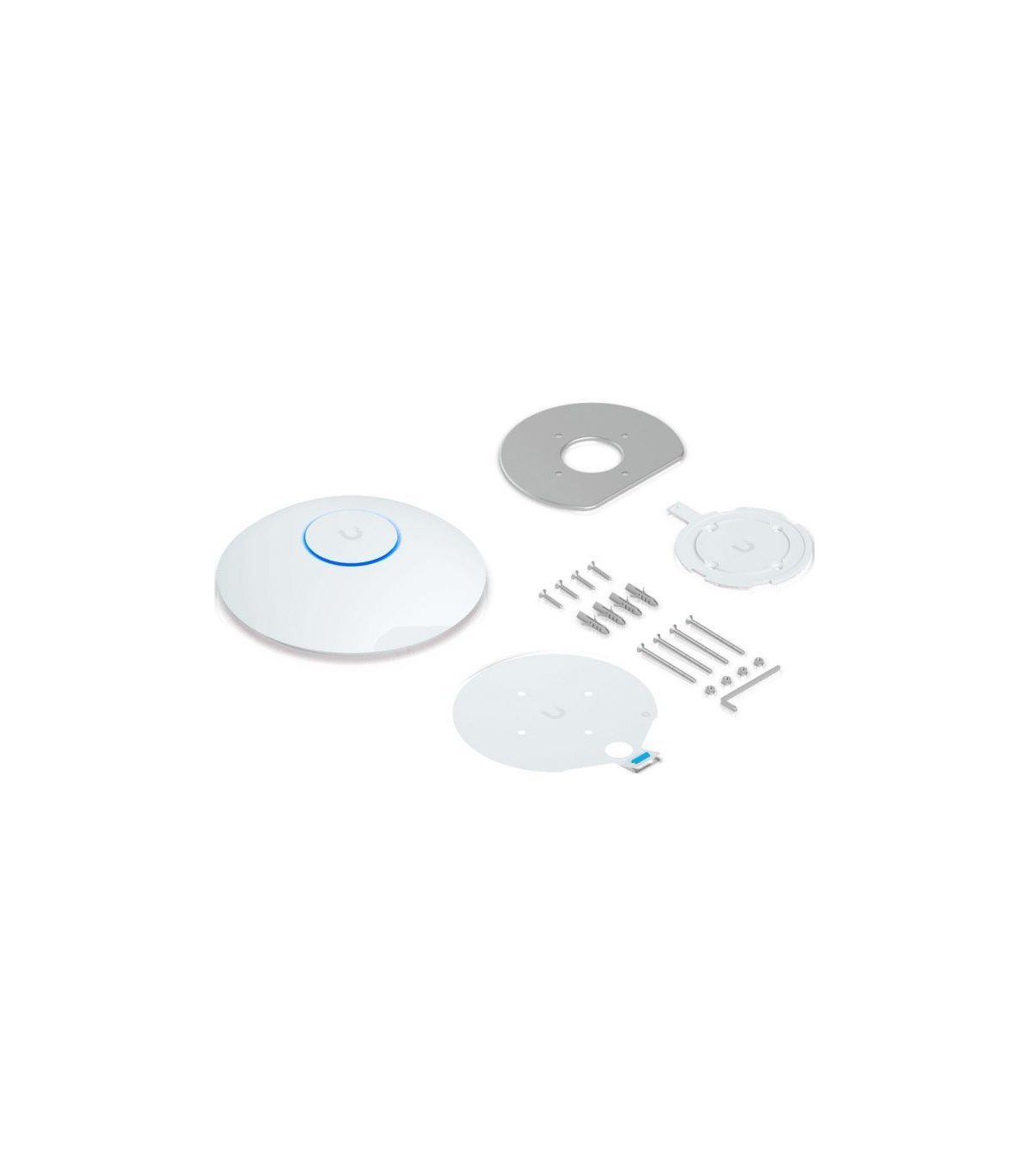

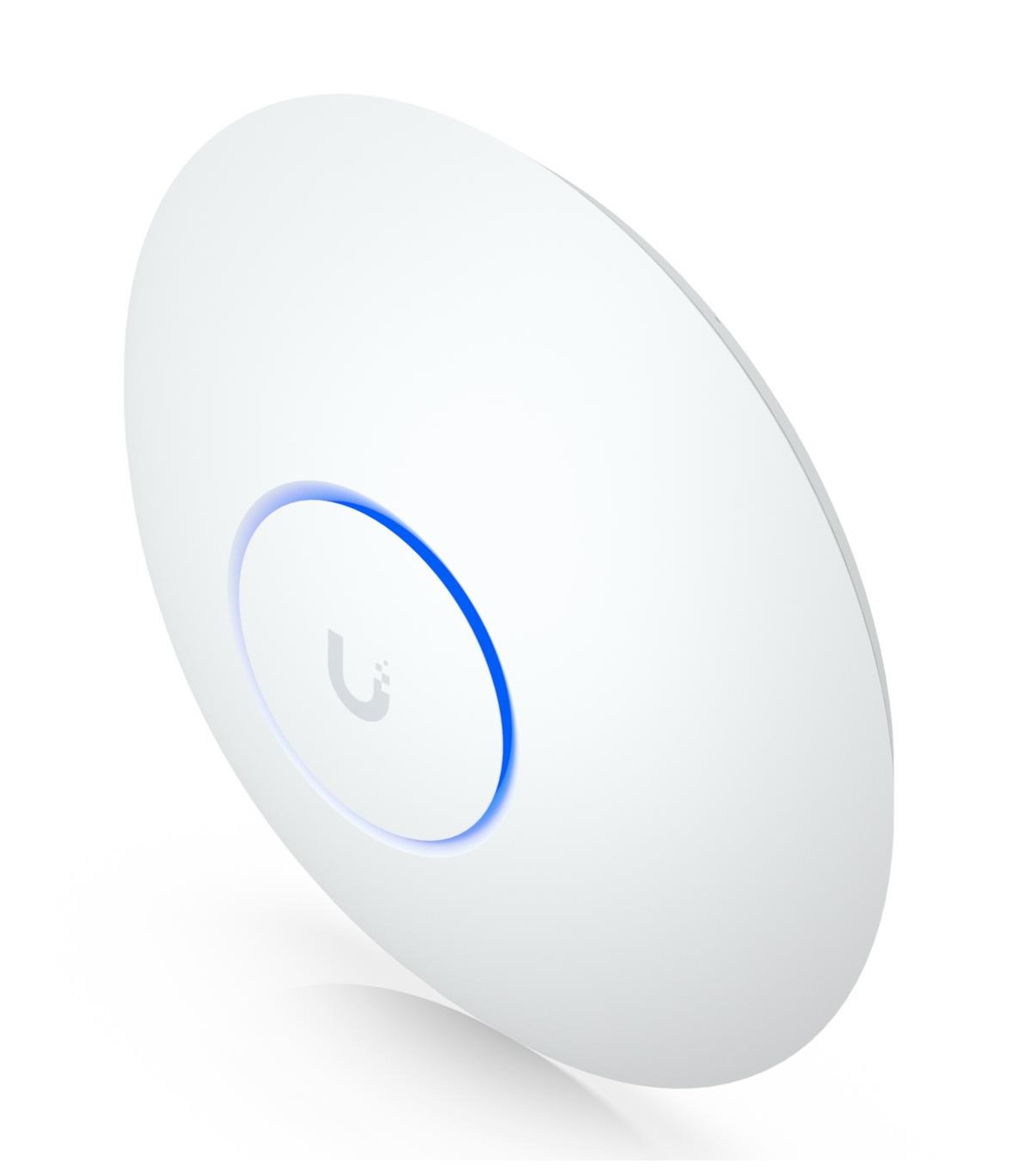

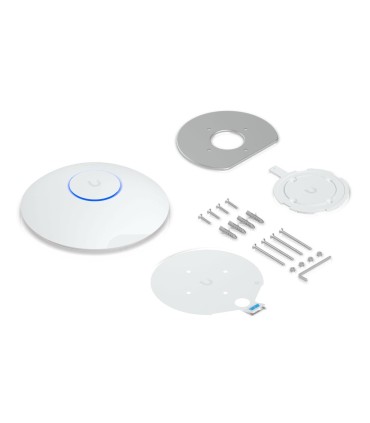

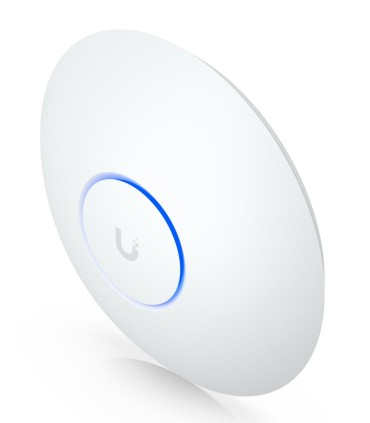

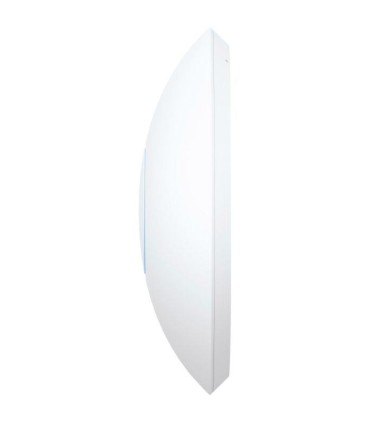

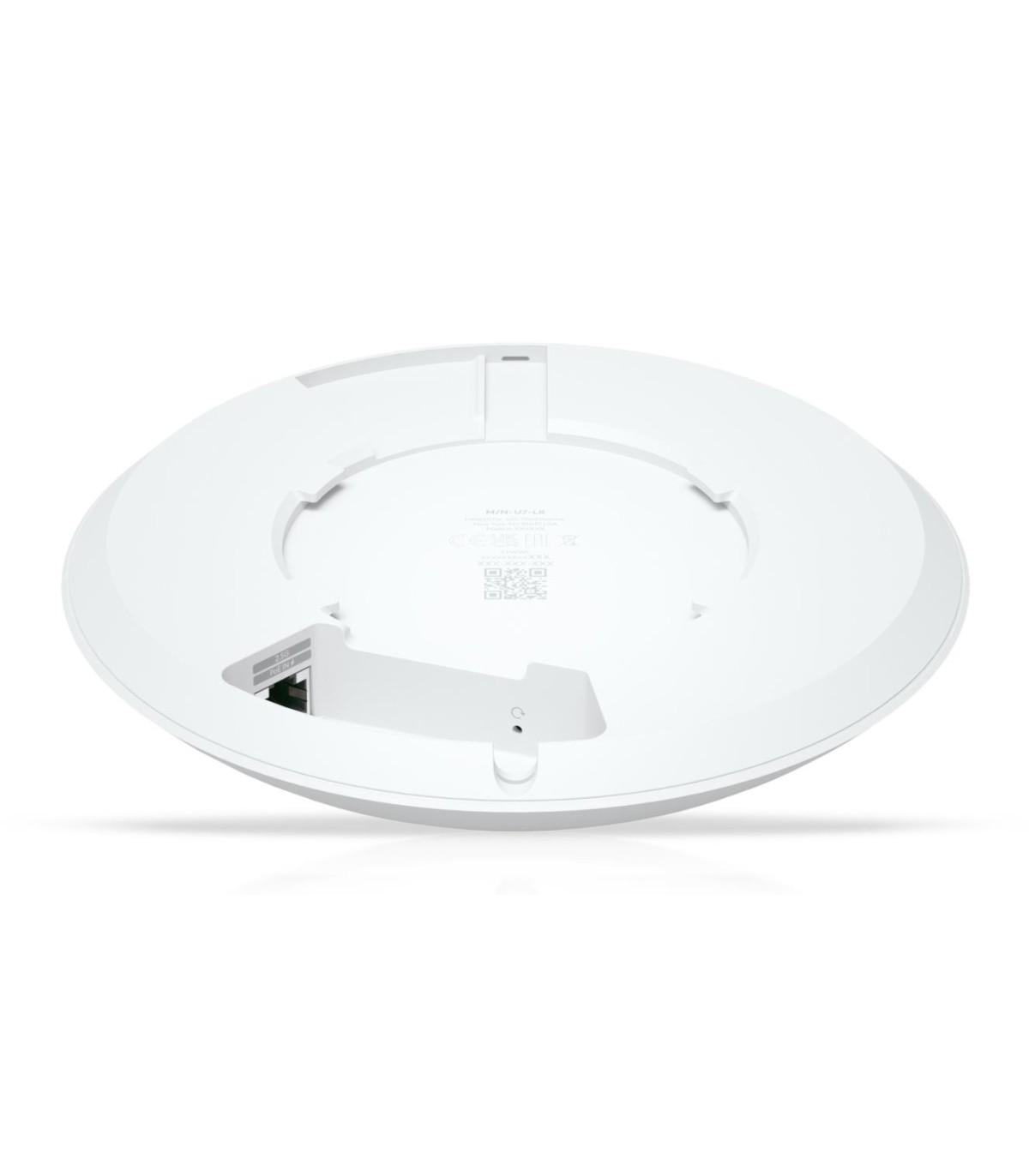

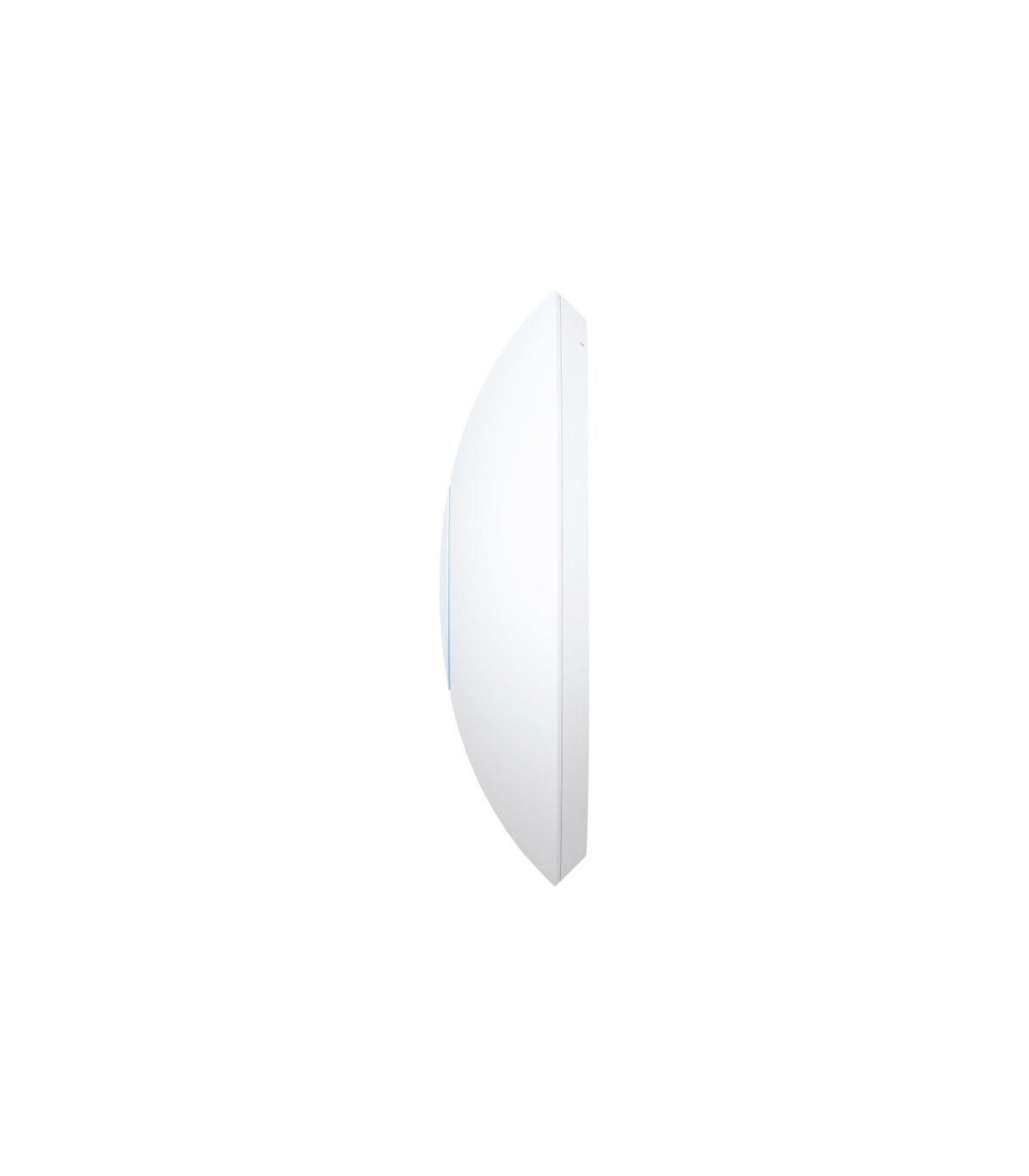

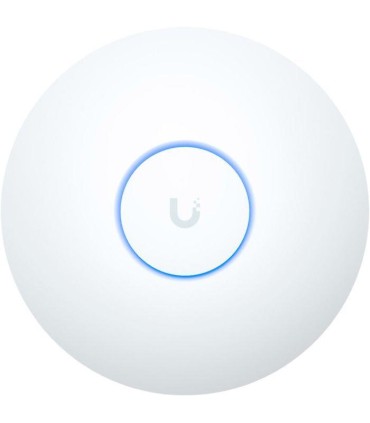

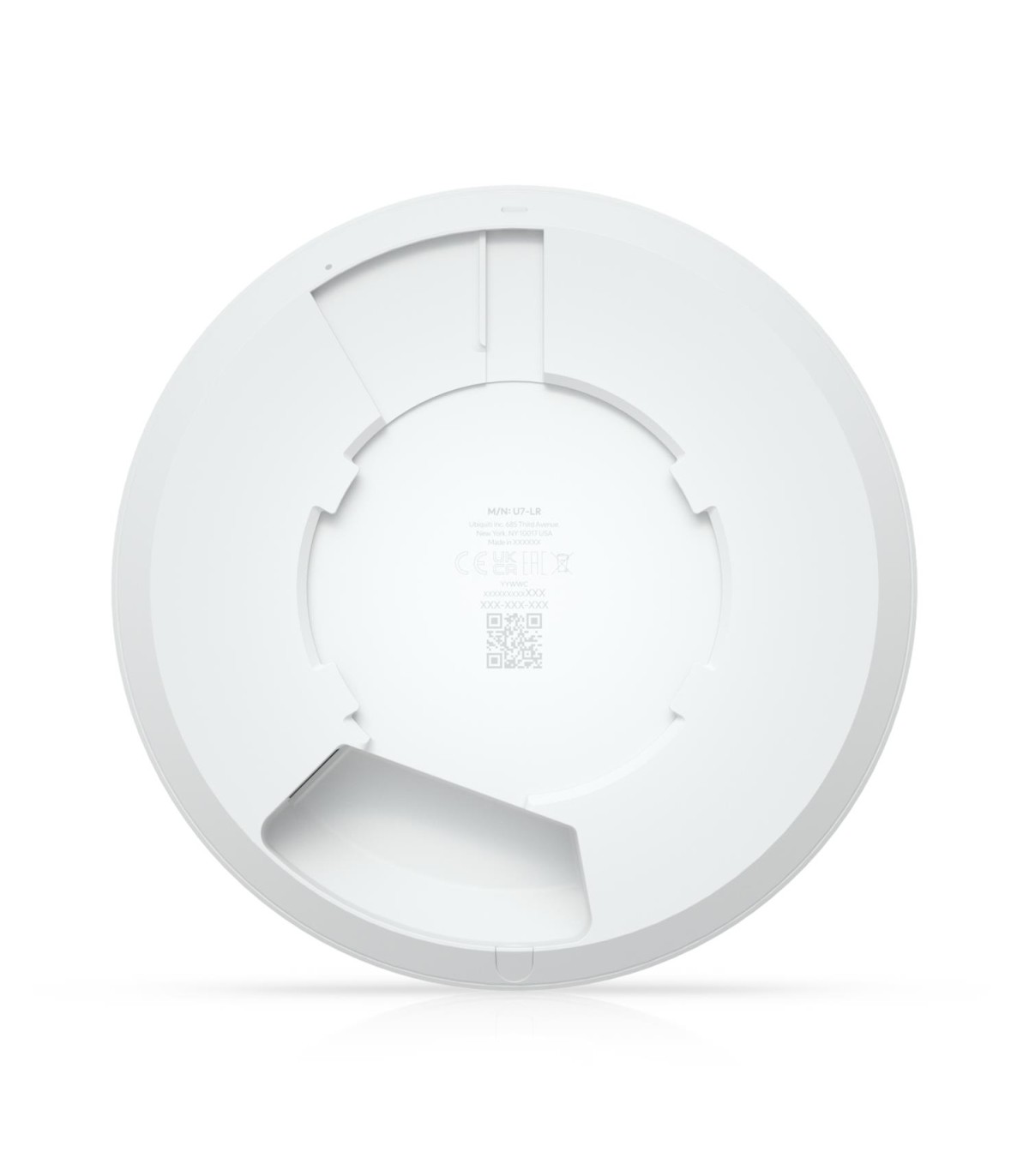

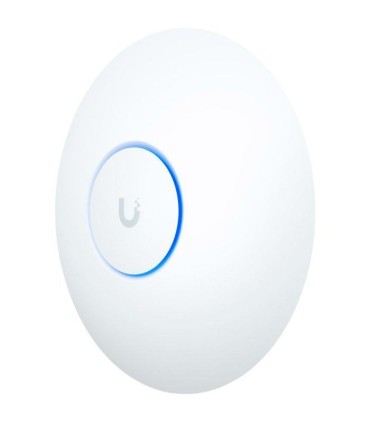

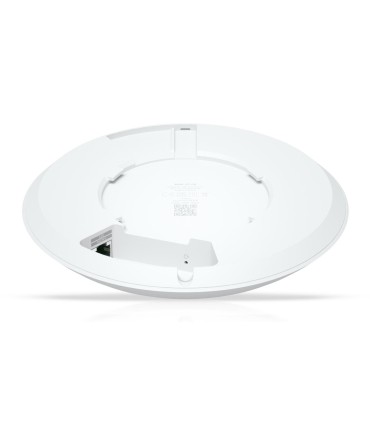

UBIQUITI WRL ACCESS POINT/U7-LR

Specification

Housing material

Aluminium,Polycarbonate (PC)

Other features

Depth

175.7 mm

Height

43 mm

Width

175.7 mm

Unit Box Width

0.0247

Unit Box Length

0.485

Unit Box Height

0.51

Category Code

WAP

Model name

U7 Long-Range

Model

U7-LR

Antenna Type

Internal

Unit Calculated Volume

0.006106 cubm

Unit Calculated Weight

0.959 kg

Units per Shipping Box

16

Summary

Ubiquiti U7 Long-Range. 2.4 GHz, 5 GHz, Maximum data transfer rate: 7300 Mbit/s. Security algorithms: PPSK, TLS. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 14 W

Product colour

White

Power consumption (max)

14 W

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-30 - 50 °C

Compliance certificates

CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)

Weight

448 g

LED indicators

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

1000/2500 Mbit/s

Quantity per pack

1 pc(s)

Frequency band

2.4 - 5 GHz

Reset button

Yes

MIMO

Yes

Security algorithms

PPSK/TLS

MIMO type

Multi User MIMO

Maximum data transfer rate

7300 Mbit/s

Mounting kit

Yes

Networking standards

IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11be/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v

Power over Ethernet (PoE)

Yes

VLAN support

Yes

Rate limiting

Yes

Maximum Tx power (2.4 GHz)

26 dBmW

Maximum Tx power (5 GHz)

27 dBmW

Antenna gain level (max)

6 dBi

2.4 GHz

Yes

5 GHz

Yes

6 GHz

No

Band steering

Yes

Fit AP mode features

Hotspot 2.0

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

Maximum data transfer rate (5 GHz)

4300 Mbit/s

Number of users

300 user(s)

DC voltage range

42.5 - 57 V

Placement

Ceiling,Wall

Remote Authentication Dial-In User Service (RADIUS)

Yes

Spatial streams

5

Coverage area

160 m²

Fast roaming

Yes

Wireless meshing

Yes

Access point management

Wi-Fi schedule
