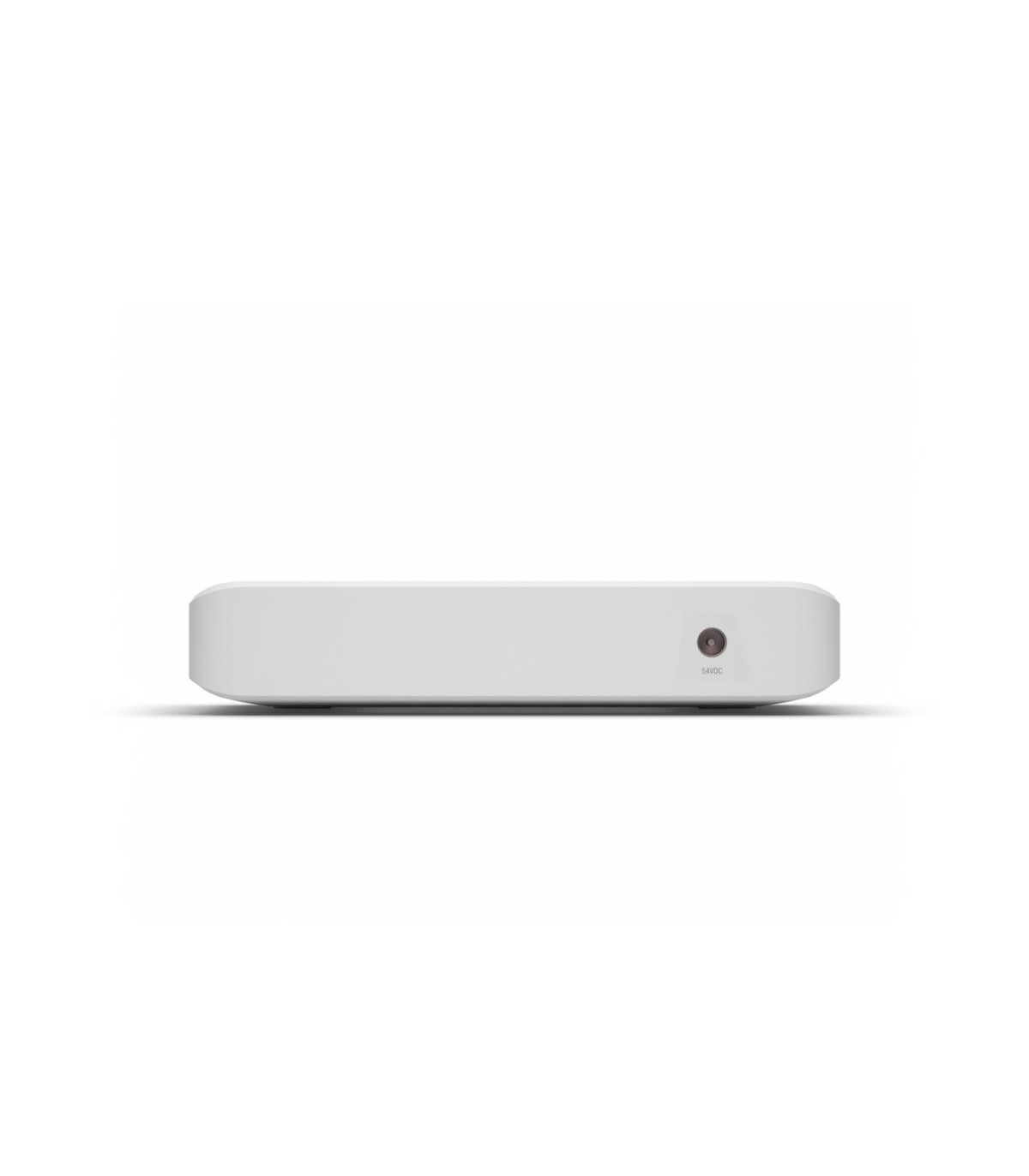

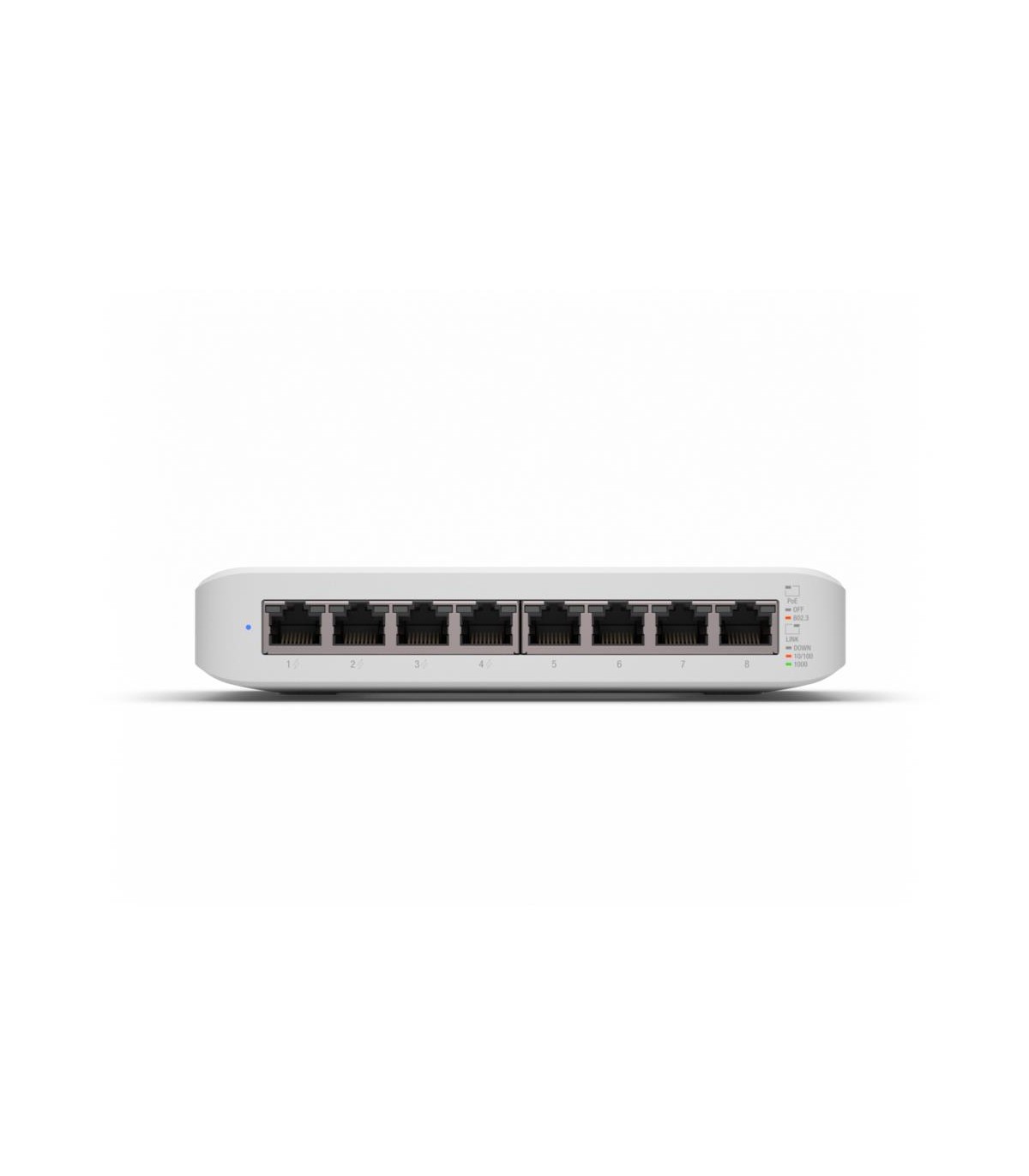

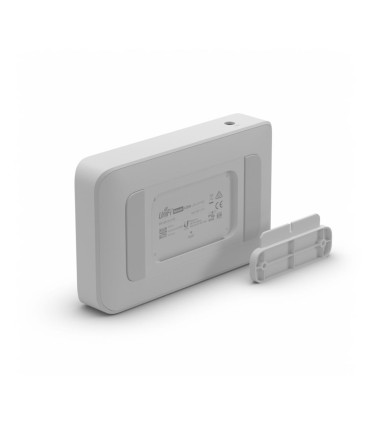

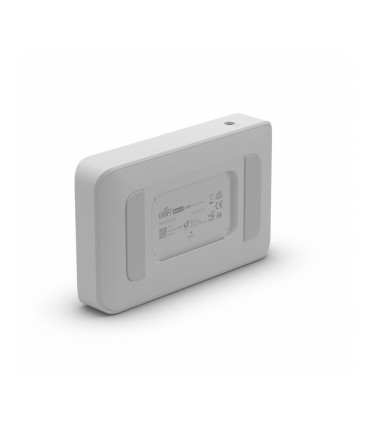

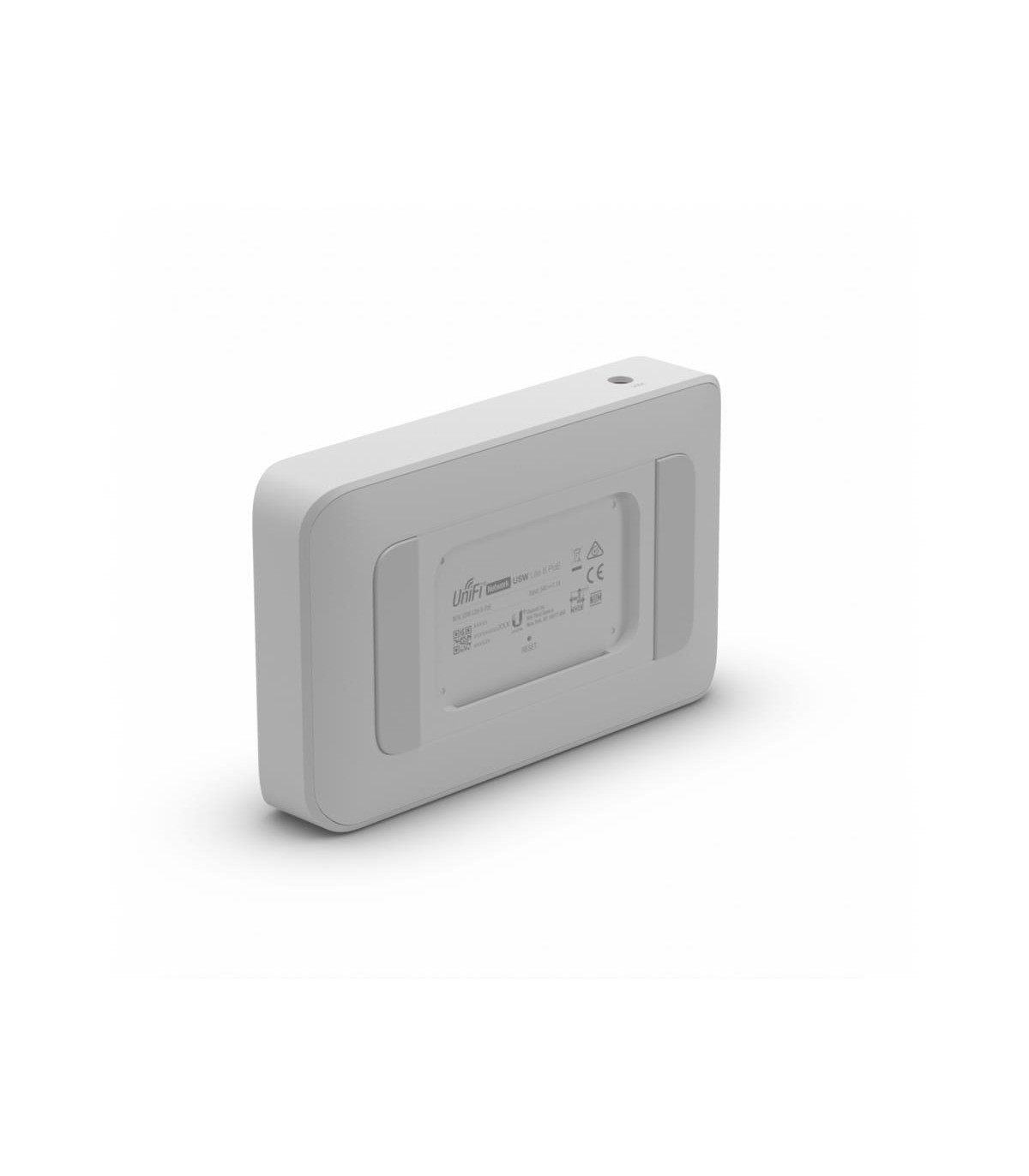

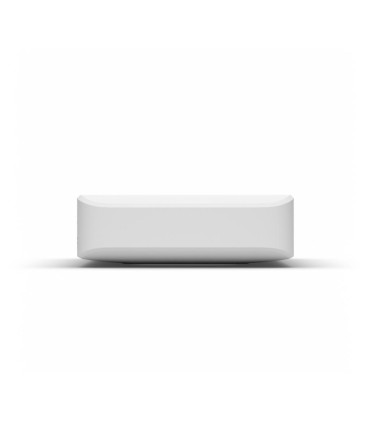

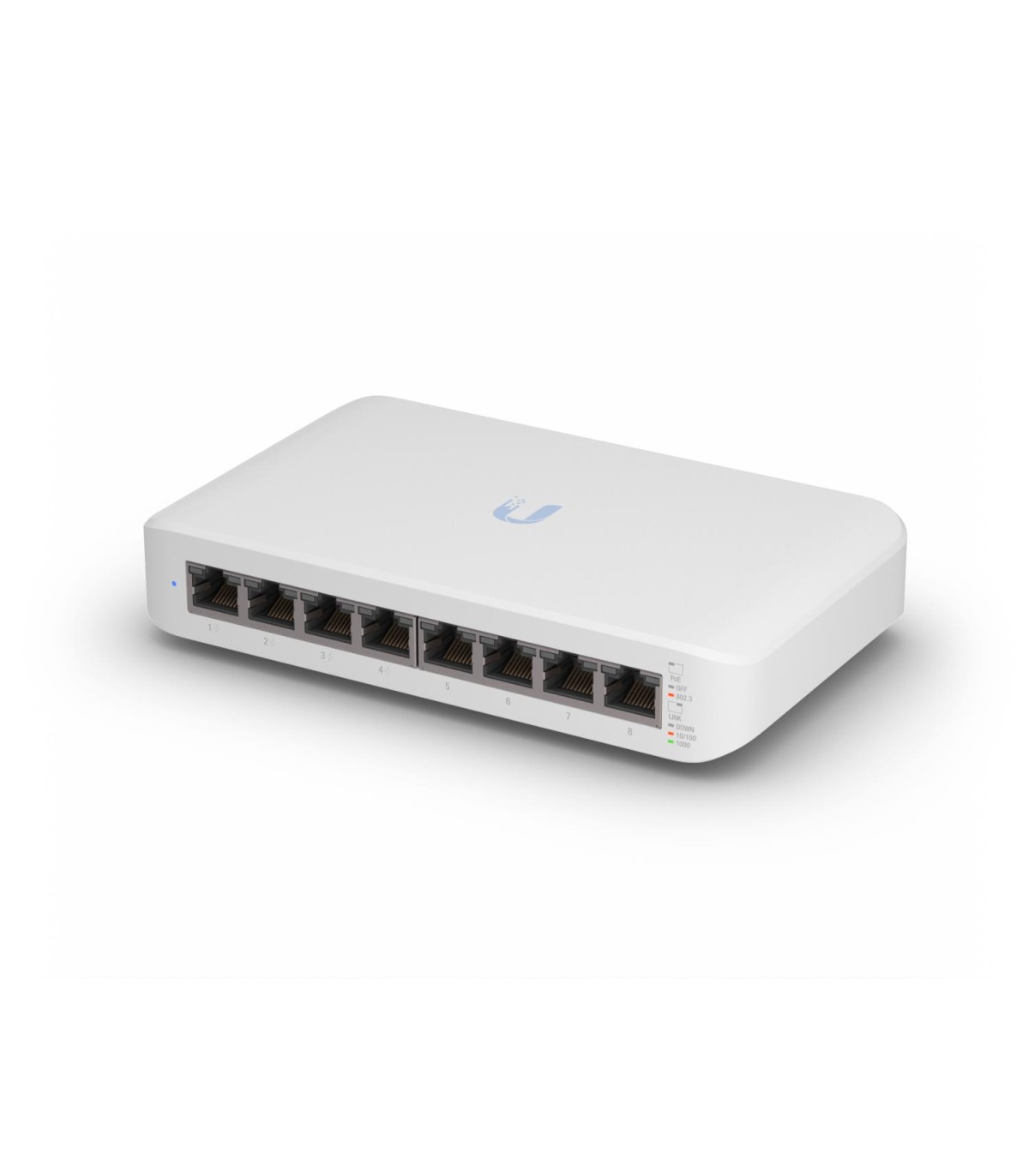

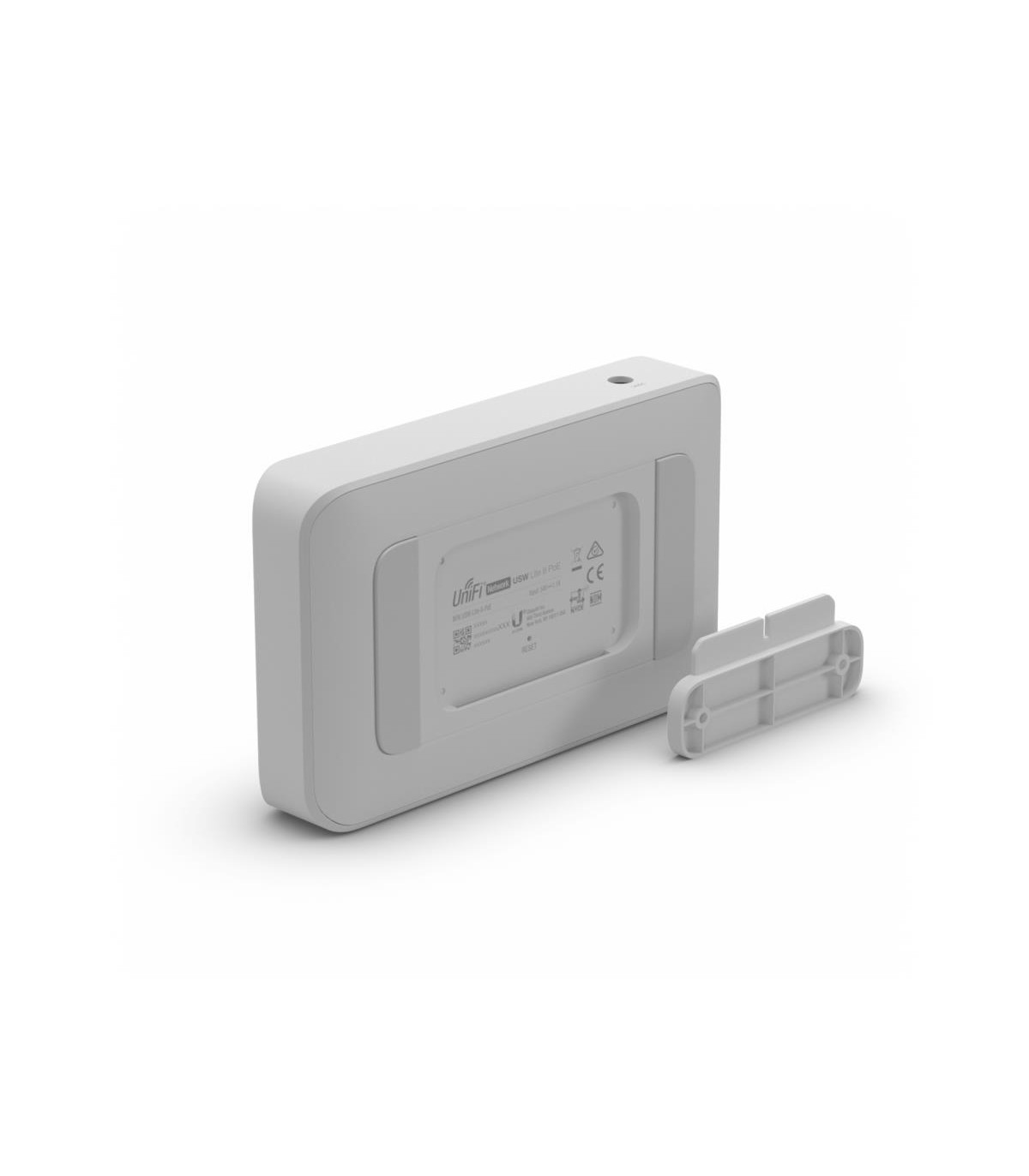

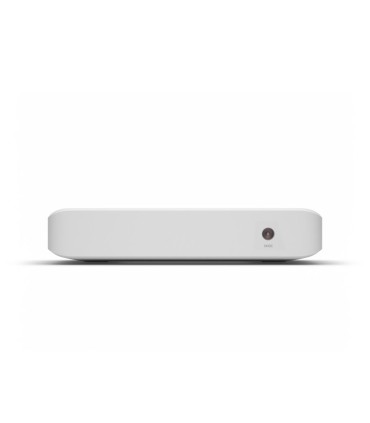

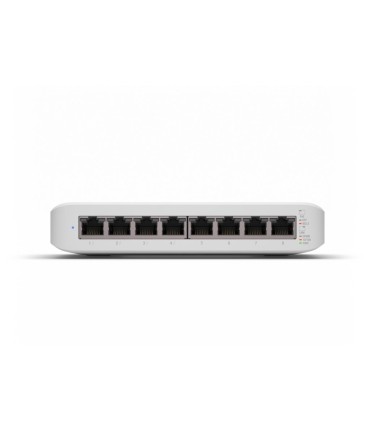

UBIQUITI Switch Lite 8 PoE Type L2 Desktop/pedestal 8x10Base-T / 100Base-TX / 1000Base-T PoE+ ports 4 USW-LITE-8-POE

Other features

Depth

99.6 mm

Height

31.7 mm

Width

163.7 mm

Unit Box Width

0.105

Unit Box Length

0.19

Unit Box Height

0.13

Category Code

SWI

Model name

Lite 8 PoE

Switch type

Managed

Switching capacity

8 Gbit/s

Unit Calculated Volume

0.003638 cubm

Unit Calculated Weight

0.874 kg

Units per Shipping Box

9

Summary

Ubiquiti UniFi Switch Lite 8 PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 8 Gbit/s. Networking standards: IEEE

Product colour

White

Power consumption (typical)

60 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

-15 - 40 °C

Weight

450 g

Wall mountable

Yes

Harmonized System (HS) code

85176990

LED indicators

Yes

Power supply included

Yes

Number of power supply units

1

Networking standards

IEEE 802.3at

Power connector

DC-in jack

Rack mounting

No

10G support

No

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) power per port

30 W

DC input voltage

54 V

Switch layer

L2

Stackable

No

Power over Ethernet plus (PoE+) ports quantity

4

Power over Ethernet (PoE) type supported

PoE+
