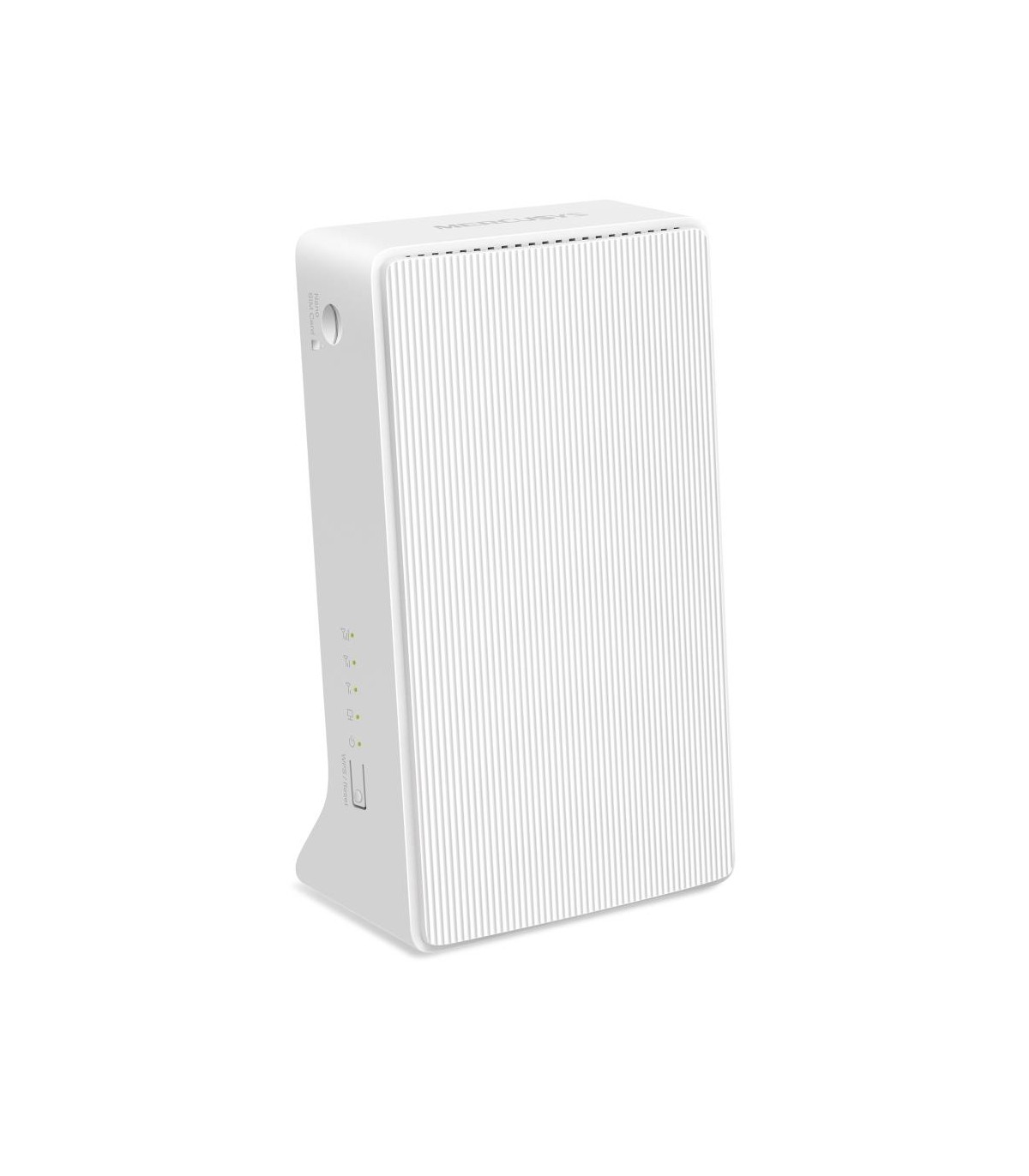

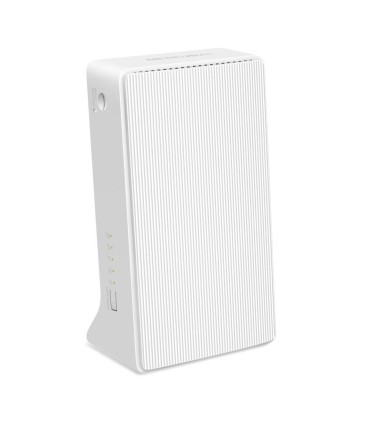

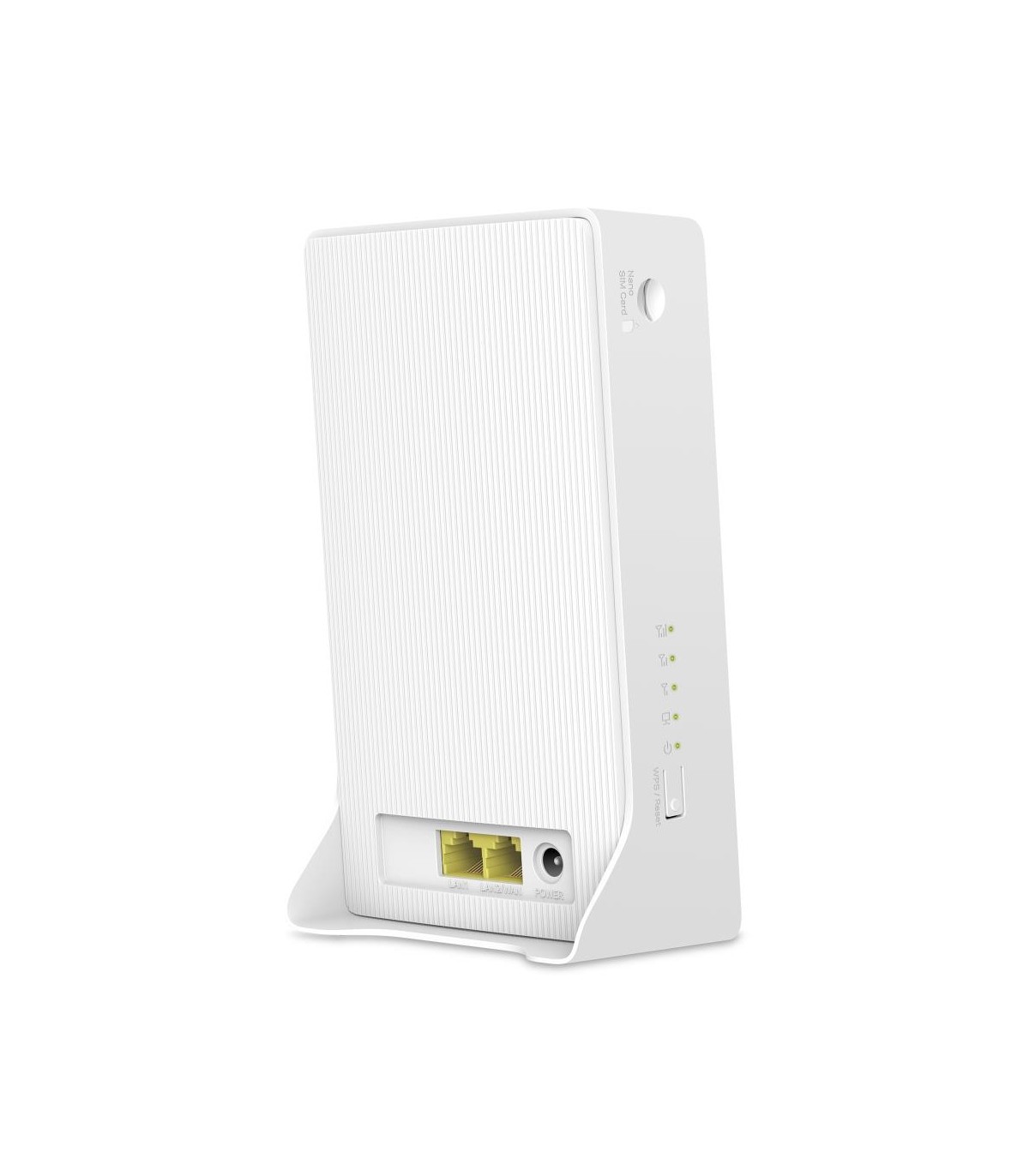

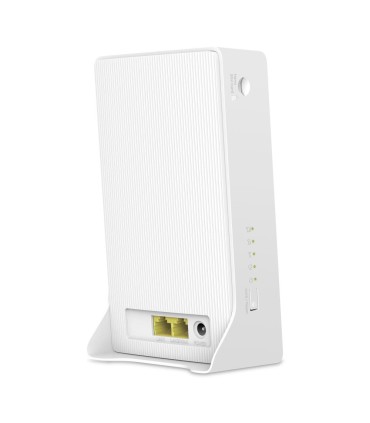

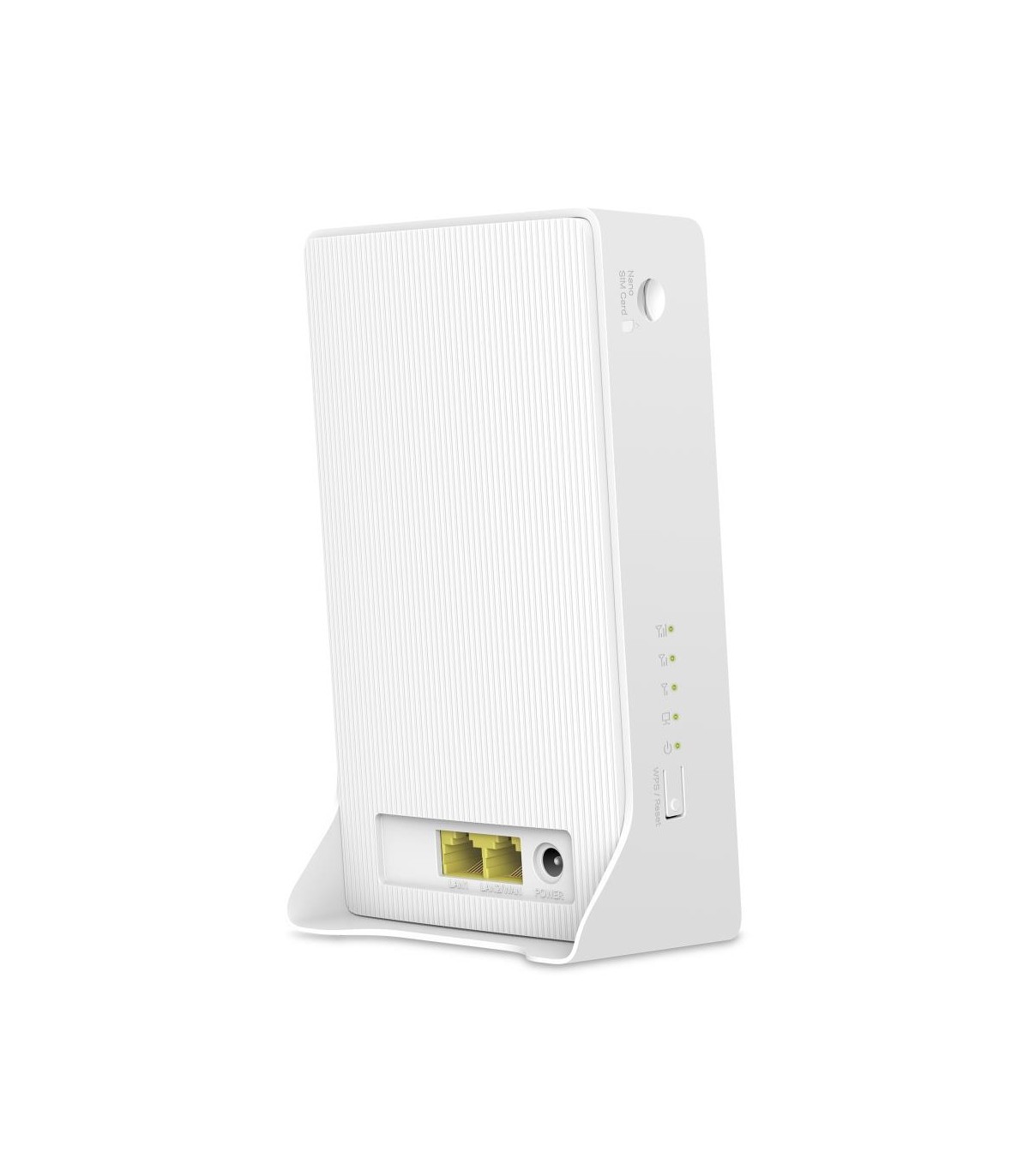

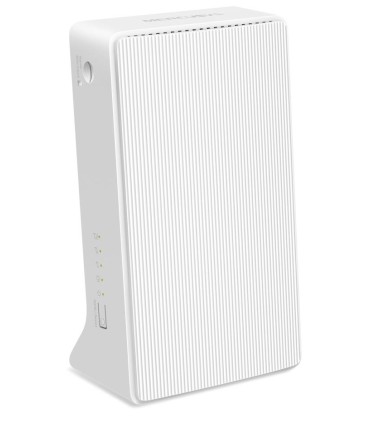

MERCUSYS Wireless Router Router LAN \ WAN ports 1 4G MB230-4G

Power

AC adapter included

Yes

Other features

Depth

61.05 mm

Height

165.97 mm

Width

95 mm

Unit Box Width

0.13

Unit Box Length

0.11

Unit Box Height

0.21

Category Code

WRO

Model name

MB230-4G

Product Type

Desktop/pole router

Unit Calculated Volume

0.003658 cubm

Unit Calculated Weight

0.625 kg

Units per Shipping Box

12

Summary

Mercusys 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1200 Mbit/s. Ethernet LAN interface type: Gigabit Ether

Product colour

White

Package type

Box

DC-in jack

Yes

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Storage temperature (T-T)

-40 - 60 °C

Ethernet LAN (RJ-45) ports

2

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)

Ethernet LAN data rates

10/100/1000 Mbit/s

Quick installation guide

Yes

USB port

No

Number of products included

1 pc(s)

Reset button

Yes

Cabling technology

10/100/1000Base-T(X)

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

3G standards

HSPA/HSPA+/UMTS

4G standard

LTE-TDD & LTE-FDD

Dual SIM support

No

Mobile network generation

4G

SIM card type

NanoSIM

3G bands supported

2100/850/900 MHz

4G bands supported

1800/2100/2300/2600/700/800/850/900 MHz

Antenna design

Internal

Power source type

DC

Security algorithms

64-bit WEP/WPA2-PSK/WPA3-SAE/WPA-PSK

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Networking standards

IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n

Output current

1 A

Output voltage

12 V

System event log

Yes

Firmware upgradeable

Yes

DSL WAN

No

Ethernet WAN

Yes

SIM card slot

Yes

WAN connection type

RJ-45

WLAN data transfer rate (max)

1200 Mbit/s

Dynamic DNS (DDNS)

Yes

Ethernet LAN interface type

Gigabit Ethernet

WPS push button

Yes

DHCP server

Yes

3G/4G USB modem compatibility

Yes

Port forwarding

Yes

Port triggering

Yes

Wi-Fi Multimedia (WMM)/(WME)

Yes

DMZ support

Yes

Firewall

Yes

Port-based Network Access Control (PNAC)

Yes

Universal Plug and Play (UPnP)

Yes

VoIP protocols

IPv4, IPv6

Indication light

Yes

Receiver sensitivity

11g 6Mbps: -95dBm; 11g 54Mbps: -77dBm; 11n HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm; 11a 6Mbps: -92dBm; 11a 54Mbps: -75dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65dBm; 11ac VHT80 MCS9: -61dBm
