1456382
Specification
- Housing material
- Aluminium
Other features
- Depth
- 50 mm
- Height
- 28 mm
- Width
- 113 mm
- Unit Box Width
- 0.055
- Unit Box Length
- 0.139
- Unit Box Height
- 0.031
- Category Code
- SWI
- Form Factor
- DIN rail
- Switch type
- Unmanaged
- Switching capacity
- 10 Gbit/s
- Power source
- DC
- Unit Calculated Volume
- 0.000237 cubm
- Unit Calculated Weight
- 0.15 kg
- Units per Shipping Box
- 1
- Summary

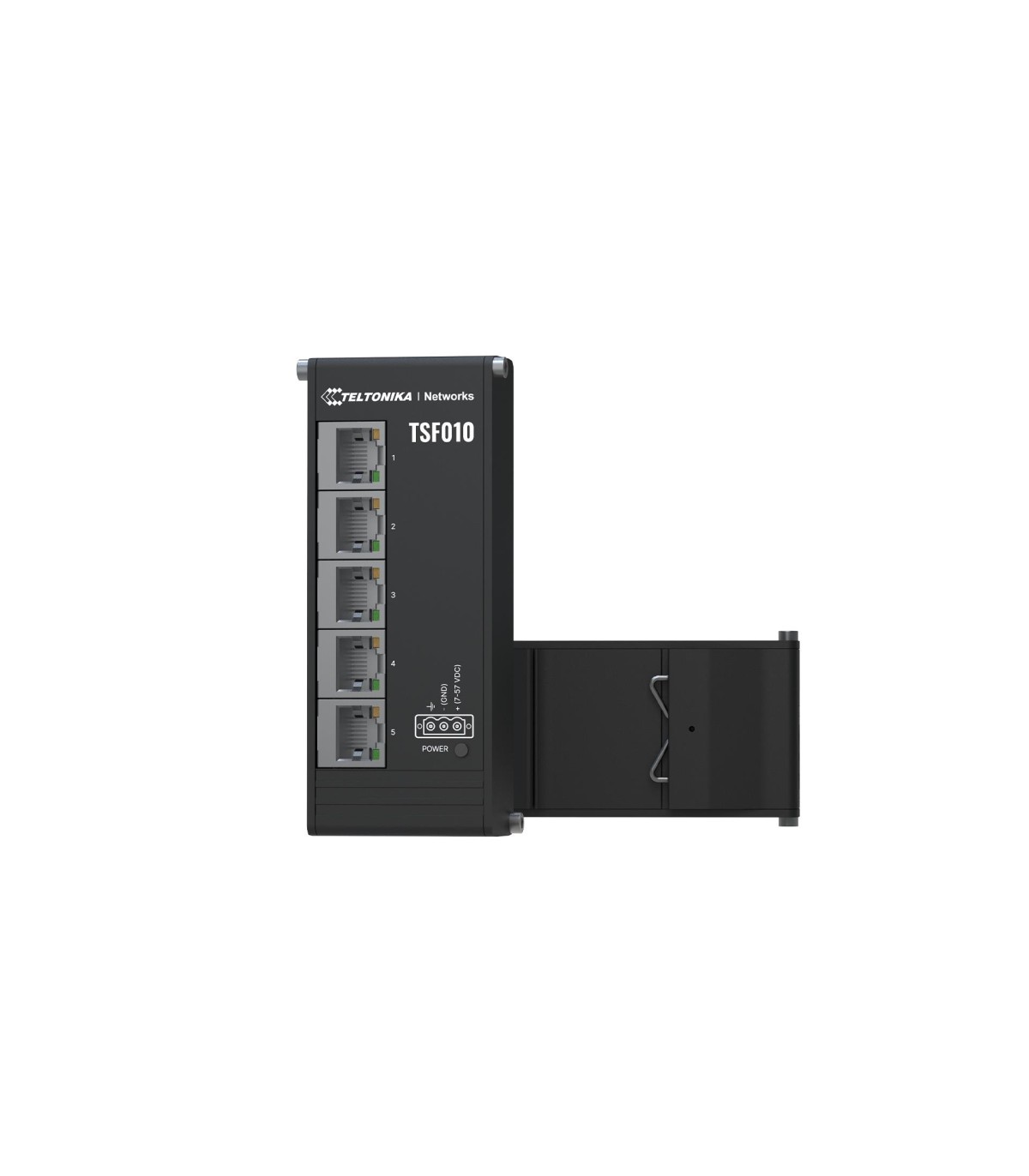

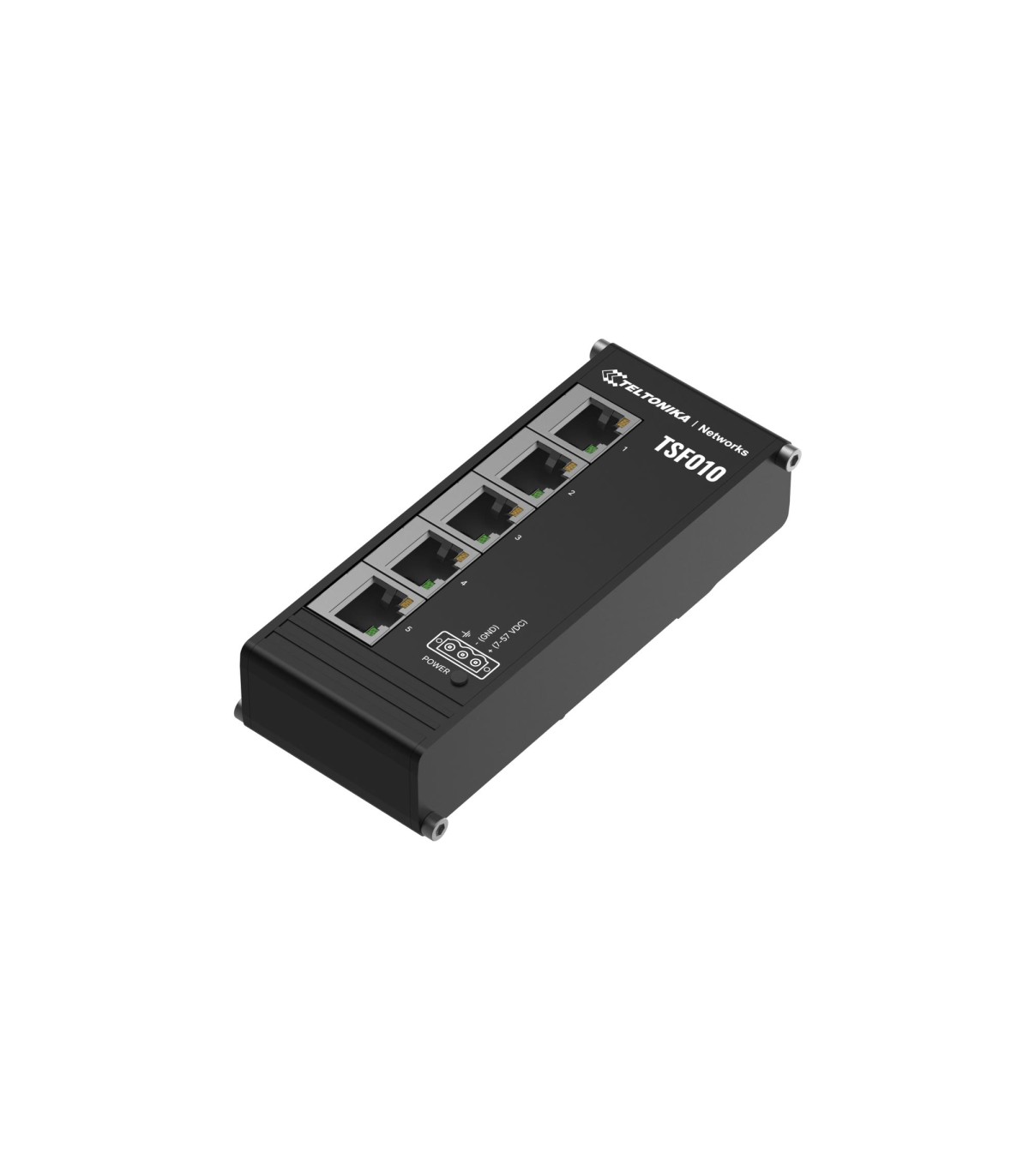

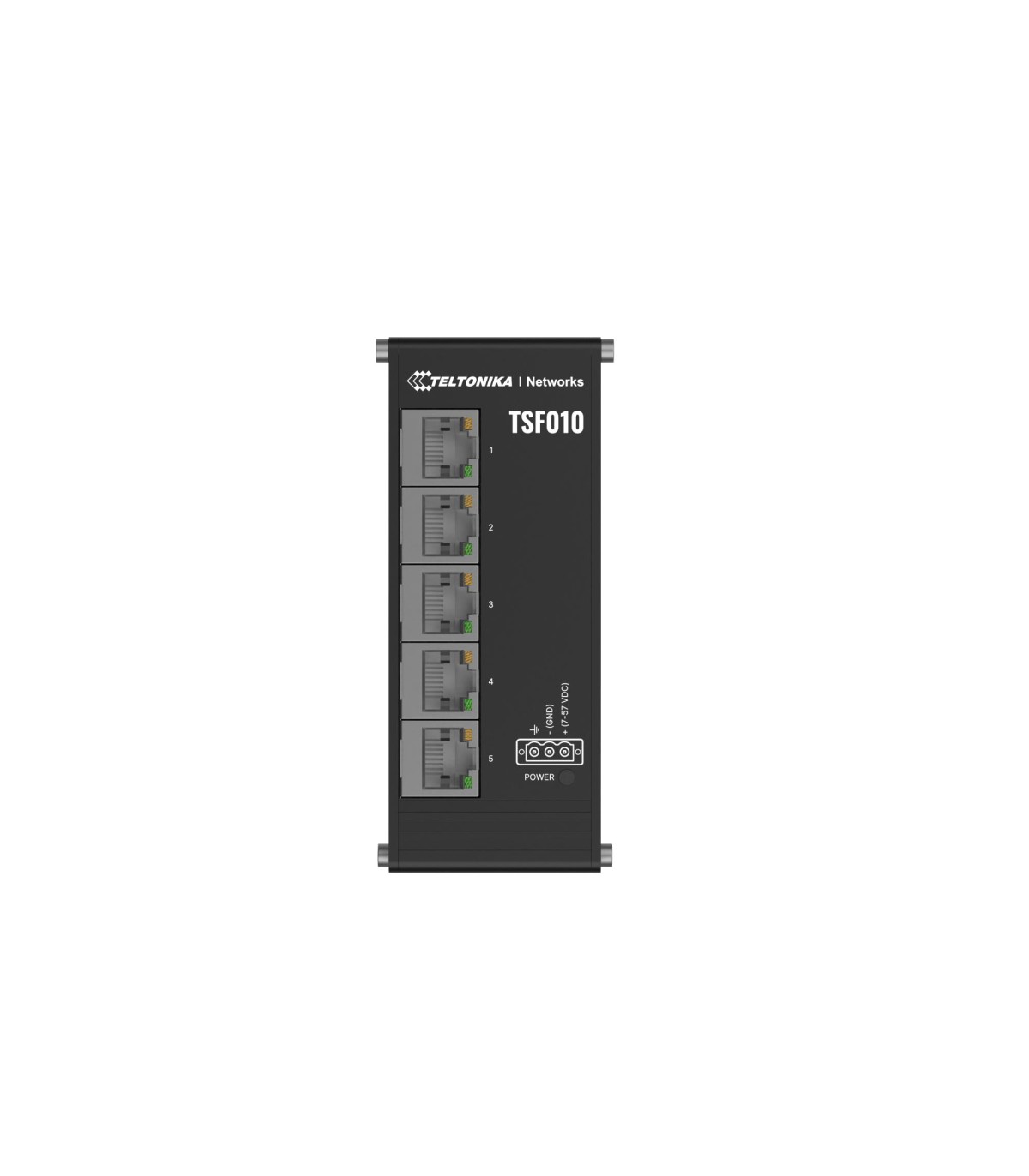

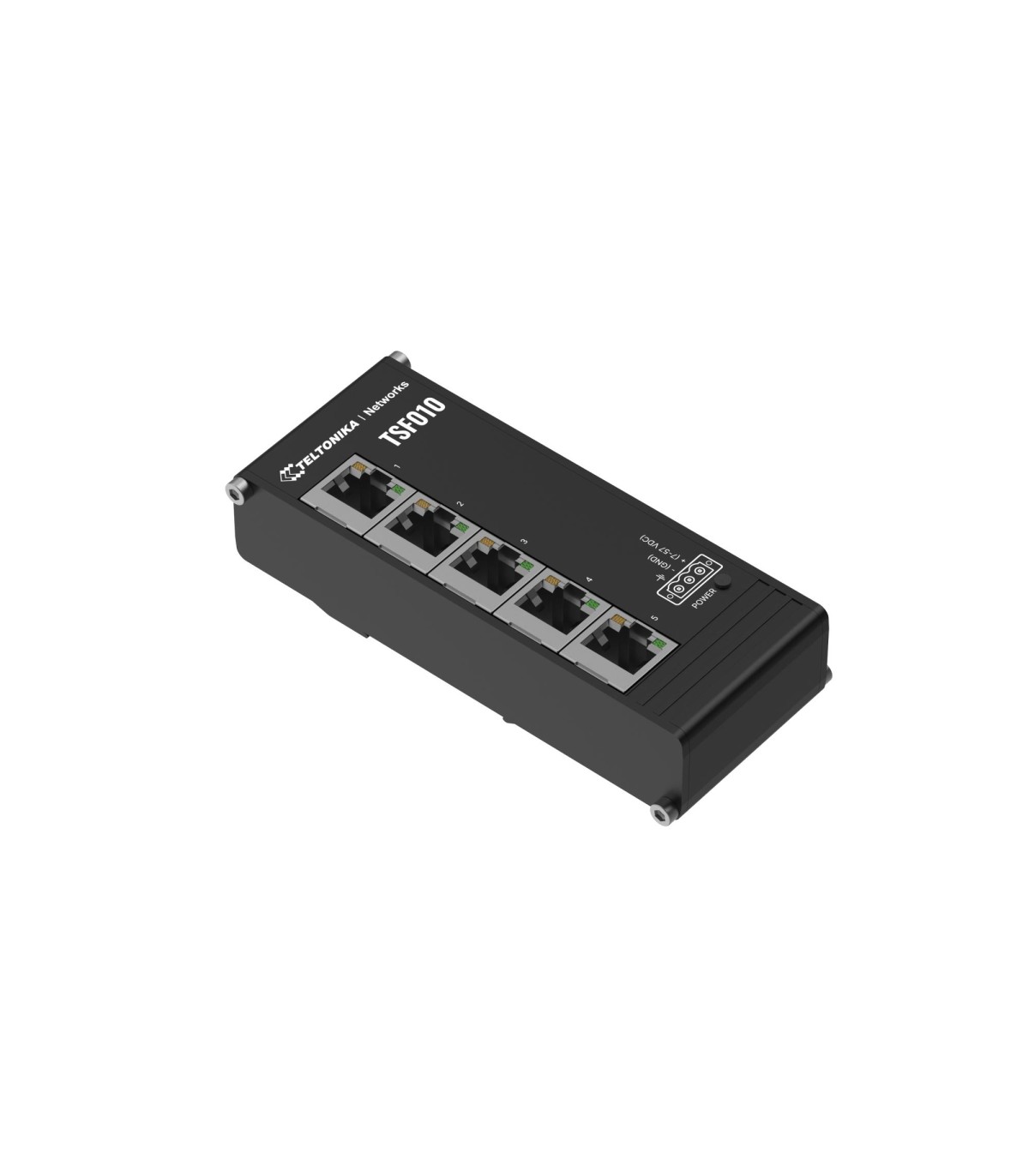

- Teltonika NETWORKS TSF010 Flat Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity:
- Product colour
- Black
- Power consumption (typical)
- 1 W
- Power consumption (max)
- 1.5 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -40 - 75 °C
- Weight
- 142 g
- Power supply included
- No
- International Protection (IP) code
- IP30
- Full duplex
- Yes
- Jumbo frames support
- Yes
- Networking standards
- IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
- Auto MDI/MDI-X
- Yes

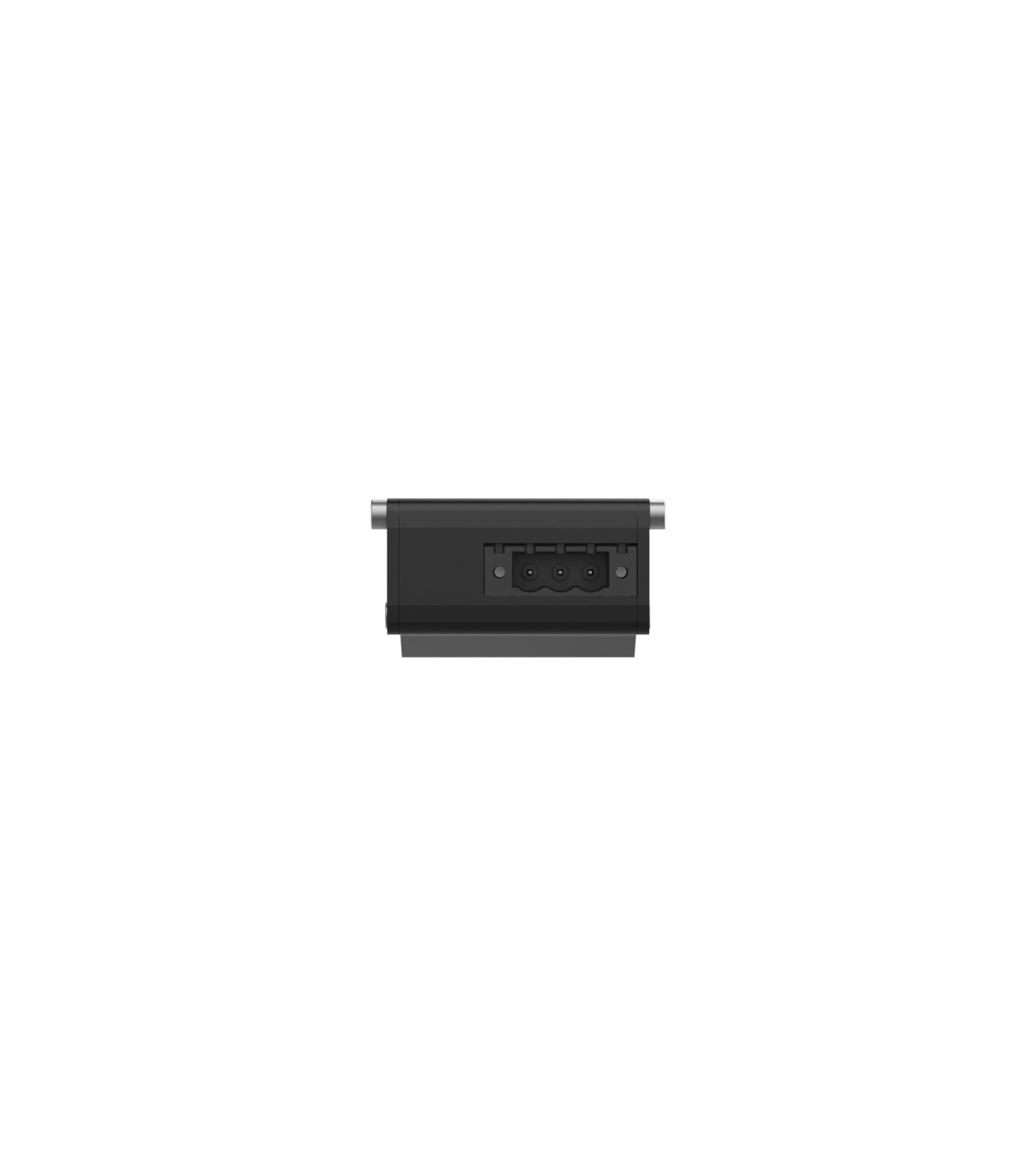

- Input voltage
- 7 - 57 V
- Rack mounting
- No
- 10G support
- No
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Power over Ethernet (PoE)
- No
- MAC address table
- 2048 entries
- Jumbo frames
- 9216
- Fast Ethernet (copper) ports quantity
- 5
- Stackable
- No

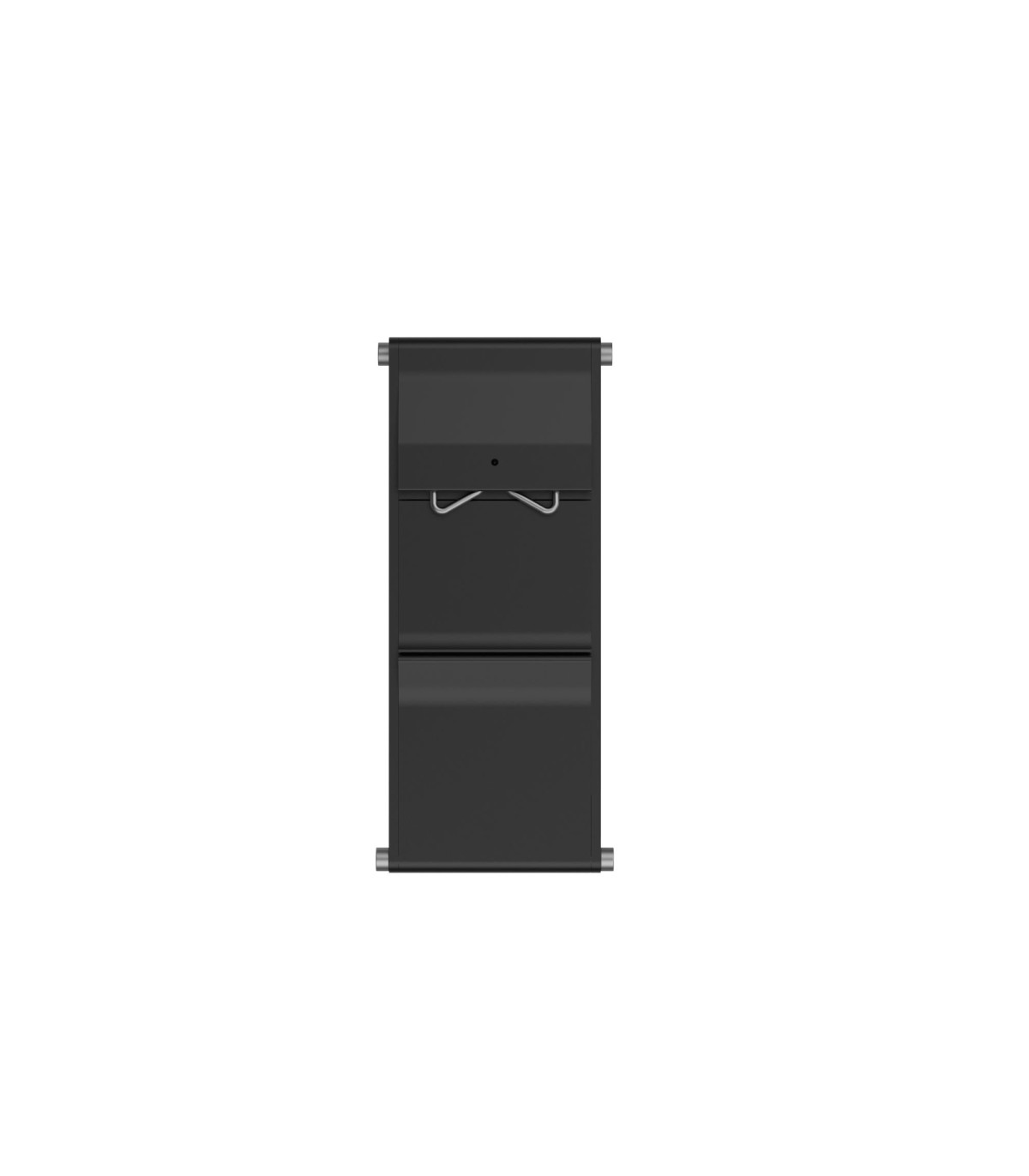

- DIN rail mounting
- Yes
Specific References
- EAN
- 4779051841356
