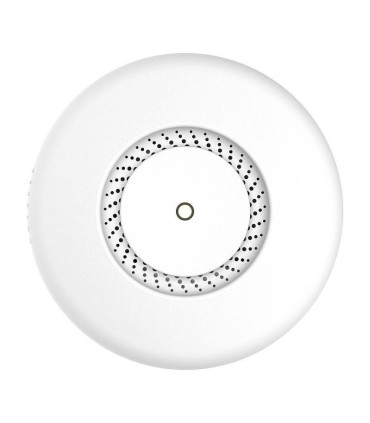

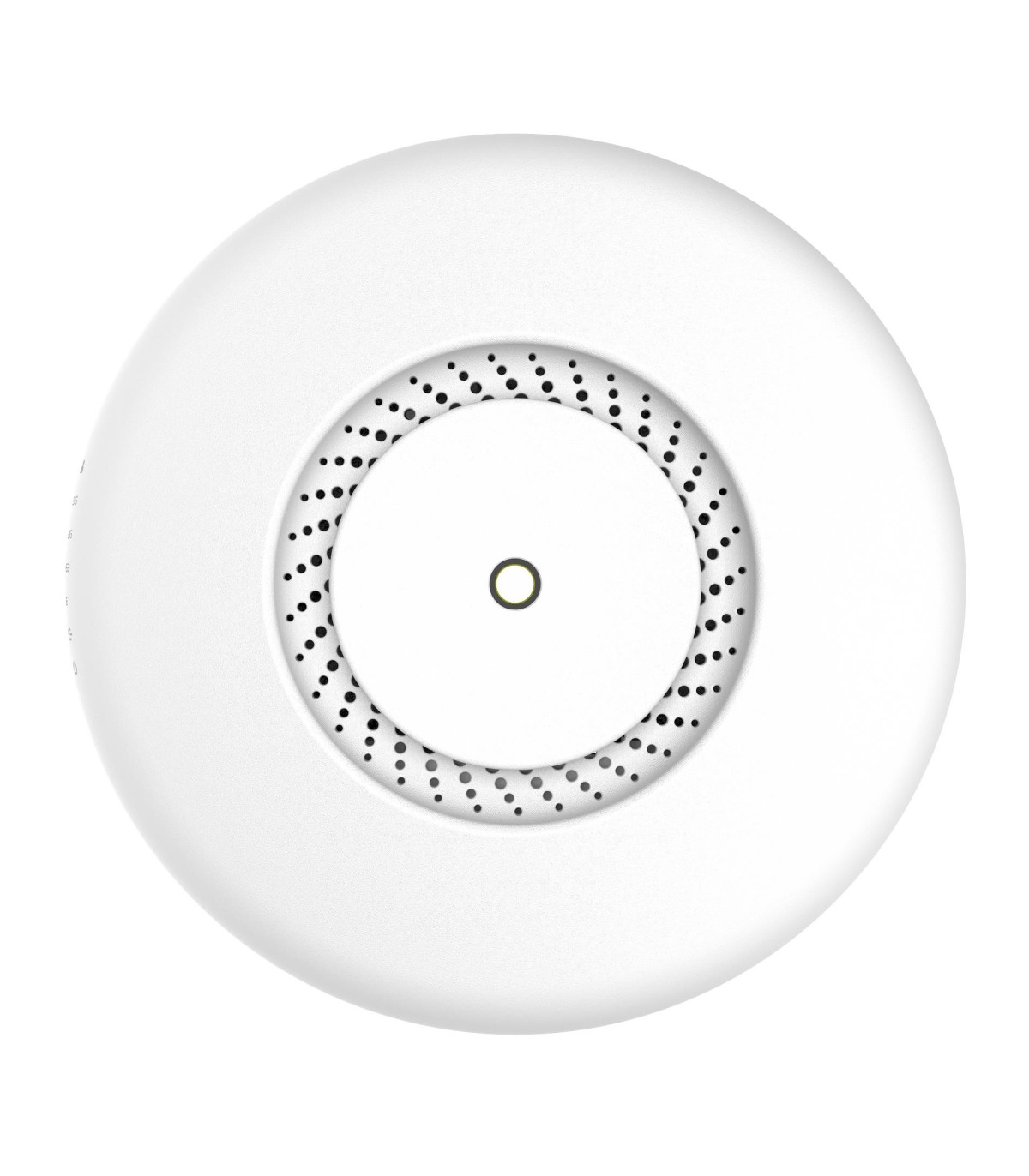

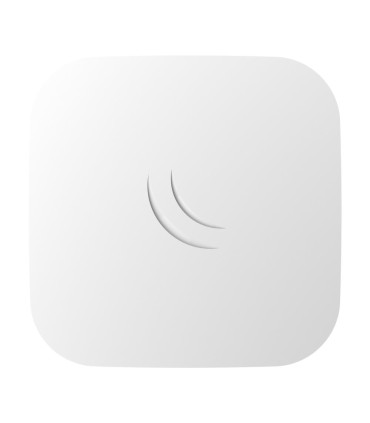

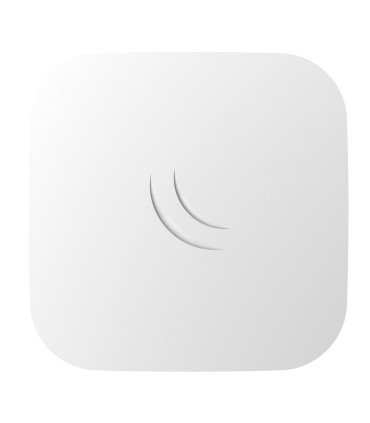

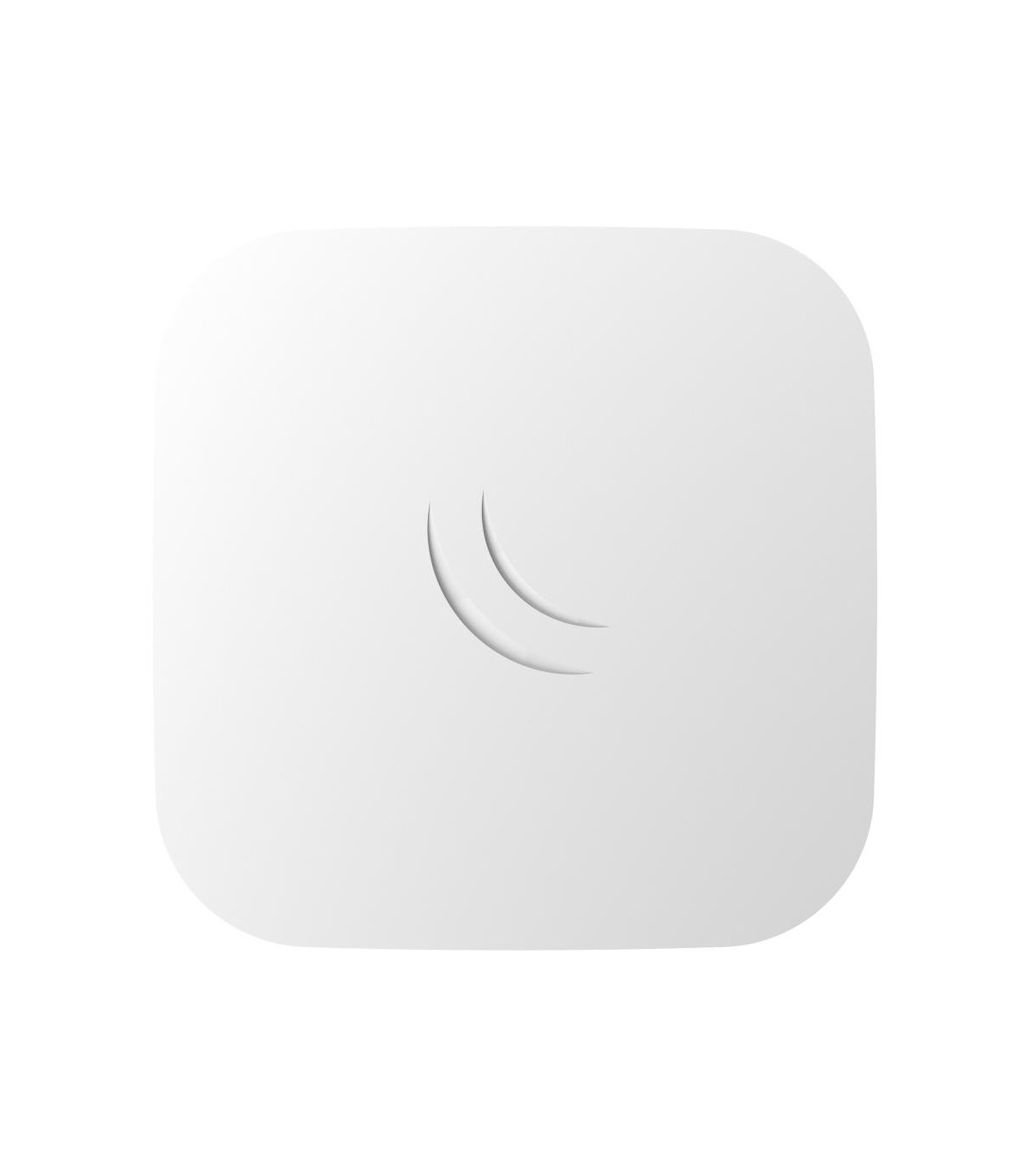

MIKROTIK Access Point IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac RBCAPGI-5ACD2ND

Power

AC adapter included

Yes

Other features

Depth

30 mm

Height

136 mm

Width

136 mm

Unit Box Width

0.18

Unit Box Length

0.06

Unit Box Height

0.265

Category Code

WAP

Model name

cAP ac // RBcAPGi-5acD2nD

Antenna Type

Internal

Unit Calculated Volume

0.003386 cubm

Unit Calculated Weight

0.718 kg

Units per Shipping Box

20

Summary

Mikrotik cAP ac. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 13 W

Product colour

White

Certification

CE, FCC, IC, EAC, ROHS

Power consumption (max)

13 W

Operating temperature (T-T)

-40 - 50 °C

Harmonized System (HS) code

85176990

LED indicators

Yes

Ethernet LAN (RJ-45) ports

2

Operating system installed

RouterOS

Ethernet LAN data rates

10/100/1000 Mbit/s

Processor frequency

716 MHz

Frequency band

2.412 - 2.484, 5.15 - 5.875 GHz

Processor model

IPQ4018

Internal memory

128 MB

Built-in processor

Yes

Internal

No

Maximum data transfer rate

867 Mbit/s

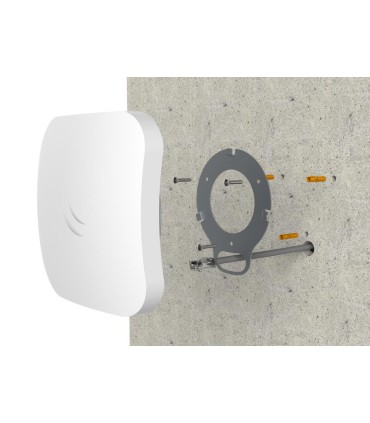

Mounting kit

Yes

Networking standards

IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at

Output voltage

57 V

Flash memory

16 MB

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) type supported

Active PoE/Passive PoE

Antennas quantity

4

Receiver sensitivity

2.4GHz:1MBit/s: -100 @ 26dBm Tx11MBit/s: -94 @ 26dBm Tx6MBit/s: -96 @ 26dBm Tx54MBit/s: -78 @ 23dBm TxMCS0: -96 @ 26dBm TxMCS7: -73 @ 22dBm Tx5GHz:6MBit/s: -96 @ 26dBm Tx54MBit/s: -80 @ 21dBm TxMCS0: -96 @ 26dBm TxMCS7: -75 @ 20dBm TxMCS9: -7

Antenna gain level (max)

2.5 dBi

2.4 GHz

Yes

5 GHz

Yes

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

Maximum data transfer rate (5 GHz)

867 Mbit/s

DC voltage range

17 - 57 V

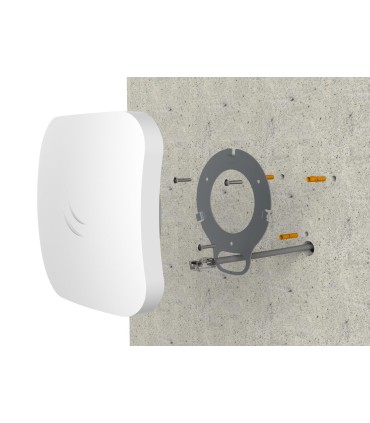

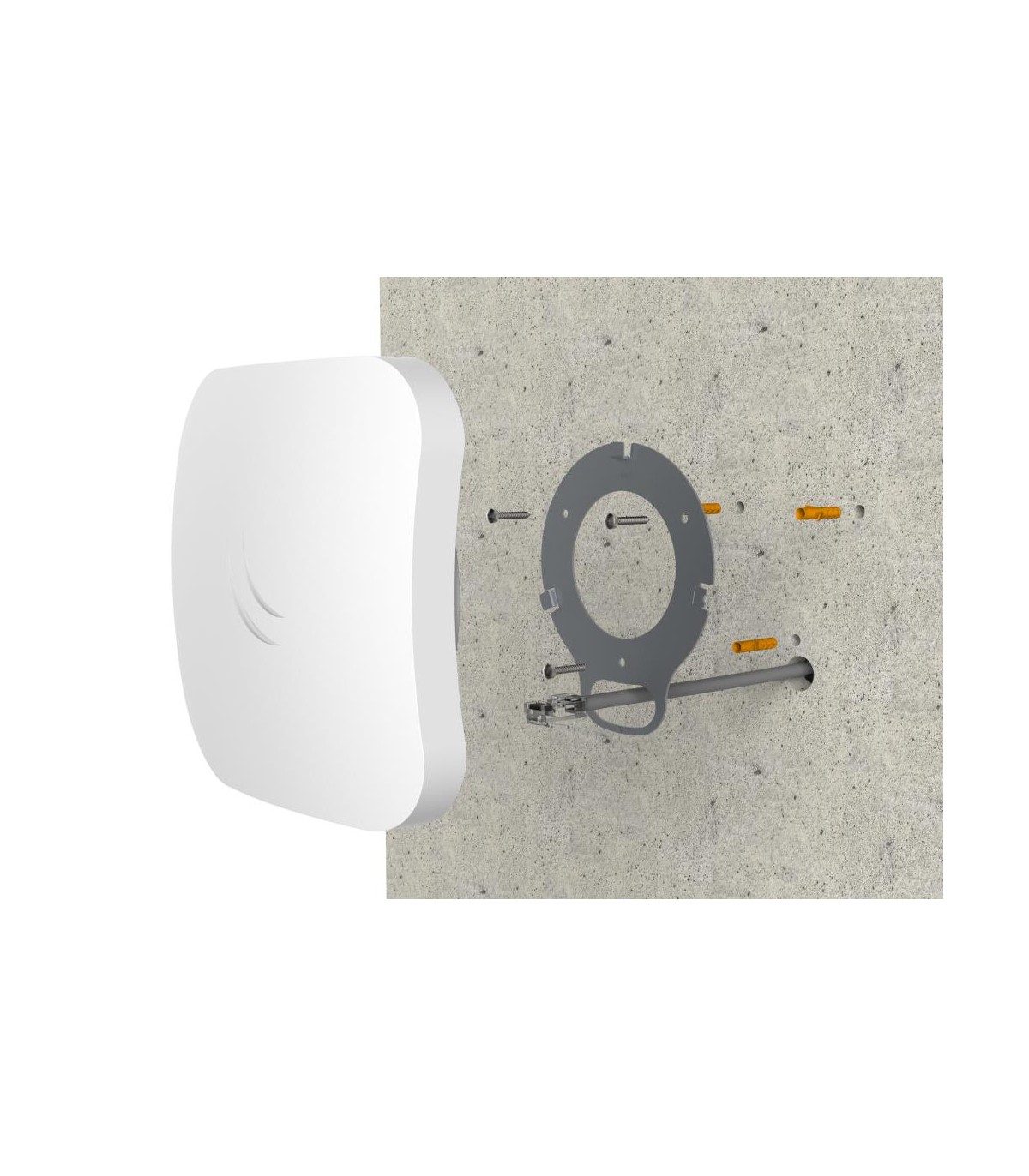

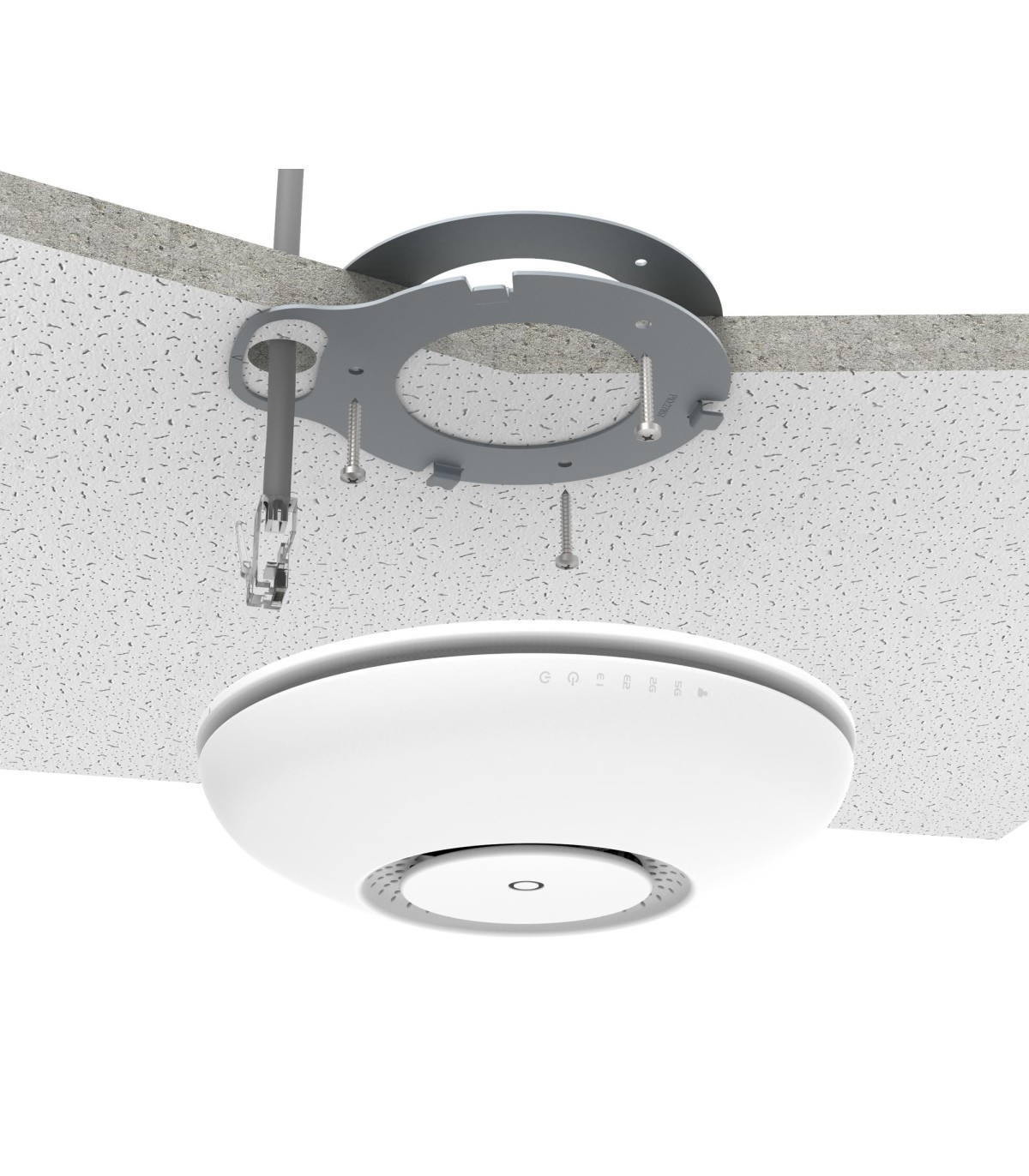

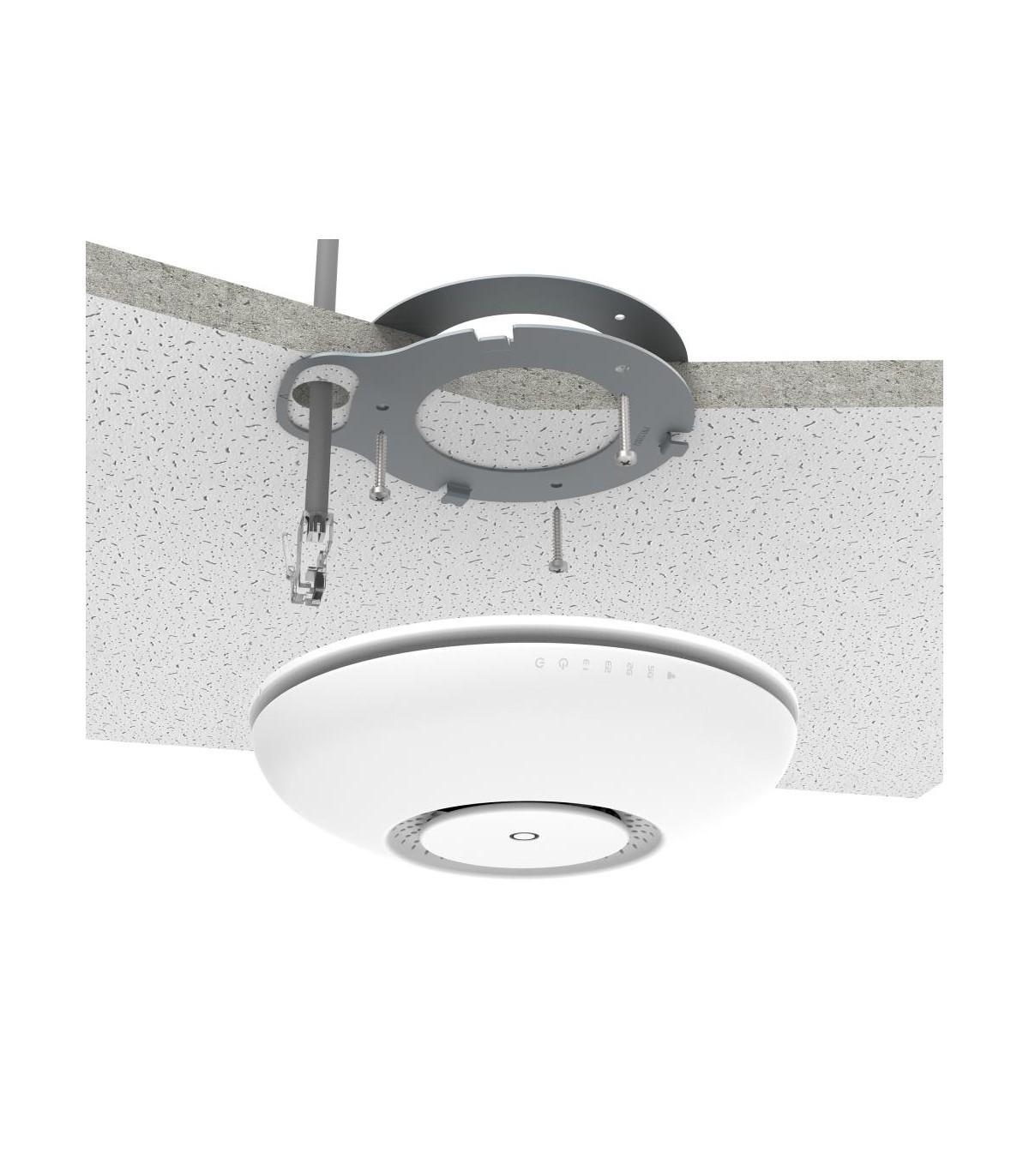

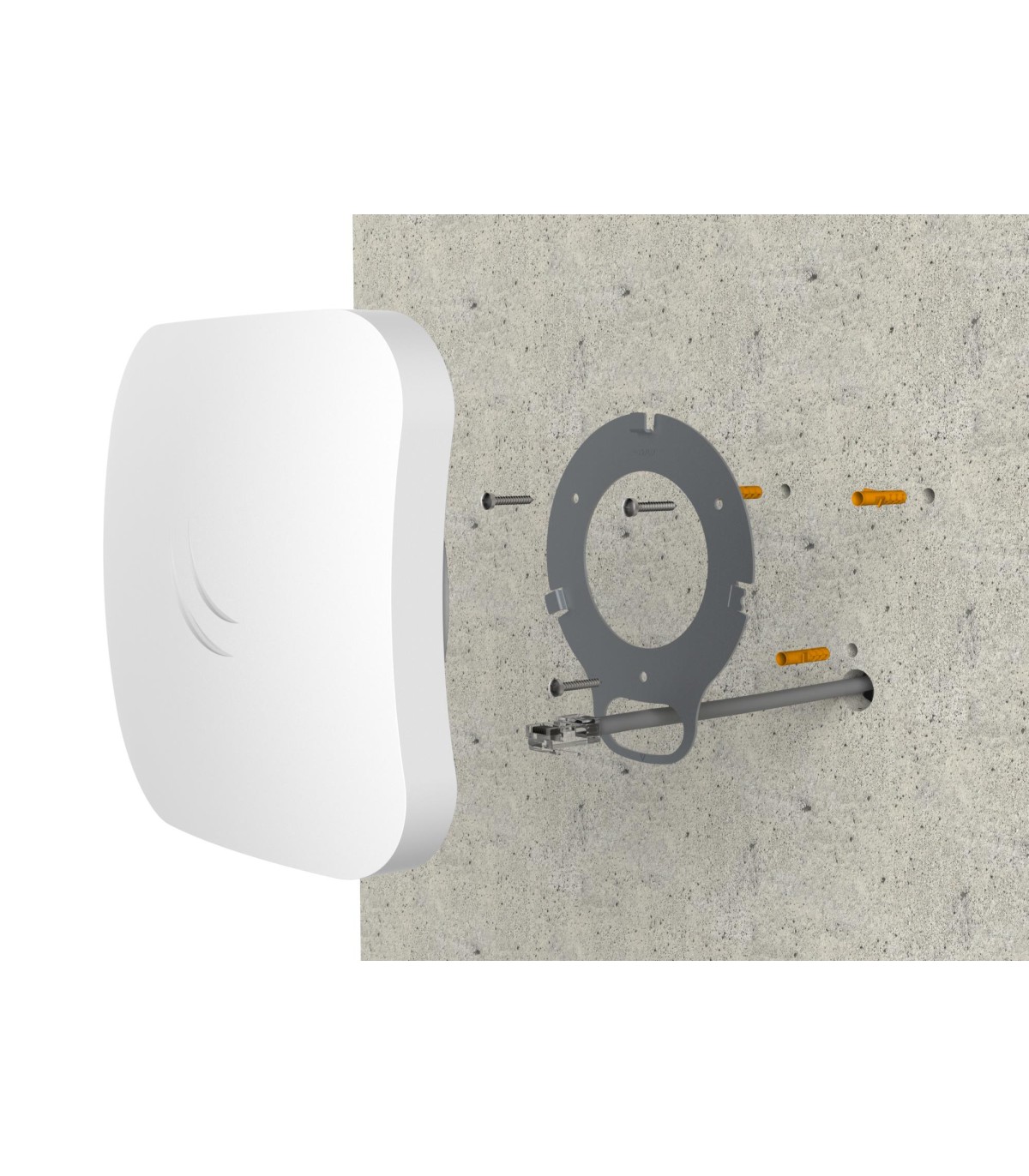

Placement

Ceiling,Wall

Antenna features

Integrated antenna

PoE adapter included

Yes
