1407344
Specification
- Housing material
- SGCC
Other features
- Depth
- 399.6 mm
- Height
- 43.7 mm
- Width
- 442.4 mm
- Unit Box Width
- 0.12
- Unit Box Length
- 0.538
- Unit Box Height
- 0.52
- Category Code
- SWI
- Model name
- Pro Max 48 PoE
- Model
- USW-PRO-MAX-48-POE
- Form Factor
- 1U
- Switch type
- Managed
- Switching capacity
- 224 Gbit/s
- Forwarding rate
- 167 Mpps
- Power source
- AC
- Unit Calculated Volume
- 0.04008 cubm
- Unit Calculated Weight
- 8.68 kg
- Units per Shipping Box
- 2
- Summary

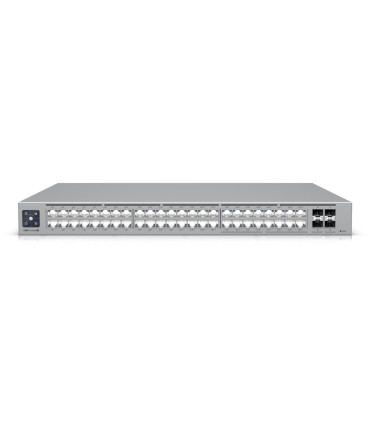

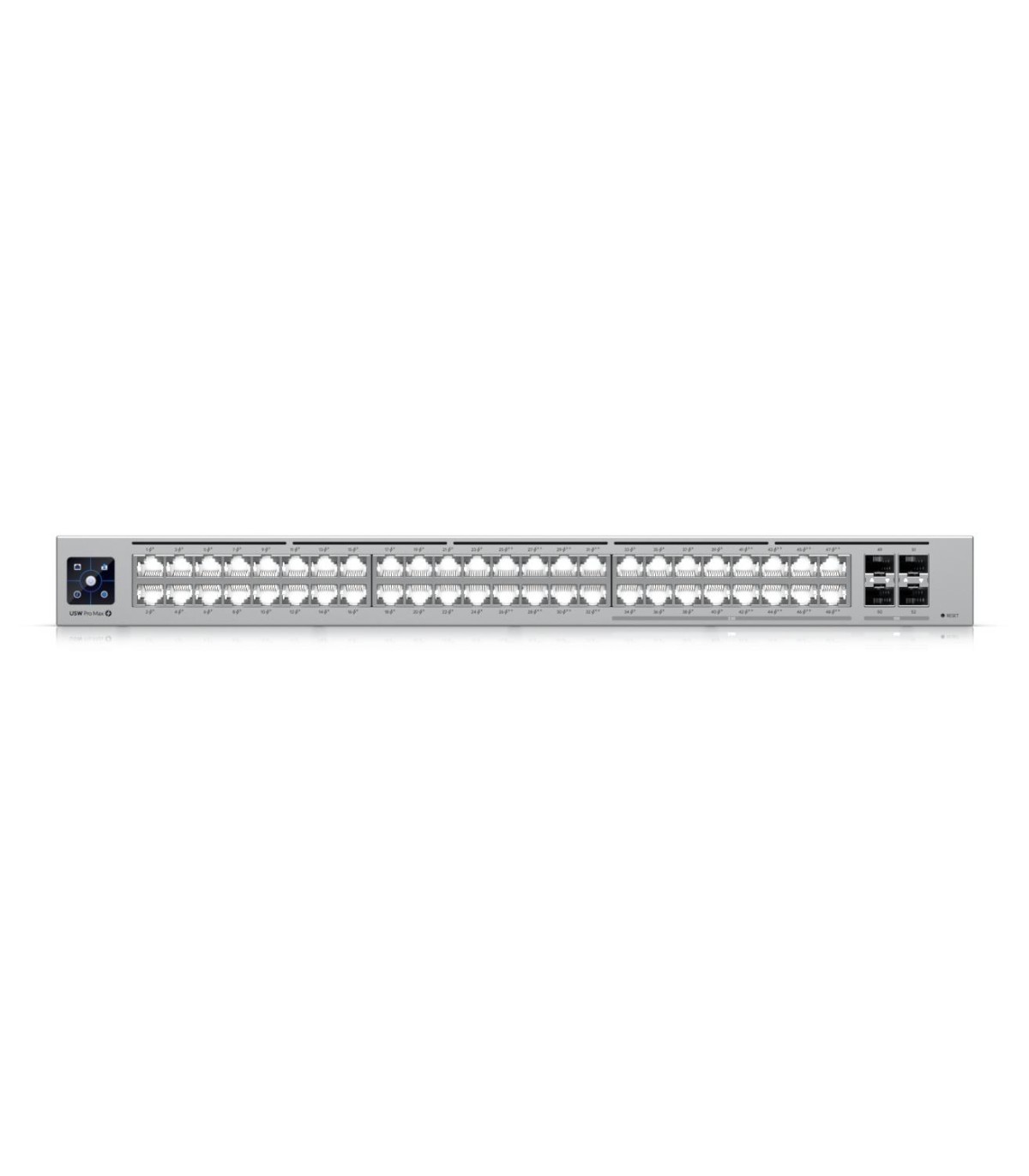

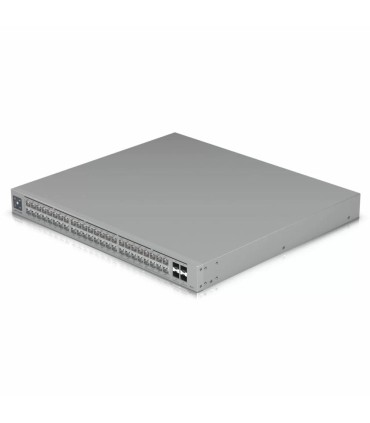

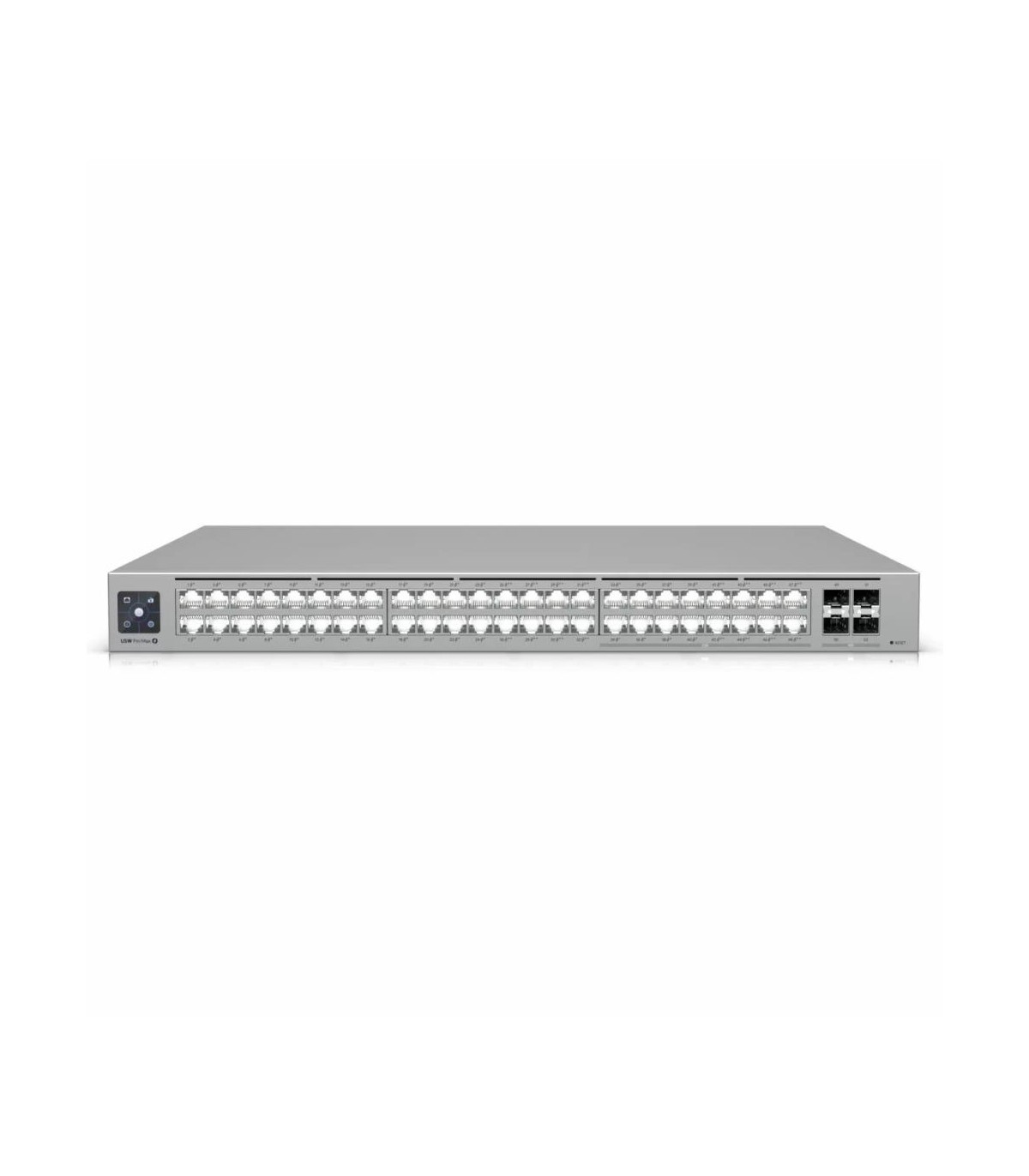

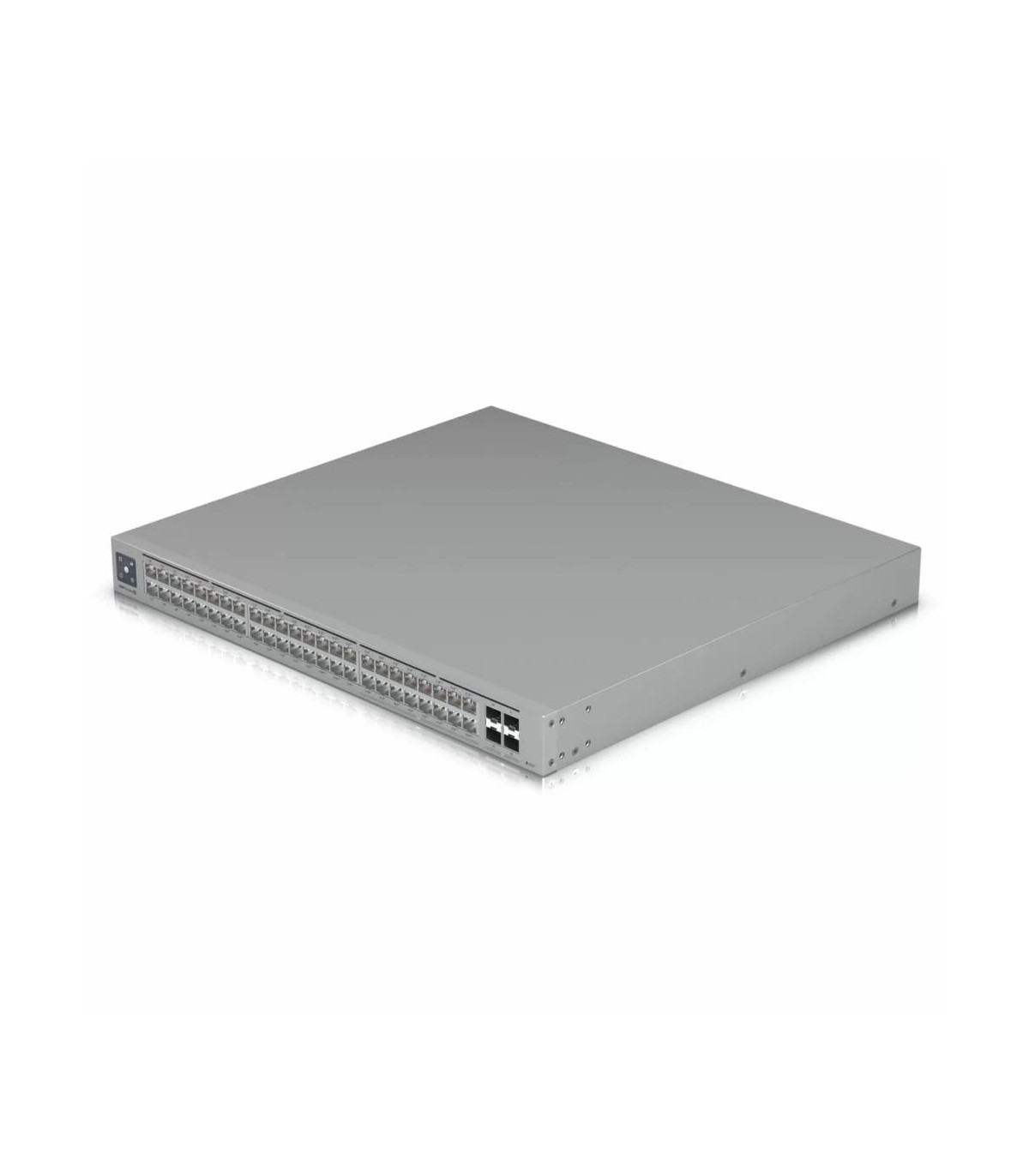

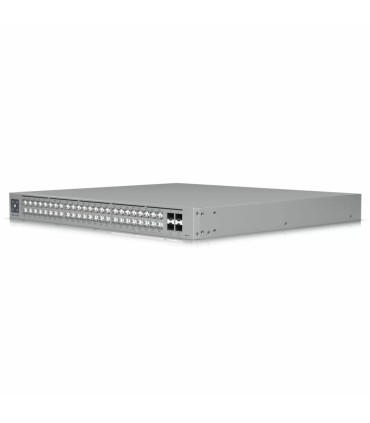

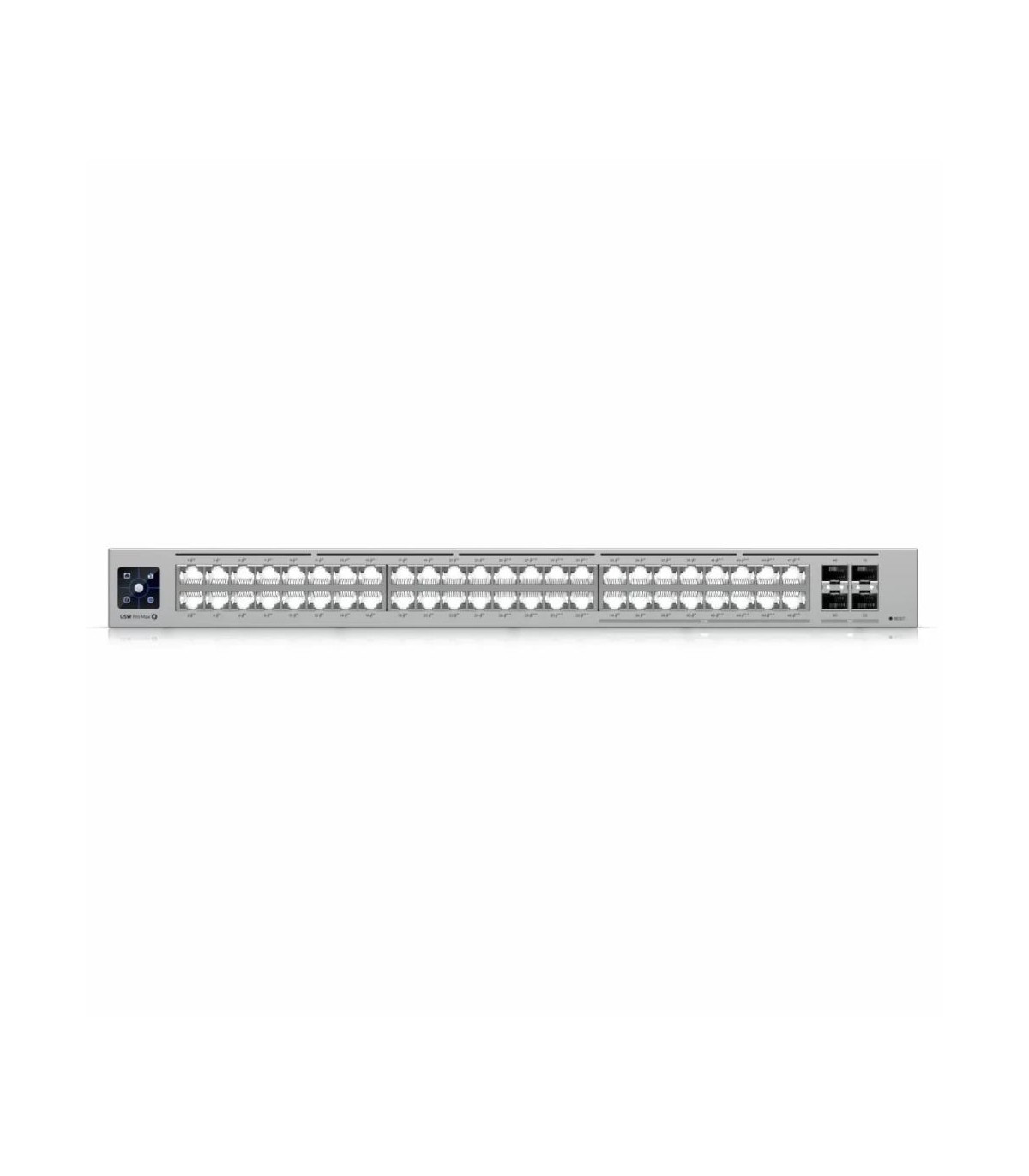

- Ubiquiti UniFi Pro Max 48 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 224
- Product colour
- Grey
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V

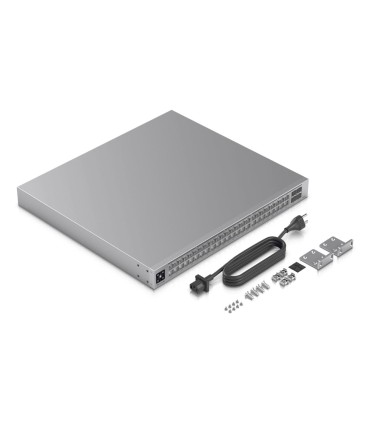

- Cables included
- Power
- Sustainability compliance
- Yes
- Power consumption (max)
- 820 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 40 °C
- Compliance certificates
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
- Weight
- 6200 g
- Manual
- Yes
- LED indicators
- System
- Heat dissipation
- 341.2 BTU/h
- Reset button
- Yes
- Power supply included
- Yes
- Display type
- LCM
- Jumbo frames support
- Yes
- Networking standards
- IEEE 802.1x
- Power connector
- AC-in jack
- Rack mounting
- Yes
- 10G support
- No
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE)
- Yes
- Gigabit Ethernet (copper) ports quantity
- 32
- MAC address table
- 32000 entries
- Flow control support
- Yes
- Packet buffer memory
- 2 MB
- Power over Ethernet (PoE) power per port
- 15.4 W
- Total Power over Ethernet (PoE) budget
- 720 W
- Switch layer
- L3
- Quality of Service (QoS) support
- Yes
- Port mirroring
- Yes
- IGMP snooping
- Yes
- Loop protection
- Yes
- Broadcast storm control
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Voice VLAN
- Number of VLANs
- 1000
- Rack mount kit
- Yes
- Throughput
- 112 Gbit/s
- Power over Ethernet plus (PoE+) ports quantity
- 32
- DHCP features
- DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping
- Rate limiting
- Yes
- SFP+ module slots quantity
- 4
- Redundant power supply (RPS) support
- Yes
- Static route
- Yes
- IPv4 routes
- 12000
- Power over Ethernet (PoE) type supported
- PoE+/PoE++ (4PPoE)
- Power over Ethernet (PoE) voltage
- 57 V
- 2.5G Ethernet (copper) ports quantity
- 16
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 16
- Backlight display
- Yes
Specific References
- EAN
- 810084692721
