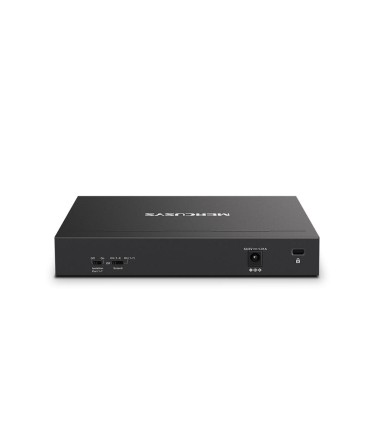

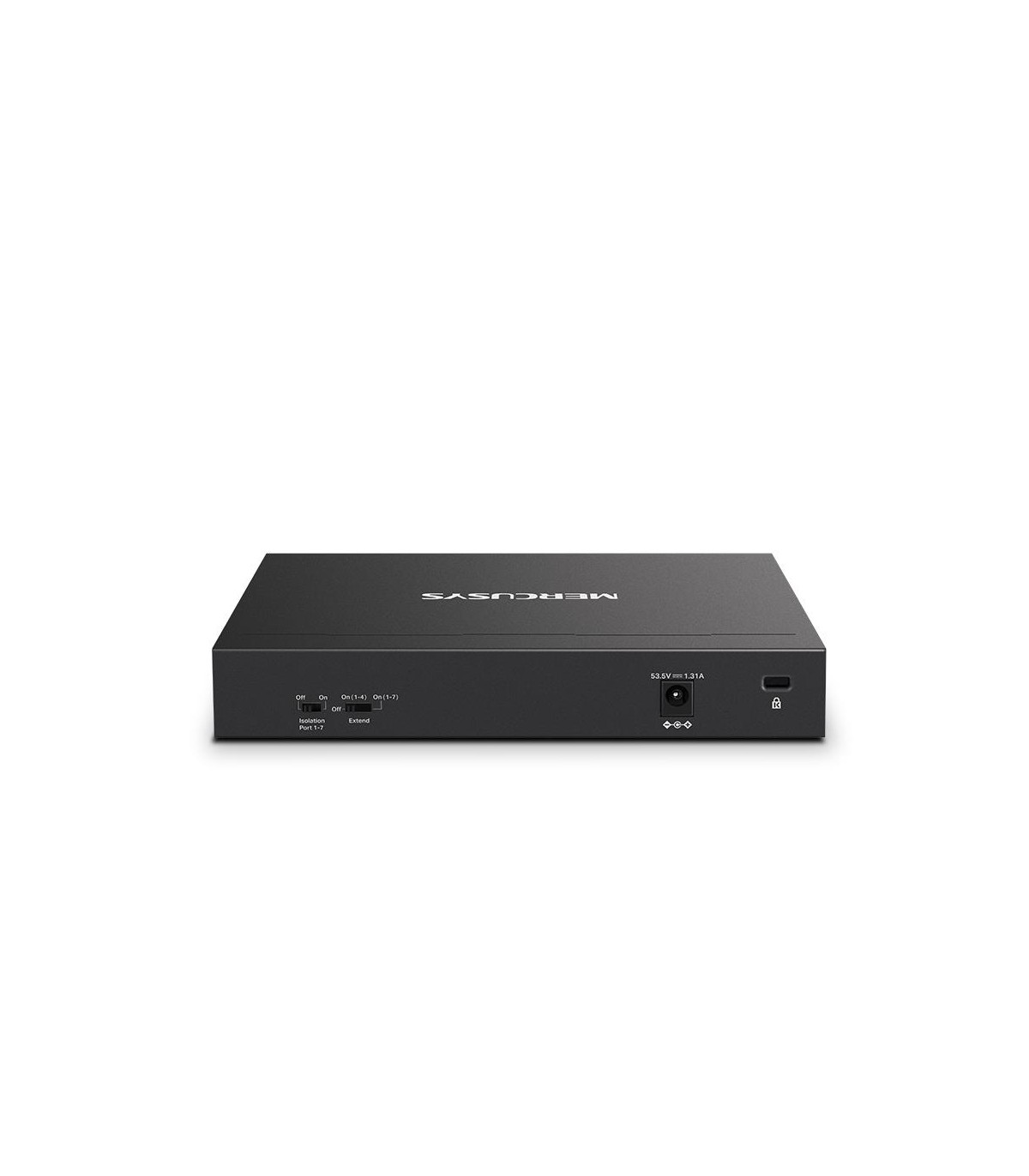

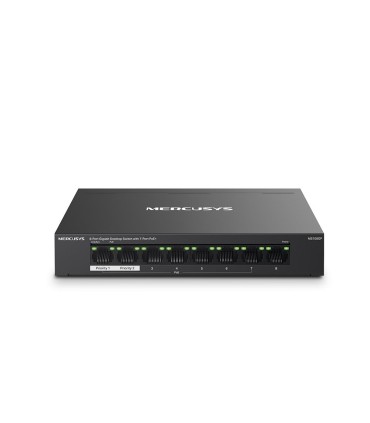

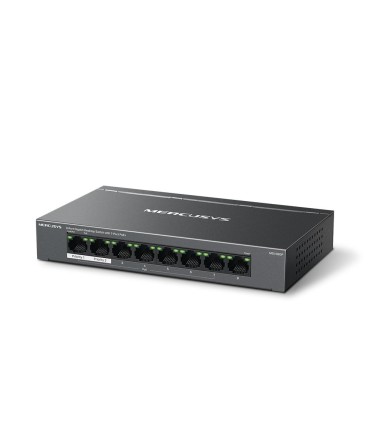

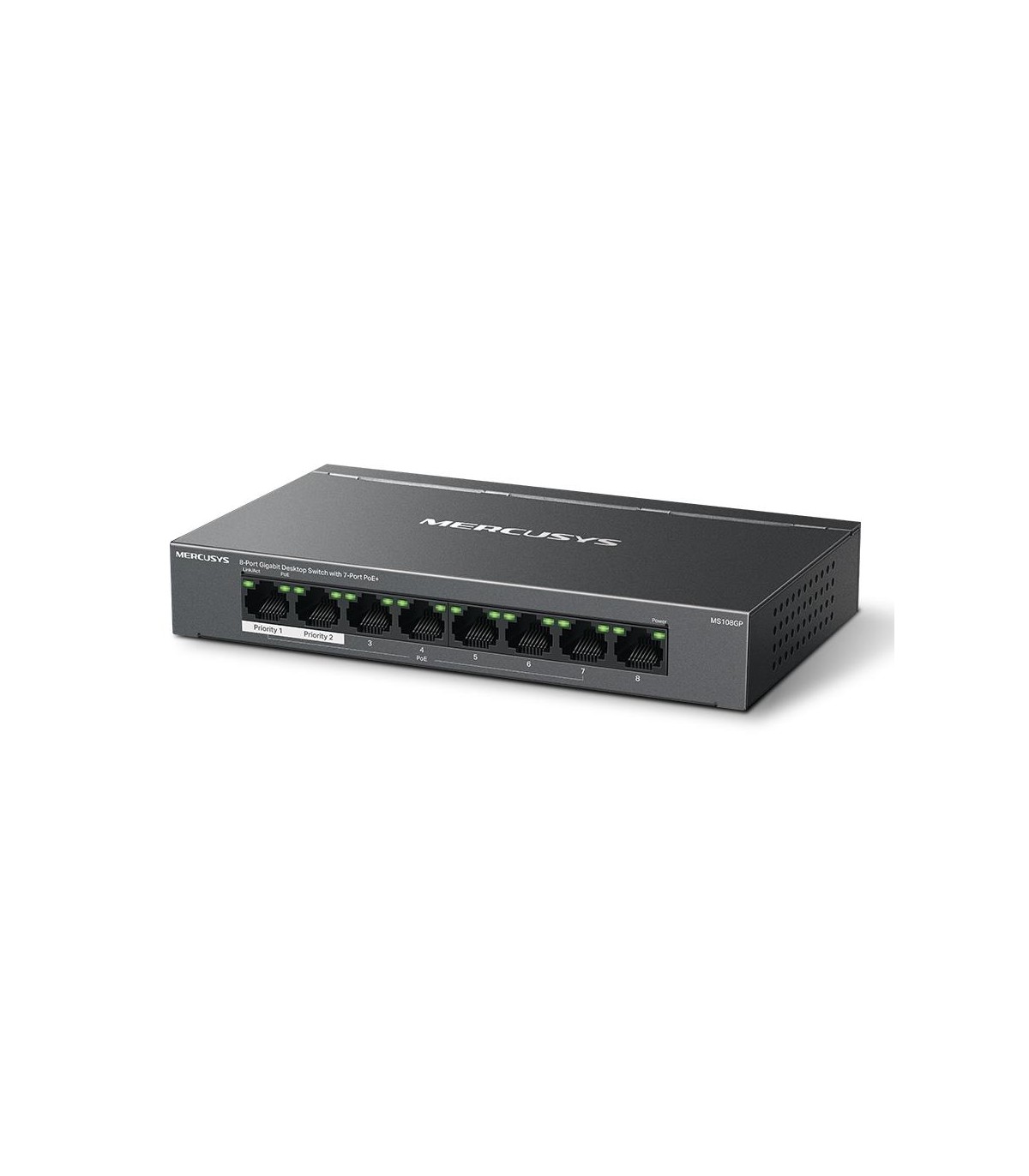

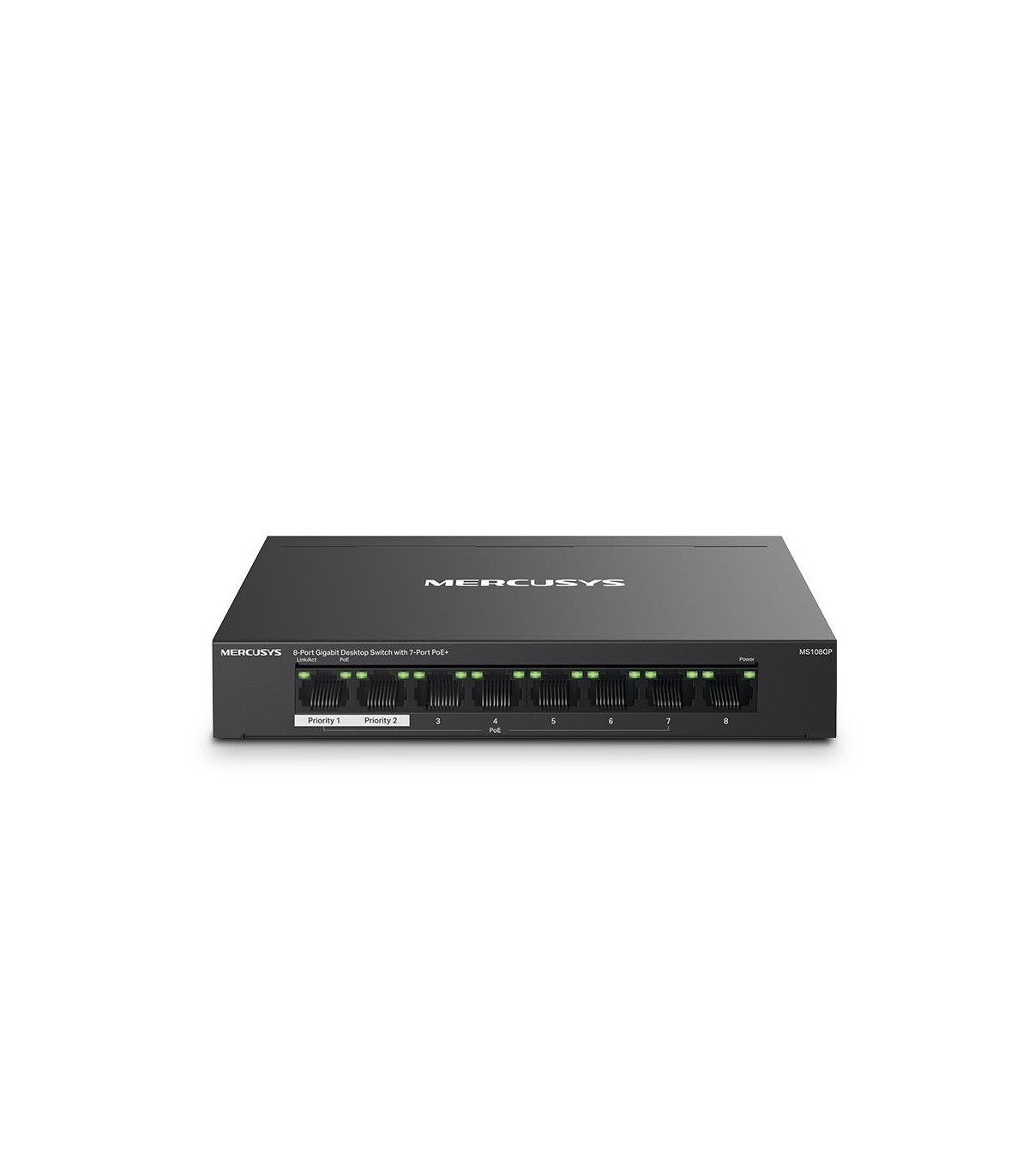

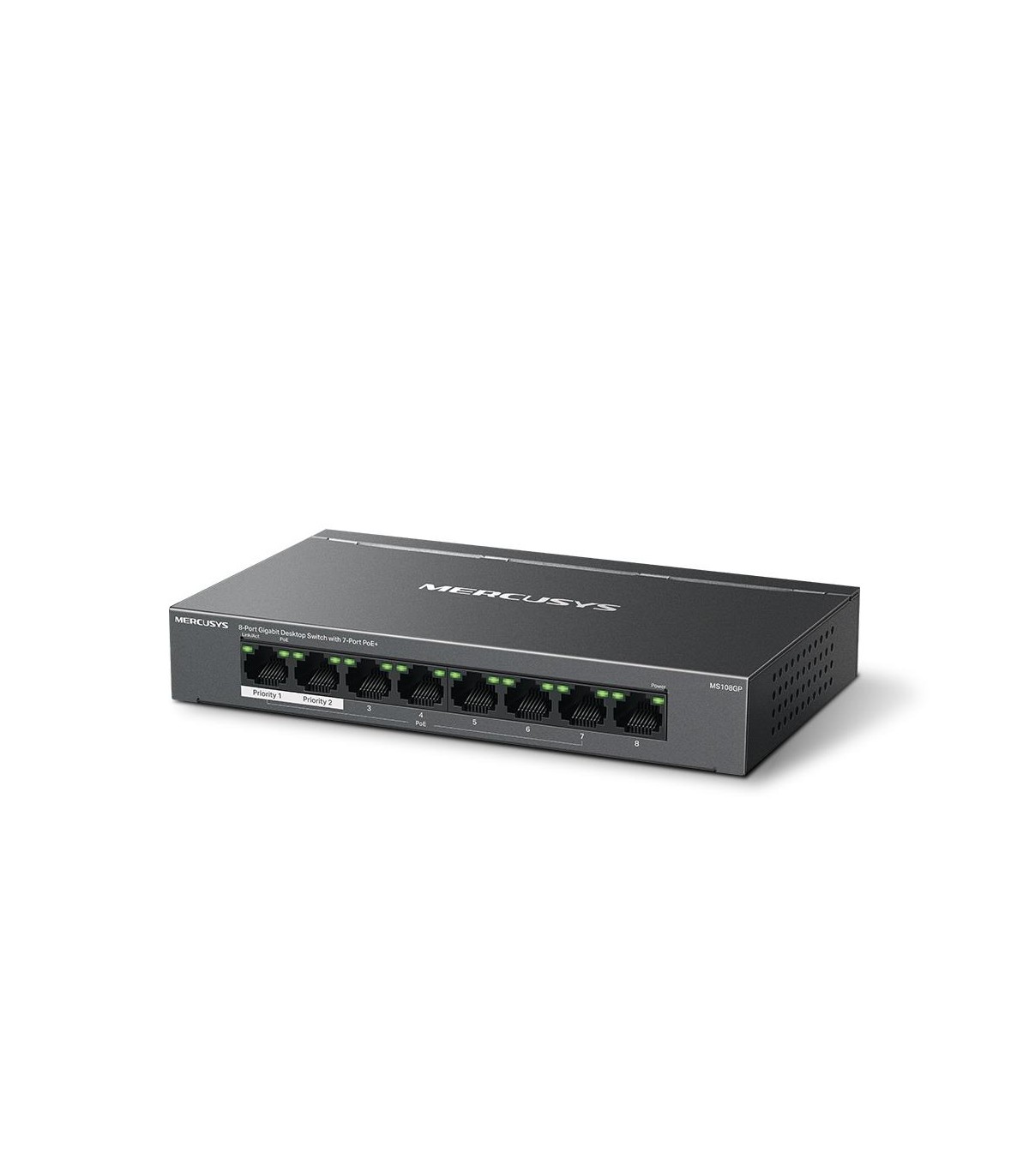

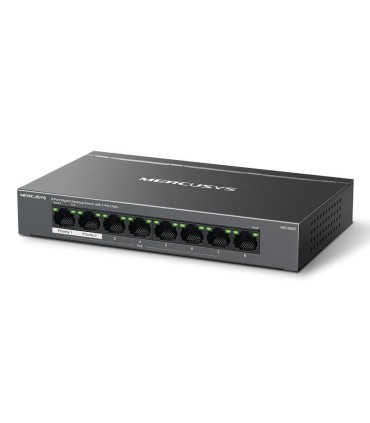

MERCUSYS Switch MS108GP PoE+ ports 7 MS108GP

Specification

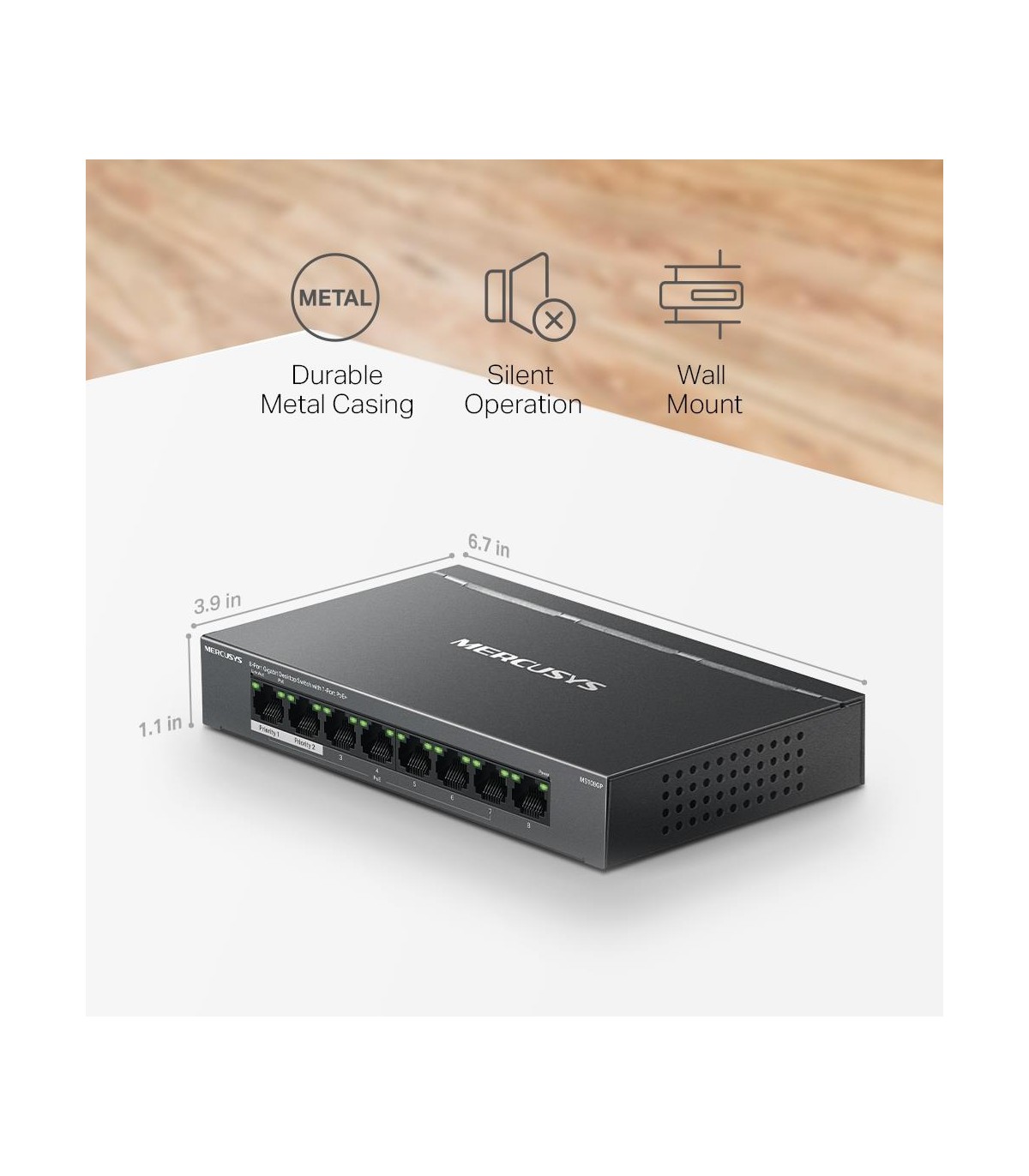

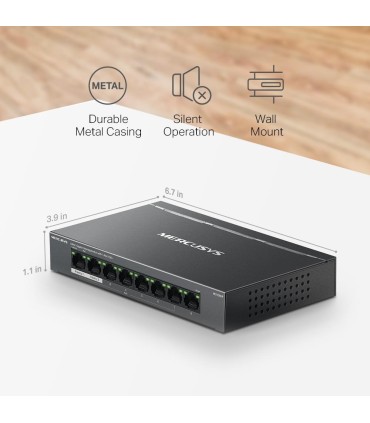

Housing material

Metal

Other features

Depth

98 mm

Height

27 mm

Width

171 mm

Unit Box Width

0.19

Unit Box Length

0.125

Unit Box Height

0.085

Category Code

SWI

Model name

MS108GP

Switch type

Managed

Power source

AC

Unit Calculated Volume

0.00252 cubm

Unit Calculated Weight

0.858 kg

Units per Shipping Box

12

Summary

Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Netwo

Product colour

Black

AC input frequency

50 Hz

AC input voltage

220 V

Power consumption (typical)

5.07 W

Cables included

AC

Input current

1.31 A

Power consumption (max)

77.33 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 95 %

Quick start guide

Yes

Wall mountable

Yes

Storage temperature (T-T)

-40 - 70 °C

Heat dissipation

262.922 BTU/h

Power supply included

Yes

Full duplex

Yes

Networking standards

IEEE 802.3af/IEEE 802.3at/IEEE 802.3x

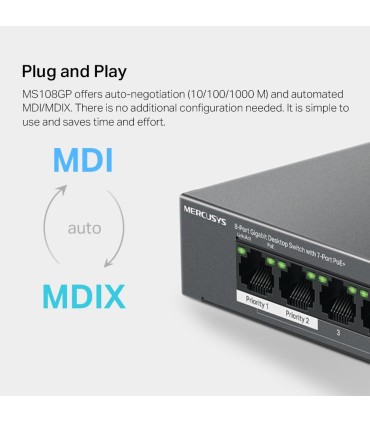

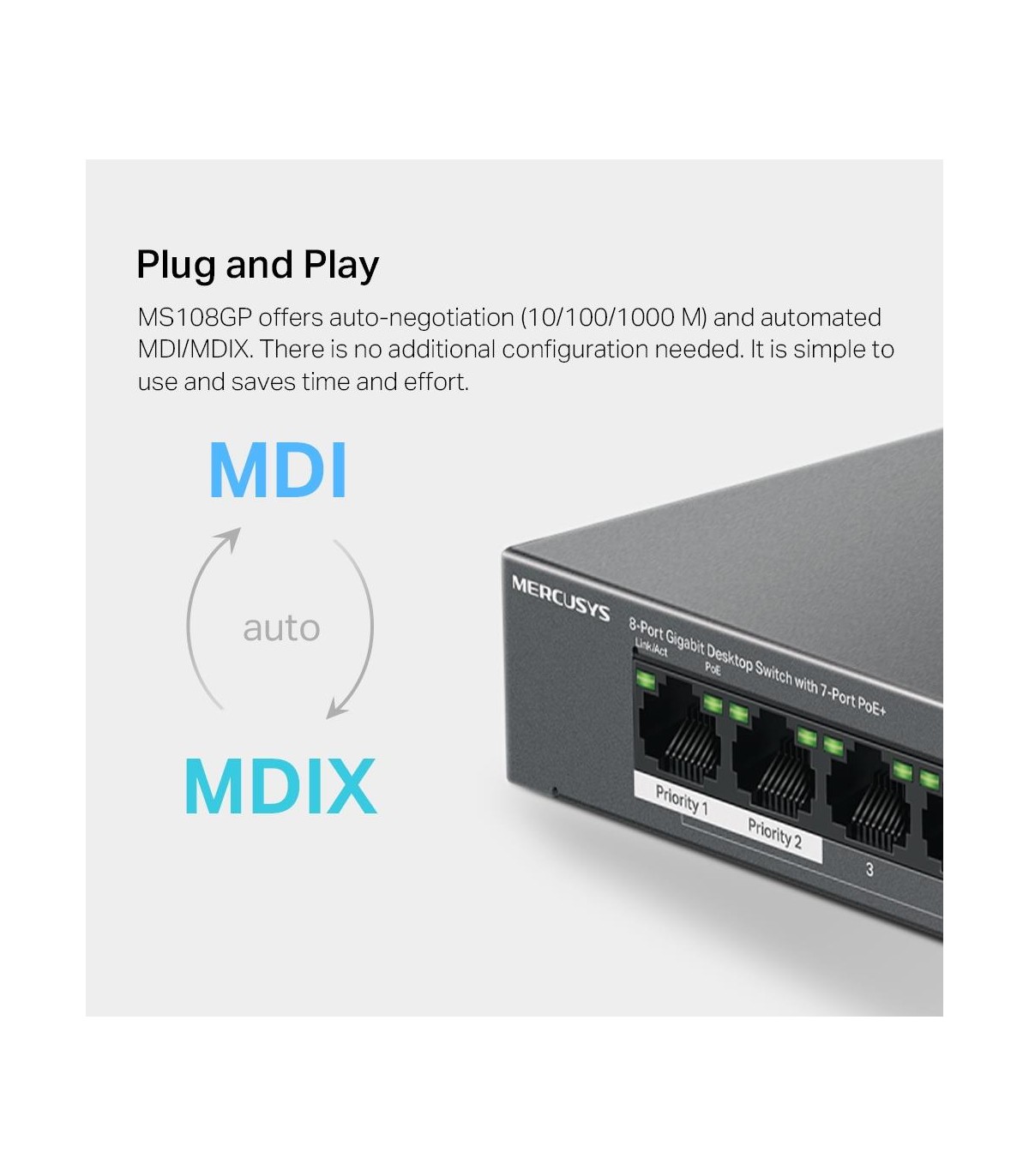

Auto MDI/MDI-X

Yes

Input voltage

53.5 V

Rack mounting

No

10G support

No

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

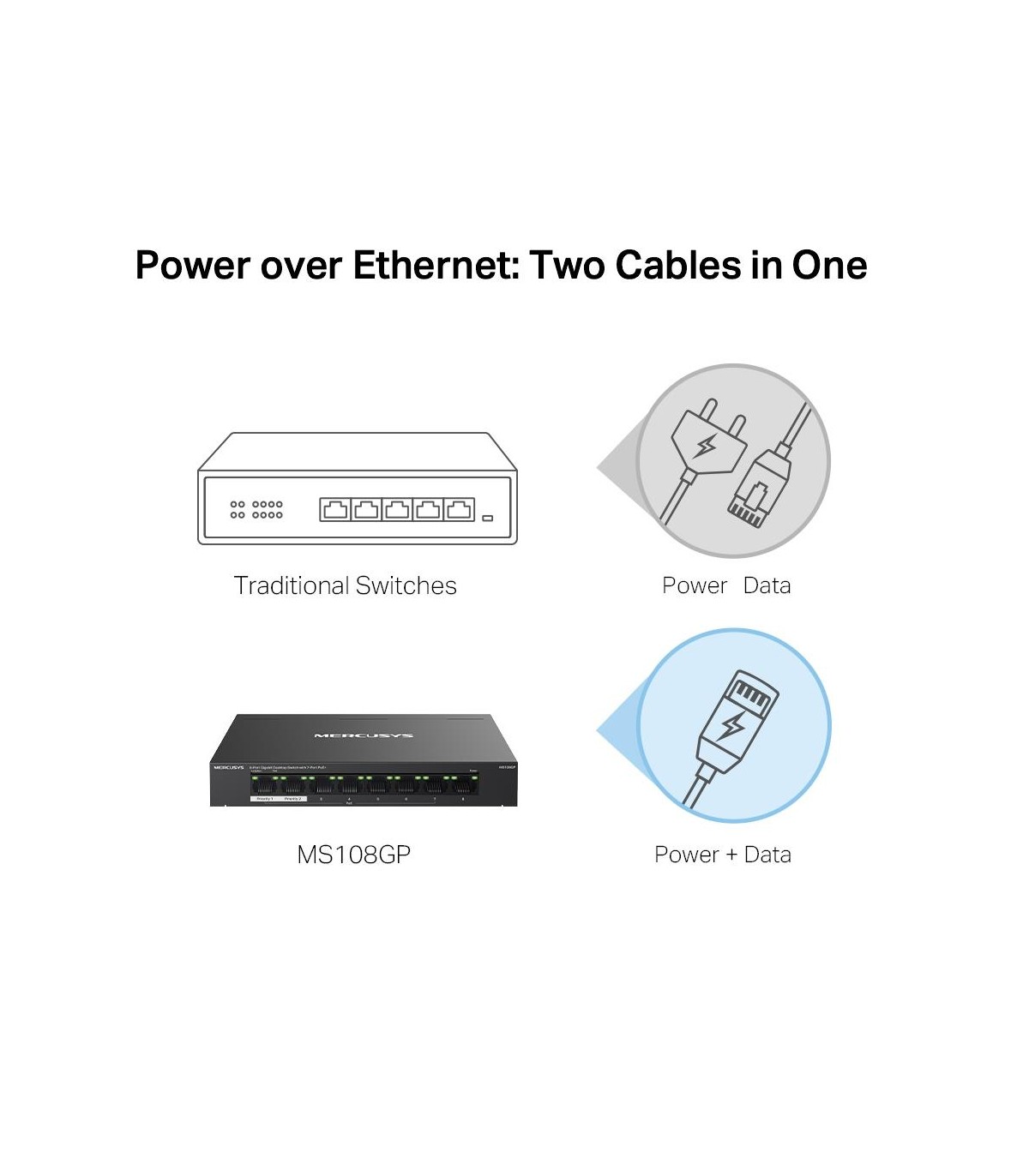

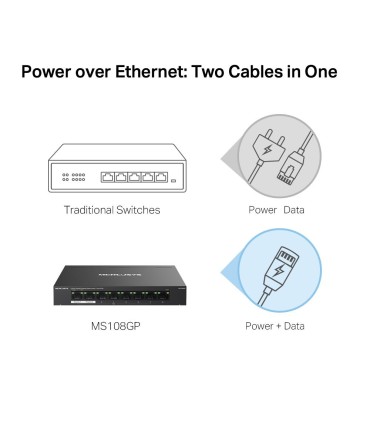

Power over Ethernet (PoE)

Yes

MAC address table

8000 entries

Store-and-forward

Yes

Flow control support

Yes

Power over Ethernet (PoE) ports quantity

7

Power over Ethernet (PoE) power per port

65 W

Web-based management

Yes

Stackable

No

Half duplex

Yes

Power over Ethernet plus (PoE+) ports quantity

1

Policy-based routing

Yes

Traffic classification

Yes
