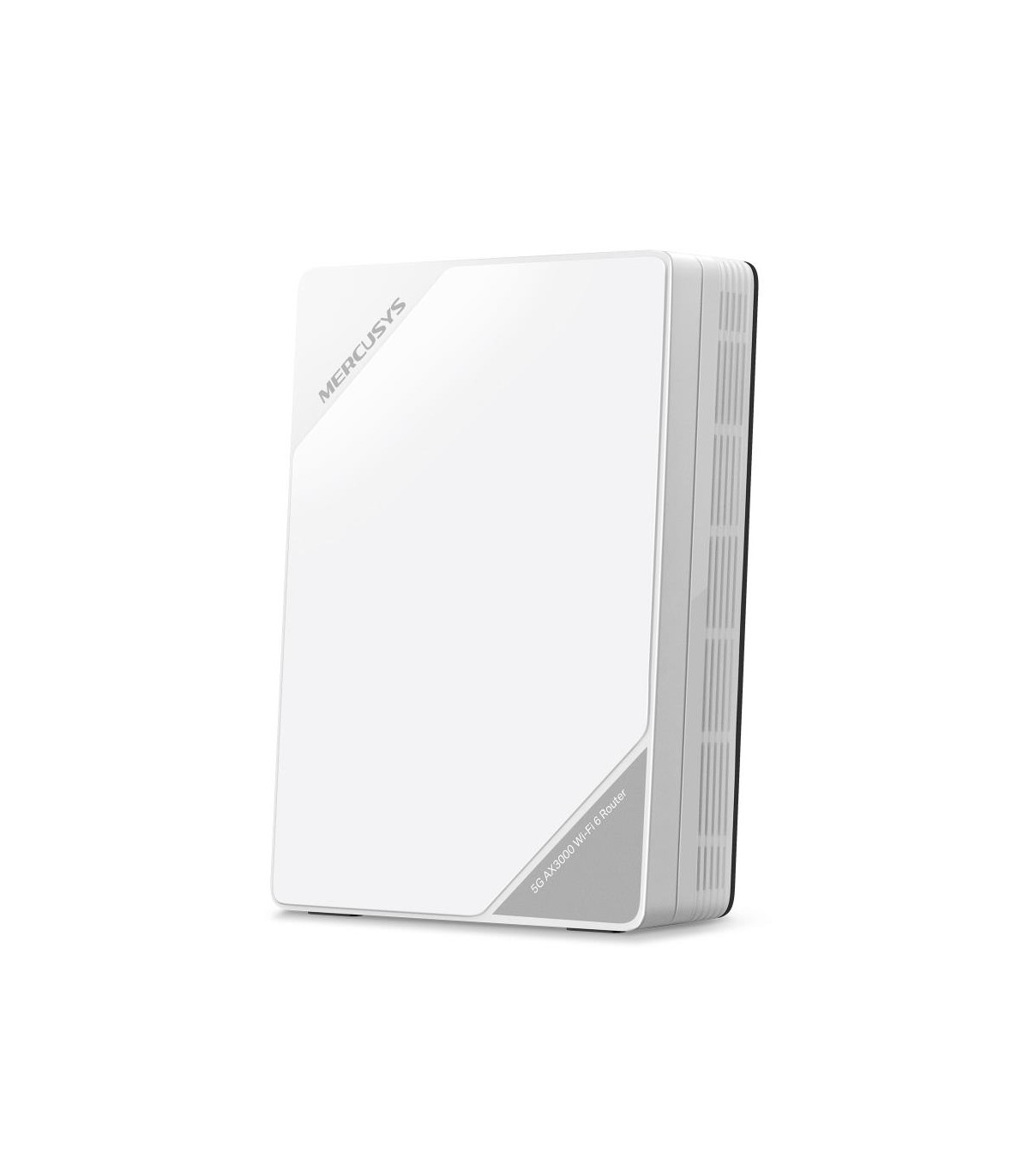

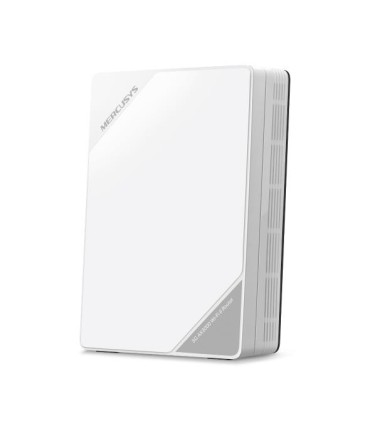

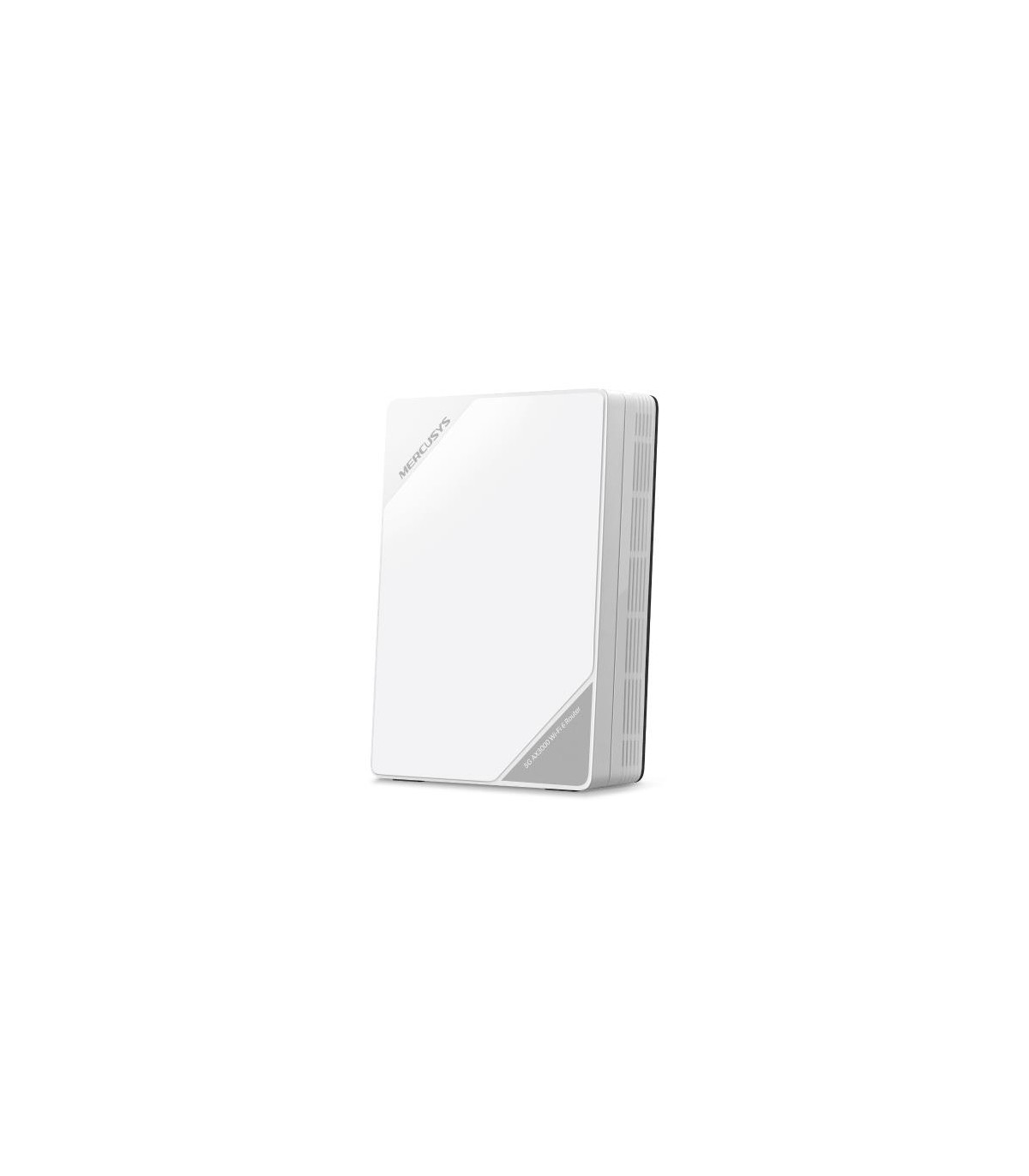

MERCUSYS Wireless Router 3000 Mbps LAN \ WAN ports 1 MB520-5G

Other features

Depth

130 mm

Height

69.7 mm

Width

190 mm

Unit Box Width

0.24

Unit Box Length

0.25

Unit Box Height

0.087

Category Code

WRO

Model

MB520-5G

Product Type

Portable router

Unit Calculated Volume

0.006552 cubm

Unit Calculated Weight

1.19 kg

Units per Shipping Box

12

Summary

Mercusys MB520-5G 5G AX3000 Wireless Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 2976 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, Ethern

Product colour

White

DC-in jack

Yes

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Storage temperature (T-T)

-40 - 60 °C

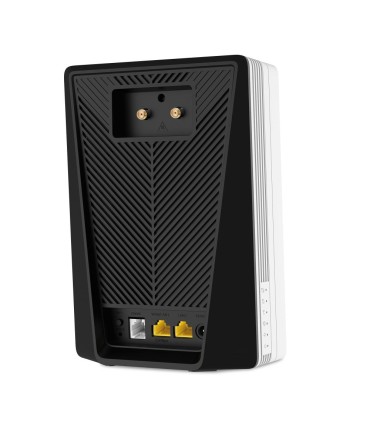

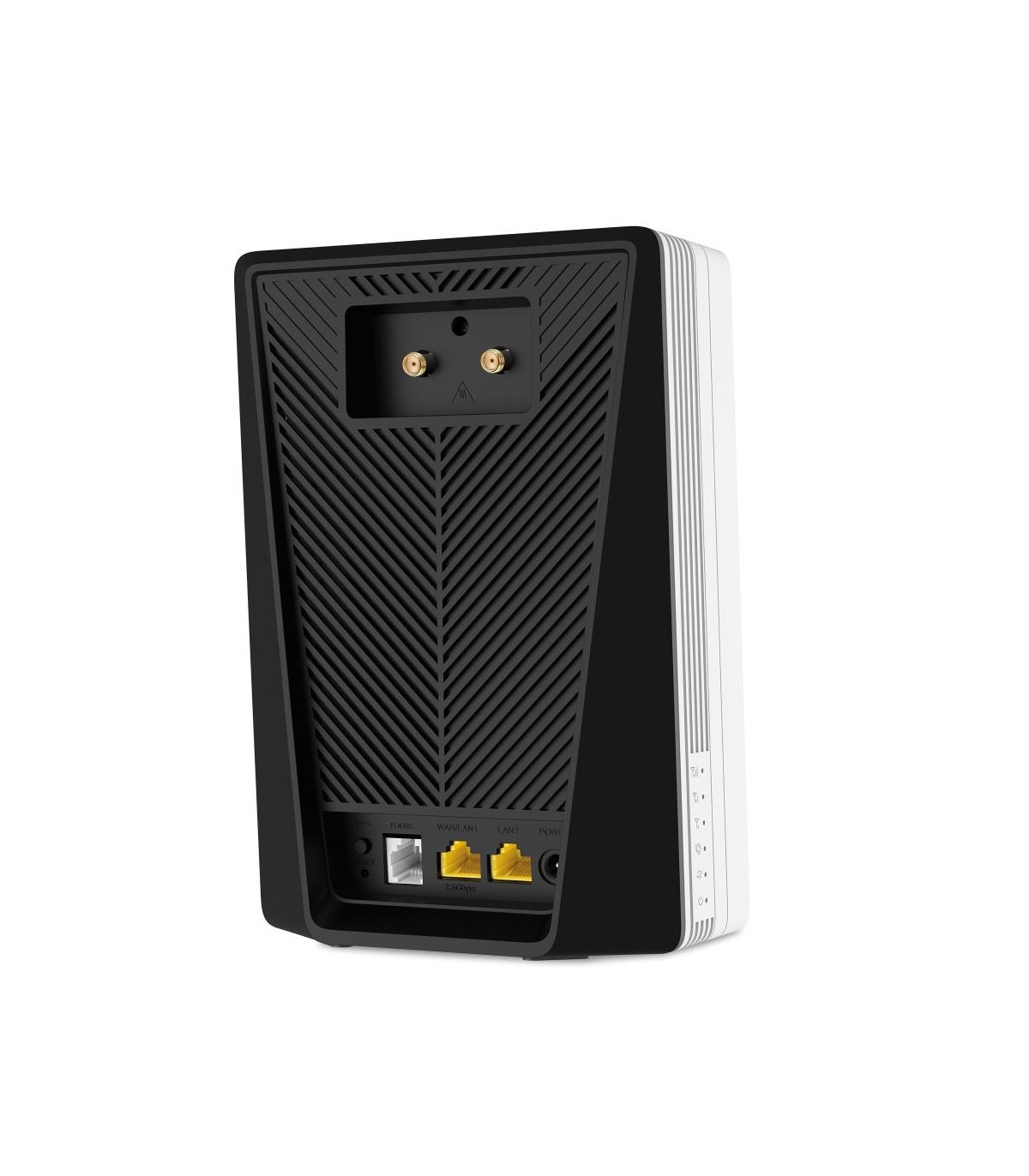

Ethernet LAN (RJ-45) ports

2

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)

Ethernet LAN data rates

10/100/1000/2500 Mbit/s

USB port

No

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Mobile network generation

5G

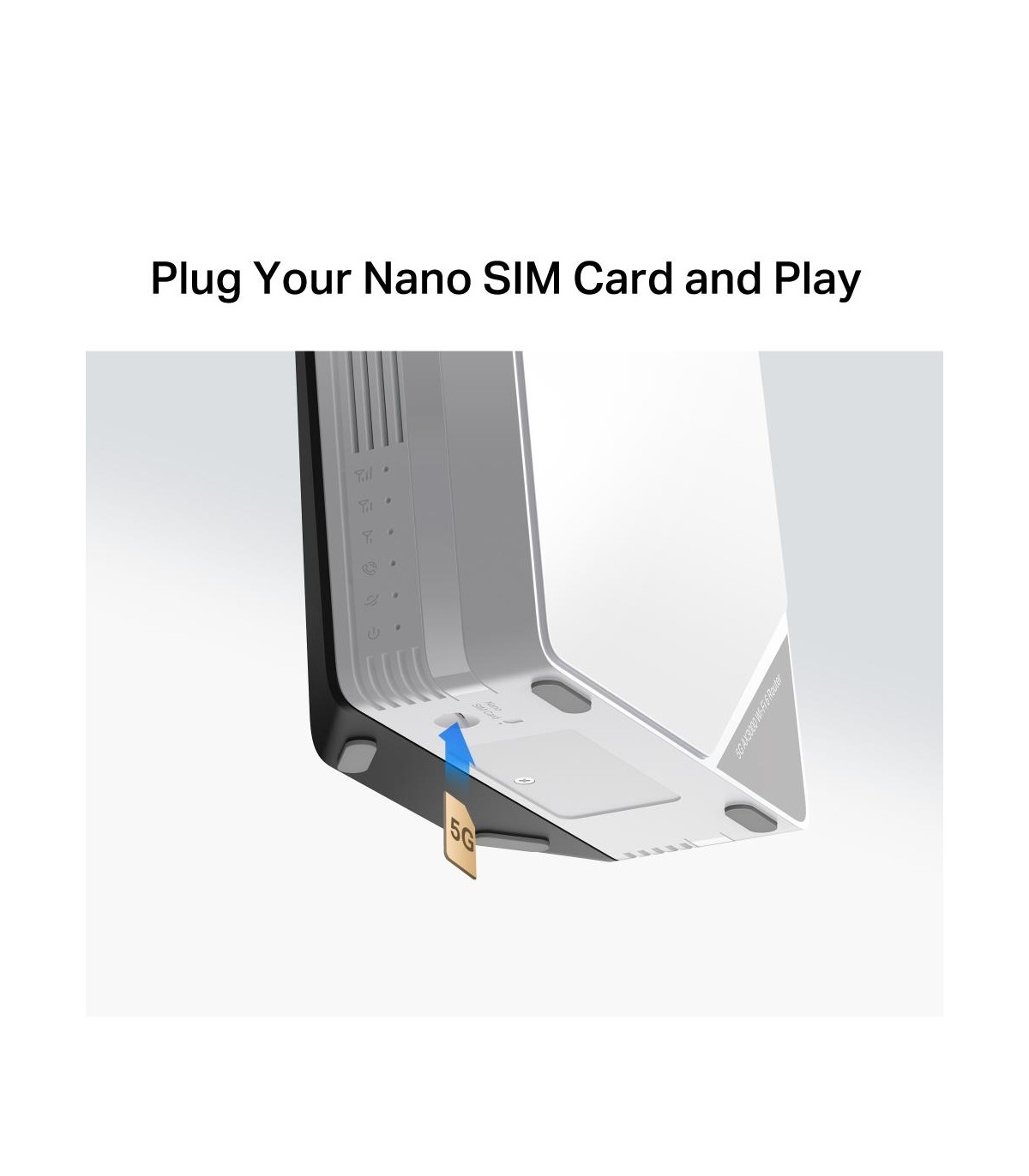

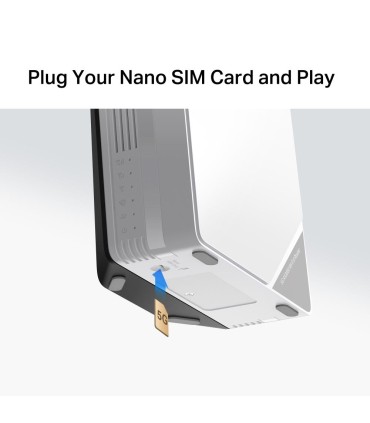

SIM card type

NanoSIM

4G data rate (max)

4670 Mbit/s

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Ethernet WAN

Yes

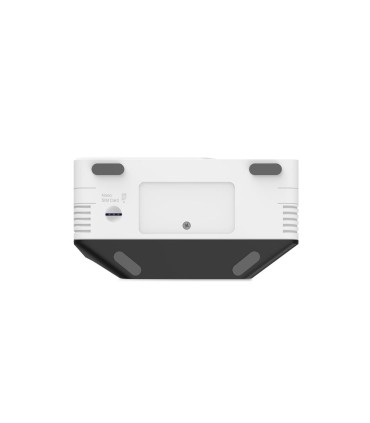

SIM card slot

Yes

WAN connection type

RJ-45

WLAN data transfer rate (first band)

574 Mbit/s

WLAN data transfer rate (max)

2976 Mbit/s

WLAN data transfer rate (second band)

2402 Mbit/s

Ethernet LAN interface type

2.5 Gigabit Ethernet

3G/4G USB modem compatibility

Yes

Receiver sensitivity

5 GHz:11ax HE20: -64 dBm11ax HE40: -61 dBm11ax HE80: -59 dBm11ax HE160: -56 dBm11ac VHT20: -70 dBm11ac VHT40: -67 dBm11ac VHT80: -64 dBm2.4 GHz:11ax HE20: -66 dBm11ax HE40: -62 dBm11ac VHT20: -71 dBm11ac VHT40: -67 dB

RJ-11 ports quantity

1
