1425271
Other features
- Depth
- 330 mm
- Height
- 44 mm
- Width
- 440 mm
- Unit Box Width
- 0.53
- Unit Box Length
- 0.47
- Unit Box Height
- 0.1
- Category Code
- SWI
- Model
- Omada
- Series
- SX3032F
- Switch type
- Managed
- Switching capacity
- 640 Gbit/s
- Forwarding rate
- 240 Mpps
- Number of fans
- 2 fan(s)
- Power source
- AC
- Unit Calculated Volume
- 0.030576 cubm
- Unit Calculated Weight
- 6.65 kg
- Units per Shipping Box
- 3
- Summary

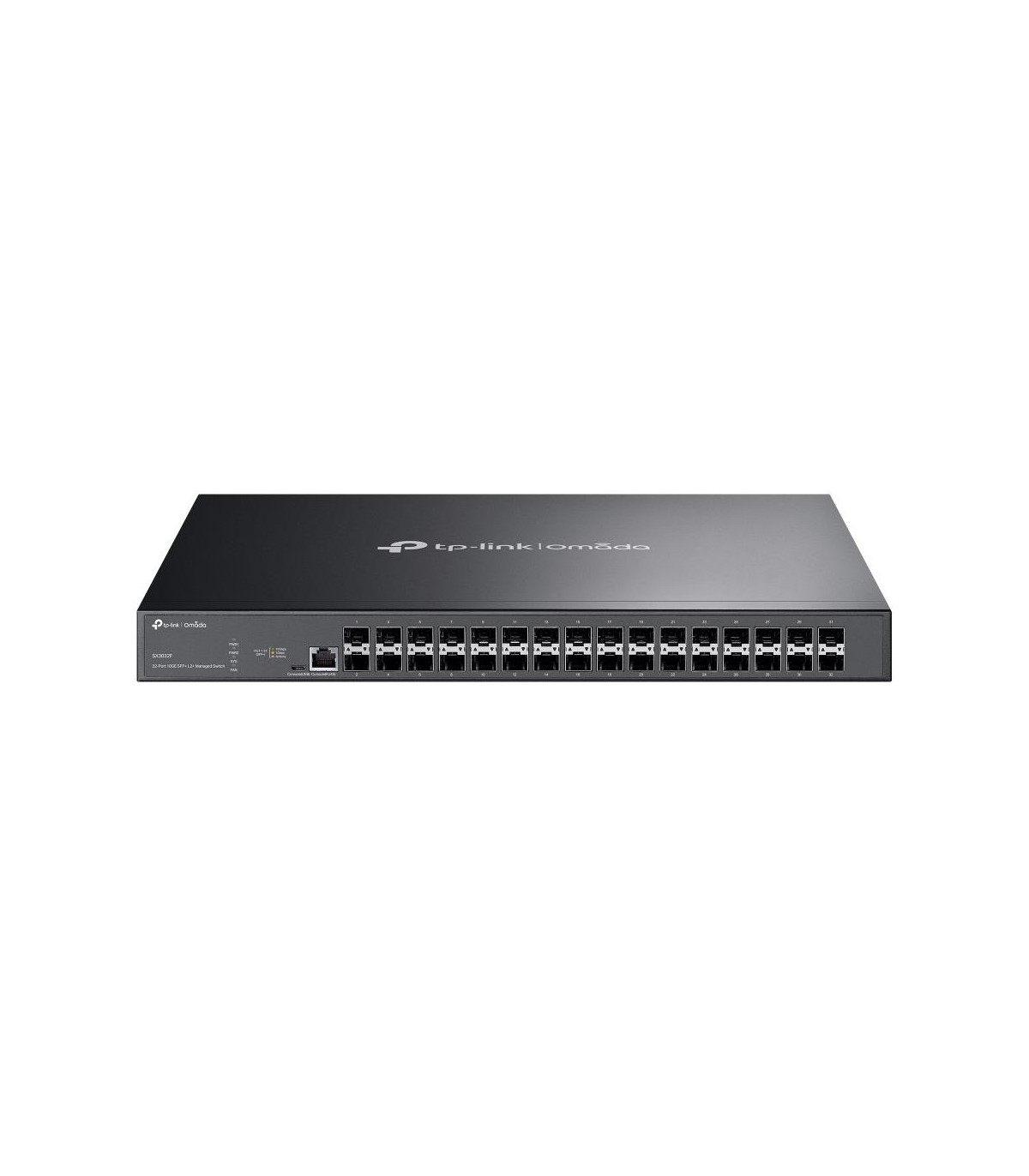

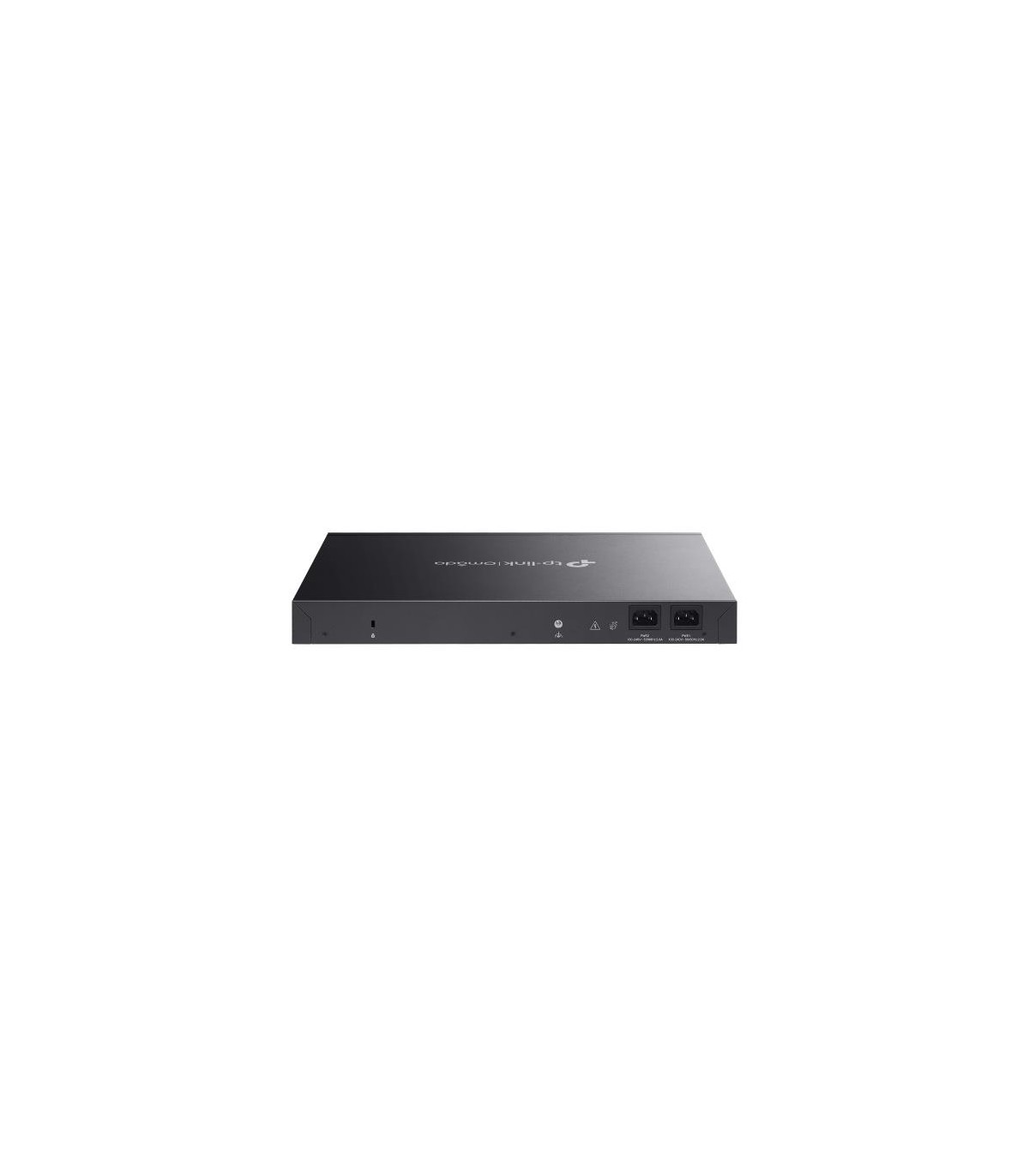

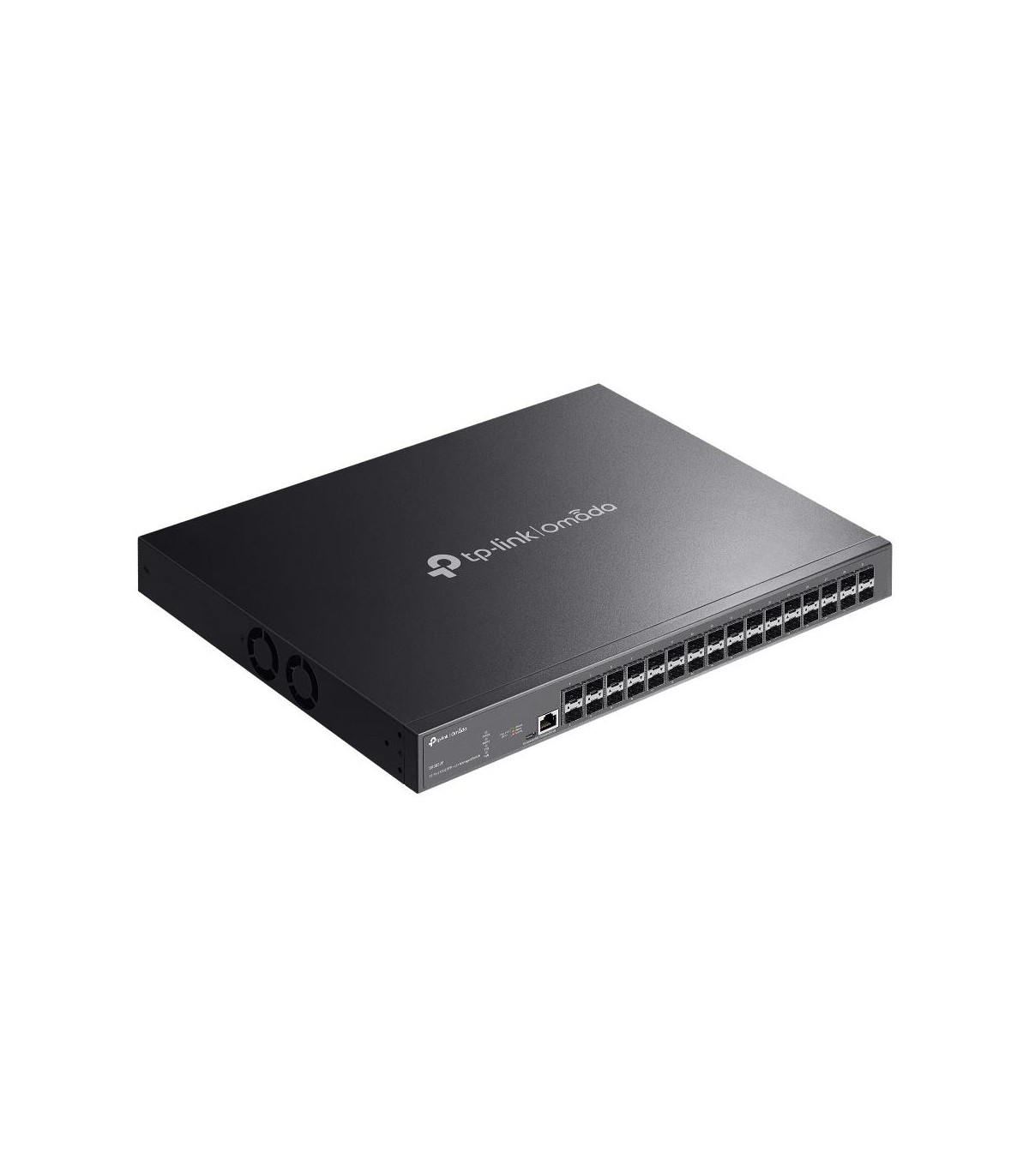

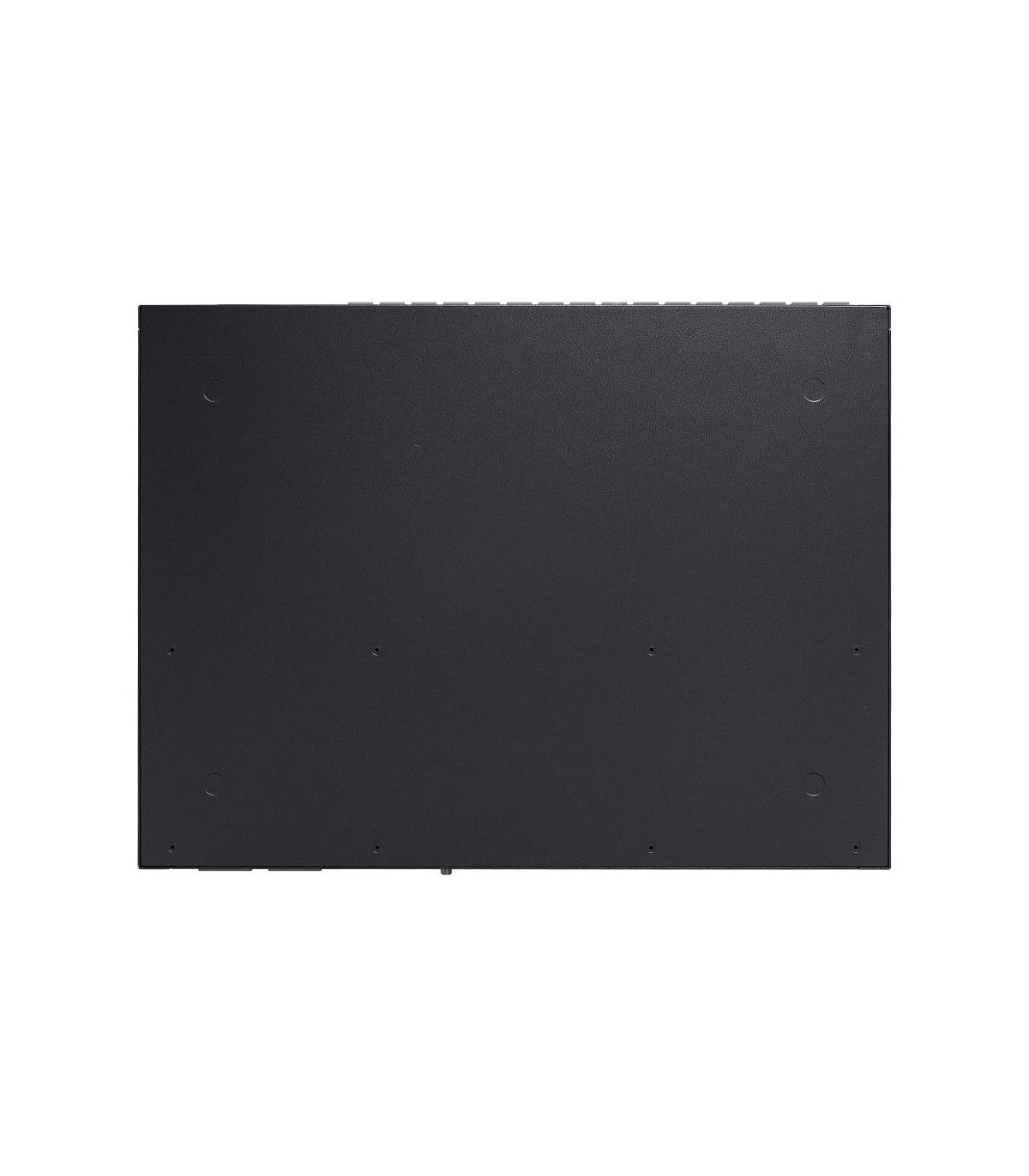

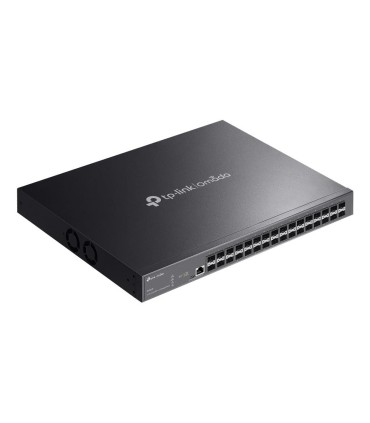

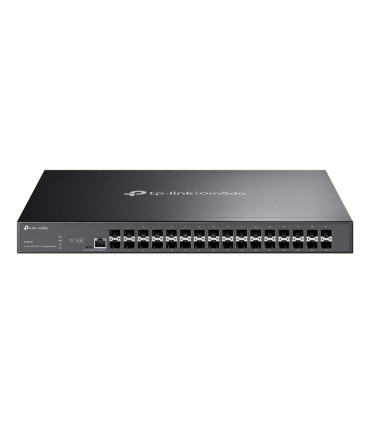

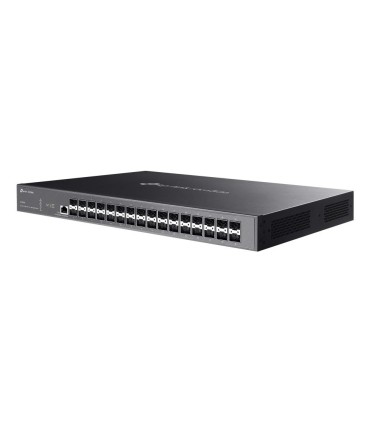

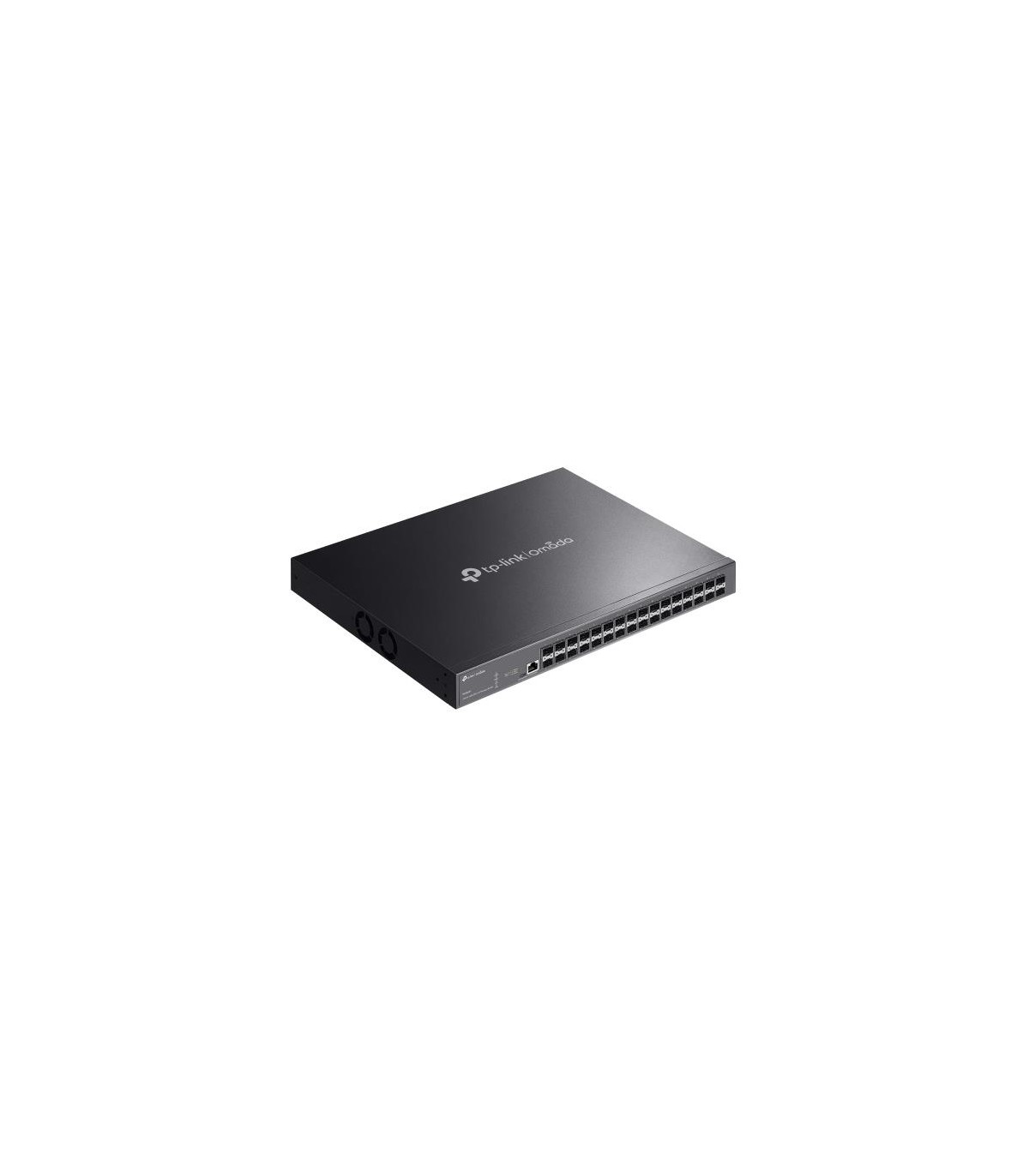

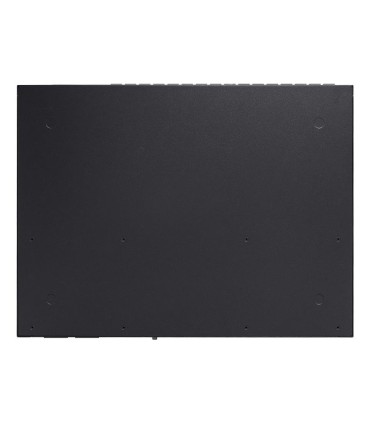

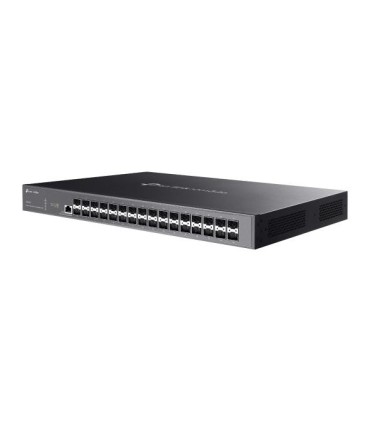

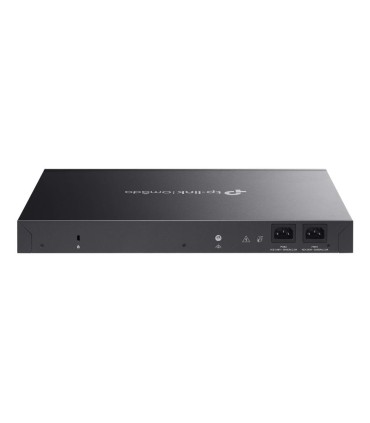

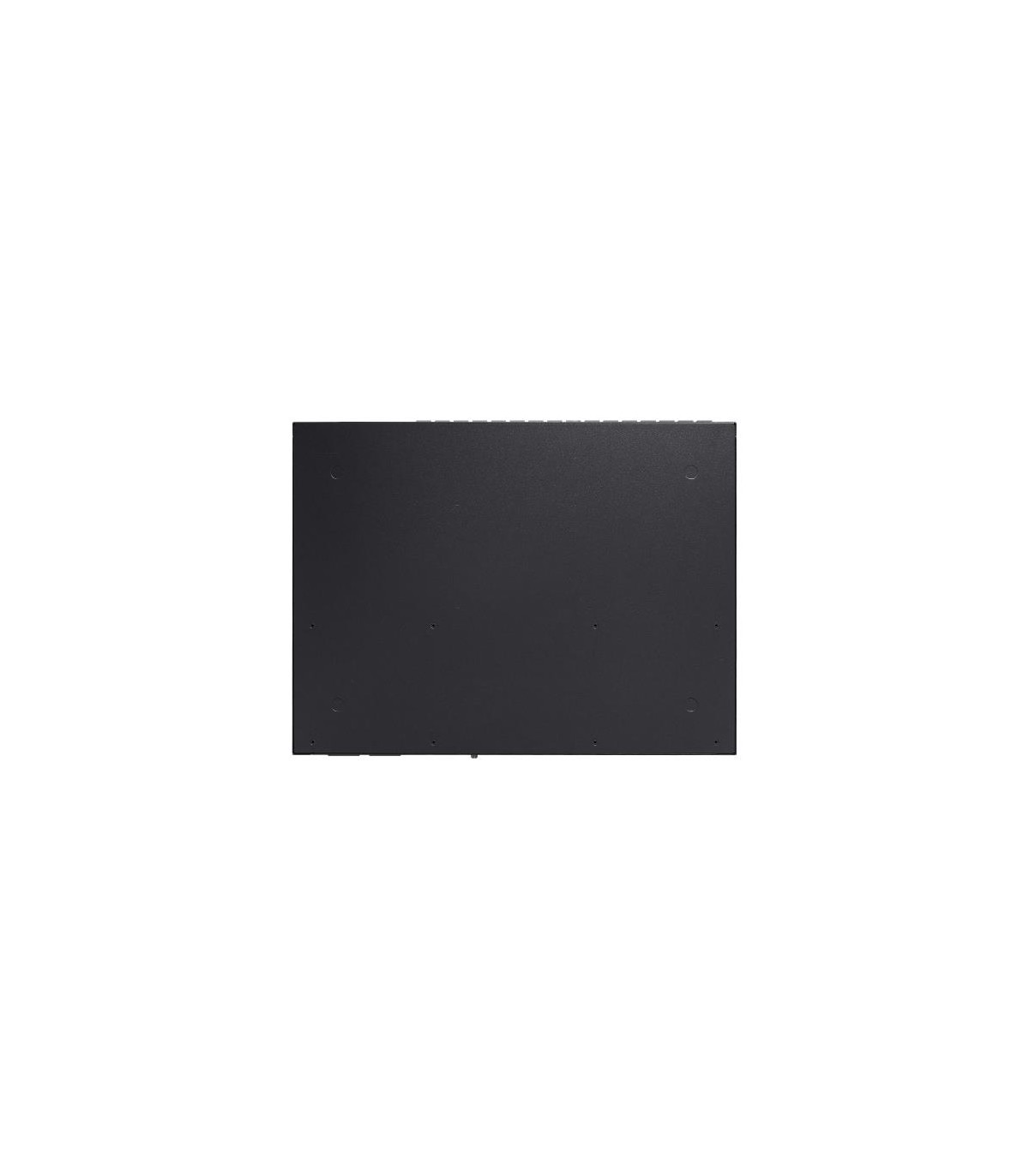

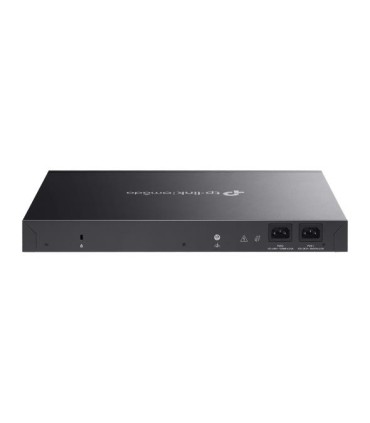

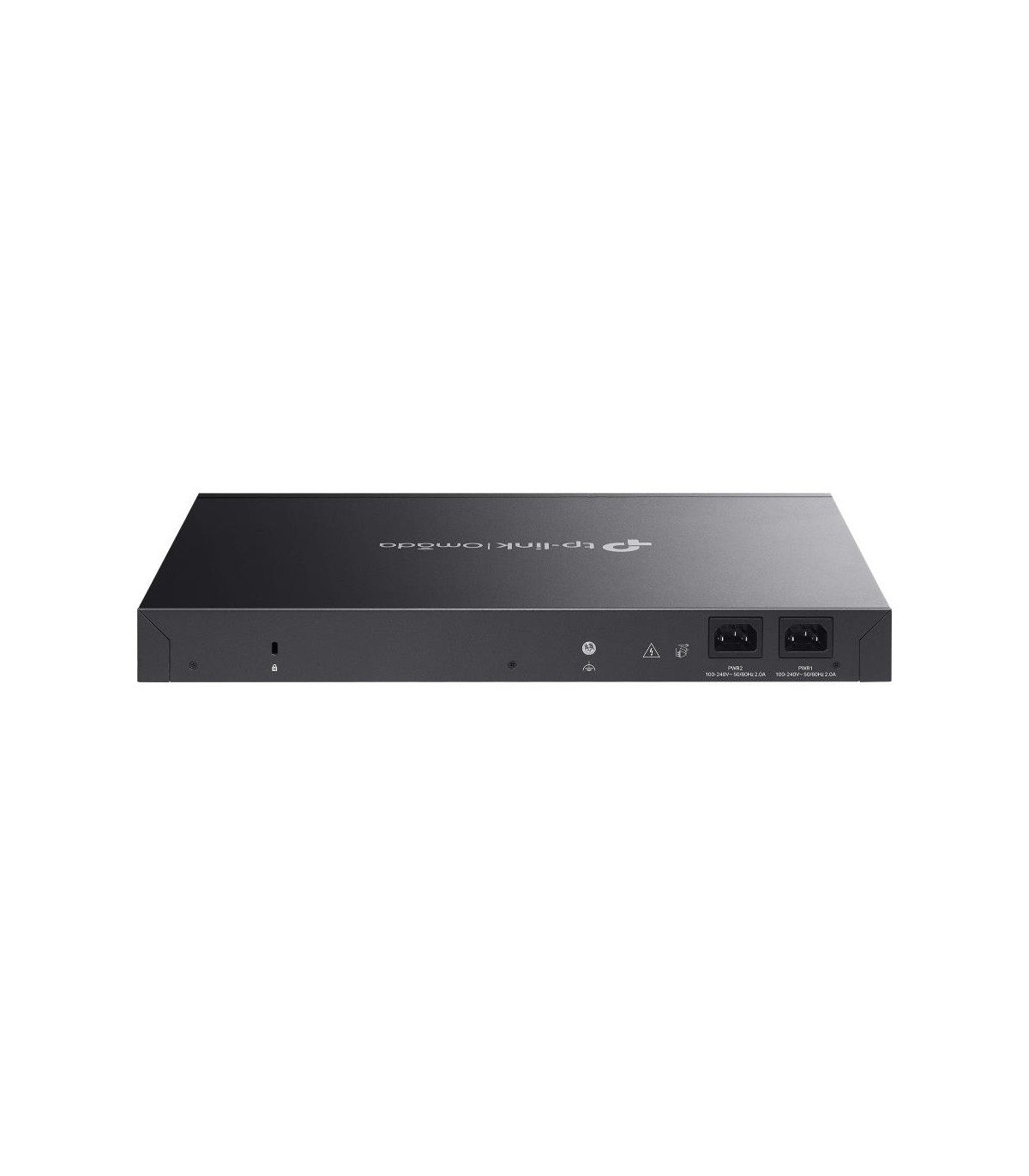

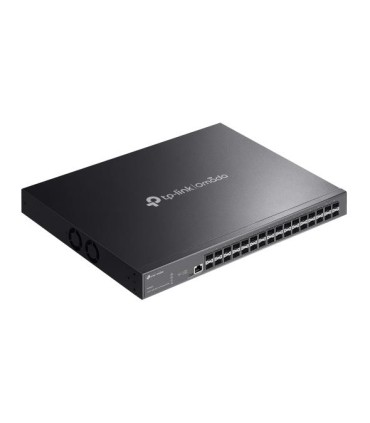

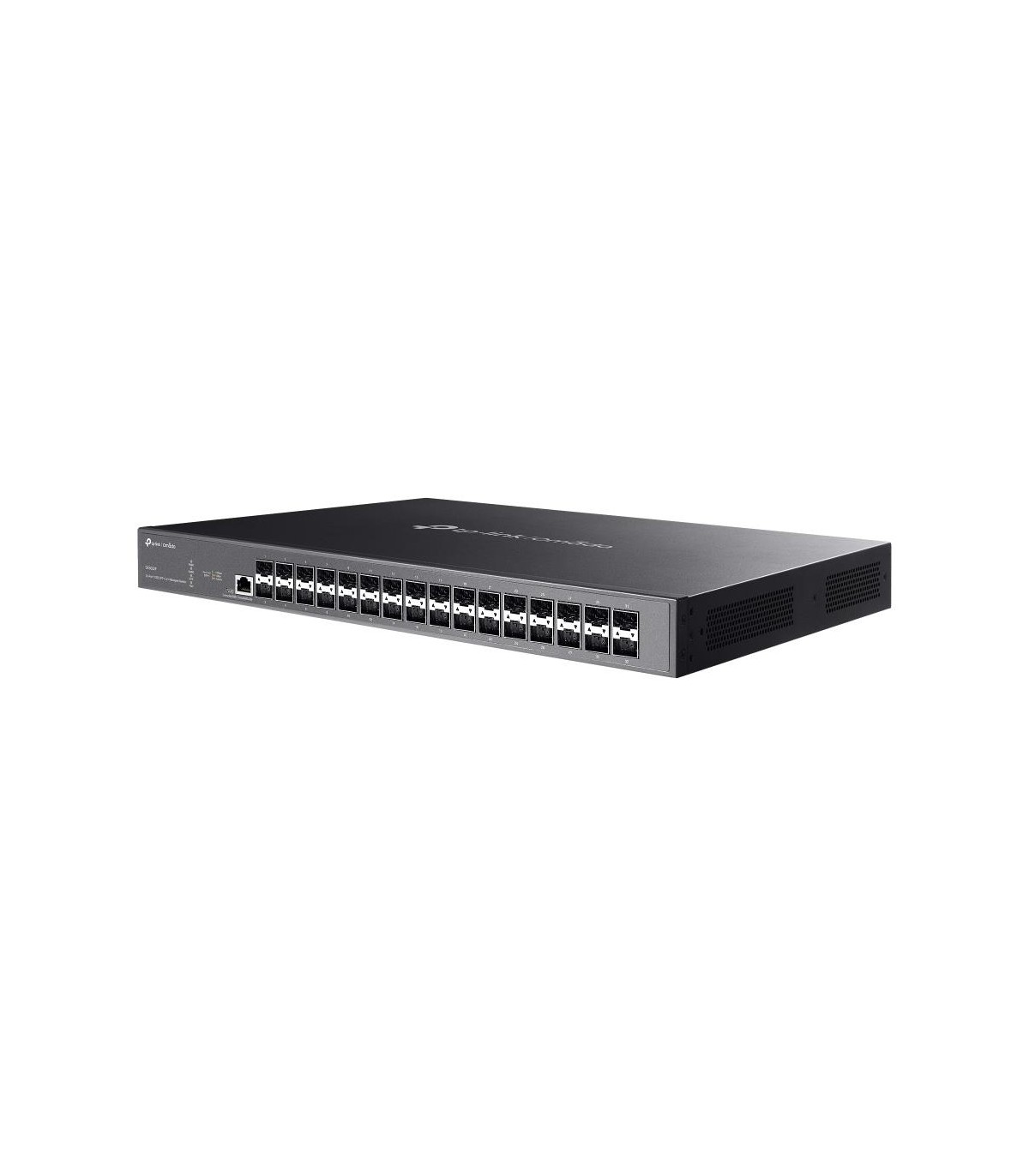

- TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 1, Installed SFP+ modules quantity: 32, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching
- Product colour
- Black
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Cables included
- Power
- Power consumption (max)
- 49.4 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 45 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Quick start guide
- Yes
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
- Storage temperature (T-T)
- 40 - 70 °C
- Power supply included
- Yes
- Password protection
- Yes
- Jumbo frames support
- Yes
- Networking standards
- IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3ah/IEEE 802.3x
- Rack mounting
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 1
- MAC address table
- 32000 entries
- Jumbo frames
- 9
- Flow control support
- Yes
- Packet buffer memory
- 24 MB
- Switch layer
- L2+
- Quality of Service (QoS) support
- Yes
- Port mirroring
- Yes
- IGMP snooping
- Yes
- Loop protection
- Yes
- Broadcast storm control
- Yes
- Link aggregation
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Protocol-based VLAN/SSID-based VLAN assignment/Tagged VLAN/VLAN mapping/Voice VLAN
- Number of VLANs
- 30
- Authentication type
- AAA,TACACS+
- Spanning tree protocol
- Yes
- Console port
- RJ-45/Micro-USB
- Number of queues
- 8
- DHCP features
- DHCP relay/DHCP server/DHCPv6 snooping
- Cloud-managed
- Yes
- Multicast support
- Yes
- Access Control List (ACL)
- Yes
- IP-MAC-Port binding
- Yes
- Queue scheduling algorithms
- Priority queuing (PQ)/SP/Weighted Round Robin (WRR)
- SSH/SSL support
- Yes
- Rate limiting
- Yes
- ARP inspection
- Yes
- Configuring Location Settings (CLI)
- Yes
- MIB support
- • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication
- Authentication
- MAC-based authentication,Port-based authentication
- Static port security
- Yes
- Multicast Listener Discovery (MLD) snooping
- Yes
- Static route
- Yes
- GARP VLAN Registration Protocol (GVRP)
- Yes
- IPv4 routes
- 48
- IPv6 routes
- 48
- IPv4 & IPv6 features
- Dual stack IPv4/IPv6/ICMPv6/IPv6 TFTP
- Number of static routes
- 128
- Installed SFP+ modules quantity
- 32
- Number of IP interfaces
- 128
- Number of multicast groups filtered
- 4000
- IP Source Guard (IPSG)
- Yes
- Redundant fans support
- Yes
Specific References
- EAN
- 4895252504477
