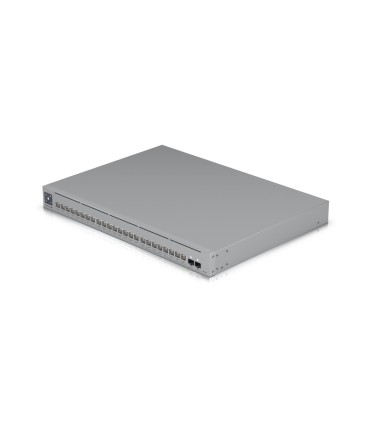

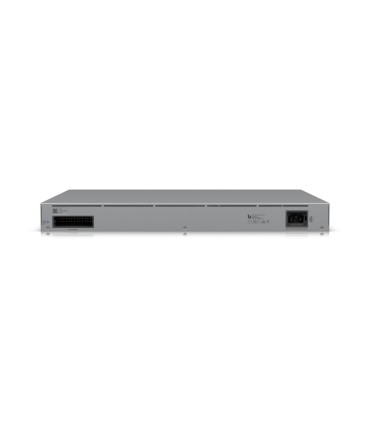

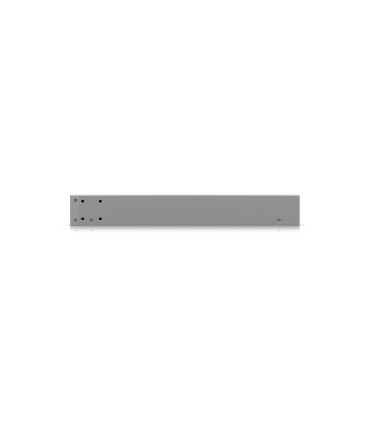

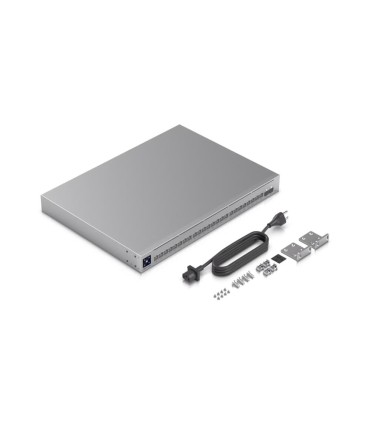

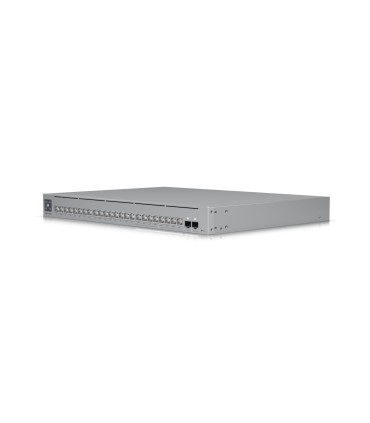

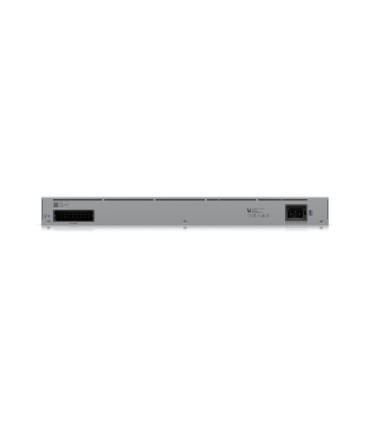

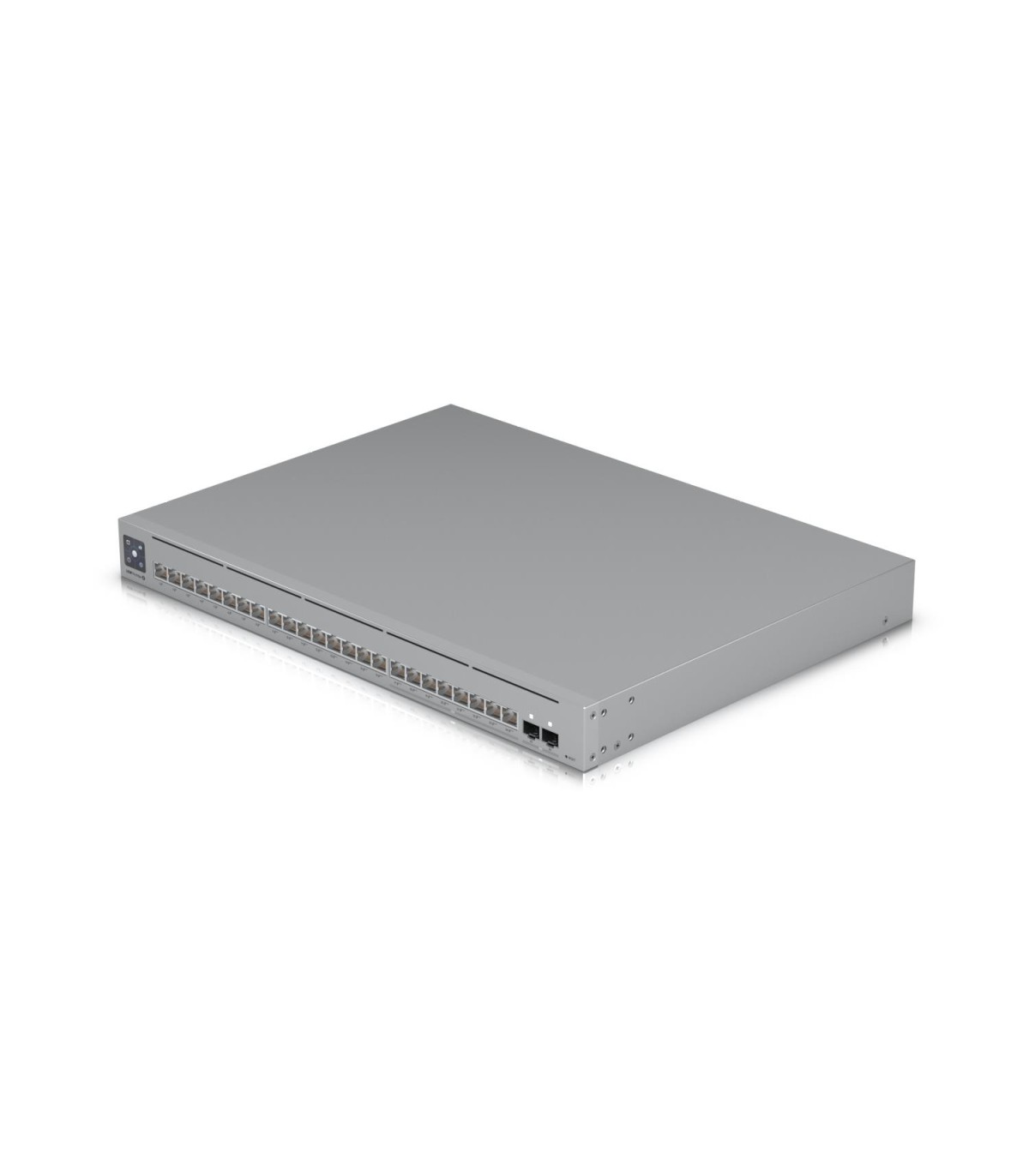

UBIQUITI Switch Pro Max 24 PoE Type L3 400 Watts USW-PRO-MAX-24-POE

Specification

Housing material

Steel

Other features

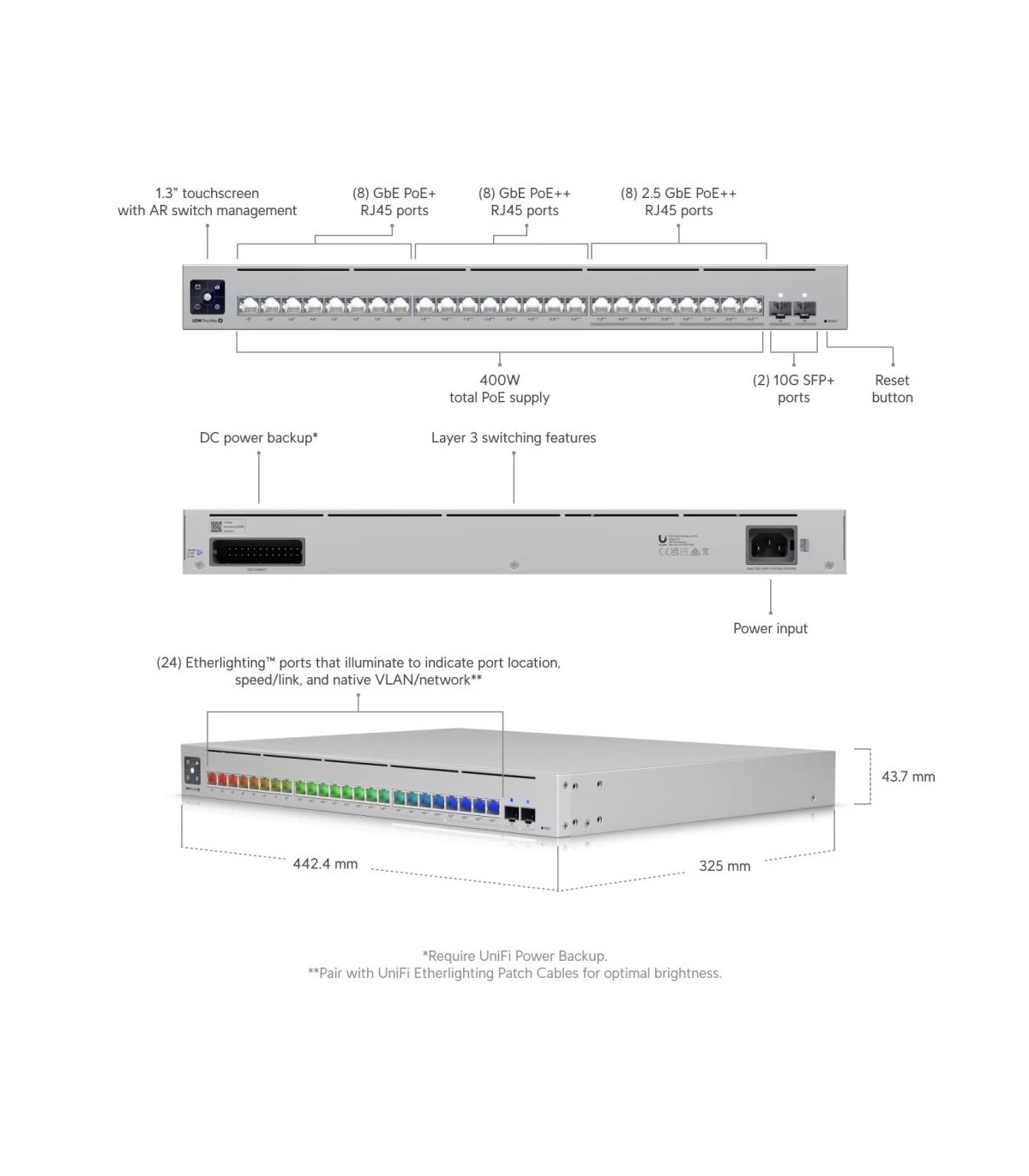

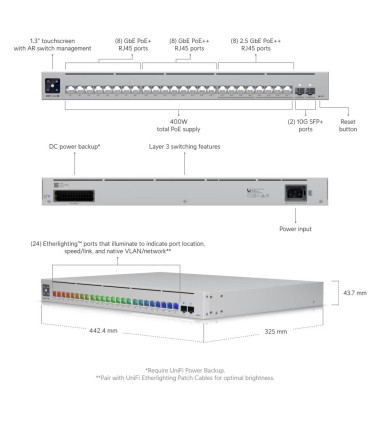

Depth

325 mm

Height

43.7 mm

Width

442.4 mm

Unit Box Width

0.12

Unit Box Length

0.52

Unit Box Height

0.435

Category Code

SWI

Model name

Pro Max 24 PoE

Model

USW-Pro-Max-24-PoE

Switch type

Managed

Switching capacity

112 Gbit/s

Power source

AC/DC

Unit Calculated Volume

0.03247 cubm

Unit Calculated Weight

6.72 kg

Units per Shipping Box

2

Summary

Ubiquiti Pro Max 24 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Switching capacity: 112 Gbit/s. Power connector: AC-in jack. Pow

Product colour

Grey

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Certification

CE, FCC, IC

Power consumption (max)

50 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

-5 - 40 °C

Weight

5100 g

Manual

Yes

LED indicators

System

Reset button

Yes

Power supply included

Yes

Power connector

AC-in jack

Rack mounting

Yes

10G support

No

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

Gigabit Ethernet (copper) ports quantity

16

Power over Ethernet (PoE) ports quantity

8

Total Power over Ethernet (PoE) budget

400 W

Switch layer

L3

VLAN support

Yes

Throughput

56 Gbit/s

SFP+ module slots quantity

2

Redundant power supply (RPS) support

Yes

2.5G Ethernet (copper) ports quantity

8

Power over Ethernet 4PPoE (PoE++) ports quantity

16
