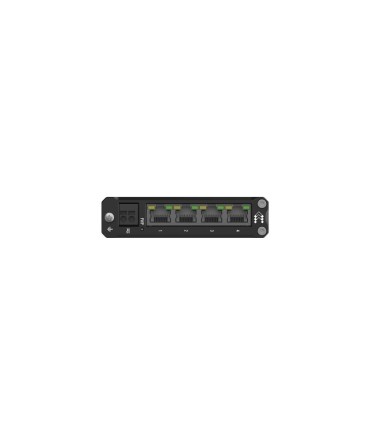

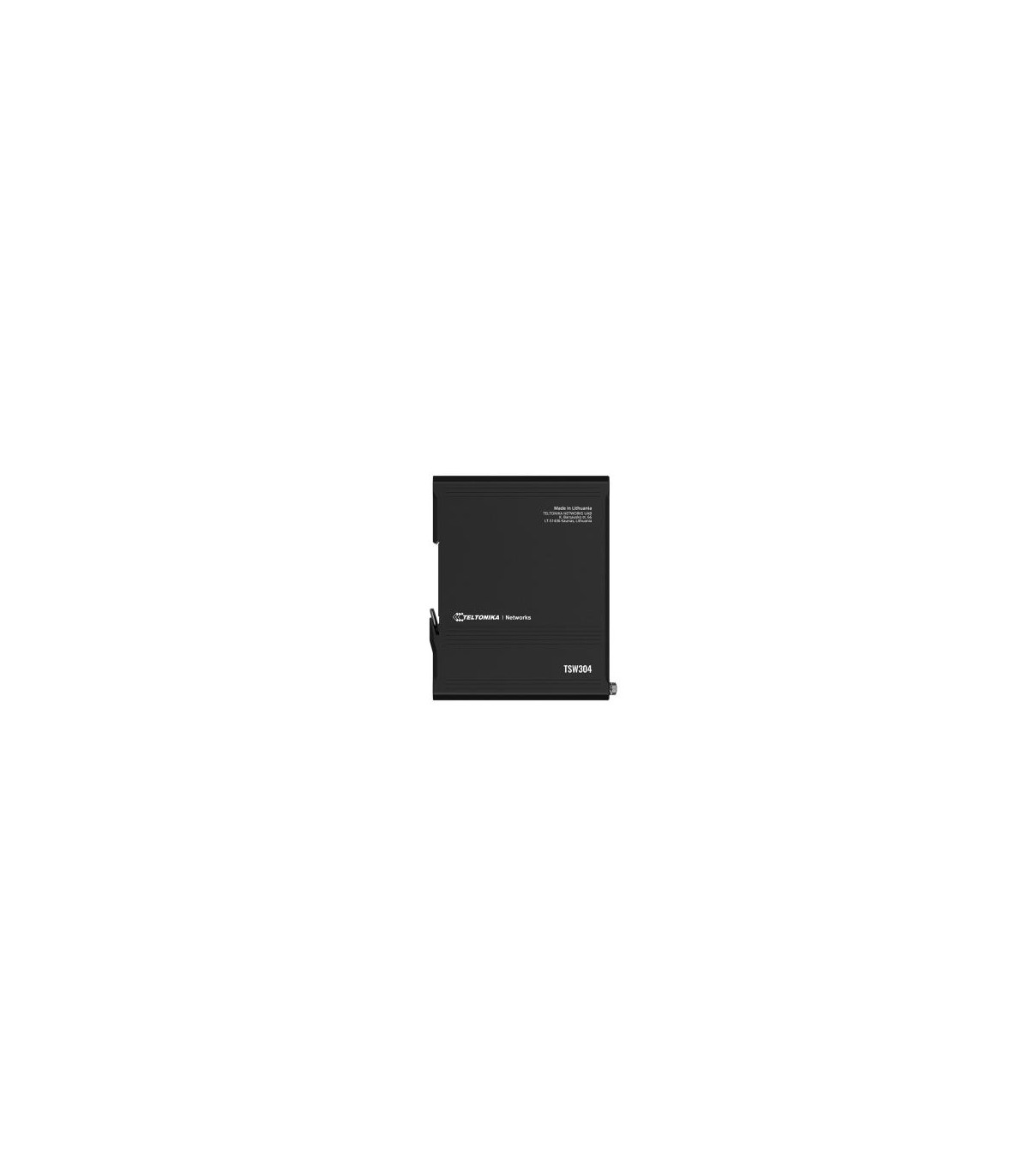

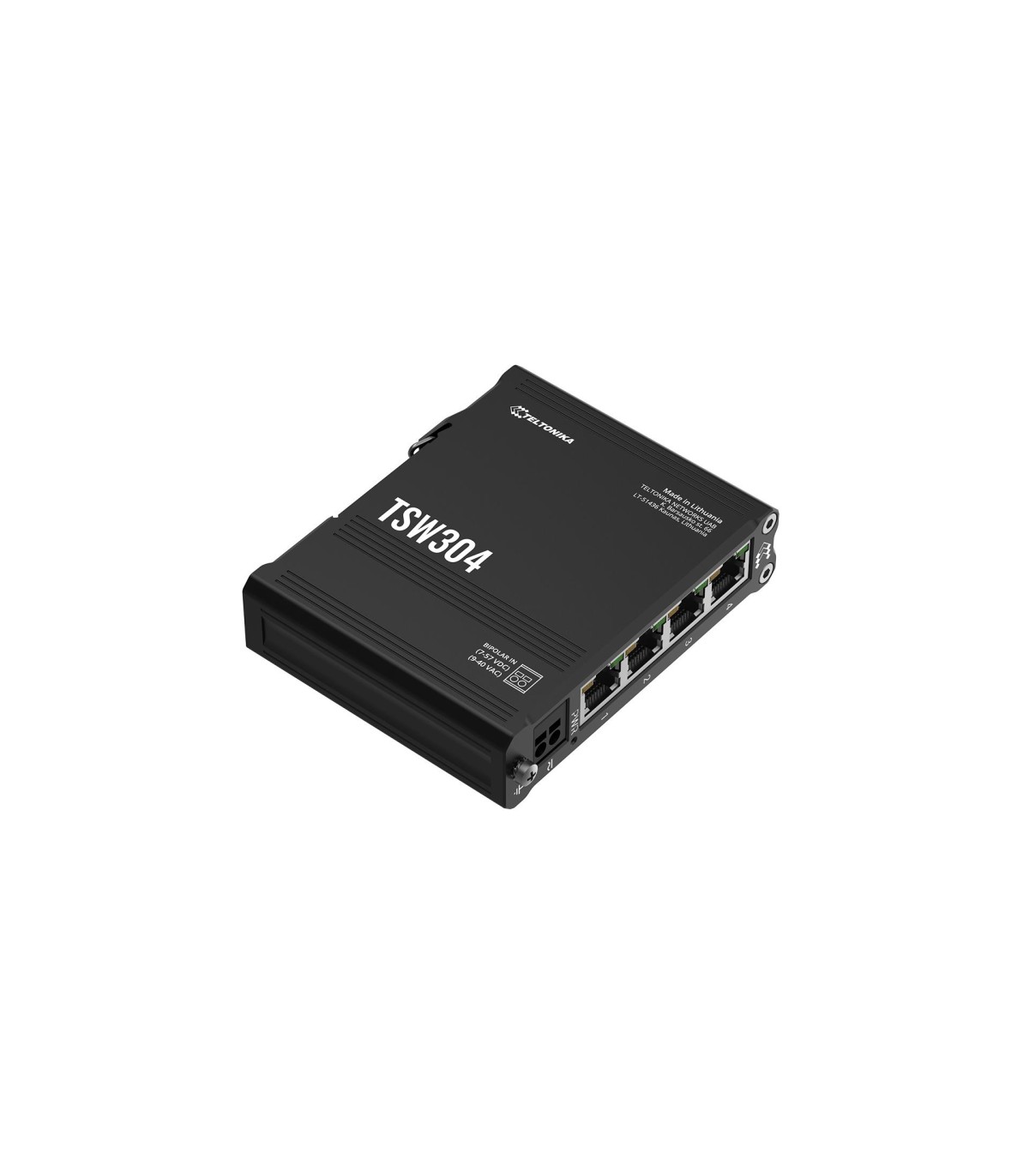

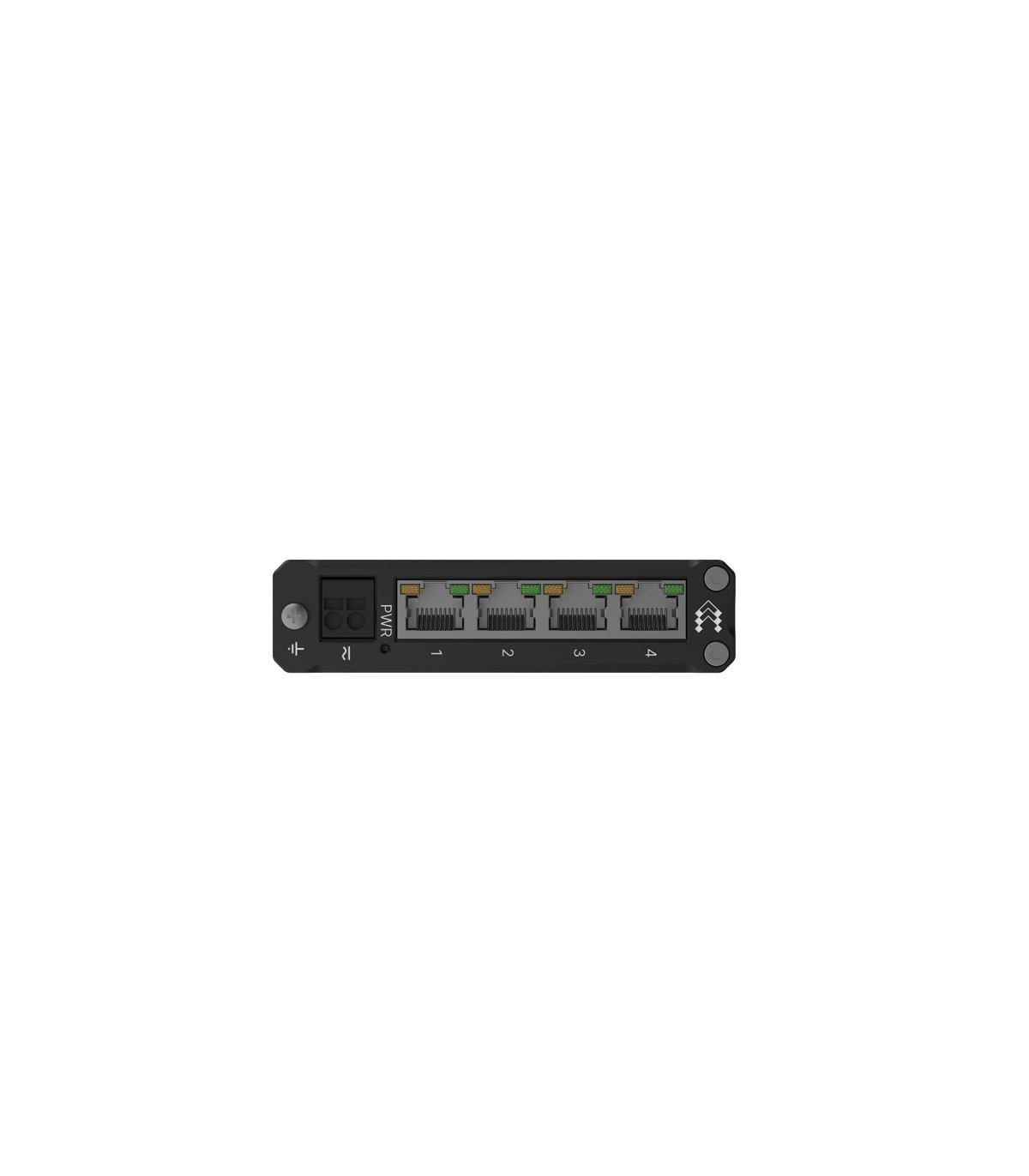

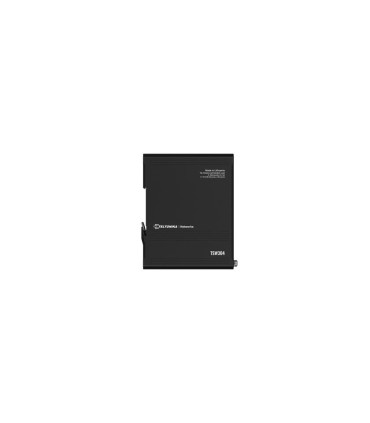

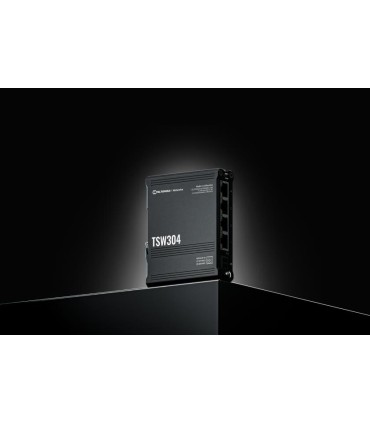

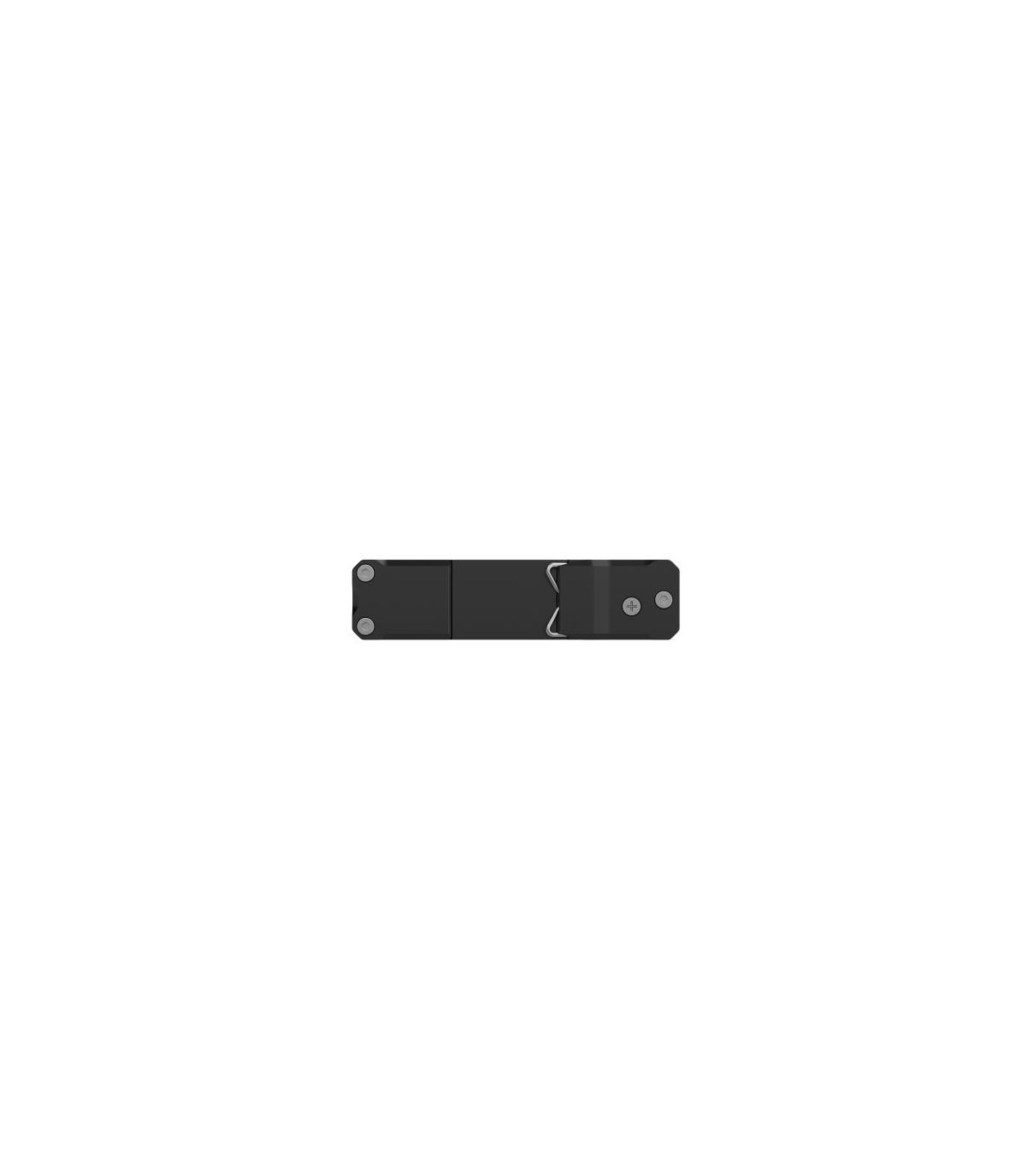

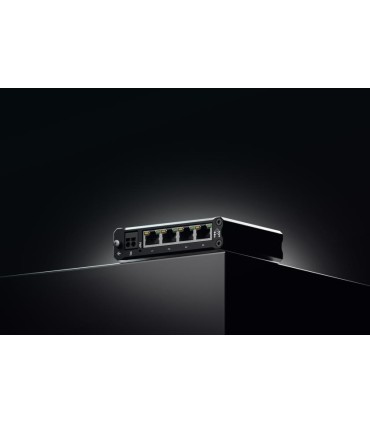

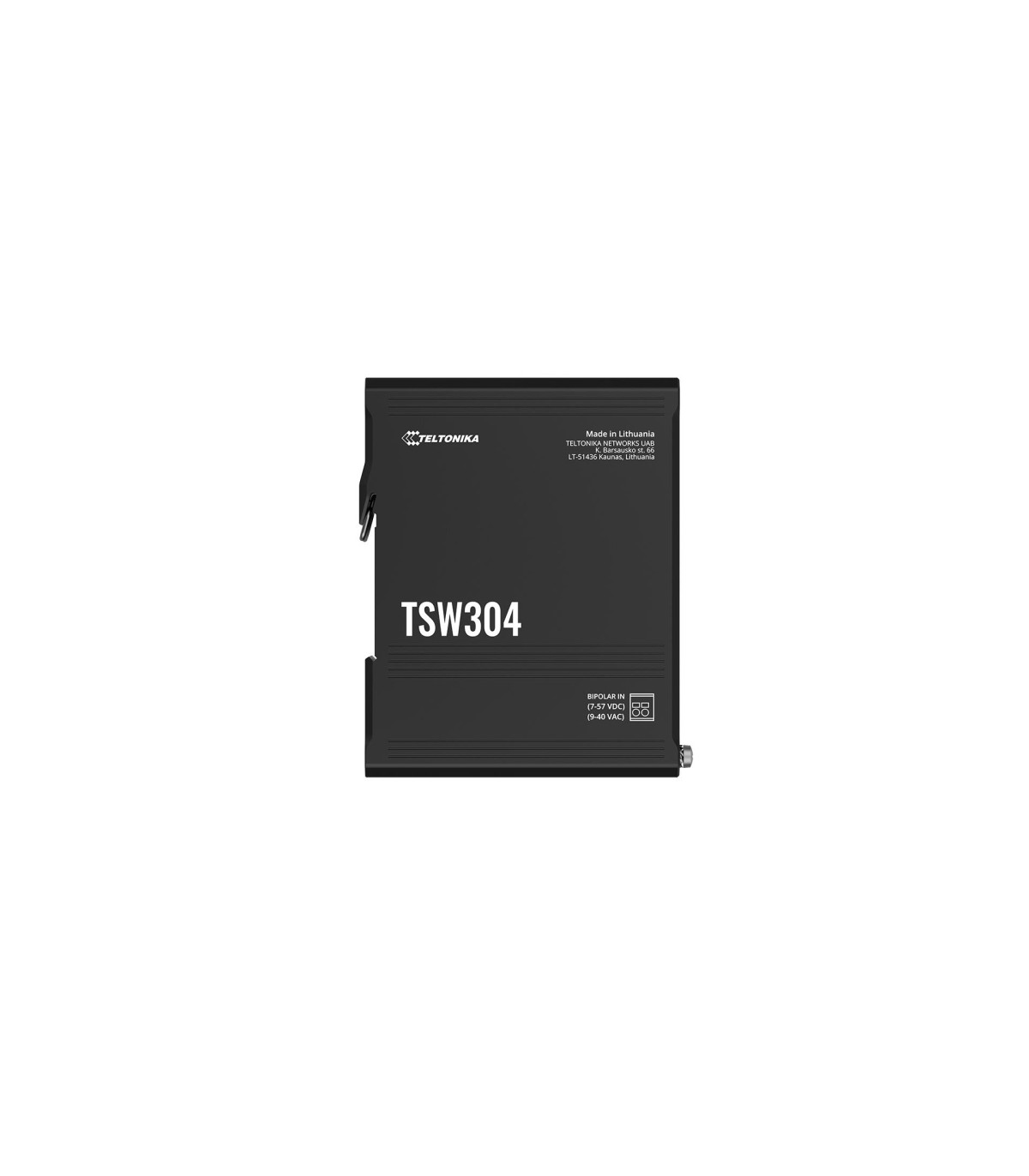

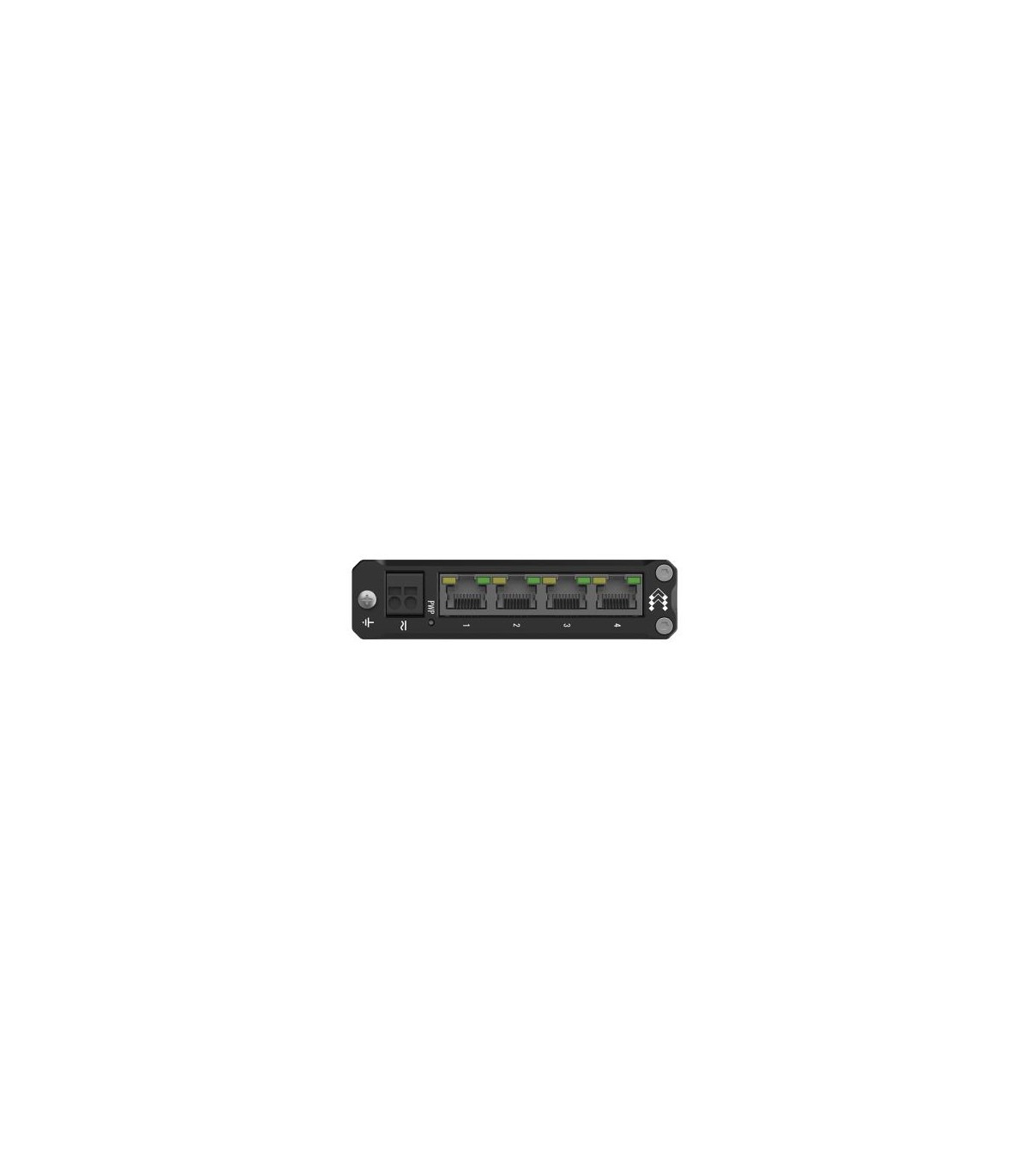

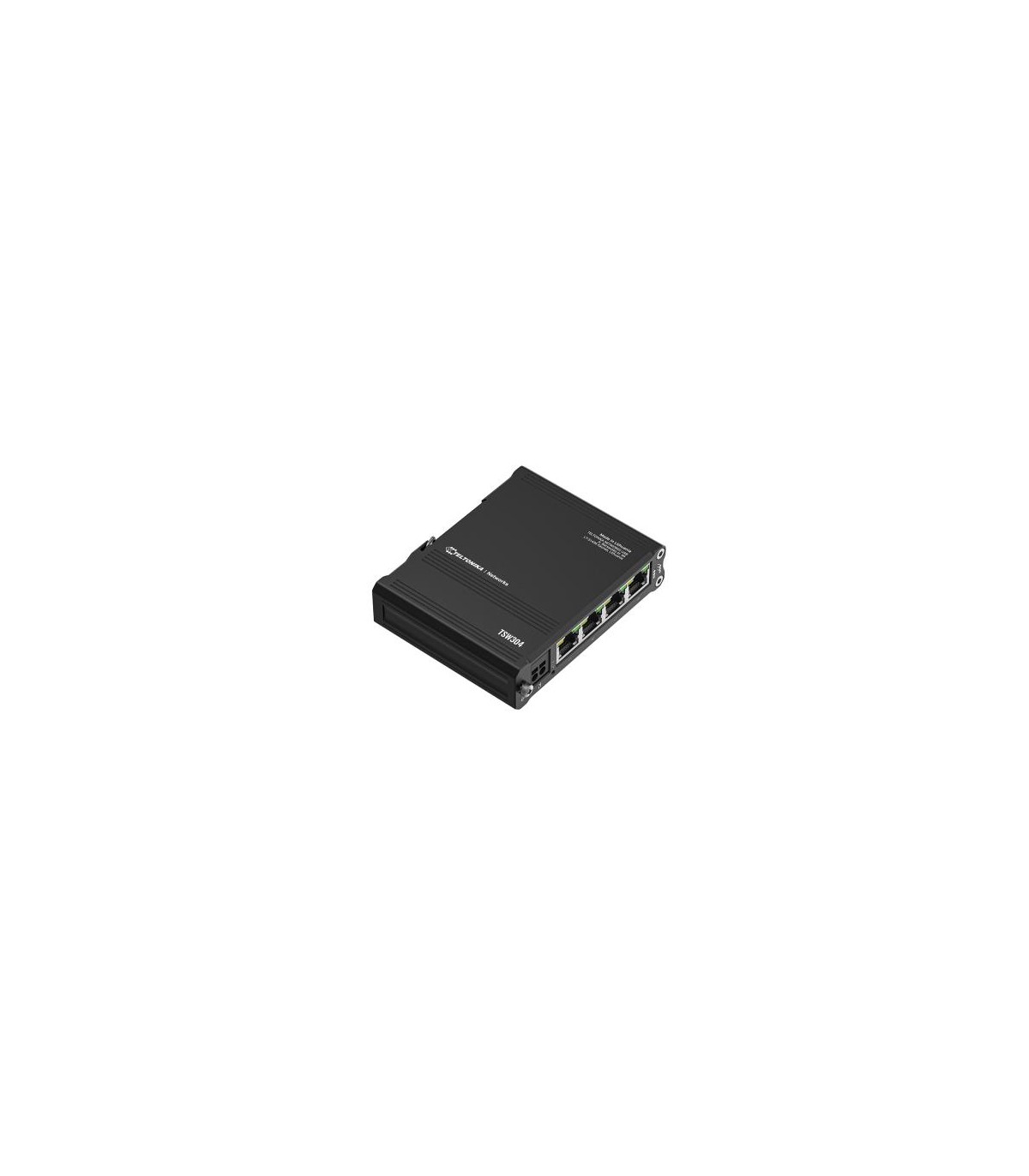

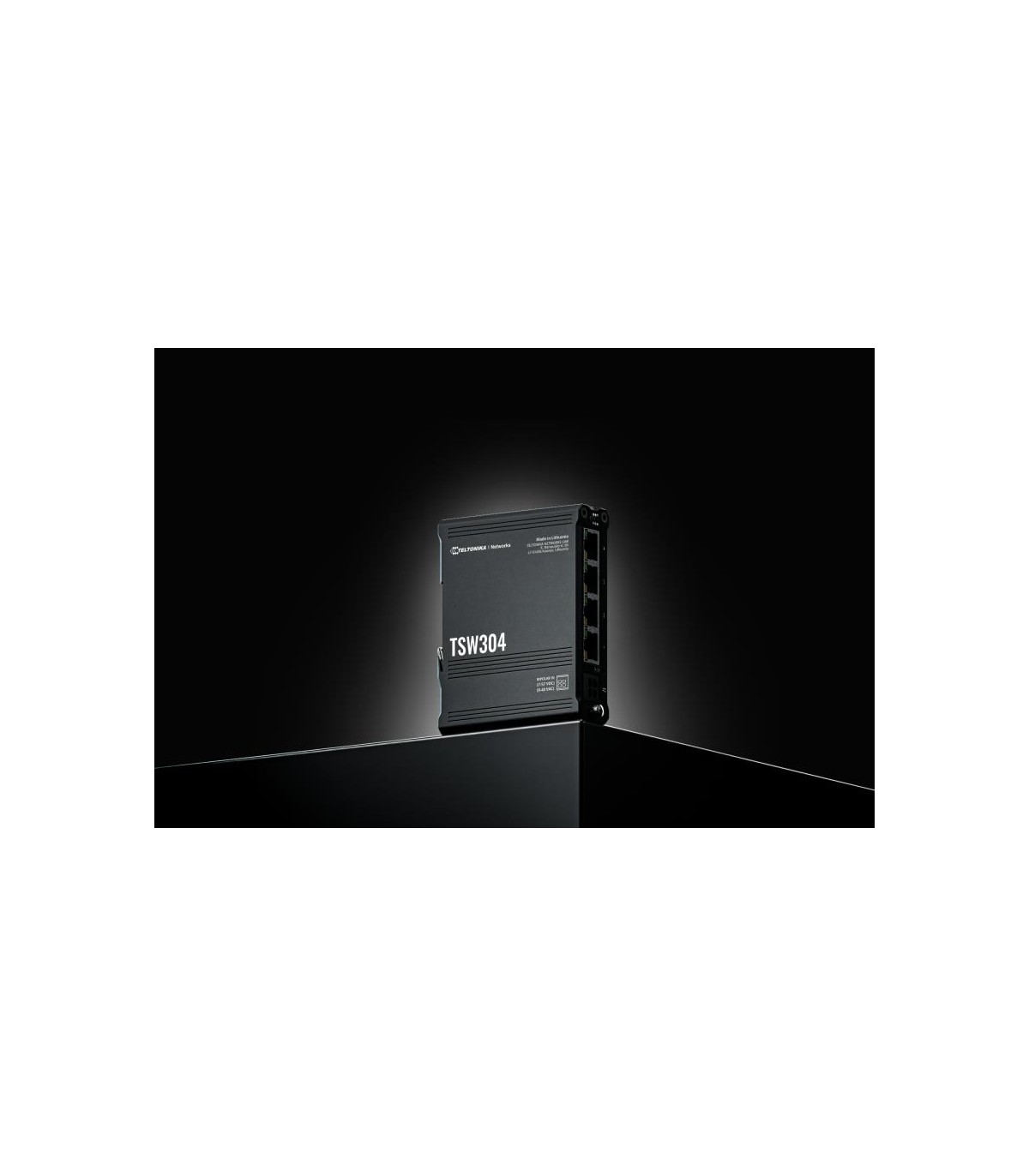

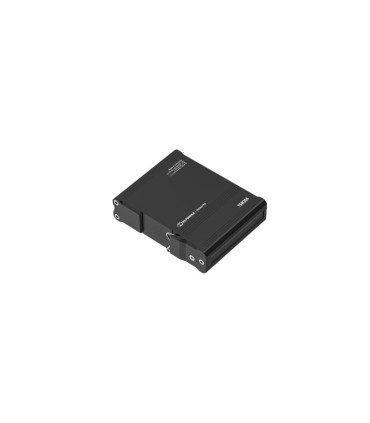

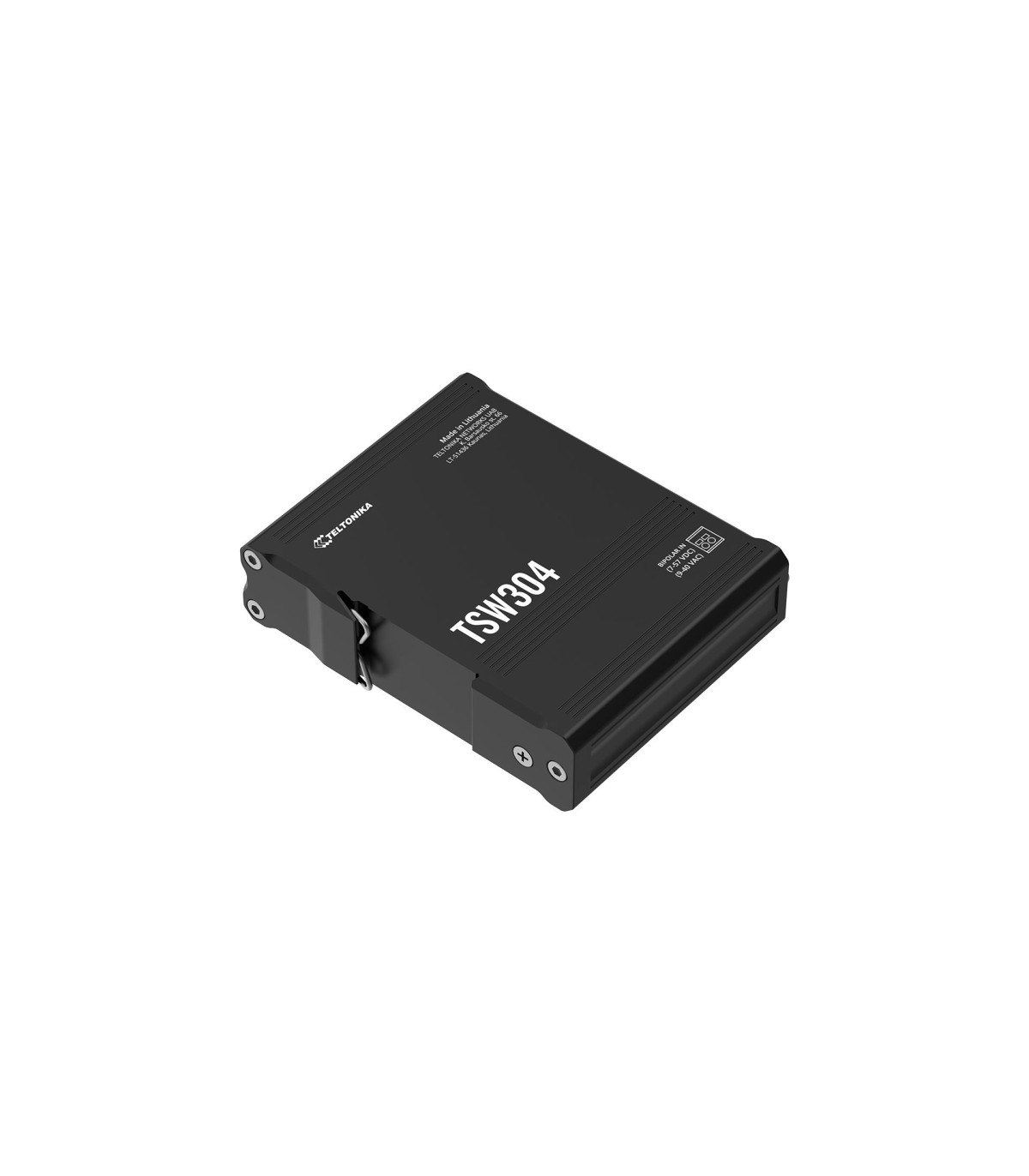

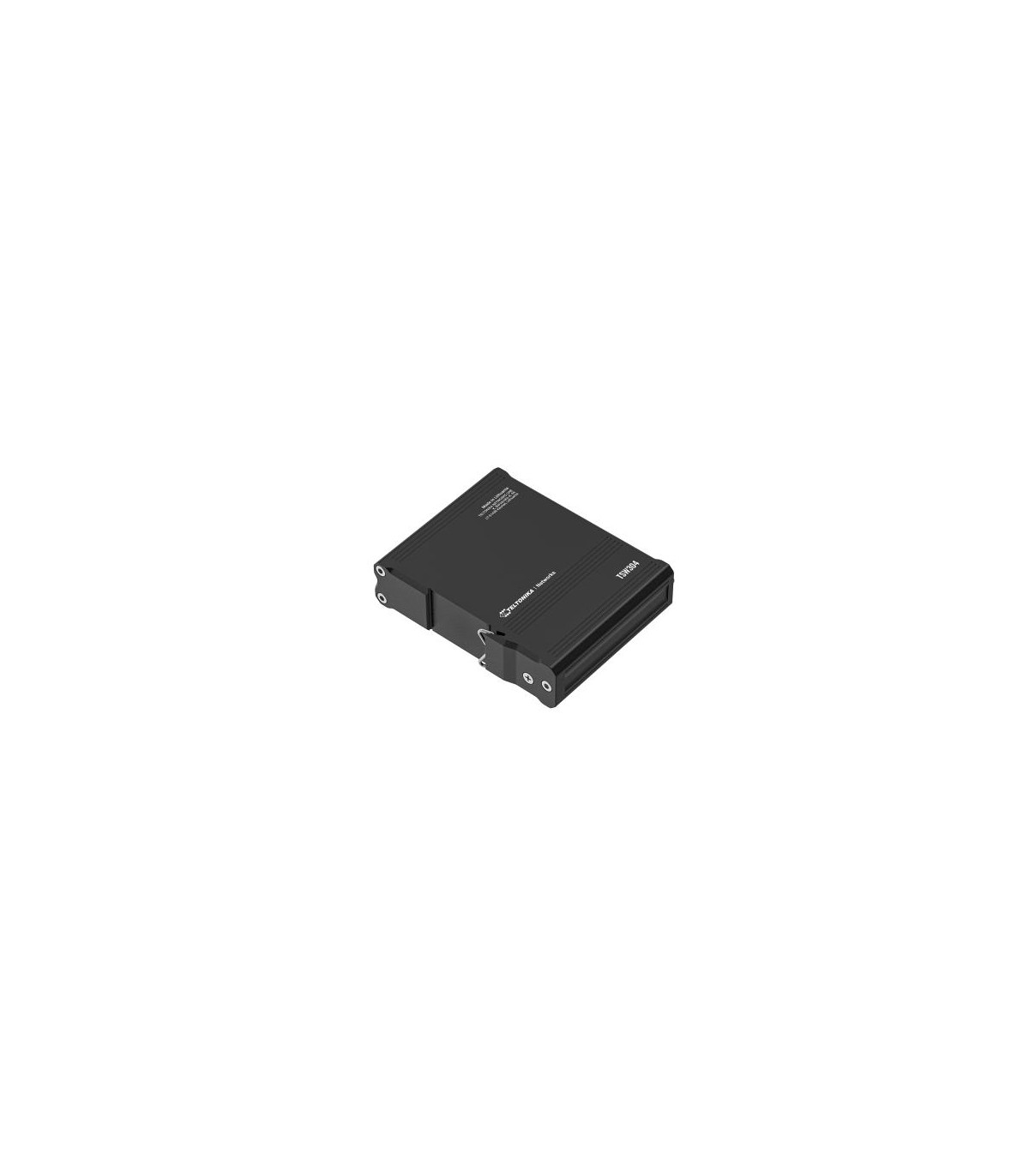

TELTONIKA Switch 4xRJ-45 ports RJ-45 Ports Type Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Yes TSW304

Specification

Housing material

Aluminium

Other features

Depth

81.5 mm

Height

25 mm

Width

102 mm

Unit Box Width

0.11

Unit Box Length

0.1

Unit Box Height

0.03

Category Code

SWI

Model name

TSW304

Model

TSW304

Switching capacity

8 Gbit/s

Power source

AC/DC

Unit Calculated Volume

0.00033 cubm

Unit Calculated Weight

0.23 kg

Units per Shipping Box

1

Summary

Teltonika TSW304. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 2000 entries, Switching capacity: 8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, I

Product colour

Black

Power consumption (typical)

0.26 W

Certification

CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

Power consumption (max)

1.44 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

-40 - 75 °C

Weight

210 g

Wall mountable

Yes

LED indicators

Power/Status

Ethernet LAN data rates

10,100,1000 Mbit/s

International Protection (IP) code

IP30

Jumbo frames support

Yes

Networking standards

IEEE 802.3/IEEE 802.3az/IEEE 802.3u

Auto MDI/MDI-X

Yes

Input voltage

9 - 40 V

10G support

No

Basic switching RJ-45 Ethernet ports quantity

4

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

MAC address table

2000 entries

Jumbo frames

9216

Packet buffer memory

0.128 MB

DC input voltage

7 - 57 V

DIN rail mounting

Yes

Power over Ethernet (PoE) type supported

Passive PoE
