1404658
Other features
- Depth
- 180 mm
- Height
- 44 mm
- Width
- 440 mm
- Unit Box Width
- 0.25
- Unit Box Length
- 0.54
- Unit Box Height
- 0.08
- Category Code
- SWI
- Model name
- TL-SG2218P
- Series
- JetStream
- Form Factor
- 1U
- Switch type
- Managed
- Switching capacity
- 26.78 Gbit/s
- Forwarding rate
- 26.78 Mpps
- Auto-negotiation
- Yes
- Power source
- DC/PoE
- Unit Calculated Volume
- 0.0108 cubm
- Unit Calculated Weight
- 3.2 kg
- Units per Shipping Box
- 1
- Summary

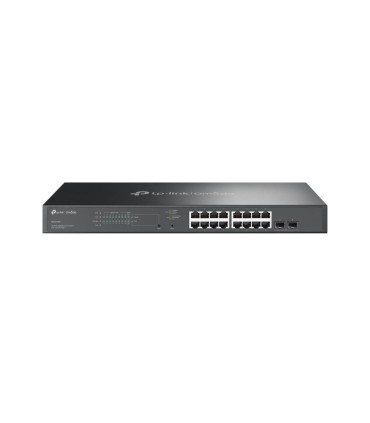

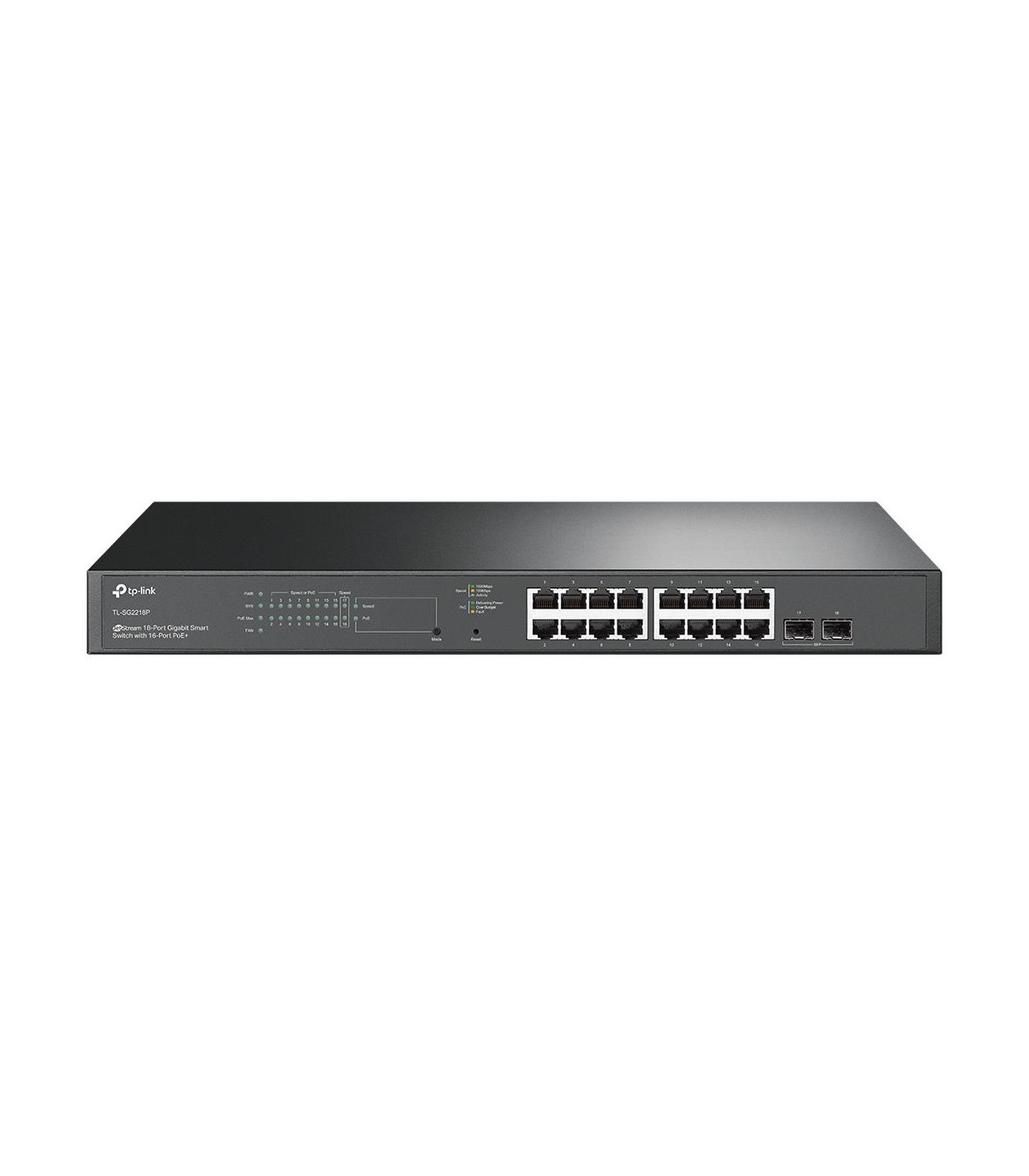

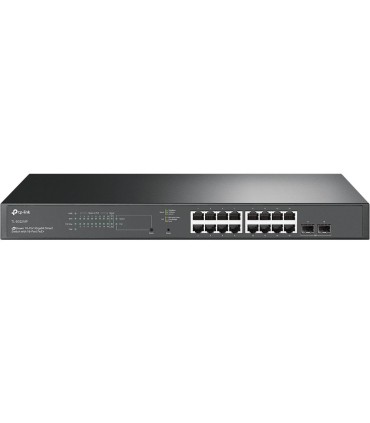

- TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000
- Product colour
- Black
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Package type
- Box
- Cables included
- LAN (RJ-45)
- Certification
- CE, FCC, RoHS
- Power consumption (max)
- 181.4 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 50 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
- LED indicators
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Heat dissipation
- 619.06 BTU/h
- User guide
- Yes
- Power supply included
- Yes
- Jumbo frames support
- Yes
- Networking standards
- IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
- Auto MDI/MDI-X
- Yes
- Rack mounting
- Yes
- 10G support
- No
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE)
- Yes
- MAC address table
- 8000 entries
- Jumbo frames
- 9
- Flow control support
- Yes
- Packet buffer memory
- 4.1 MB
- Total Power over Ethernet (PoE) budget
- 150 W
- Switch layer
- L2/L2+
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- Loop protection
- Yes
- Broadcast storm control
- Yes
- Link aggregation
- Yes
- VLAN support
- Yes
- SFP module slots quantity
- 2
- Spanning tree protocol
- Yes
- DHCP features
- DHCP client/DHCP relay/DHCP snooping
- Cloud-managed
- Yes
- Multicast support
- Yes
- Access Control List (ACL)
- Yes
- BPDU filtering/protection
- Yes
- SSH/SSL support
- Yes
- Rate limiting
- Yes
- ARP inspection
- Yes
- Configuring Location Settings (CLI)
- Yes
- System event log
- Yes
- MIB support
- MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)
- Multicast features
- Multicast forwarding
- IP routing
- Yes
- Policy-based routing
- Yes
- Authentication
- MAC-based authentication,Port-based authentication
- MAC address filtering
- Yes
- Static port security
- Yes
Specific References
- EAN
- 4897098689509
