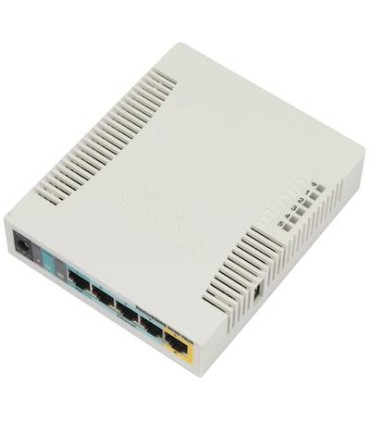

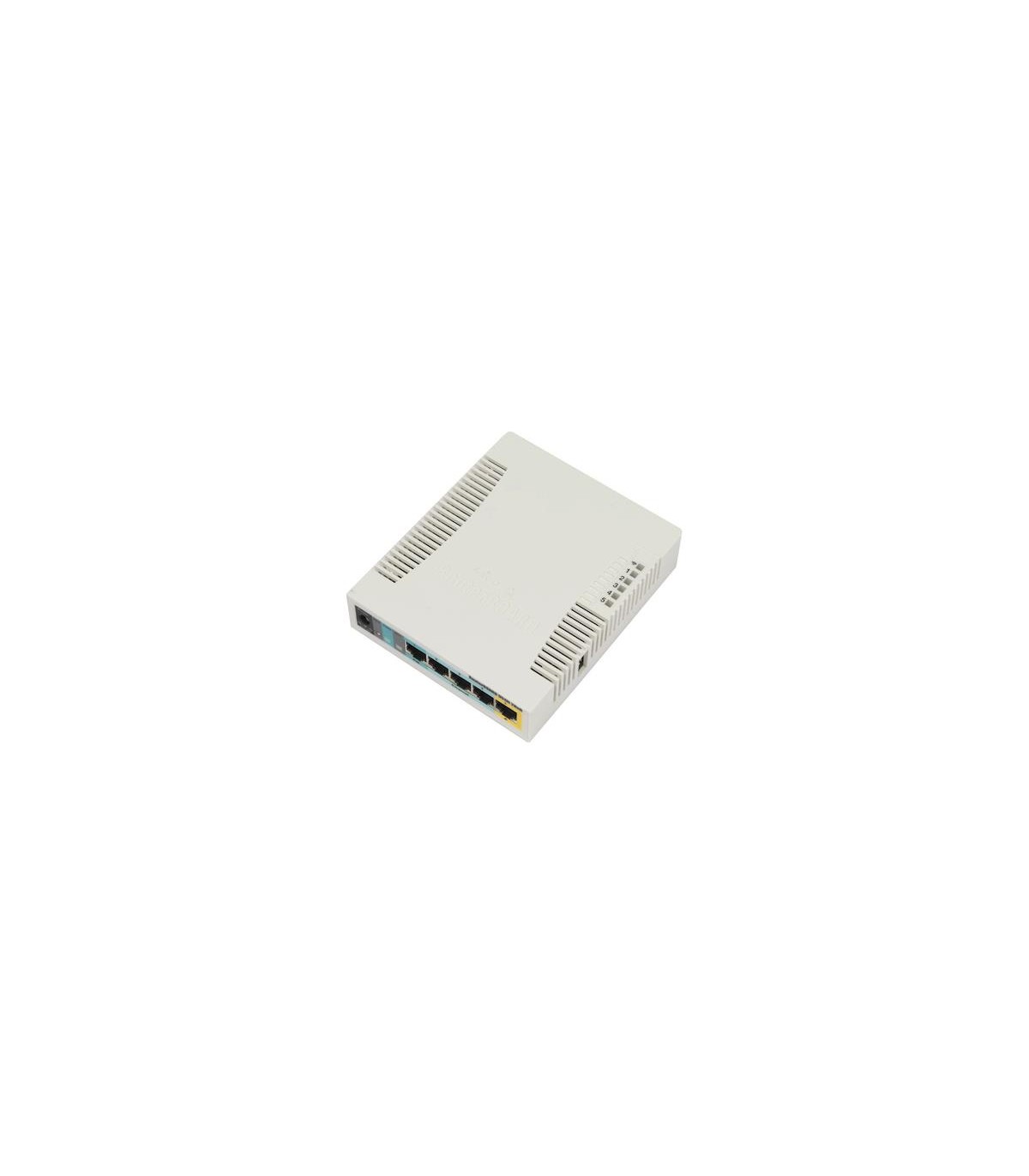

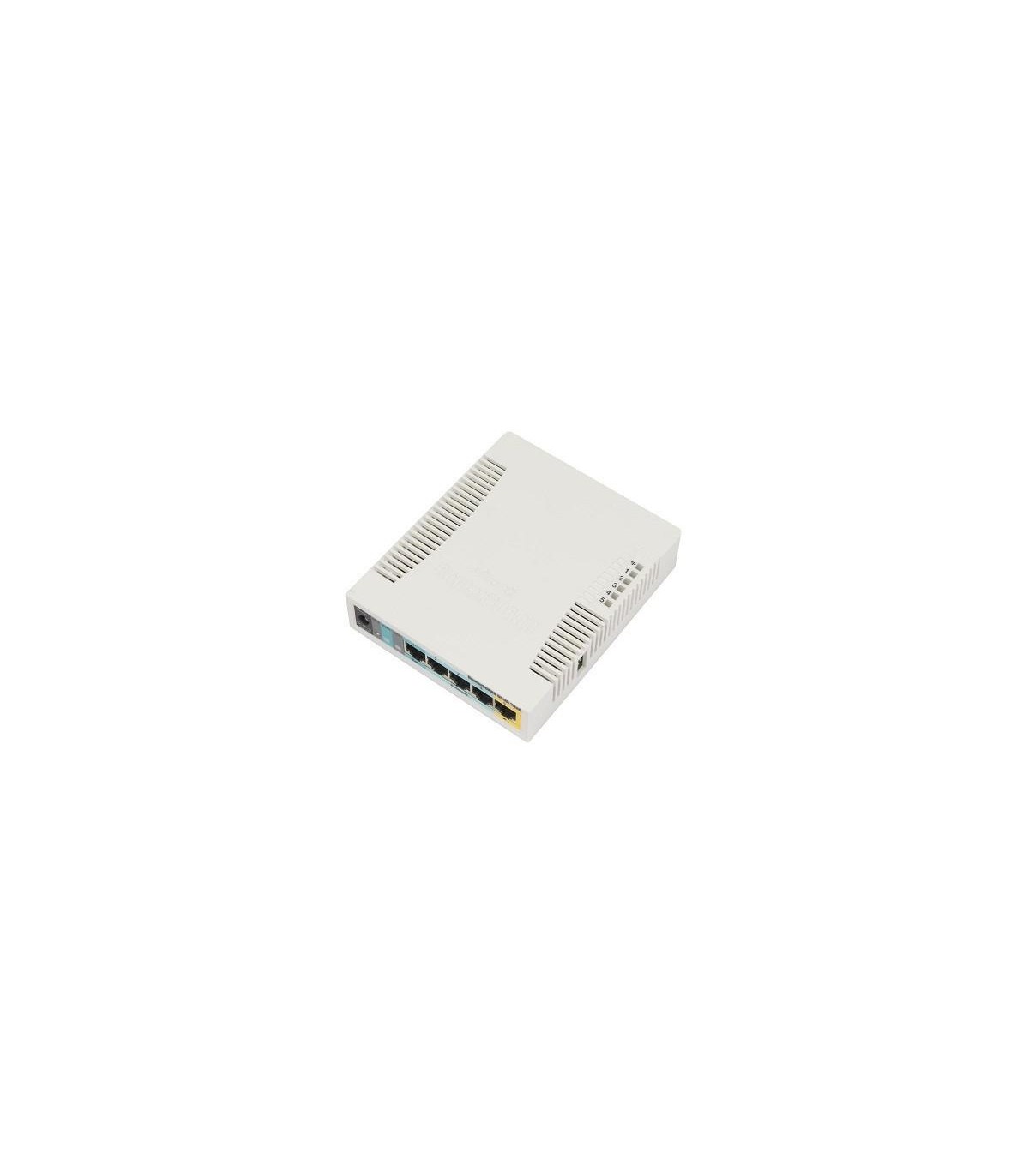

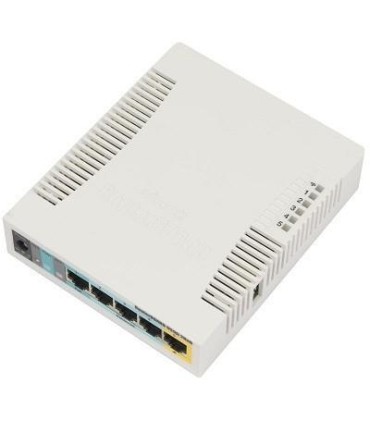

MIKROTIK Access Point IEEE 802.11b IEEE 802.11g IEEE 802.11n 1xUSB 2.0 5x10/100M RB951UI-2HND

Specification

Housing material

Plastic

Other features

Depth

113 mm

Height

29 mm

Width

138 mm

Unit Box Width

0.06

Unit Box Length

0.2

Unit Box Height

0.145

Category Code

WAP

Model name

RB951Ui-2HnD // RB951Ui-2HnD

Antenna Type

Internal

Unit Calculated Volume

0.00174 cubm

Unit Calculated Weight

0.43 kg

Units per Shipping Box

1

Summary

Mikrotik RB951Ui-2HnD. 2.4 GHz, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 7 W

Product colour

White

AC input voltage

7 - 31 V

Power consumption (max)

7 W

Operating temperature (T-T)

-20 - 50 °C

Bundled software

MikroTik RouterOS

Harmonized System (HS) code

85176990

LED indicators

Yes

Ethernet LAN (RJ-45) ports

5

Ethernet LAN data rates

10/100 Mbit/s

Processor frequency

600 MHz

Frequency band

2.4 GHz

USB 2.0 ports quantity

1

Processor model

Qualcomm Atheros AR9344-DC3A

Internal memory

128 MB

Internal memory type

DDR2

USB connector type

USB Type-A

Modulation

16-QAM/64-QAM/BPSK/CCK/DBPSK/DQPSK/DSSS/OFDM/QPSK

Built-in processor

Yes

Internal

No

Networking standards

IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3/IEEE 802.3u

Power over Ethernet (PoE)

Yes

Receiver sensitivity

802.11g: -96dBm @ 6Mbit/s to -80dBm @ 54Mbit/s802.11n: -96dBm @ MCS0 to -78dBm @ MCS7

Antenna gain level (max)

2.5 dBi

2.4 GHz

Yes
