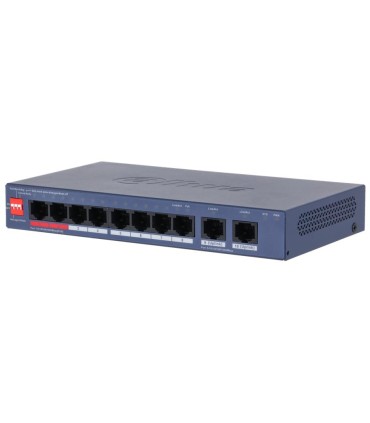

DAHUA Switch DH-CS4010-8ET2GT-110 Switch layer L2 8xRJ-45 ports RJ-45 Ports Type Fast Ethernet (10/100) 2xGigabit Ethernet (cop

Specification

Housing material

Metal

Other features

Depth

184.6 mm

Height

27 mm

Width

103.3 mm

Unit Box Width

0.135

Unit Box Length

0.25

Unit Box Height

0.11

Category Code

SWI

Model name

CS4010-8ET2GT-110

Switch type

Managed

Switching capacity

5.6 Gbit/s

Forwarding rate

4.17 Mpps

Power source

DC/PoE

Unit Calculated Volume

0.003713 cubm

Unit Calculated Weight

1.13 kg

Units per Shipping Box

1

Summary

Dahua Technology CS4010-8ET2GT-110. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity:

Product colour

Blue

Package depth

252 mm

Package height

113 mm

Package weight

1090 g

Package width

137 mm

Cables included

AC

Input current

2.22 A

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

-10 - 55 °C

Storage relative humidity (H-H)

5 - 95 %

Compliance certificates

CE

Weight

360 g

Wall mountable

Yes

Storage temperature (T-T)

-40 - 70 °C

Manual

Yes

Mean time between failures (MTBF)

3359638 h

LED indicators

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Reset button

Yes

Power supply included

Yes

Jumbo frames support

Yes

Networking standards

IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x

Power connector

DC-in jack

Rack mounting

No

10G support

No

Basic switching RJ-45 Ethernet ports quantity

10

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

Gigabit Ethernet (copper) ports quantity

2

MAC address table

8000 entries

Jumbo frames

9216

Flow control support

Yes

Packet buffer memory

4 MB

Fast Ethernet (copper) ports quantity

8

Power over Ethernet (PoE) ports quantity

8

Total Power over Ethernet (PoE) budget

110 W

DC input voltage

54 V

Switch layer

L2

Port mirroring

Yes

Web-based management

Yes

Loop protection

Yes

Broadcast storm control

Yes

VLAN support

Yes

Number of VLANs

32

DHCP features

DHCP client

Cloud-managed

Yes

Multicast support

Yes

IP-MAC-Port binding

Yes
