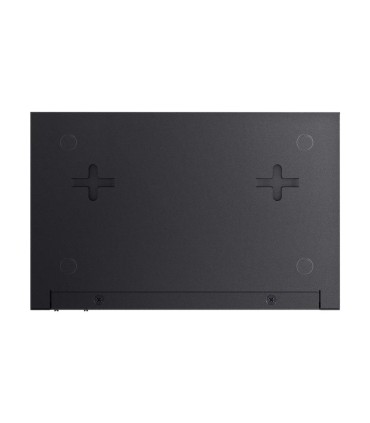

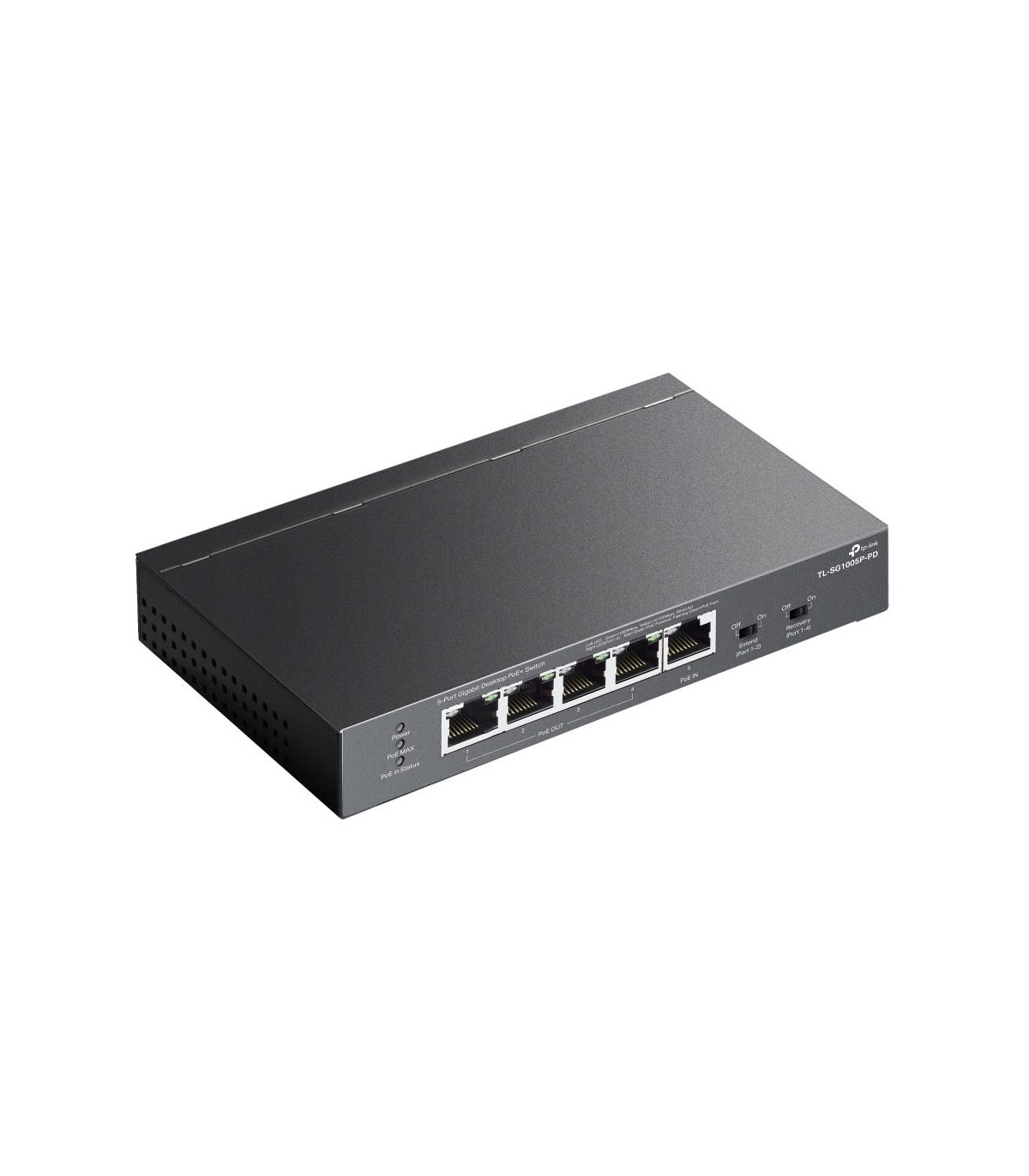

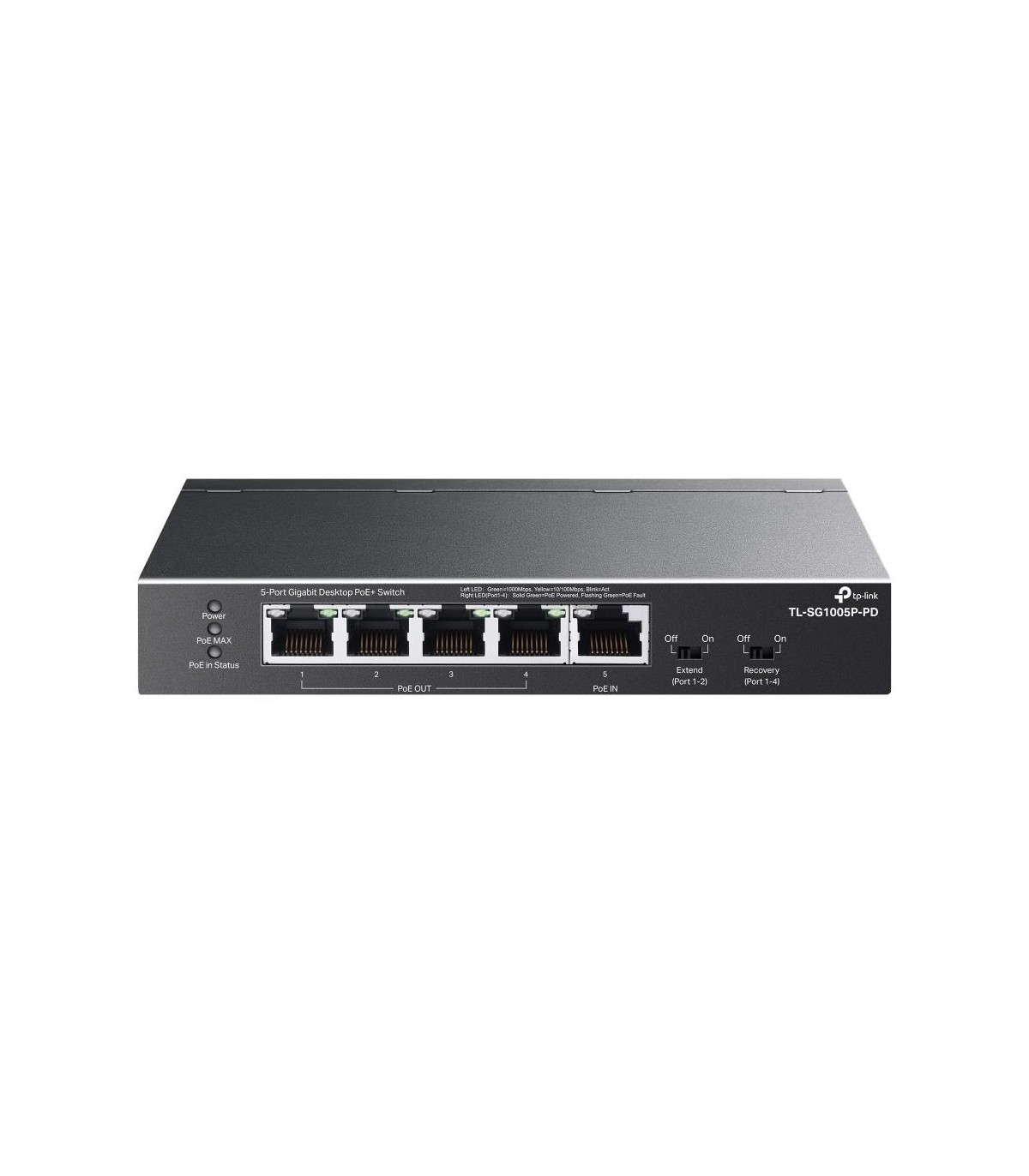

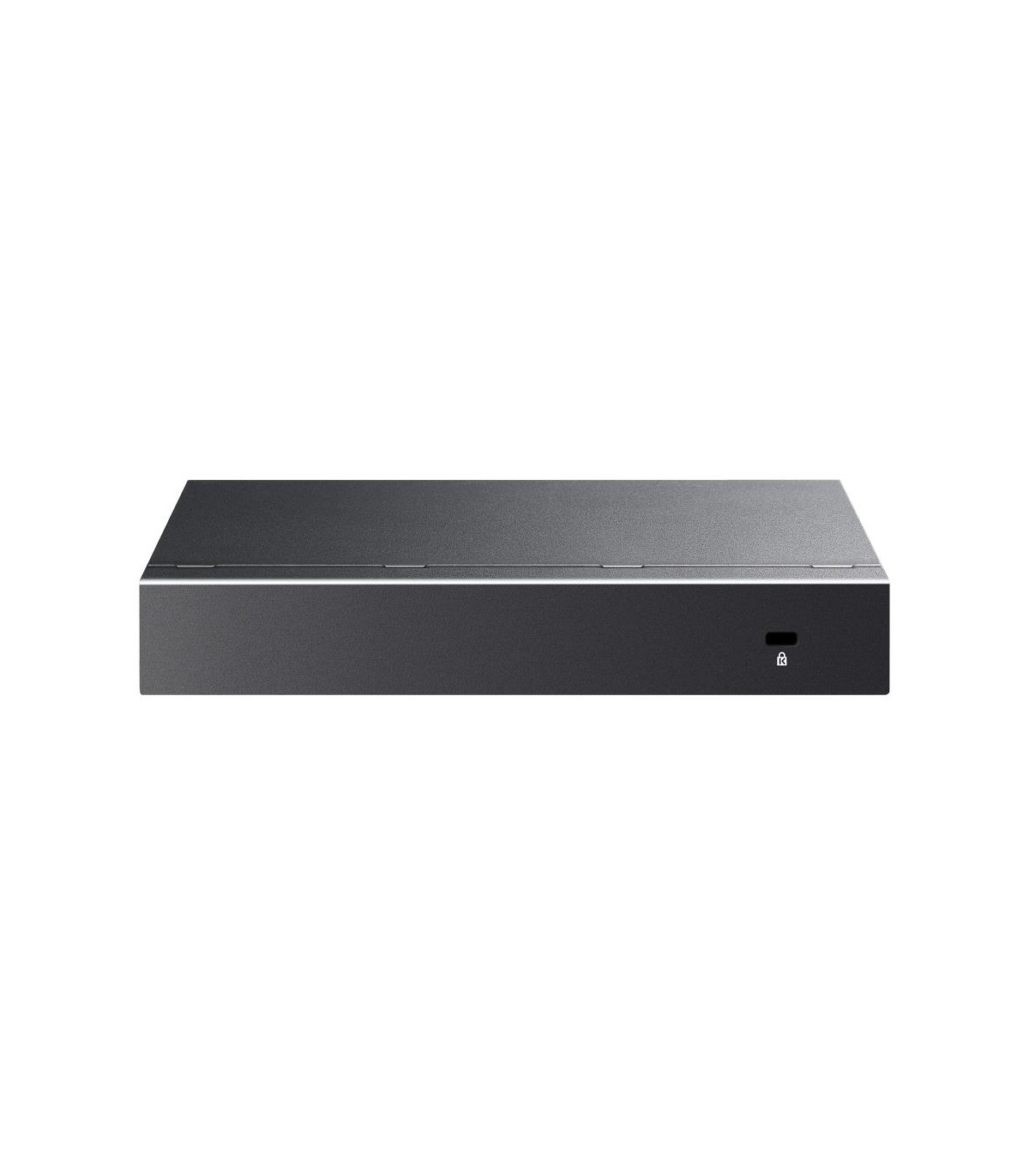

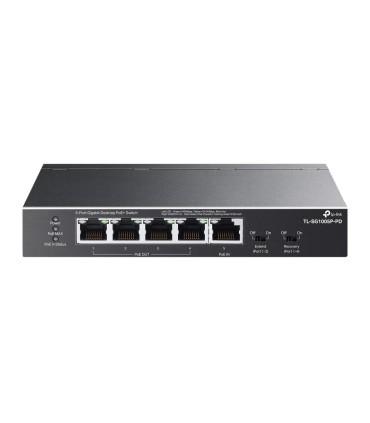

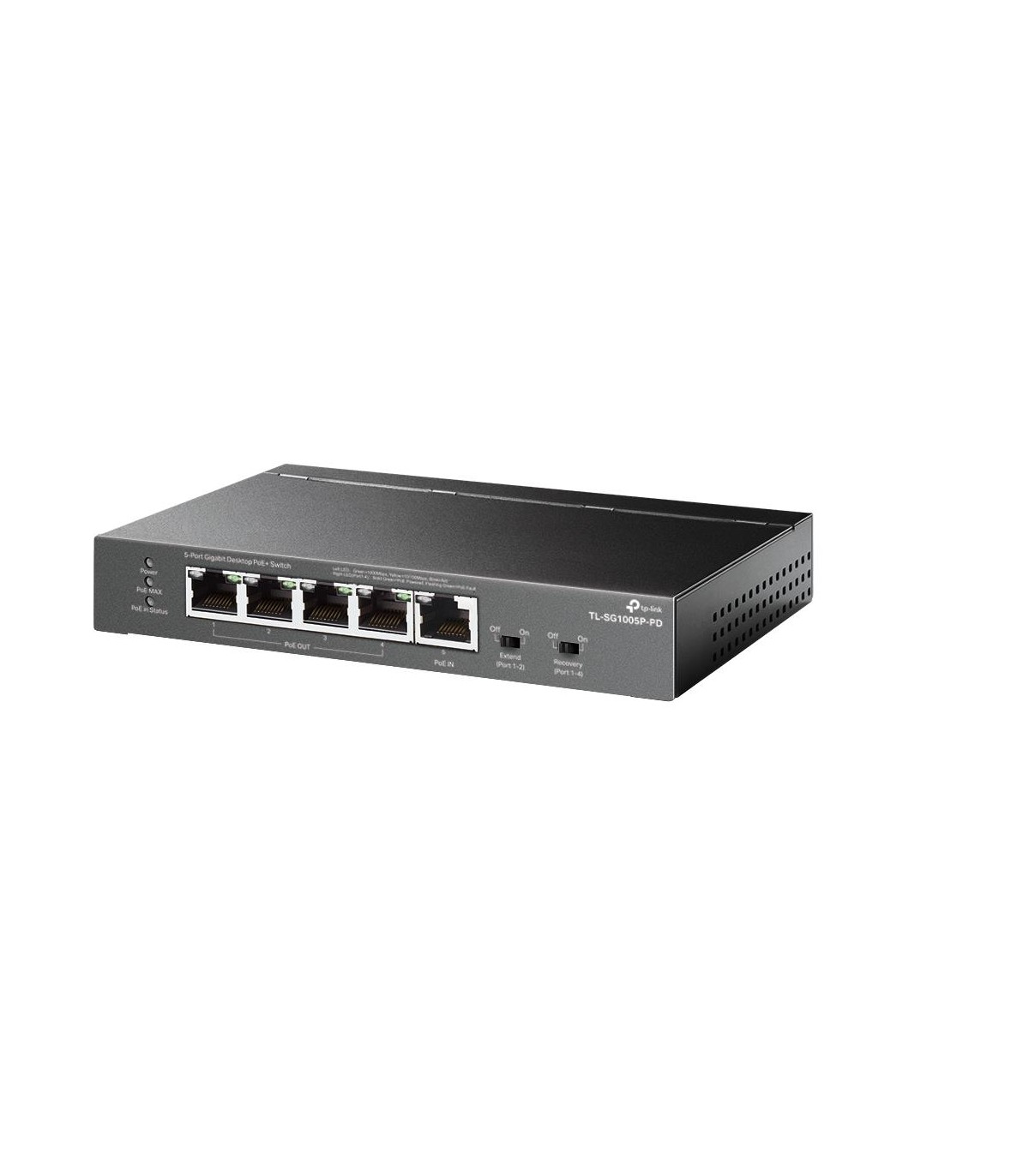

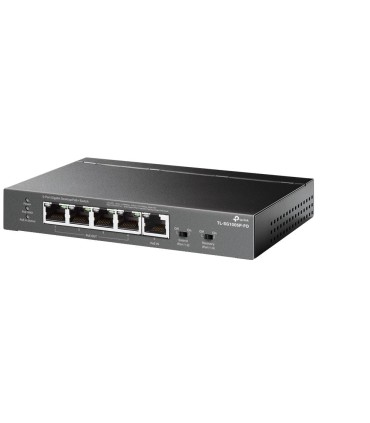

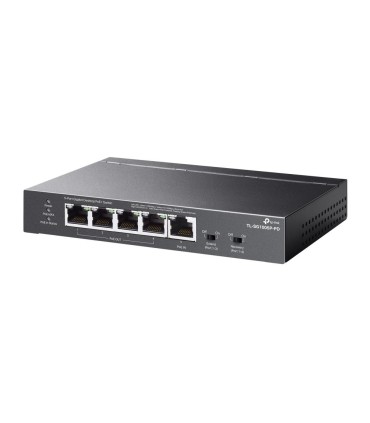

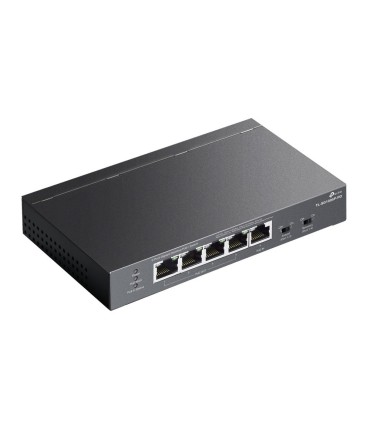

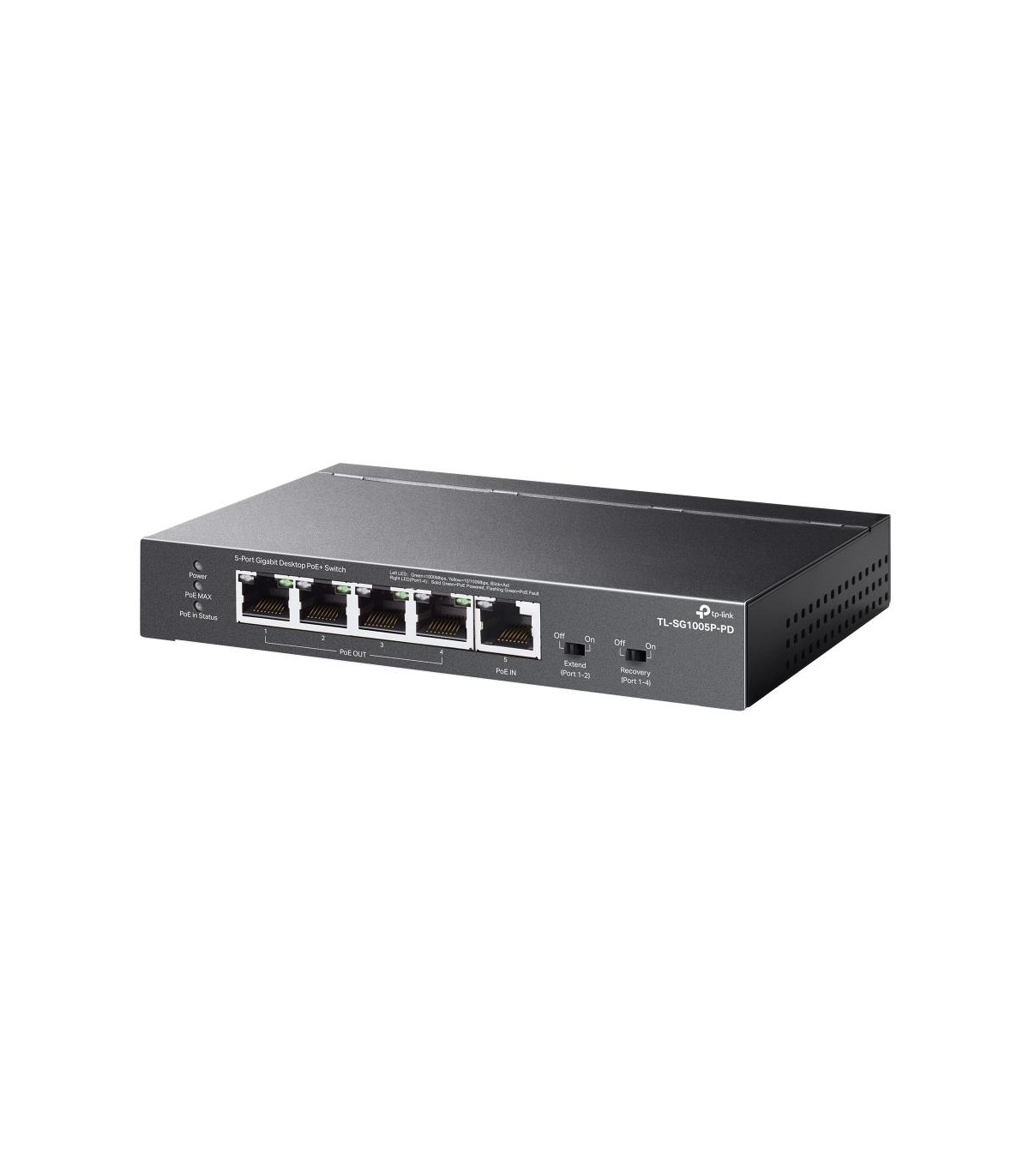

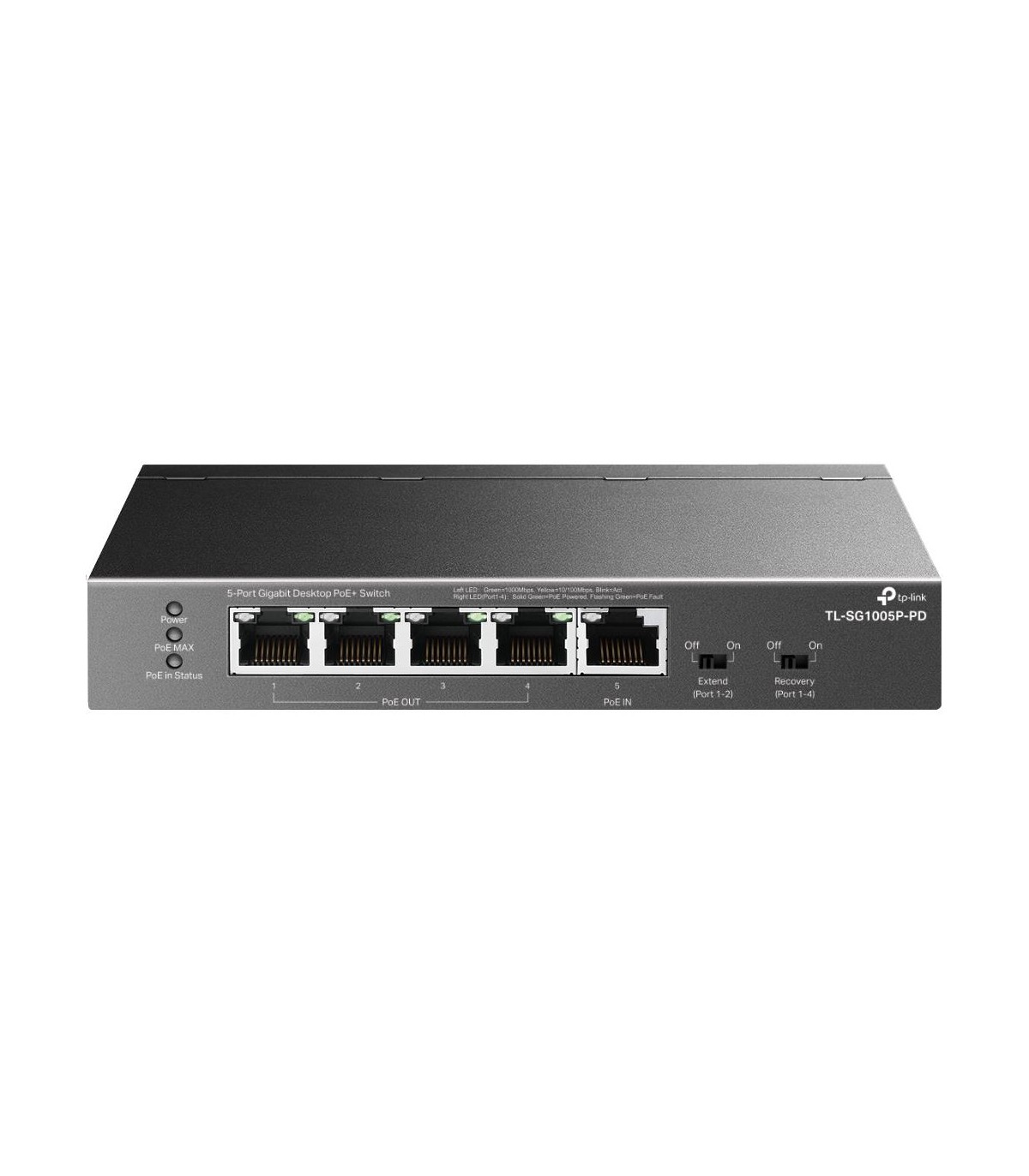

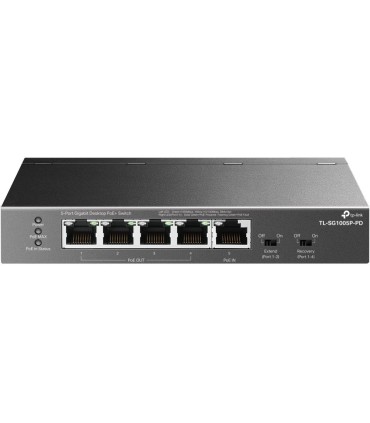

TP-LINK Switch TL-SG1005P-PD Desktop/pedestal 5x10Base-T / 100Base-TX / 1000Base-T PoE+ ports 5 TL-SG1005P-PD

Other features

Depth

101 mm

Height

25 mm

Width

158 mm

Unit Box Width

0.13

Unit Box Length

0.195

Unit Box Height

0.05

Category Code

SWI

Model name

TL-SG1005P-PD

Switching capacity

10 Gbit/s

Forwarding rate

7.44 Mpps

Number of fans

0 fan(s)

Auto-negotiation

Yes

Power source

PoE

Unit Calculated Volume

0.001267 cubm

Unit Calculated Weight

0.5 kg

Units per Shipping Box

1

Summary

TP-Link TL-SG1005P-PD. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802

Product colour

Black

Package type

Box

Certification

CE, FCC, RoHS

Power consumption (max)

68.59 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

-30 - 70 °C

Storage relative humidity (H-H)

5 - 90 %

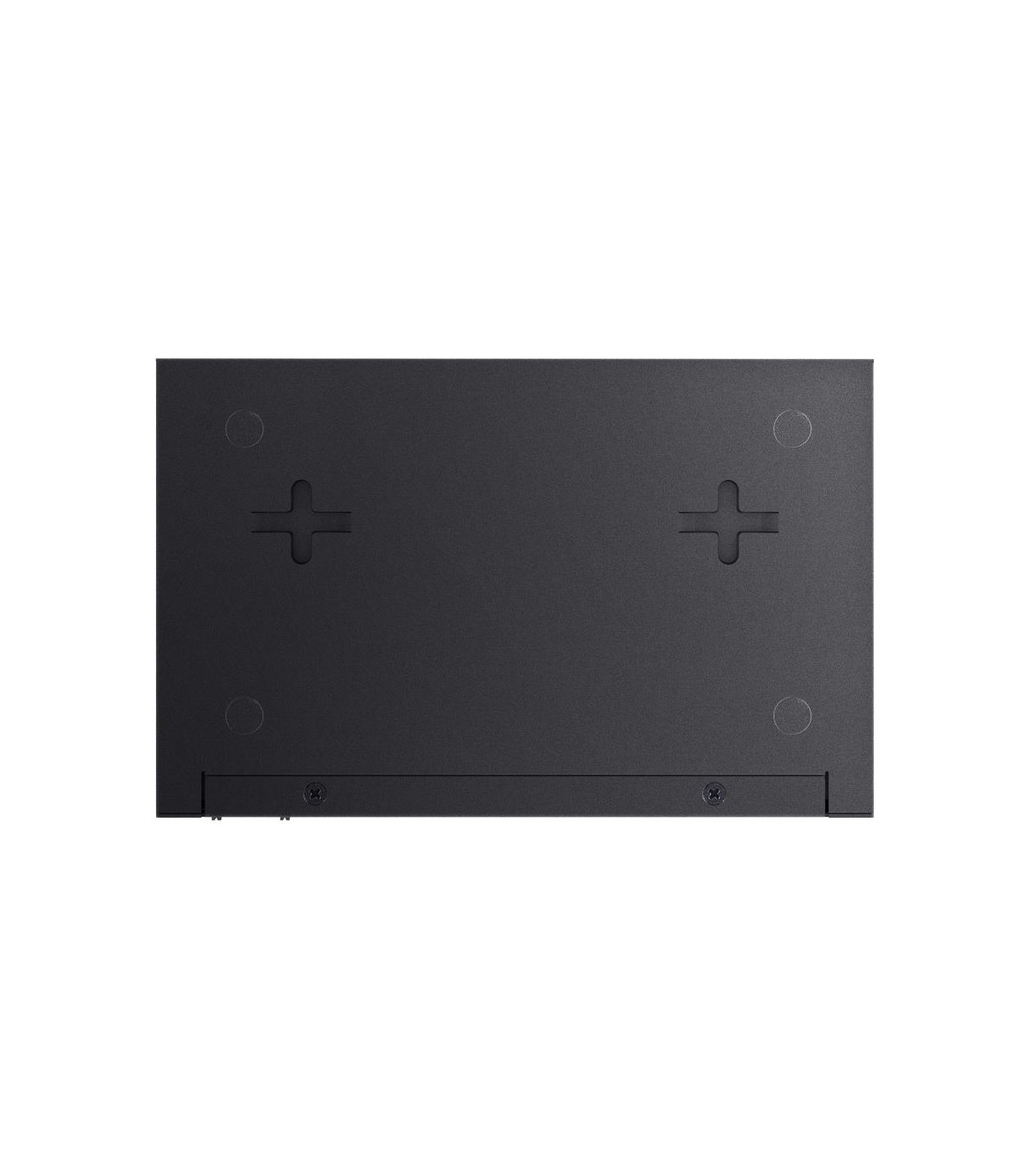

Wall mountable

Yes

Storage temperature (T-T)

-40 - 70 °C

LED indicators

Yes

Heat dissipation

233.206 BTU/h

User guide

Yes

Power supply included

No

Copper ethernet cabling technology

1000BASE-T/100BASE-TX/10BASE-T

Networking standards

IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Auto MDI/MDI-X

Yes

10G support

Yes

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

MAC address table

2000 entries

Store-and-forward

Yes

Flow control support

Yes

Power over Ethernet (PoE) ports quantity

5

Total Power over Ethernet (PoE) budget

66 W

Cable types supported

Cat3/Cat4/Cat5/Cat5e/Cat6

Quality of Service (QoS) support

Yes

IGMP snooping

Yes

Fanless

Yes

MAC address auto-aging supported

Yes

MAC address auto-learning supported

Yes
