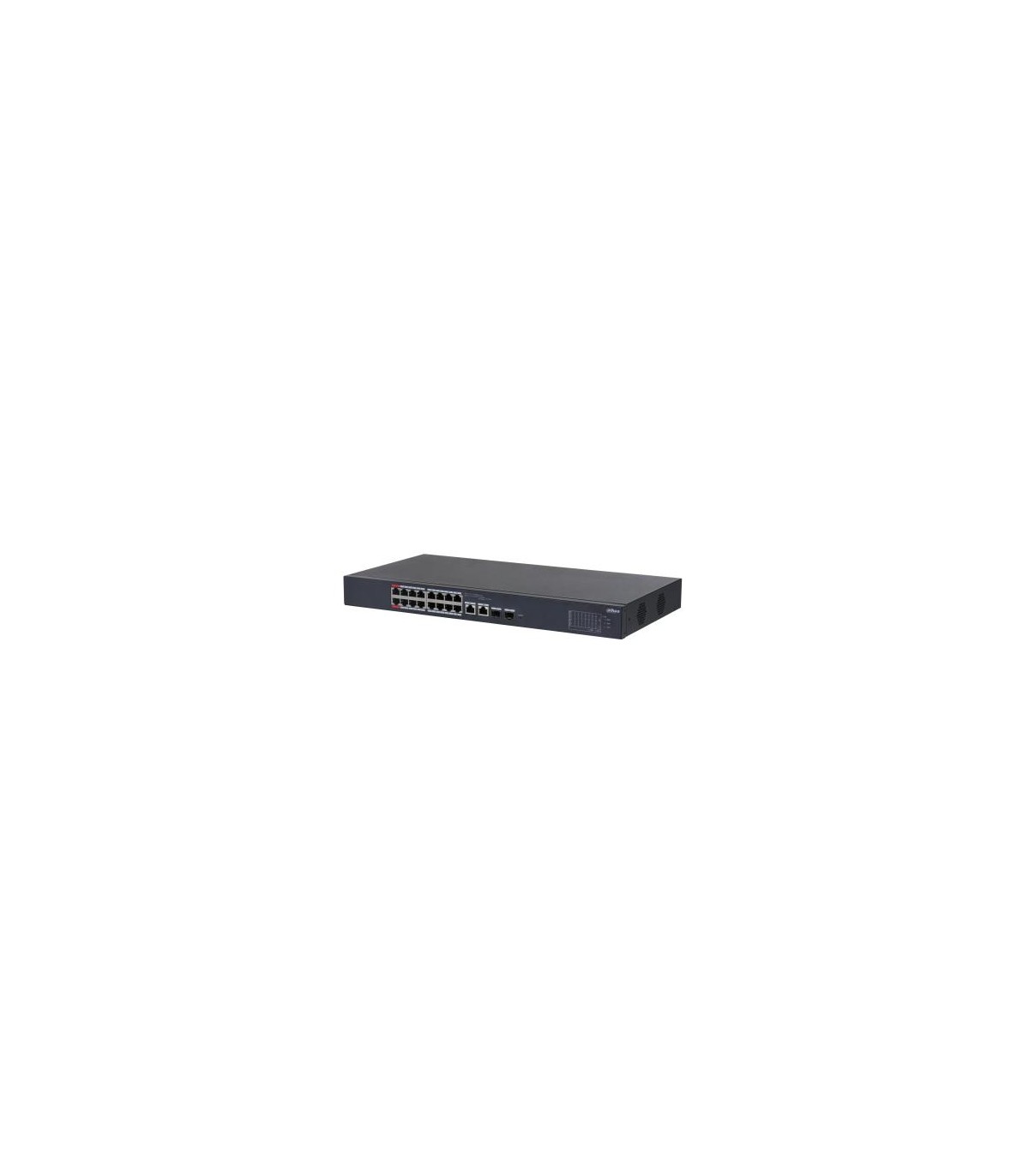

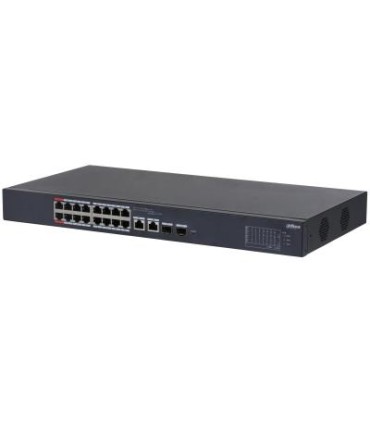

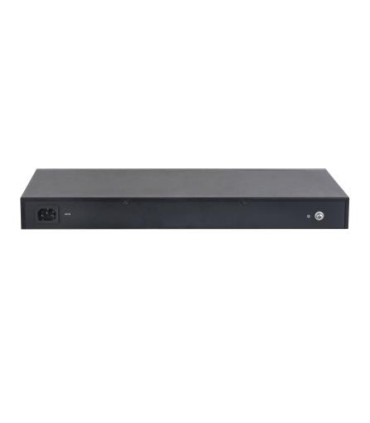

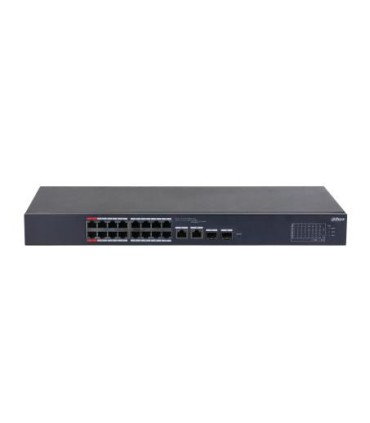

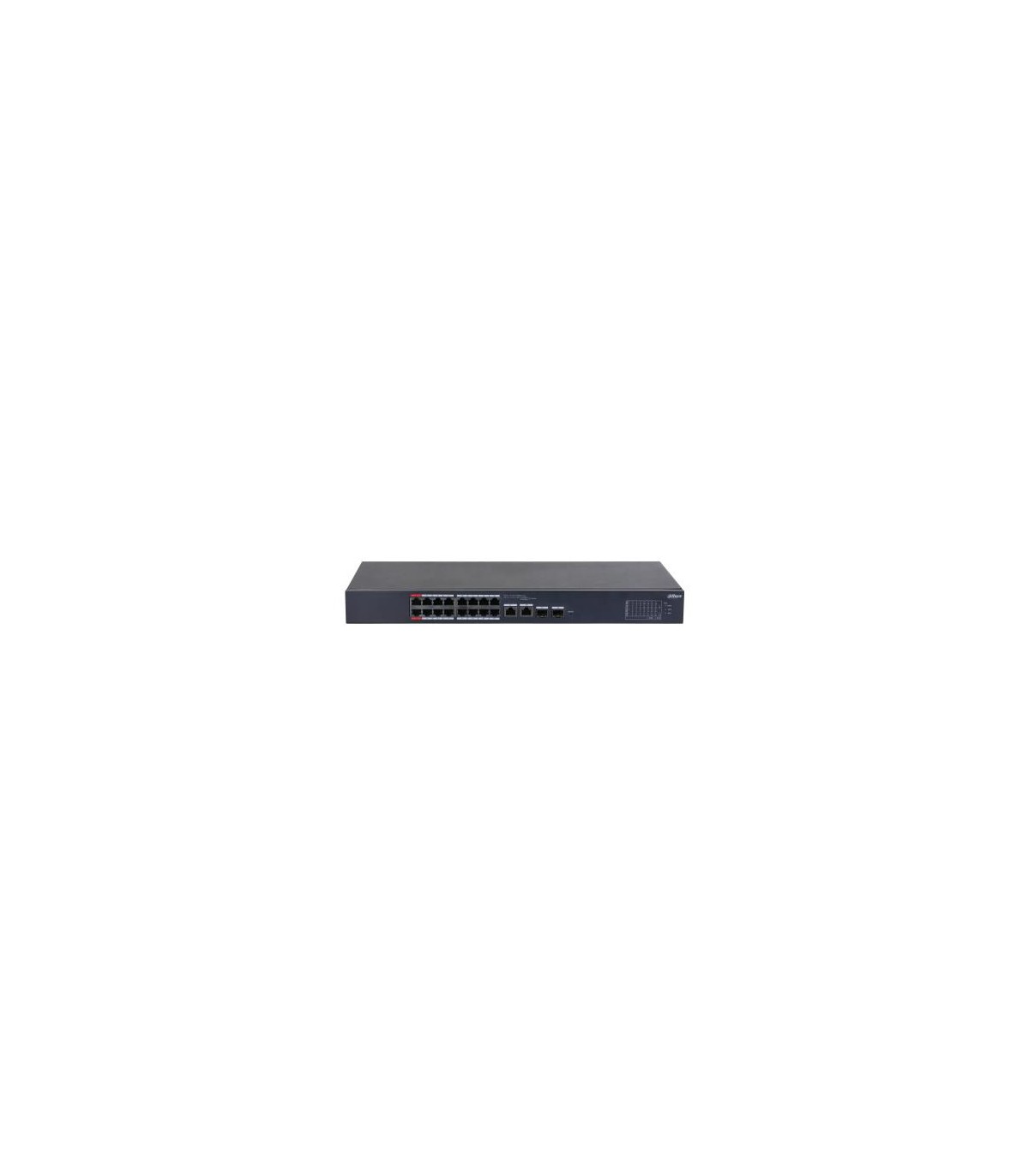

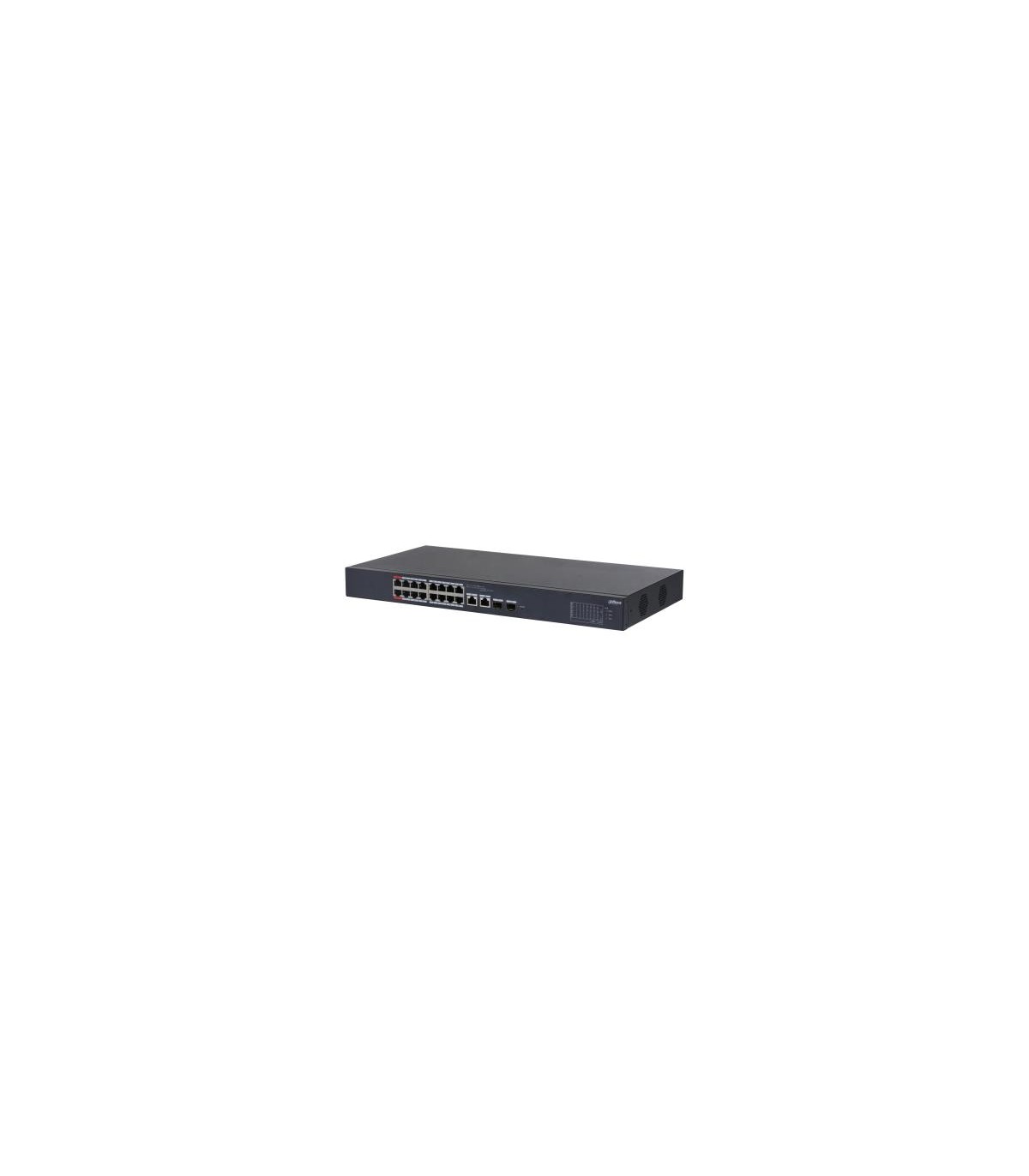

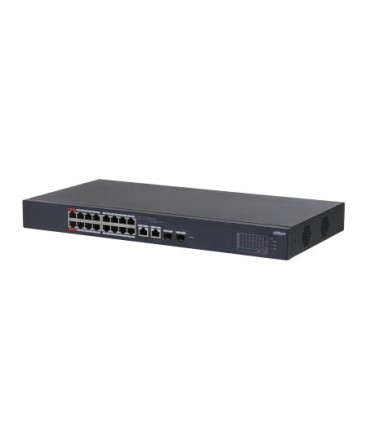

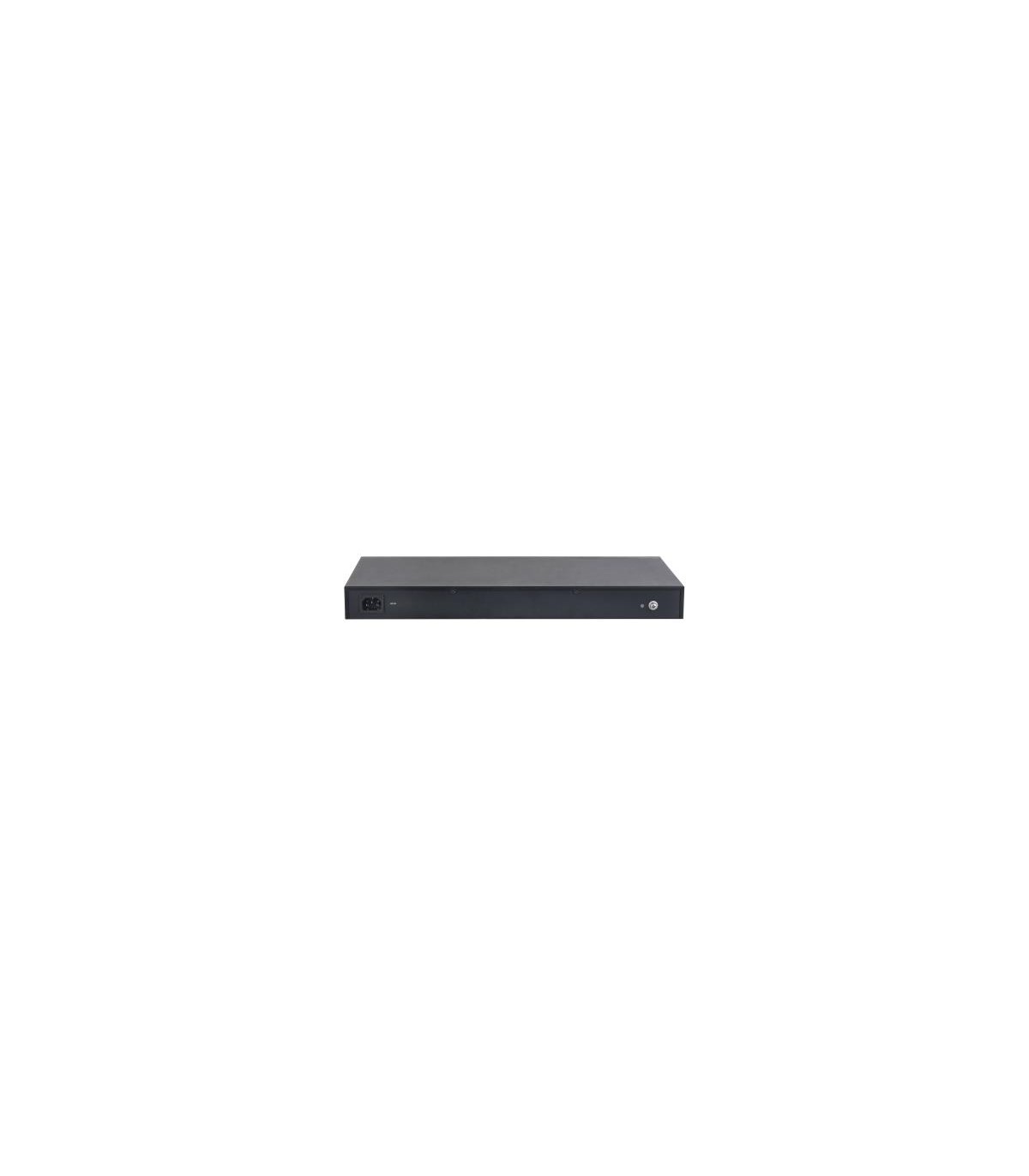

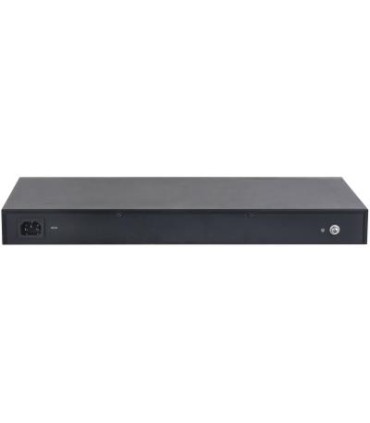

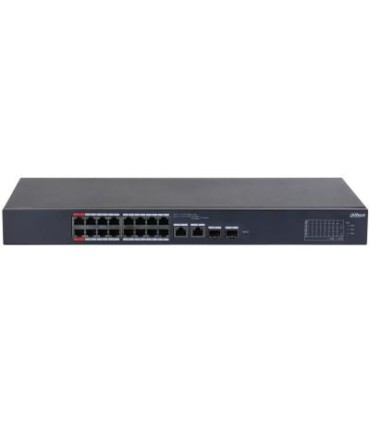

DAHUA Switch CS4218-16ET-240 Type L2 Desktop/pedestal 16x10Base-T / 100Base-TX PoE ports 16 DH-CS4218-16ET-240

Specification

Housing material

Metal

Other features

Depth

440 mm

Height

44 mm

Width

220 mm

Unit Box Width

0.345

Unit Box Length

0.545

Unit Box Height

0.095

Category Code

SWI

Model name

CS4218-16ET-240

Switch type

Managed

Switching capacity

7.2 Gbit/s

Forwarding rate

5.36 Mpps

Power source

AC

Unit Calculated Volume

0.01948 cubm

Unit Calculated Weight

3.6 kg

Units per Shipping Box

5

Summary

Dahua Technology DH-CS4218-16ET-240. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity:

Product colour

Black

Package depth

540 mm

Package height

90 mm

Package weight

3000 g

Package width

342 mm

Power consumption (max)

265 W

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-10 - 55 °C

Storage relative humidity (H-H)

5 - 95 %

Weight

2350 g

Storage temperature (T-T)

-40 - 70 °C

Mean time between failures (MTBF)

763.502 h

Power supply included

Yes

Jumbo frames support

Yes

Networking standards

IEEE 802.3/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Rack mounting

Yes

10G support

No

Basic switching RJ-45 Ethernet ports quantity

18

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

Gigabit Ethernet (copper) ports quantity

16

MAC address table

8000 entries

Jumbo frames

15000

Packet buffer memory

4 MB

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

240 W

Switch layer

L2

Web-based management

Yes

VLAN support

Yes

Number of VLANs

32

SFP module slots quantity

2

DHCP features

DHCP client
