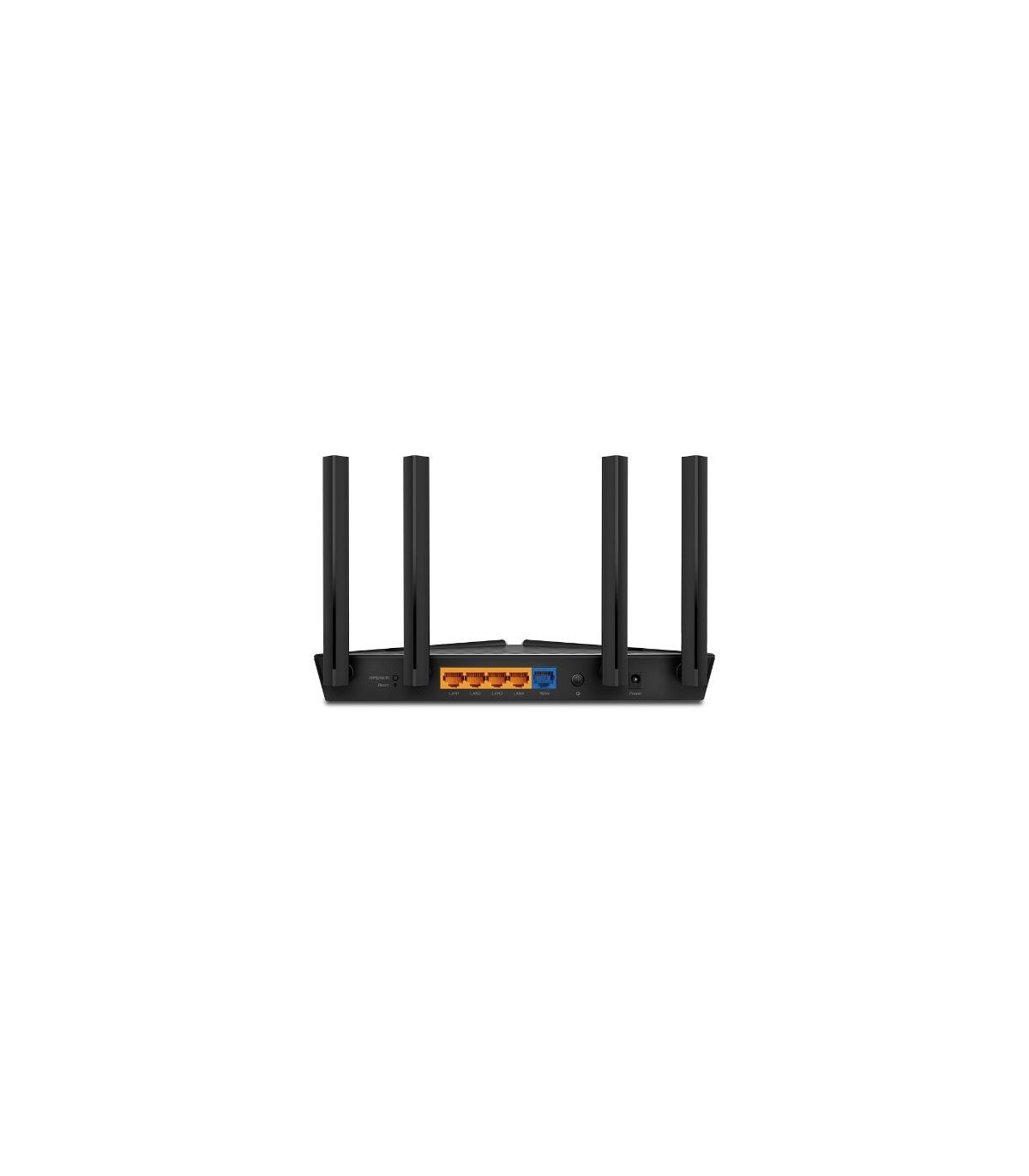

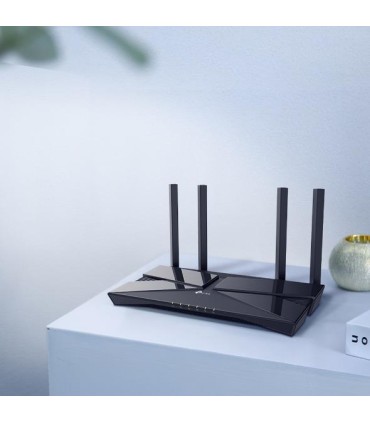

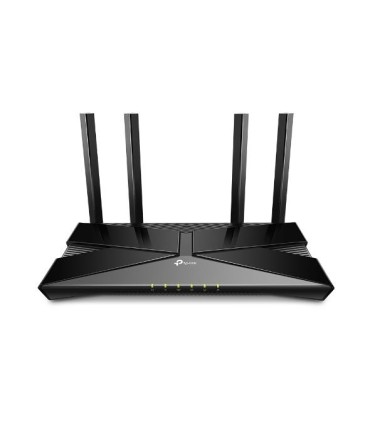

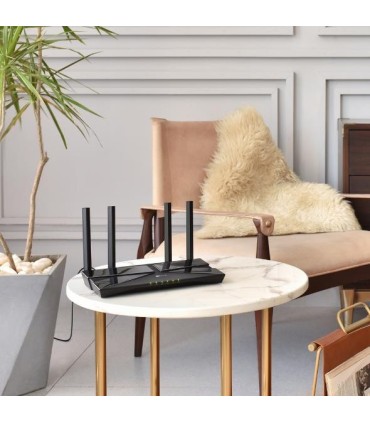

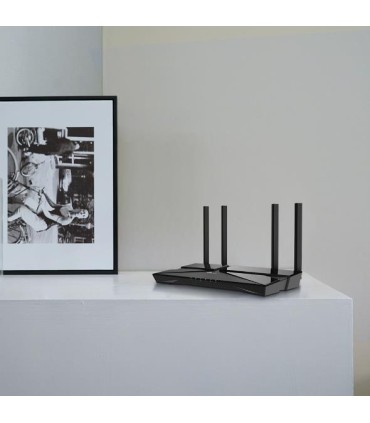

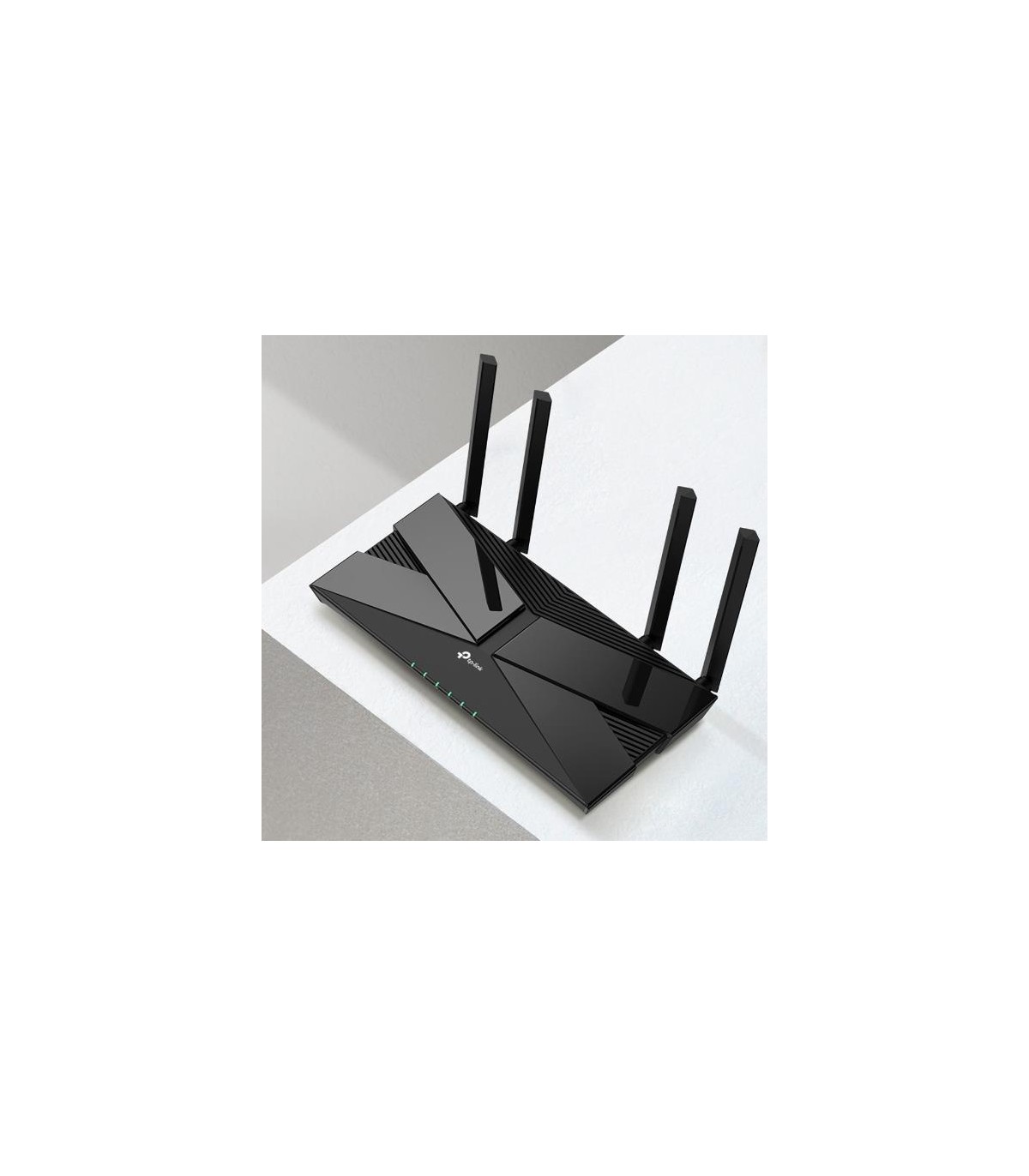

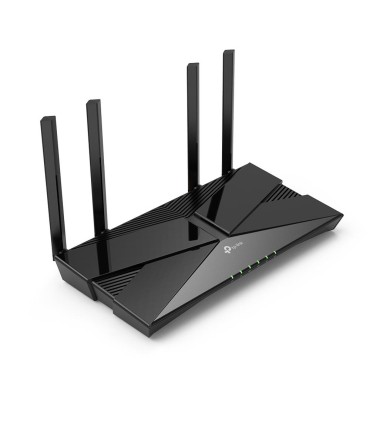

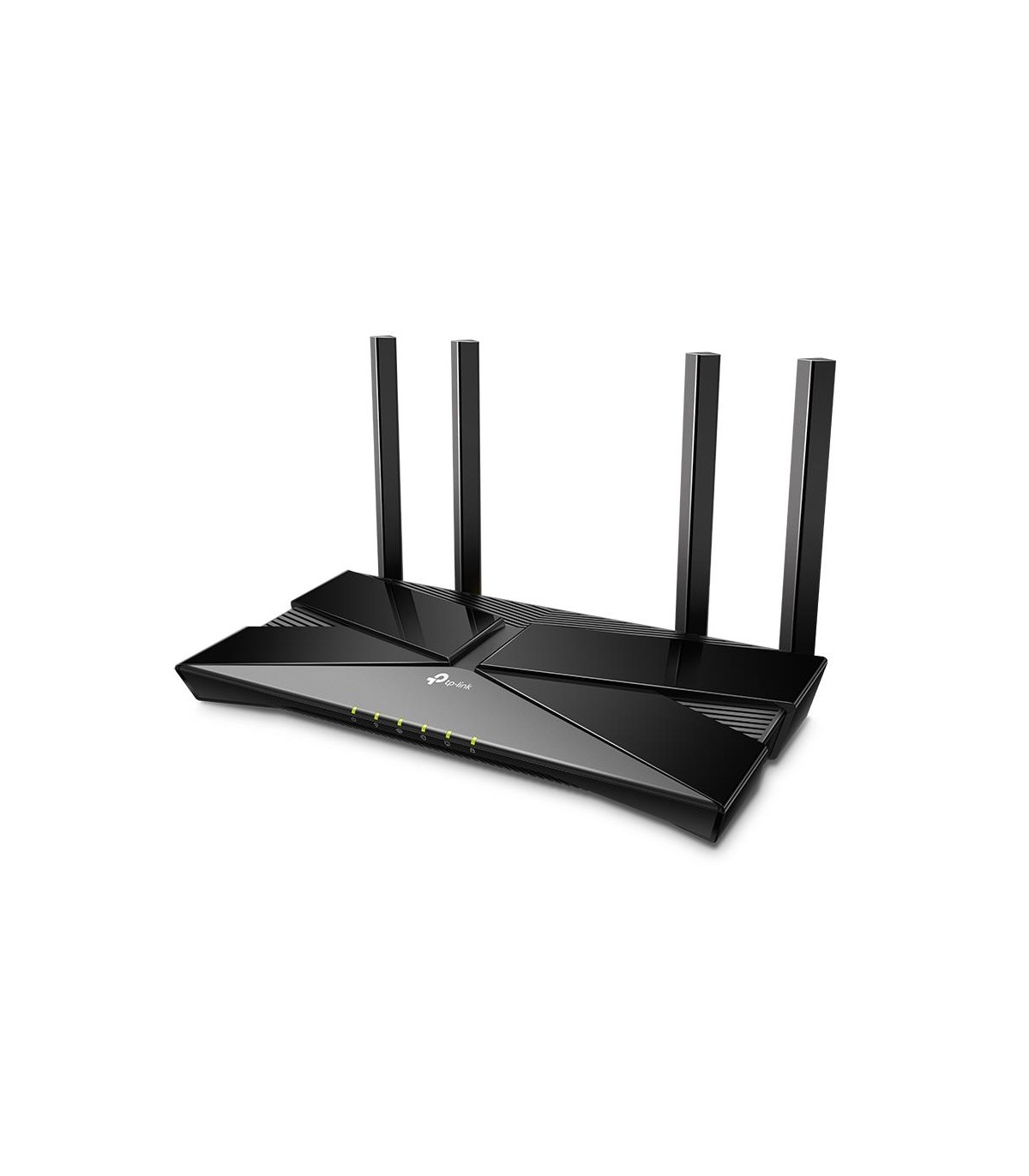

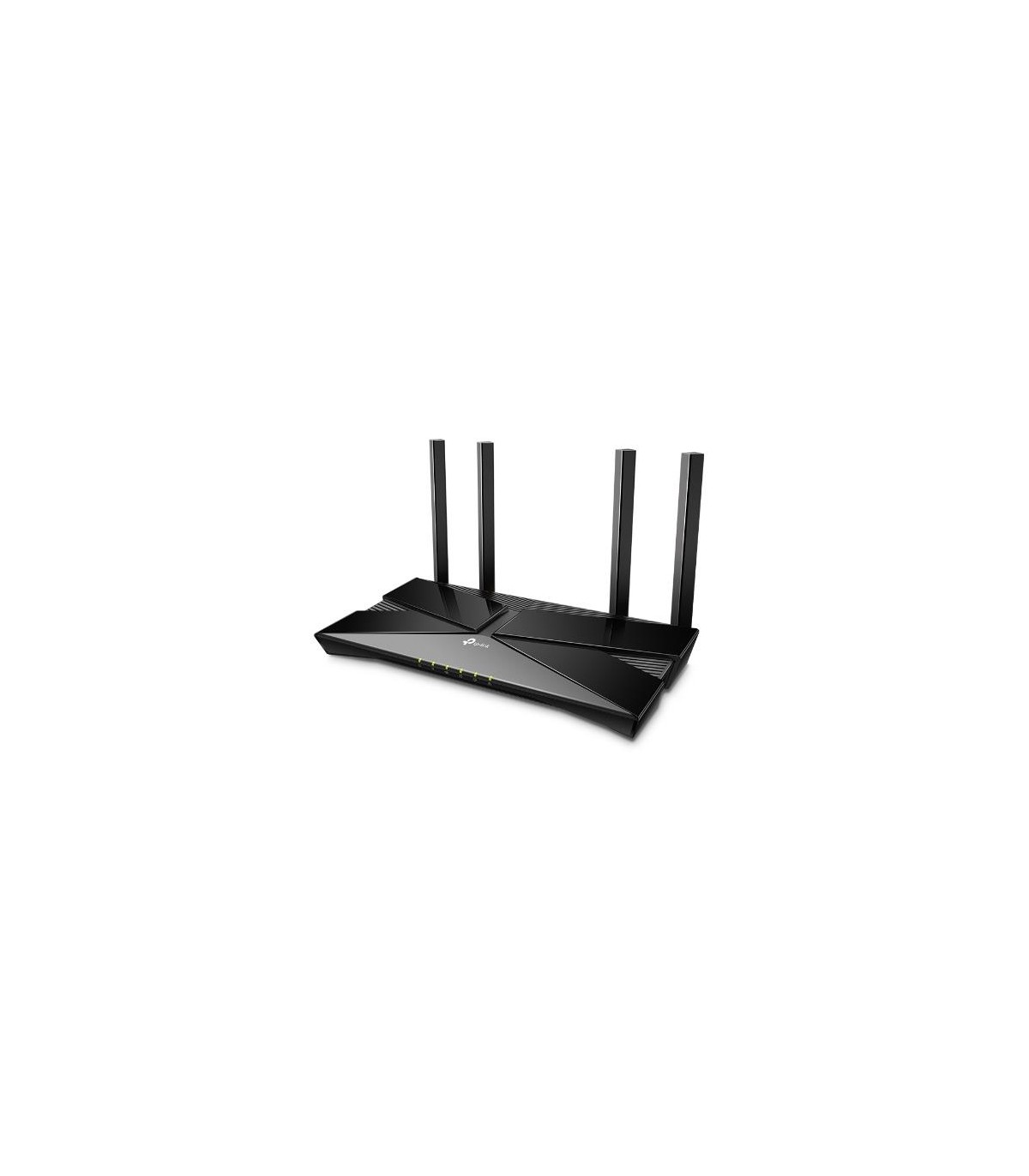

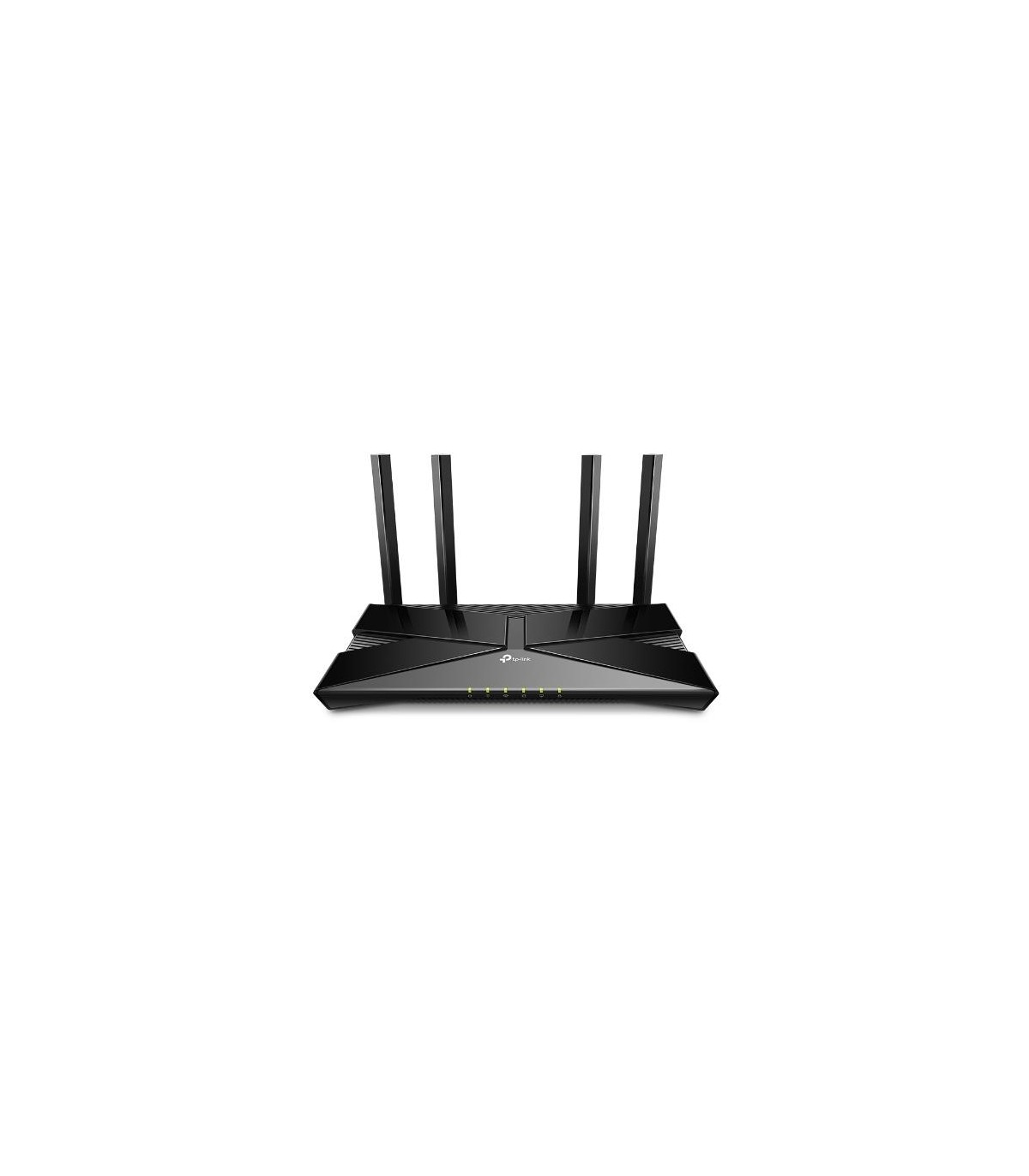

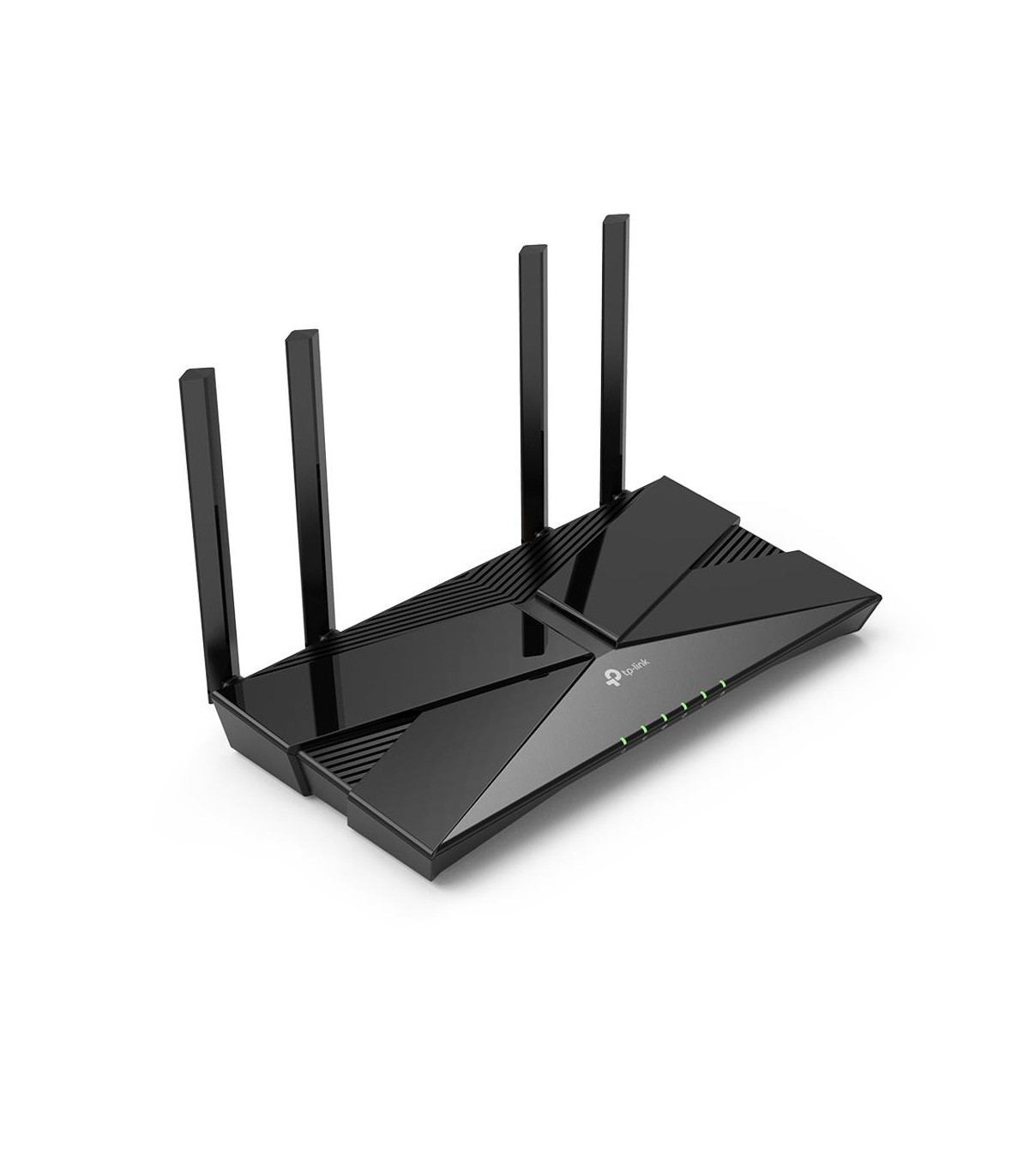

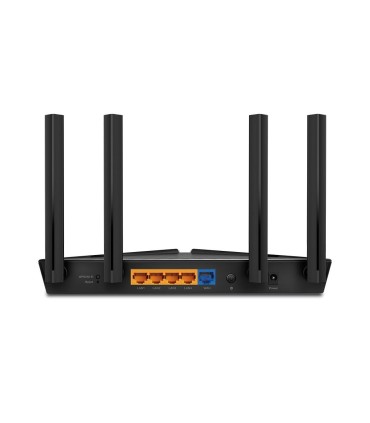

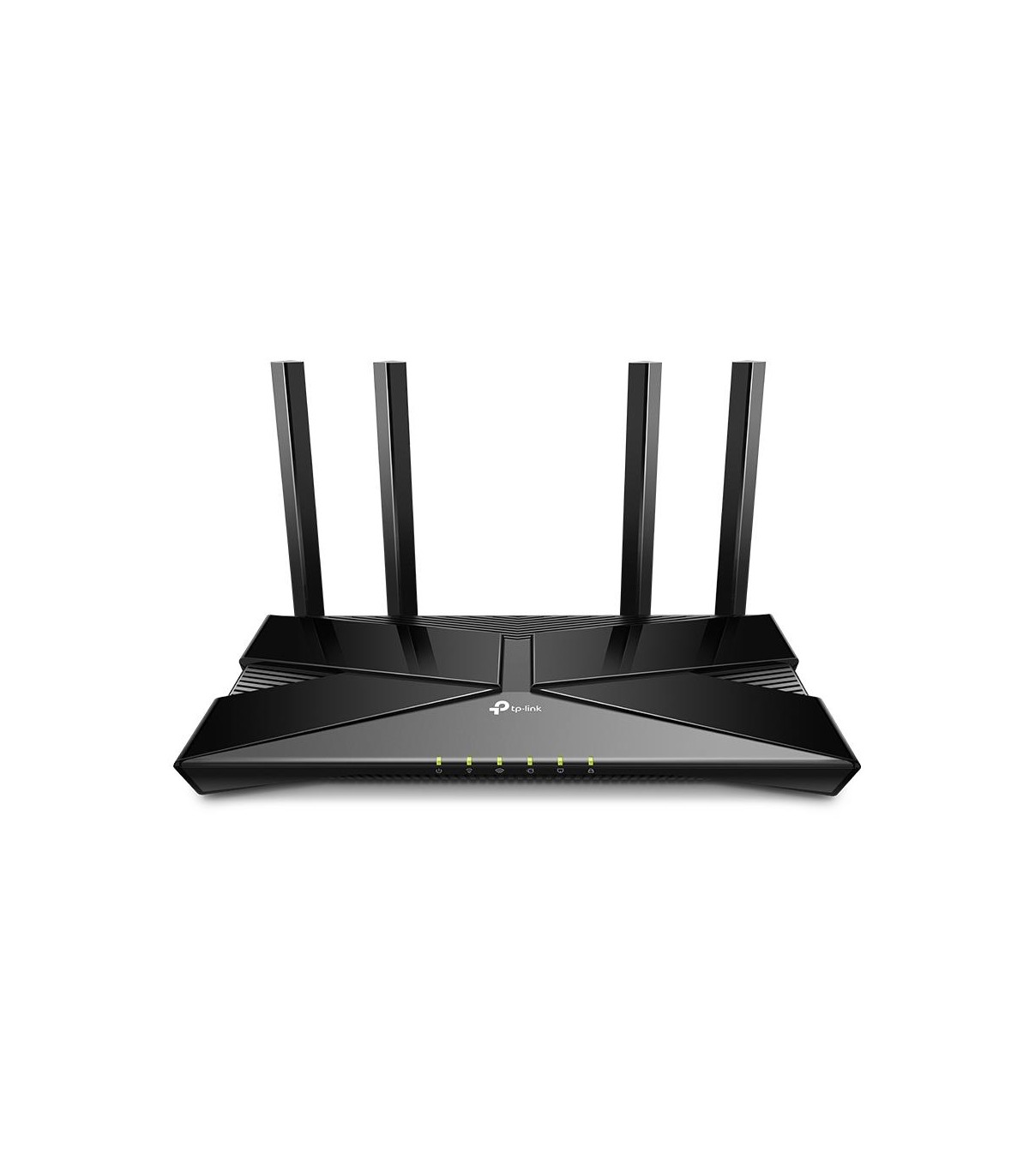

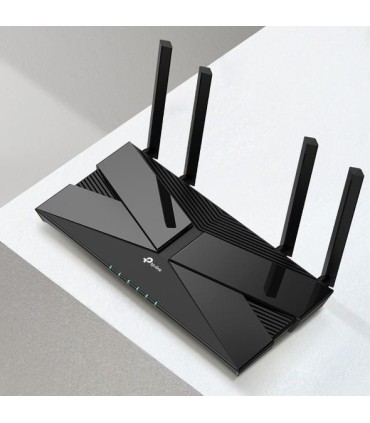

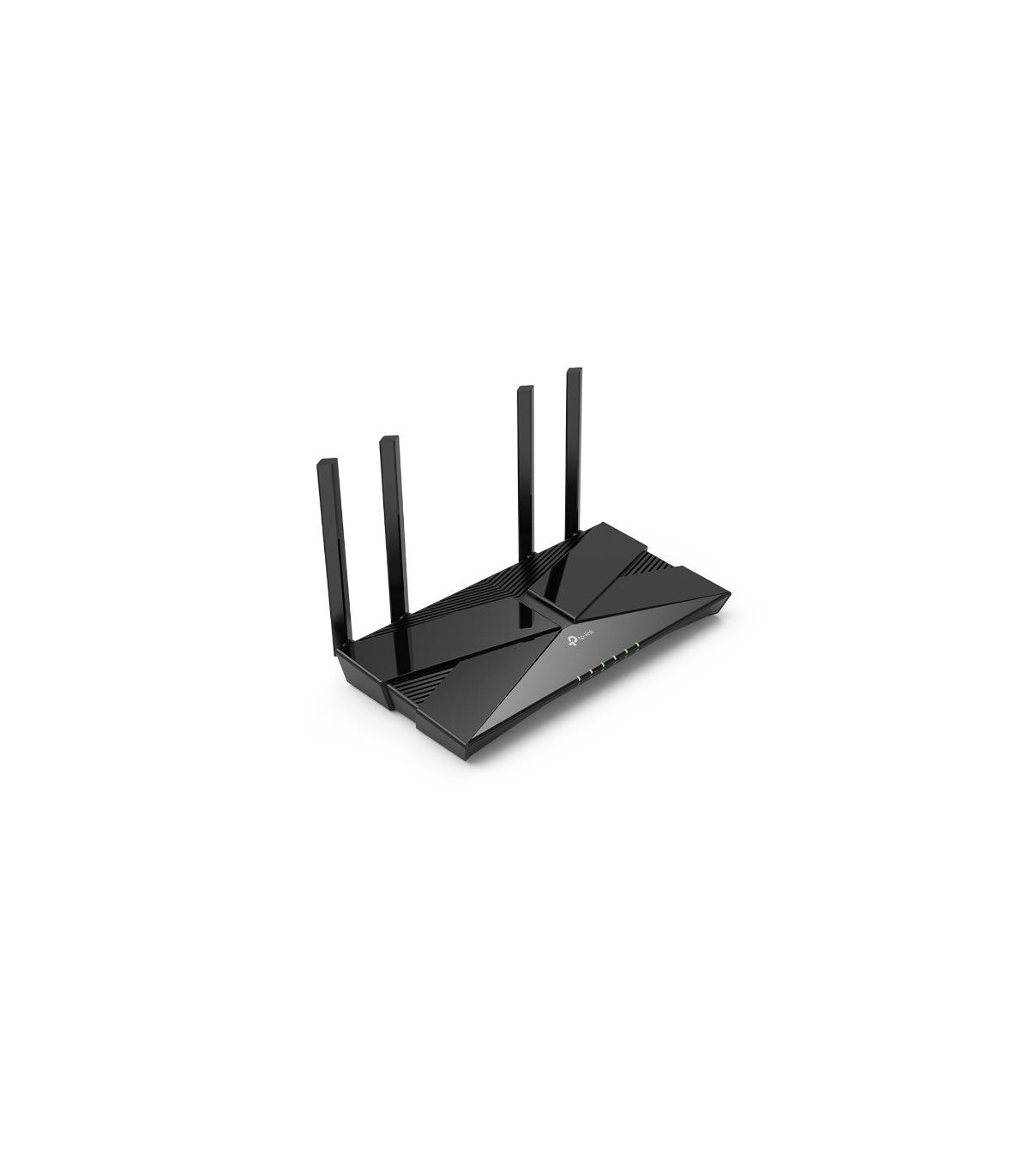

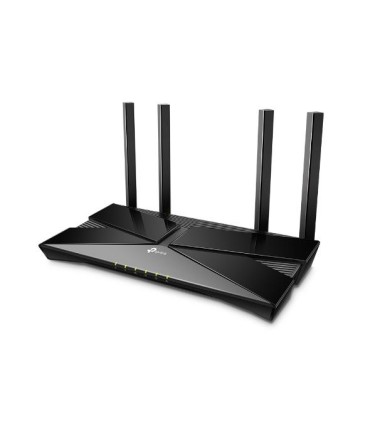

TP-LINK Wireless Router 1800 Mbps Wi-Fi 6 1 WAN 4x10/100/1000M Number of antennas 4 ARCHERAX23

Power

AC adapter included

Yes

Other features

Depth

135 mm

Height

41.6 mm

Width

260.2 mm

Unit Box Width

0.075

Unit Box Length

0.33

Unit Box Height

0.24

Category Code

WRO

Product Type

Tabletop router

VPN Server

OpenVPN, PPTP

Unit Calculated Volume

0.006747 cubm

Unit Calculated Weight

0.95 kg

Units per Shipping Box

10

Summary

TP-Link Archer AX1800 Dual-Band Wi-Fi 6 Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1800 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Etherne

Product colour

Black

Package depth

350 mm

Package height

395 mm

Package weight

730 g

Package width

500 mm

Cables included

LAN (RJ-45)

DC-in jack

Yes

Certification

FCC, CE, ROHS

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Harmonized System (HS) code

8517.62

Windows operating systems supported

Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 IoT Enterprise/Windows 10 Pro/Windows 10 Pro x64/Windows 2000/Windows 2000 Professi

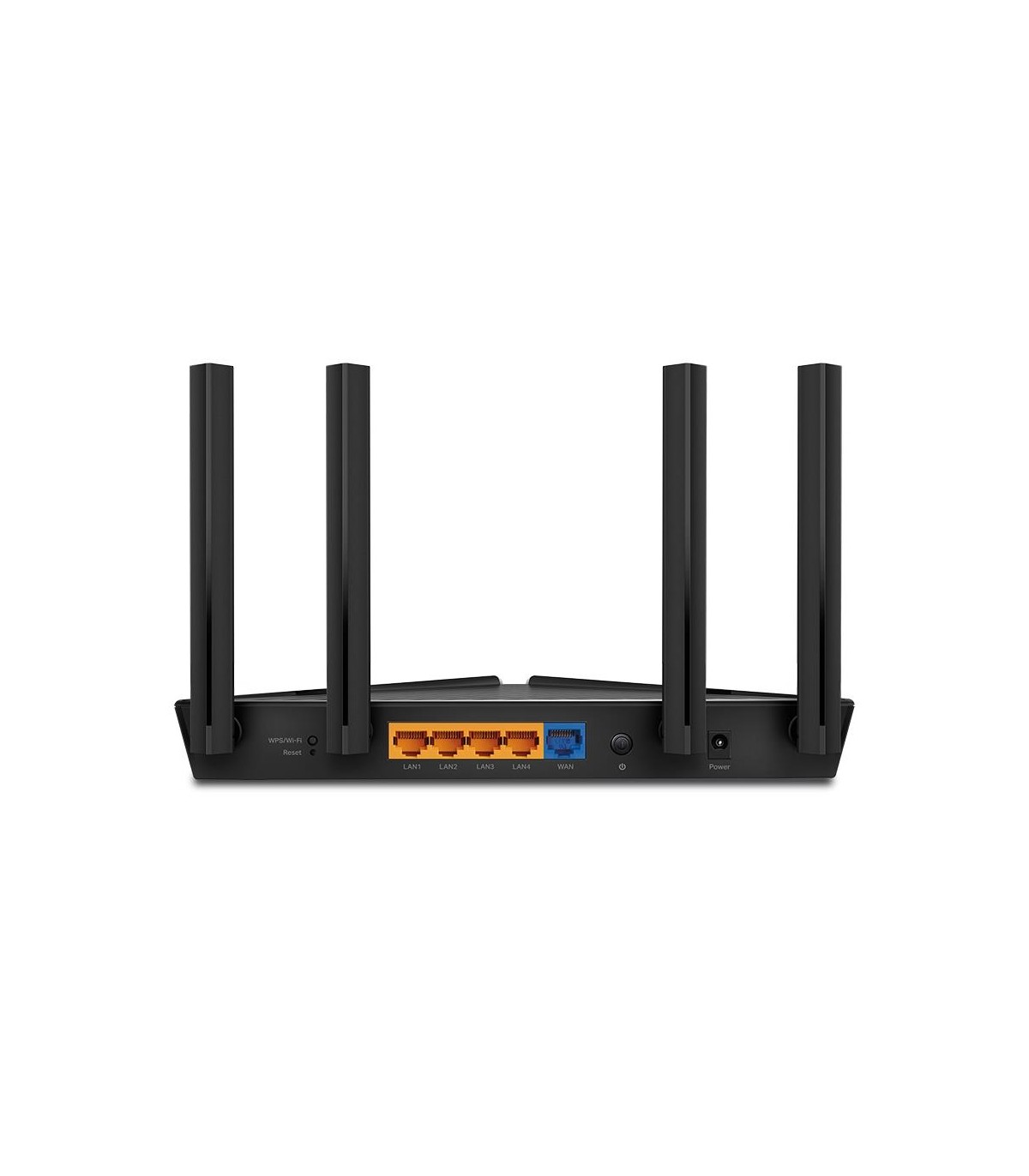

Ethernet LAN (RJ-45) ports

4

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)

Ethernet LAN data rates

10/100/1000 Mbit/s

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Warranty card

Yes

Processor frequency

1500 MHz

Quick installation guide

Yes

Reset button

Yes

Processor cores

2

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Export Control Classification Number (ECCN)

5A992

Modulation

OFDMA

Antenna design

External

Built-in processor

Yes

Power source type

DC

Security algorithms

128-bit WEP/64-bit WEP/WMM/WPA/WPA2/WPA2-PSK/WPA-PSK

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Full duplex

Yes

Networking standards

IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n

Output current

1 A

Output voltage

12 V

Flow control support

Yes

Web-based management

Yes

Access Control List (ACL)

Yes

System event log

Yes

Static route

Yes

Ethernet WAN

Yes

SIM card slot

No

WAN connection type

RJ-45

WLAN data transfer rate (first band)

574 Mbit/s

WLAN data transfer rate (max)

1800 Mbit/s

WLAN data transfer rate (second band)

1201 Mbit/s

Dynamic DNS (DDNS)

Yes

Ethernet LAN interface type

Gigabit Ethernet

WPS push button

Yes

DHCP client

Yes

DHCP server

Yes

Port forwarding

Yes

DMZ support

Yes

Firewall

Yes

Universal Plug and Play (UPnP)

Yes

Number of guest networks (2.4 GHz)

1

IP address filtering

Yes

Number of guest networks (5 GHz)

1

Network address translation (NAT)

Yes

URL filtering

Yes

Guest access

Yes

Bandwidth control

Yes

NAT functionality

Port Forwarding, Port Triggering, UPnP, DMZ

Antenna connector type

SMA

Web-based setup wizard

Yes
