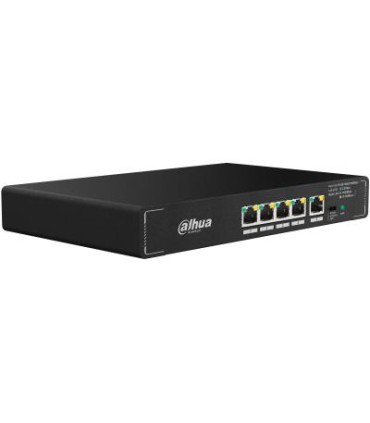

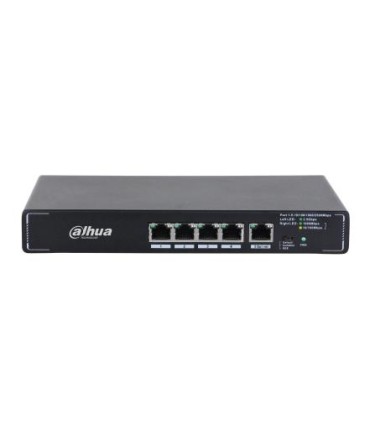

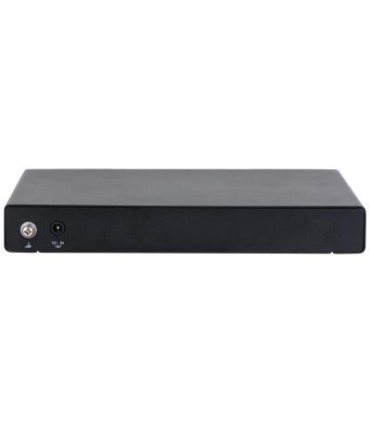

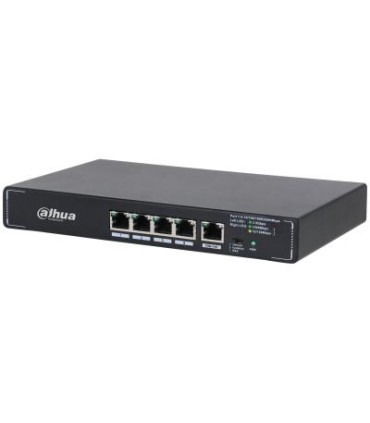

DAHUA Switch DH-SMG1005 Switch type Unmanaged 5x2.5G Ethernet (copper) ports quantity SMG1005

Specification

Housing material

Metal

Other features

Depth

141 mm

Height

30 mm

Width

220 mm

Unit Box Width

0.185

Unit Box Length

0.385

Unit Box Height

0.06

Category Code

SWI

Model name

SMG1005

Switch type

Unmanaged

Switching capacity

25 Gbit/s

Power source

DC

Unit Calculated Volume

0.004274 cubm

Unit Calculated Weight

1.18 kg

Units per Shipping Box

1

Summary

Dahua Technology SMG1005. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 25 Gbit/s. Networking standa

Product colour

Black

Package depth

163 mm

Package height

71 mm

Package weight

942 g

Package width

297 mm

Plug and Play

Yes

Input current

1 A

Power consumption (max)

5.38 W

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-10 - 55 °C

Storage relative humidity (H-H)

10 - 90 %

Compliance certificates

CE

Weight

680 g

Storage temperature (T-T)

-40 - 70 °C

Manual

Yes

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Power supply included

Yes

Power protection features

Over current/Over voltage/Static electricity

Jumbo frames support

Yes

Networking standards

IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

MAC address table

4000 entries

Jumbo frames

12

Packet buffer memory

8 MB

DC input voltage

12 V

Throughput

18.6 Mpps
