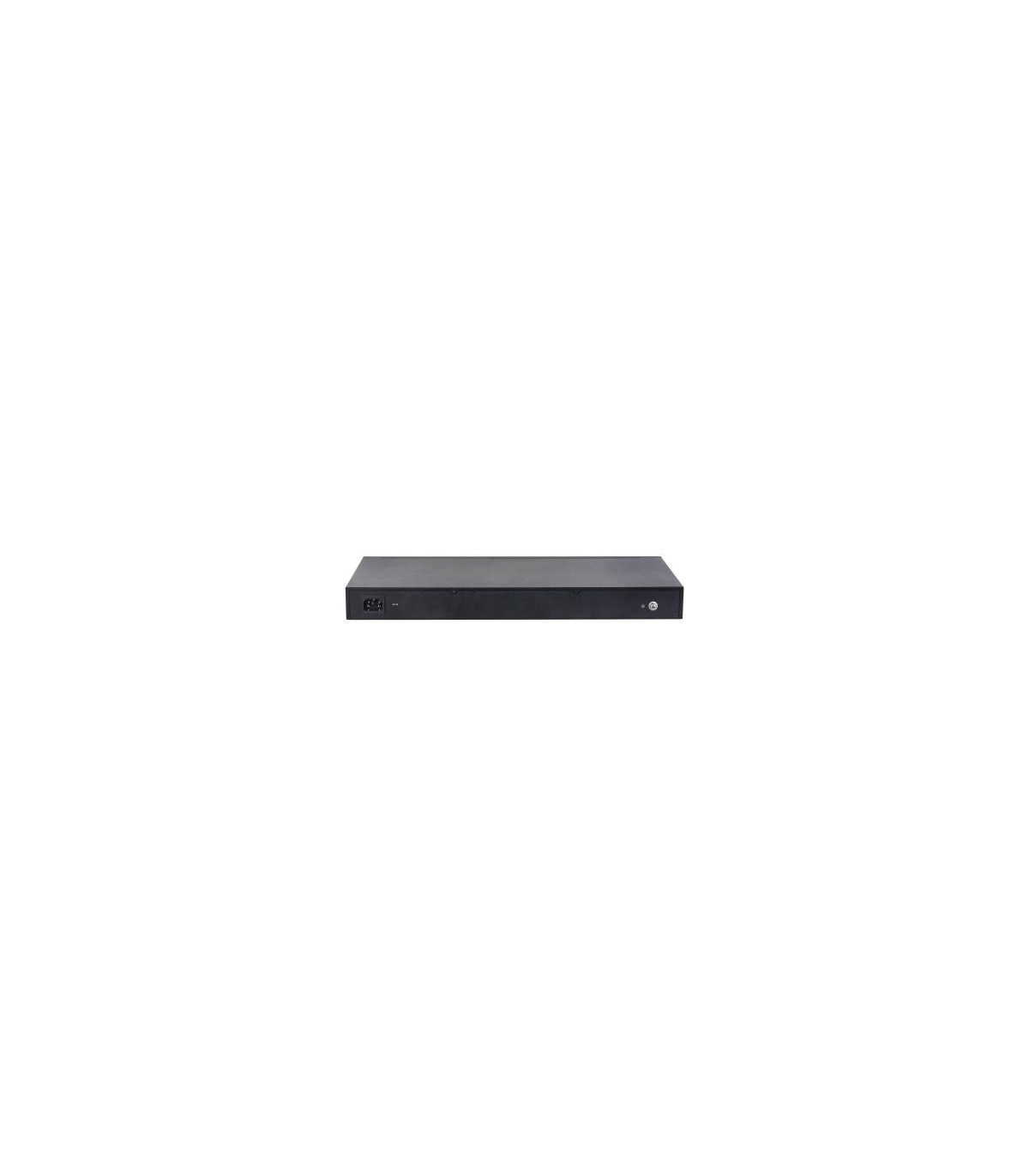

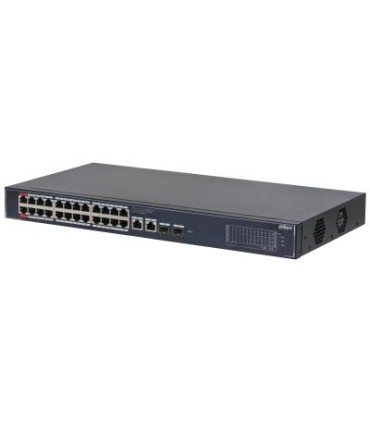

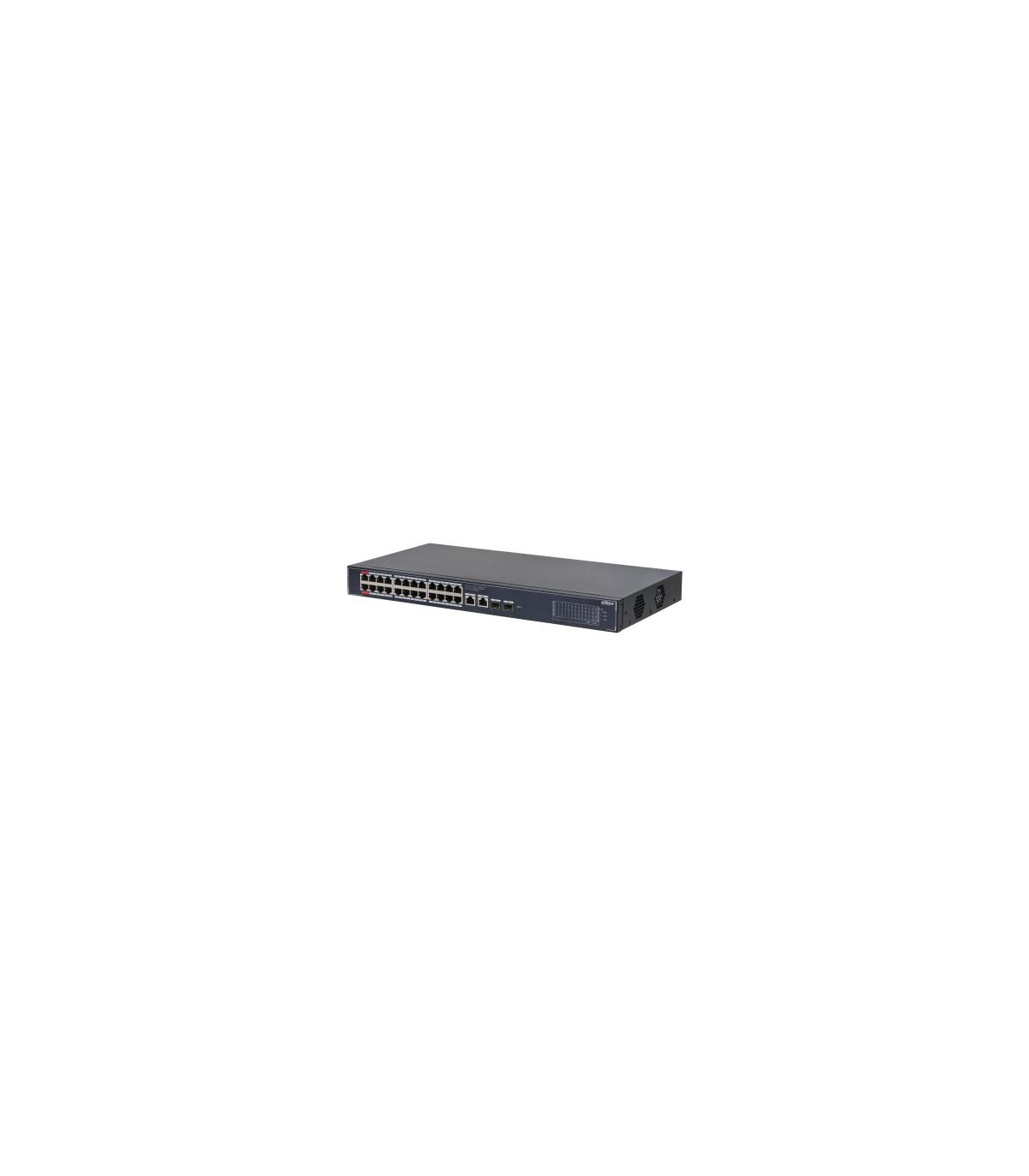

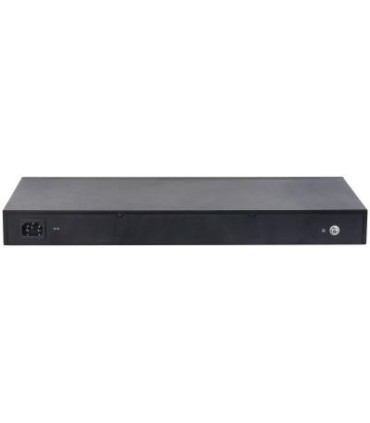

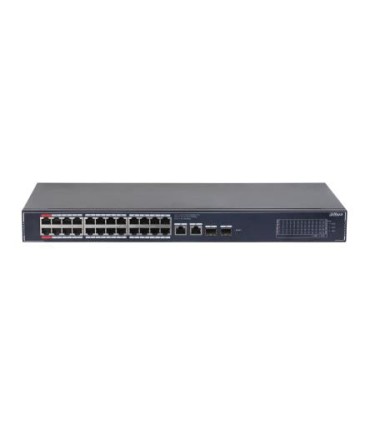

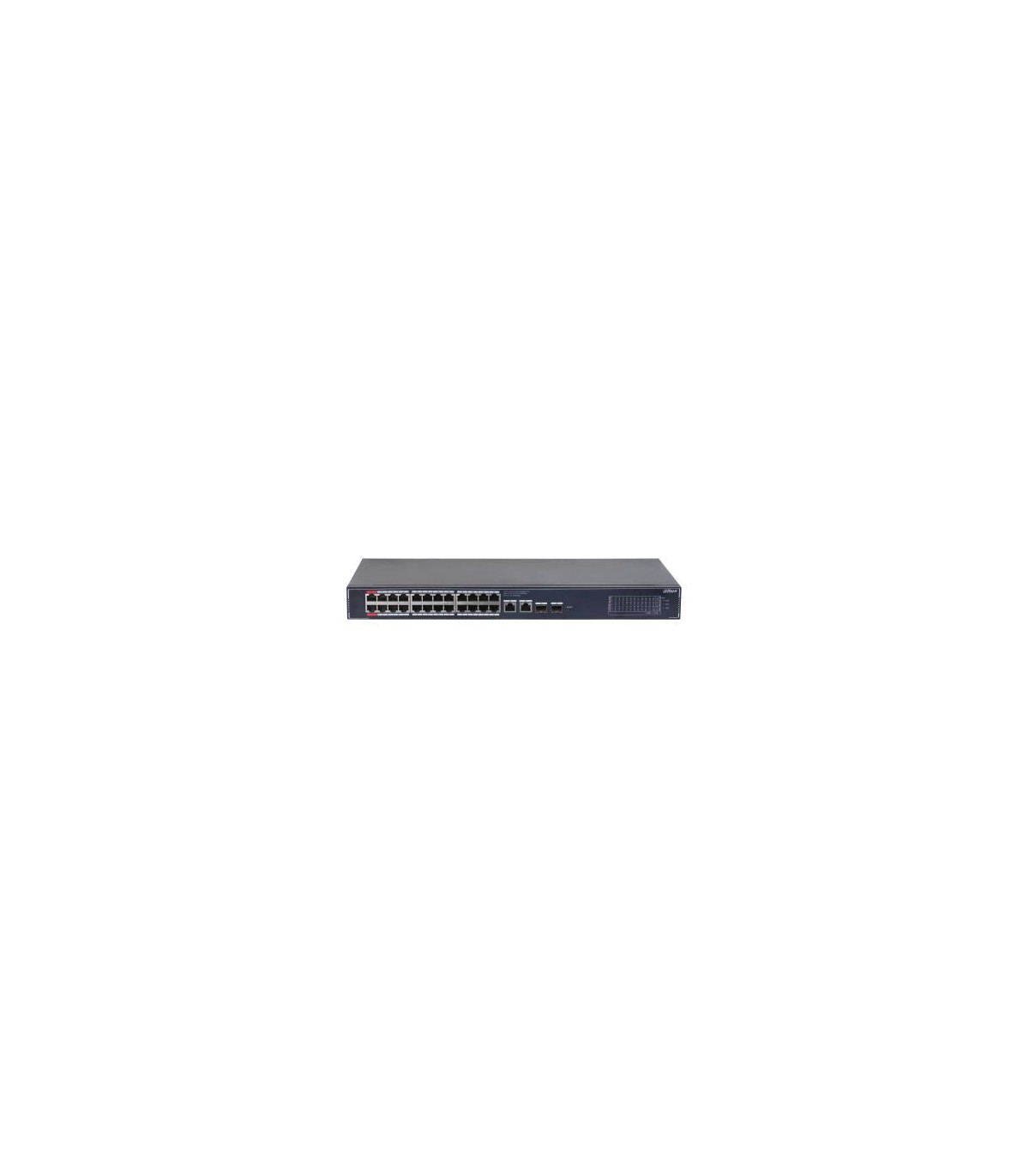

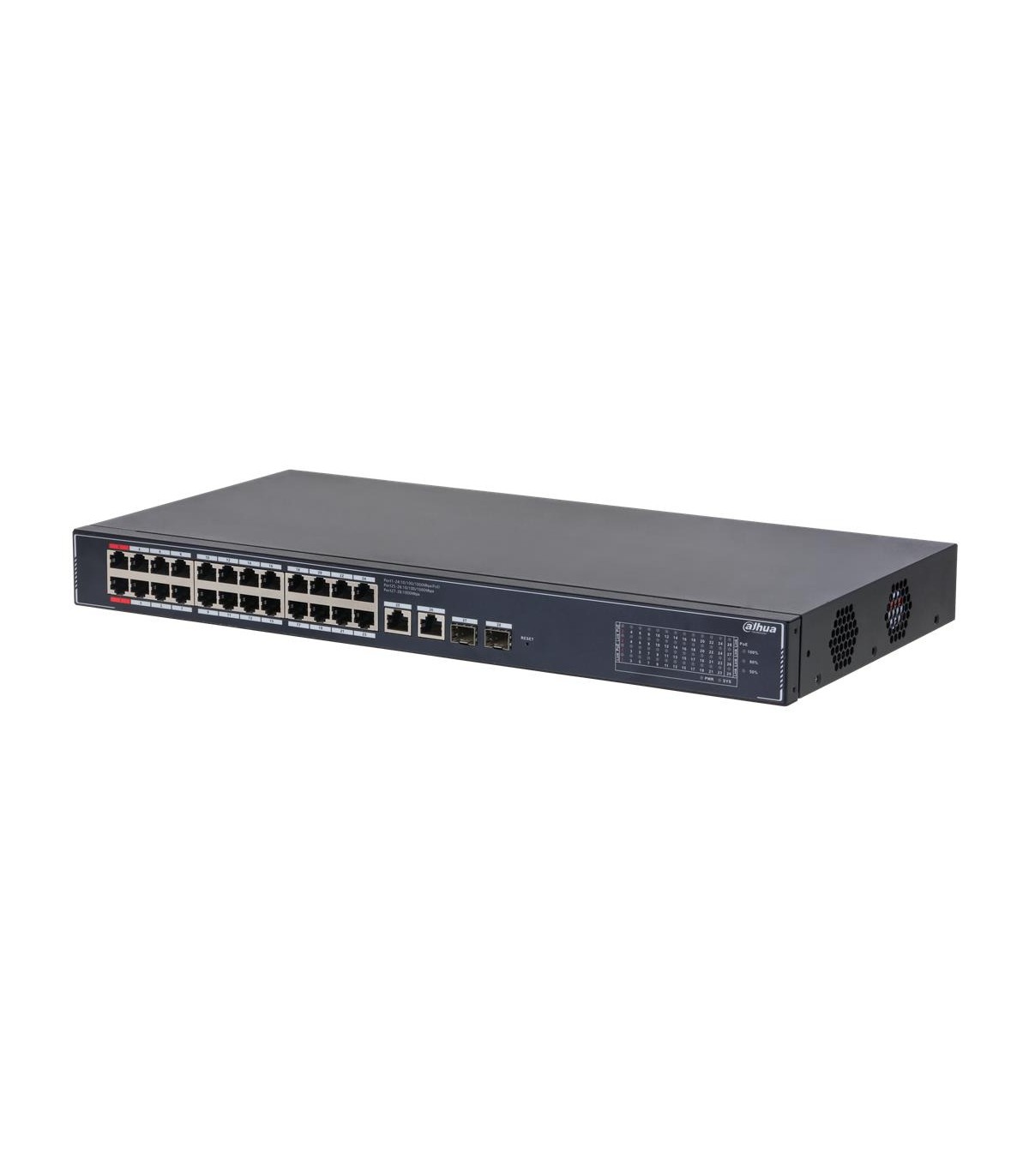

DAHUA Switch DH-SG4028LP 26xGigabit Ethernet (copper) ports quantity 2xSFP module slots quantity 4xPower over Ethernet (PoE) po

Specification

Housing material

Metal

Other features

Depth

220 mm

Height

44 mm

Width

440 mm

Unit Box Width

0.34

Unit Box Length

0.54

Unit Box Height

0.09

Category Code

SWI

Model name

DH-SG4028LP

Switch type

Managed

Switching capacity

56 Gbit/s

Forwarding rate

41.66 Mpps

Power source

AC

Unit Calculated Volume

0.01652 cubm

Unit Calculated Weight

3.36 kg

Units per Shipping Box

1

Summary

Dahua Technology . Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 2, Installed SFP modules quantity: 2. MAC address table: 8000 entries, Swi

Product colour

Black

AC input frequency

47/63 Hz

AC input voltage

100 - 240 V

Package depth

342 mm

Package height

90 mm

Package weight

3020 g

Package width

540 mm

Cables included

DC

Input current

5 A

Power consumption (max)

265 W

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-10 - 55 °C

Storage relative humidity (H-H)

5 - 95 %

Quick start guide

Yes

Compliance certificates

CE

Weight

2370 g

Storage temperature (T-T)

-40 - 70 °C

Mean time between failures (MTBF)

594334.8 h

Ethernet LAN data rates

10,100,1000 Mbit/s

Power supply included

Yes

Power protection features

Over current/Over voltage

Jumbo frames support

Yes

Networking standards

IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Basic switching RJ-45 Ethernet ports quantity

2

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

MAC address table

8000 entries

Jumbo frames

15

Flow control support

Yes

Packet buffer memory

4 MB

Power over Ethernet (PoE) ports quantity

24

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

240 W

Switch layer

L2

Web-based management

Yes

Loop protection

Yes

Broadcast storm control

Yes

Link aggregation

Yes

VLAN support

Yes

Virtual LAN features

Port-based VLAN

Number of VLANs

32

DHCP features

DHCP client

Cloud-managed

Yes

IP-MAC-Port binding

Yes

Installed SFP modules quantity

2
