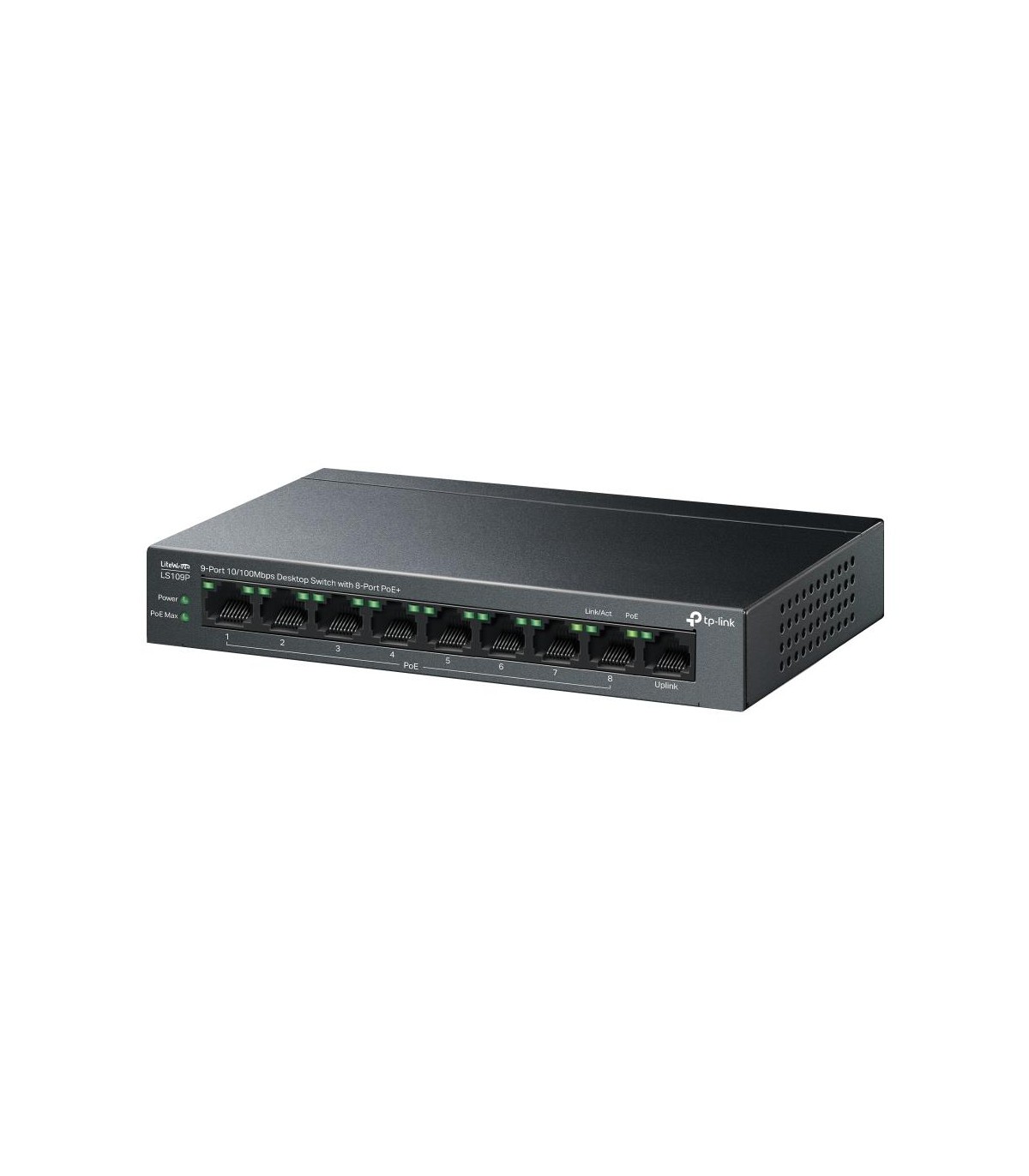

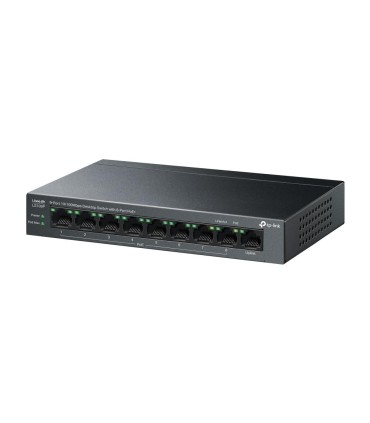

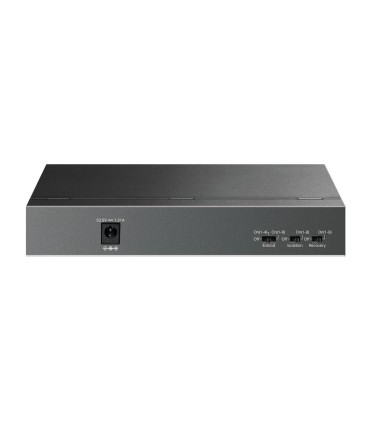

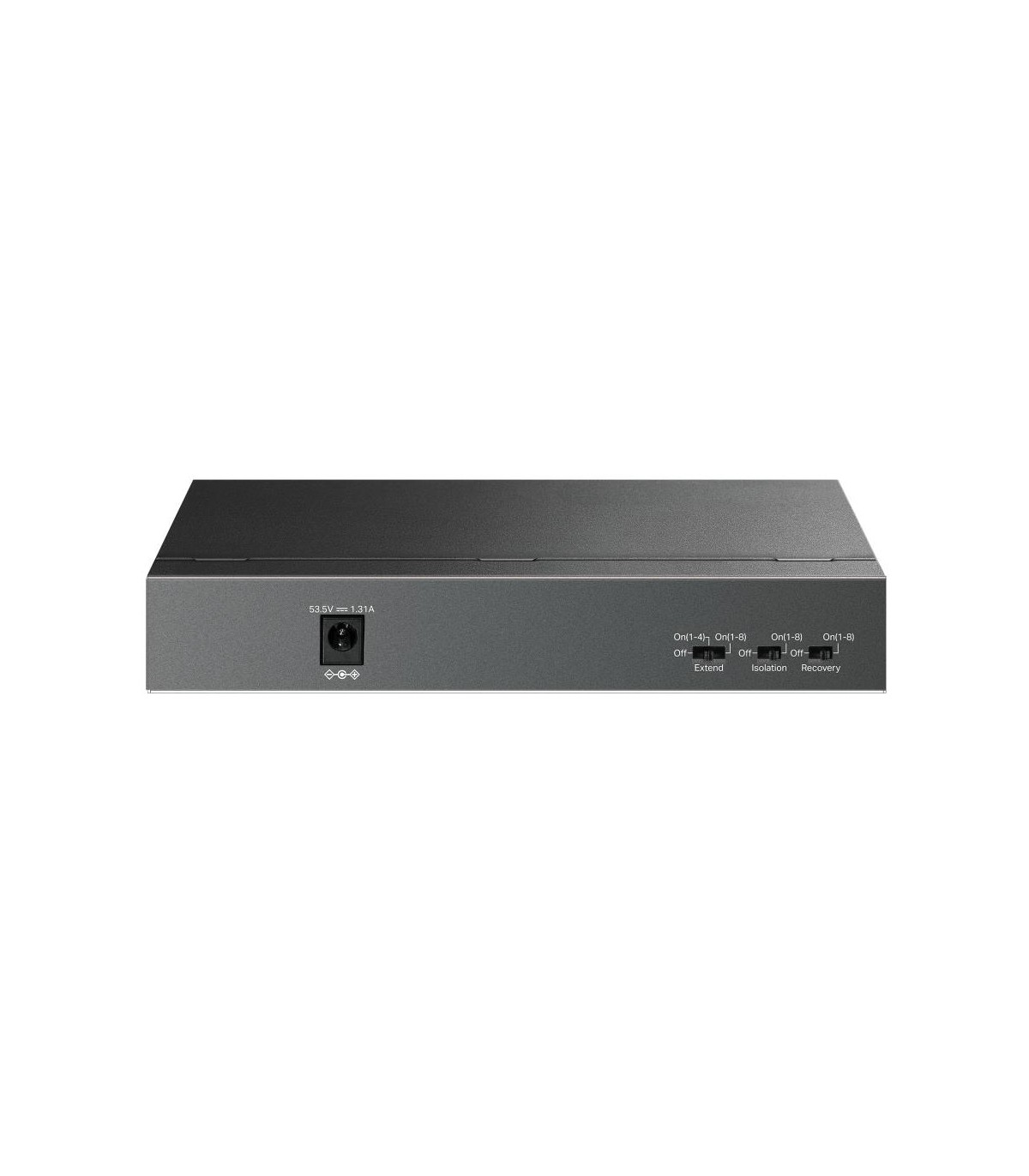

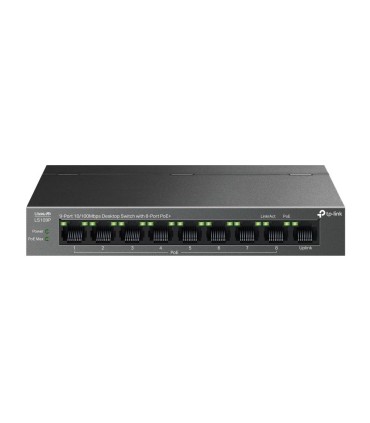

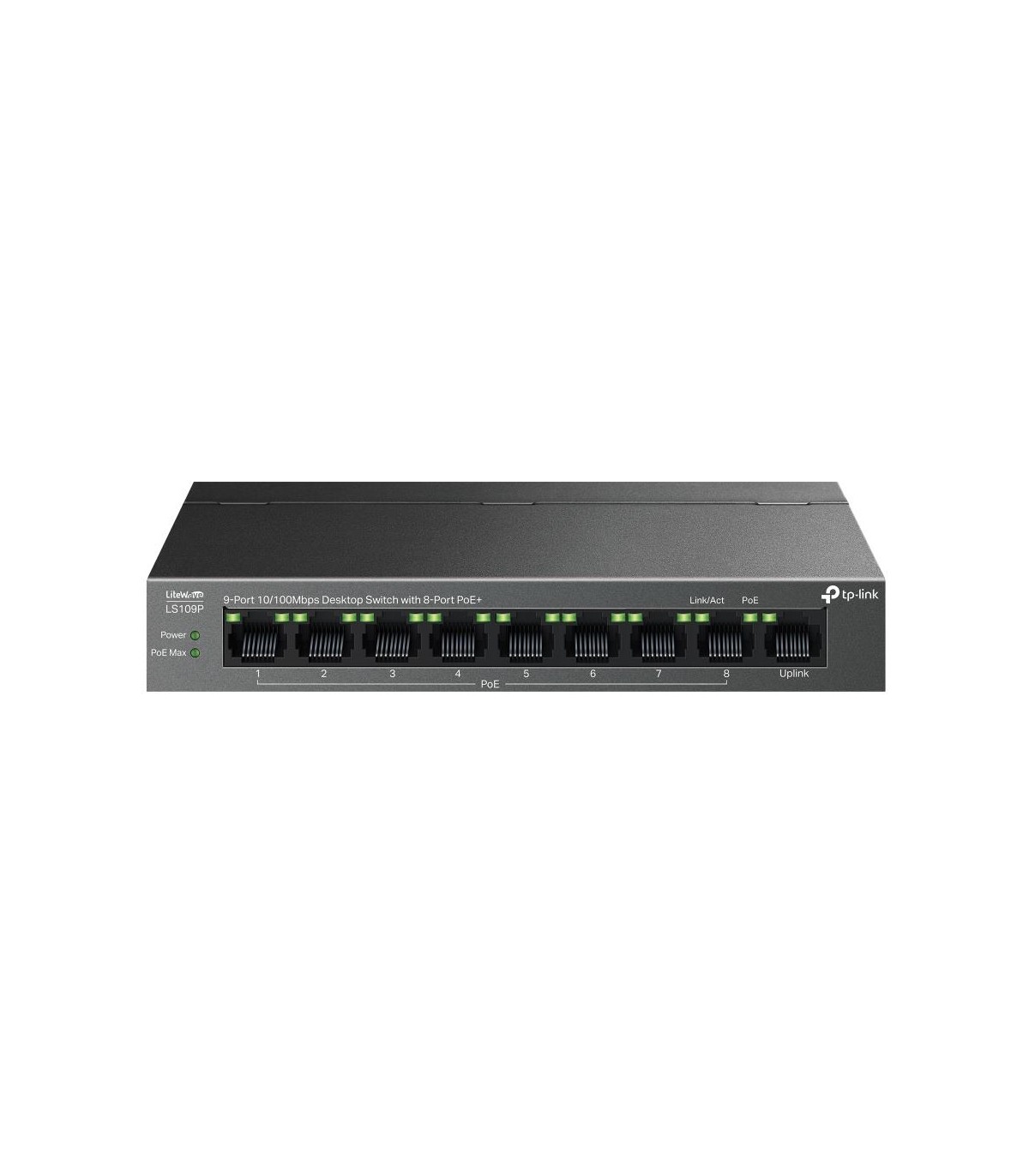

TP-LINK Switch LS109P PoE+ ports 8 LS109P

Other features

Depth

98 mm

Height

27 mm

Width

171 mm

Unit Box Width

0.07

Unit Box Length

0.28

Unit Box Height

0.225

Category Code

SWI

Model name

LS109P

Model

TP-LINK LS109P

Switch type

Unmanaged

Switching capacity

1.8 Gbit/s

Forwarding rate

1.3392 Mpps

Number of fans

0 fan(s)

Auto-negotiation

Yes

Power source

DC/PoE

Unit Calculated Volume

0.00441 cubm

Unit Calculated Weight

0.9 kg

Units per Shipping Box

1

Summary

TP-Link LiteWave LS109P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 2000 entries, Switching capacity: 1.8 Gbit/s. Networking standards: IE

Product colour

Black

AC input frequency

50 Hz

AC input voltage

220 V

Package type

Box

Input current

1.31 A

Certification

CE, FCC, RoHS

Power consumption (max)

73.24 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Wall mountable

Yes

Storage temperature (T-T)

-40 - 70 °C

LED indicators

Yes

Heat dissipation

249 BTU/h

User guide

Yes

Power supply included

Yes

Copper ethernet cabling technology

100BASE-TX/10BASE-T

Jumbo frames support

Yes

Networking standards

IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Auto MDI/MDI-X

Yes

10G support

No

Basic switching RJ-45 Ethernet ports quantity

9

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Power over Ethernet (PoE)

Yes

MAC address table

2000 entries

Store-and-forward

Yes

Flow control support

Yes

Power over Ethernet (PoE) power per port

30 W

DC input voltage

53.5 V

Cable types supported

Cat3/Cat4/Cat5/Cat5e

Quality of Service (QoS) support

Yes

Fanless

Yes

Power over Ethernet plus (PoE+) ports quantity

8
