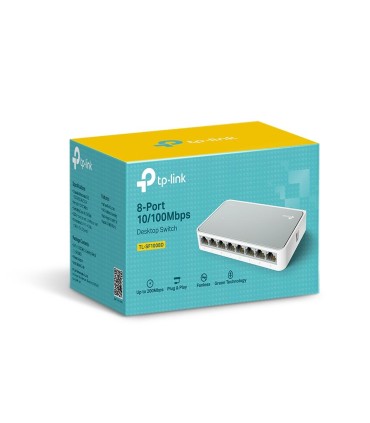

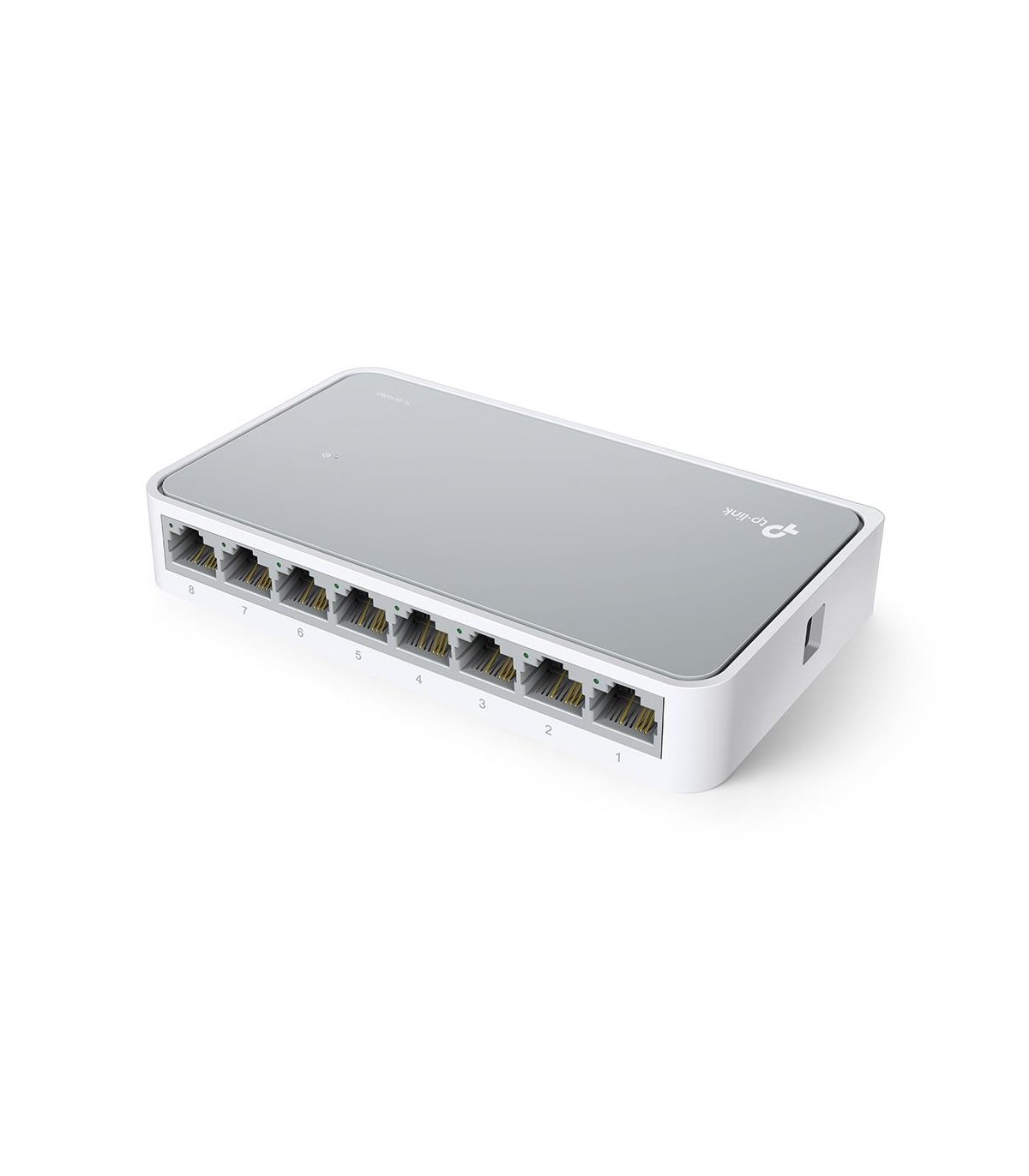

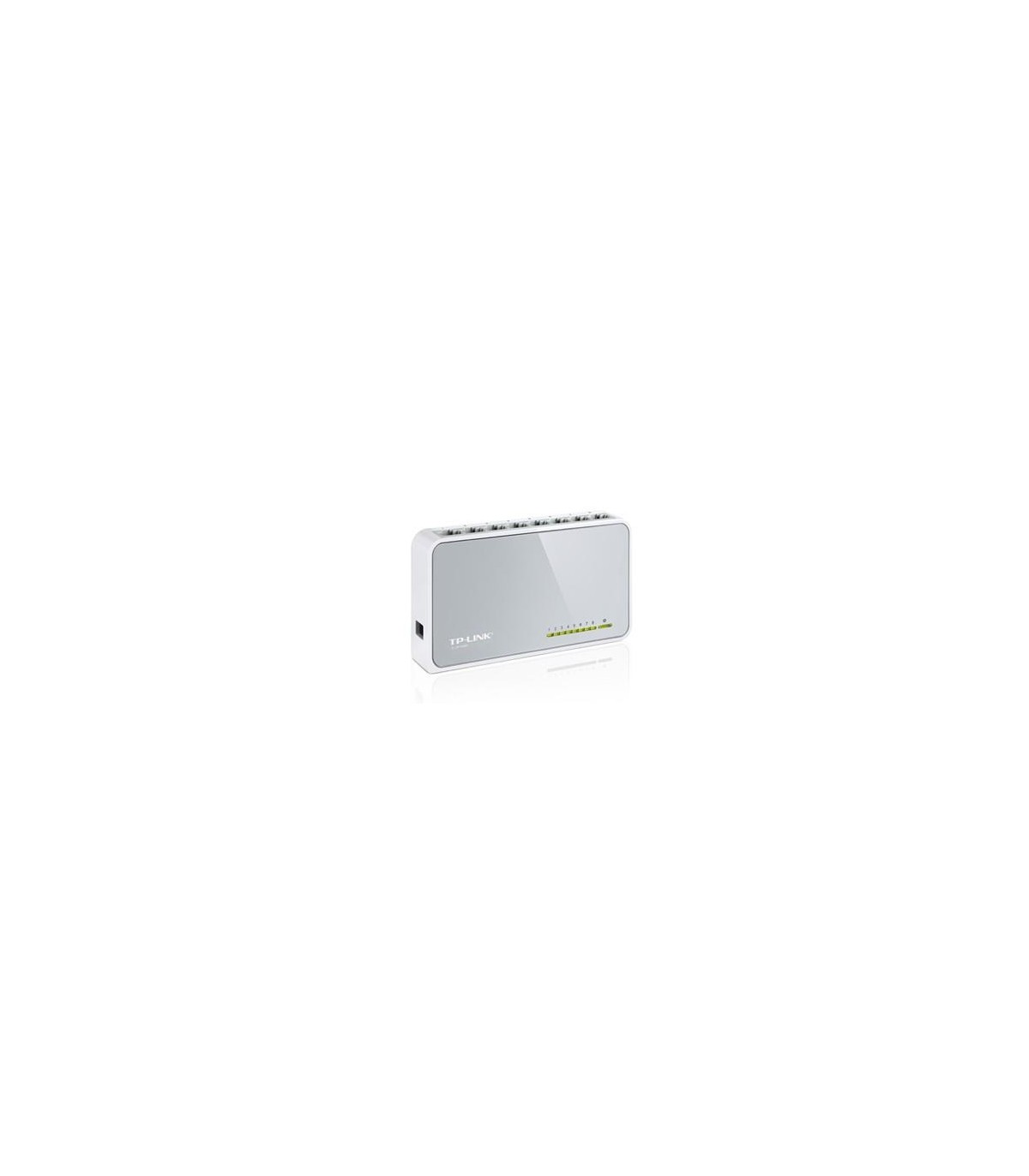

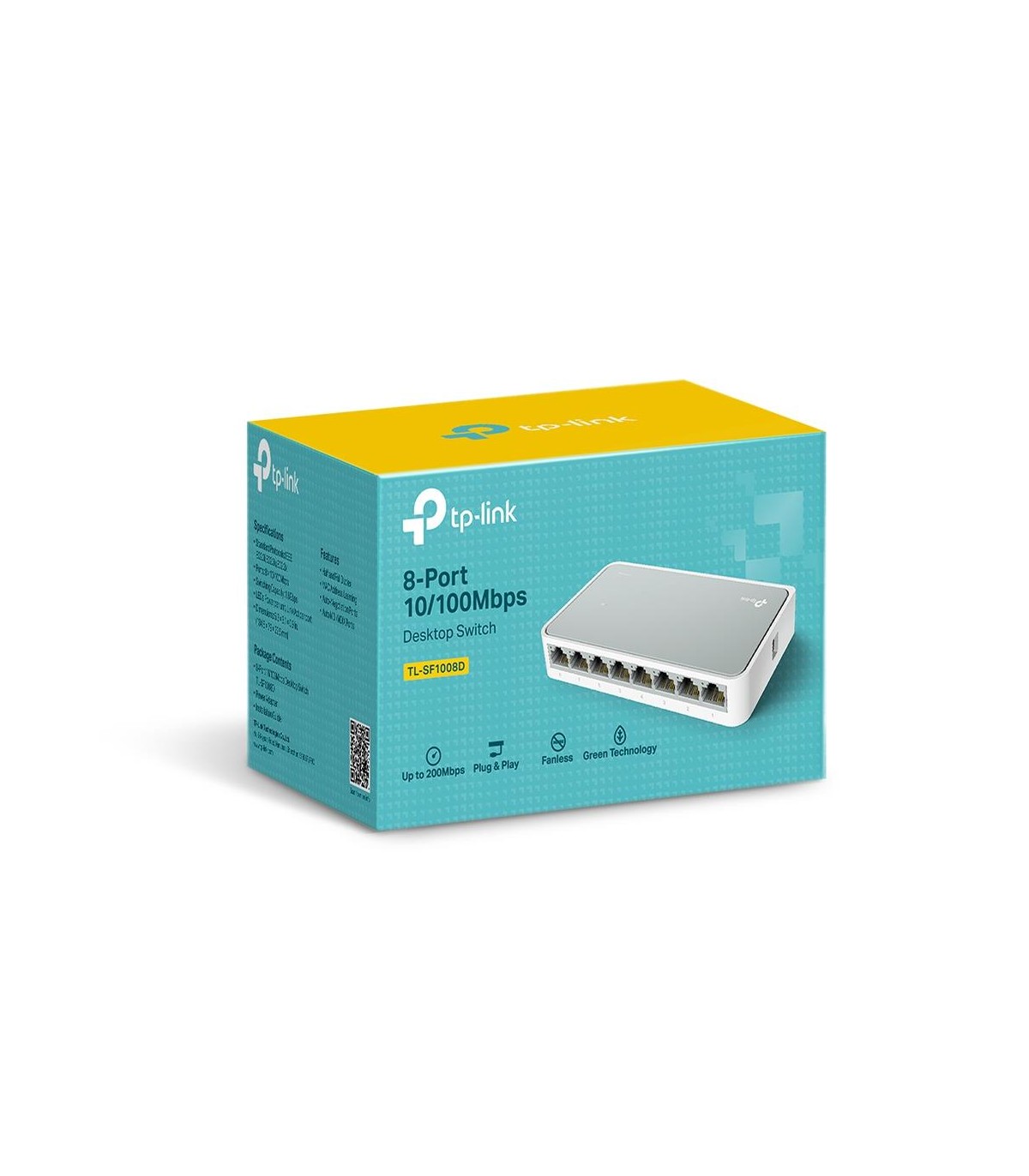

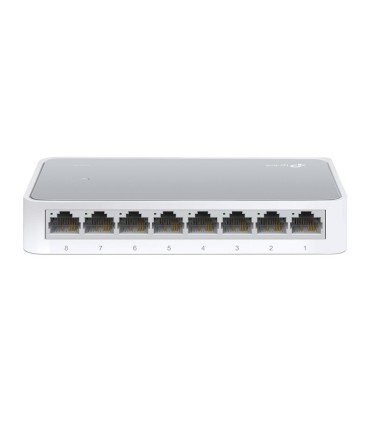

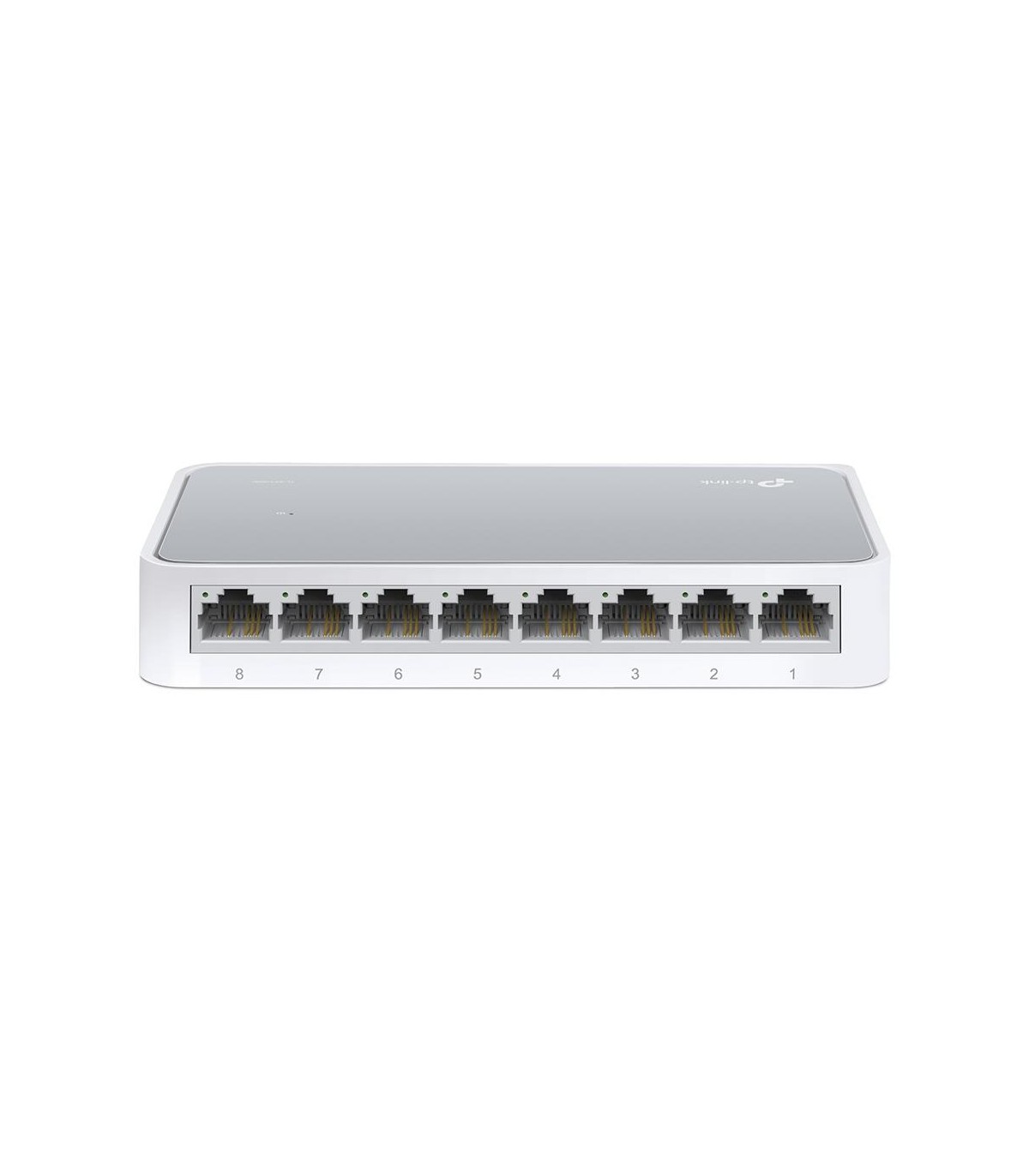

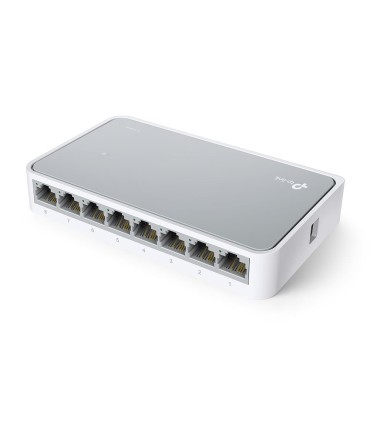

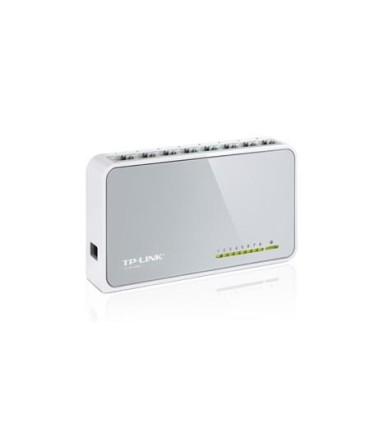

TP-LINK Switch 8x10Base-T / 100Base-TX TL-SF1008D

Power

AC adapter included

Yes

Other features

Depth

79 mm

Height

22.5 mm

Width

134.5 mm

Unit Box Width

0.085

Unit Box Length

0.14

Unit Box Height

0.1

Category Code

SWI

Switch type

Unmanaged

Switching capacity

1.6 Gbit/s

Auto-negotiation

Yes

Power source

DC

Unit Calculated Volume

0.00146 cubm

Unit Calculated Weight

0.263 kg

Units per Shipping Box

60

Summary

TP-Link TL-SF1008D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking stand

Product colour

White

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Package depth

139 mm

Package height

85 mm

Package type

Box

Package weight

240 g

Package width

100 mm

Input current

0.6 A

Sustainability compliance

Yes

Power consumption (max)

2.05 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 95 %

Compliance certificates

CE/Federal Communications Commission (FCC)/RoHS

Storage temperature (T-T)

-40 - 70 °C

Harmonized System (HS) code

85176990

LED indicators

Yes

Heat dissipation

6.99 BTU/h

User guide

Yes

Power supply included

No

Copper ethernet cabling technology

100BASE-TX/10BASE-T

Full duplex

Yes

Networking standards

IEEE 802.3/IEEE 802.3ab/IEEE 802.3x

Power connector

DC-in jack

Auto MDI/MDI-X

Yes

Rack mounting

No

10G support

No

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Power over Ethernet (PoE)

No

MAC address table

1000 entries

Store-and-forward

Yes

Flow control support

Yes

Packet buffer memory

0.768 MB

Fast Ethernet (copper) ports quantity

8

DC input voltage

5 V

Stackable

No

Supported network protocols

CSMA/CD, TCP/IP

Half duplex

Yes

Fanless

Yes
