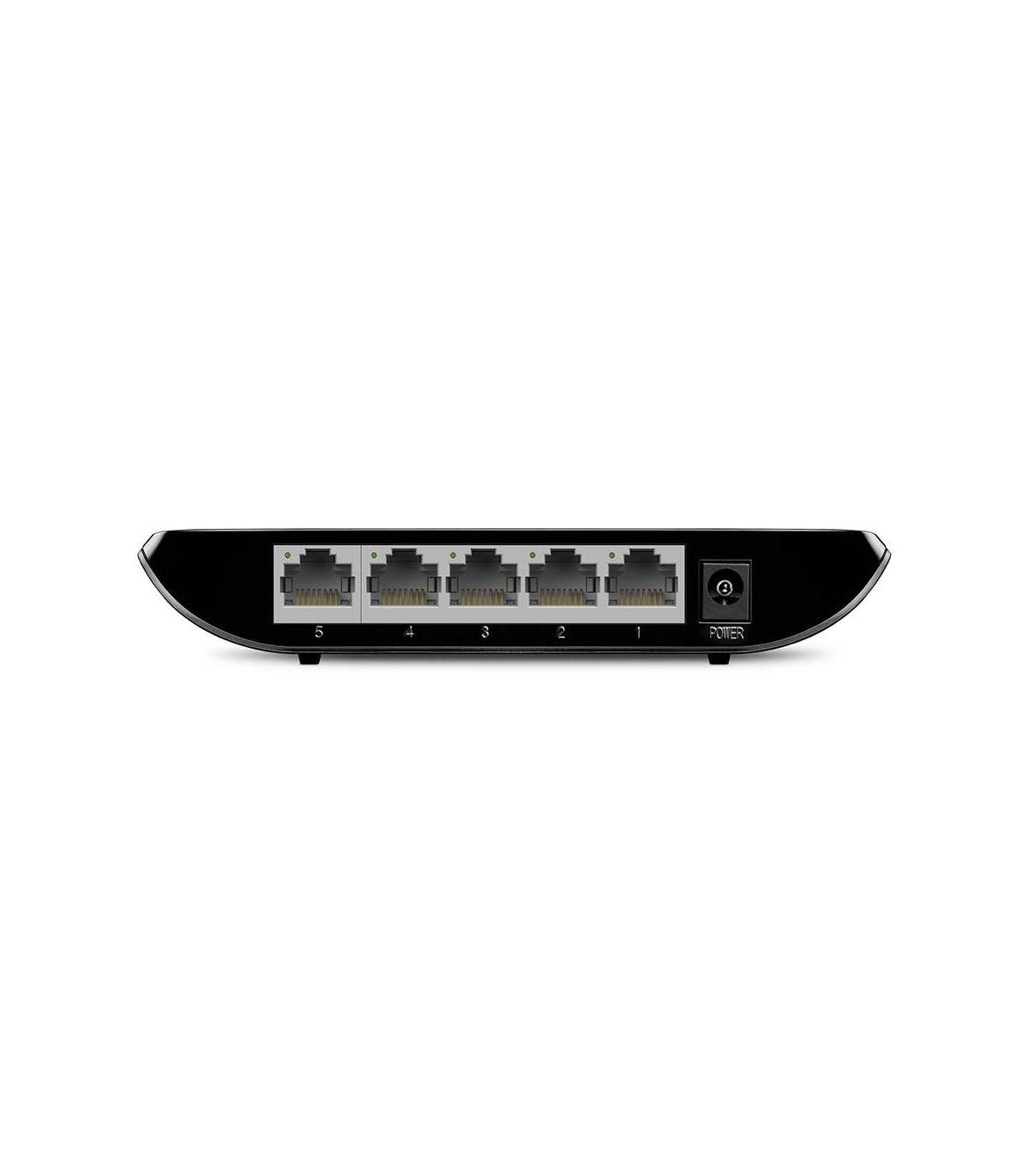

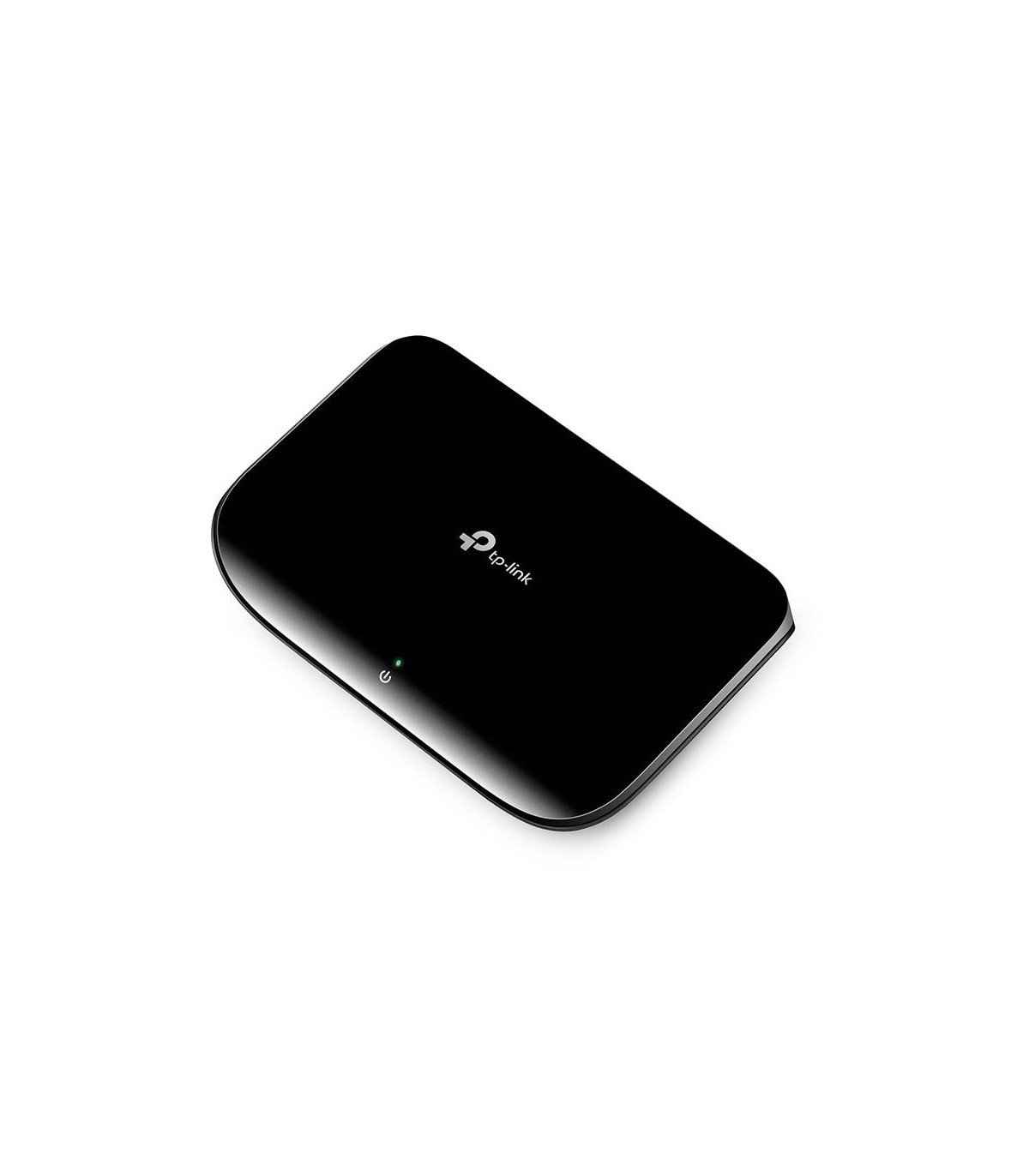

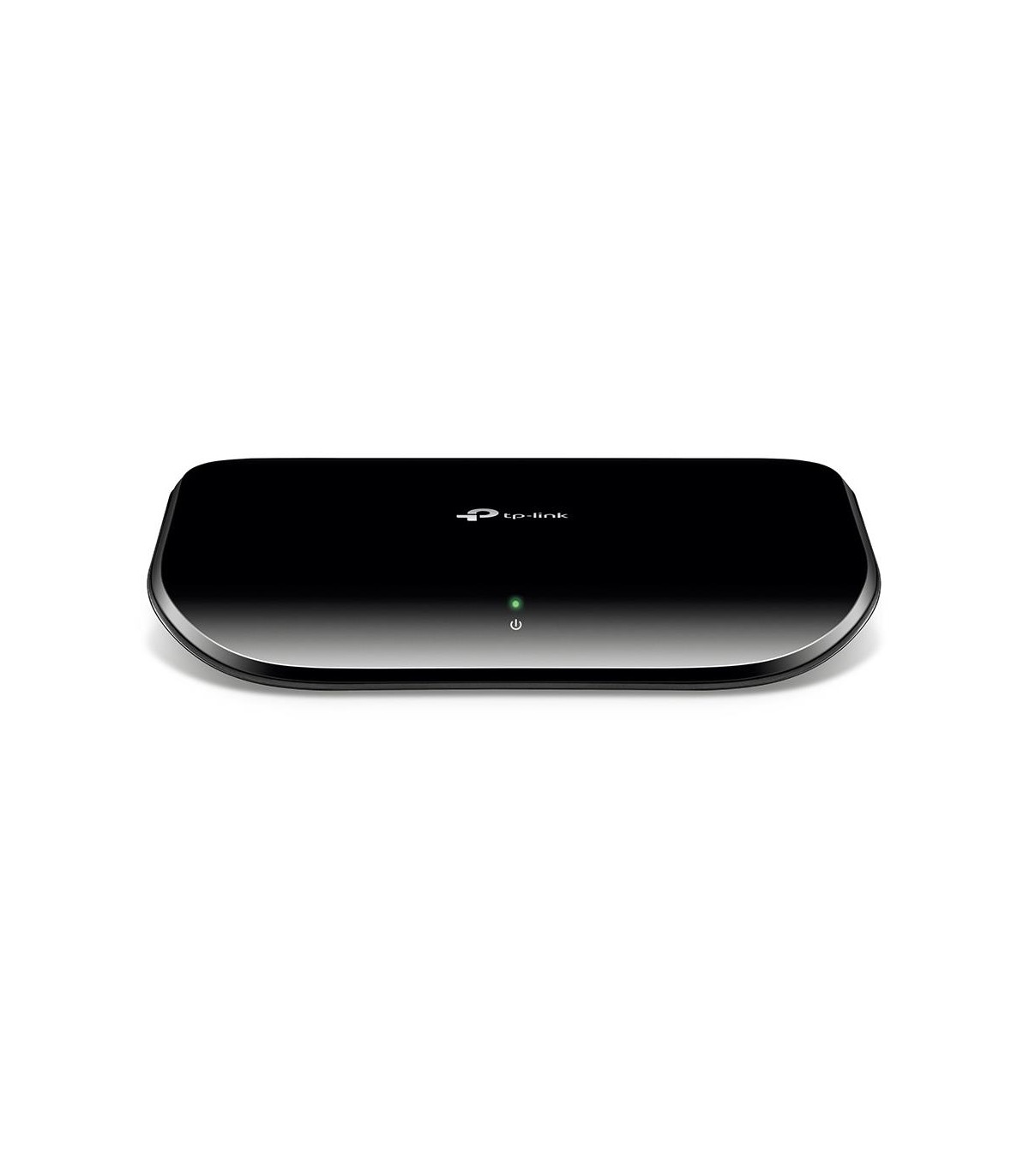

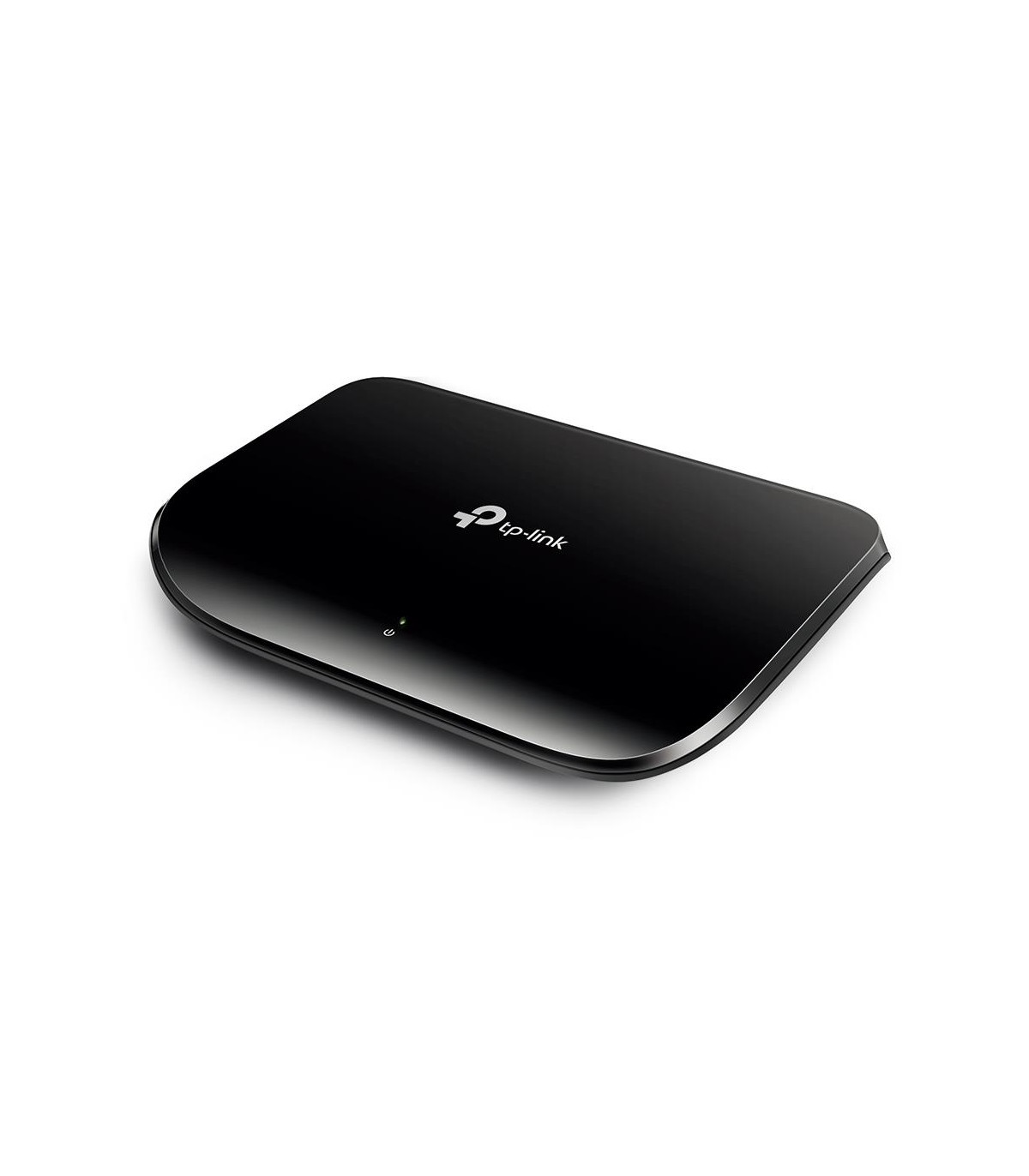

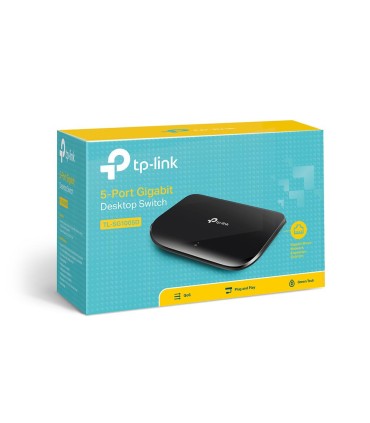

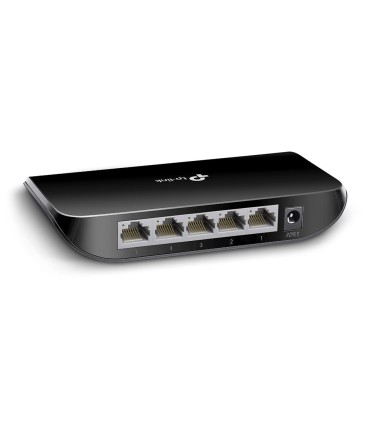

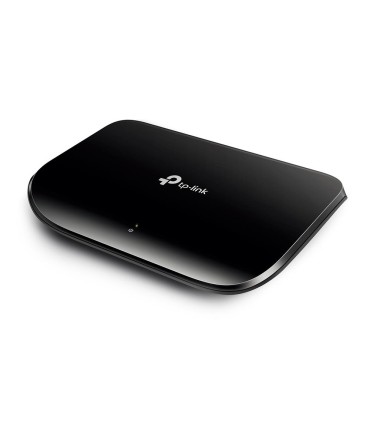

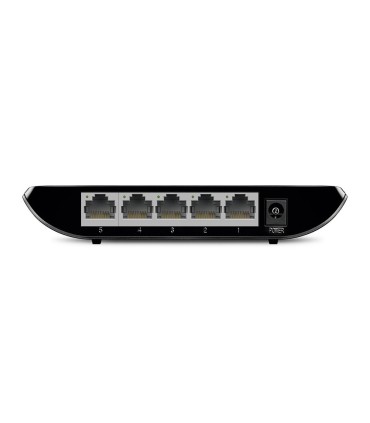

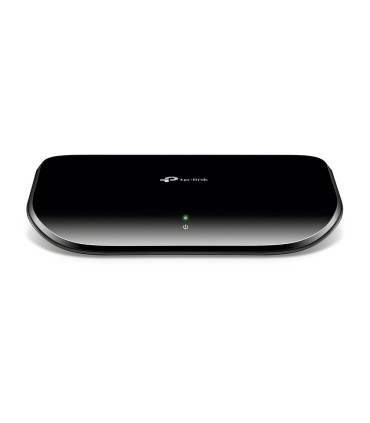

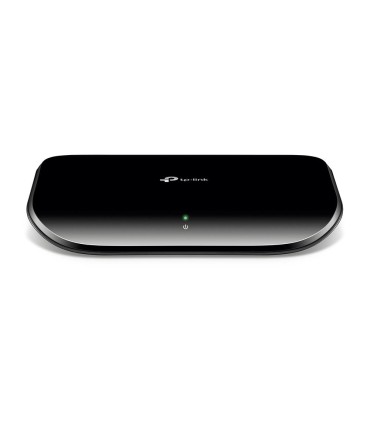

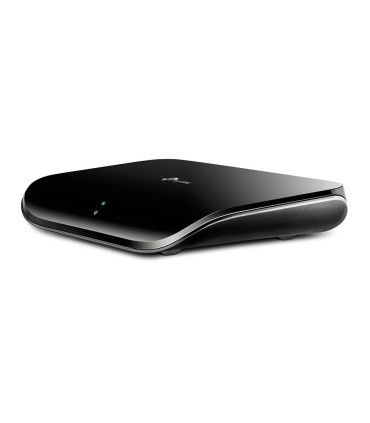

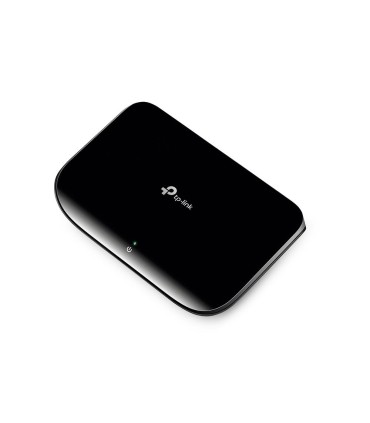

TP-LINK Switch 5x10Base-T / 100Base-TX / 1000Base-T 1 TL-SG1005D

Other features

Depth

108 mm

Height

28 mm

Width

165 mm

Unit Box Width

0.11

Unit Box Length

0.145

Unit Box Height

0.085

Category Code

SWI

Model name

TL-SG1005D

Model

TL-SG1005D

Switch type

Unmanaged

Switching capacity

10 Gbit/s

Auto-negotiation

Yes

Power source

DC

Unit Calculated Volume

0.001604 cubm

Unit Calculated Weight

0.277 kg

Units per Shipping Box

40

Summary

TP-Link TL-SG1005D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networkin

Product colour

Black

Package depth

108 mm

Package height

85 mm

Package weight

240 g

Package width

145 mm

Input current

0.6 A

Power consumption (max)

2.41 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Quick start guide

Yes

Storage temperature (T-T)

-40 - 70 °C

LED indicators

Yes

Heat dissipation

8.22 BTU/h

Maximum data transfer rate

1 Gbit/s

Full duplex

Yes

Jumbo frames support

Yes

Networking standards

IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x

Power connector

DC-in jack

Auto MDI/MDI-X

Yes

Input voltage

9 V

Rack mounting

No

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

No

Gigabit Ethernet (copper) ports quantity

5

MAC address table

8000 entries

Store-and-forward

Yes

Jumbo frames

15000

Flow control support

Yes

Supported data transfer rates

10/100/1000 Mbit/s

Half duplex

Yes

MAC address auto-aging supported

Yes

MAC address auto-learning supported

Yes
