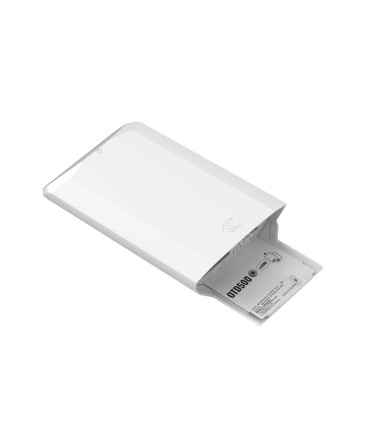

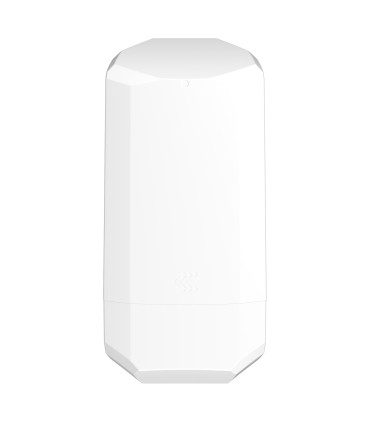

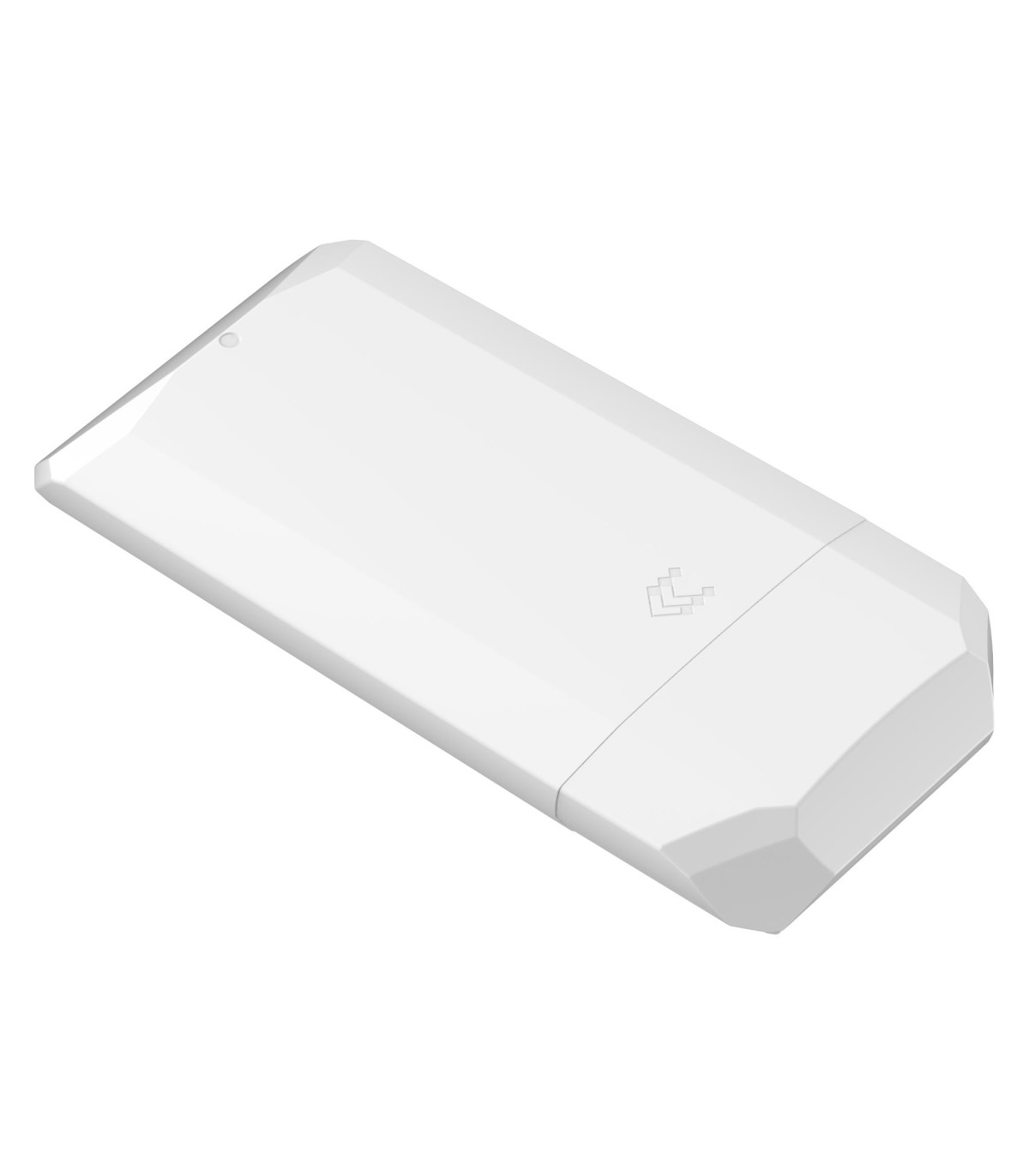

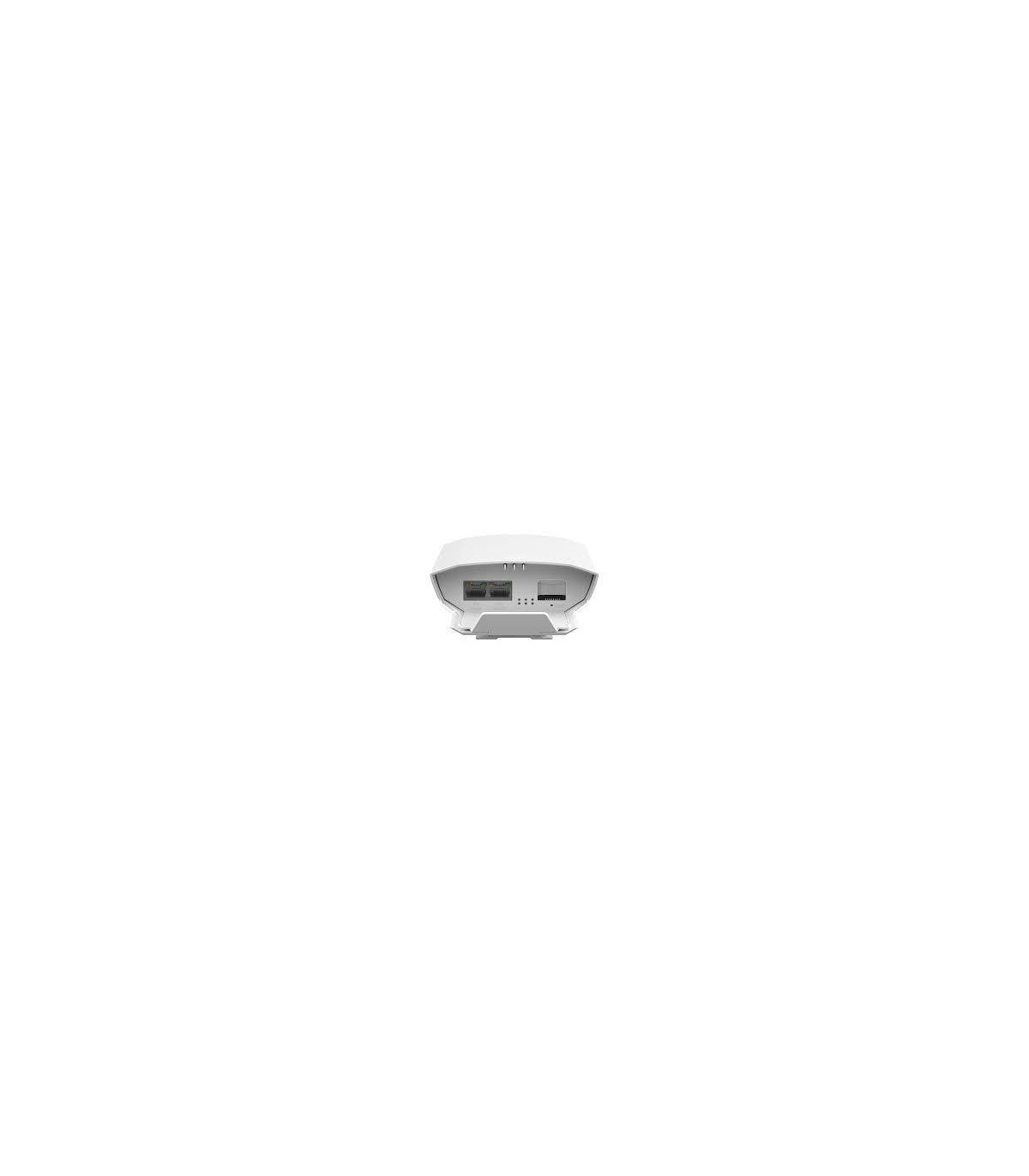

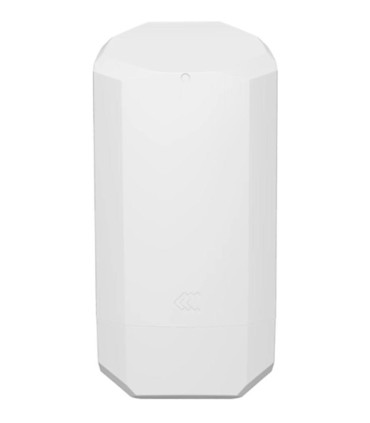

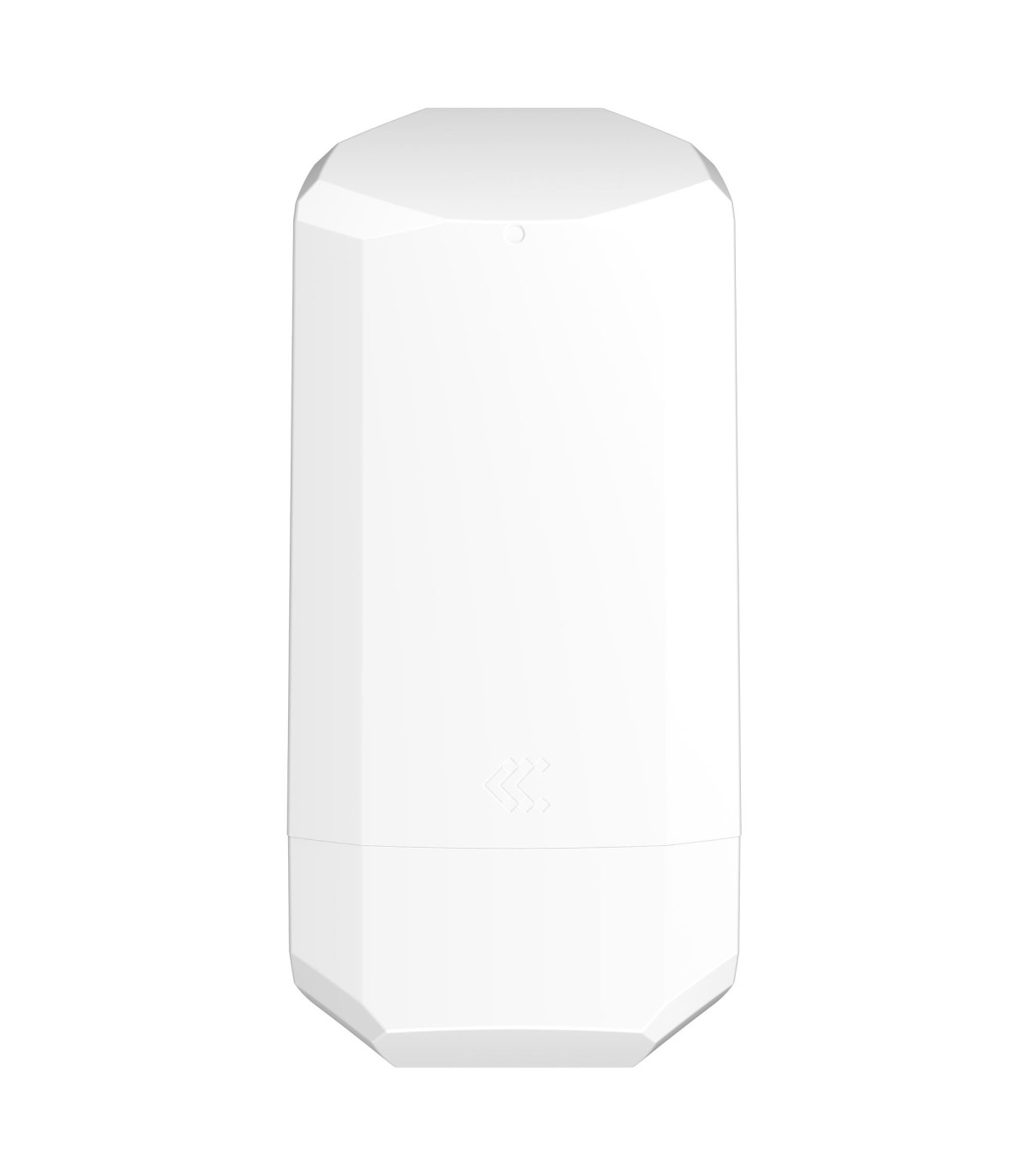

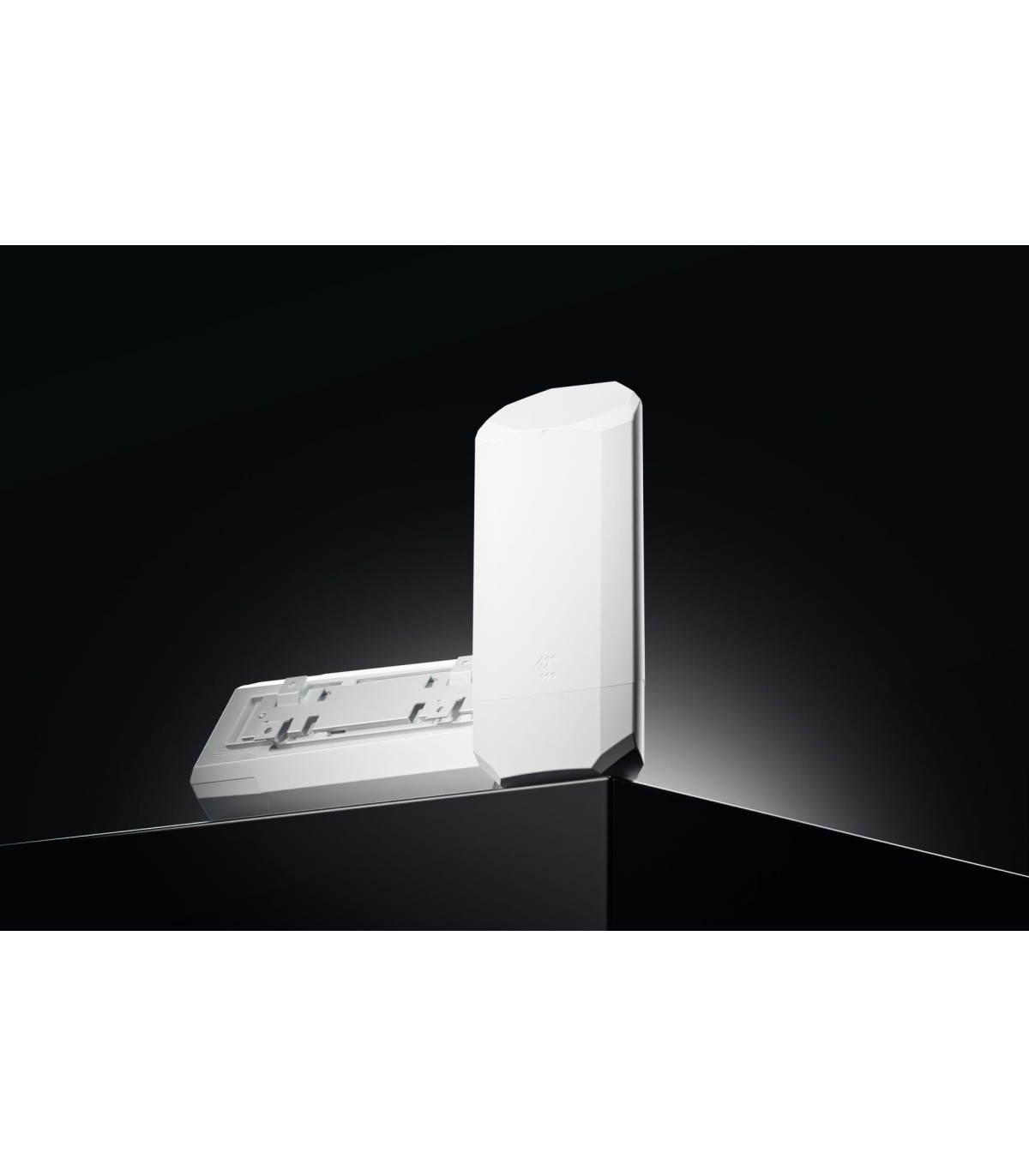

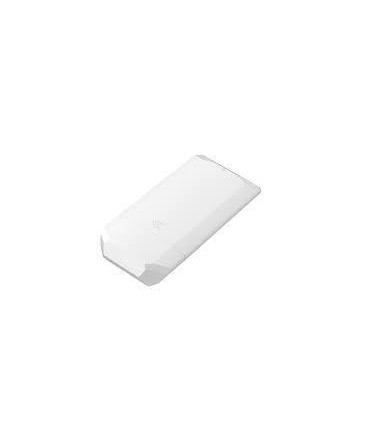

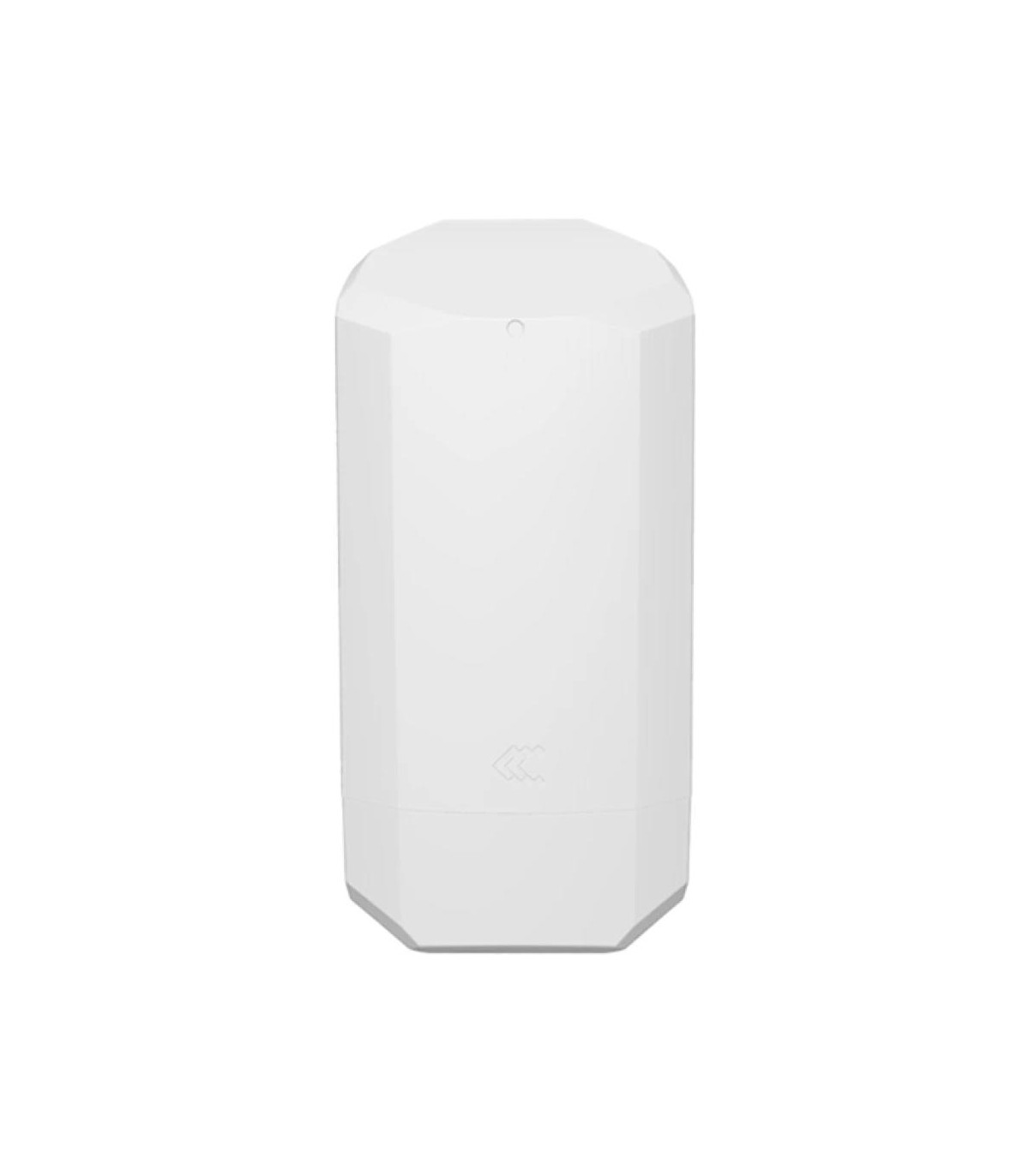

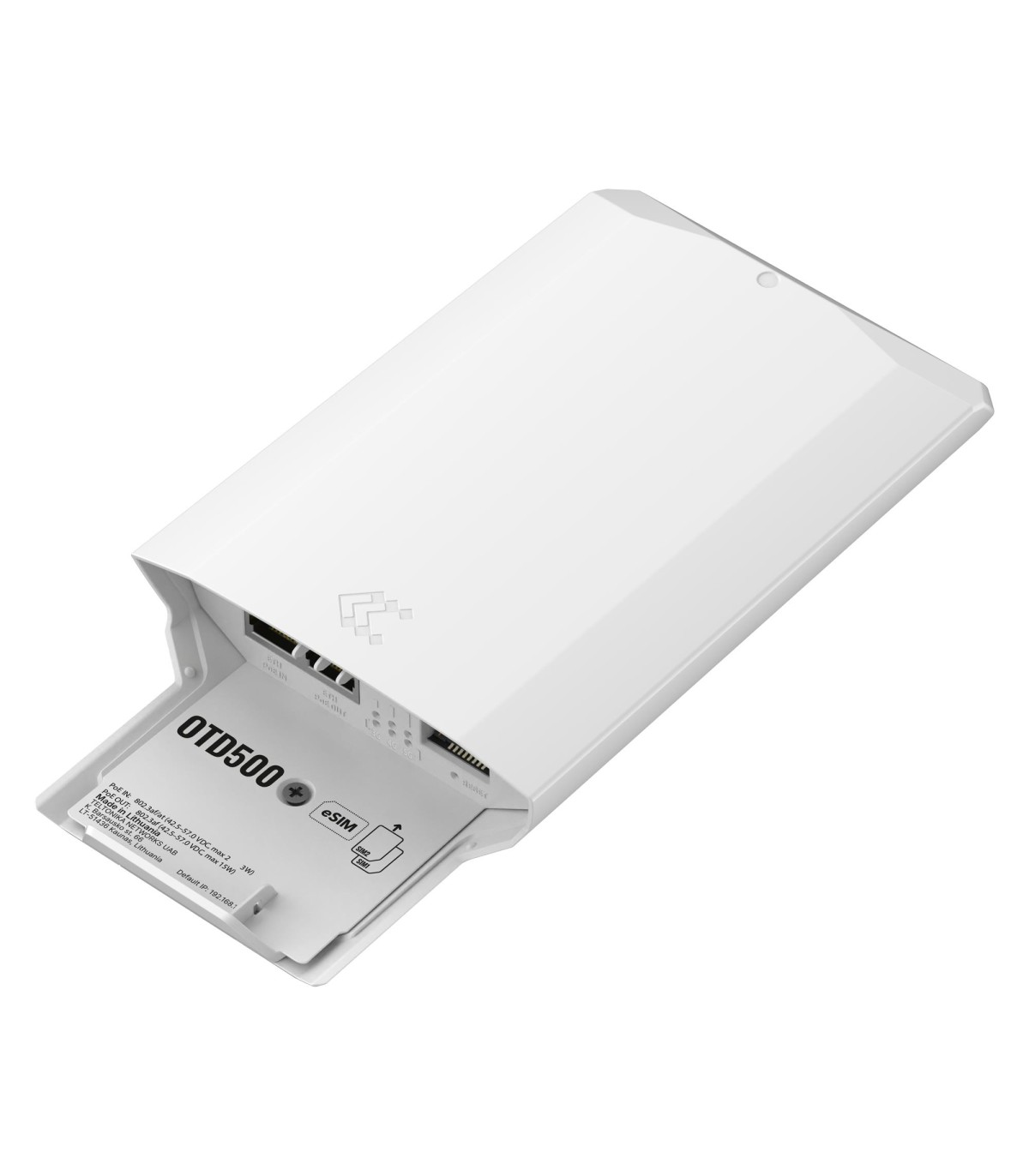

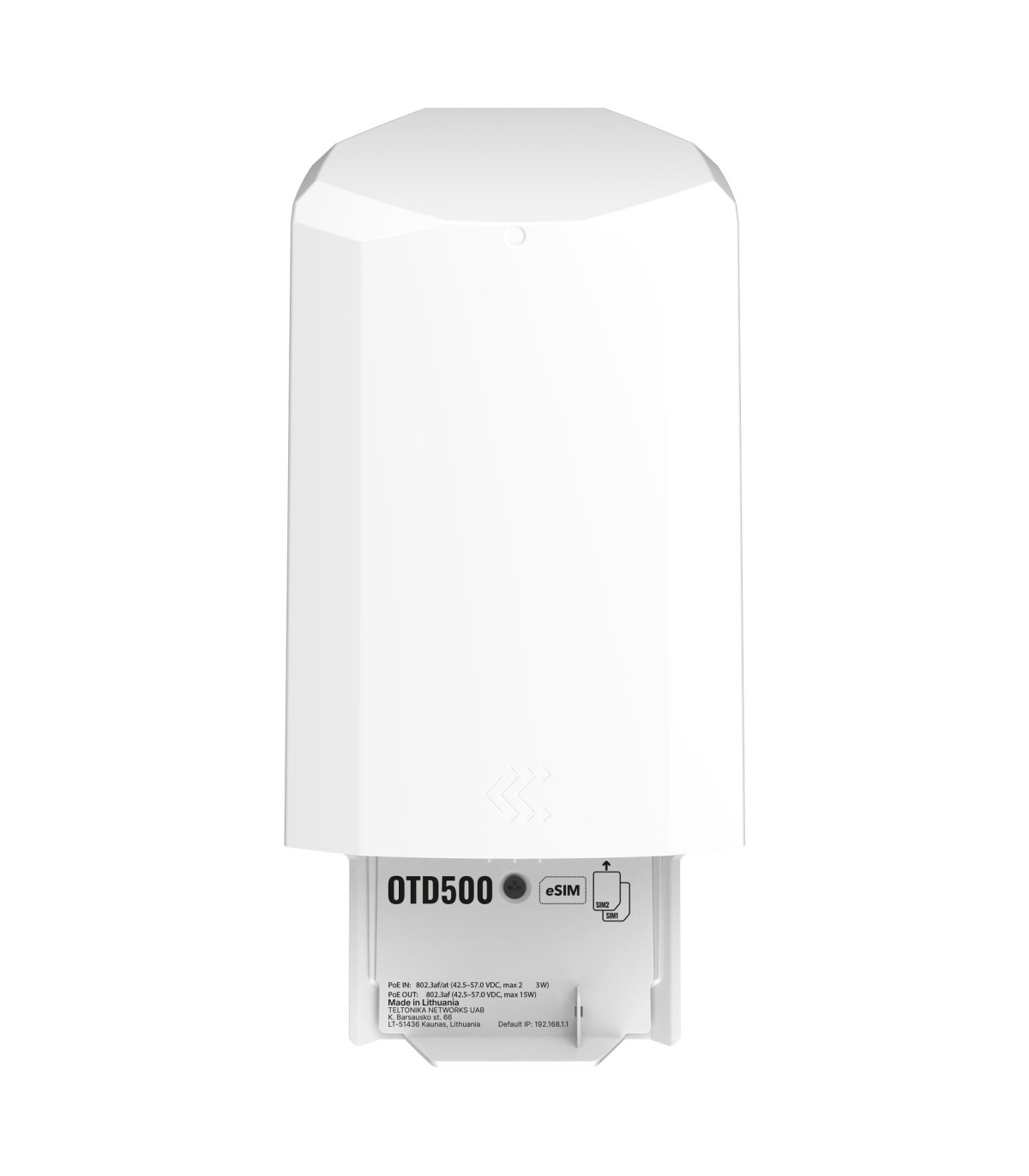

TELTONIKA WRL ROUTER 5G OUTDOOR/OTD500

Specification

Housing material

Plastic,Polycarbonate (PC)

Other features

Depth

235 mm

Height

49.3 mm

Width

110 mm

Unit Box Width

0.115

Unit Box Length

0.255

Unit Box Height

0.055

Category Code

ROU

Unit Calculated Volume

0.001613 cubm

Unit Calculated Weight

0.41 kg

Units per Shipping Box

1

Summary

Teltonika OTD500100000. Networking standards: IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 5G, 4G standard:

Product colour

White

Power consumption (typical)

2.5 W

Power consumption (max)

9 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

-40 - 55 °C

Compliance certificates

CB/EAC/RCM/UKCA/WEEE

Weight

385 g

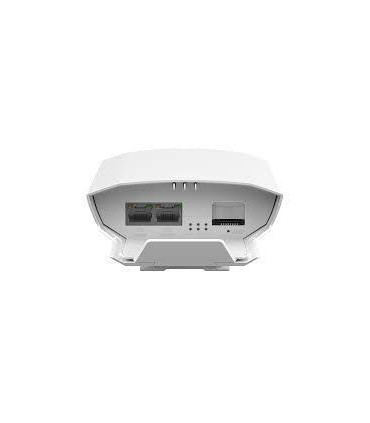

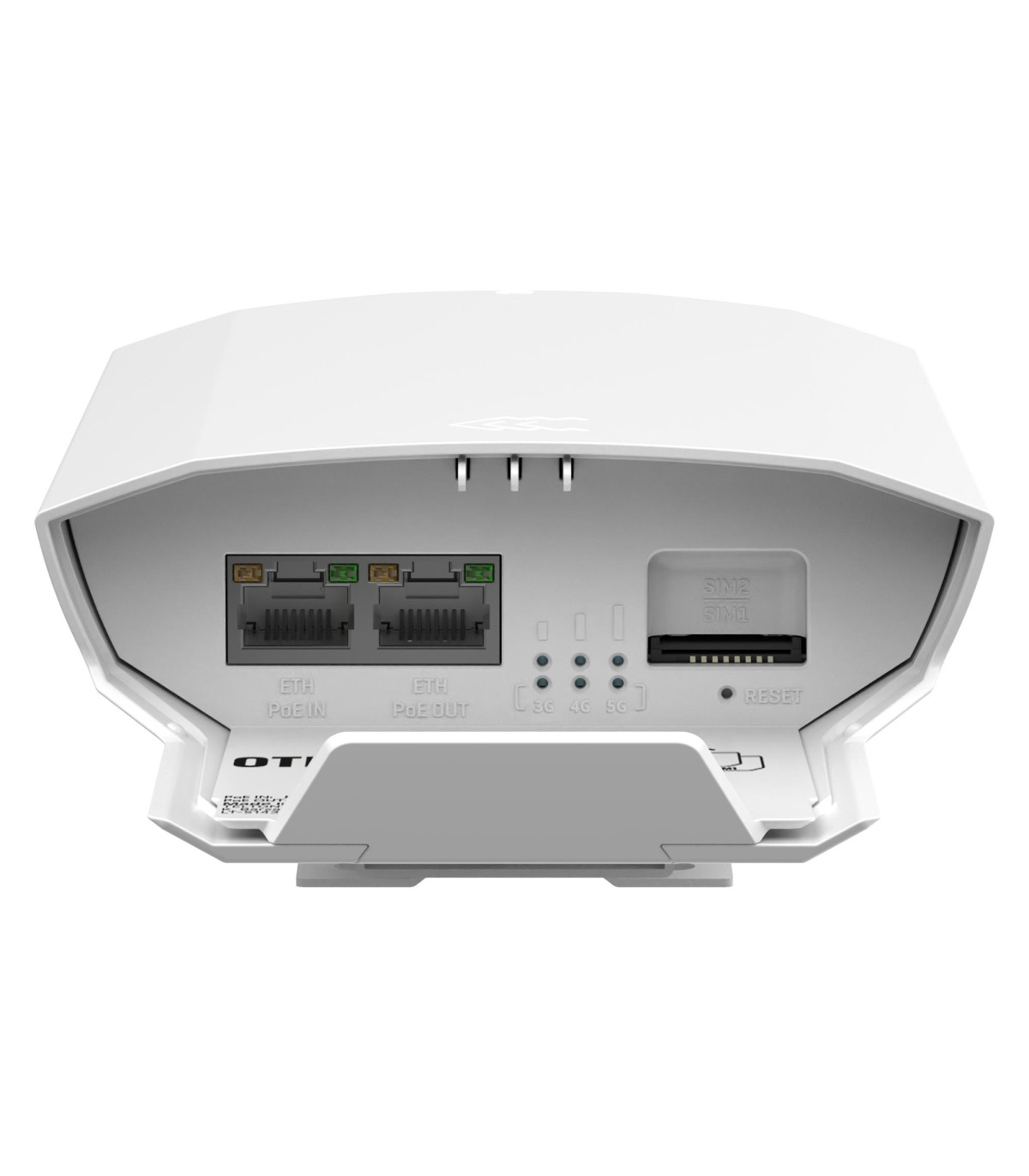

Ethernet LAN (RJ-45) ports

2

Operating system installed

RutOS

Ethernet LAN data rates

10/100/1000 Mbit/s

Reset button

Yes

Internal memory

256 MB

Internal memory type

DDR3

Cabling technology

10/100/1000Base-T(X)

4G standard

LTE

Mobile network generation

5G

Short Message Service (SMS)

Yes

Ethernet interface type

Gigabit Ethernet

Security algorithms

AES/CAST/DES/HTTPS/IPSec/SSH/SSL/TLS/TLS

Networking standards

IEEE 802.1x/IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u

Auto MDI/MDI-X

Yes

Flash memory

16 MB

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) ports quantity

2

Quality of Service (QoS) support

Yes

Web-based management

Yes

VLAN support

Yes

System event log

Yes

Routing protocols

BGP/EIGRP/NHRP/OSPFv2/RIP-1/RIP-2

DSL WAN

No

Ethernet WAN

Yes

SIM card slot

Yes

DHCP client

No

DHCP server

Yes

3G/4G USB modem compatibility

No

DMZ support

Yes

Firewall

Yes

Universal Plug and Play (UPnP)

Yes

DoS attack prevention

Yes

Network address translation (NAT)

Yes

URL filtering

Yes

SFP WAN

No
