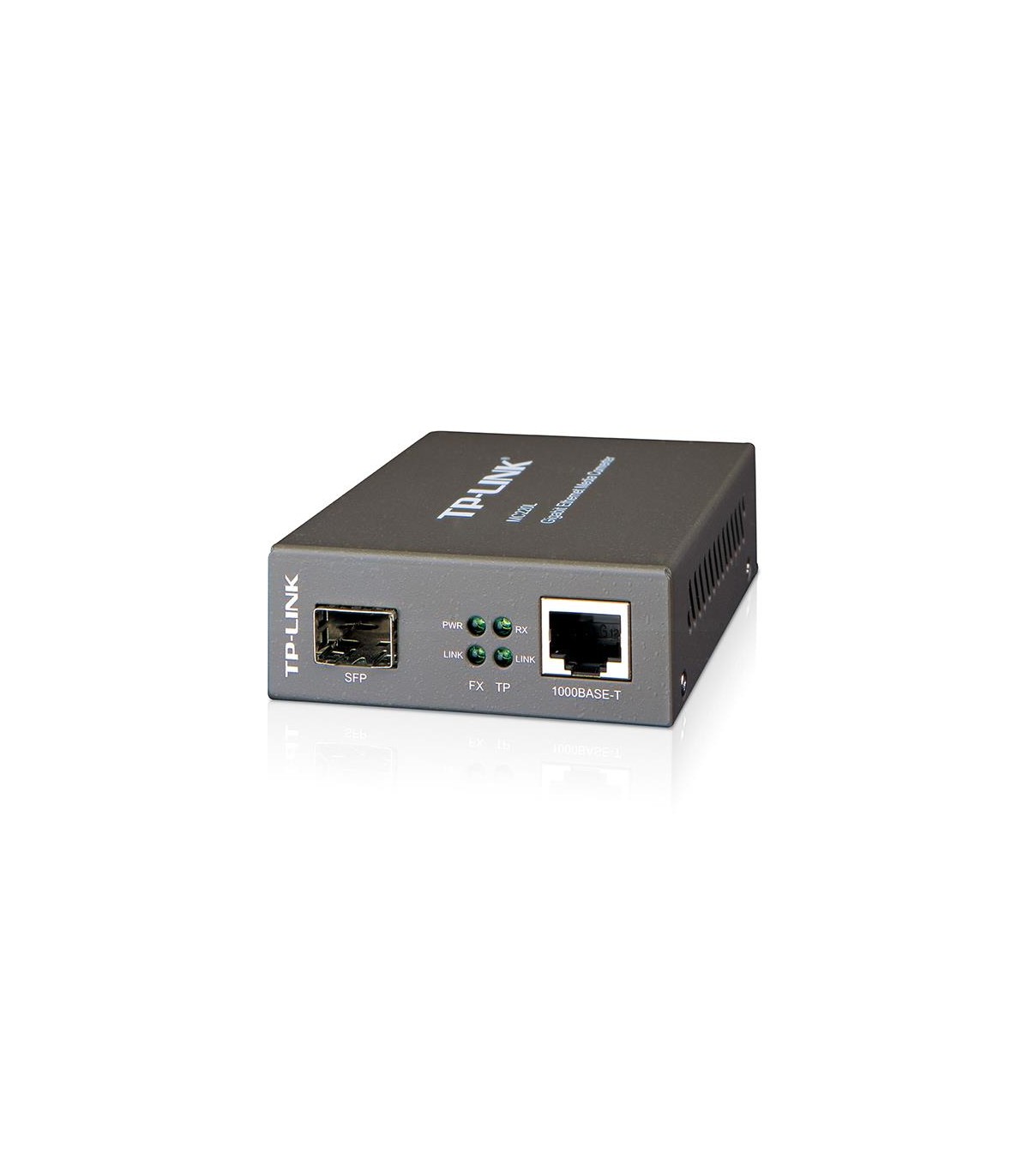

TP-LINK NET MEDIA CONVERTER 10KM/FX-SX/LX/LH MC220L

Other features

Depth

73 mm

Height

27 mm

Width

94.5 mm

Unit Box Width

0.17

Unit Box Length

0.205

Unit Box Height

0.065

Category Code

MCO

Unit Calculated Volume

0.002609 cubm

Unit Calculated Weight

0.503 kg

Units per Shipping Box

30

Summary

TP-Link Gigabit SFP Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 10000 m, Fiber mode structure: M

Product colour

Black

Package depth

165 mm

Package height

65 mm

Package weight

420 g

Package width

204 mm

Certification

FCC, CE

Power consumption (max)

1.7 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Storage temperature (T-T)

-40 - 70 °C

Harmonized System (HS) code

85176990

LED indicators

Link

Ethernet LAN (RJ-45) ports

1

External power adapter

Yes

Ethernet LAN data rates

1000 Mbit/s

Compliance industry standards

IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Connectivity technology

Wired

Cabling technology

UTP 5e, 5

Ethernet interface type

Gigabit Ethernet

Internal

No

Maximum data transfer rate

1000 Mbit/s

Full duplex

Yes

Networking standards

IEEE 802.1ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z

Auto MDI/MDI-X

Yes

Dimensions (WxDxH)

94.5 x 73 x 27 mm

Fiber ports quantity

1

Fiber optic connector

SFP

Maximum transfer distance

10000 m

Fiber mode structure

Multi-mode/Single-mode

I/O ports

1x 1000M SC1x 1000M RJ45
