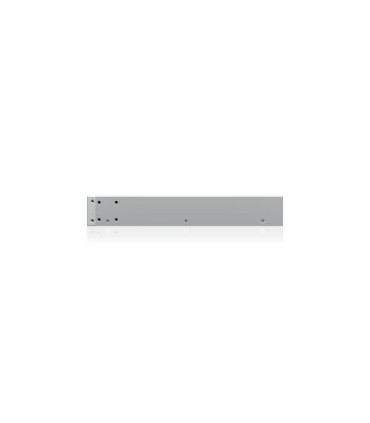

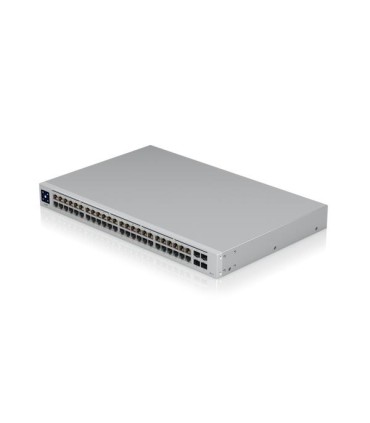

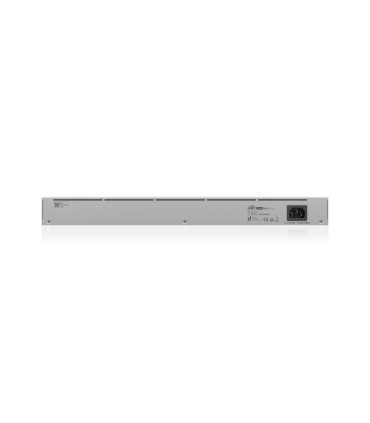

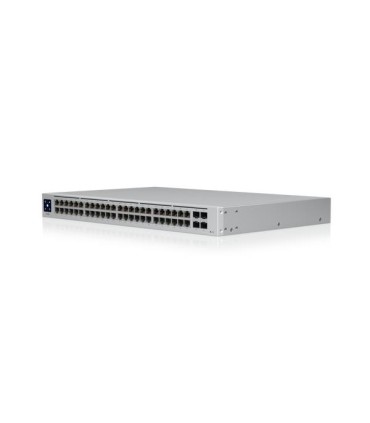

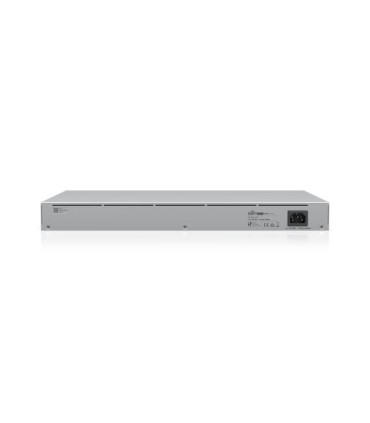

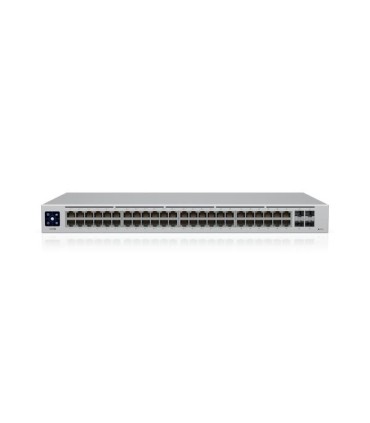

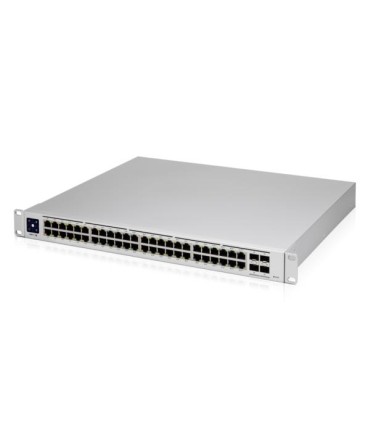

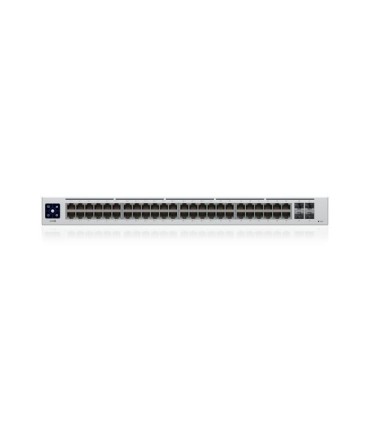

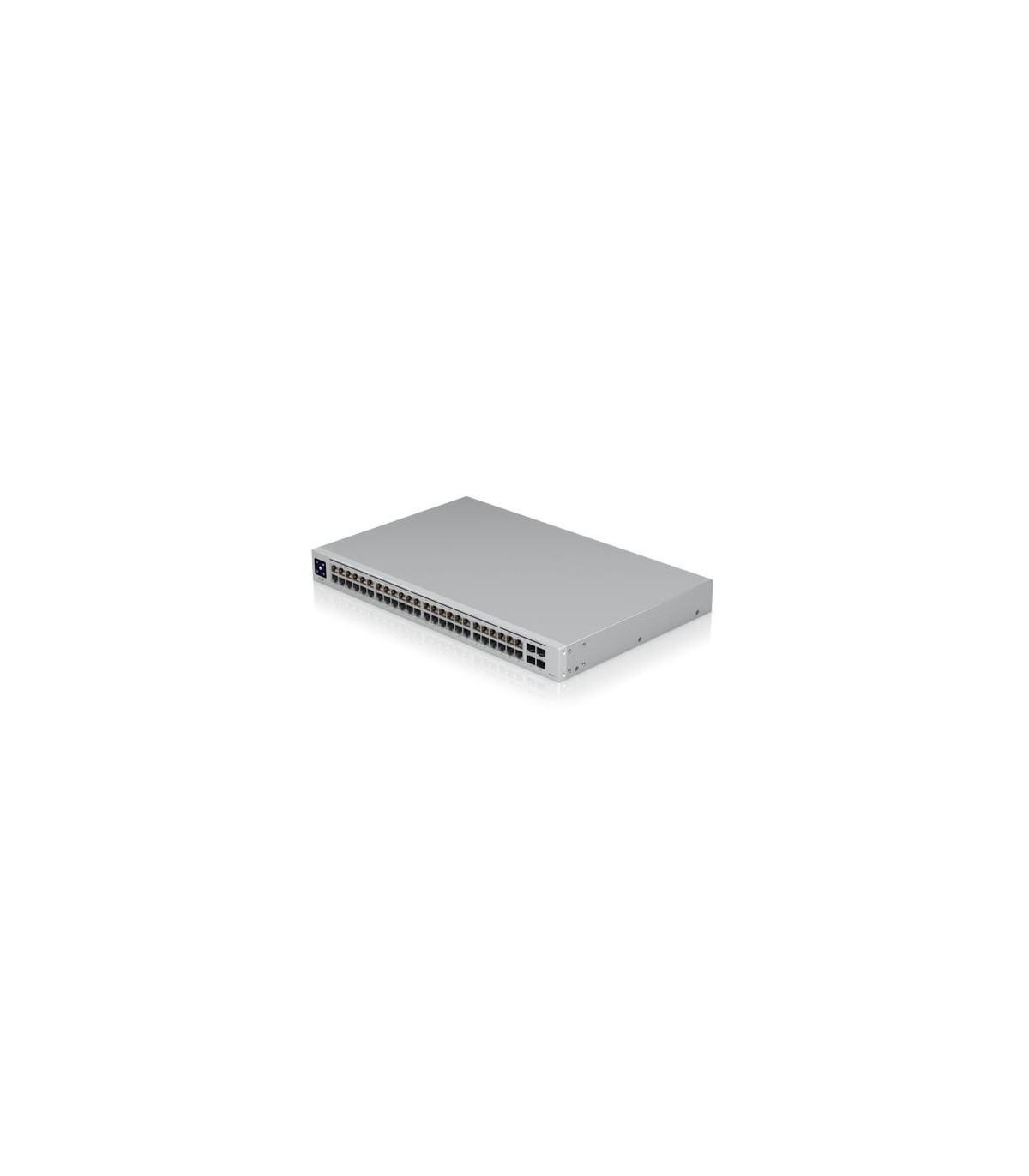

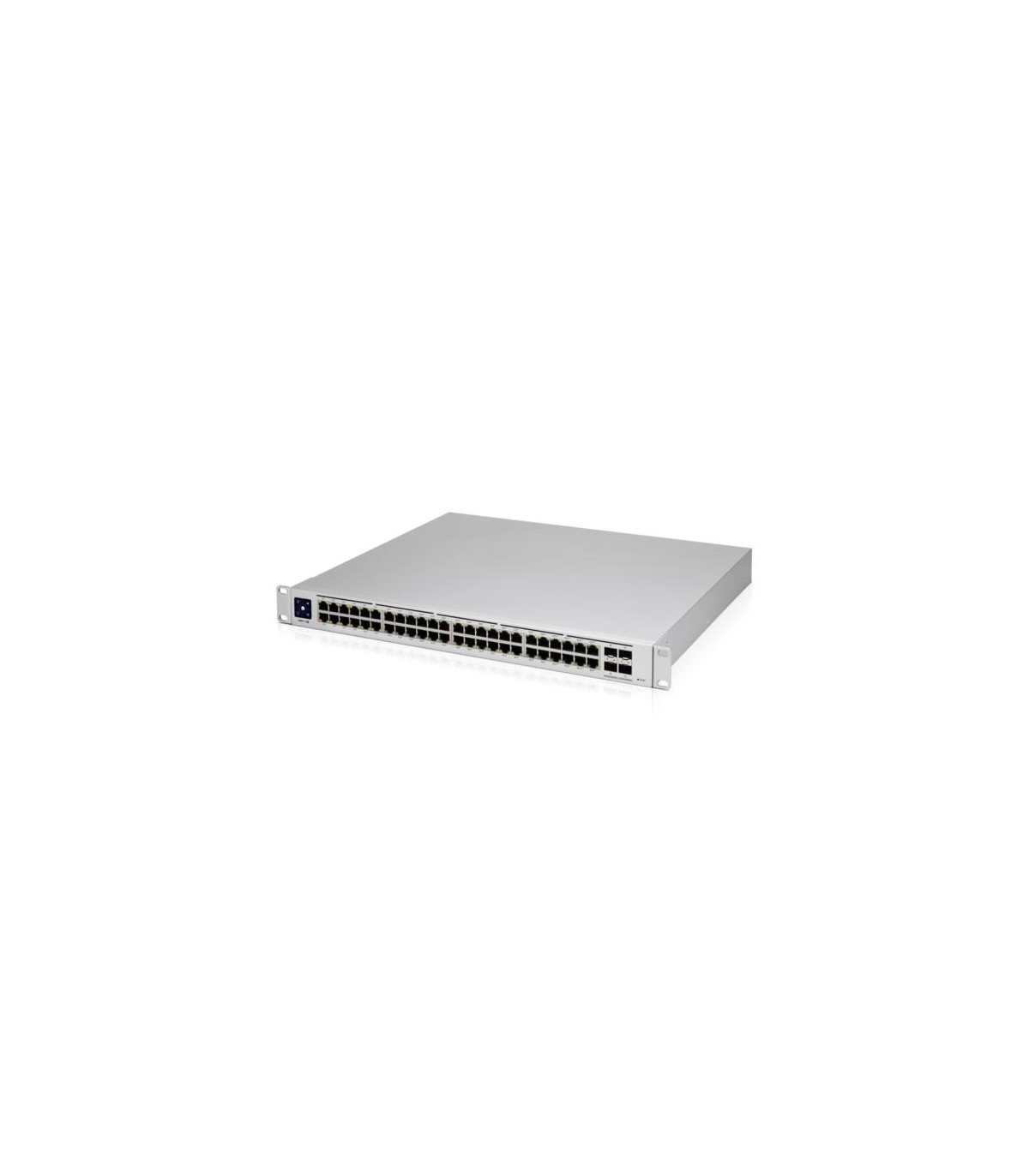

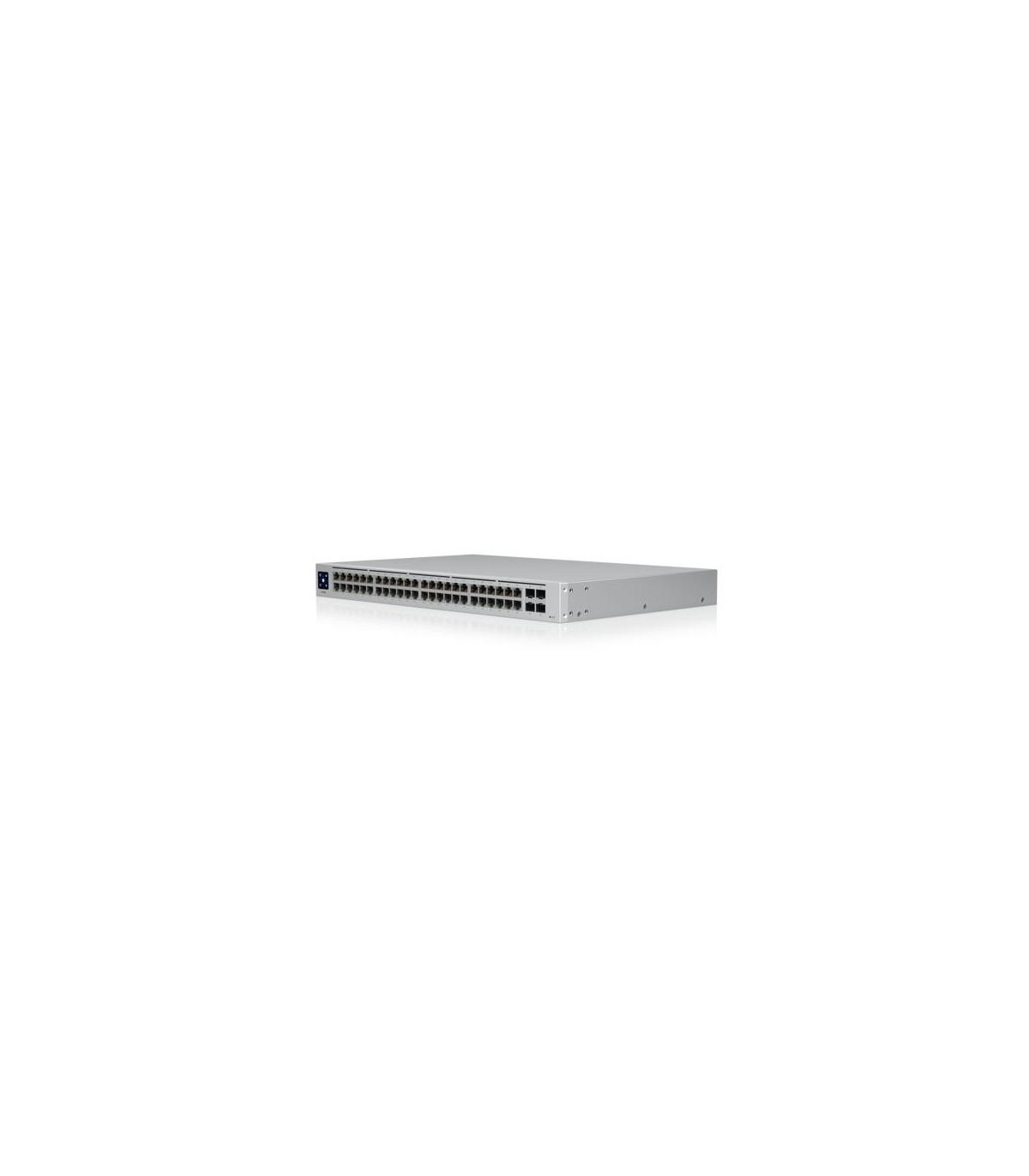

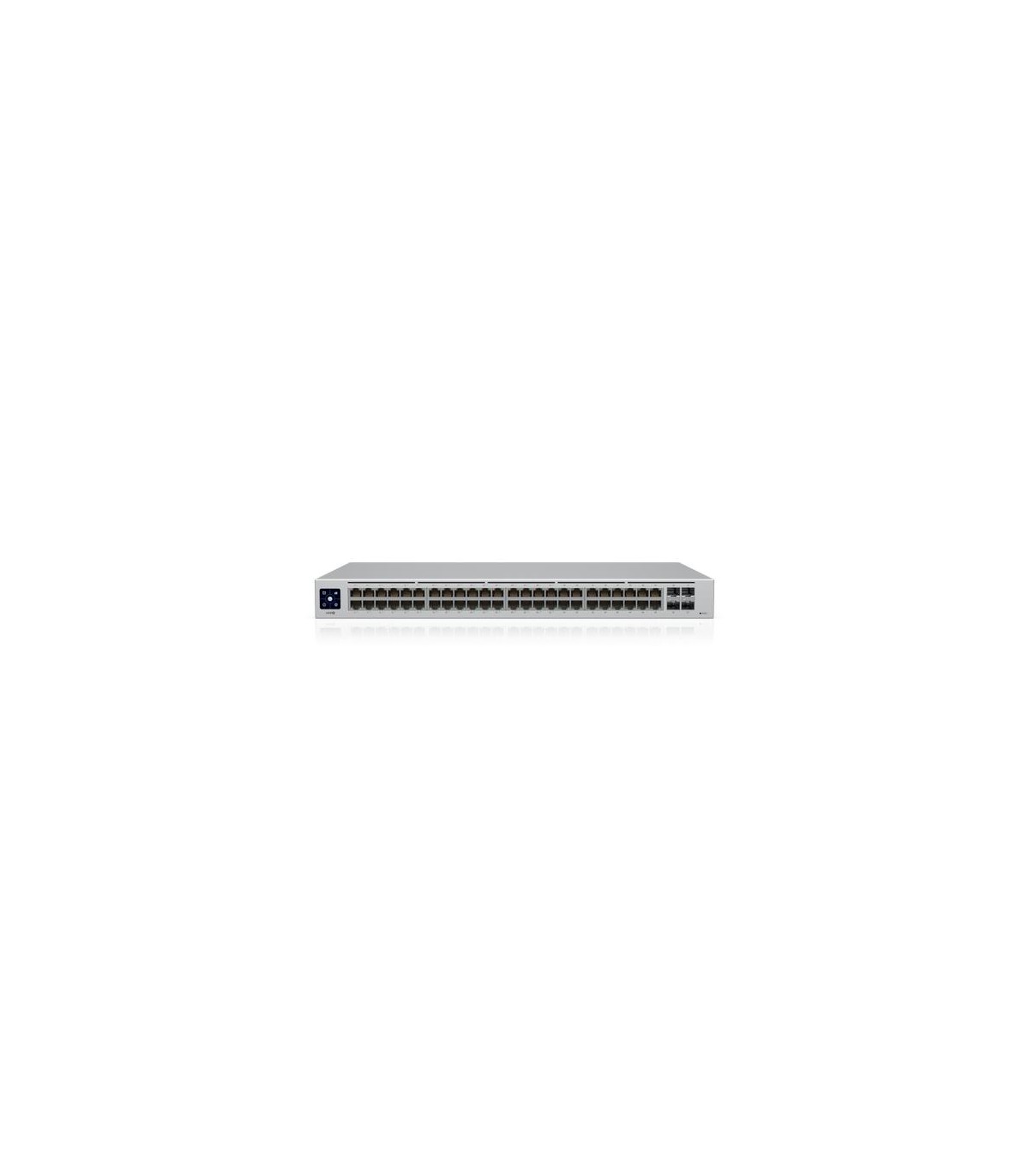

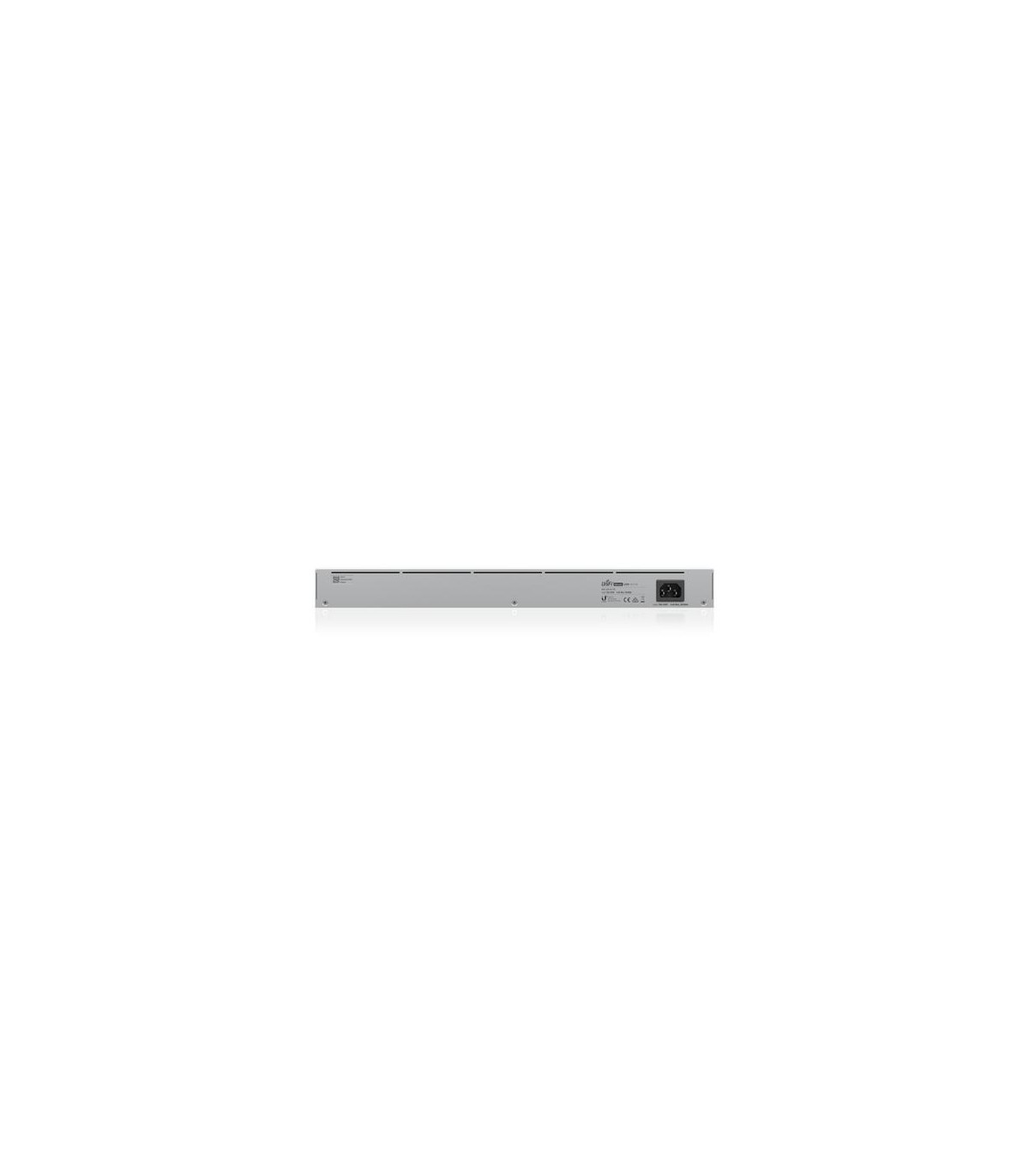

UBIQUITI Switch USW-48-POE Type L2 Rack 48x10Base-T / 100Base-TX / 1000Base-T 4xSFP PoE ports 32 195 Watts USW-48-POE

Other features

Depth

285 mm

Height

43.7 mm

Width

442.4 mm

Unit Box Width

0.13

Unit Box Length

0.54

Unit Box Height

0.43

Category Code

SWI

Model name

USW-48-POE

Form Factor

1U

Switch type

Managed

Switching capacity

104 Gbit/s

Forwarding rate

77.38 Mpps

Power source

AC/DC

Unit Calculated Volume

0.03019 cubm

Unit Calculated Weight

6.28 kg

Units per Shipping Box

2

Summary

Ubiquiti UniFi USW-48-POE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 104 Gbit/s. Networking standards: IEEE 802

Product colour

Stainless steel

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Certification

CE, FCC, IC

Power consumption (max)

45 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

-5 - 40 °C

Weight

4520 g

Manual

Yes

LED indicators

Activity/Link/Speed

Power supply included

Yes

Jumbo frames support

Yes

Networking standards

IEEE 802.1x/IEEE 802.3af/IEEE 802.3at

Auto MDI/MDI-X

Yes

Rack mounting

Yes

10G support

No

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

Flow control support

Yes

Power over Ethernet (PoE) power per port

32 W

Total Power over Ethernet (PoE) budget

195 W

Switch layer

L2

Port mirroring

Yes

Link aggregation

Yes

VLAN support

Yes

Fanless

Yes

Throughput

52 Gbit/s

SFP module slots quantity

4

Power over Ethernet plus (PoE+) ports quantity

32

Authentication type

RADIUS

Auto-sensing

Yes

Spanning tree protocol

Yes
