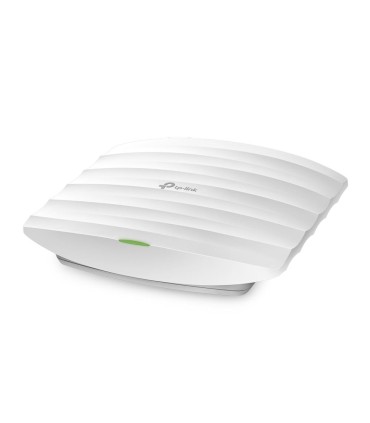

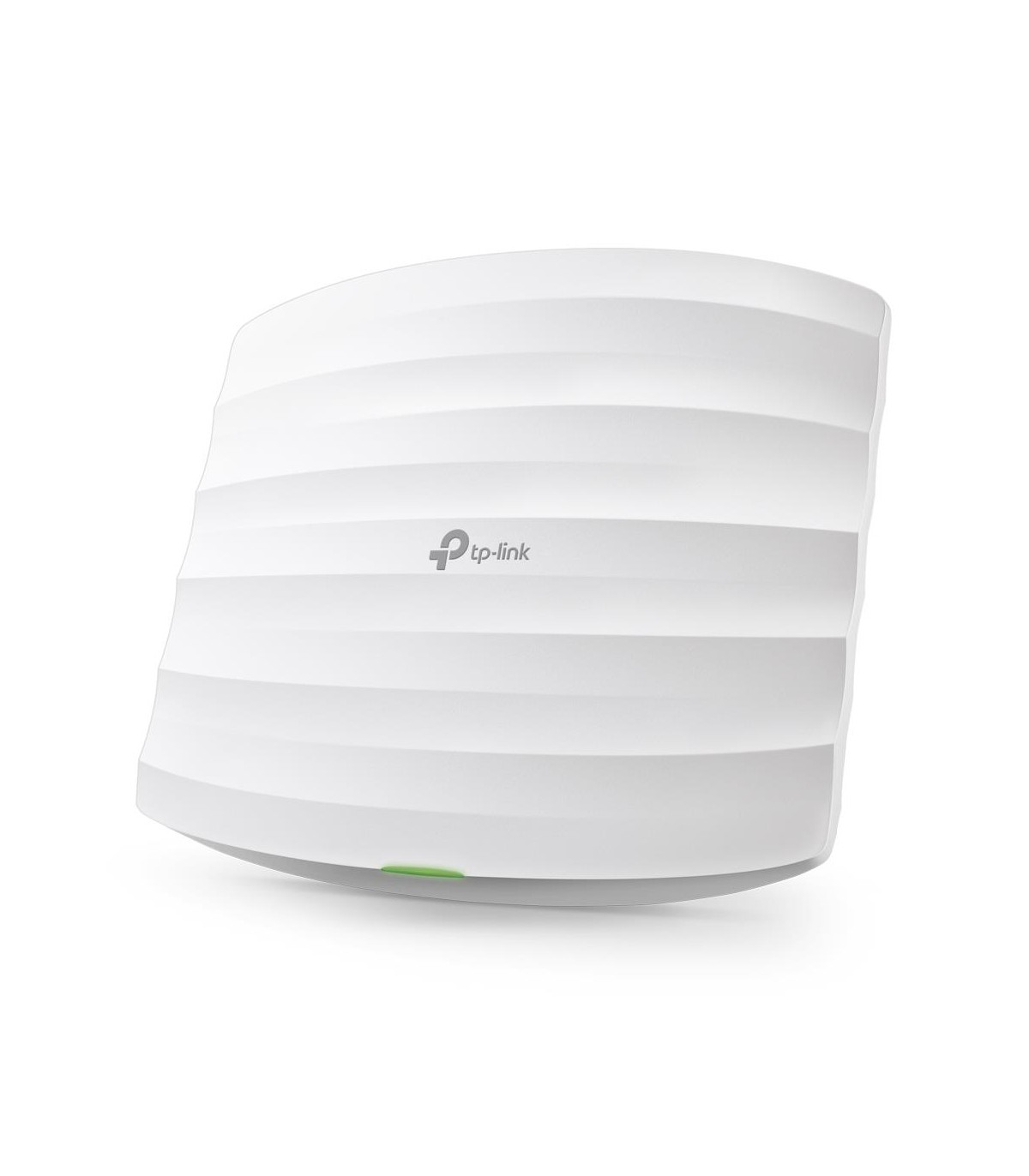

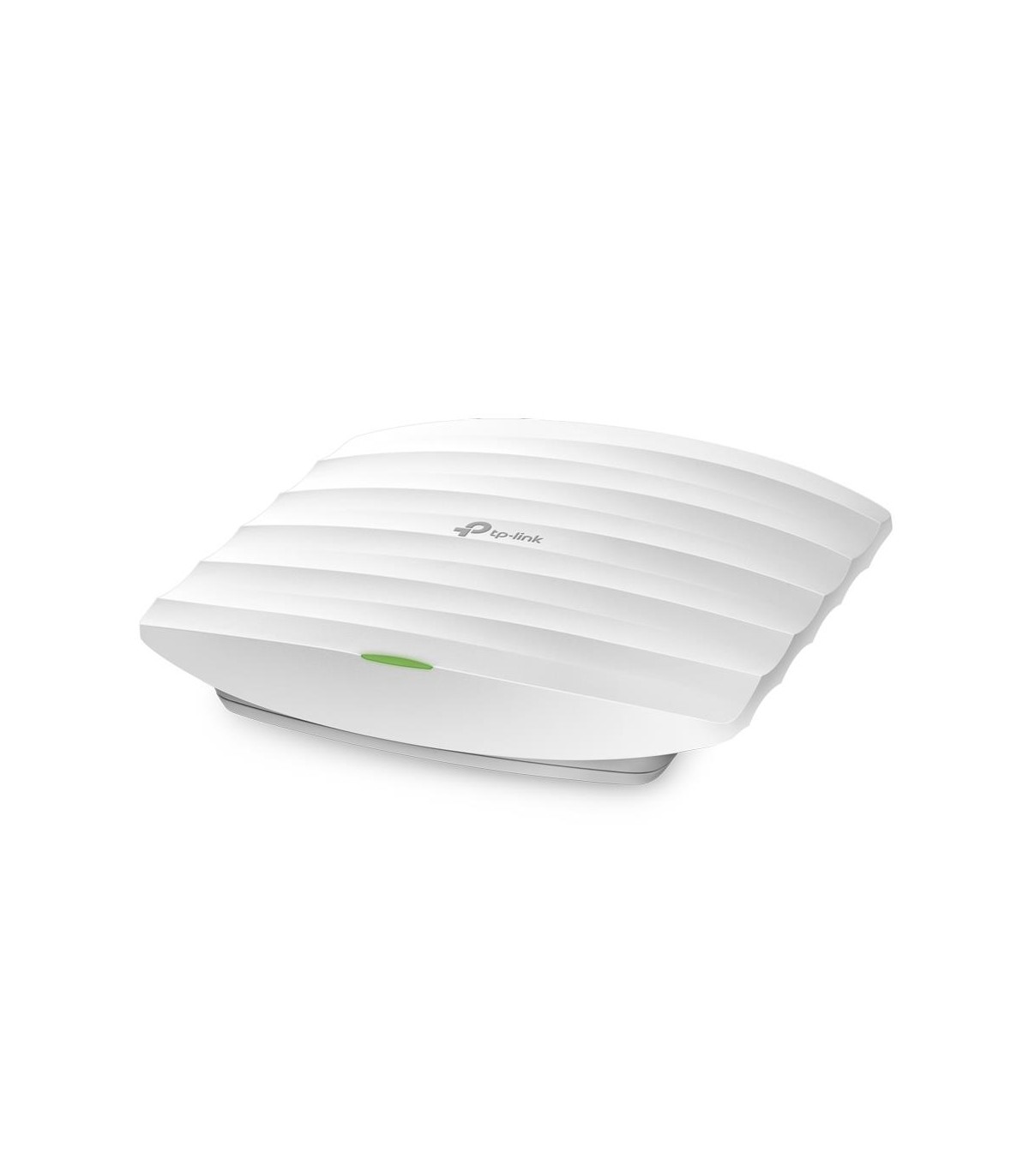

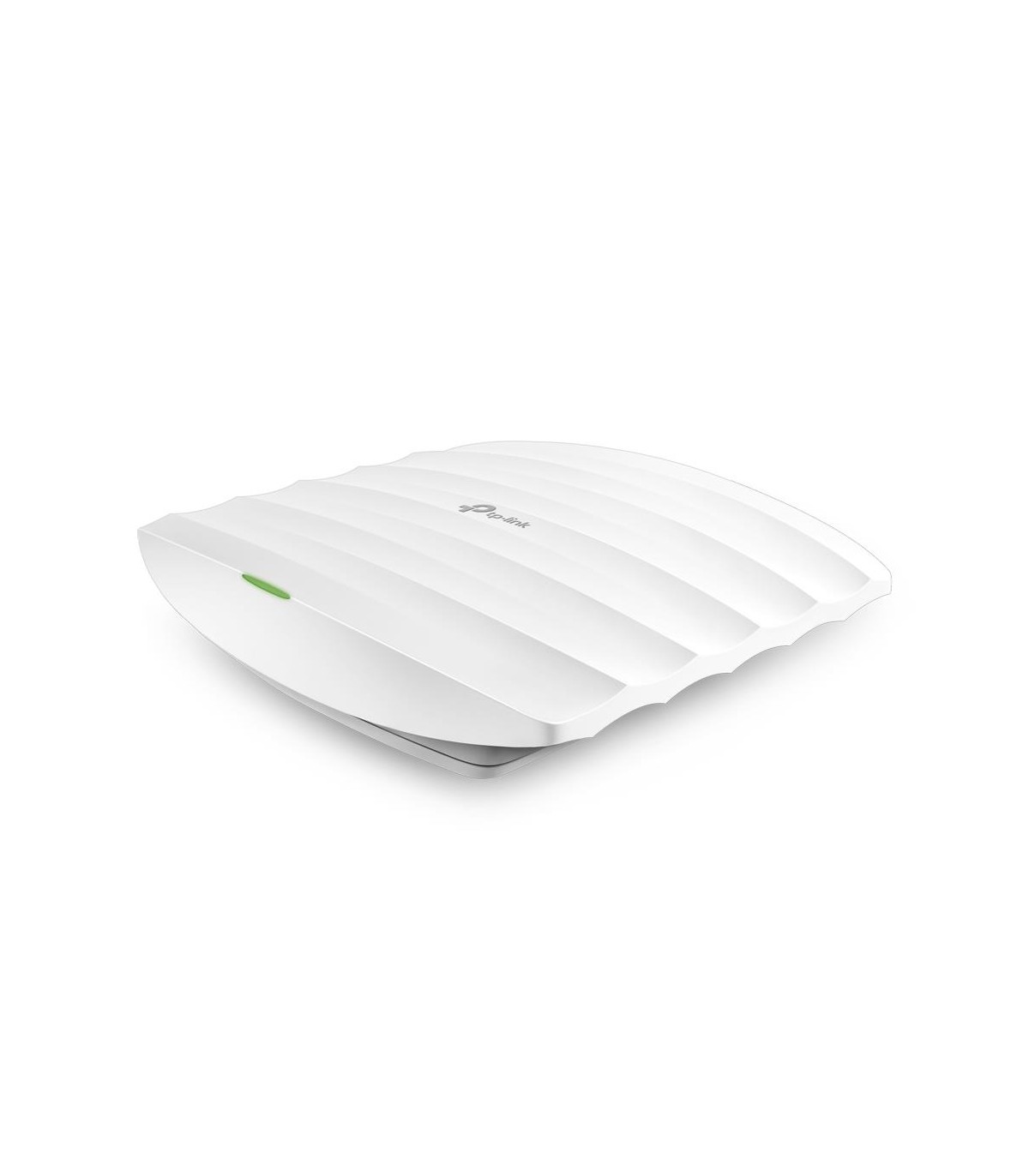

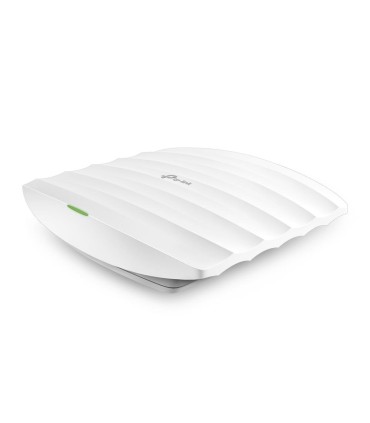

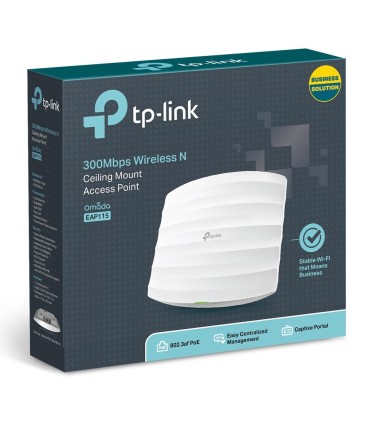

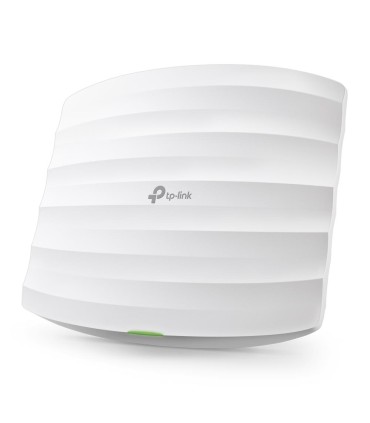

TP-LINK Access Point Omada 300 Mbps IEEE 802.3af IEEE 802.11b IEEE 802.11g IEEE 802.11n 1xRJ45 Number of antennas 2 EAP115

Other features

Depth

180 mm

Height

47.5 mm

Width

180 mm

Unit Box Width

0.25

Unit Box Length

0.27

Unit Box Height

0.07

Category Code

WAP

Model name

EAP115

Series

Omada

Antenna Type

Internal

Unit Calculated Volume

0.004725 cubm

Unit Calculated Weight

0.696 kg

Units per Shipping Box

1

Summary

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK. Ethernet LAN data rates: 10

Product colour

White

Cable lock slot

Yes

Power consumption (typical)

5 W

Package depth

268 mm

Package height

69 mm

Package weight

600 g

Package width

246 mm

Cable lock slot type

Kensington

Sustainability compliance

Yes

Certification

CE, FCC, RoHS

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Quick start guide

Yes

Compliance certificates

CE/Federal Communications Commission (FCC)/RoHS

Storage temperature (T-T)

-40 - 70 °C

Harmonized System (HS) code

85176990

LED indicators

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10/100/1000 Mbit/s

Minimum system requirements

Microsoft Windows 10/8/7/Vista/XP

Quantity per pack

1 pc(s)

On/off switch

Yes

Frequency band

2.4 - 2.4835 GHz

Reset button

Yes

Cabling technology

10/100Base-T(X)

Security algorithms

128-bit WEP/152-bit WEP/64-bit WEP/HTTPS/SNMP/SSH/WPA/WPA2-Enterprise/WPA2-PSK/WPA-PSK

Maximum data transfer rate

300 Mbit/s

Mounting kit

Yes

Networking standards

IEEE 802.11b/IEEE 802.11g/IEEE 802.11n

Output current

1 A

Output voltage

12 V

Power over Ethernet (PoE)

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

VLAN support

Yes

Virtual LAN features

VLAN mapping

Access Control List (ACL)

Yes

Rate limiting

Yes

MAC address filtering

Yes

Power over Ethernet (PoE) type supported

Passive PoE

Antennas quantity

2

Wi-Fi Multimedia (WMM)/(WME)

Yes

Receiver sensitivity

300M: -71dBm@10% PER150M: -75dBm@10% PER54M: -78dBm@10% PER11M: -93dBm@8% PER6M: -92dBm@10% PER1M: -96dBm@8% PER

Antenna gain level (max)

3 dBi

Antenna direction type

Omni-directional

Automatic channel selection

Yes

2.4 GHz

Yes

5 GHz

No

6 GHz

No

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

Transmitting power (CE)

19 dBm

Transmitting power (FCC)

21 dBm

Syslog

Yes

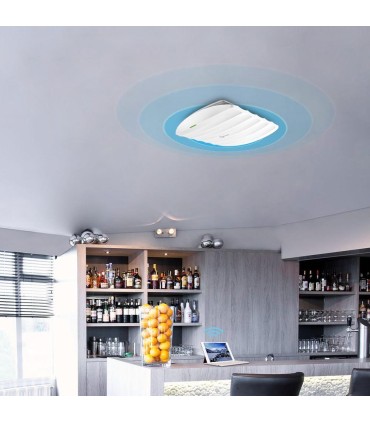

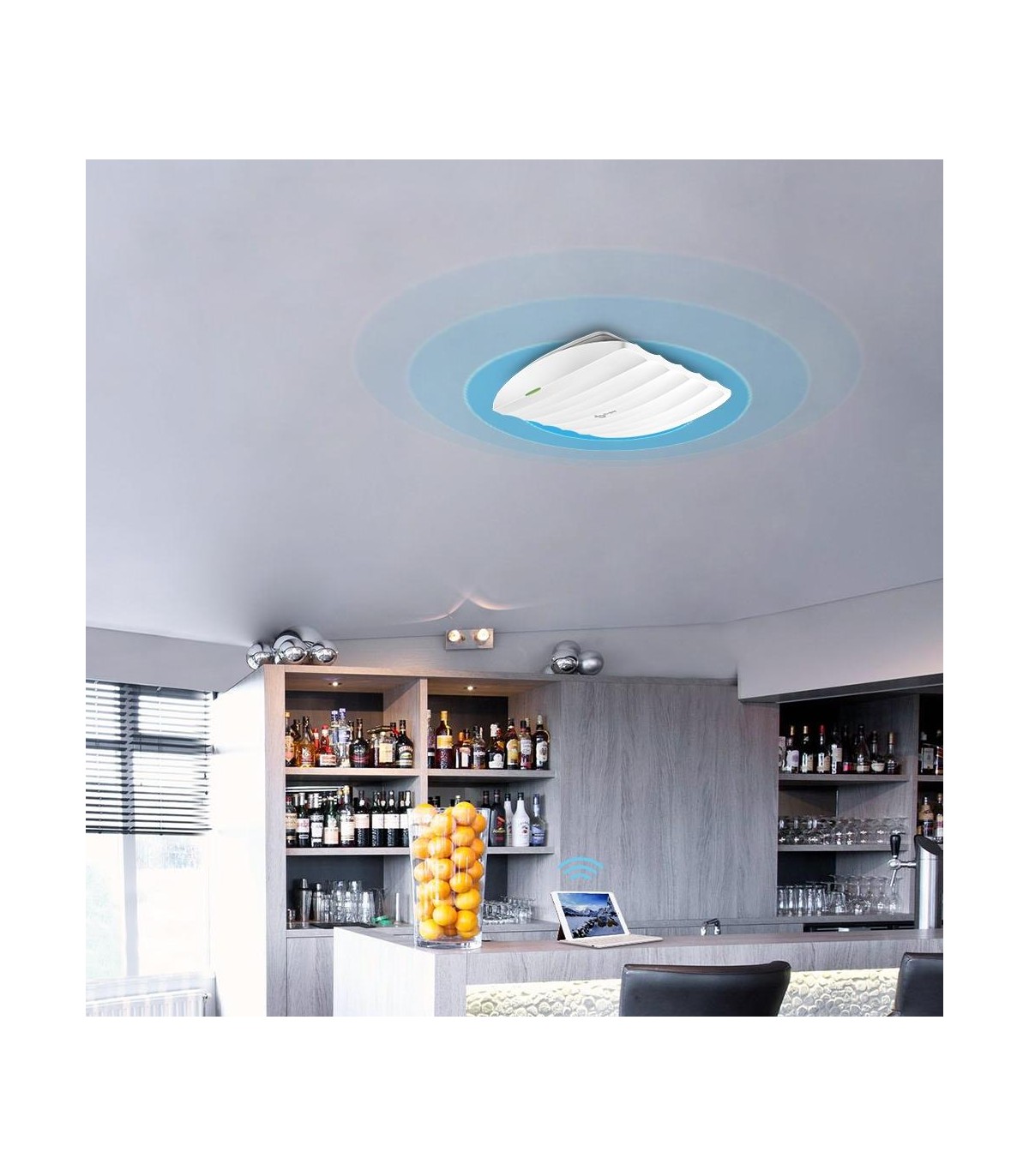

Placement

Ceiling,Wall

Number of SSID supported

8

Service Set Identifier (SSID) features

Multiple SSIDs

Antenna features

Integrated antenna

PoE adapter included

Yes

Wireless isolation

Yes

WAN connection

Ethernet (RJ-45)/Wi-Fi

System status alarm

Yes
