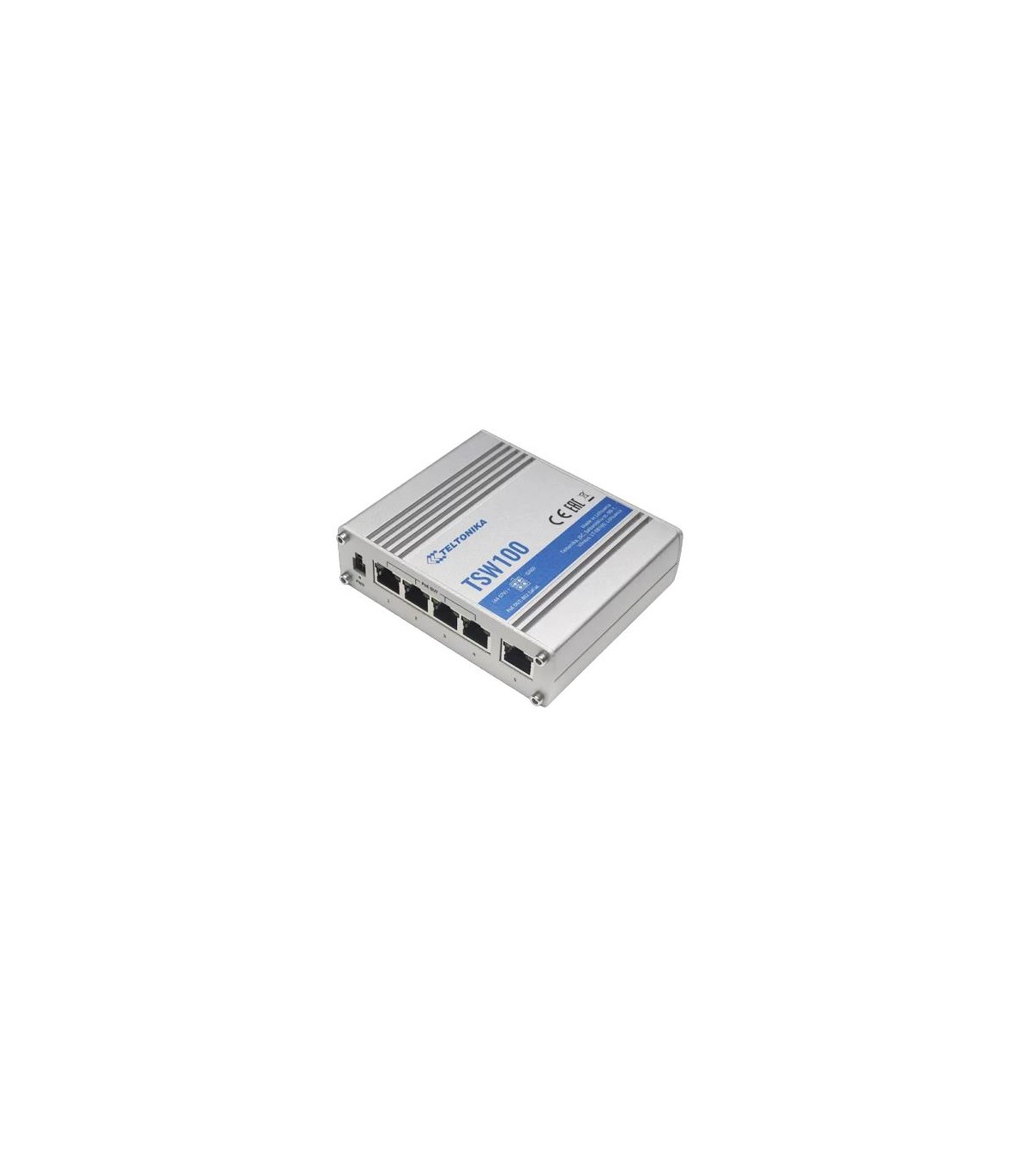

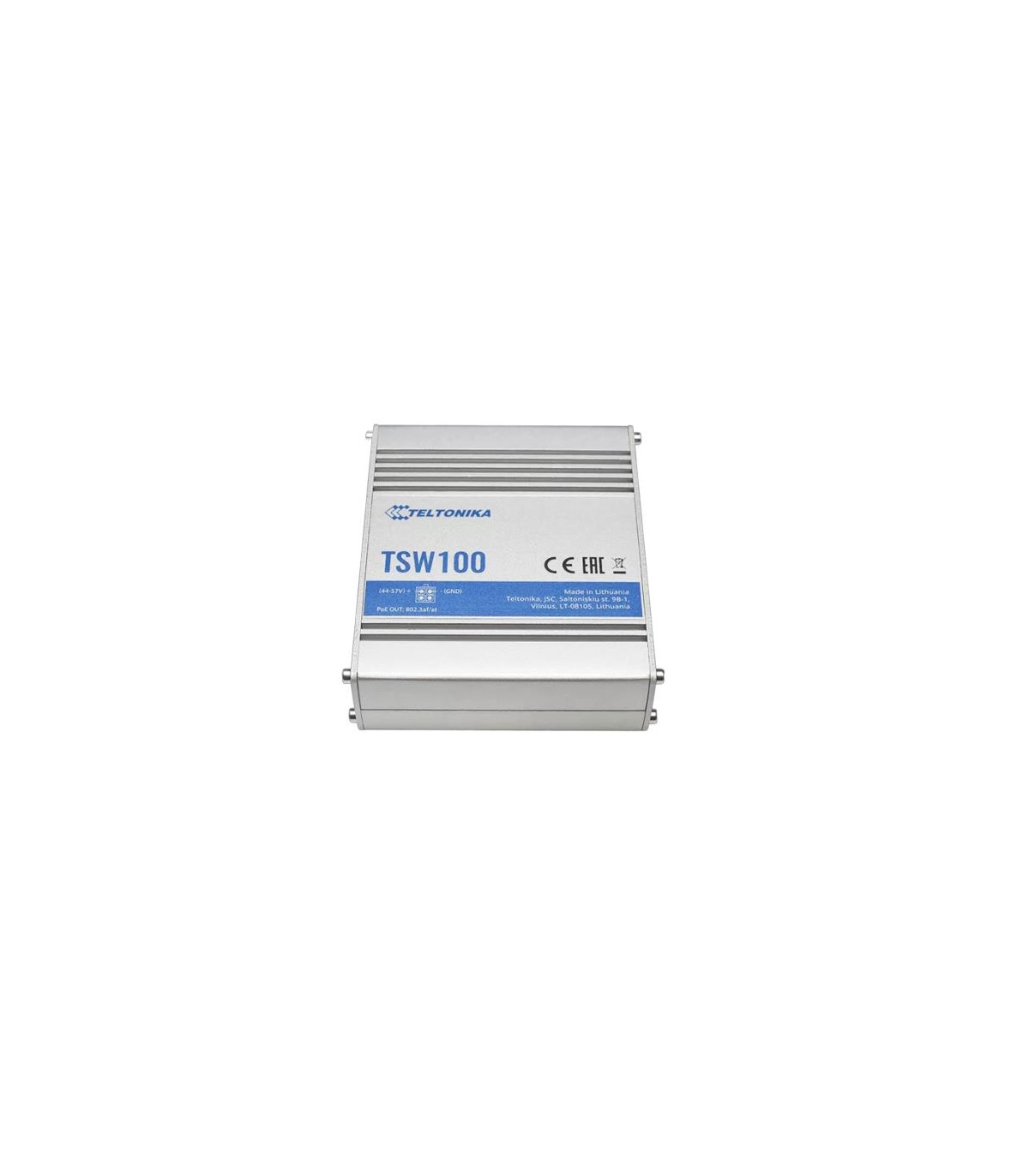

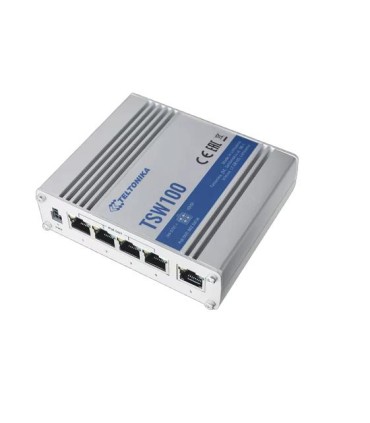

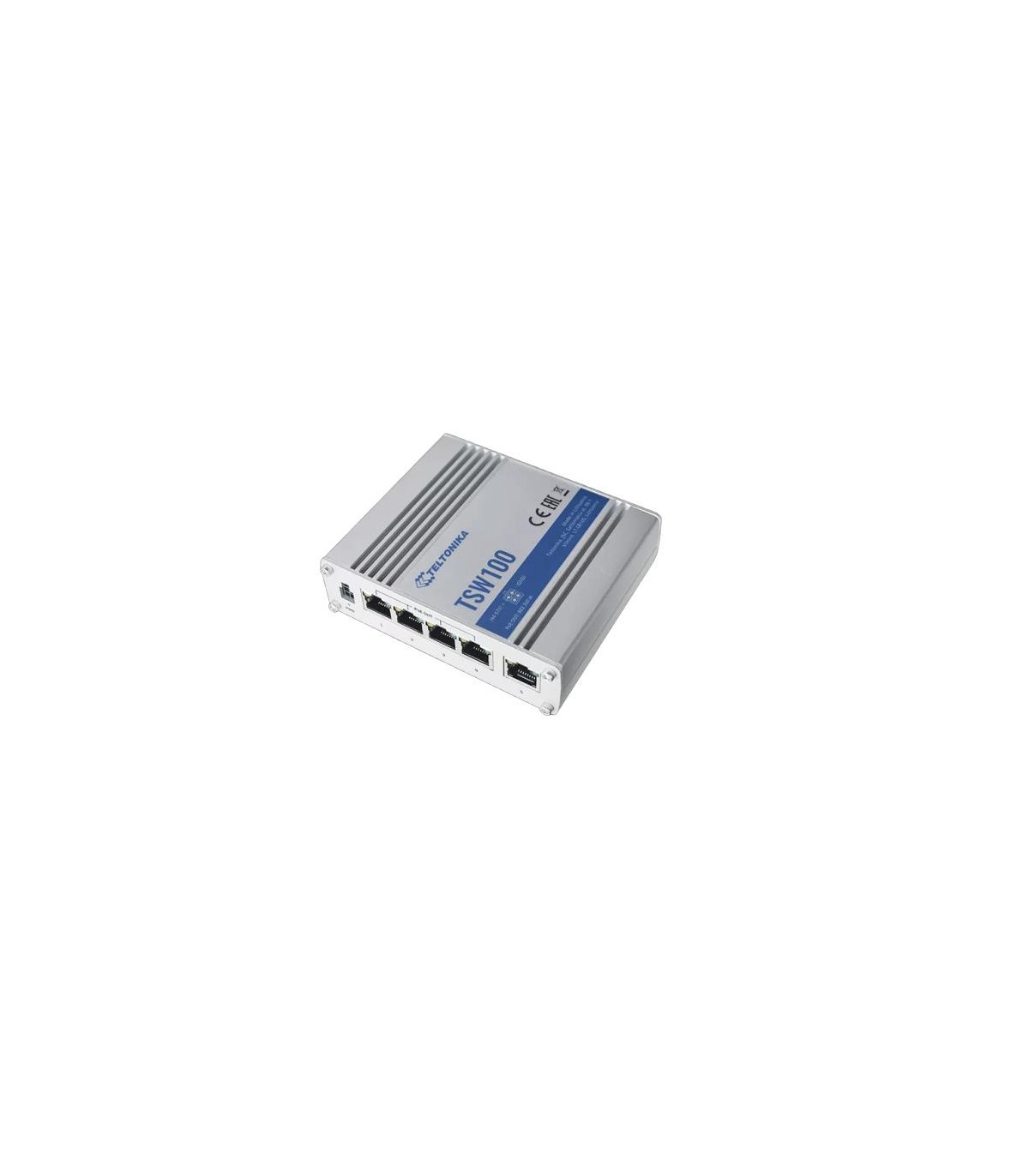

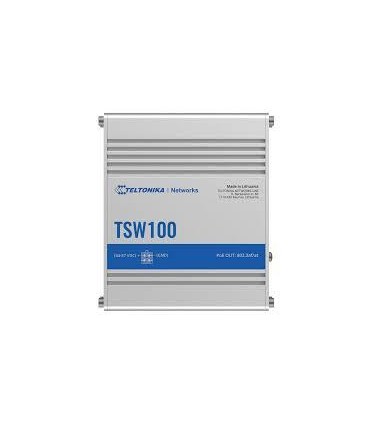

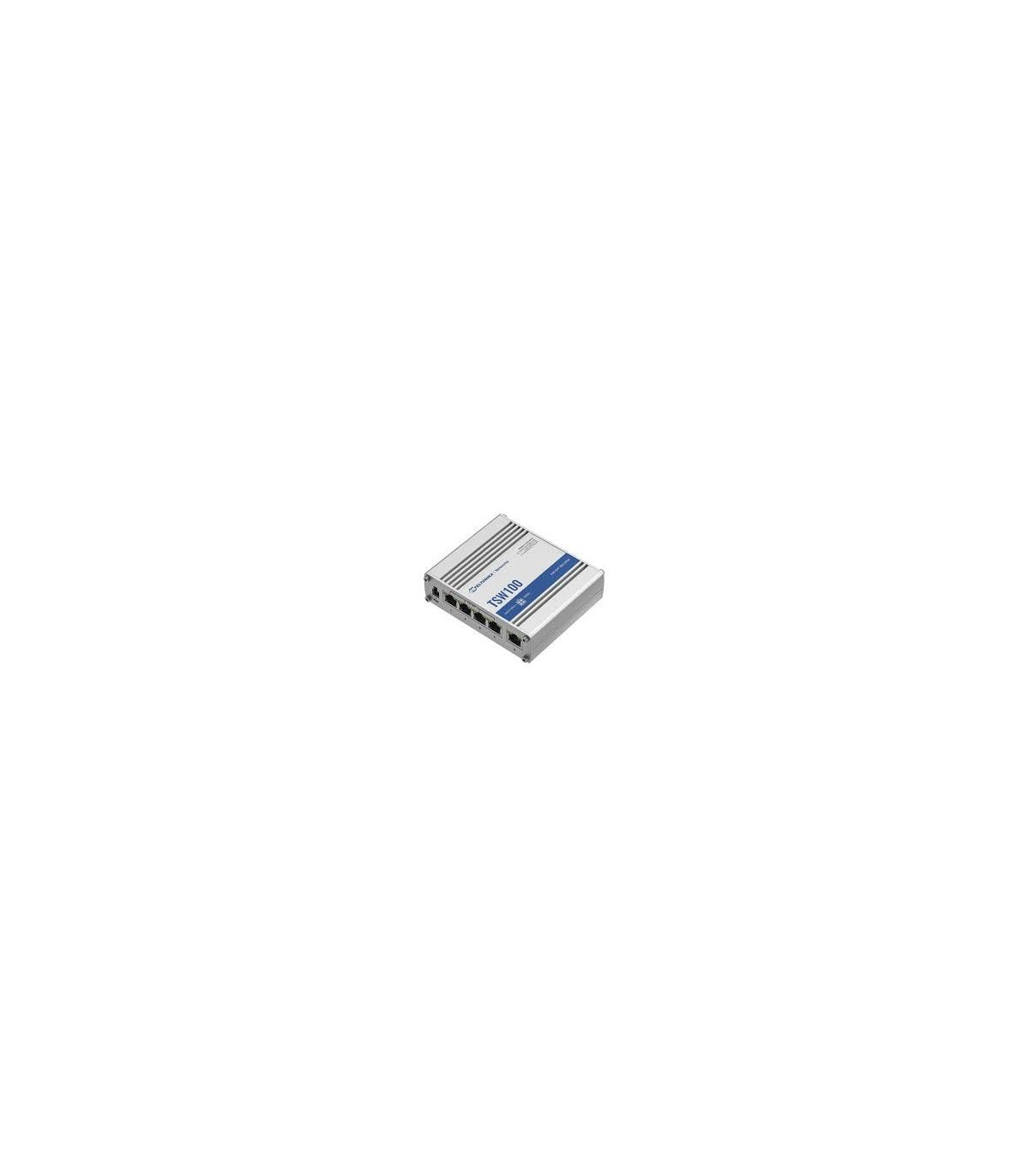

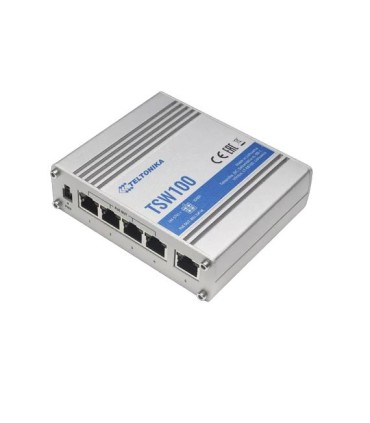

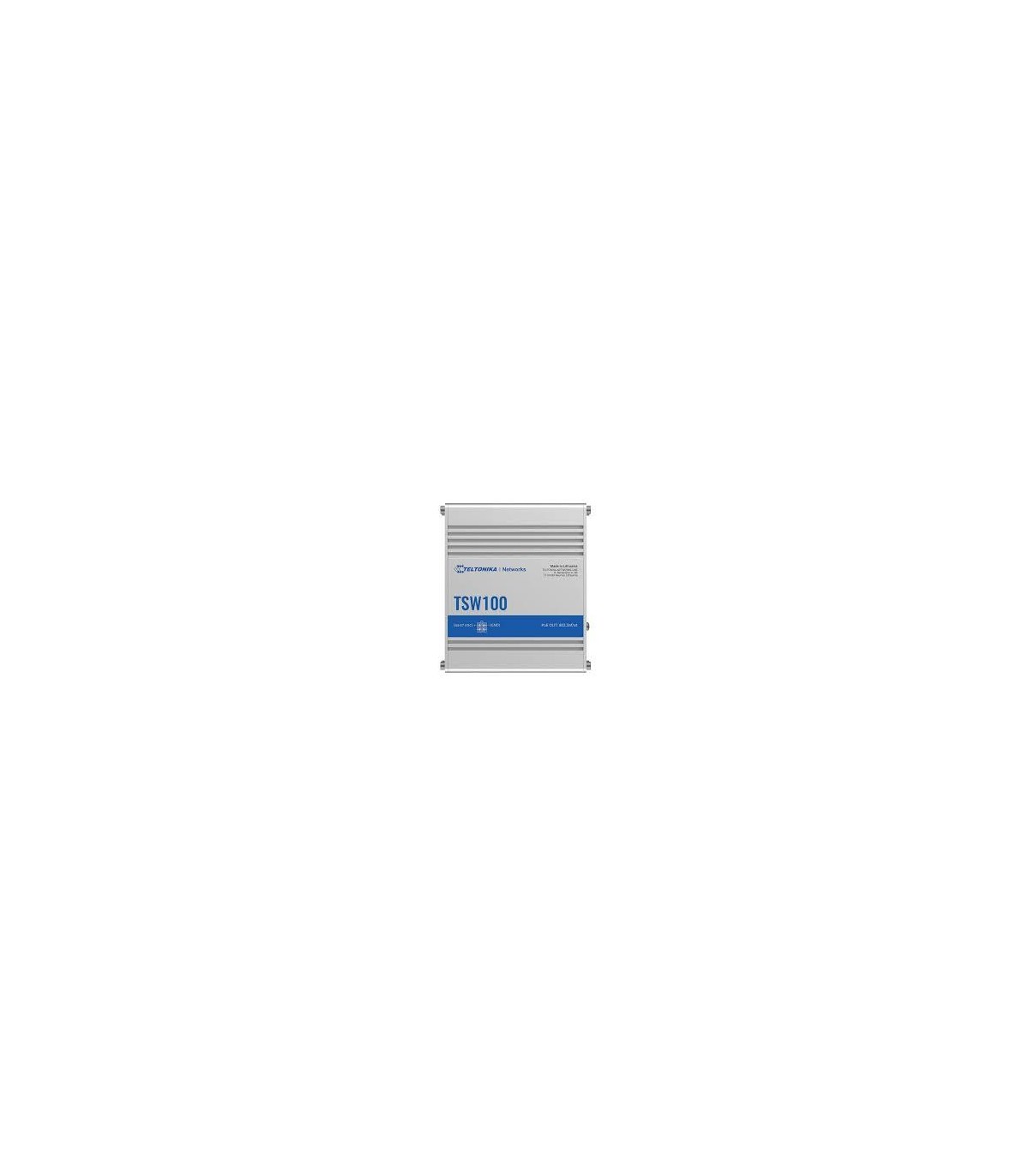

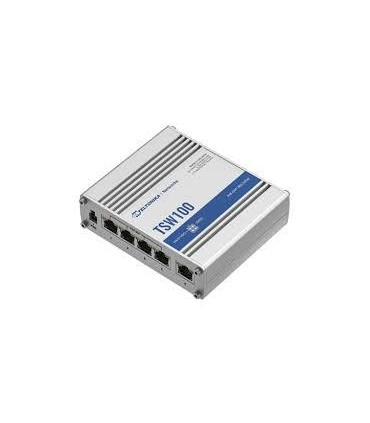

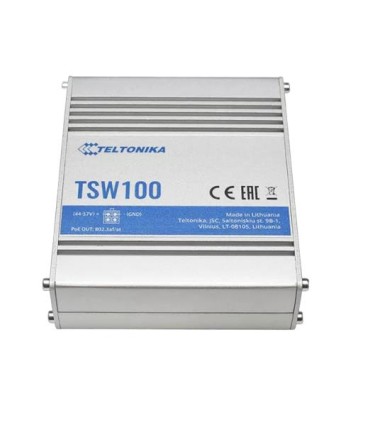

TELTONIKA Switch TSW100000000 PoE+ ports 4 120 Watts TSW100

Specification

Housing material

Aluminium

Other features

Depth

95 mm

Height

32 mm

Width

115 mm

Unit Box Width

0.07

Unit Box Length

0.17

Unit Box Height

0.145

Category Code

SWI

Model name

TSW100000000

Model

TSW100

Unit Calculated Volume

0.001726 cubm

Unit Calculated Weight

0.74 kg

Units per Shipping Box

1

Summary

Teltonika TSW100. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. DC input voltag

Product colour

Blue/Metallic

Certification

CE/RED, EAC, RoHS, WEEEDraft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0EN 61000-4-2:2009EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2EN 61000-4-3:2006 +

Power consumption (max)

129 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

-40 - 75 °C

Harmonized System (HS) code

85176990

LED indicators

Power/Status

Networking standards

IEEE 802.3af/IEEE 802.3at/IEEE 802.3az

Auto MDI/MDI-X

Yes

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

MAC address table

2000 entries

Jumbo frames

9216

Packet buffer memory

0.128 MB

Power over Ethernet (PoE) ports quantity

4

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

120 W

DC input voltage

7 - 58 V
