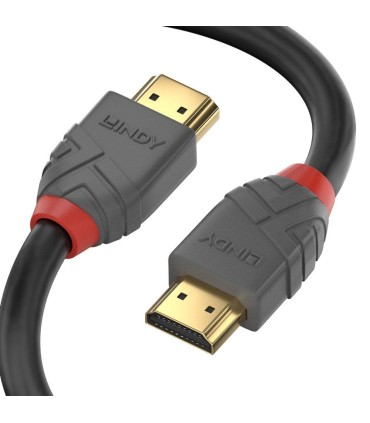

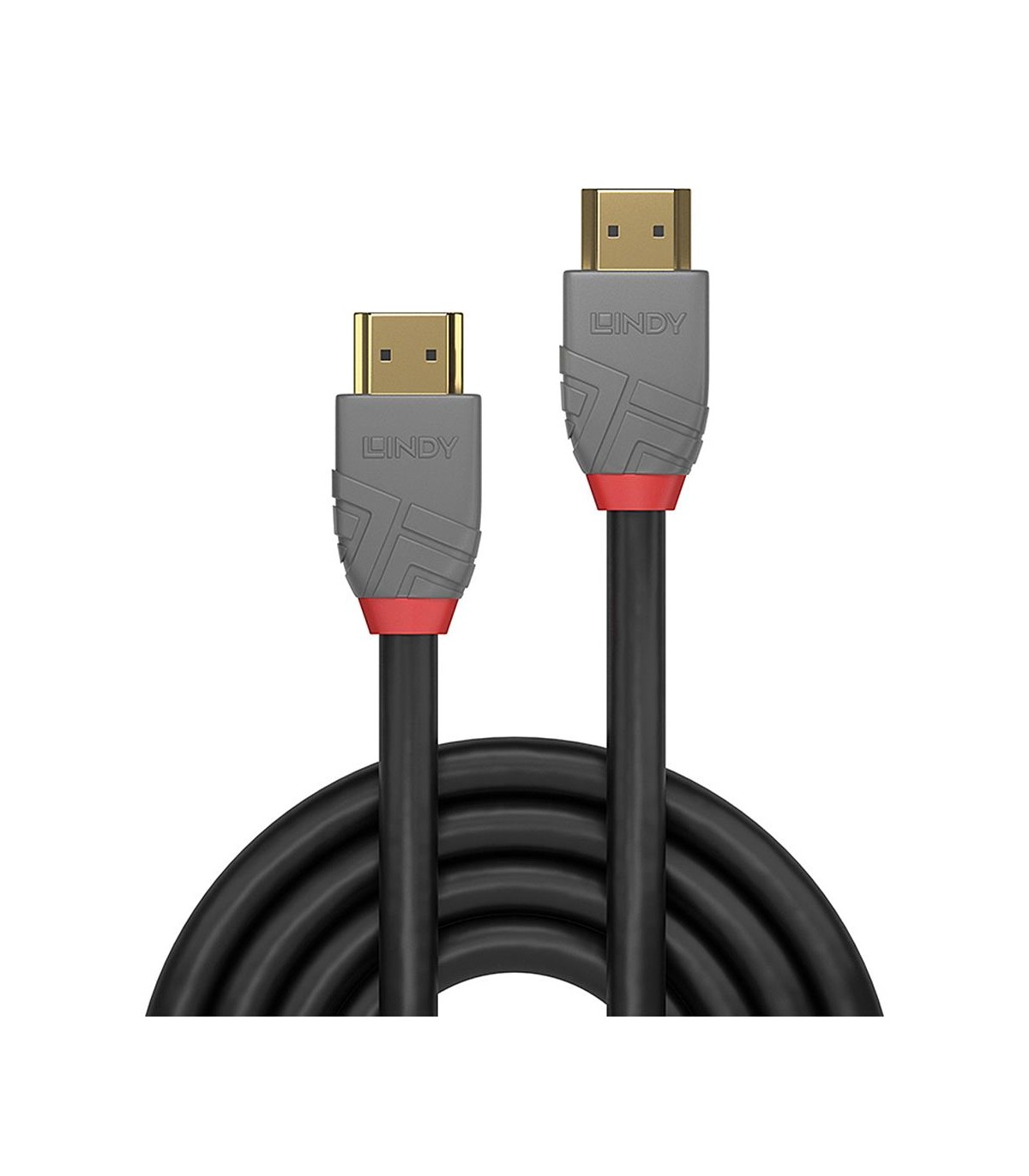

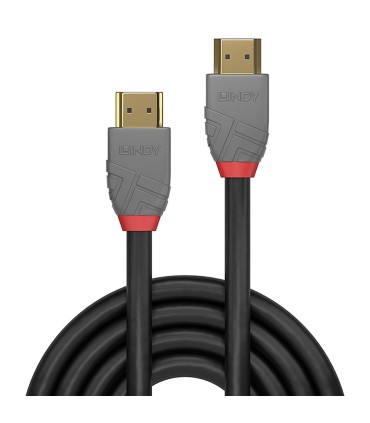

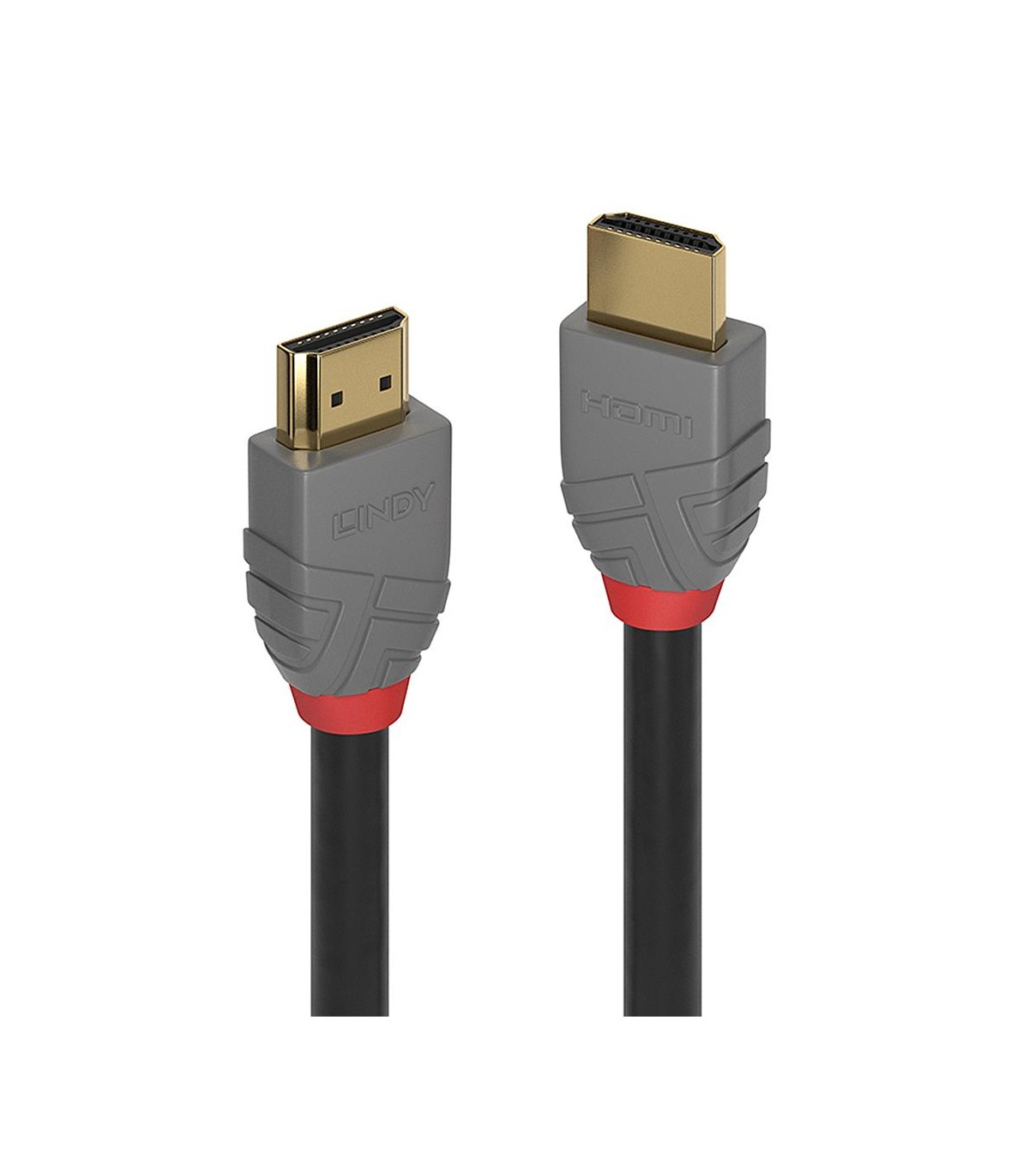

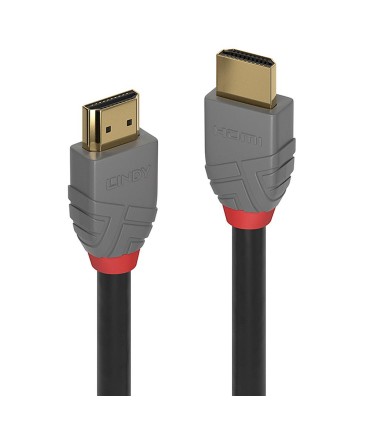

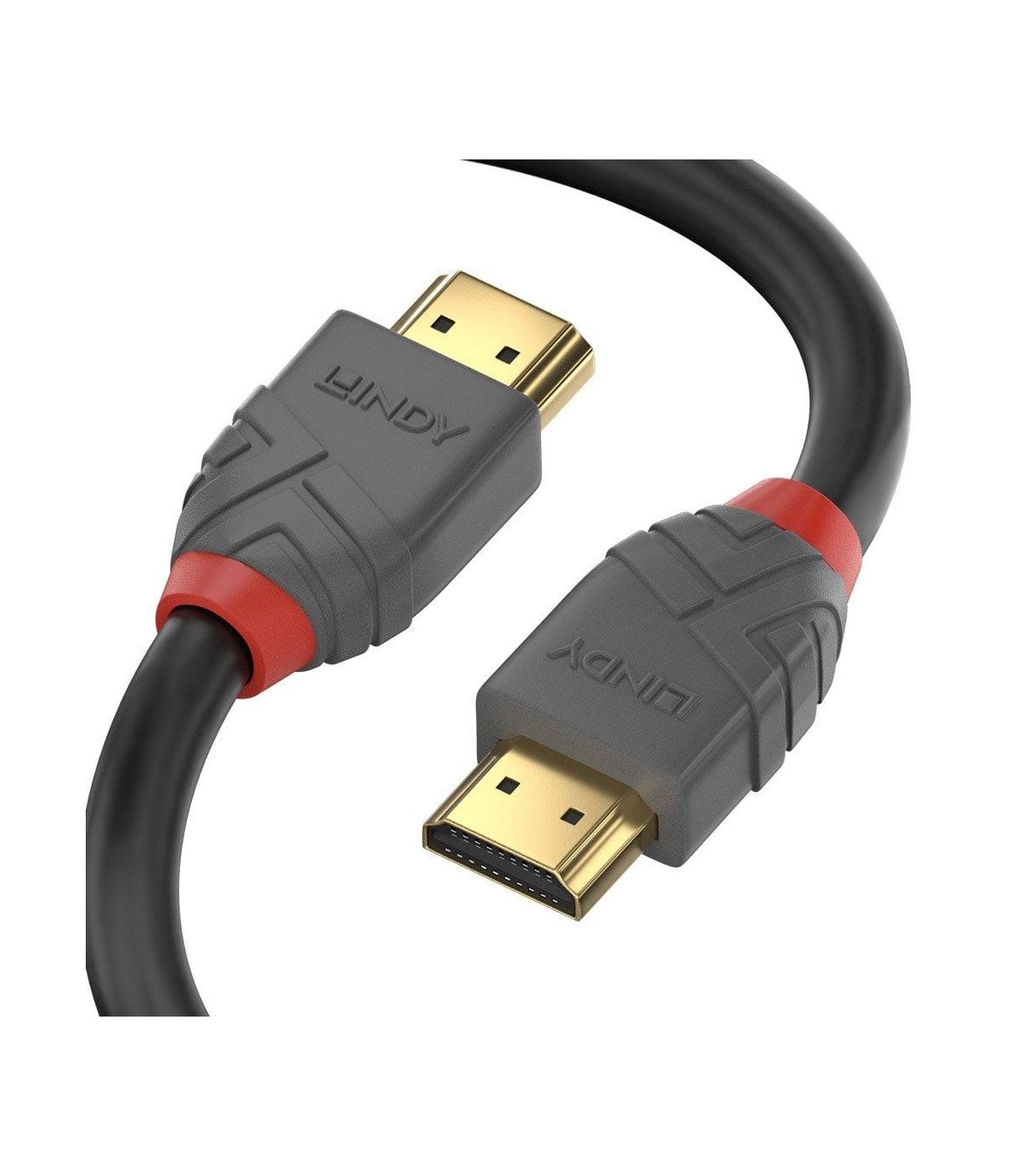

LINDY CABLE HDMI-HDMI 2M/ANTHRA 36963

Other features

Unit Box Width

0.125

Unit Box Length

0.13

Unit Box Height

0.025

Category Code

VCB

Cable length

2 m

3D

Yes

Unit Calculated Volume

0.0004062 cubm

Unit Calculated Weight

0.1 kg

Units per Shipping Box

1

Summary

Lindy 2m High Speed HDMI Cable, Anthra Line. Cable length: 2 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, 3D, Maximum

Product colour

Black/Grey

HDMI version

2.0

Package type

Polybag

Certification

RoHS, REACH, UL, ATC

Supported graphics resolutions

4096 x 2160

Operating temperature (T-T)

-10 - 80 °C

Supported video modes

1080p

Storage temperature (T-T)

-10 - 80 °C

Harmonized System (HS) code

84733080

Maximum resolution

4096 x 2160 pixels

Audio Return Channel (ARC)

Yes

Data transfer rate

18 Gbit/s

Quantity per pack

1 pc(s)

Dolby technologies

Dolby TrueHD/DTS-HD Master Audio

AWG wire size

30

Cable jacket material

Polyvinyl chloride (PVC)

Cable type

Round cable

Connector 1

HDMI Type A (Standard)

Connector 1 form factor

straight

Connector 1 gender

Male

Connector 2

HDMI Type A (Standard)

Connector 2 form factor

straight

Connector 2 gender

Male

Connector contacts plating

Gold

Shield material

Copper

Cable diameter

6 mm

Cable material

Copper

HDMI Ethernet channel

Yes

Bending radius (min)

48 mm

Colour sampling

4:4:4

Connector housing material

Polyvinyl chloride (PVC)

Connector material

Gold

Contact material

Phosphor copper

Nominal attenuation

300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB

Connector 1 dimensions (WxDxH)

20 x 34.2 x 10.9 mm

Connector 2 dimensions (WxDxH)

20 x 34.2 x 10.9 mm
