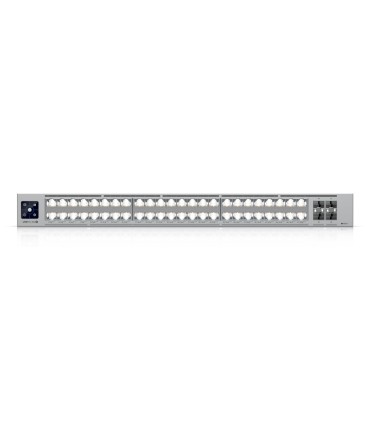

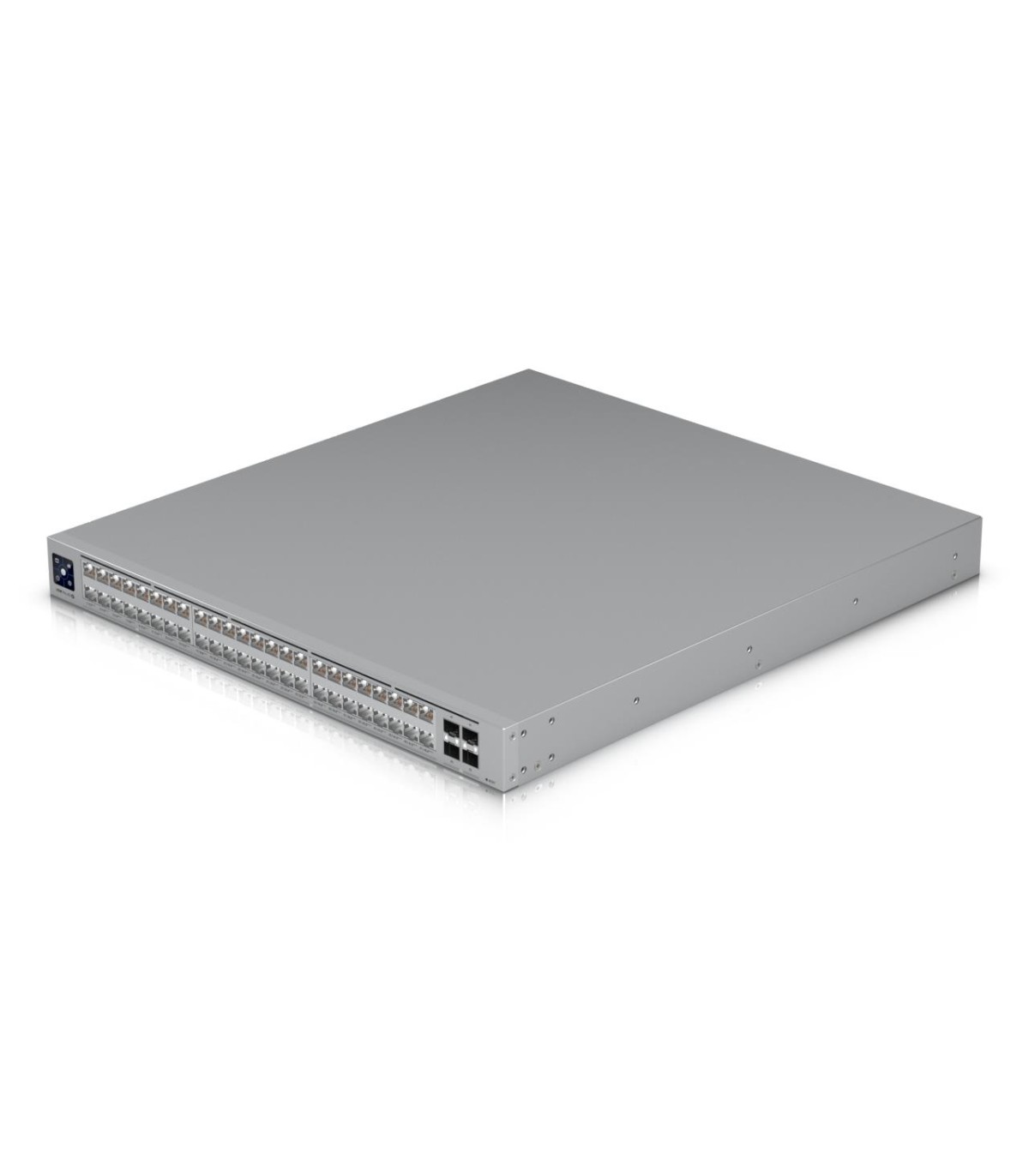

UBIQUITI Switch Ubiquiti UniFi Pro XG 48 PoE Switch type Managed Switch layer L3 Rack mounting Yes Stackable Yes Form factor 1U

Технические характеристики

Материал корпуса

SGCC

Другие свойства

Depth

480 mm

Height

44 mm

Width

442 mm

Unit Box Width

0.6

Unit Box Length

0.77

Unit Box Height

0.25

Category Code

SWI

Model name

Ubiquiti UniFi Pro XG 48 PoE

Model

USW-PRO-XG-48-POE

Form Factor

1U

Switch type

Managed

Switching capacity

920 Gbit/s

Forwarding rate

684 Mpps

Power source

AC/DC

Unit Calculated Volume

0.1155 cubm

Unit Calculated Weight

14.5 kg

Units per Shipping Box

1

Summary

Ubiquiti UniFi Pro XG 48 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 128000 entries, Switching capacity: 920 G

Product colour

Grey

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Cables included

Power

Power consumption (max)

1280 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

-5 - 40 °C

Compliance certificates

CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)

Weight

8700 g

Reset button

Yes

Power supply included

Yes

Long Description

Ubiquiti UniFi Pro XG 48 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 128000 entries, Switching capacity: 920 G

Display type

LCM

Jumbo frames support

Yes

Power connector

AC/DC

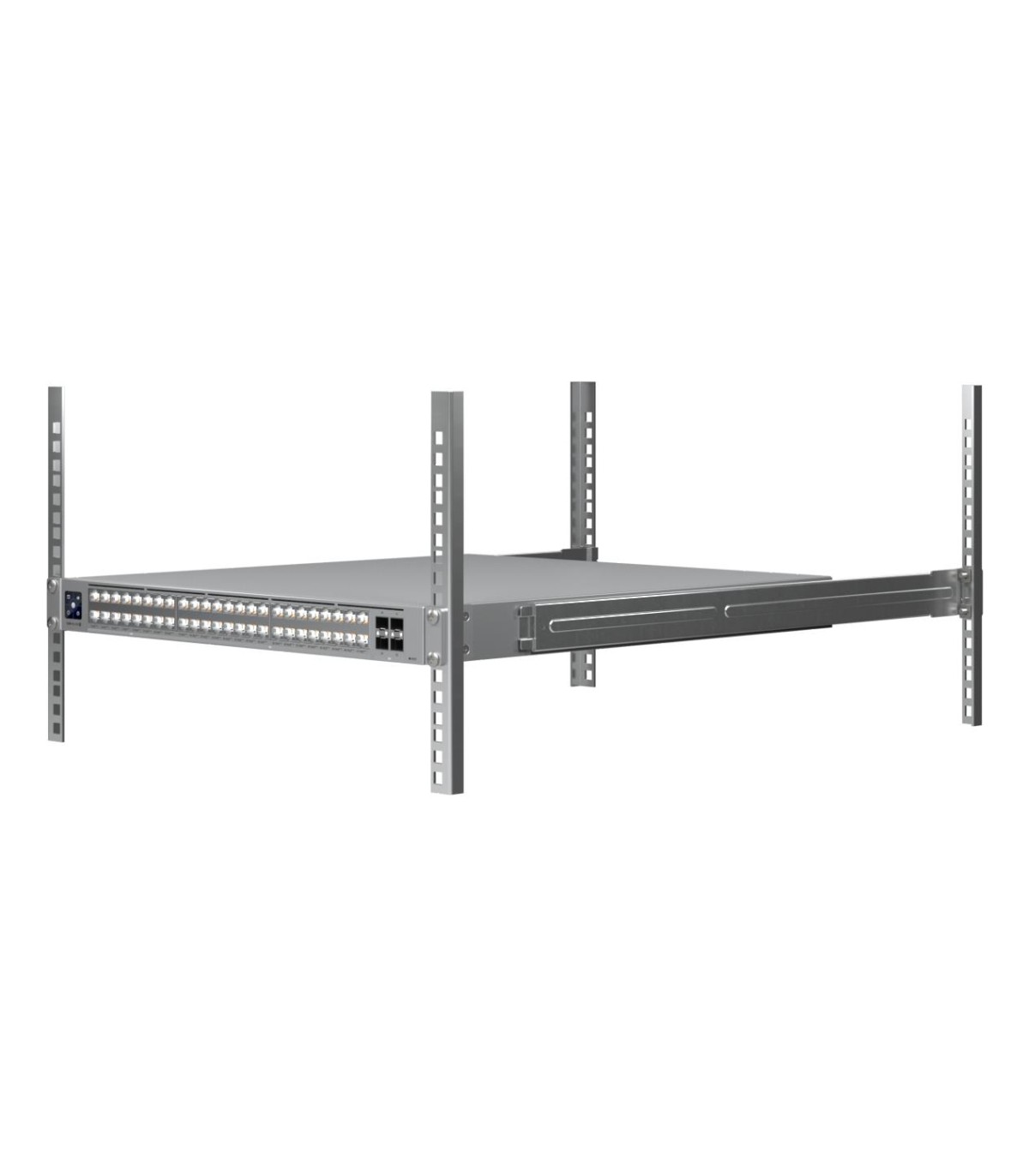

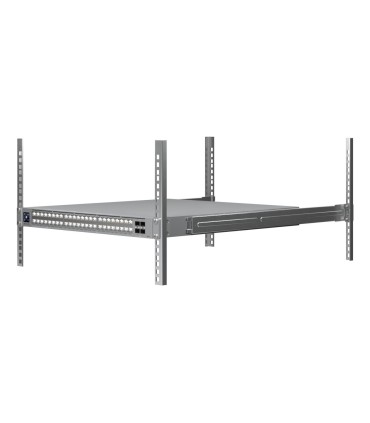

Rack mounting

Yes

10G support

Yes

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Power over Ethernet (PoE)

Yes

MAC address table

128000 entries

Flow control support

Yes

Packet buffer memory

8 MB

Power over Ethernet (PoE) power per port

15.4 W

Total Power over Ethernet (PoE) budget

1080 W

Switch layer

L3

Quality of Service (QoS) support

Yes

Port mirroring

Yes

IGMP snooping

Yes

Loop protection

Yes

Broadcast storm control

Yes

VLAN support

Yes

Virtual LAN features

Interface-based VLAN/Voice VLAN

Number of VLANs

1000

Stackable

Yes

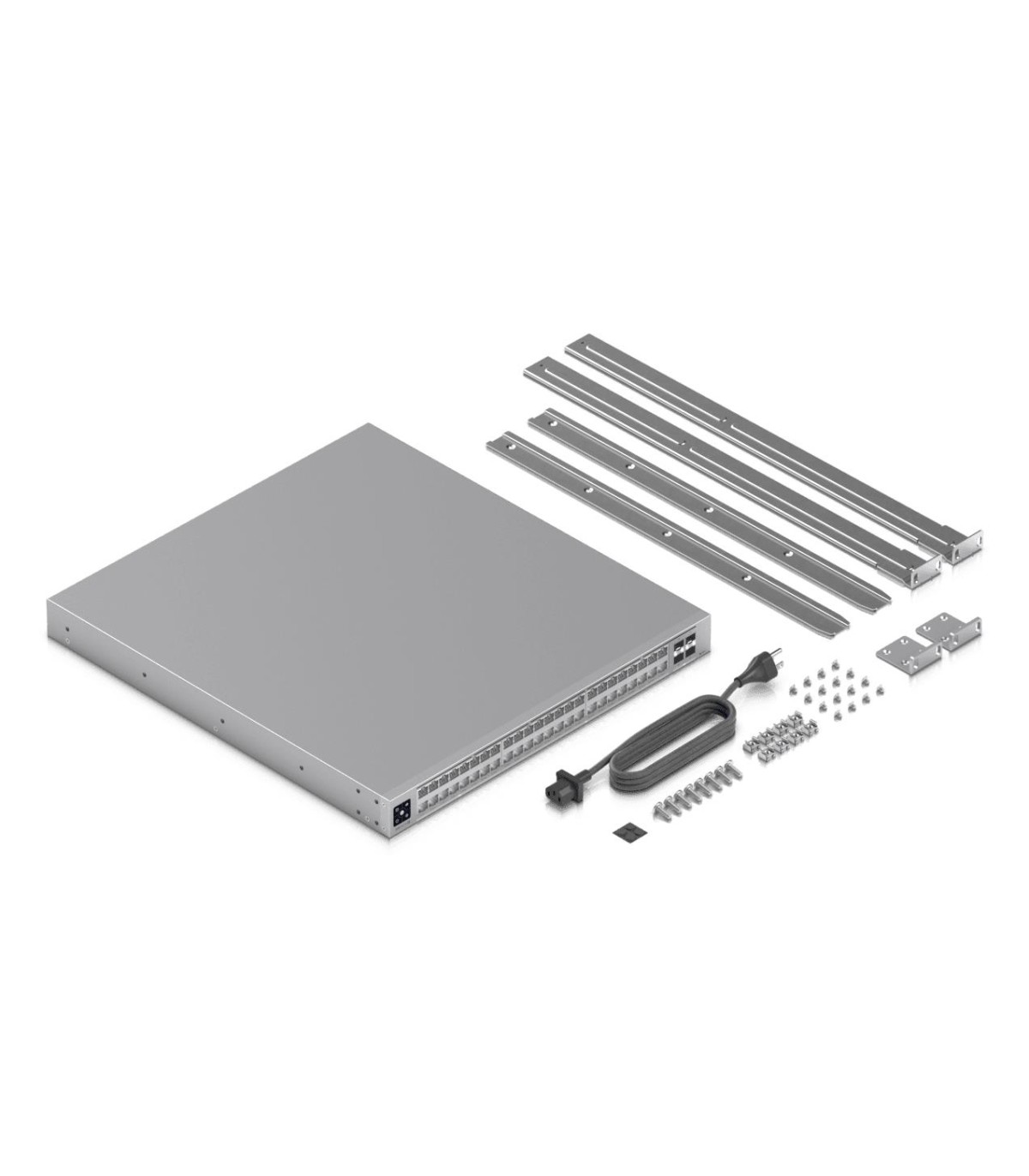

Rack mount kit

Yes

Throughput

460 Gbit/s

DHCP features

DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping

Multicast support

Yes

Rate limiting

Yes

10G Ethernet (copper) ports quantity

32

SFP28 ports quantity

4

Redundant power supply (RPS) support

Yes

Static route

Yes

IPv4 routes

256000

Access Control List (ACL) IPv4 entries

256

Power over Ethernet (PoE) type supported

PoE+++

2.5G Ethernet (copper) ports quantity

16

Backlight display

Yes
