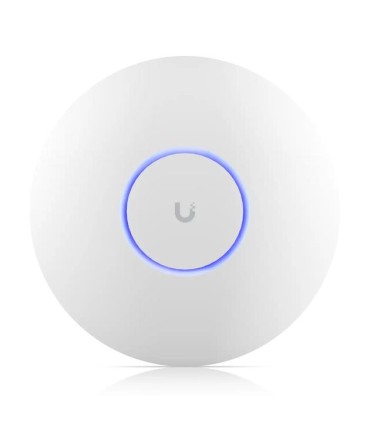

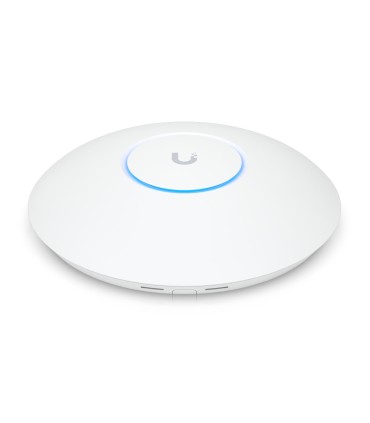

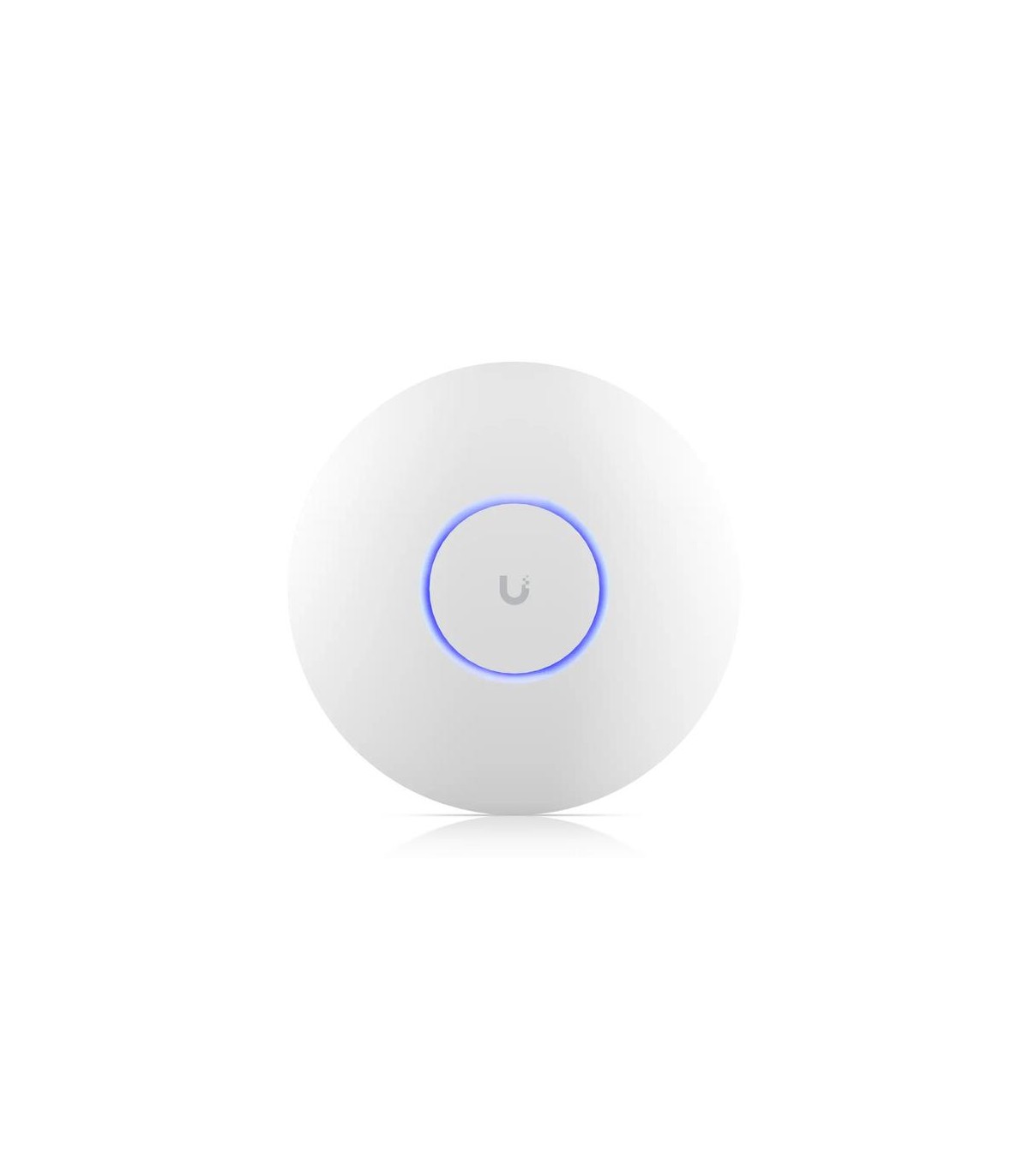

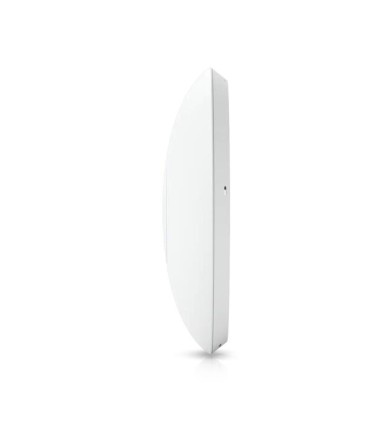

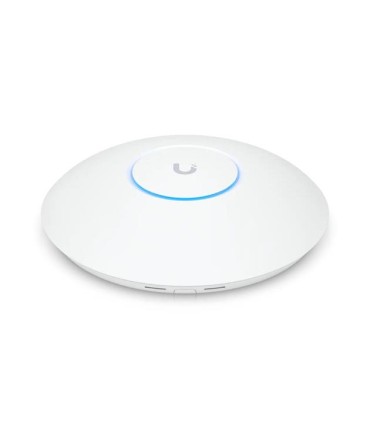

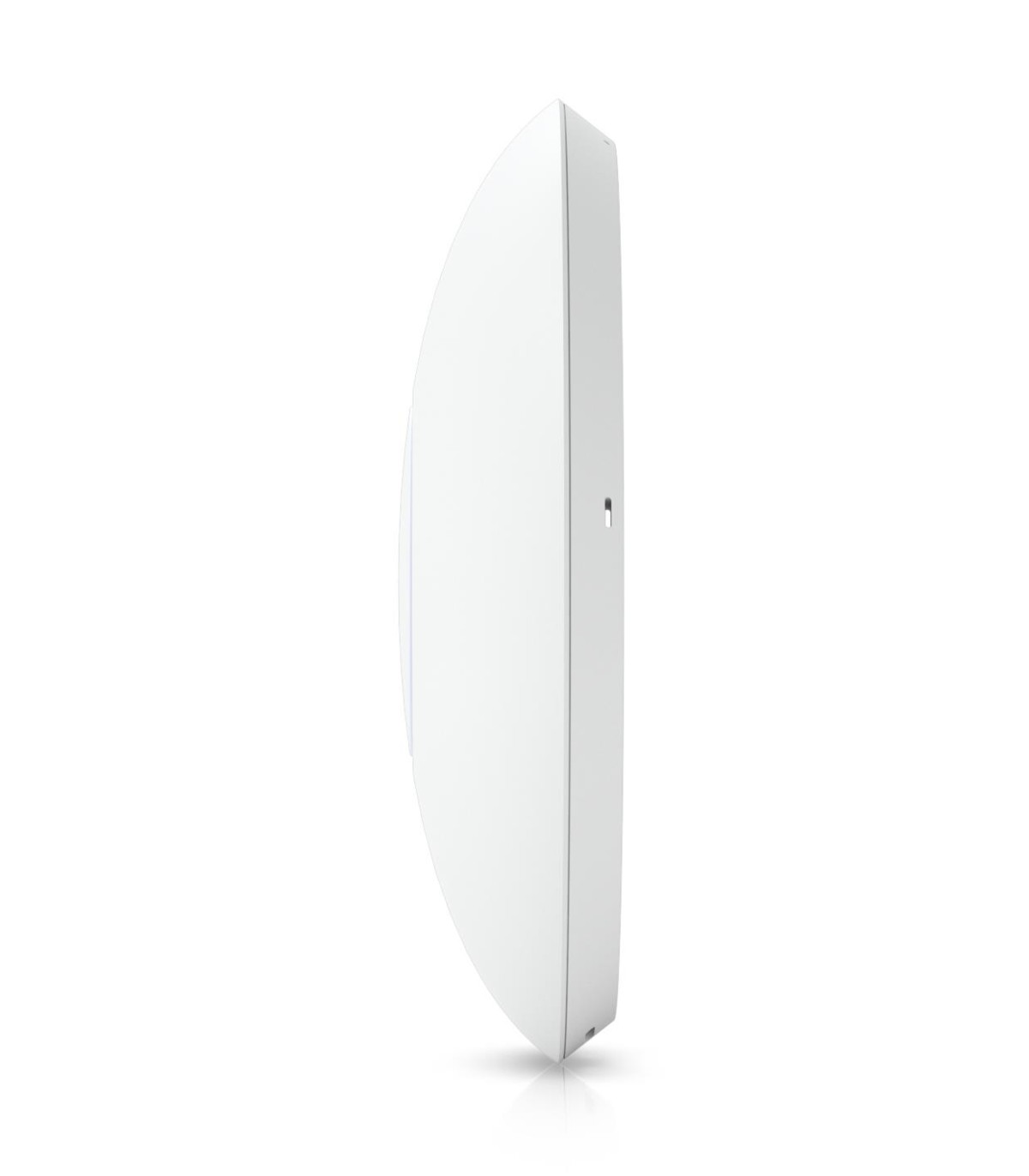

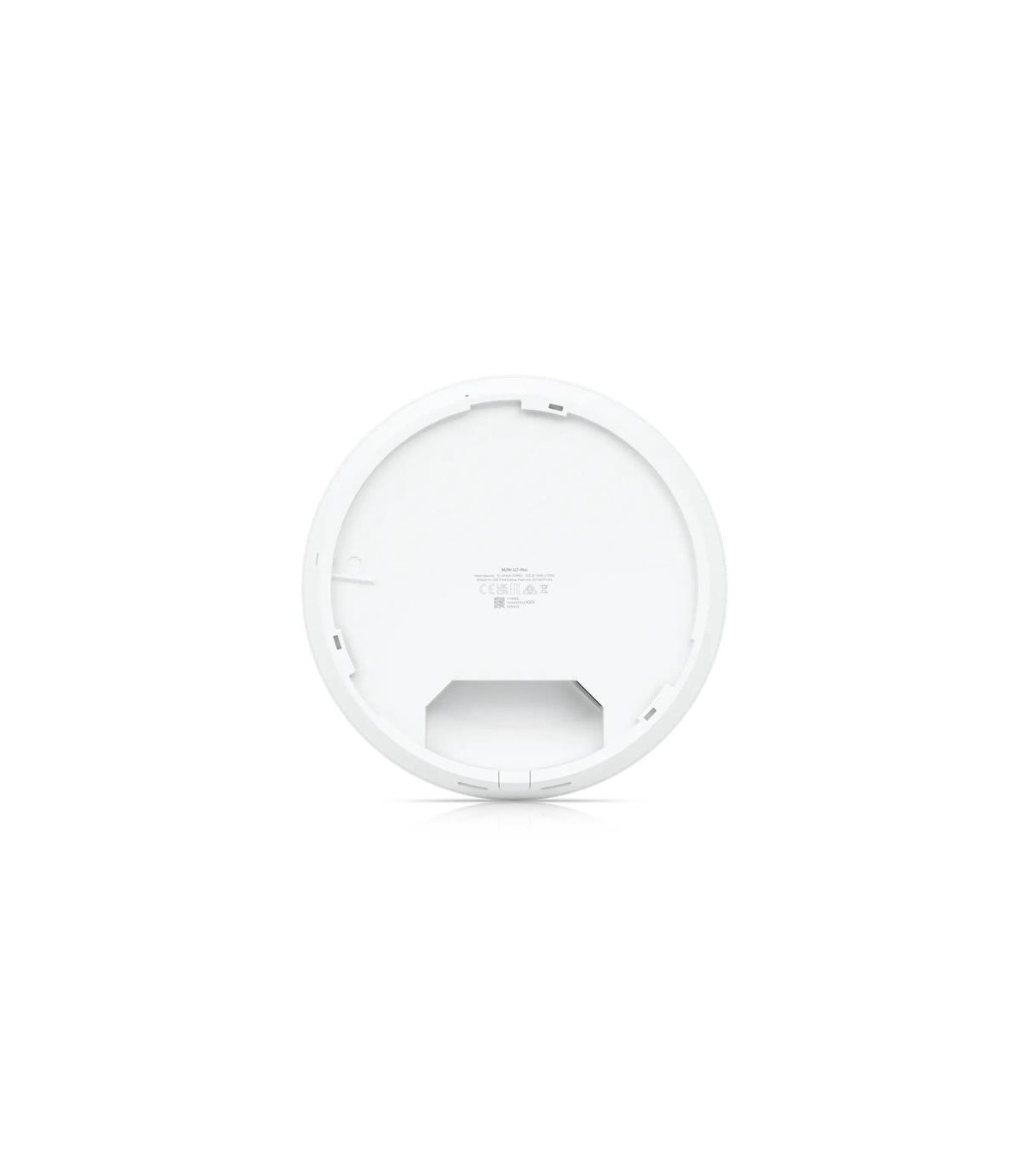

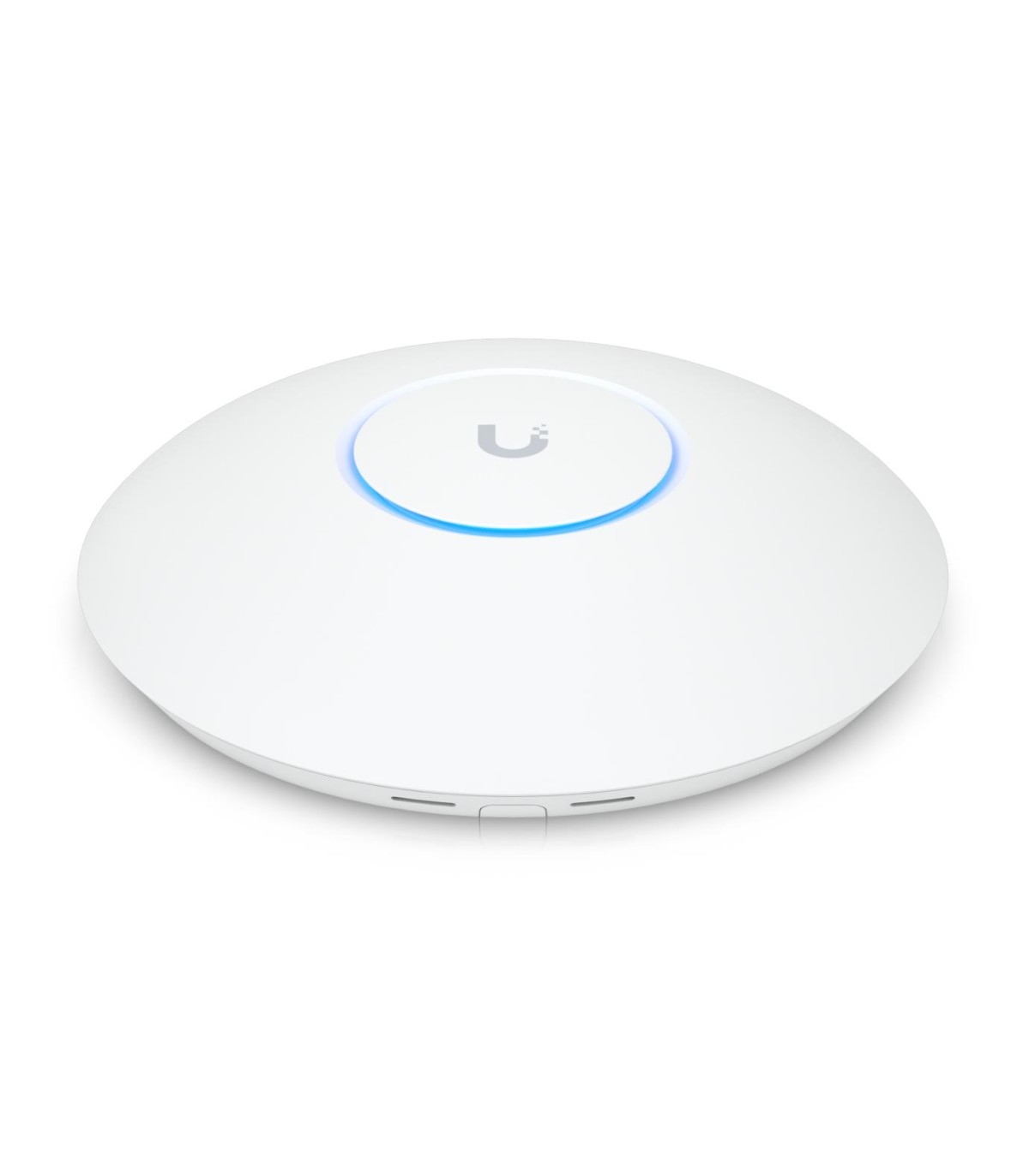

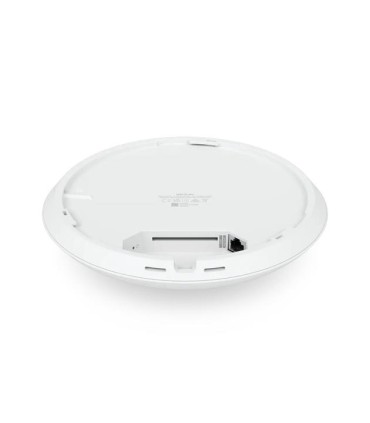

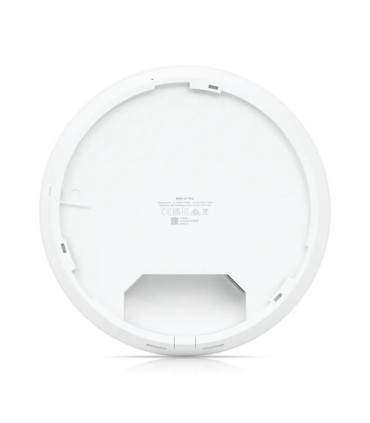

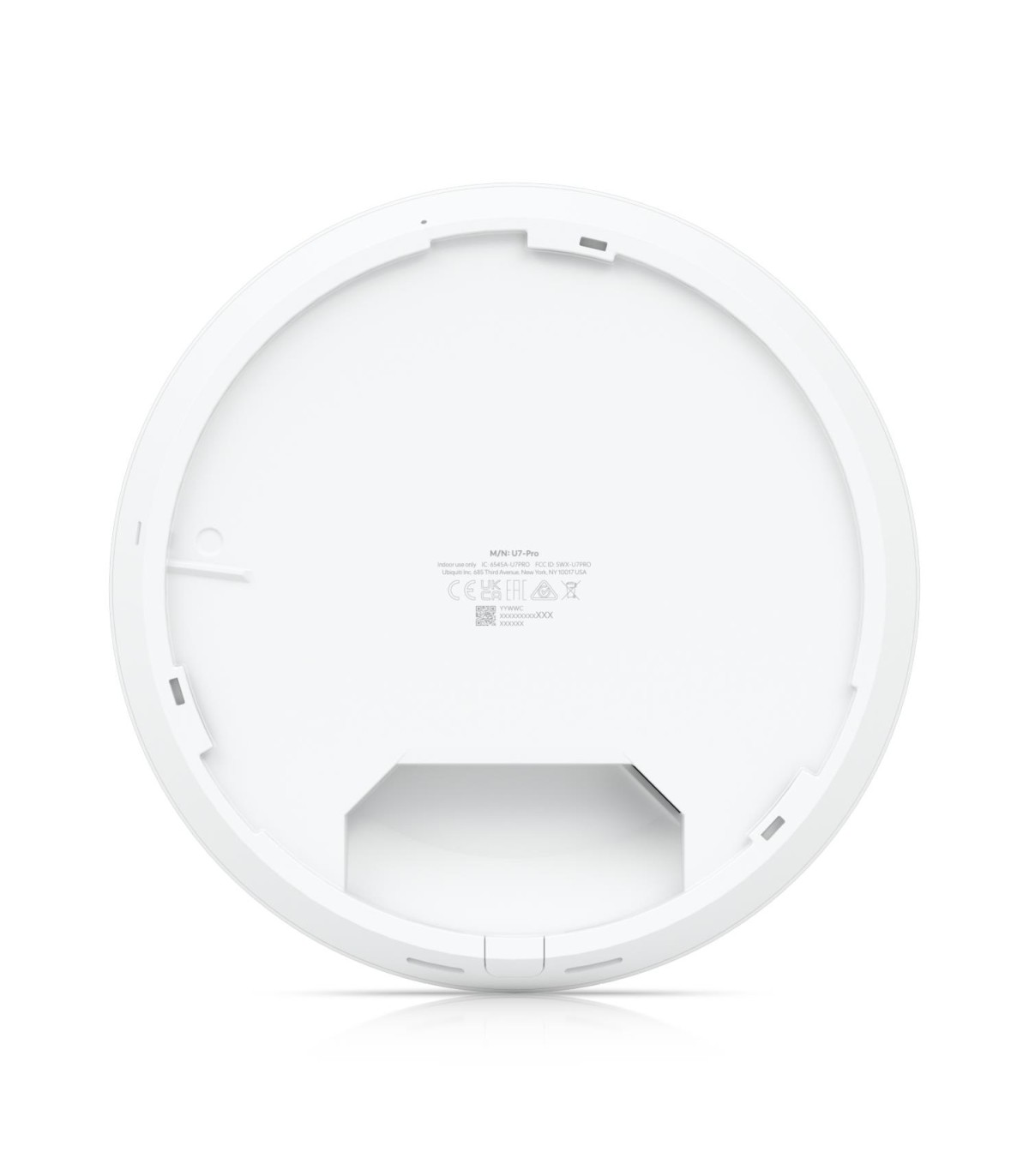

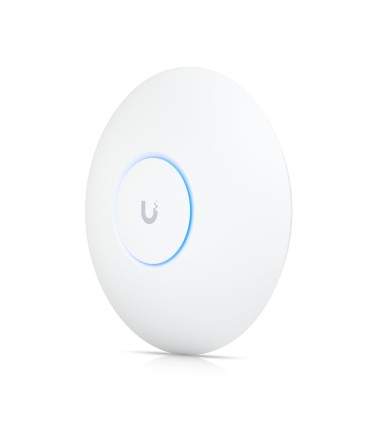

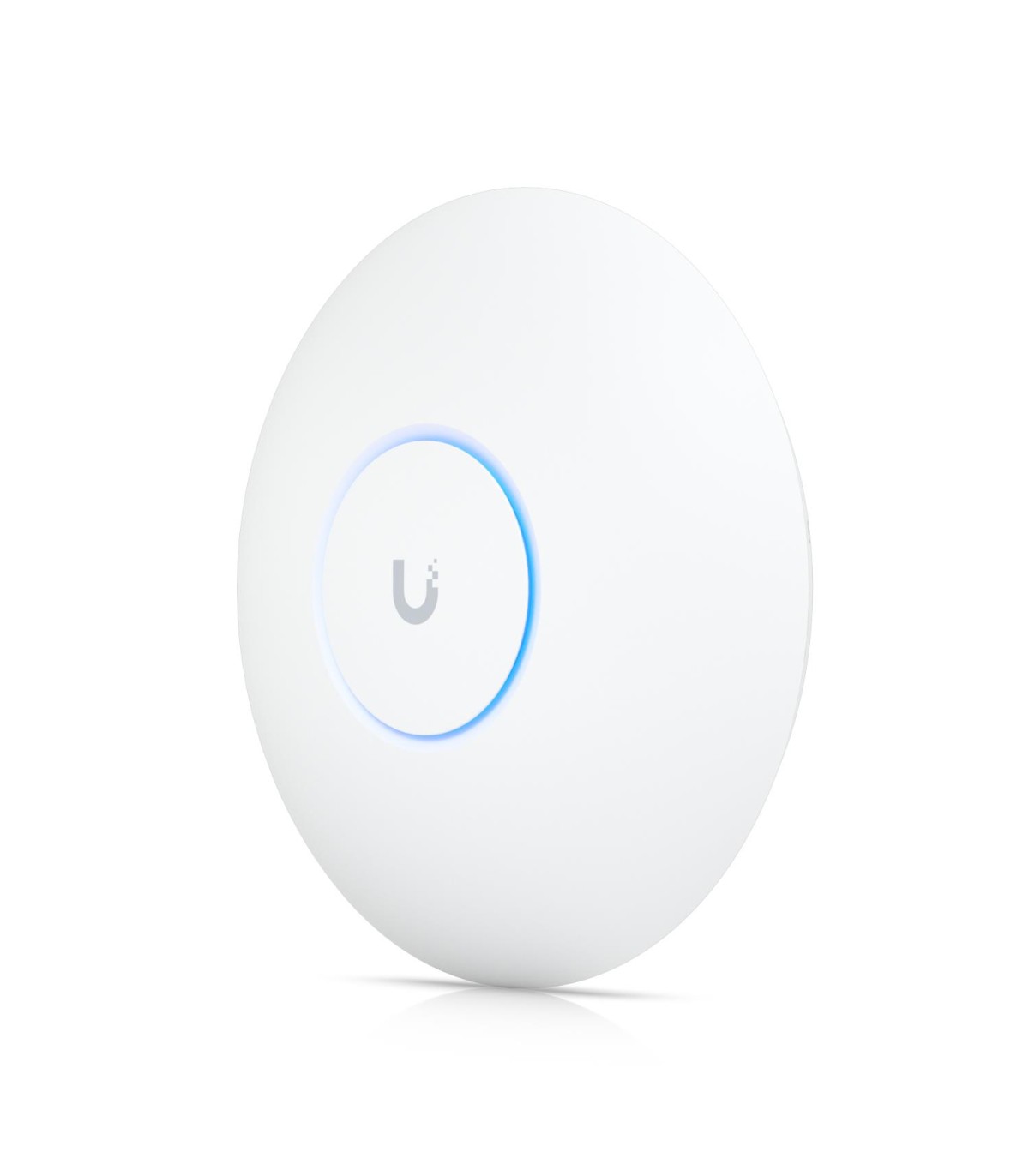

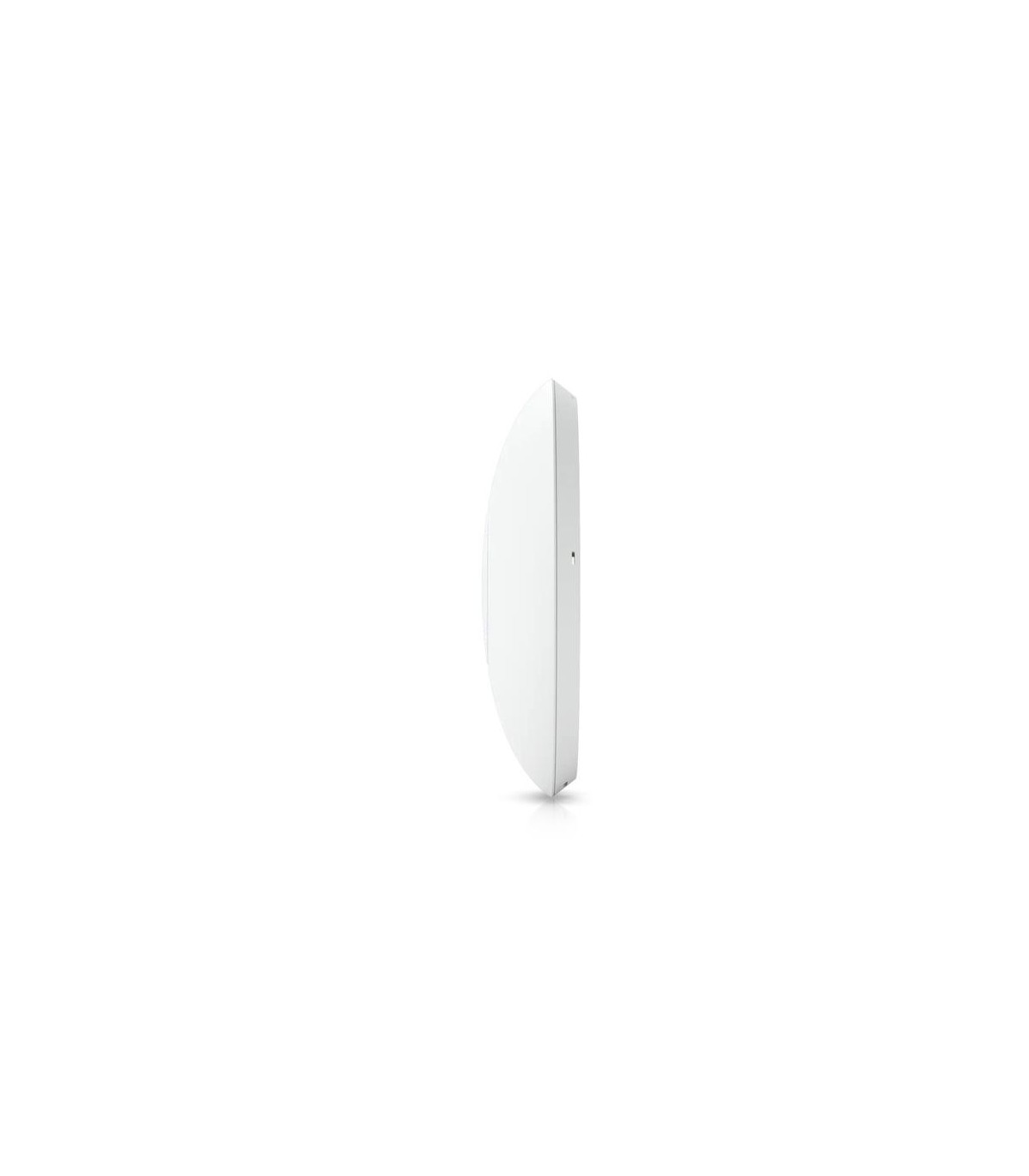

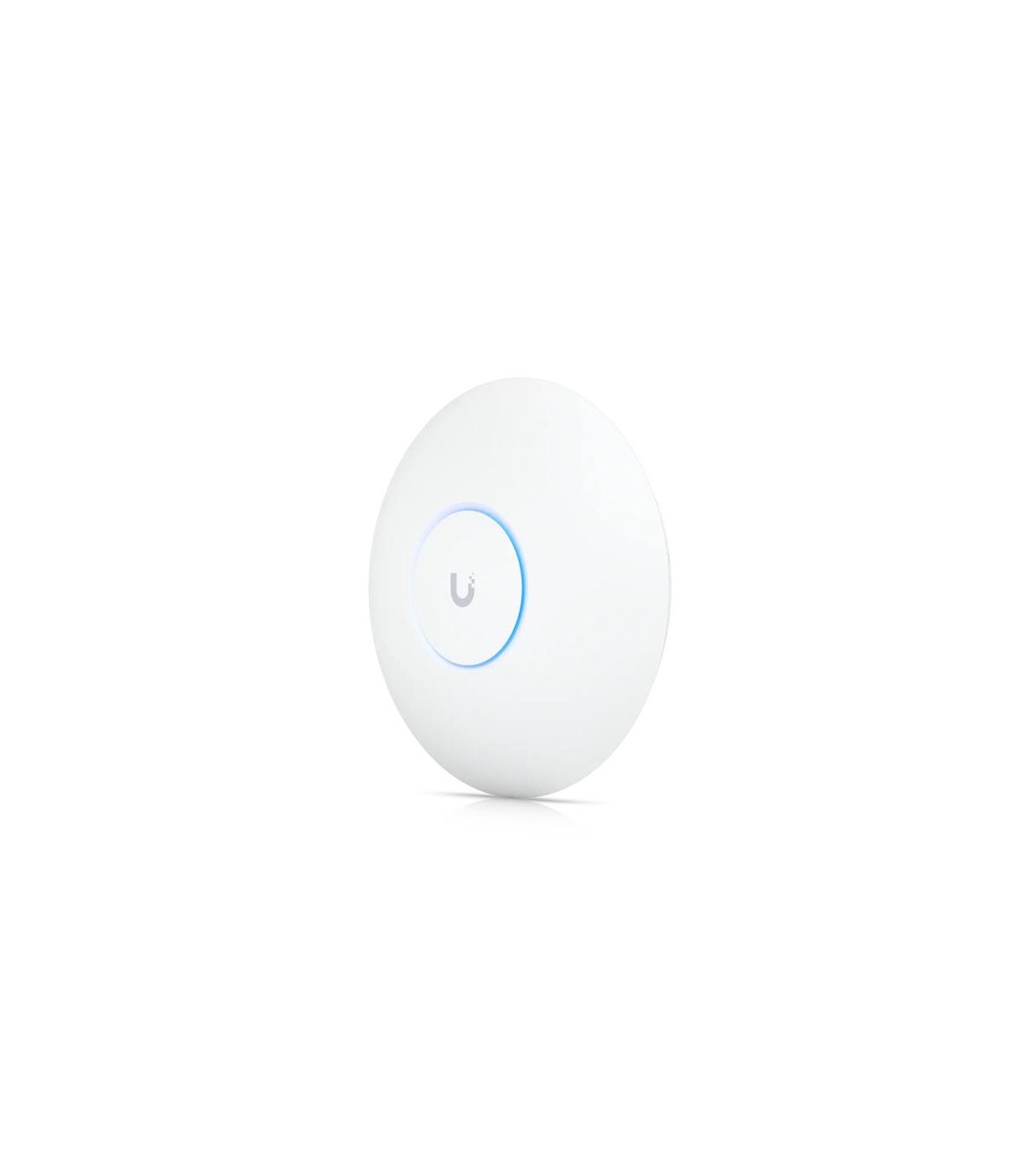

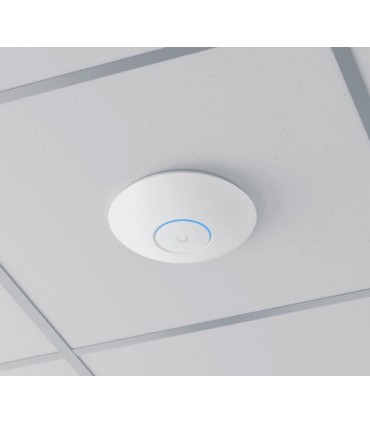

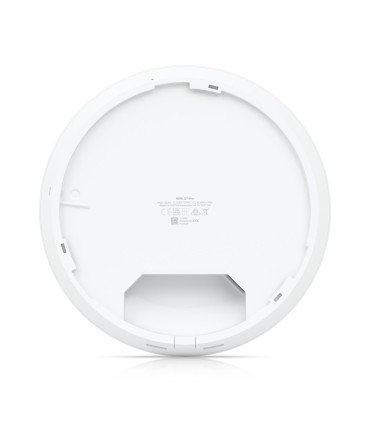

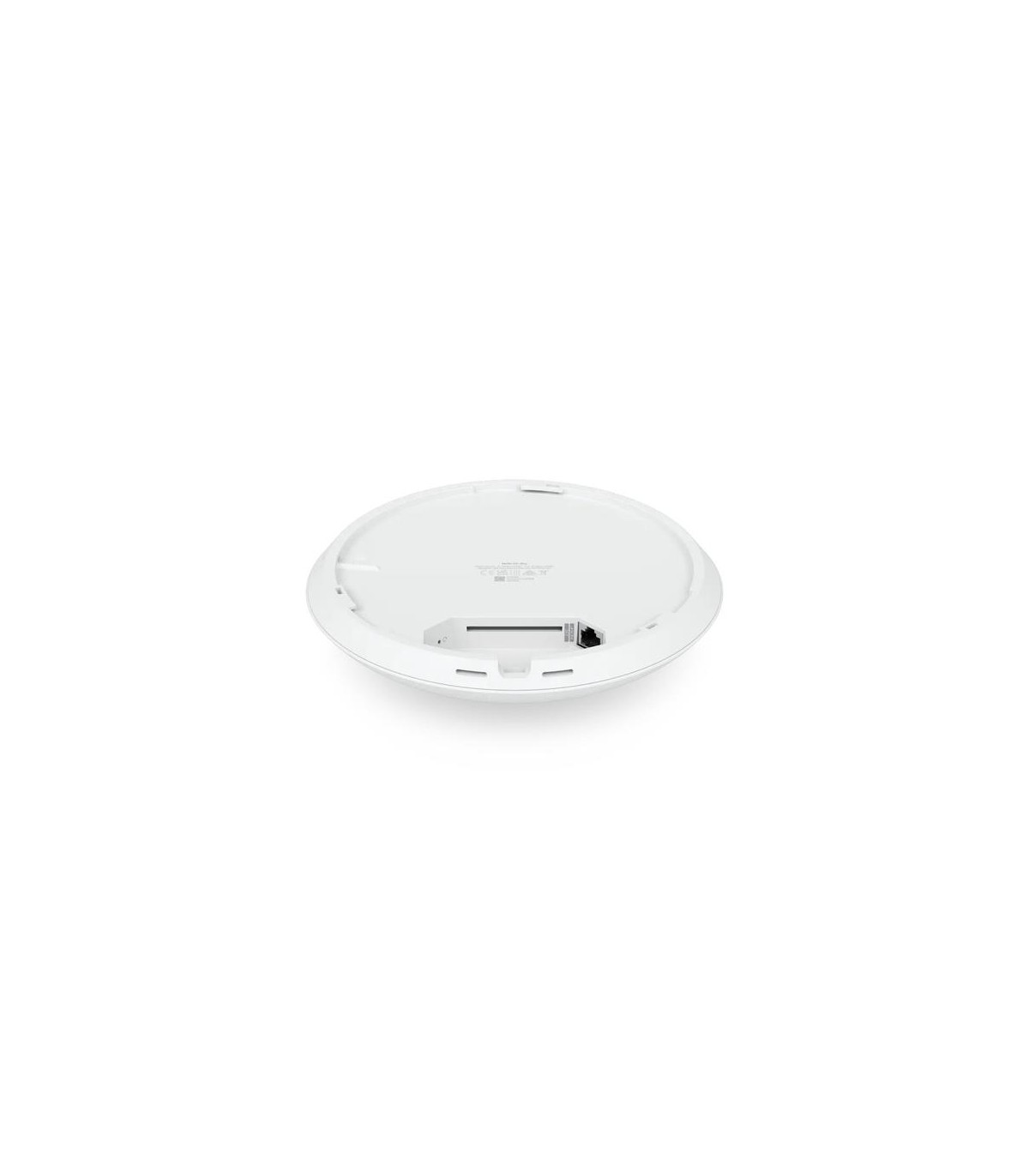

UBIQUITI Access Point IEEE 802.11a/b/g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax 1x2.5GbE U7-PRO

Технические характеристики

Материал корпуса

Metal,Polycarbonate (PC)

Другие свойства

Depth

206 mm

Height

46 mm

Width

206 mm

Unit Box Width

0.096

Unit Box Length

0.246

Unit Box Height

0.245

Category Code

WAP

Model name

U7 Pro

Antenna Type

Internal

Unit Calculated Volume

0.01157 cubm

Unit Calculated Weight

1.58 kg

Units per Shipping Box

5

Summary

Ubiquiti U7 Pro. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 5800 Mbit/s. Security algorithms: PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consum

Product colour

White

Sustainability compliance

Yes

Power consumption (max)

21 W

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-30 - 60 °C

Compliance certificates

CE/Federal Communications Commission (FCC)/Industry Canada (IC)

Weight

680 g

LED indicators

Yes

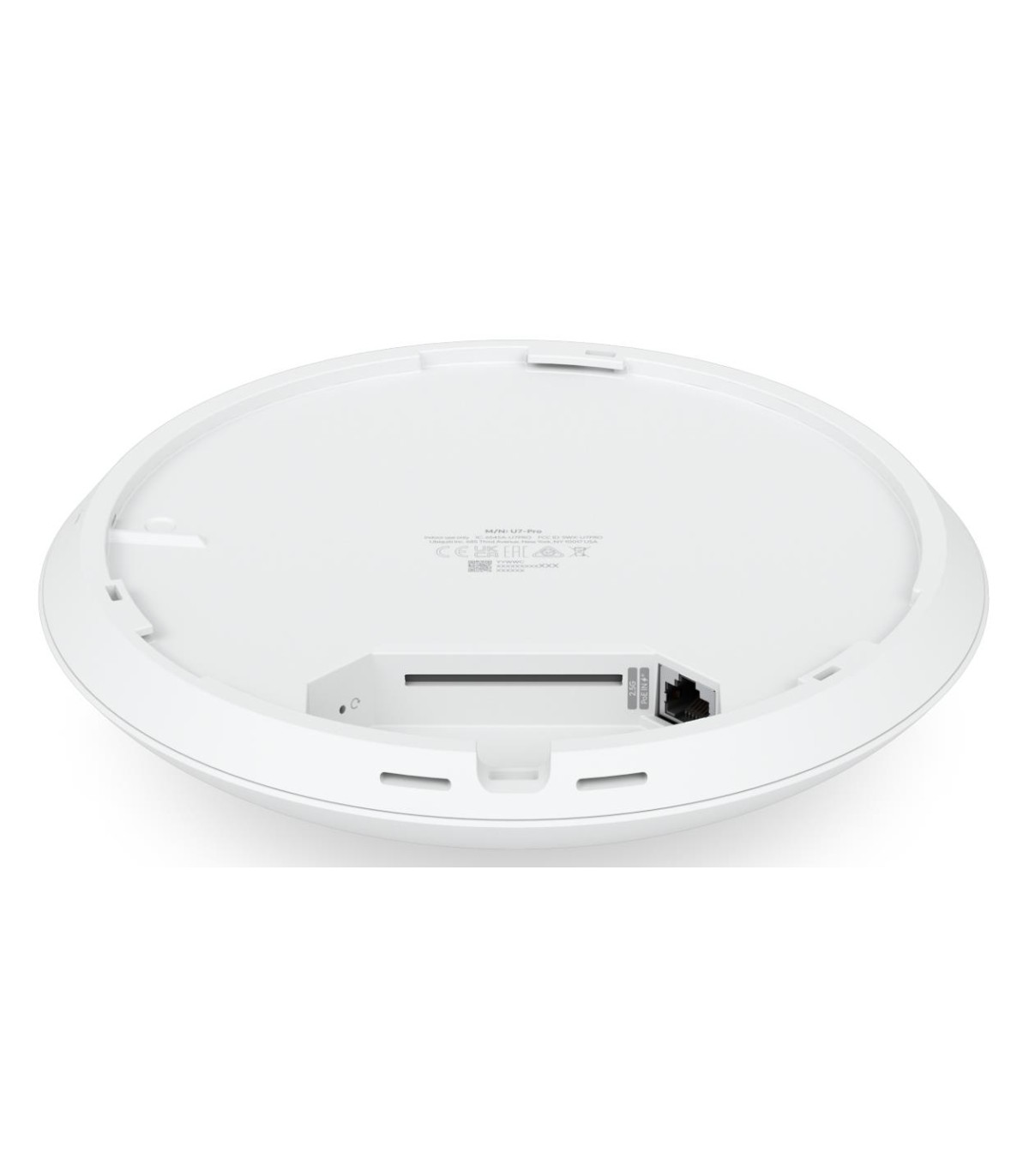

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

1000/2500 Mbit/s

Quantity per pack

1 pc(s)

Frequency band

2.4 - 6 GHz

Reset button

Yes

MIMO

Yes

Security algorithms

PPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK

MIMO type

Multi User MIMO

Maximum data transfer rate

5800 Mbit/s

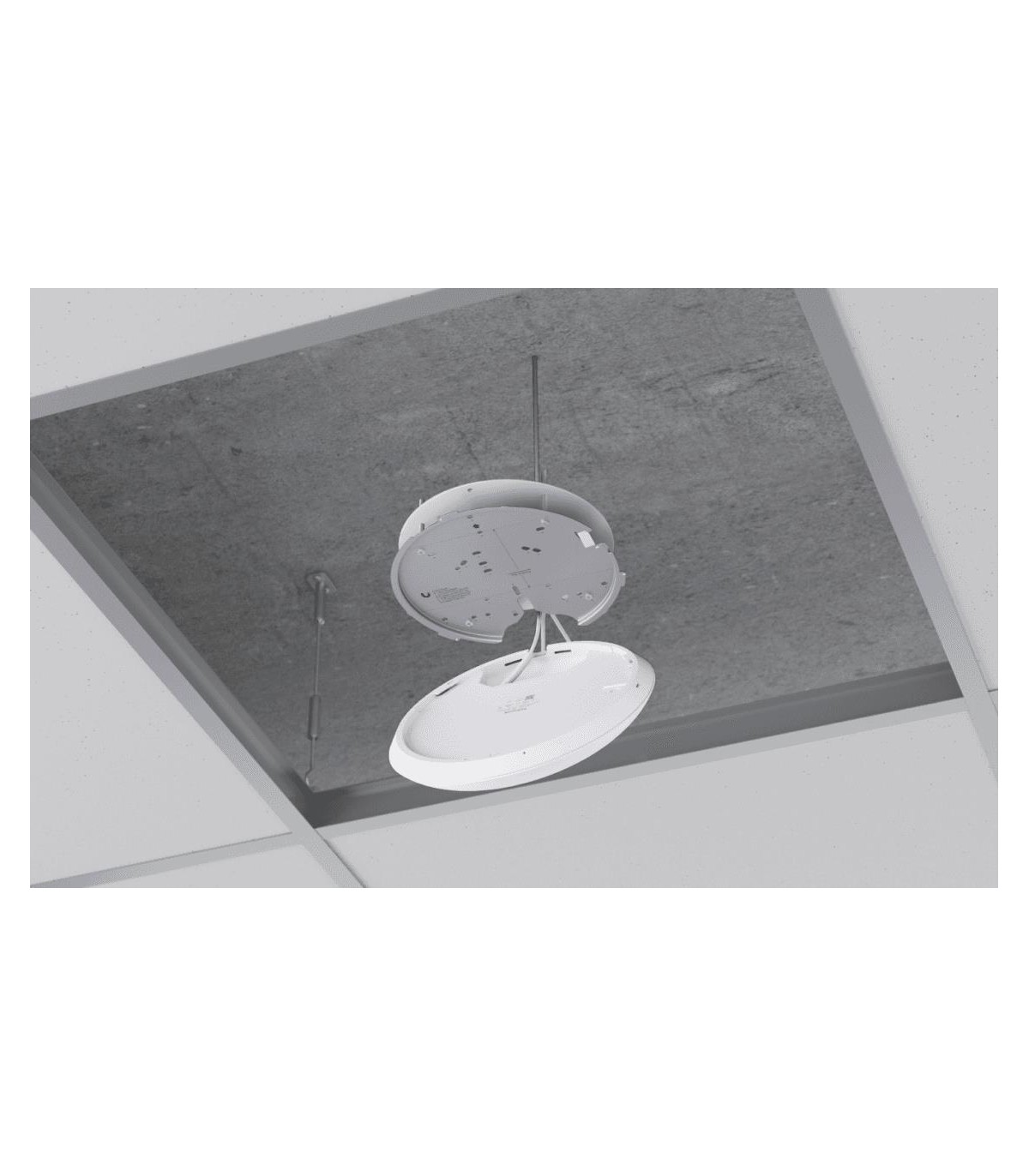

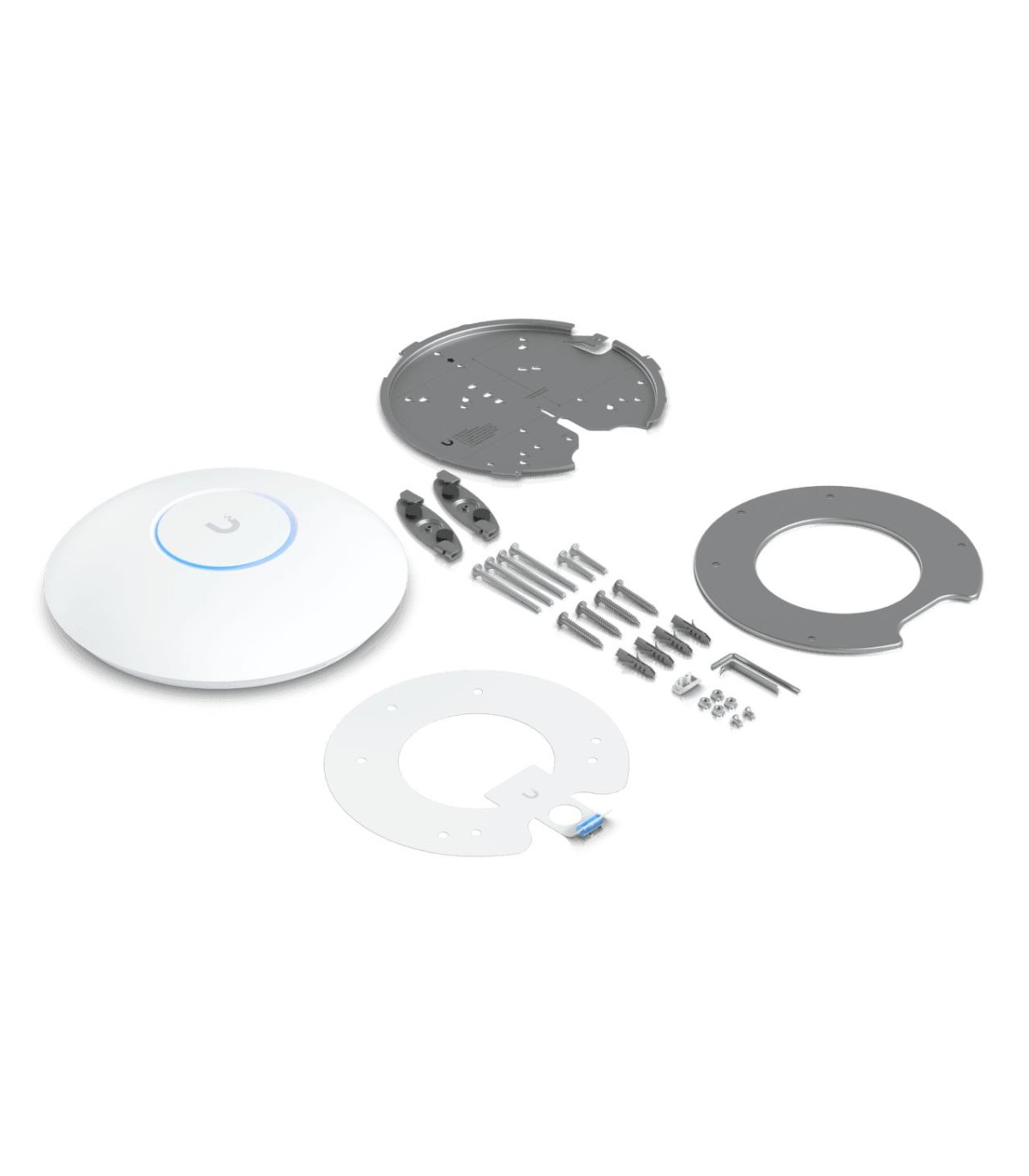

Mounting kit

Yes

Networking standards

IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v/IEEE 802.1Q/IEEE 802.3at

Power over Ethernet (PoE)

Yes

Quality of Service (QoS) support

Yes

VLAN support

Yes

Rate limiting

Yes

Power over Ethernet (PoE) type supported

PoE+

Maximum Tx power (2.4 GHz)

22 dBmW

Maximum Tx power (5 GHz)

26 dBmW

Antenna gain level (max)

6 dBi

2.4 GHz

Yes

5 GHz

Yes

6 GHz

Yes

Band steering

Yes

Fit AP mode features

Hotspot 2.0

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

Maximum data transfer rate (5 GHz)

4300 Mbit/s

Number of users

300 user(s)

DC voltage range

44 - 57 V

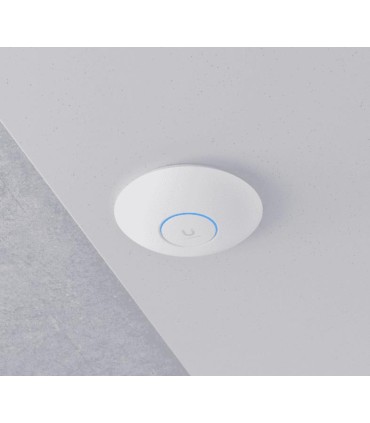

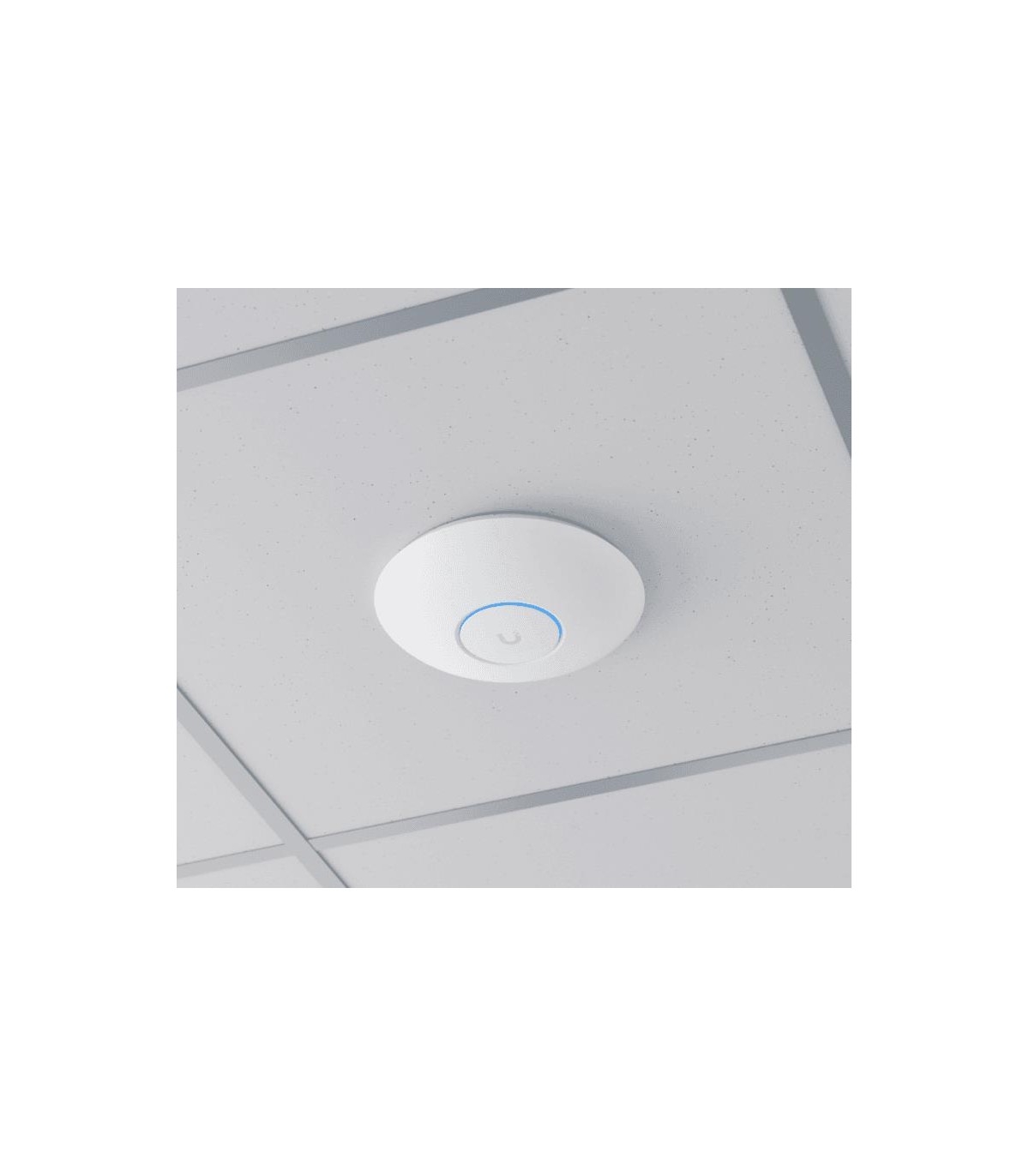

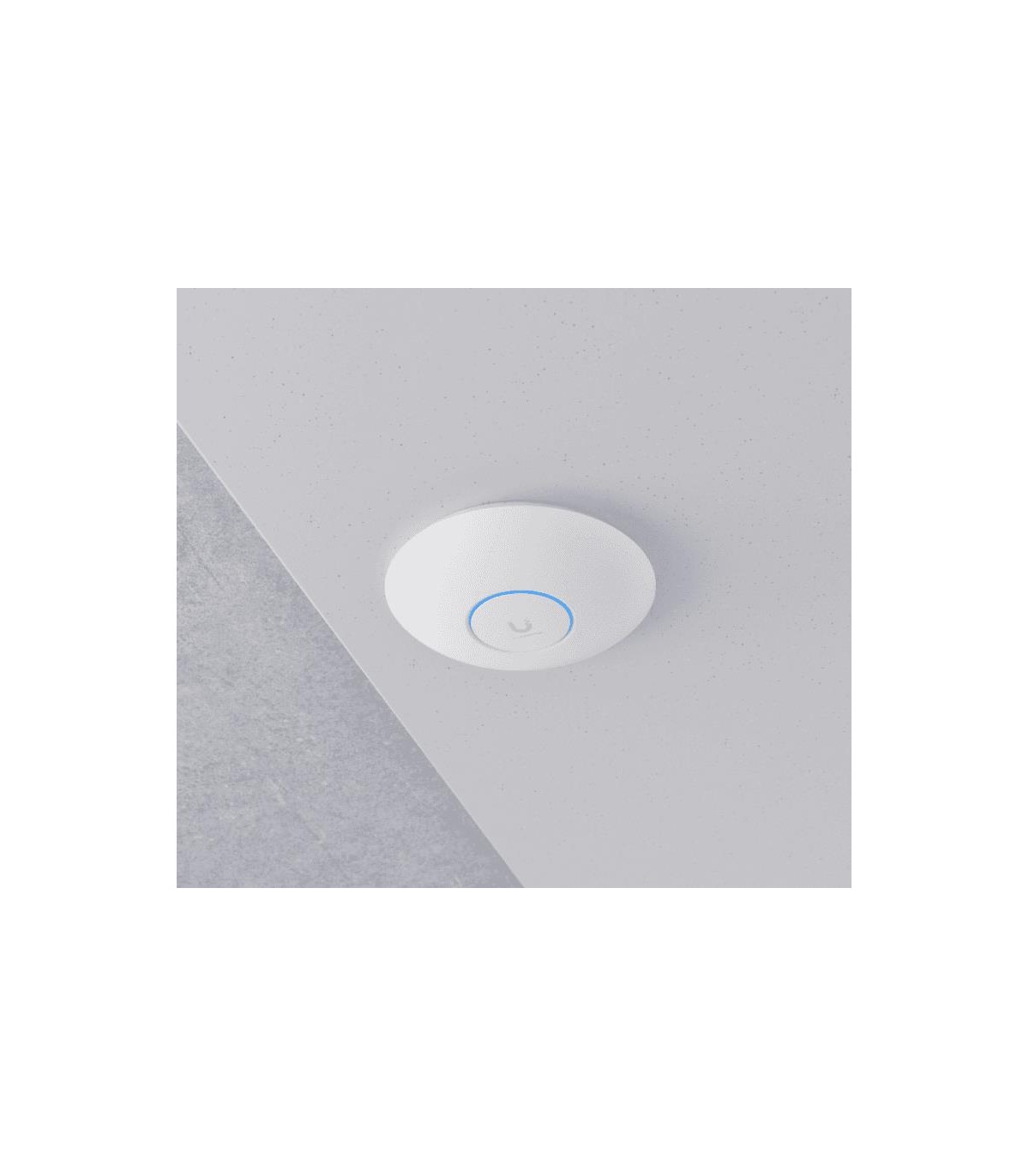

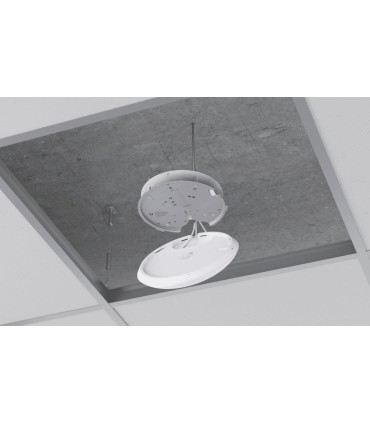

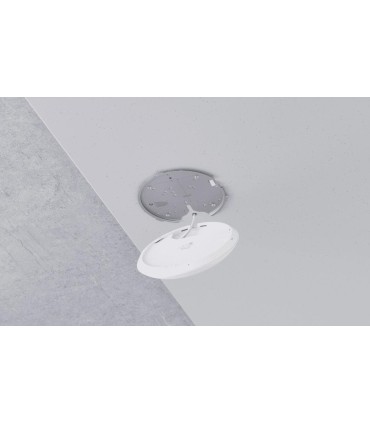

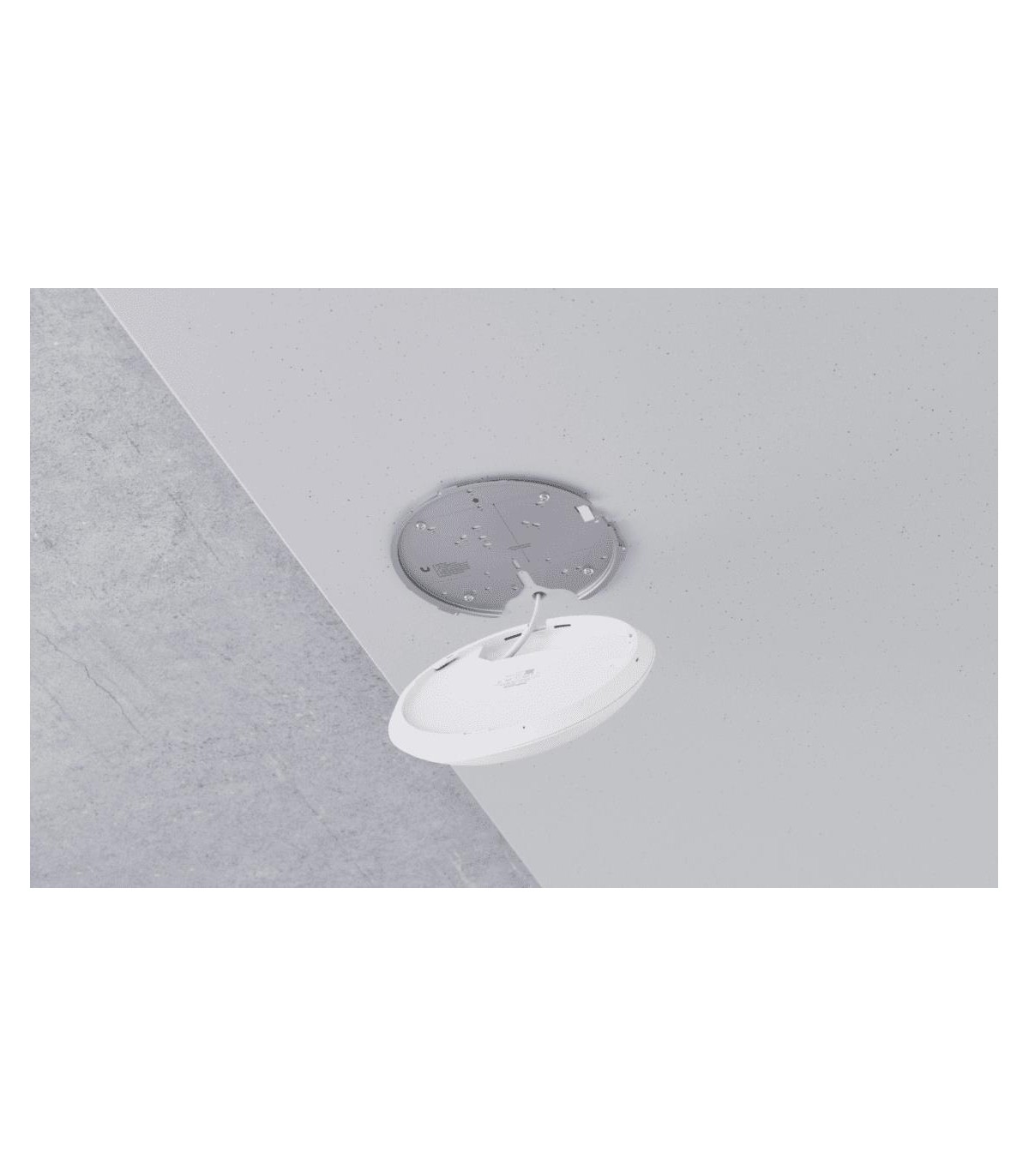

Placement

Ceiling,Wall

WAN connection

Ethernet (RJ-45)

Throughput data rate

5765 Mbit/s

Coverage area

140 m²

Fast roaming

Yes

Maximum data transfer rate (6 GHz)

5800 Mbit/s

Maximum Tx power (6 GHz)

23 dBmW
