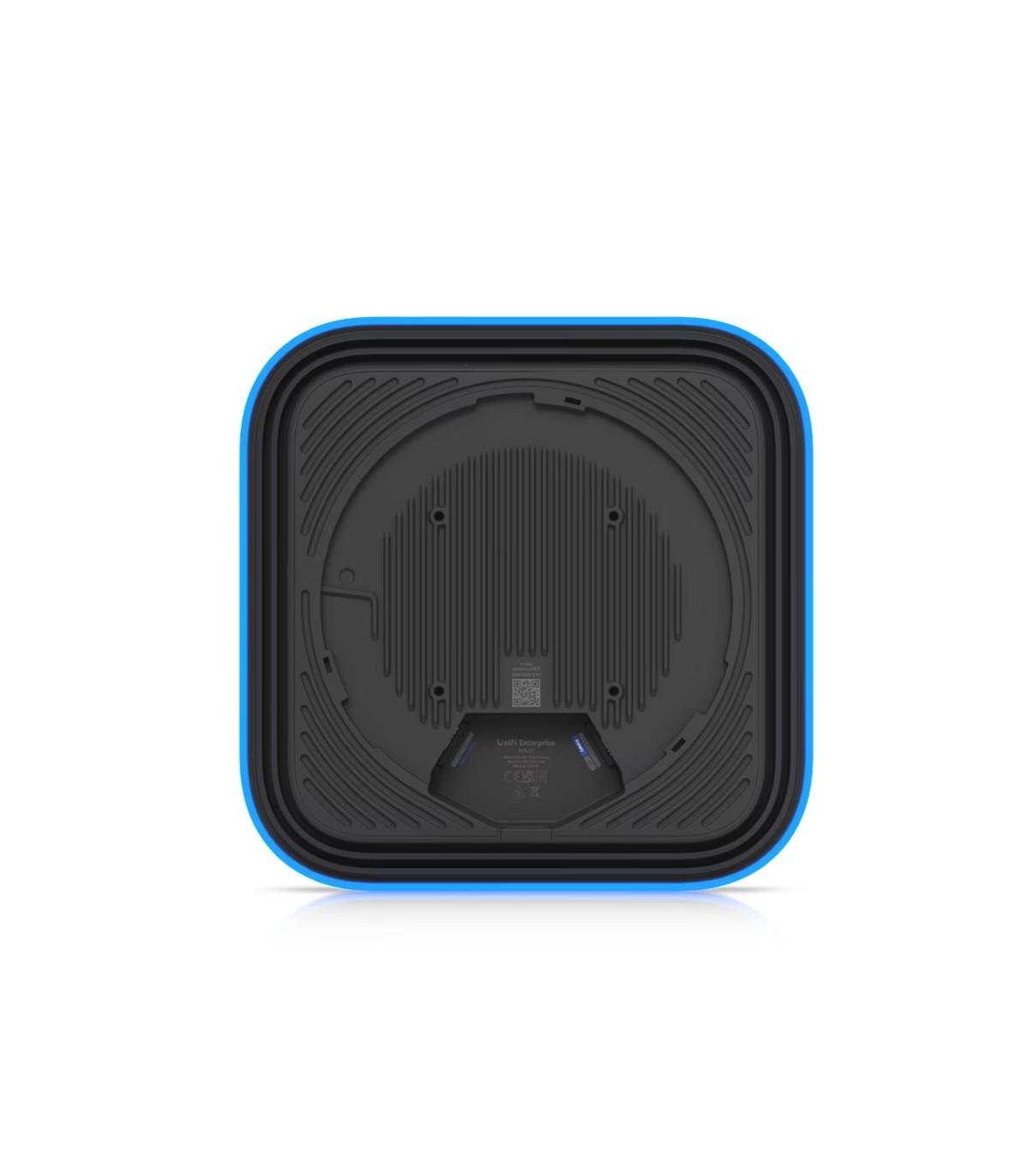

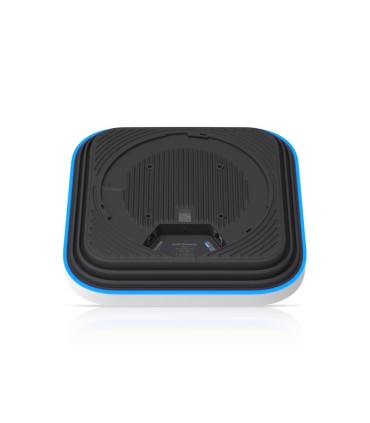

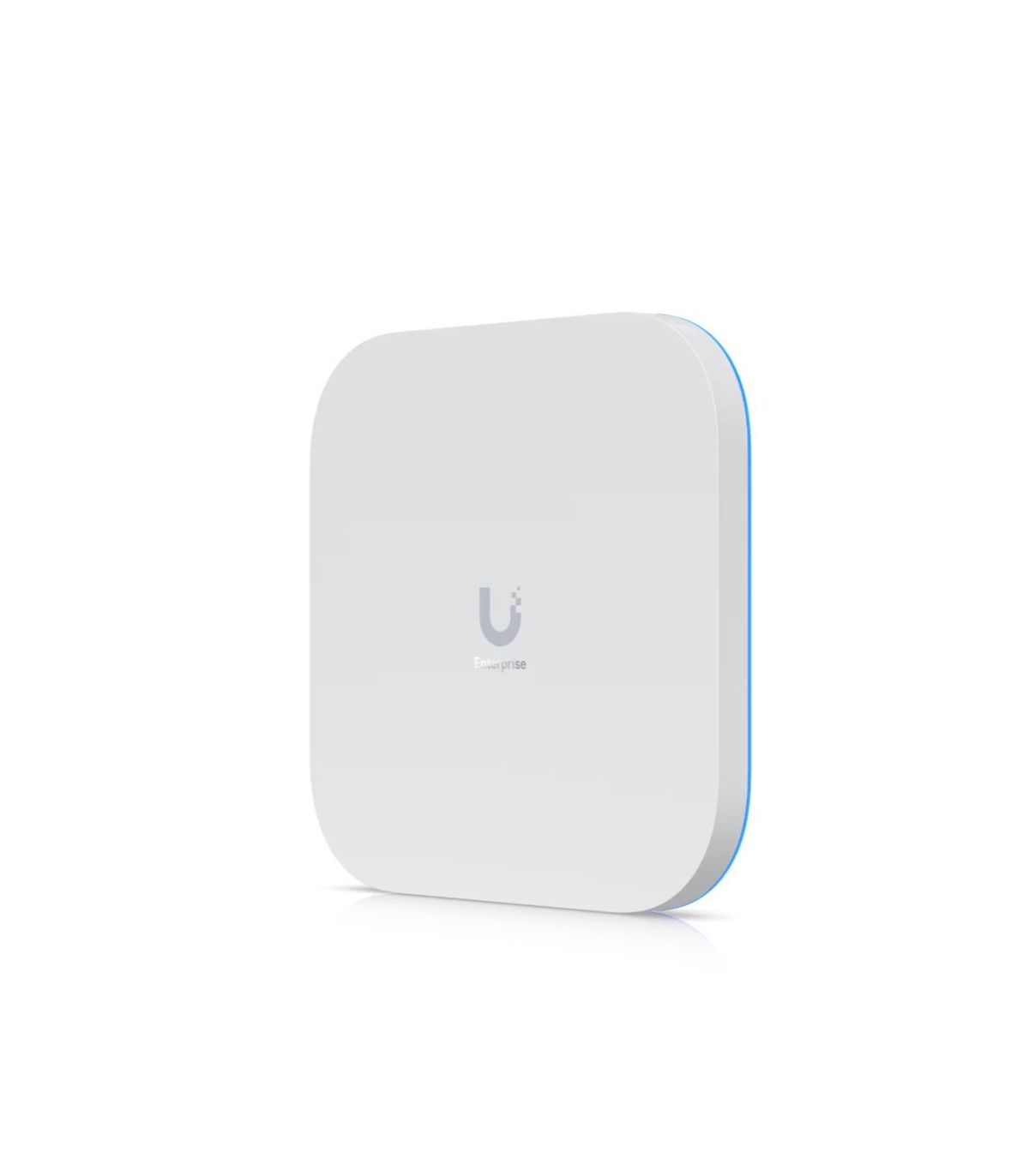

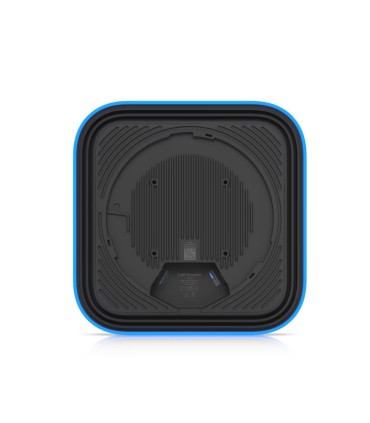

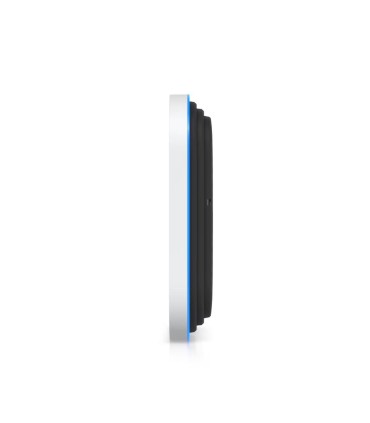

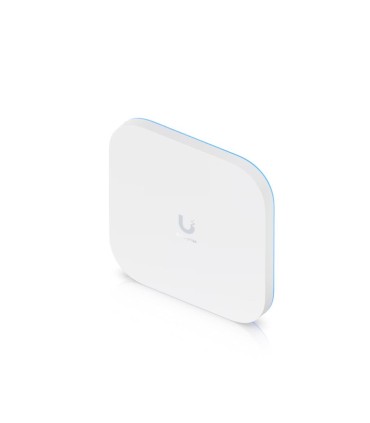

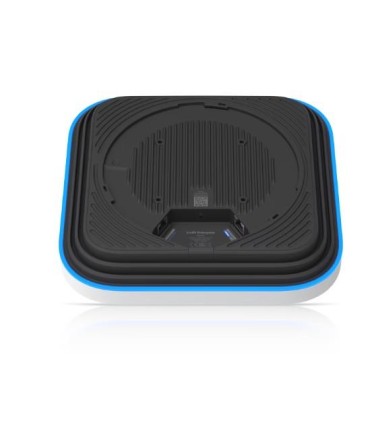

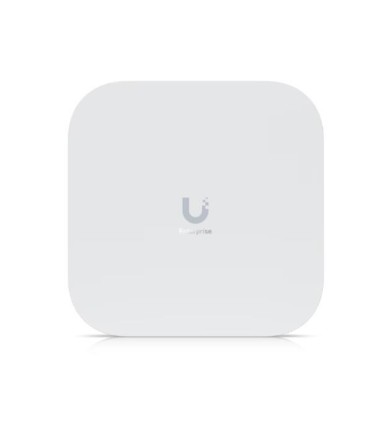

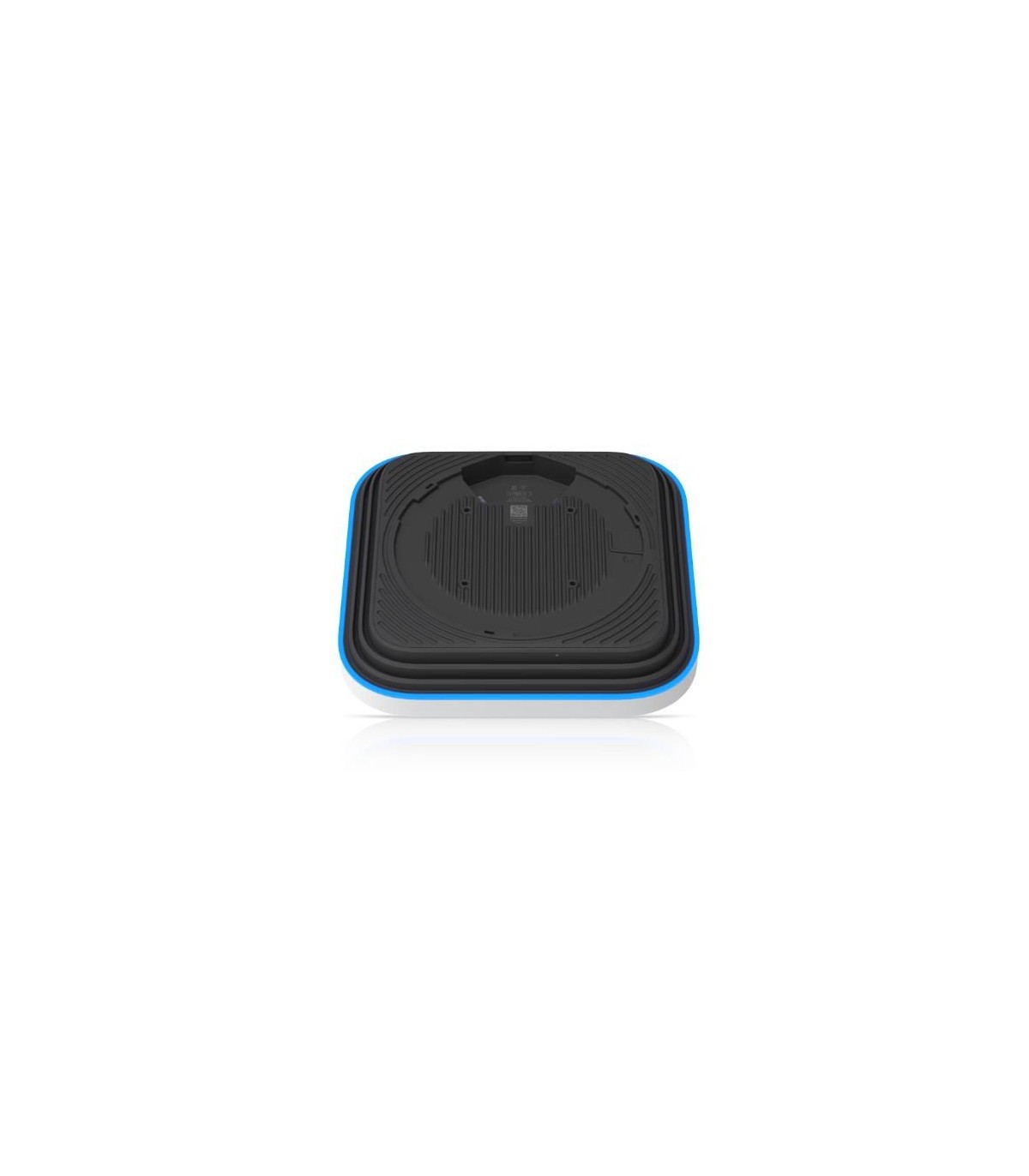

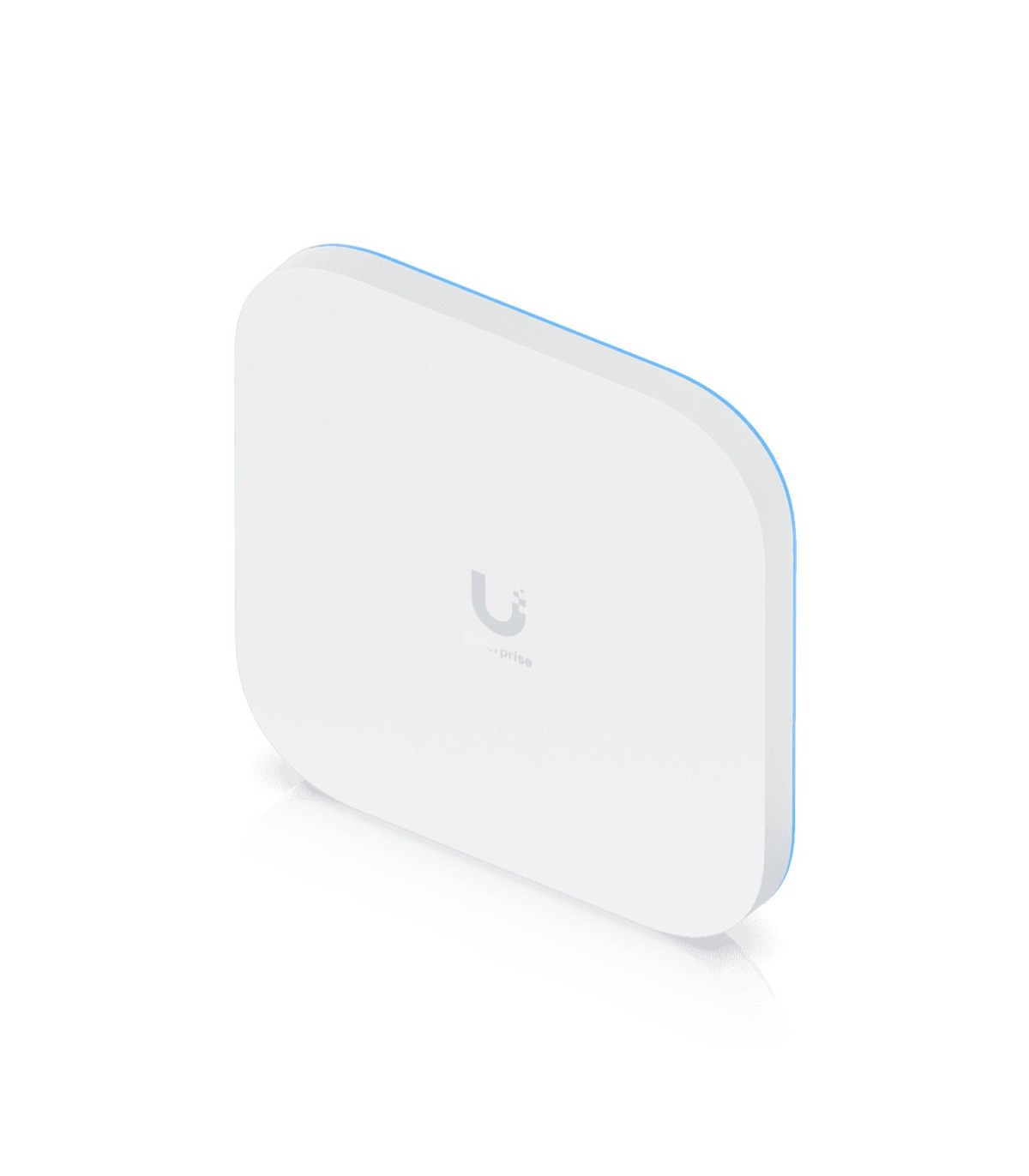

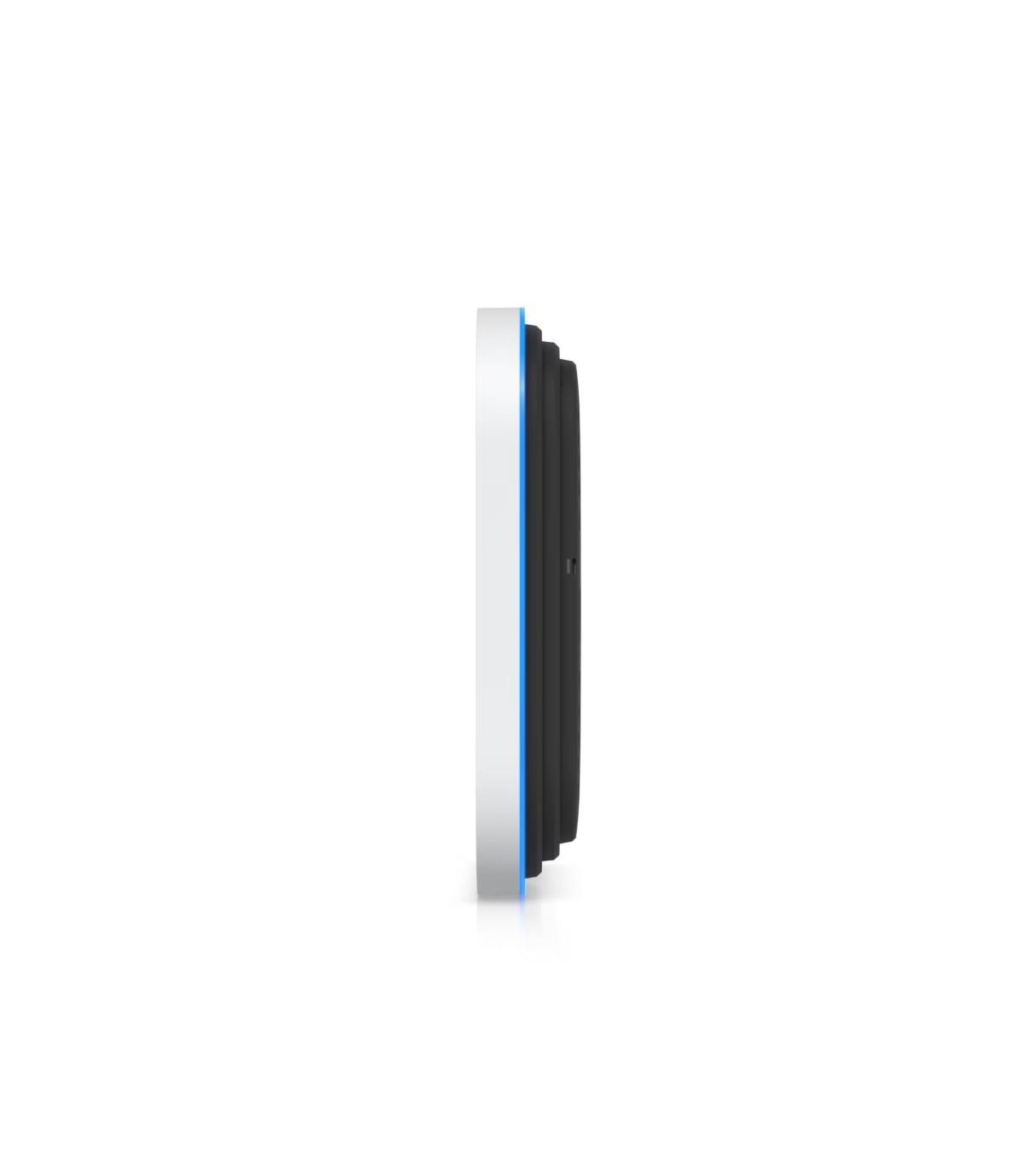

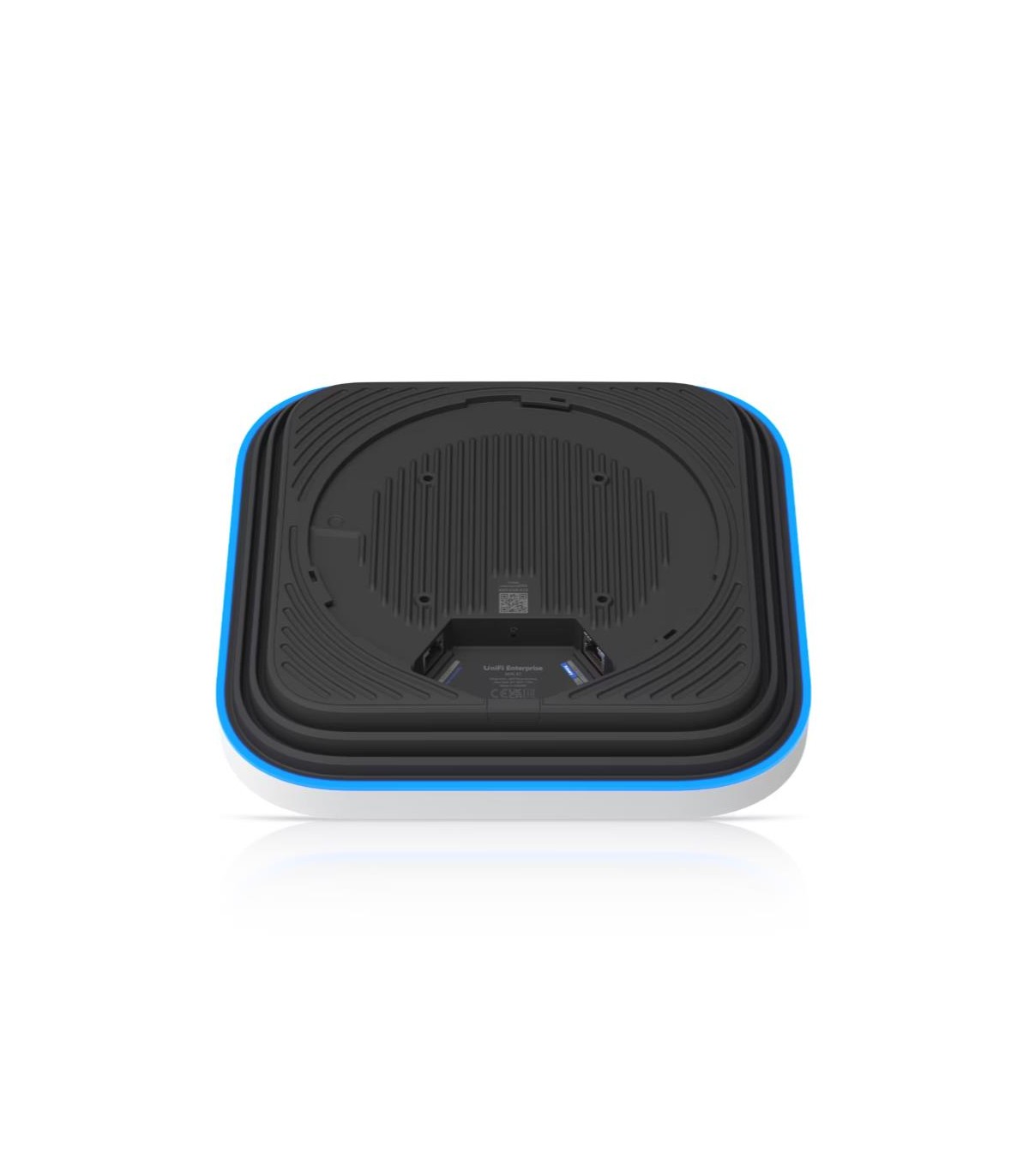

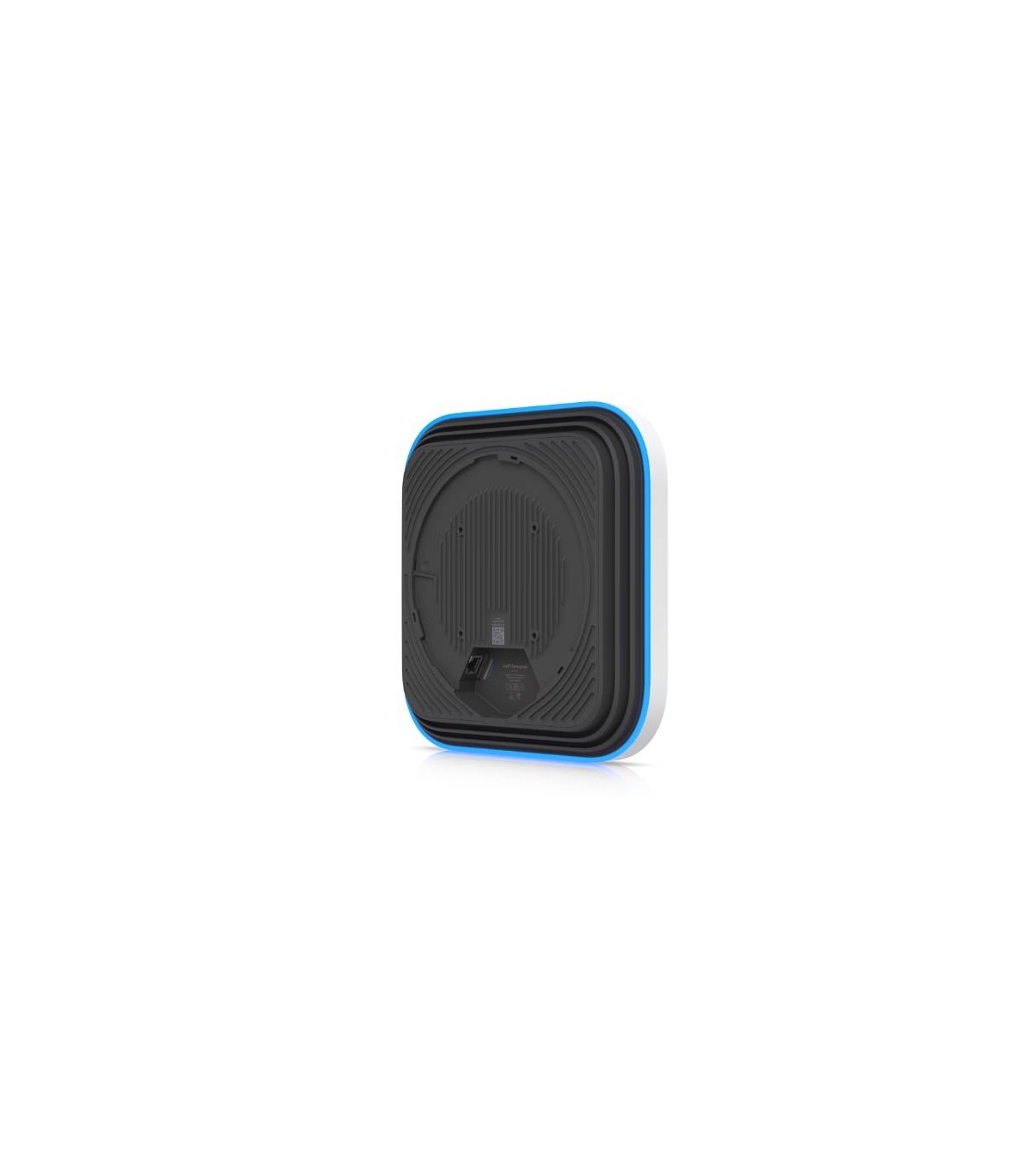

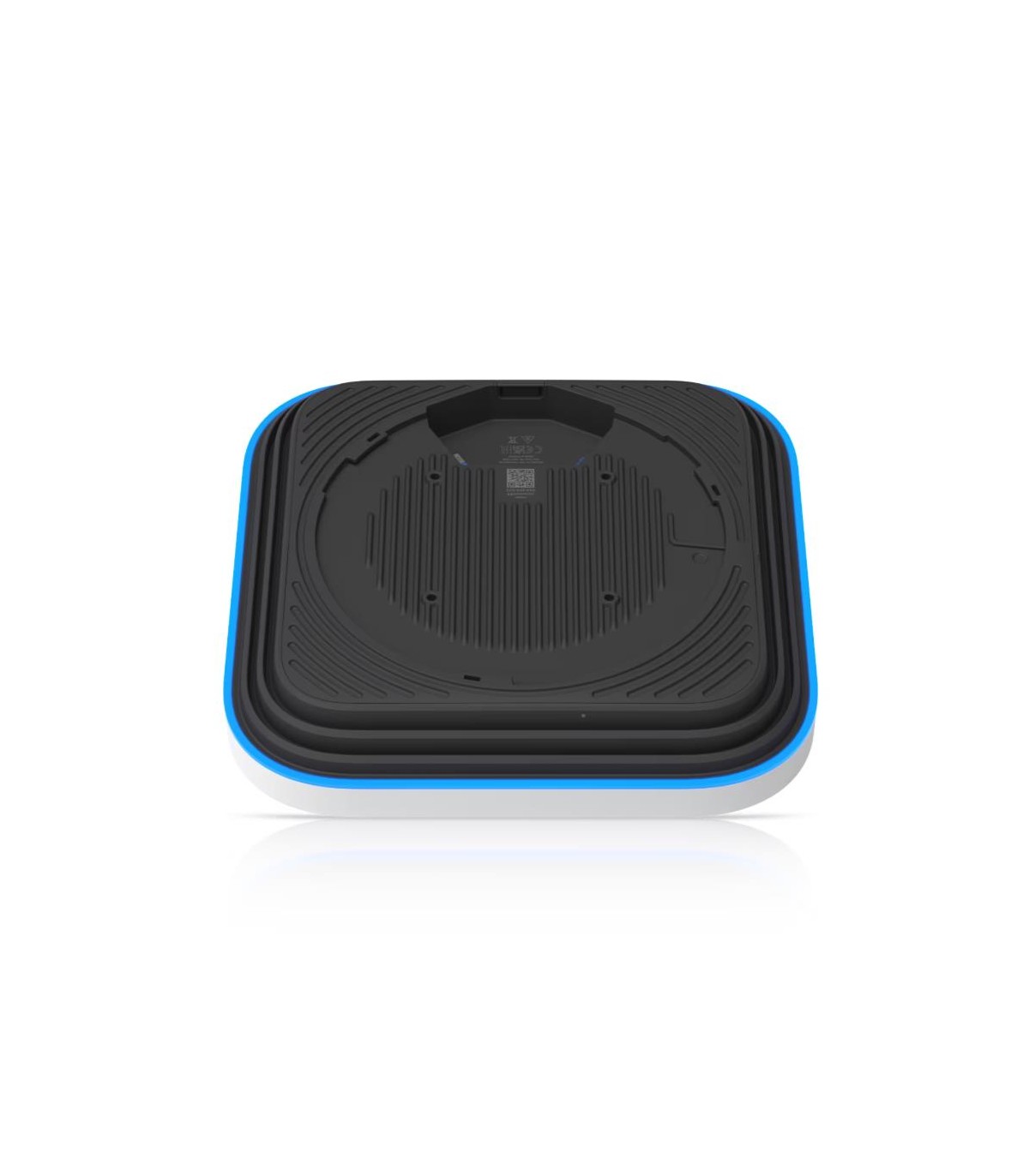

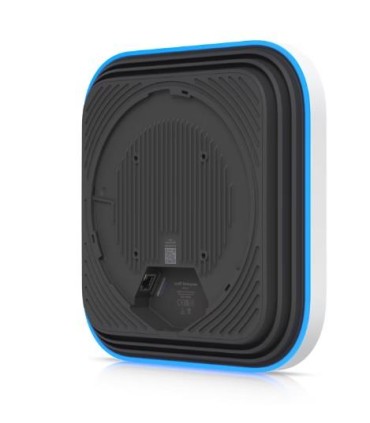

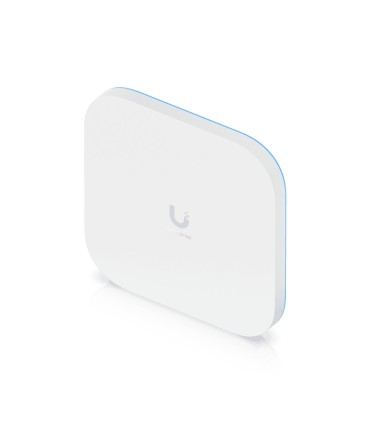

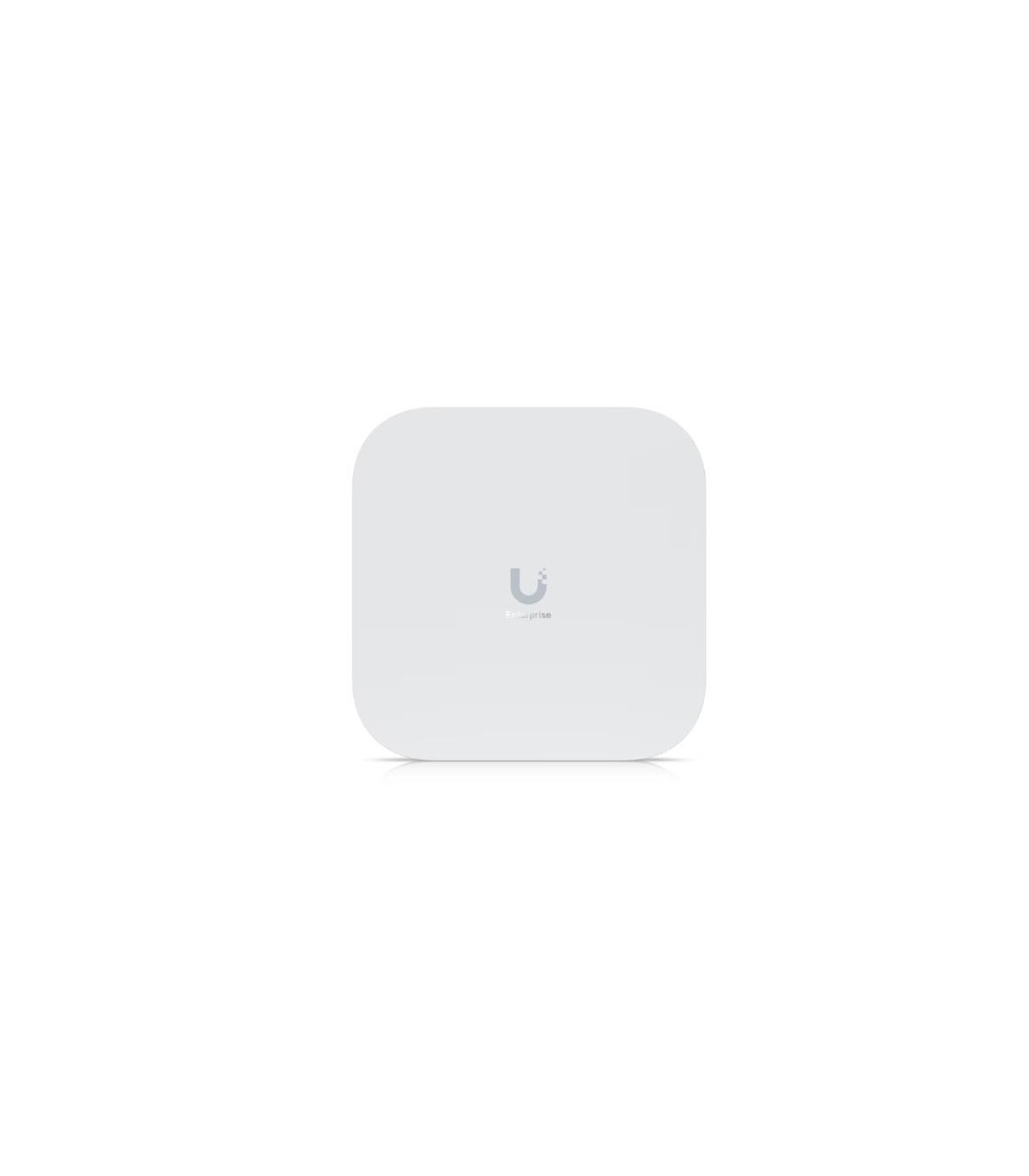

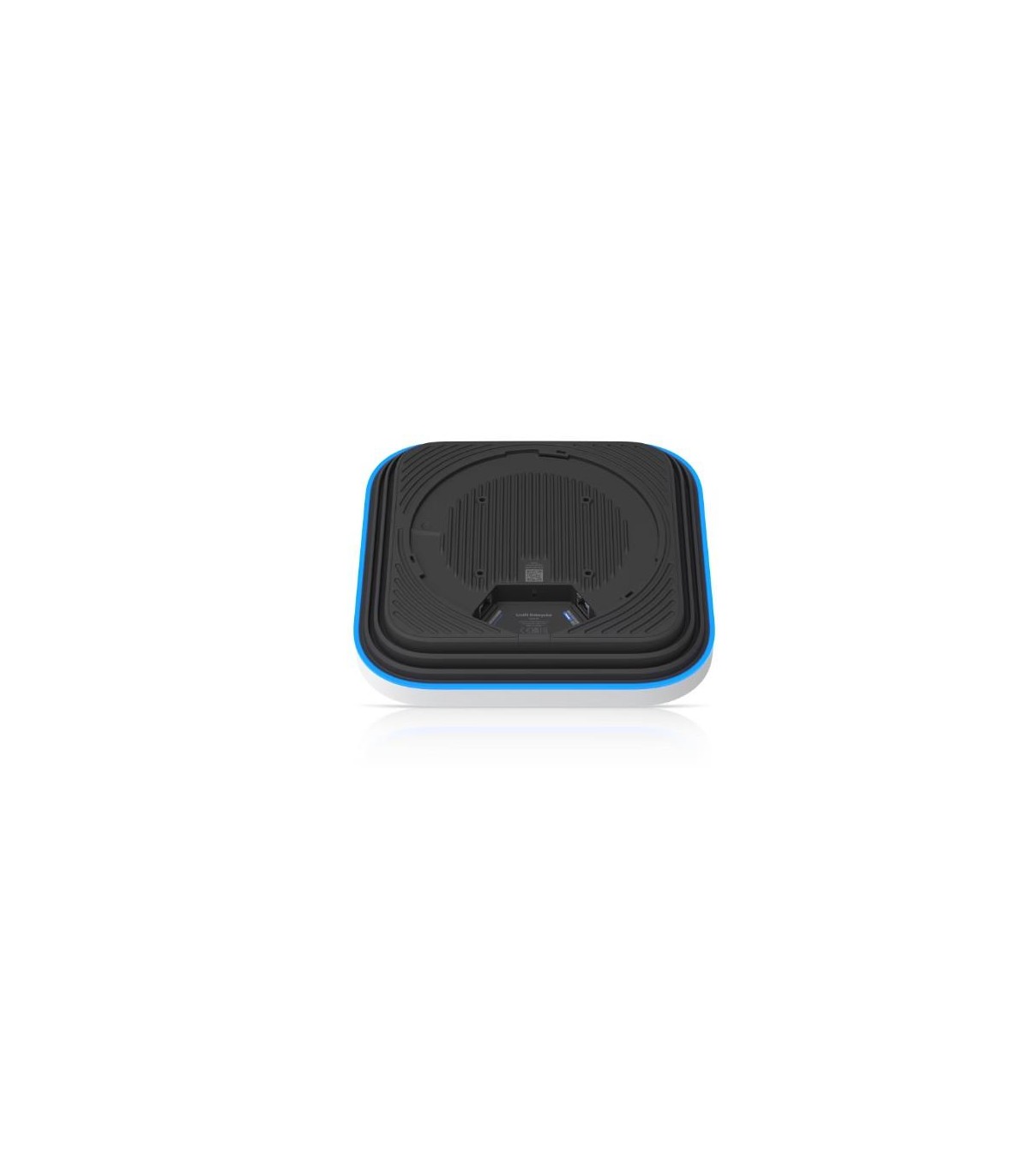

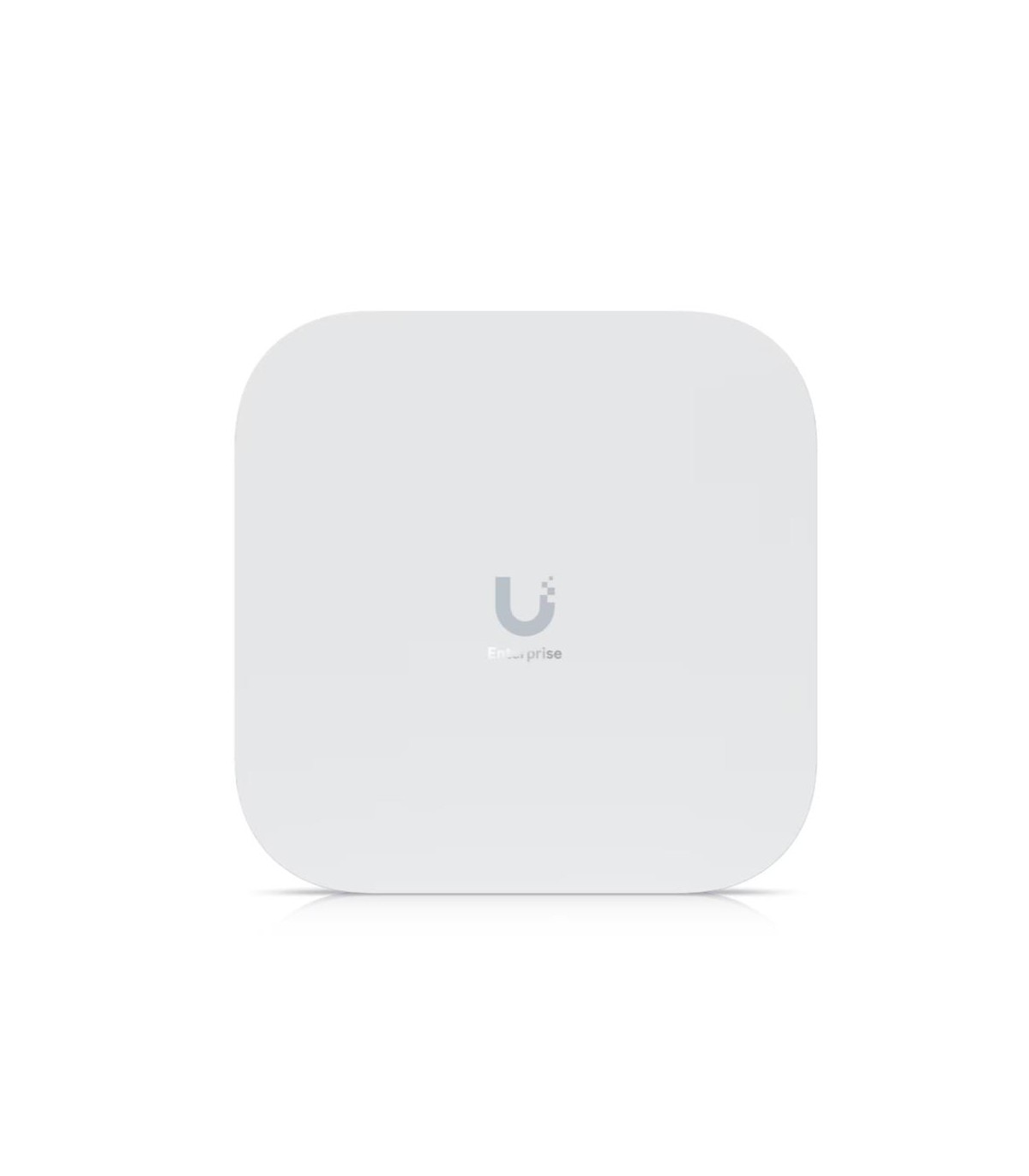

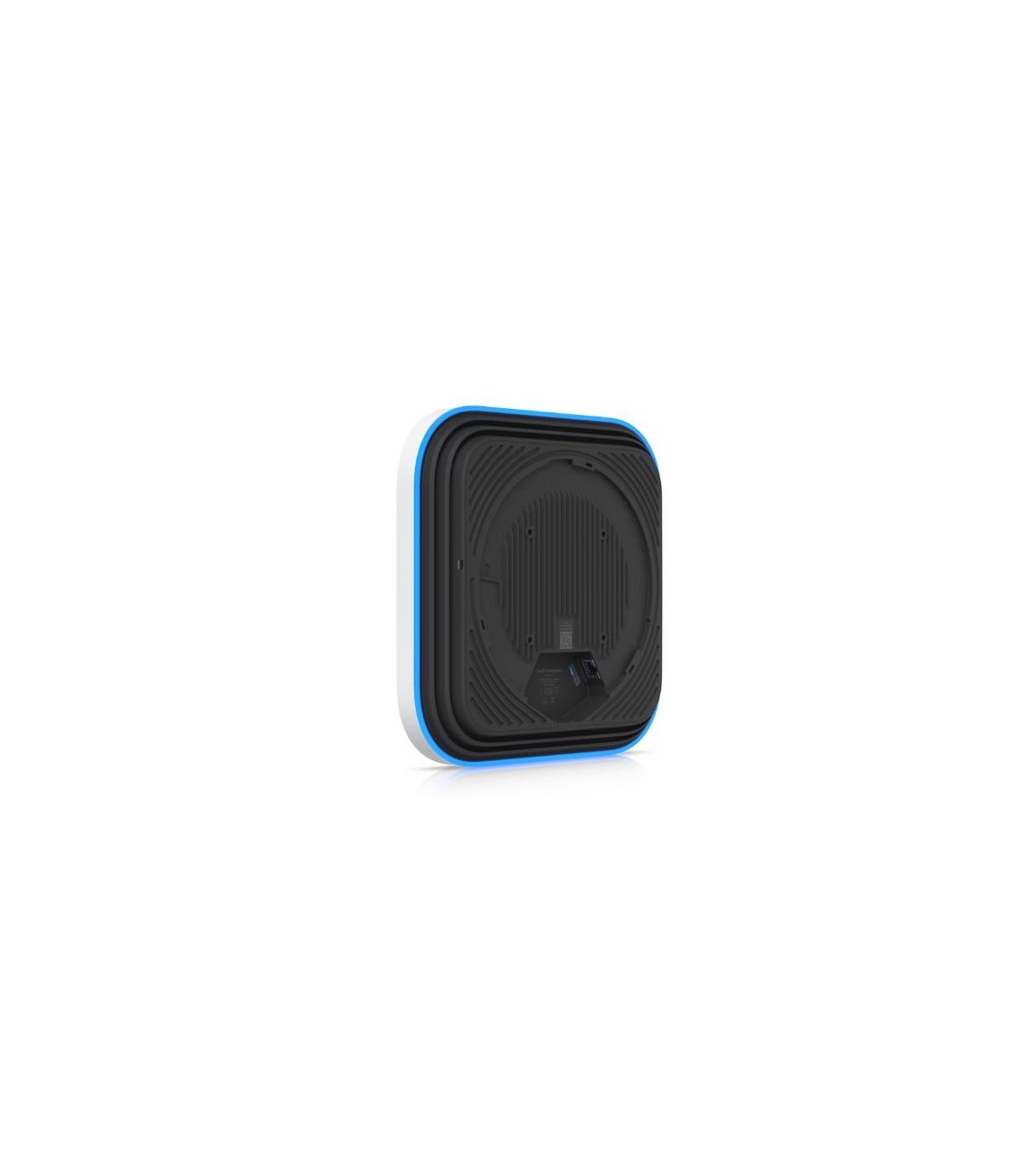

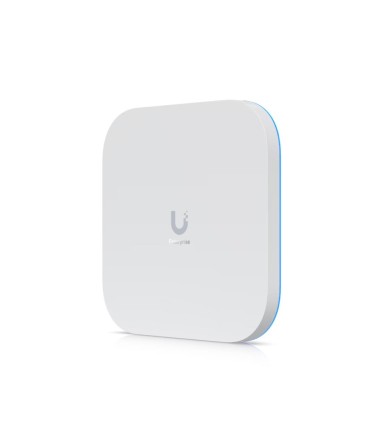

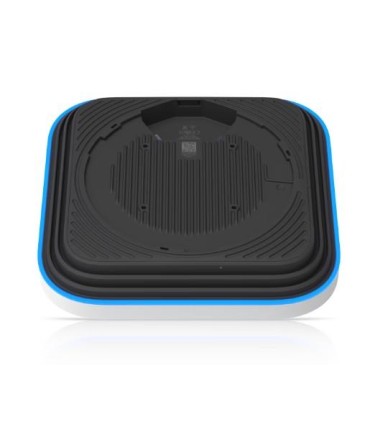

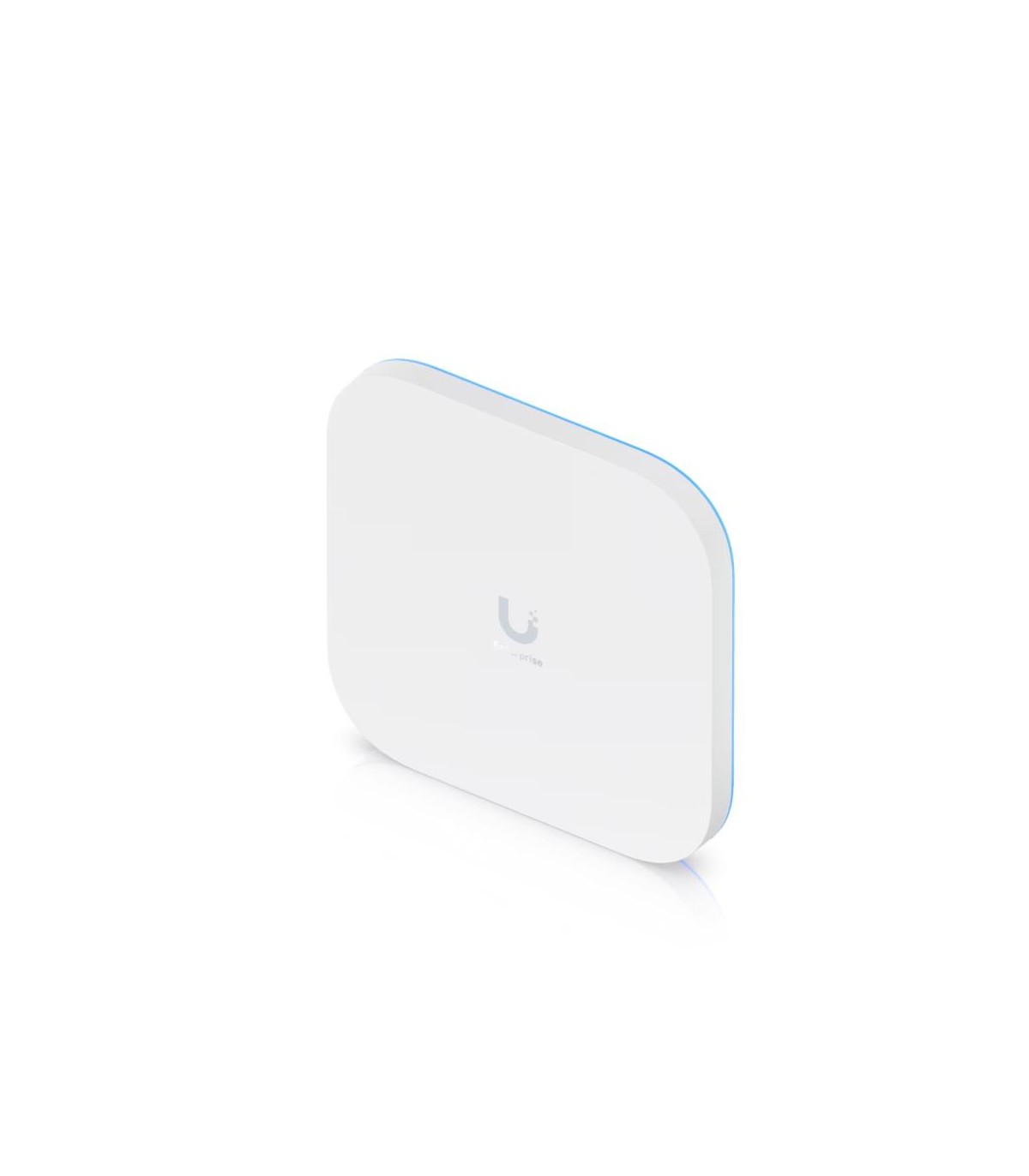

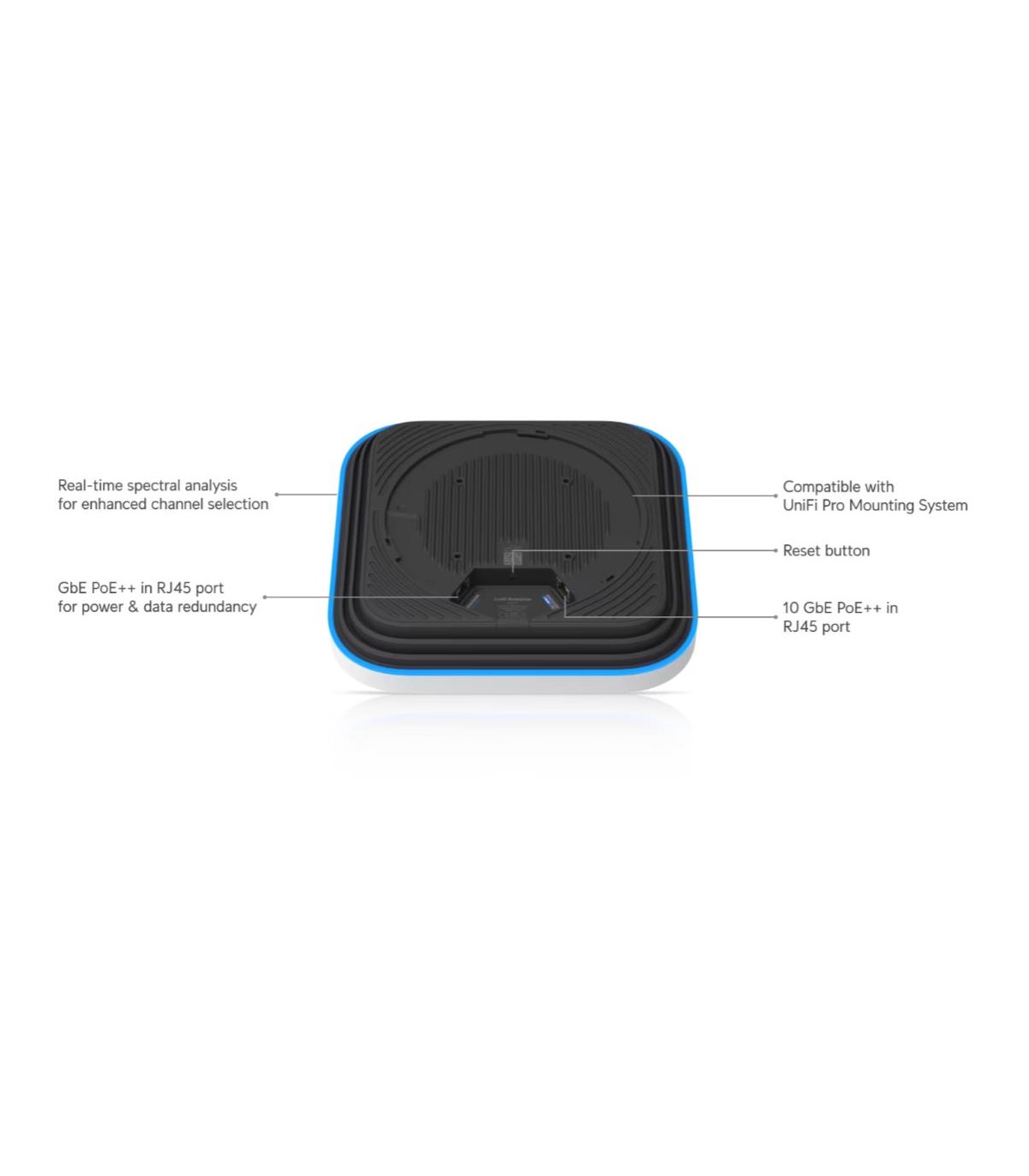

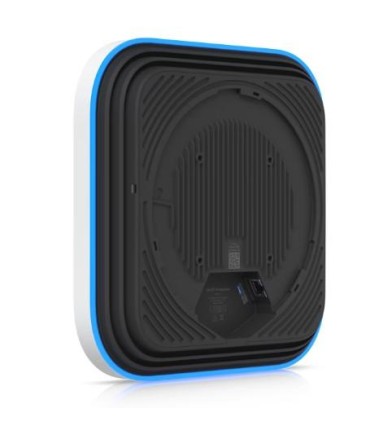

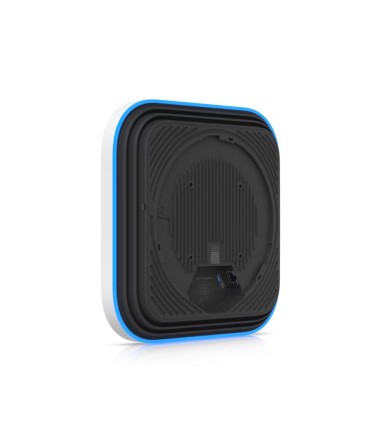

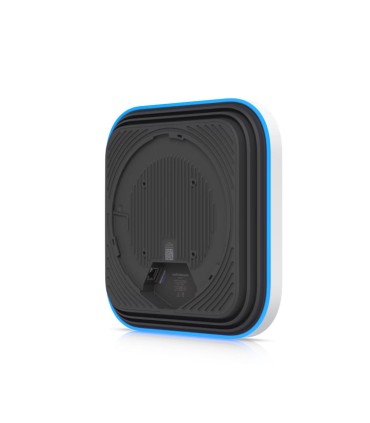

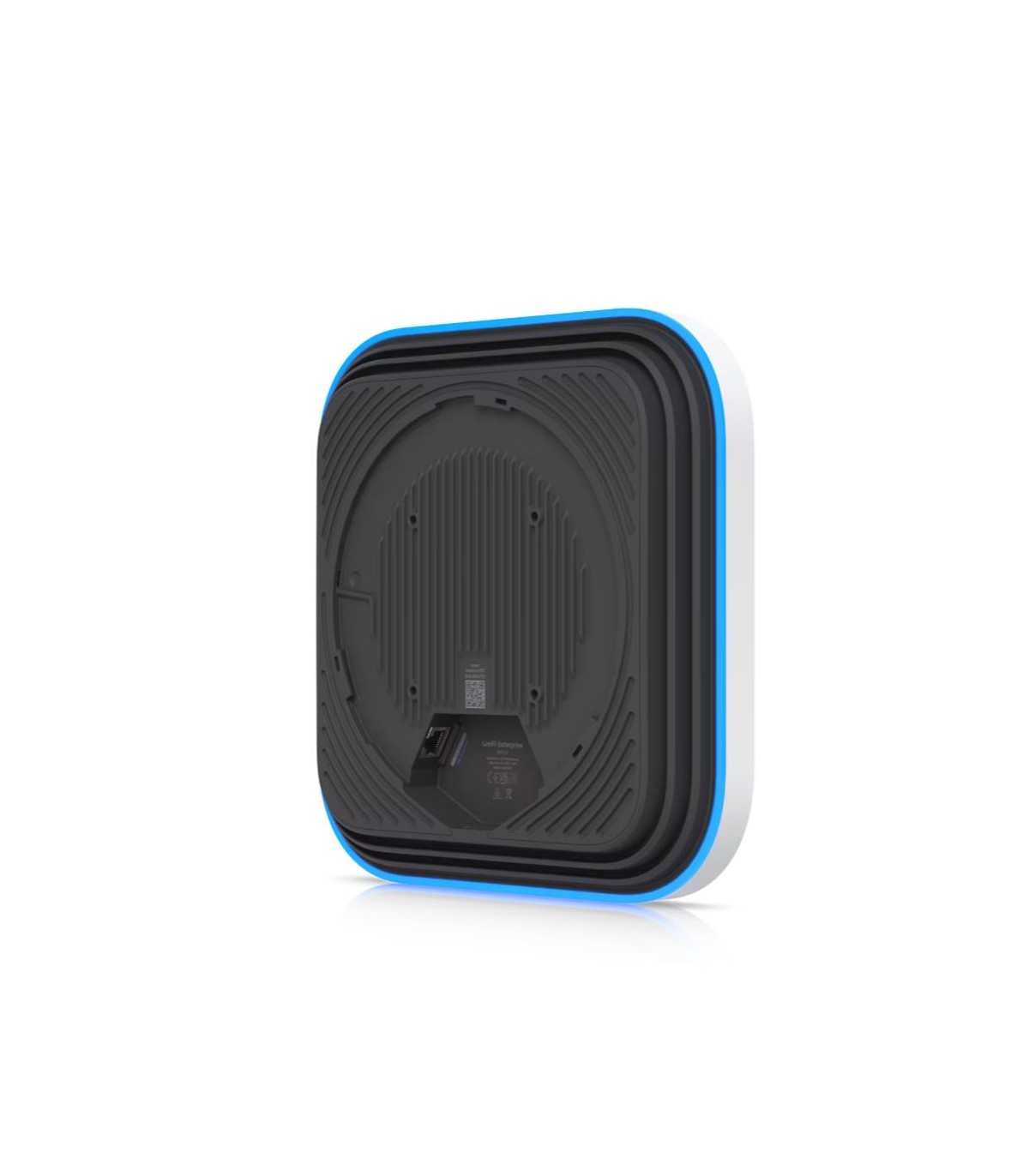

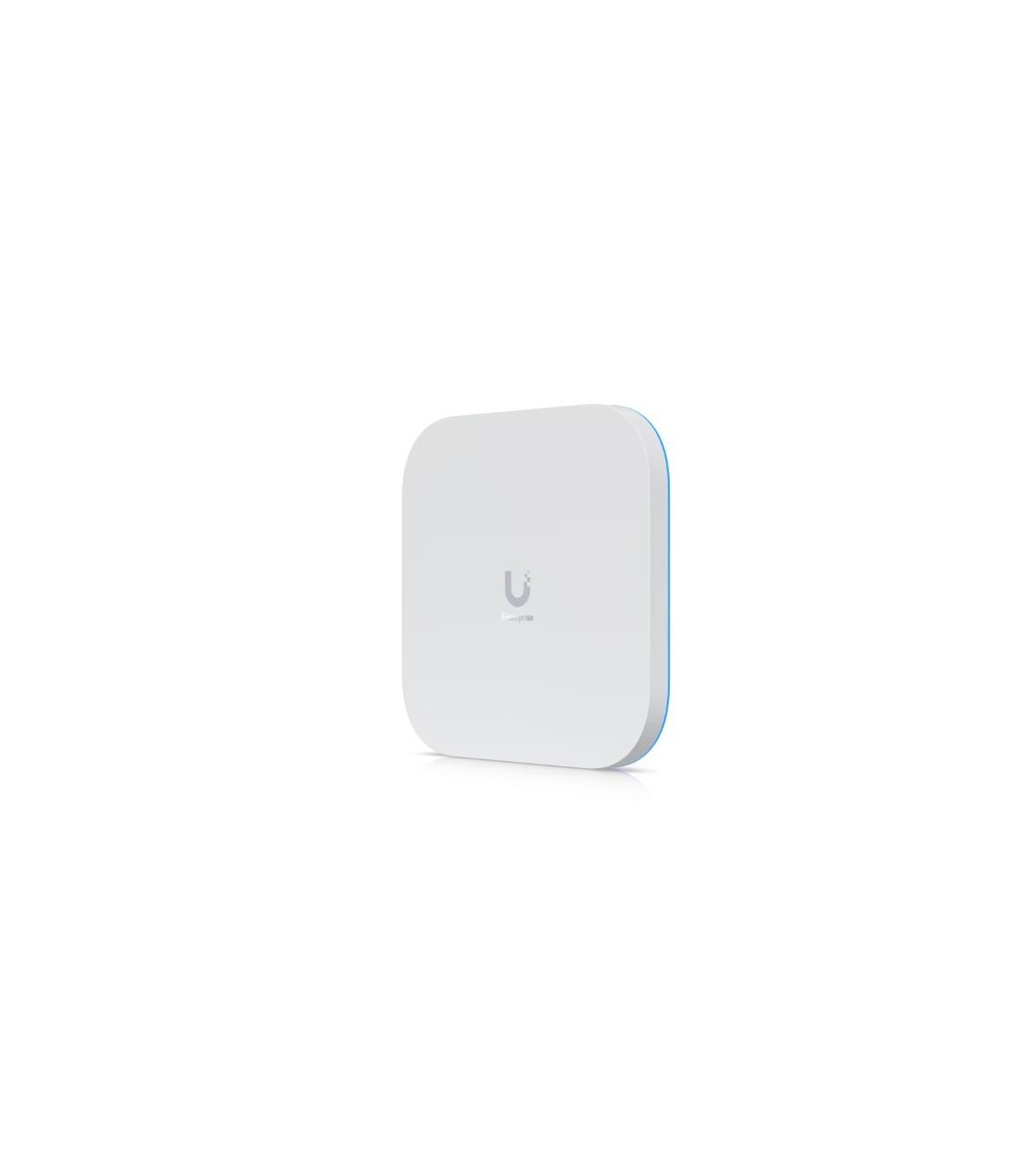

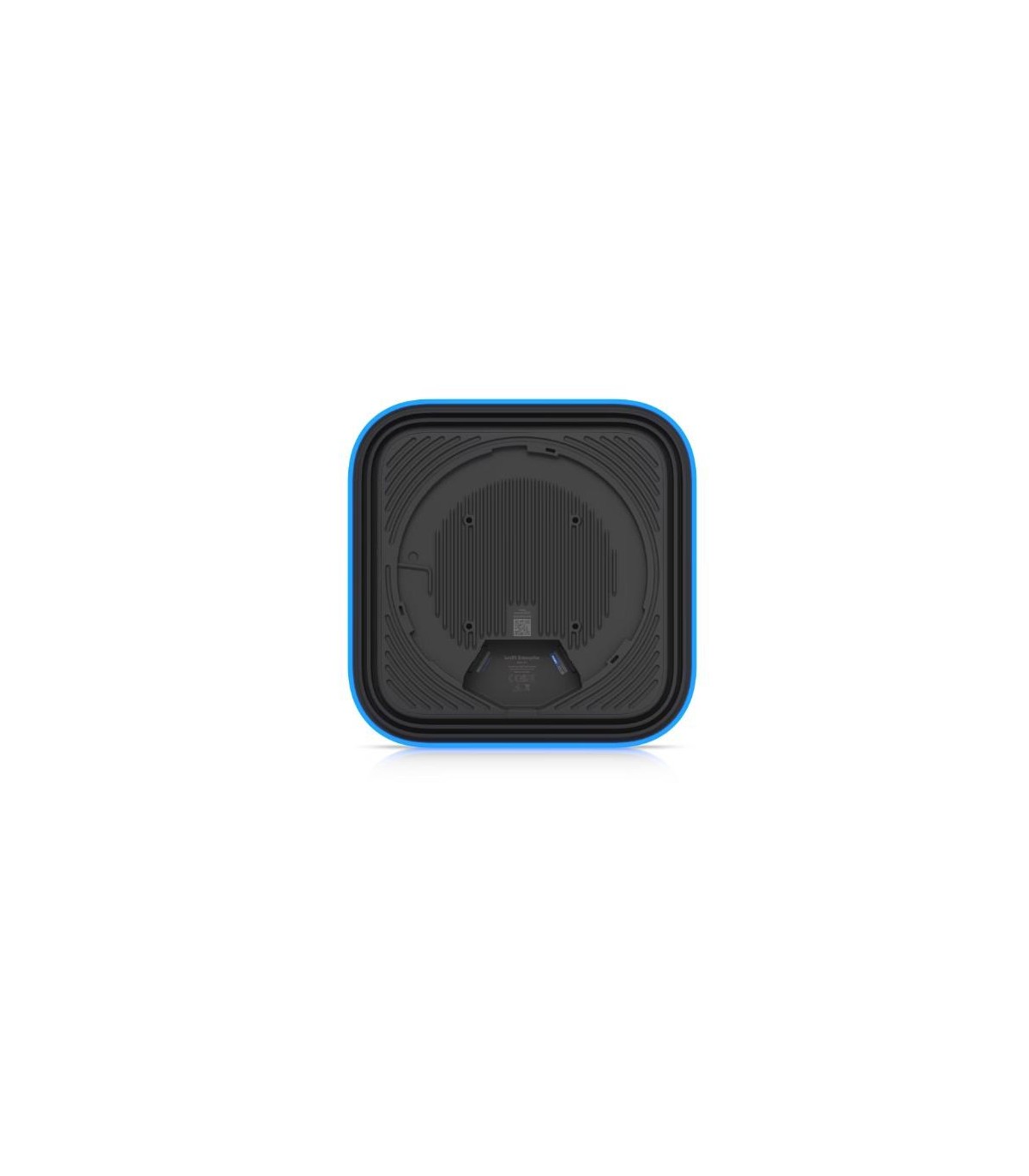

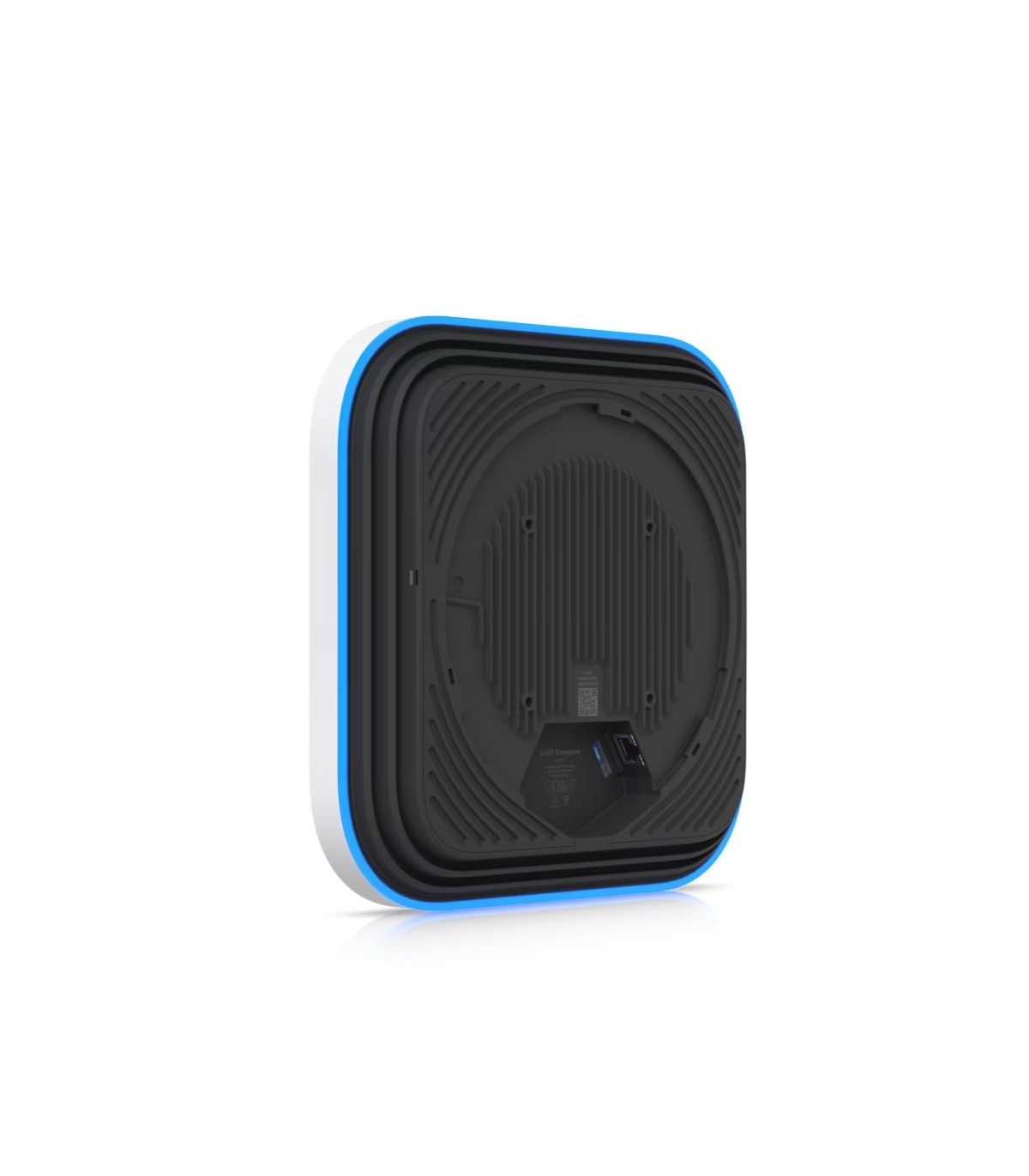

UBIQUITI WRL ACCESS POINT ENTERPRISE/E7

Технические характеристики

Материал корпуса

Aluminium,Polycarbonate (PC)

Другие свойства

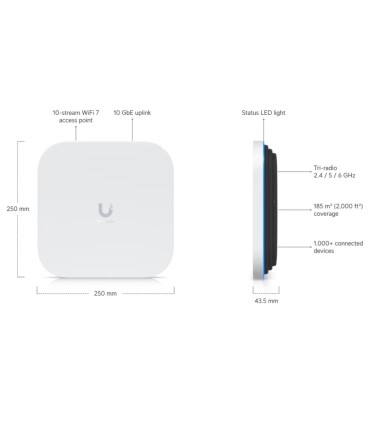

Depth

250 mm

Height

43.5 mm

Width

250 mm

Unit Box Width

0.305

Unit Box Length

0.111

Unit Box Height

0.308

Category Code

WAP

Model name

E7

Model

E7

Antenna Type

Internal

Unit Calculated Volume

0.01963 cubm

Unit Calculated Weight

3.25 kg

Units per Shipping Box

4

Summary

Ubiquiti E7. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 11500 Mbit/s. Security algorithms: PPSK. Ethernet LAN data rates: 10,100,1000,10000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Product colour

White

Power consumption (typical)

43 W

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-30 - 50 °C

Weight

1800 g

LED indicators

Yes

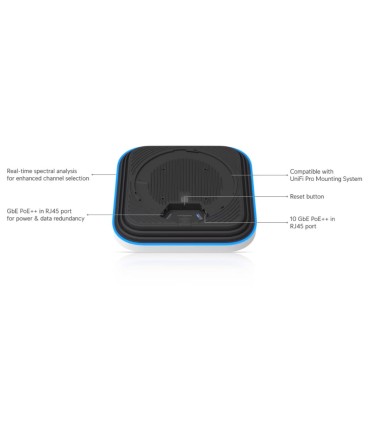

Ethernet LAN (RJ-45) ports

2

Ethernet LAN data rates

10/100/1000/10000 Mbit/s

Reset button

Yes

MIMO

Yes

Security algorithms

PPSK

MIMO type

Multi User MIMO

Maximum data transfer rate

11500 Mbit/s

Networking standards

IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11be/IEEE 802.11n

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) type supported

PoE++ (4PPoE)

Maximum Tx power (2.4 GHz)

23 dBmW

Maximum Tx power (5 GHz)

30 dBmW

Antenna gain level (max)

6 dBi

2.4 GHz

Yes

5 GHz

Yes

6 GHz

Yes

Band steering

Yes

Fit AP mode features

Hotspot 2.0

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

Maximum data transfer rate (5 GHz)

8600 Mbit/s

DC voltage range

42.5 - 57 V

Placement

Ceiling,Wall

Remote Authentication Dial-In User Service (RADIUS)

Yes

Spatial streams

10

Coverage area

185 m²

Fast roaming

Yes

Wireless meshing

Yes

Maximum data transfer rate (6 GHz)

11500 Mbit/s

Dynamic Frequency Selection (DFS)

Yes

Maximum Tx power (6 GHz)

30 dBmW
