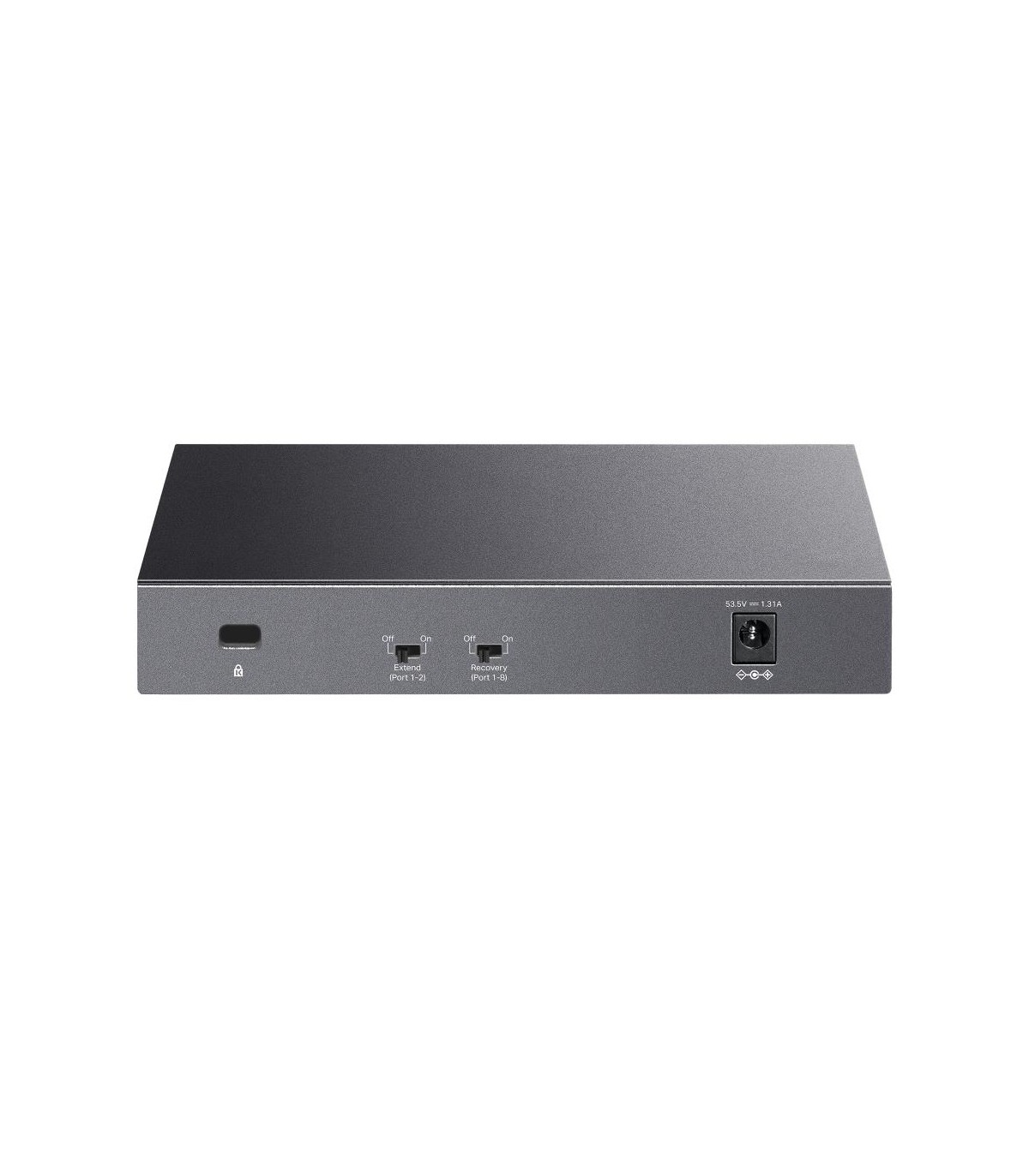

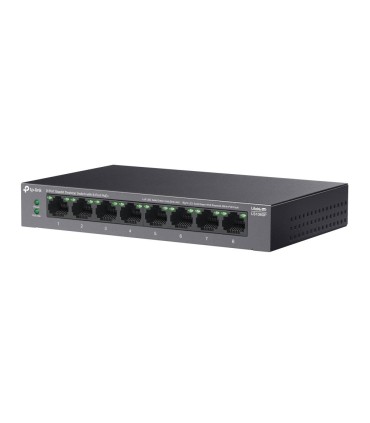

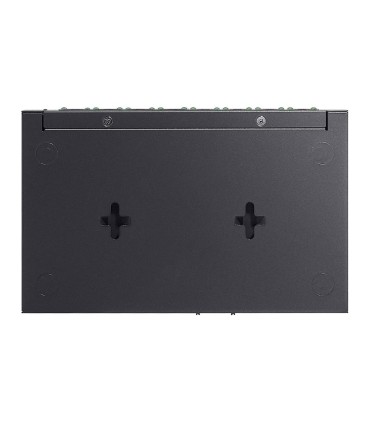

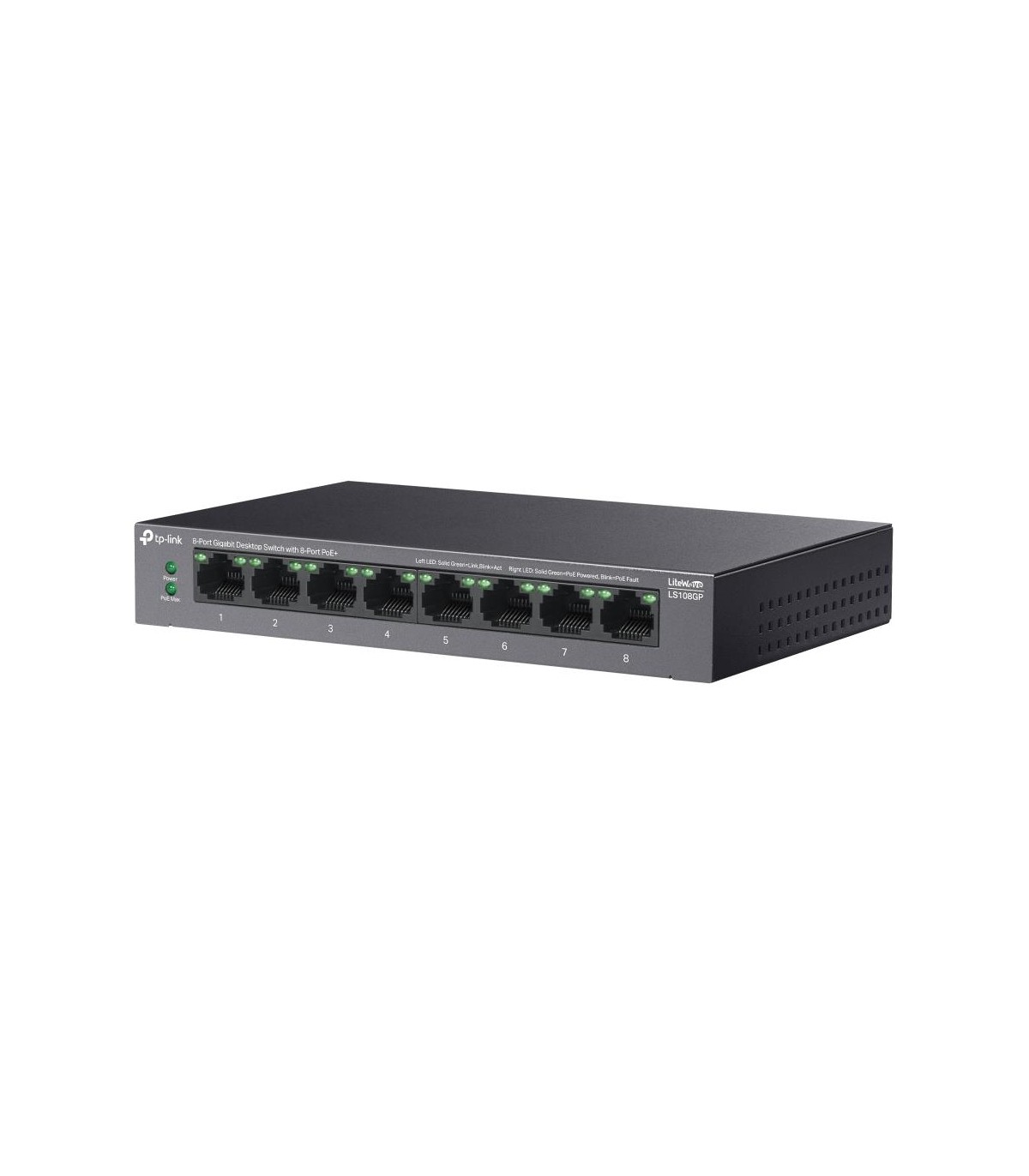

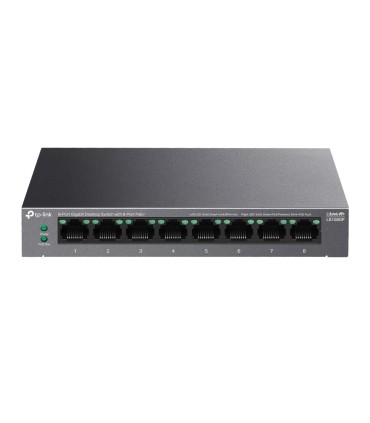

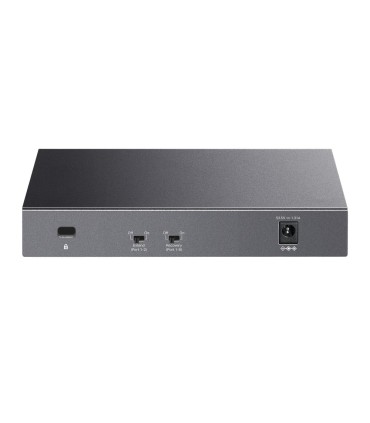

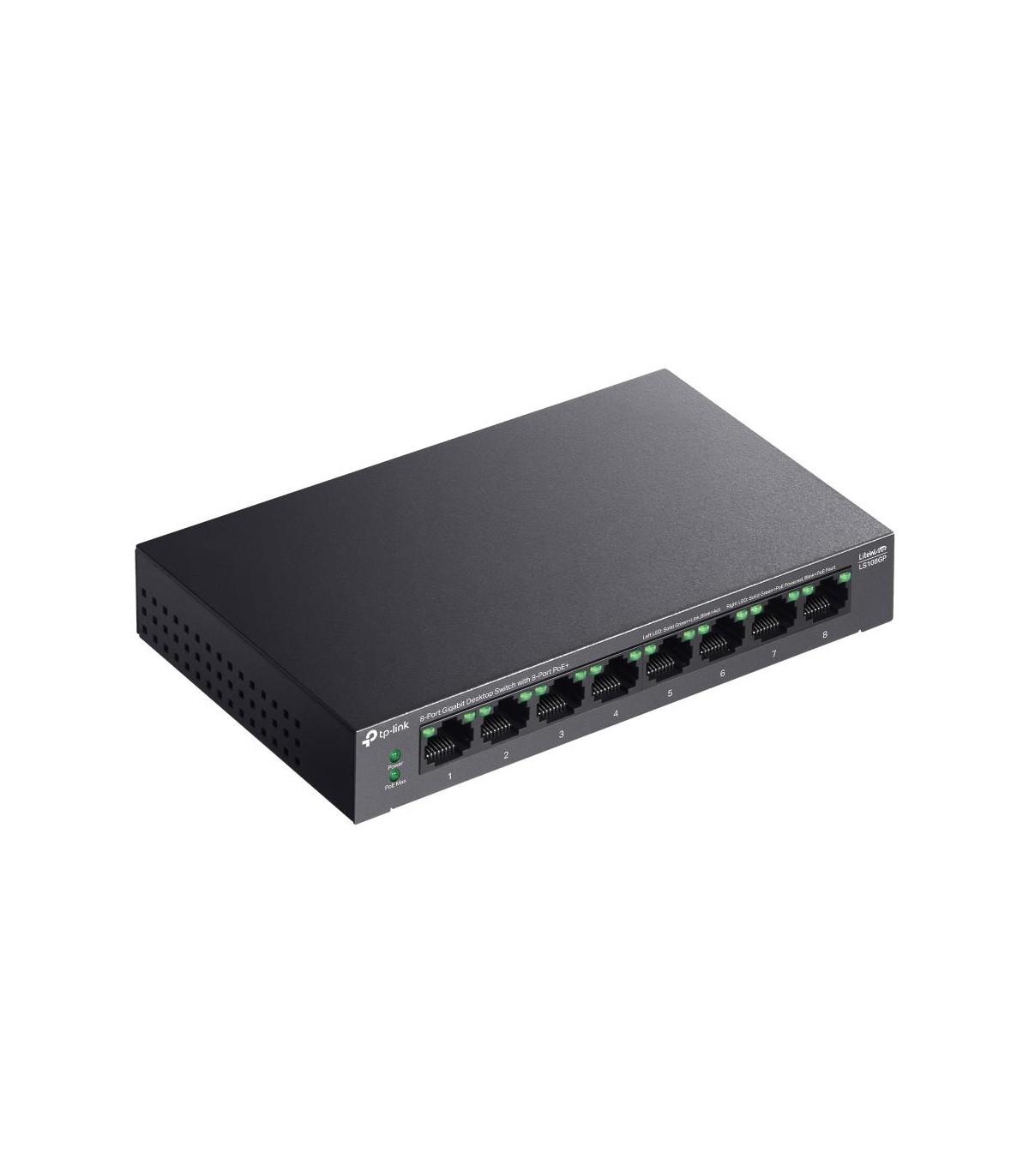

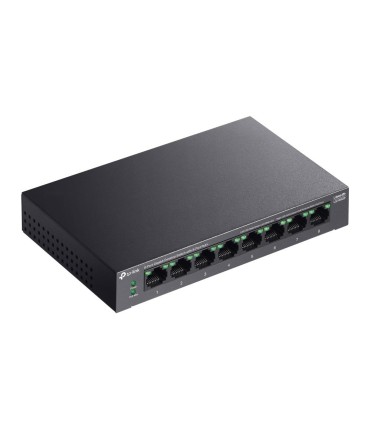

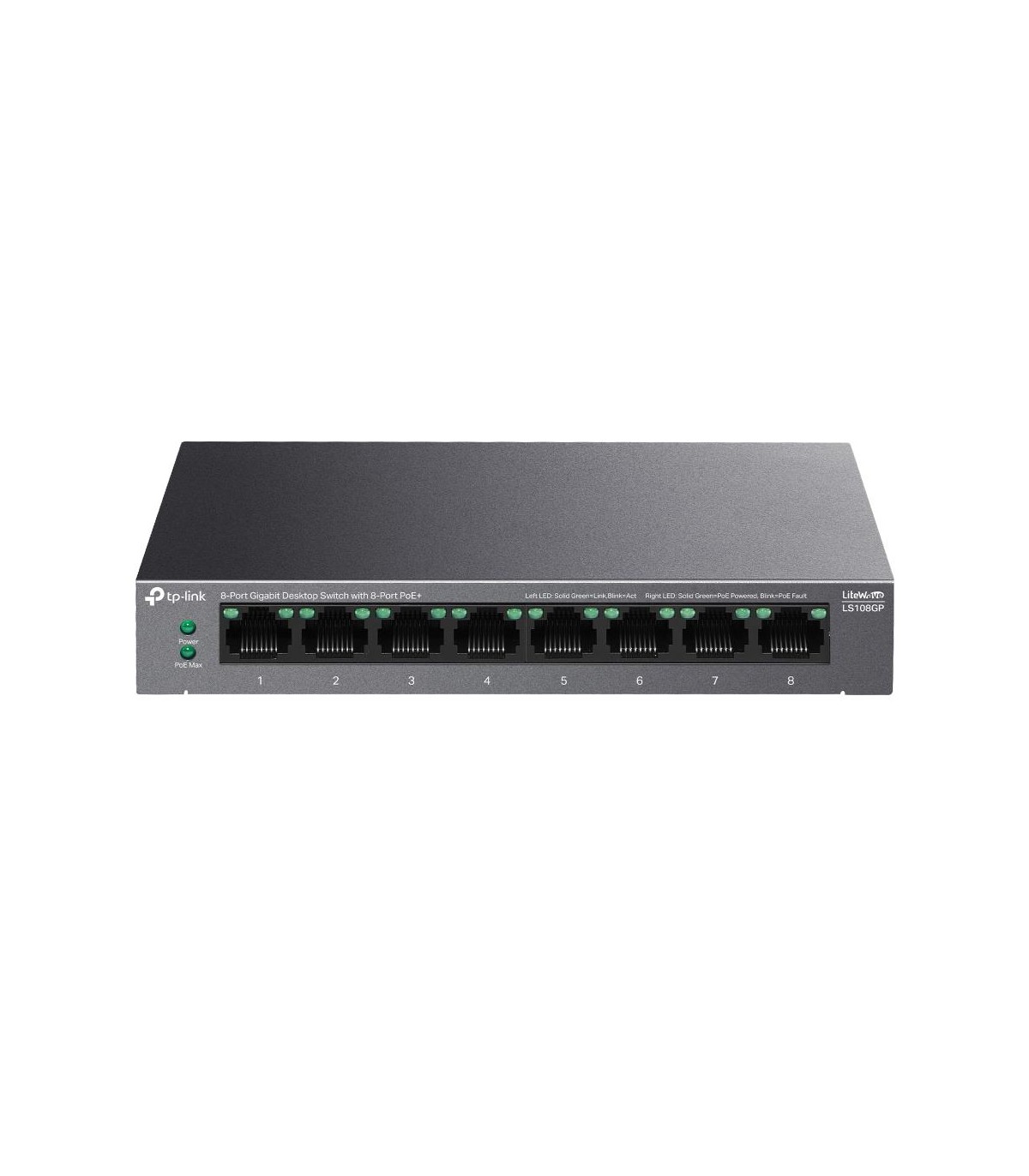

TP-LINK Switch LS108GP PoE+ ports 8 LS108GP

Другие свойства

Depth

99 mm

Height

25 mm

Width

158 mm

Unit Box Width

0.131

Unit Box Length

0.197

Unit Box Height

0.121

Category Code

SWI

Model name

LS108GP

Switch type

Unmanaged

Switching capacity

16 Gbit/s

Forwarding rate

11.9 Mpps

Auto-negotiation

Yes

Power source

DC/PoE

Unit Calculated Volume

0.003123 cubm

Unit Calculated Weight

0.79 kg

Units per Shipping Box

1

Summary

TP-Link LiteWave 8-Port Gigabit Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switchin

Product colour

Black

AC input frequency

50 Hz

AC input voltage

220 V

Package type

Box

Input current

1.31 A

Certification

CE, FCC, RoHS

Power consumption (max)

71.61 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Storage temperature (T-T)

-40 - 70 °C

LED indicators

Yes

Heat dissipation

243.47 BTU/h

User guide

Yes

Power supply included

Yes

Networking standards

IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Power connector

DC-in jack

Auto MDI/MDI-X

Yes

10G support

No

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

MAC address table

4000 entries

Jumbo frames

16000

Flow control support

Yes

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

62 W

DC input voltage

53.5 V

Cable types supported

Cat3/Cat4/Cat5/Cat5e

Quality of Service (QoS) support

Yes

Power over Ethernet plus (PoE+) ports quantity

8
