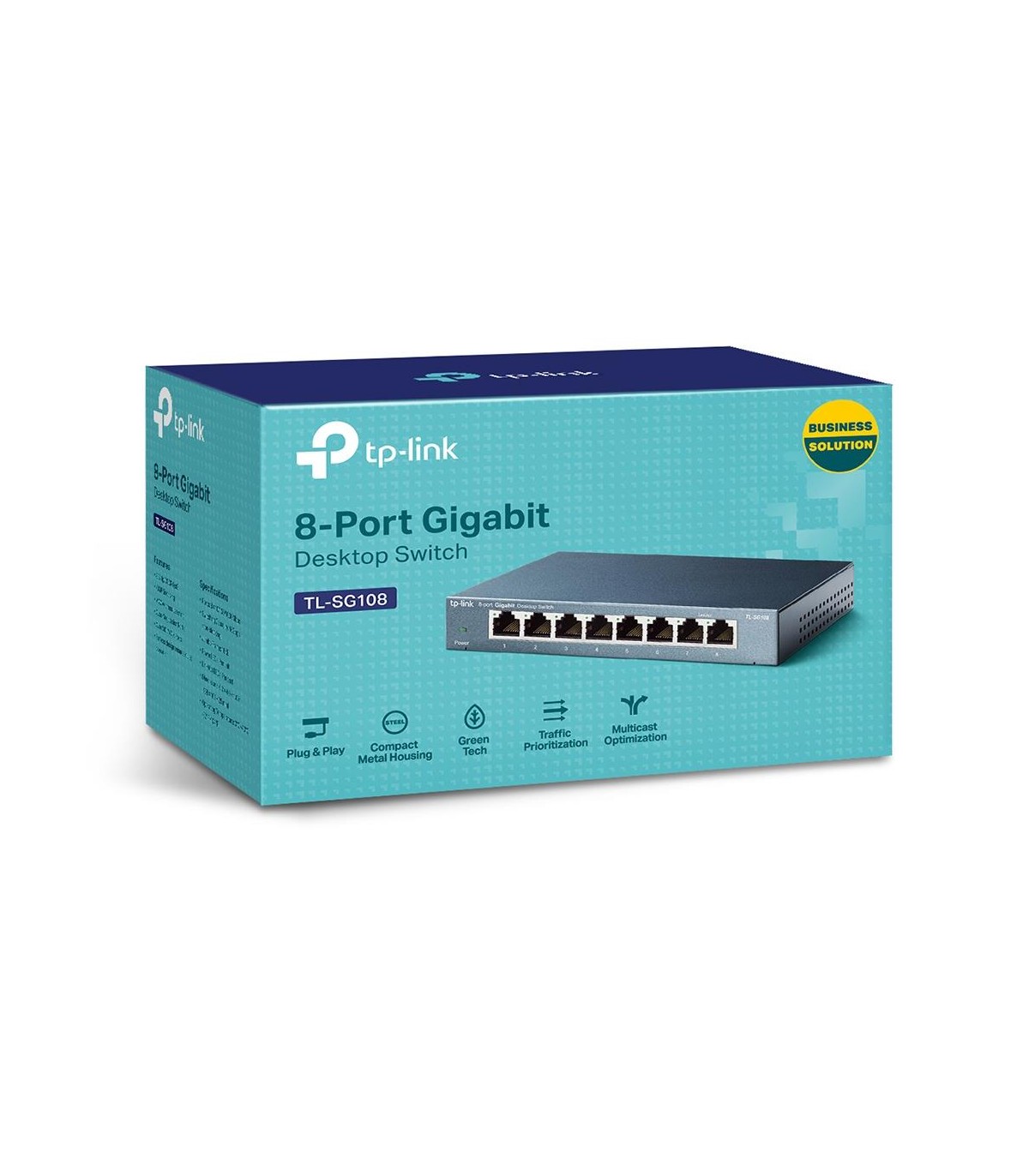

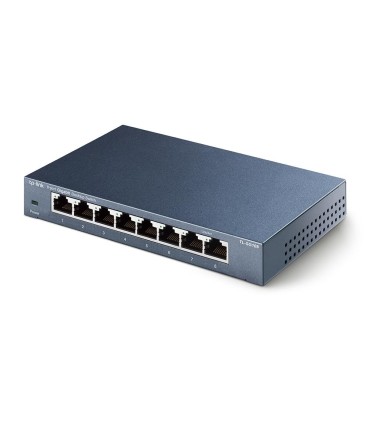

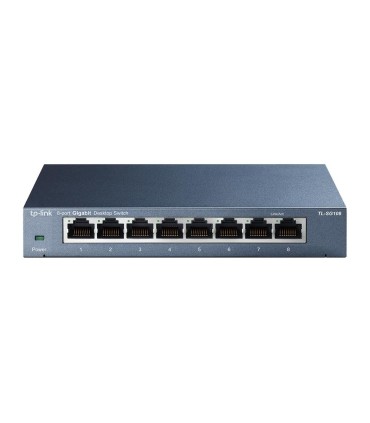

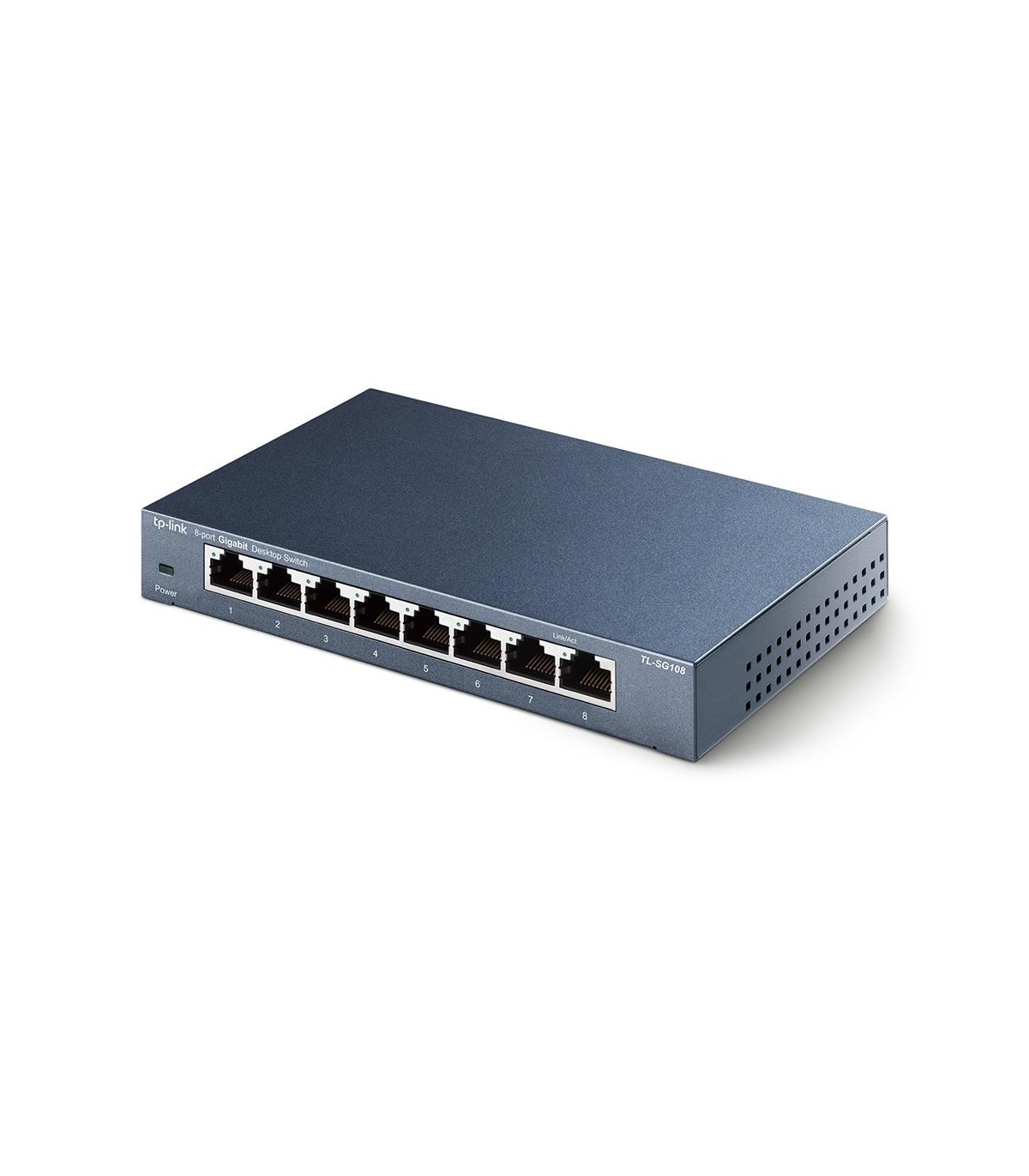

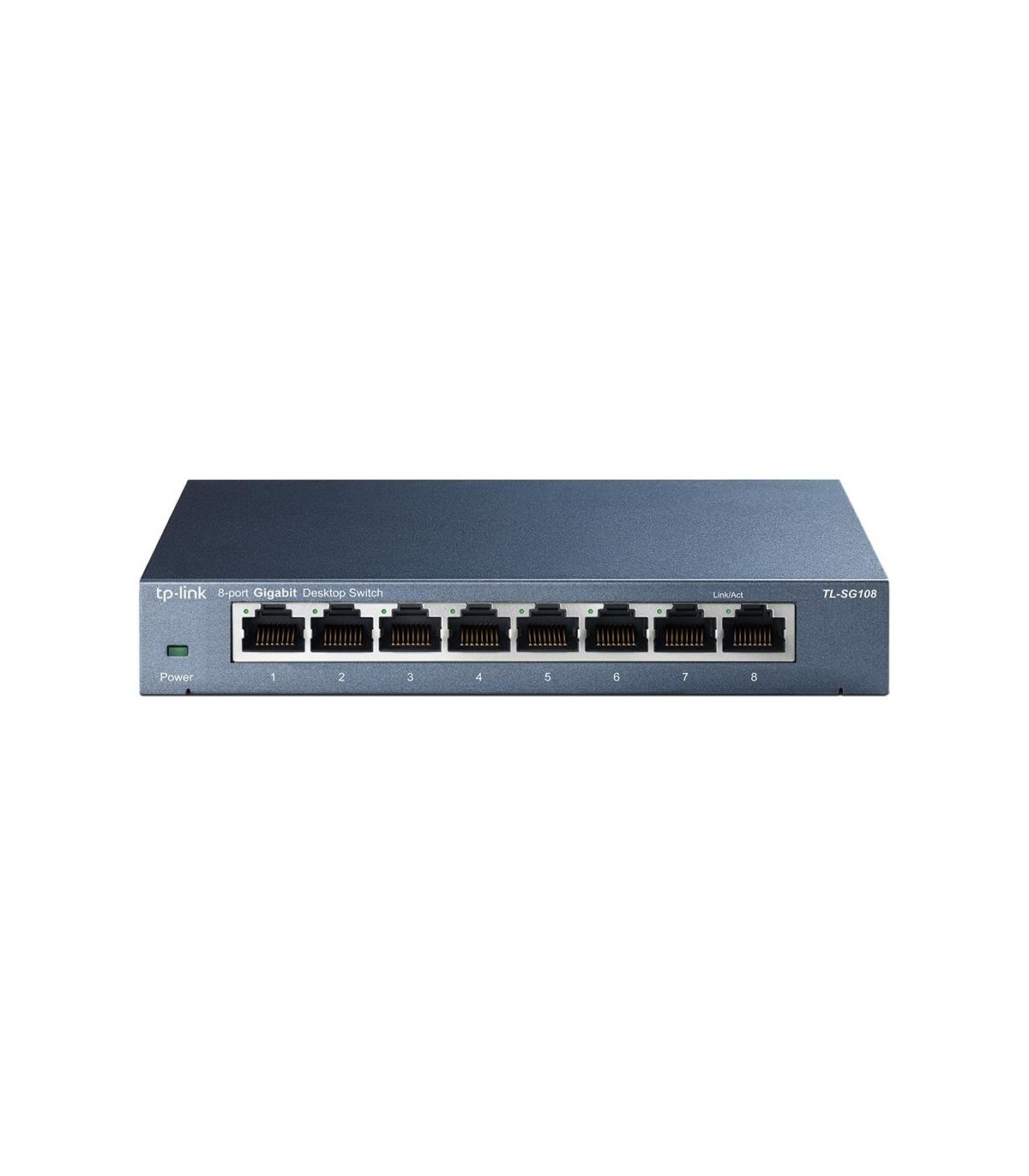

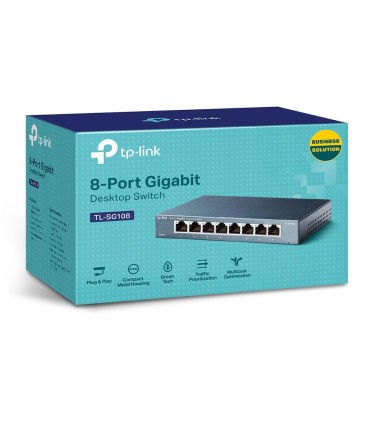

TP-LINK Switch 8x10Base-T / 100Base-TX / 1000Base-T TL-SG108

Другие свойства

Depth

101 mm

Height

25 mm

Width

158 mm

Unit Box Width

0.13

Unit Box Length

0.19

Unit Box Height

0.095

Category Code

SWI

Switch type

Unmanaged

Switching capacity

16 Gbit/s

Forwarding rate

11.9 Mpps

Auto-negotiation

Yes

Power source

DC

Unit Calculated Volume

0.002643 cubm

Unit Calculated Weight

0.564 kg

Units per Shipping Box

36

Units per Pallet

576

Summary

TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switc

Product colour

Black

Package depth

191 mm

Package height

92 mm

Package weight

510 g

Package width

130 mm

Input current

0.6 A

Certification

CE, FCC, RoHS

Power consumption (max)

3.31 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Wi-Fi

No

Storage temperature (T-T)

-40 - 70 °C

Harmonized System (HS) code

85176990

LED indicators

Yes

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

User guide

Yes

Connectivity technology

Wired

Power supply included

Yes

Ethernet interface type

Gigabit Ethernet

Power LED

Yes

Maximum data transfer rate

2 Gbit/s

Bandwidth

16 Gbit/s

Full duplex

Yes

Jumbo frames support

Yes

Networking standards

IEEE 802.1p/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Power connector

DC-in jack

Auto MDI/MDI-X

Yes

Input voltage

9 V

10G support

No

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

No

Gigabit Ethernet (copper) ports quantity

8

MAC address table

4000 entries

Store-and-forward

Yes

Jumbo frames

16000

Flow control support

Yes

Packet buffer memory

1.5 MB

Quality of Service (QoS) support

Yes

IGMP snooping

Yes

Supported data transfer rates

10/100/1000Mbps

Switching protocols

CSMA/CD

Packet transfer speed

14880pps/148800pps/1488000pps
