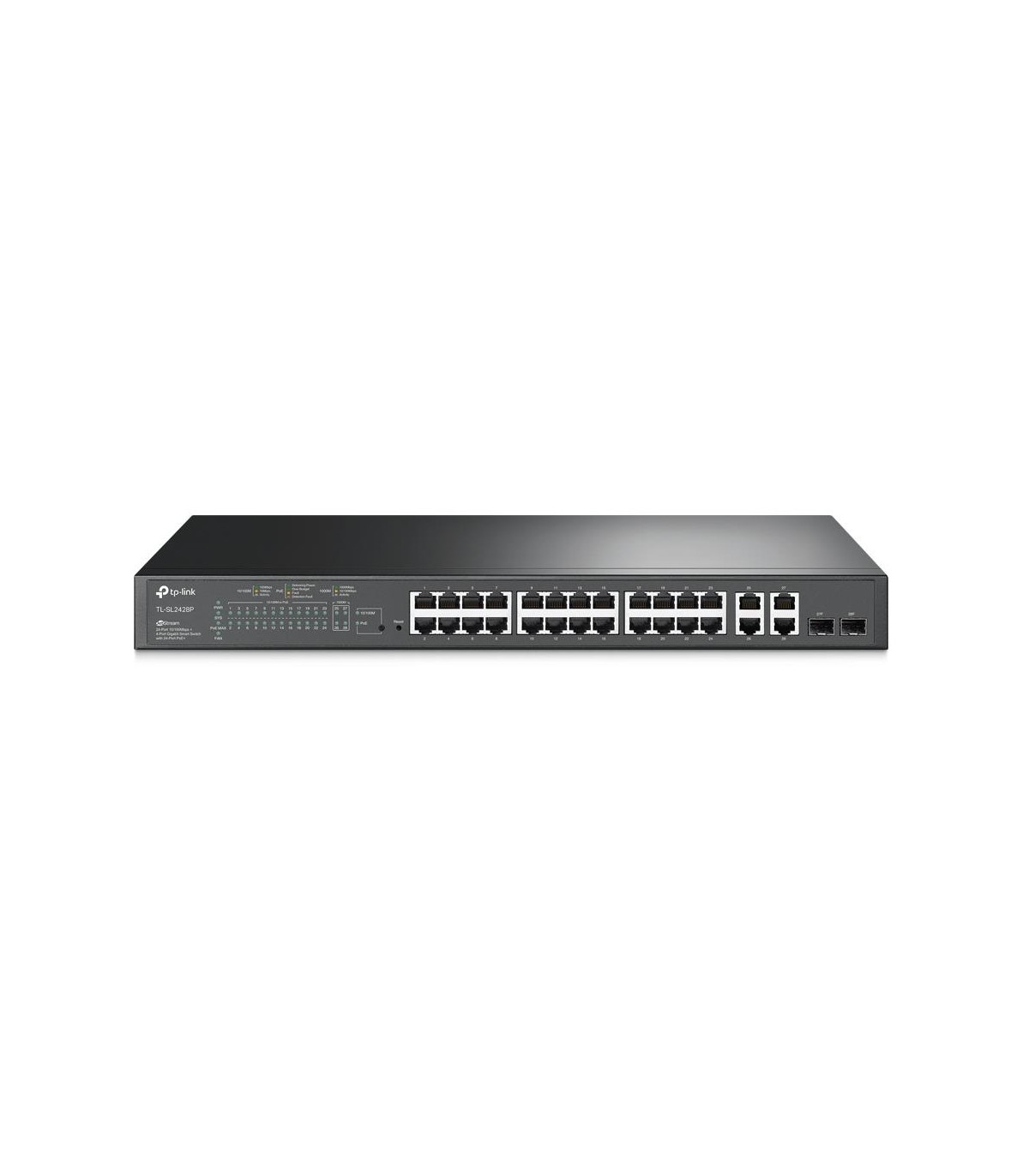

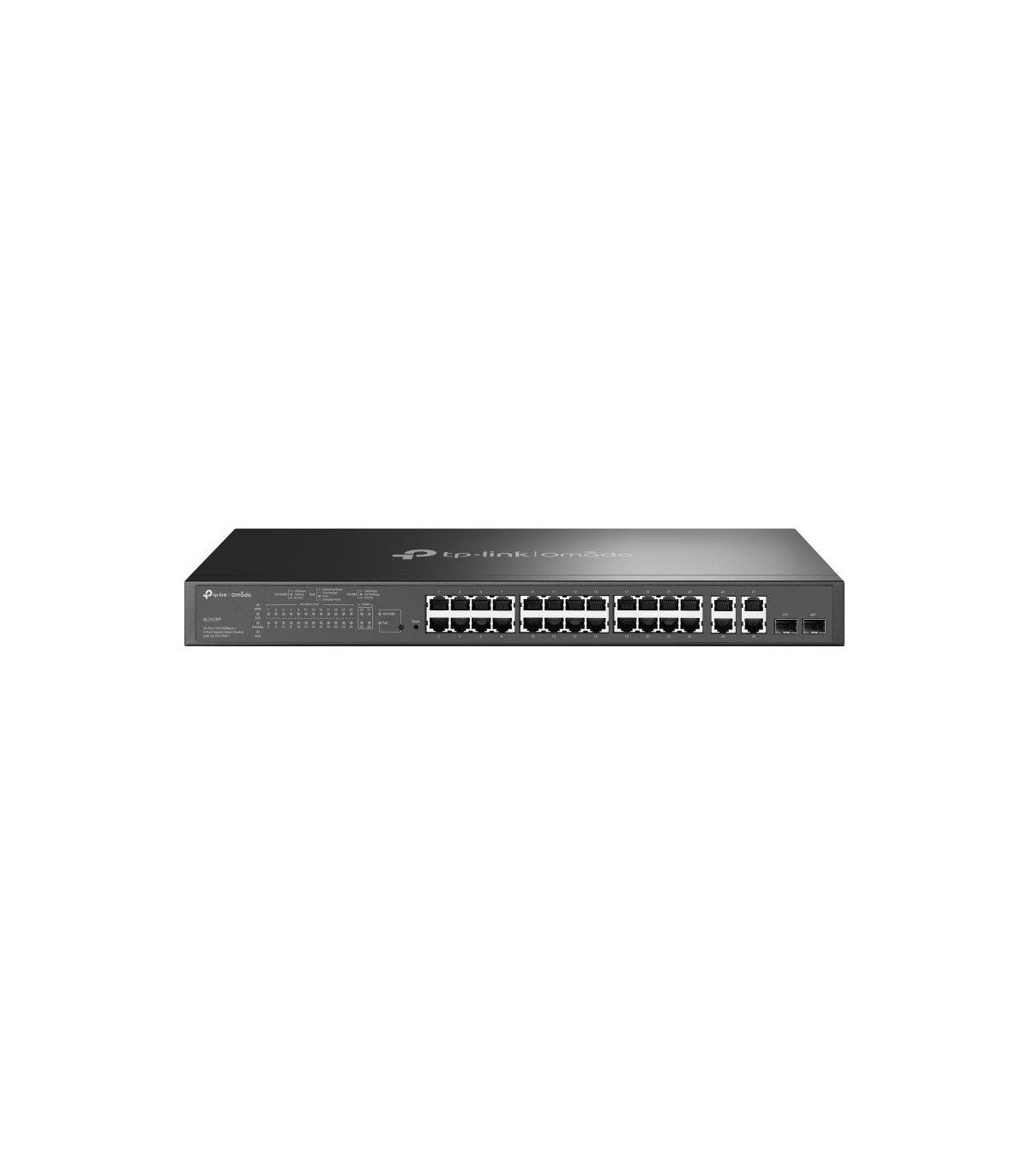

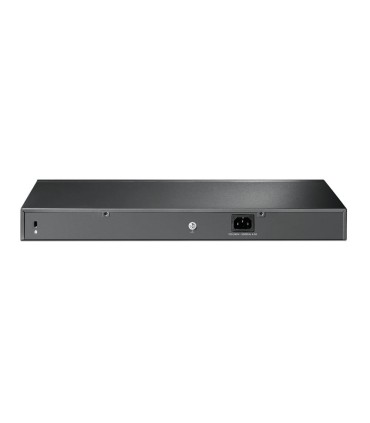

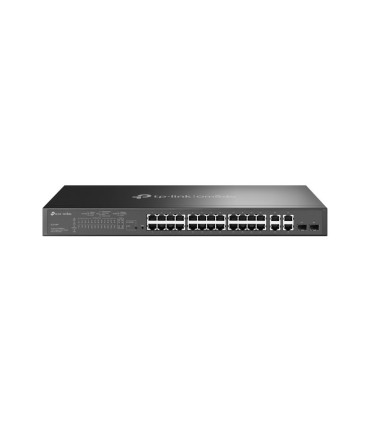

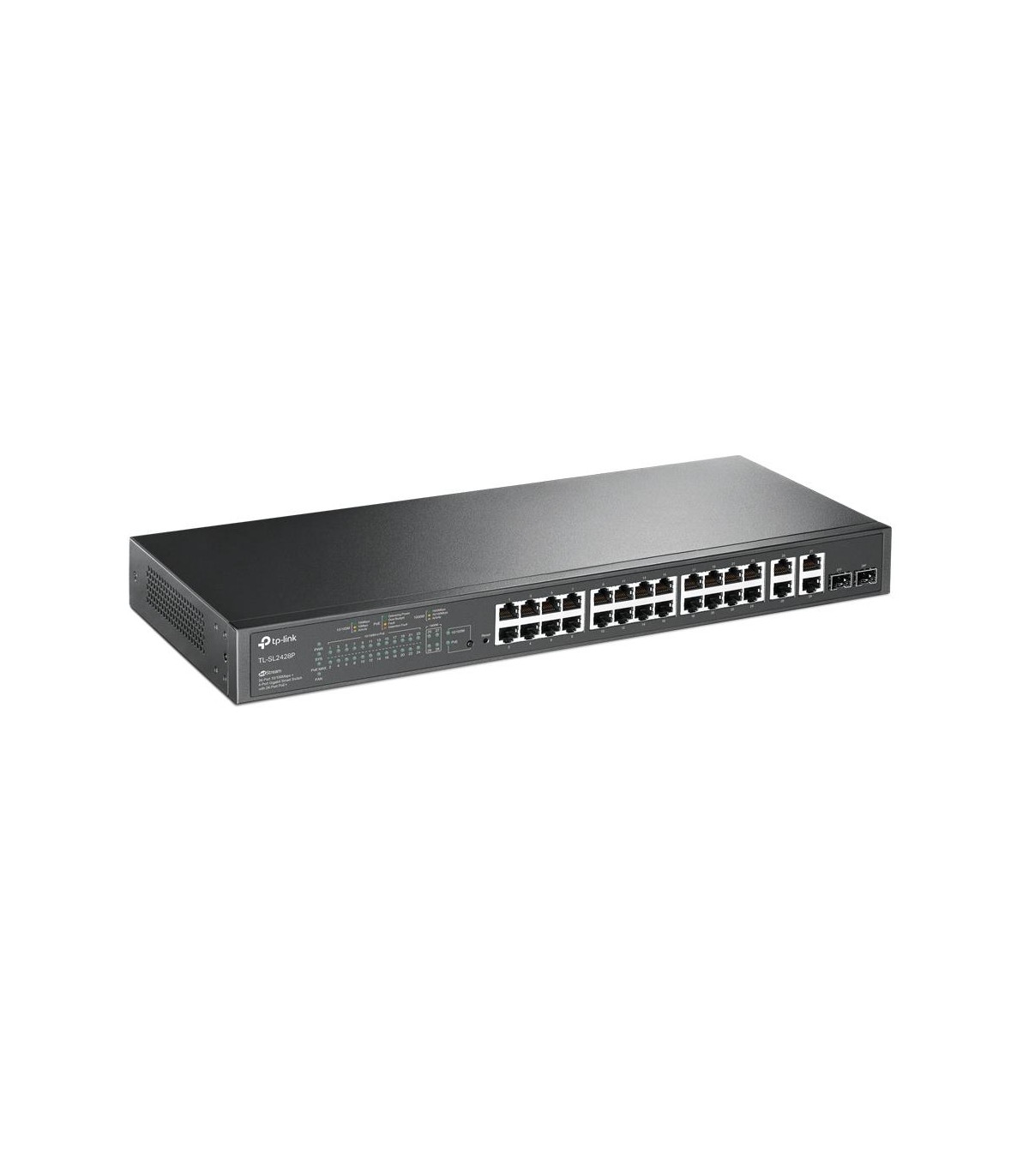

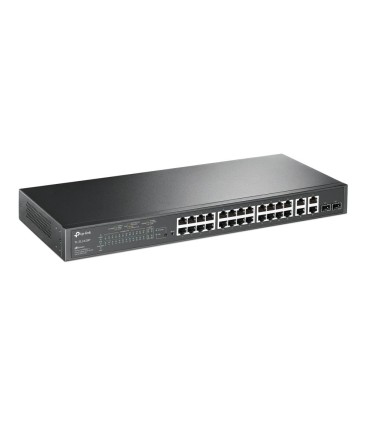

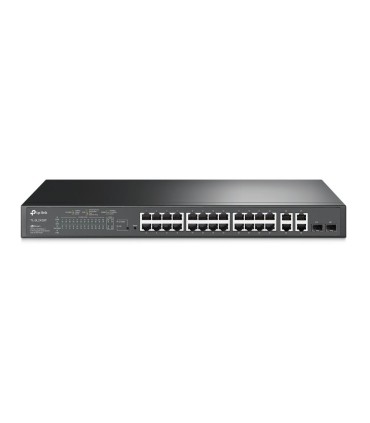

TP-LINK Switch SL2428P Rack PoE+ ports 24 250 Watts SL2428P

Другие свойства

Depth

180 mm

Height

44 mm

Width

440 mm

Unit Box Width

0.252

Unit Box Length

0.535

Unit Box Height

0.08

Category Code

SWI

Model name

SL2428P

Form Factor

1U

Switch type

Managed

Switching capacity

12.8 Gbit/s

Number of fans

2 fan(s)

Power source

AC

Unit Calculated Volume

0.01079 cubm

Unit Calculated Weight

3.2 kg

Units per Shipping Box

1

Summary

TP-Link Omada SL2428P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networki

Product colour

Black

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Cables included

AC

Certification

CE, FCC, RoHS

Power consumption (max)

291.6 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Quick start guide

Yes

Storage temperature (T-T)

-40 - 70 °C

Heat dissipation

995.09 BTU/h

Compatible operating systems

Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux

Copper ethernet cabling technology

1000BASE-T/100BASE-TX/10BASE-T

Security algorithms

SNMPv2/SNMPv3/SSH/SSH-2/SSL/TLS

Management protocols

SNMP v1/v2c/v3, RMON, SNTP, TFTP

Jumbo frames support

Yes

Networking standards

IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Auto MDI/MDI-X

Yes

Rack mounting

Yes

10G support

No

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Power over Ethernet (PoE)

Yes

Gigabit Ethernet (copper) ports quantity

4

MAC address table

8000 entries

Jumbo frames

9000

Flow control support

Yes

Packet buffer memory

4.1 MB

Fast Ethernet (copper) ports quantity

24

Total Power over Ethernet (PoE) budget

250 W

Switch layer

L2

Cable types supported

Cat5/Cat5e

Quality of Service (QoS) support

Yes

Port mirroring

Yes

IGMP snooping

Yes

Web-based management

Yes

Broadcast storm control

Yes

Link aggregation

Yes

VLAN support

Yes

Number of VLANs

512

Rack mount kit

Yes

Throughput

9.5 Mpps

Power over Ethernet plus (PoE+) ports quantity

24

Spanning tree protocol

Yes

Combo SFP ports quantity

2

Number of queues

4

Multicast support

Yes

Access Control List (ACL)

Yes

SSH/SSL support

Yes

Rate limiting

Yes

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

System event log

Yes

Firmware upgradeable

Yes
