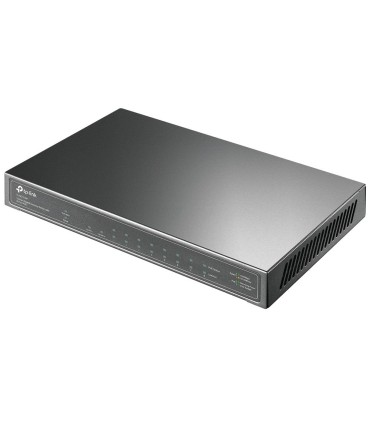

TP-LINK Switch TL-SG1210P Desktop/pedestal 9x10Base-T / 100Base-TX / 1000Base-T 1xSFP PoE+ ports 8 TL-SG1210P

Технические характеристики

Материал корпуса

Metal

Другие свойства

Depth

126 mm

Height

26 mm

Width

209 mm

Unit Box Width

0.065

Unit Box Length

0.315

Unit Box Height

0.24

Category Code

SWI

Model name

TL-SG1210P

Switch type

Unmanaged

Switching capacity

20 Gbit/s

Auto-negotiation

Yes

Unit Calculated Volume

0.004914 cubm

Unit Calculated Weight

1.28 kg

Units per Shipping Box

1

Summary

TP-Link TL-SG1210P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards:

Product colour

Grey

Power consumption (typical)

7.11 W

Cables included

AC

Input current

1.31 A

Certification

CE, FCC, RoHS

Power consumption (max)

78.13 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 50 °C

Storage relative humidity (H-H)

5 - 90 %

Quick start guide

Yes

Wall mountable

Yes

Storage temperature (T-T)

-40 - 70 °C

Harmonized System (HS) code

85176990

Manual

Yes

LED indicators

Yes

Heat dissipation

266.42 BTU/h

User guide

Yes

Power supply included

No

Copper ethernet cabling technology

1000BASE-T/100BASE-TX/10BASE-T

Networking standards

IEEE 802.1p/IEEE 802.3af/IEEE 802.3at/IEEE 802.3x

Auto MDI/MDI-X

Yes

10G support

No

Basic switching RJ-45 Ethernet ports quantity

9

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

Gigabit Ethernet (copper) ports quantity

9

MAC address table

4000 entries

Store-and-forward

Yes

Total Power over Ethernet (PoE) budget

63 W

DC input voltage

53.5 V

Quality of Service (QoS) support

Yes

IGMP snooping

Yes

Fanless

Yes

SFP module slots quantity

1

Power over Ethernet plus (PoE+) ports quantity

8

Fiber ethernet cabling technology

1000BASE-X

Fiber type

Single-mode

MAC address auto-aging supported

Yes

MAC address auto-learning supported

Yes
