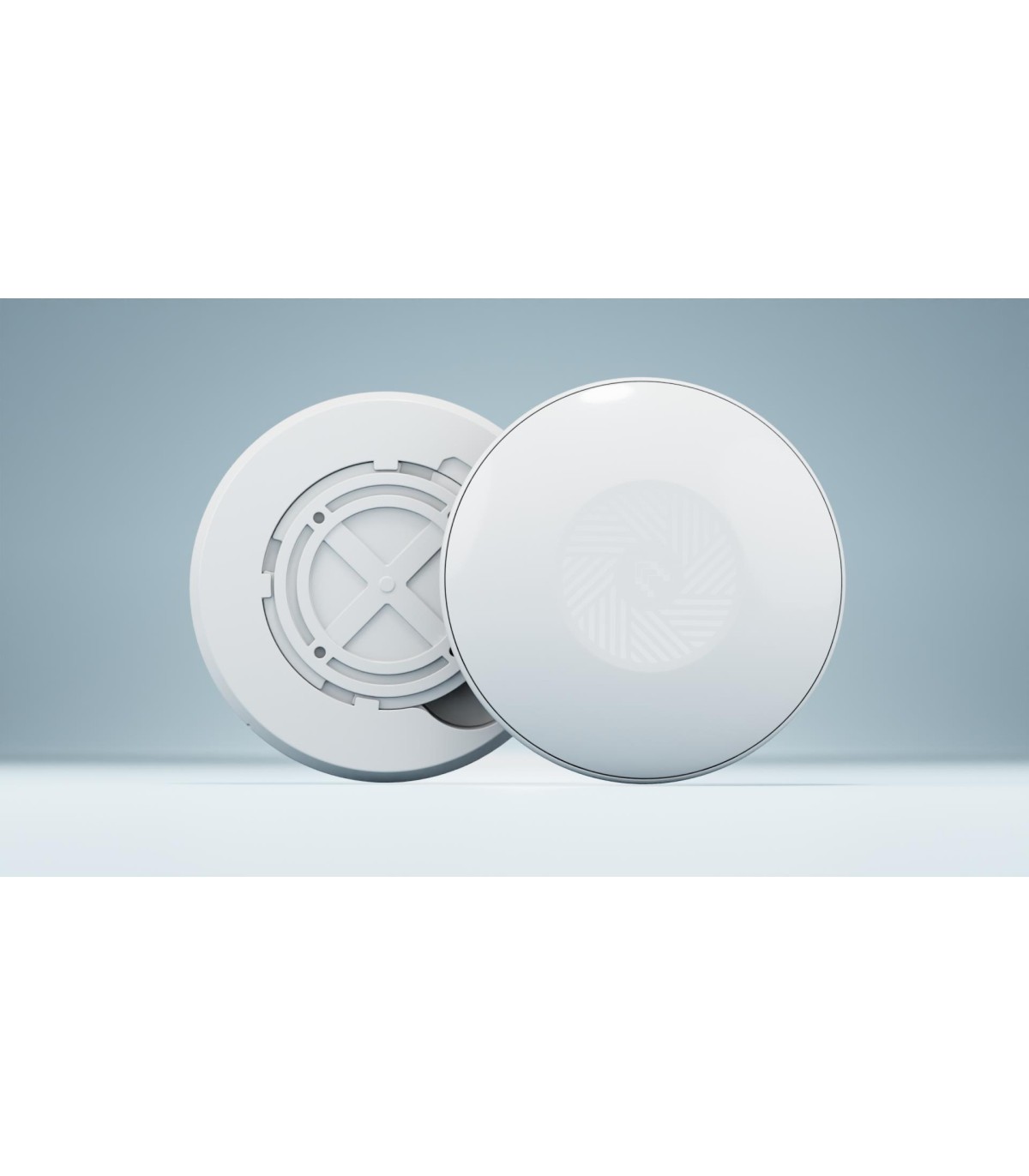

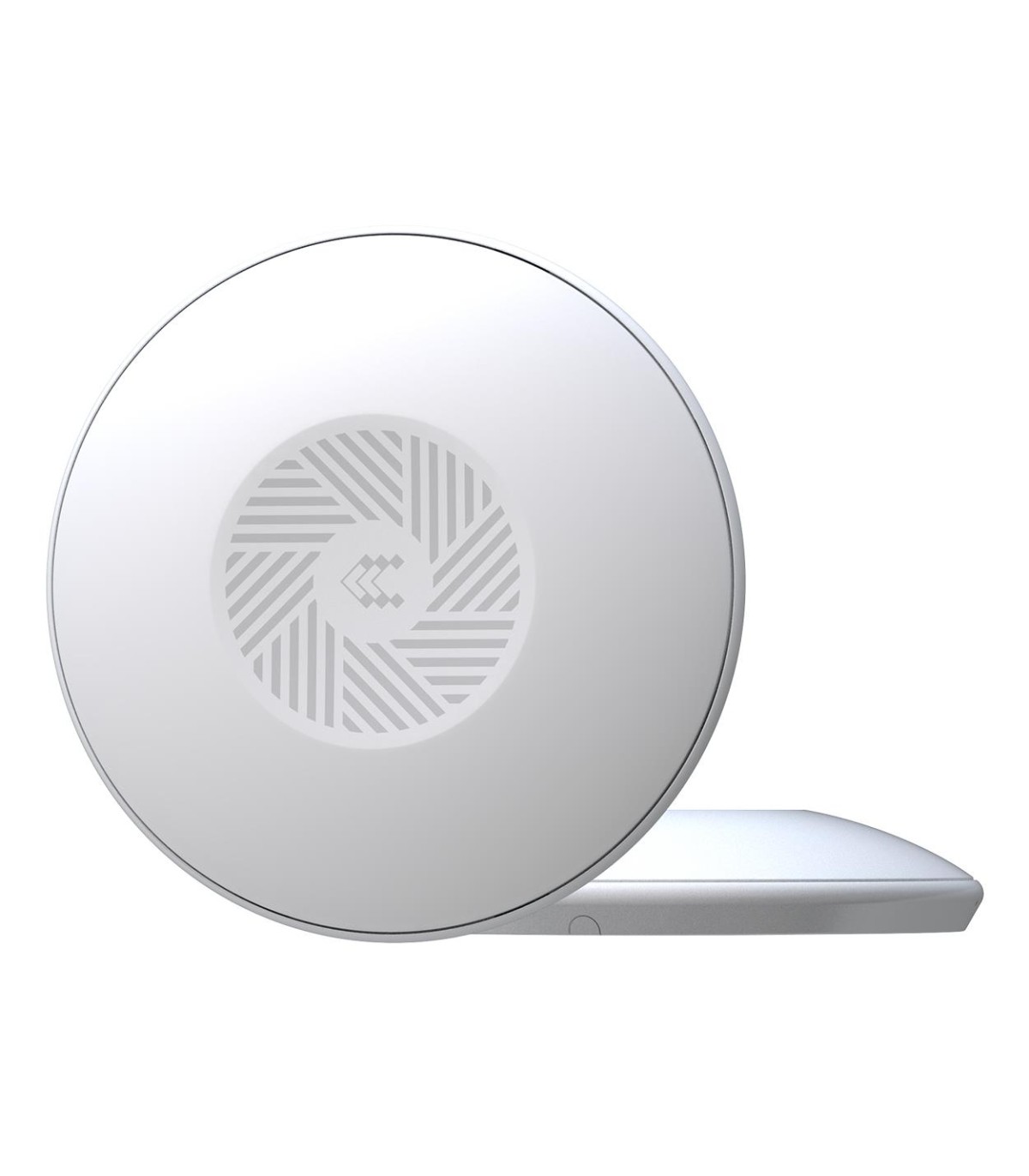

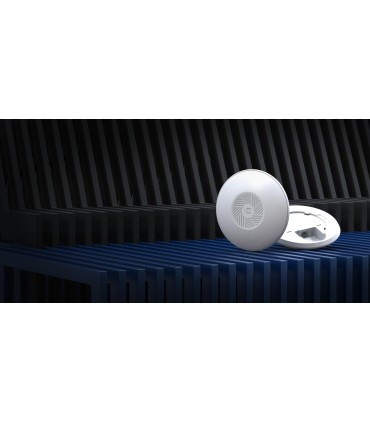

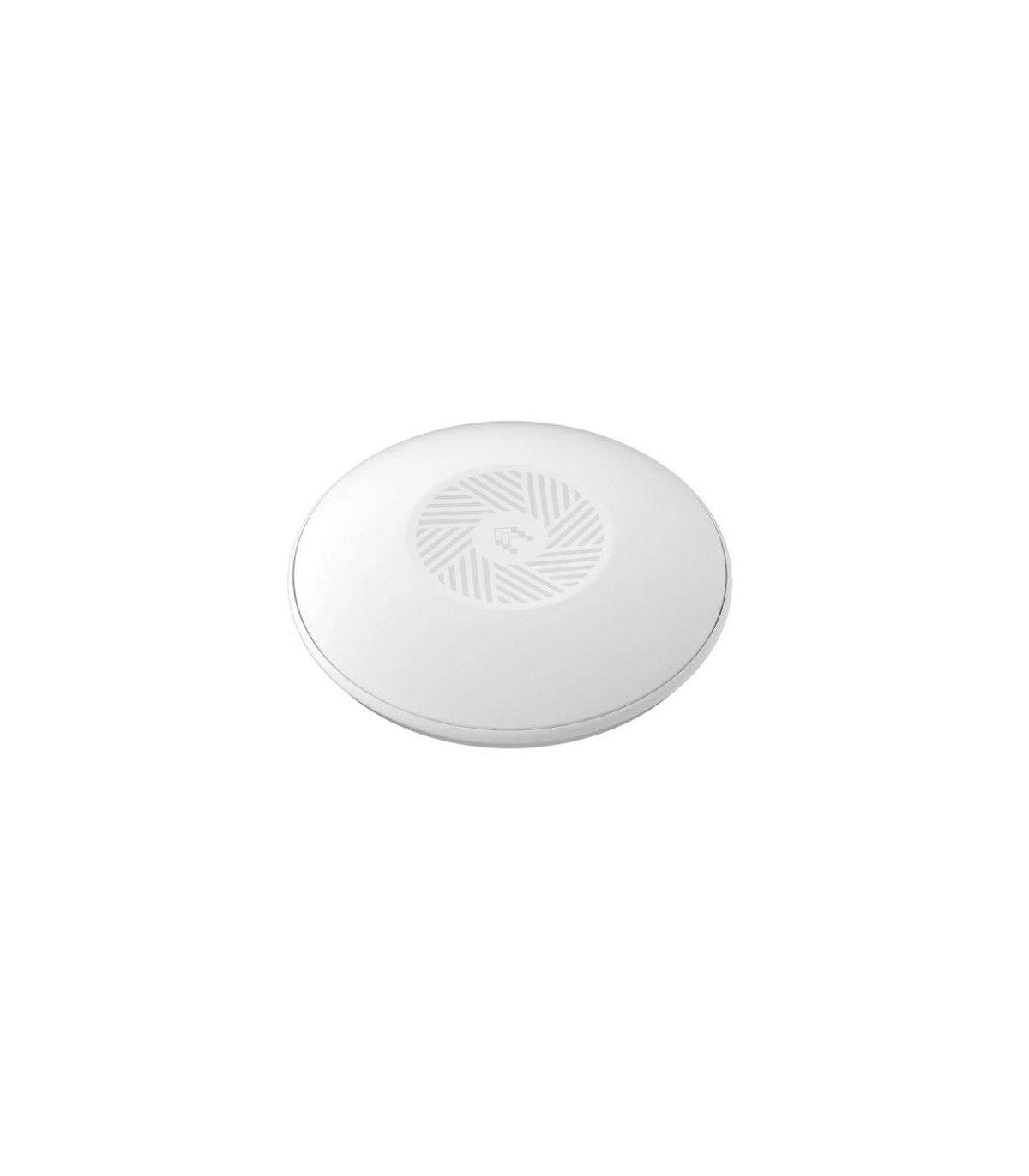

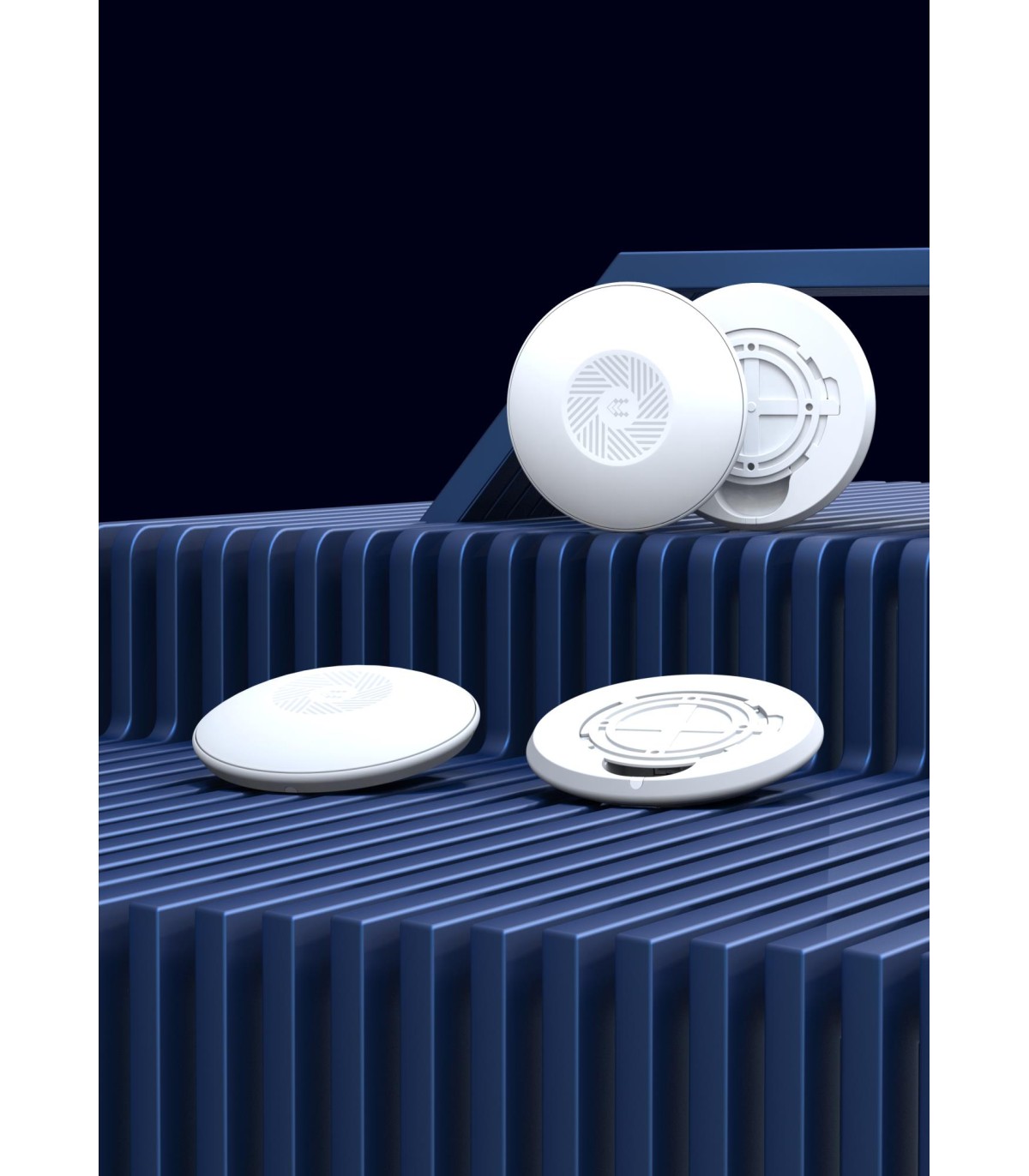

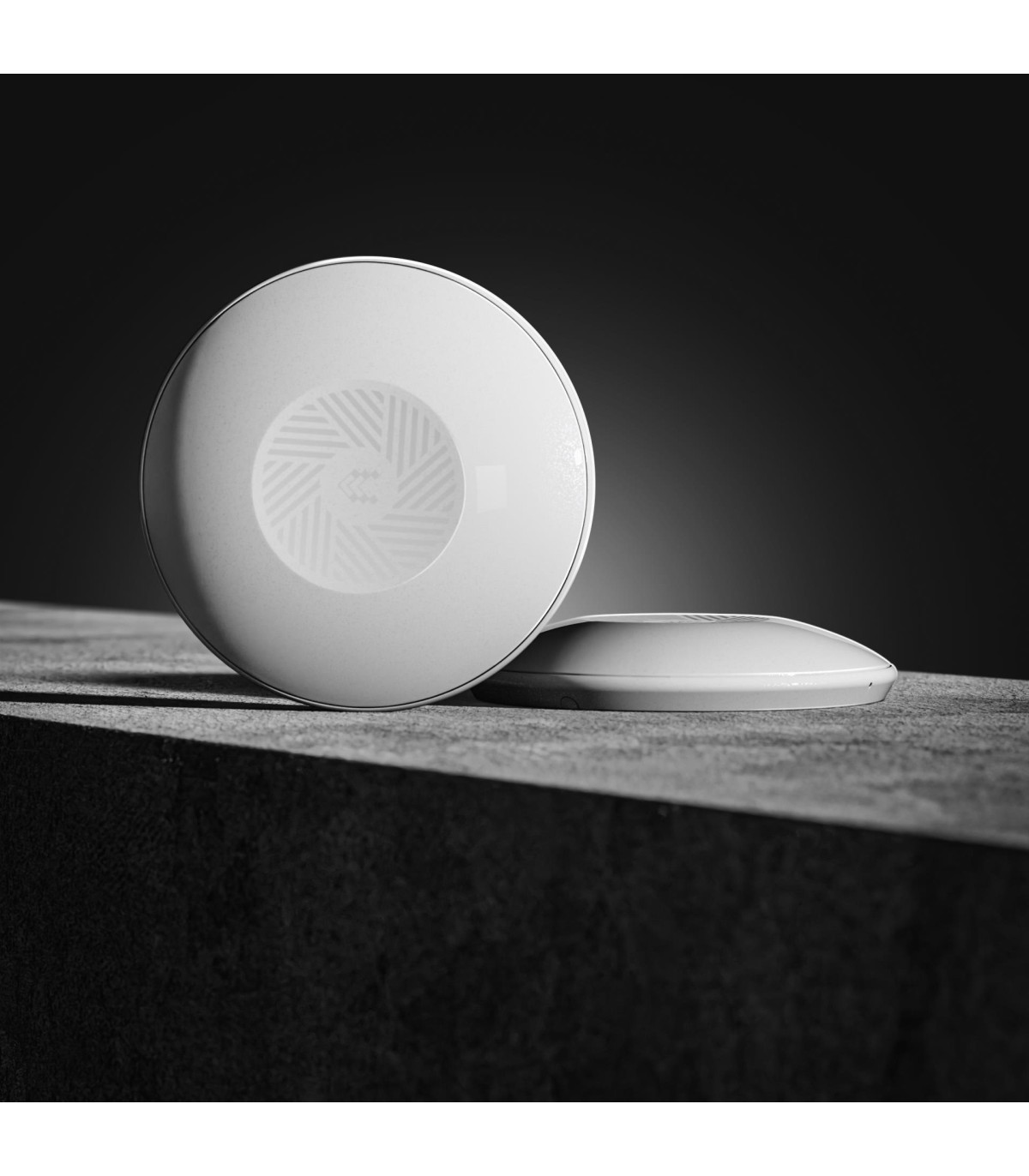

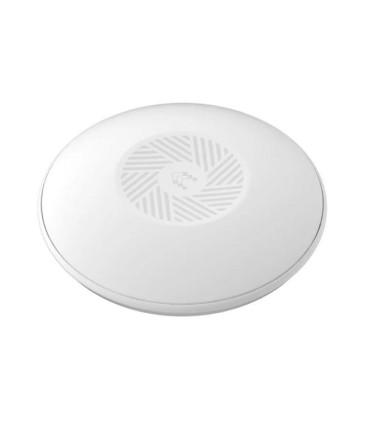

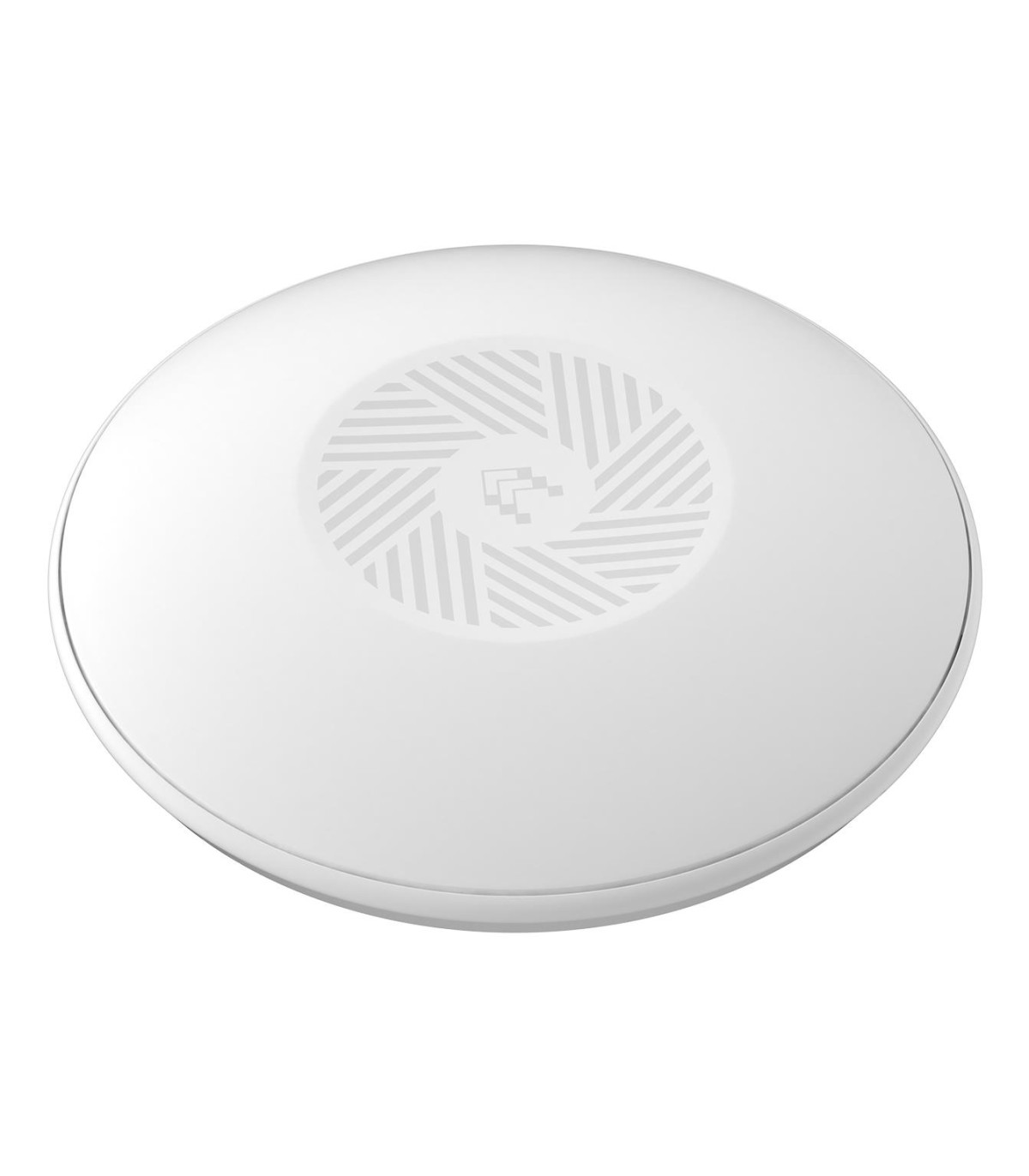

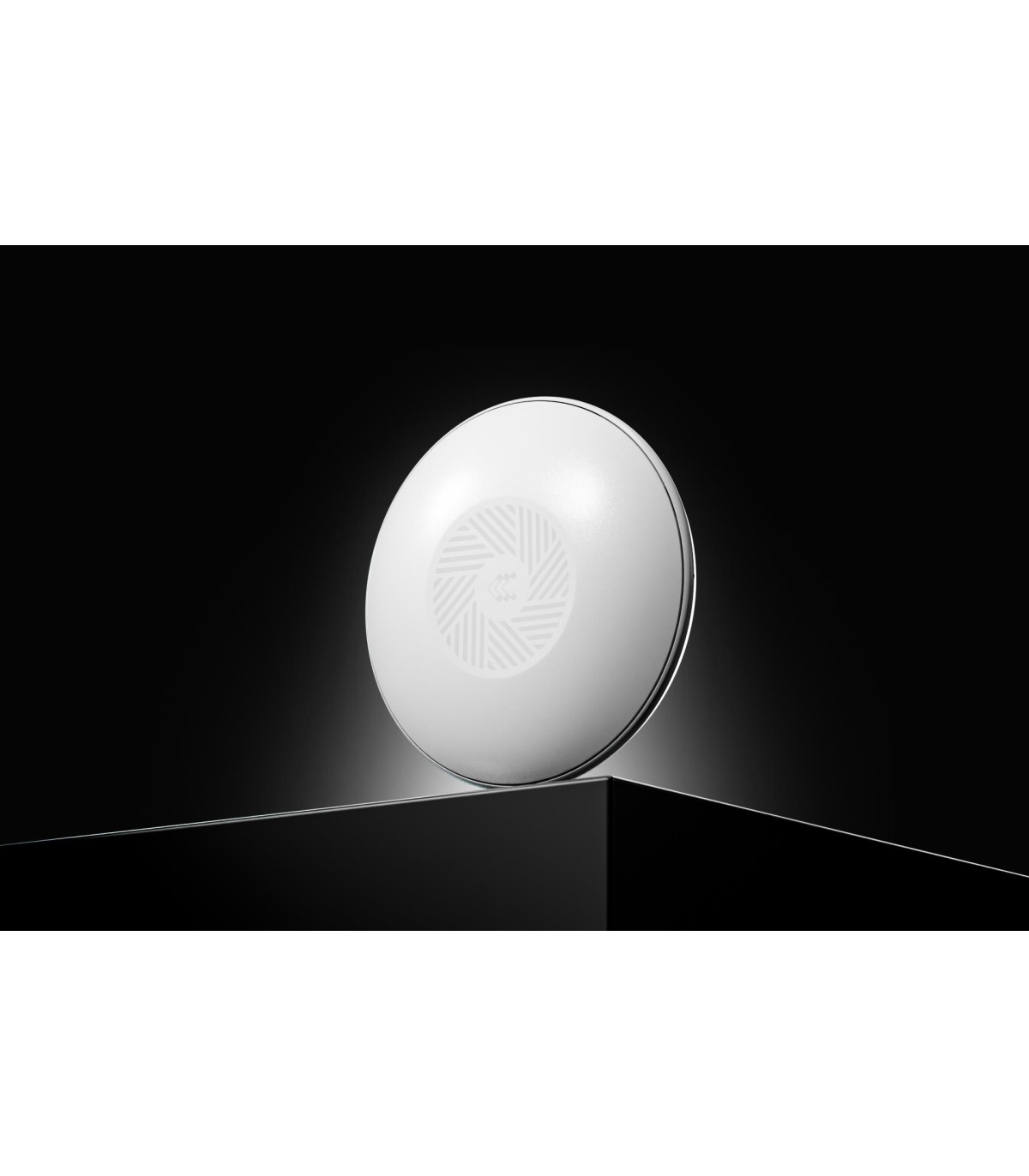

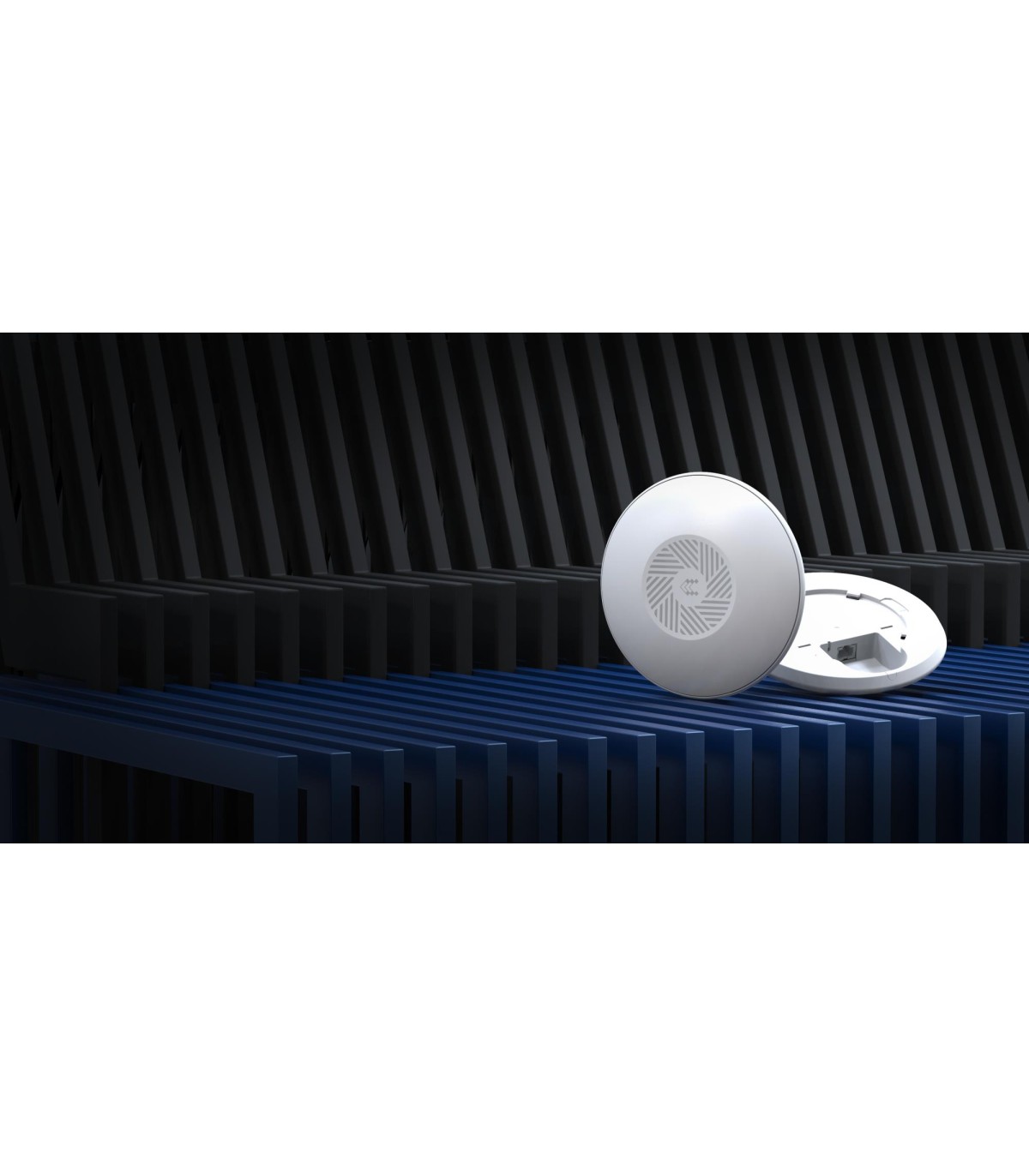

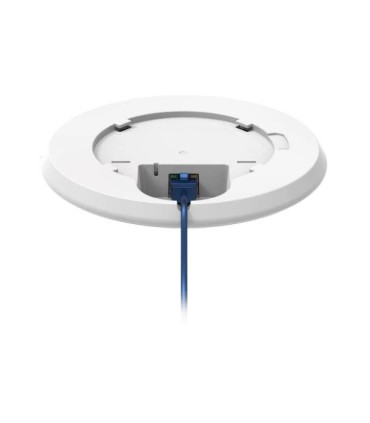

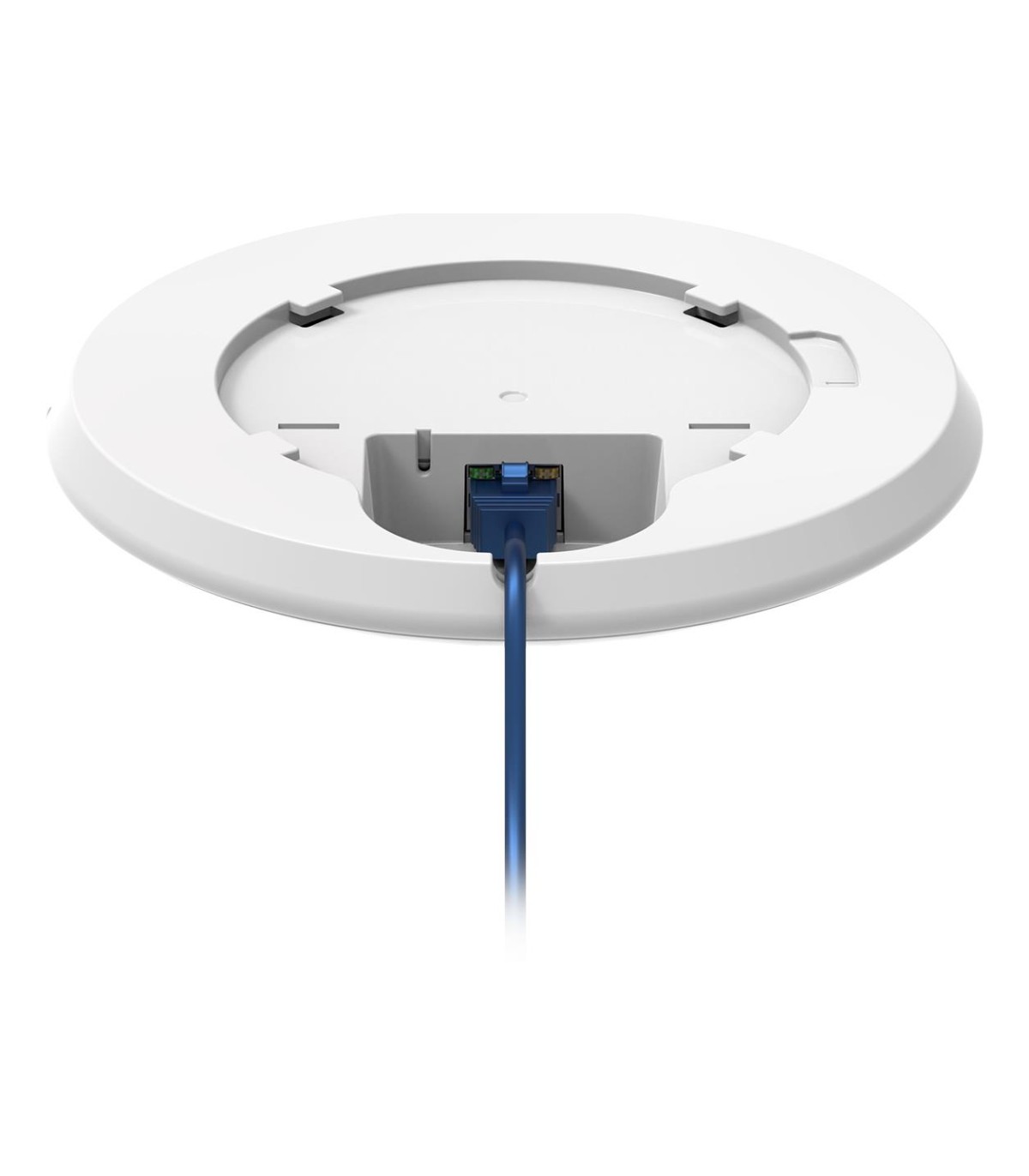

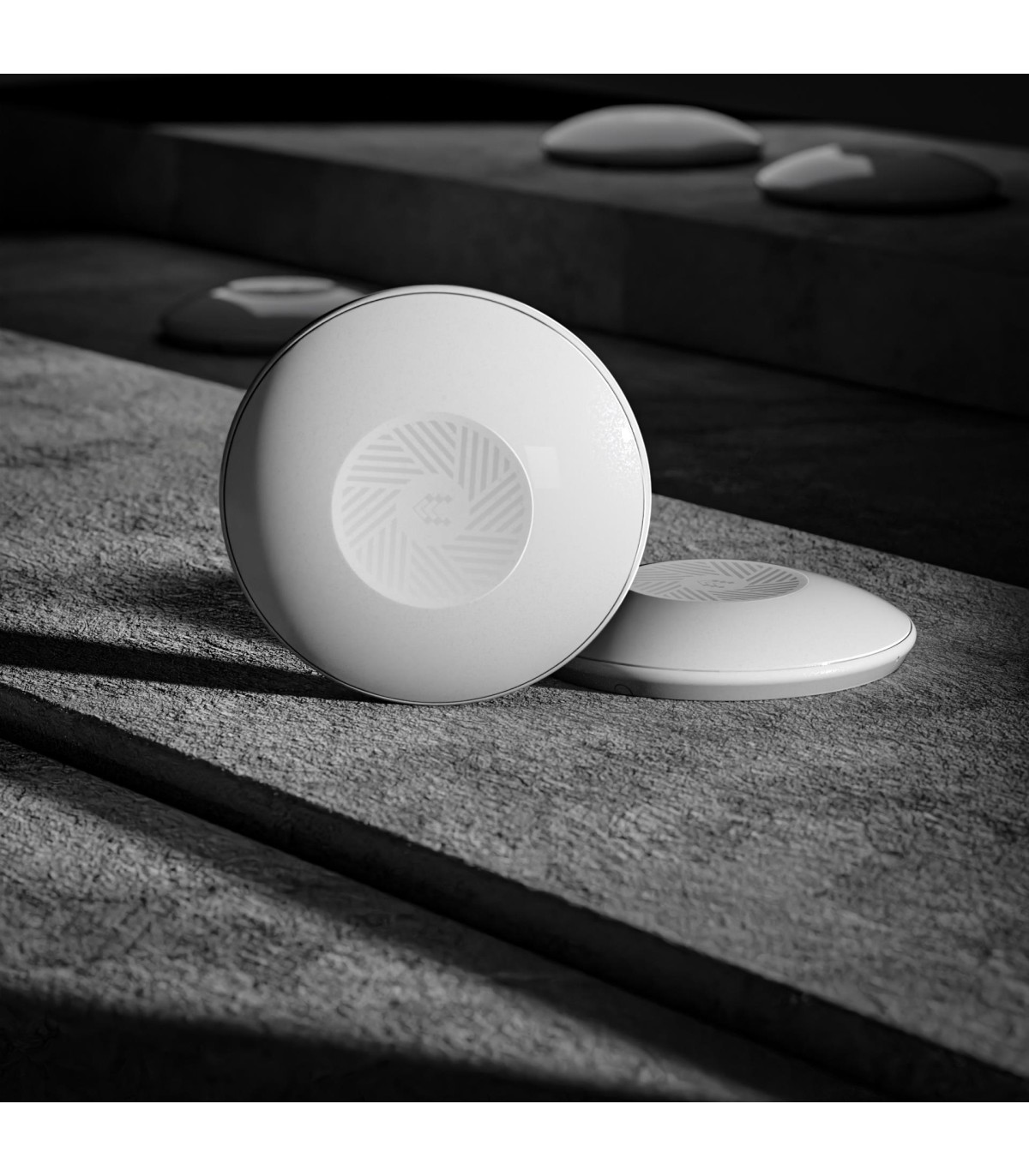

TELTONIKA WRL ACCESS POINT/TAP100

Технические характеристики

Материал корпуса

Plastic

Другие свойства

Depth

30 mm

Height

158 mm

Width

158 mm

Unit Box Width

0.165

Unit Box Length

0.175

Unit Box Height

0.035

Category Code

WAP

Model name

TAP100001000

Model

TAP100

Antenna Type

Internal

Unit Calculated Volume

0.001357 cubm

Unit Calculated Weight

0.243 kg

Units per Shipping Box

18

Summary

Teltonika · Accesspoint· TAP100· 2x1· Wi-Fi 4· 300Mbit· 1x 10/100· 15W PoE - Access Point - 0,1 Gbps. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES-CCMP, TKIP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP, WPA3-SAE. Ethernet LA

Product colour

White

Certification

IEC 62368-1:2018EN IEC 62368-1:2020+A11:2020EN IEC 62311:2020EN 300 328 V2.2.2CE, UKCA, CB, FCC, IC, WEEE

Power consumption (max)

2 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

-40 - 75 °C

Weight

190 g

LED indicators

Power

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10/100 Mbit/s

Processor frequency

580 MHz

Quantity per pack

1 pc(s)

Reset button

Yes

Internal memory

64 MB

Cabling technology

10/100Base-T(X)

International Protection (IP) code

IP30

Built-in processor

Yes

Security algorithms

AES-CCMP/TKIP/WPA2-EAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-PSK

Maximum data transfer rate

300 Mbit/s

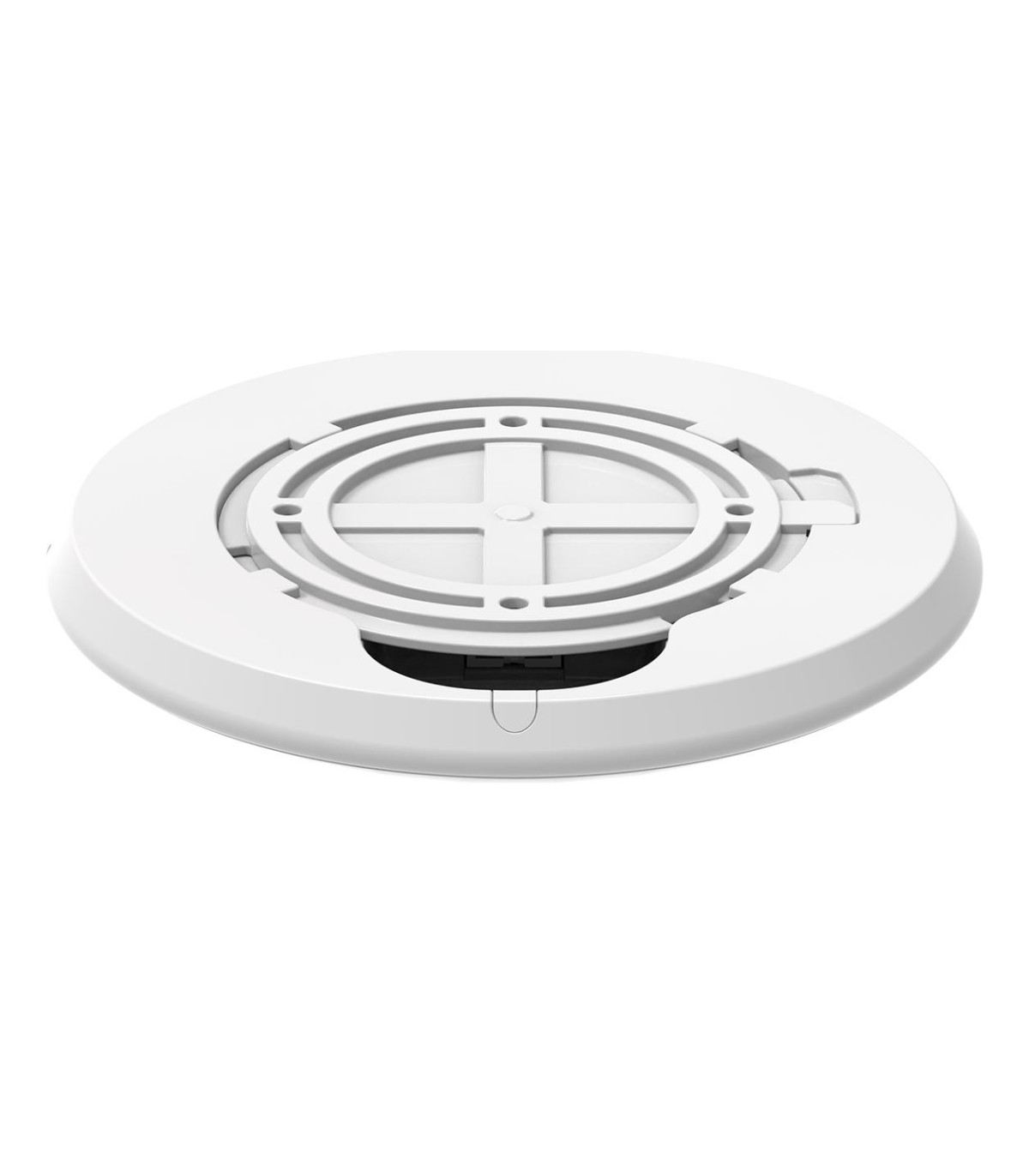

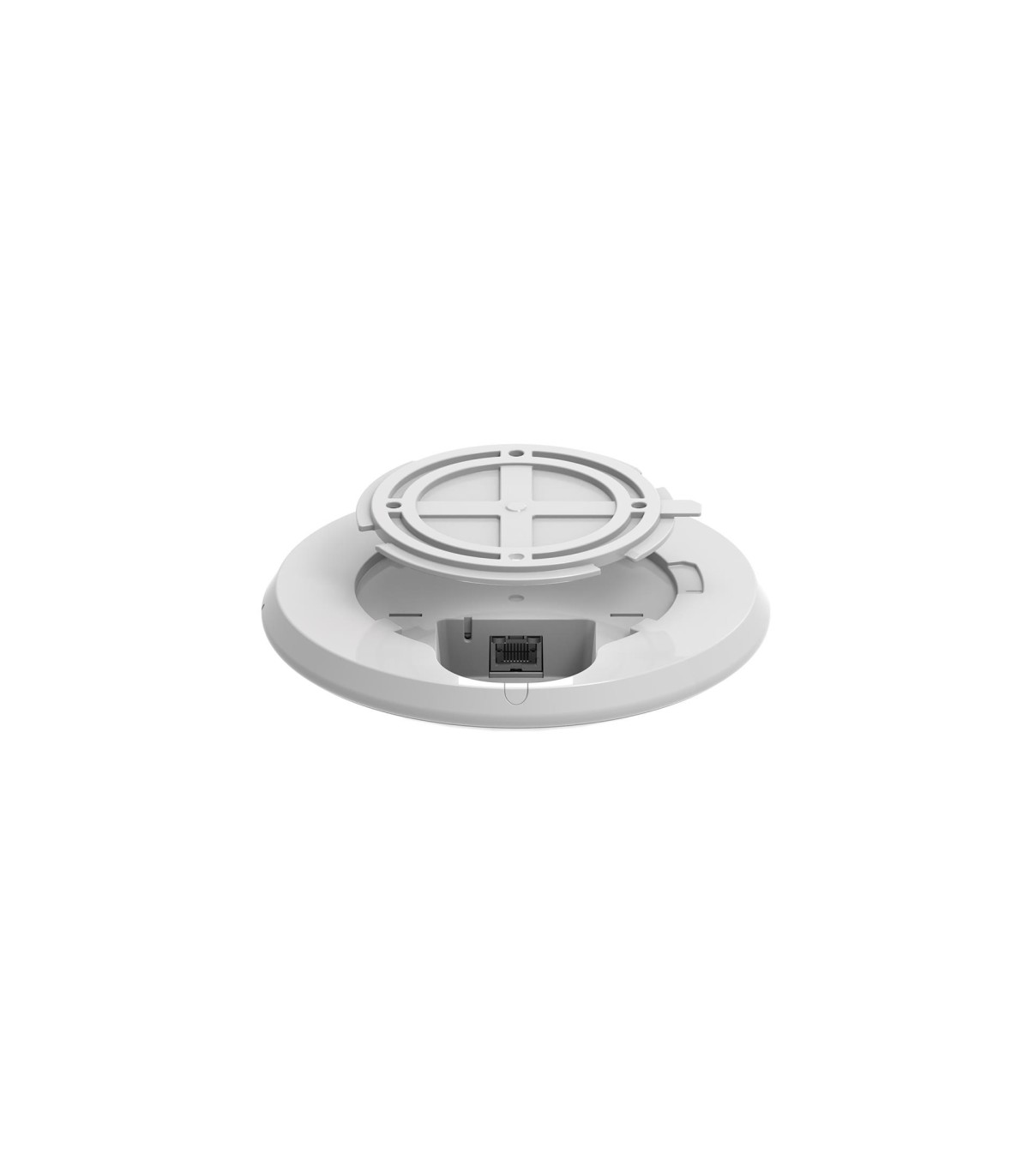

Mounting kit

Yes

Networking standards

IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.11r/IEEE 802.3/IEEE 802.3az/IEEE 802.3u

Flash memory

16 MB

Power over Ethernet (PoE)

Yes

Web-based management

Yes

VLAN support

Yes

MAC address filtering

Yes

Power over Ethernet (PoE) type supported

Active PoE

Firmware upgradeable

Yes

2.4 GHz

Yes

5 GHz

No

6 GHz

No

DC voltage range

44 - 57 V

Placement

Ceiling,Wall

WAN connection

Ethernet (RJ-45)

Wi-Fi roaming

Yes
